Hydraulic Shop Press HP-50, 50 Tone Pressure, 240V Motorized Industrial H Frame Shop Press

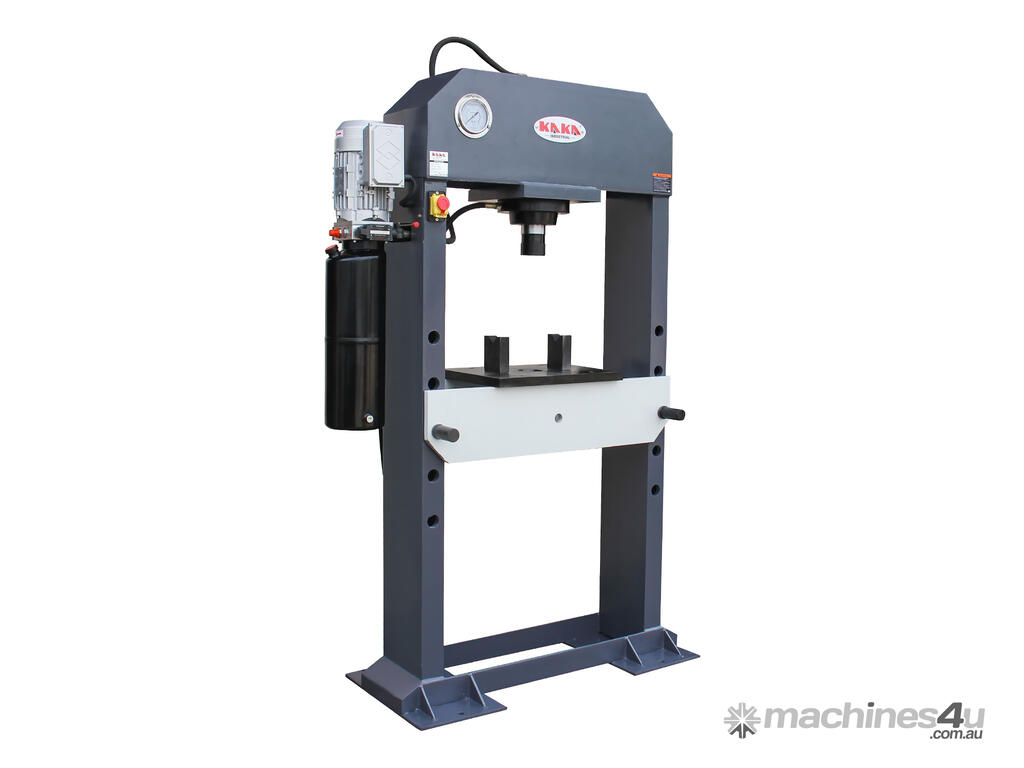

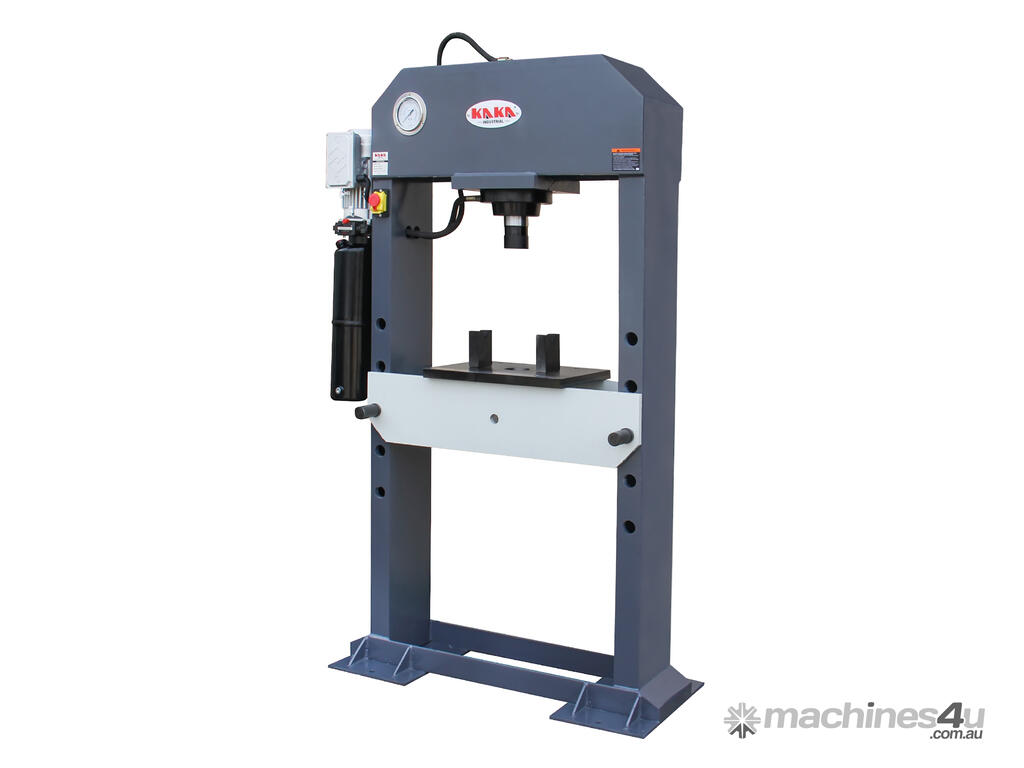

KANG INDUSTRIAL HP-50 Hydraulic Workshop Press

The heavy-duty, motorised hydraulic shop press HP-50 is designed for pressing, bending, straightening, and assembly/disassembly tasks in workshops, automotive repair, fabrication, and light industrial settings. It applies up to 50 tonnes (50,000 kg) of force using a 240V electric hydraulic system for smooth, effortless operation

Motorised Convenience Press Machine. 240V electric operation,  fast, effortless pressing (no tiring hand-pumping like manual presses). Great for frequent or heavy use, saves time and reduces fatigue.

Heavy-Duty Build Shop Press. Welded steel frame provides stability and longevity under high loads, with less flex or failure risk.

High Force in Compact Form. 50 tonnes handles most common workshop jobs (e.g., larger than typical 20-30 tonne presses) without needing massive floor space.

Multi-Purpose Pressing Machine. Ideal for automotive (bushes/bearings), farming (machinery repair), metal fab (bending/straightening), or even light forging.

Features

50-ton Capacity motorized hydraulic press

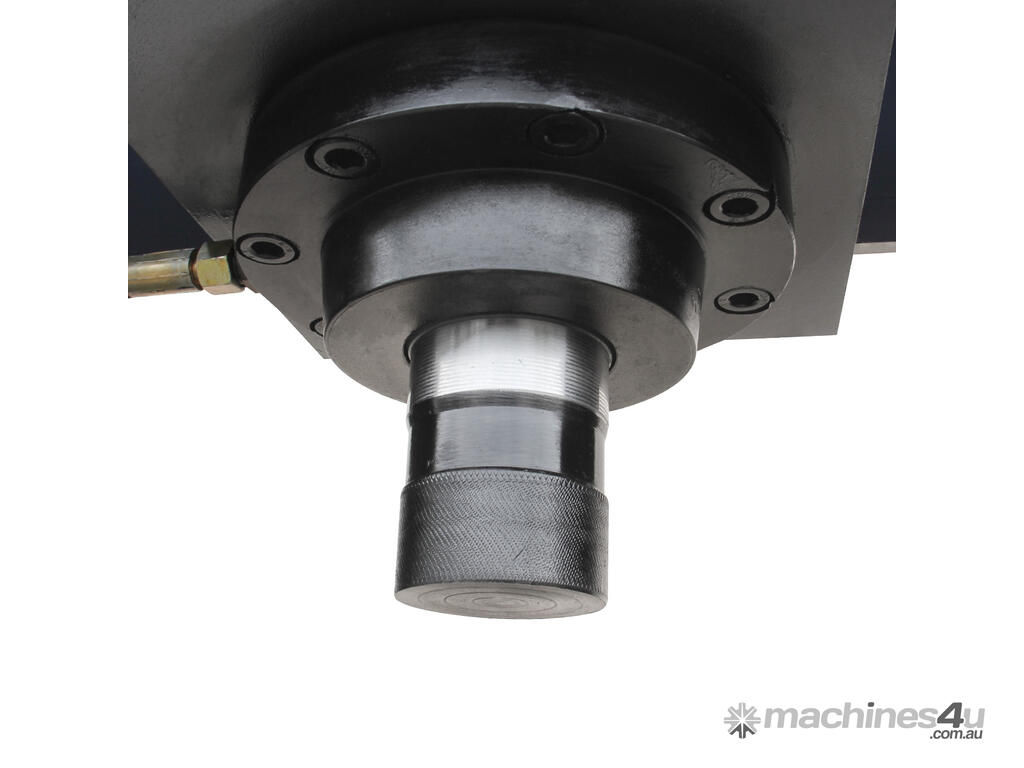

Fixed central cylinder delivers 25 MPA pressure

Fully welded steel frame, robust structure workshop press

Distance between uprights, 800 mm

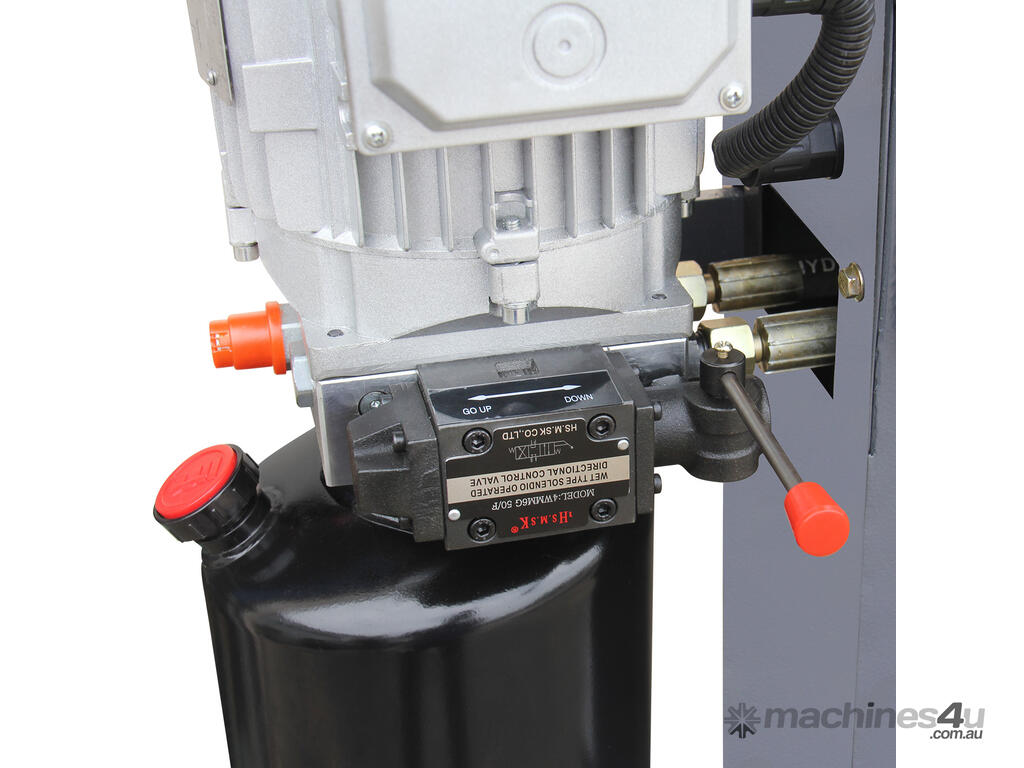

Dual speed control with manual direction valve

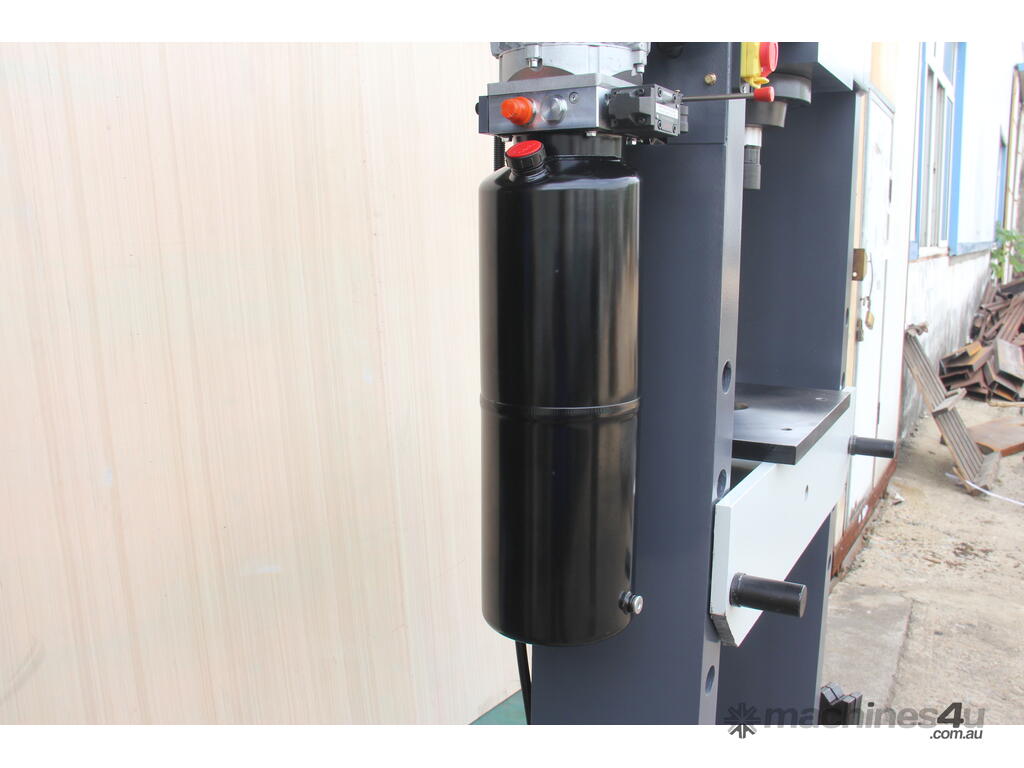

Gear pump with 12L hydraulic tank

Standard with a press gauge on the machine body

Optional Hydraulic Oil

Specifications
Model HP-50
Item ID. 182002V240
Capacity 500 kN
Pressure 25 Mpa
Hose Length 500/500/600
Reservoir Capacity 12L
Max. Piston Stroke (mm) 220
Hydraulic Cylinder OD (mm) 193
Piston Rod Diameter (mm) Piston 160 / Rod 80
Piston Speed Down 5.1 mm/s,
Up 6.8 mm/s
Max. Distance: Ram to Table (mm) 660
Min. Distance: Ram to Table (mm) 120

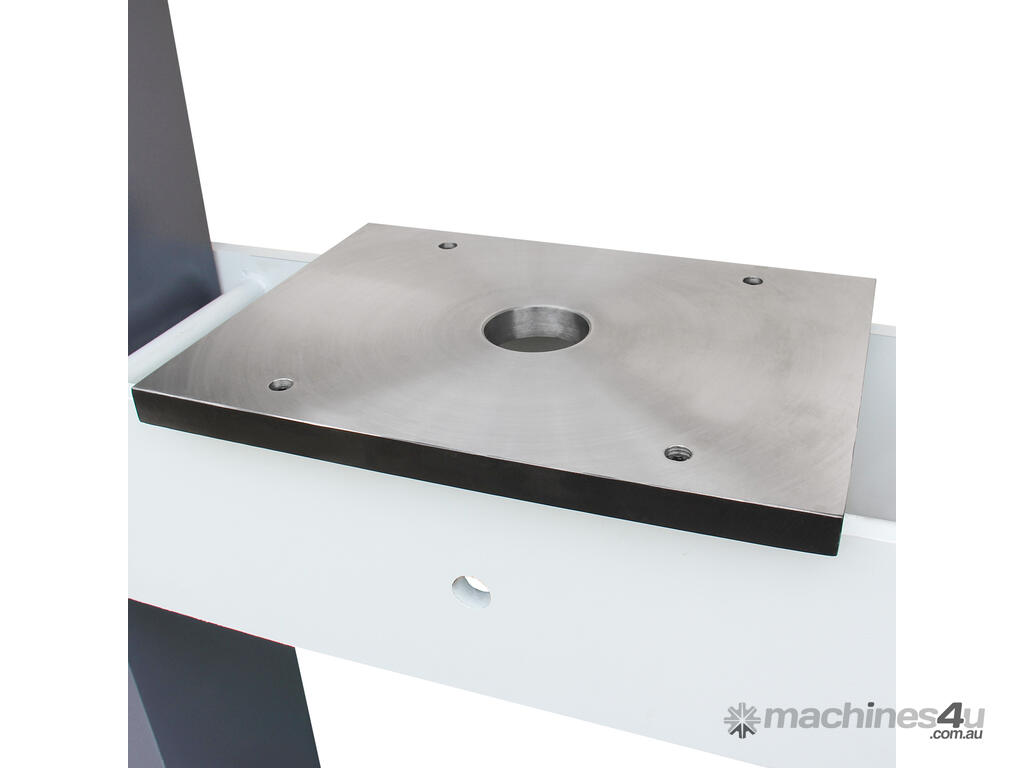

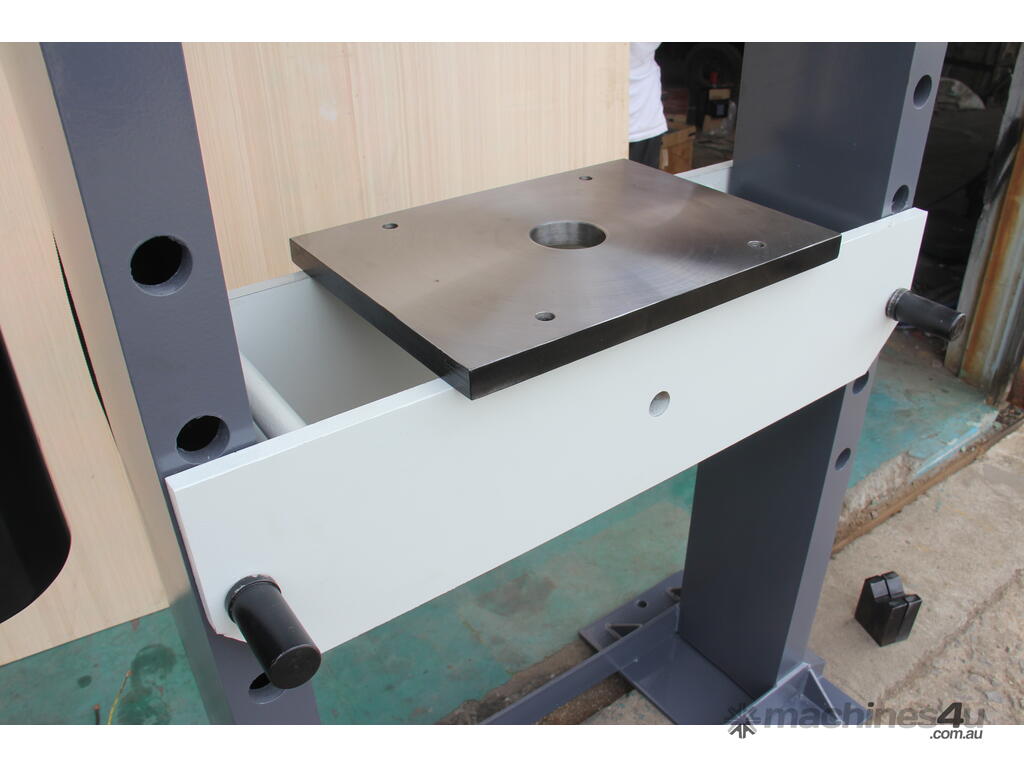

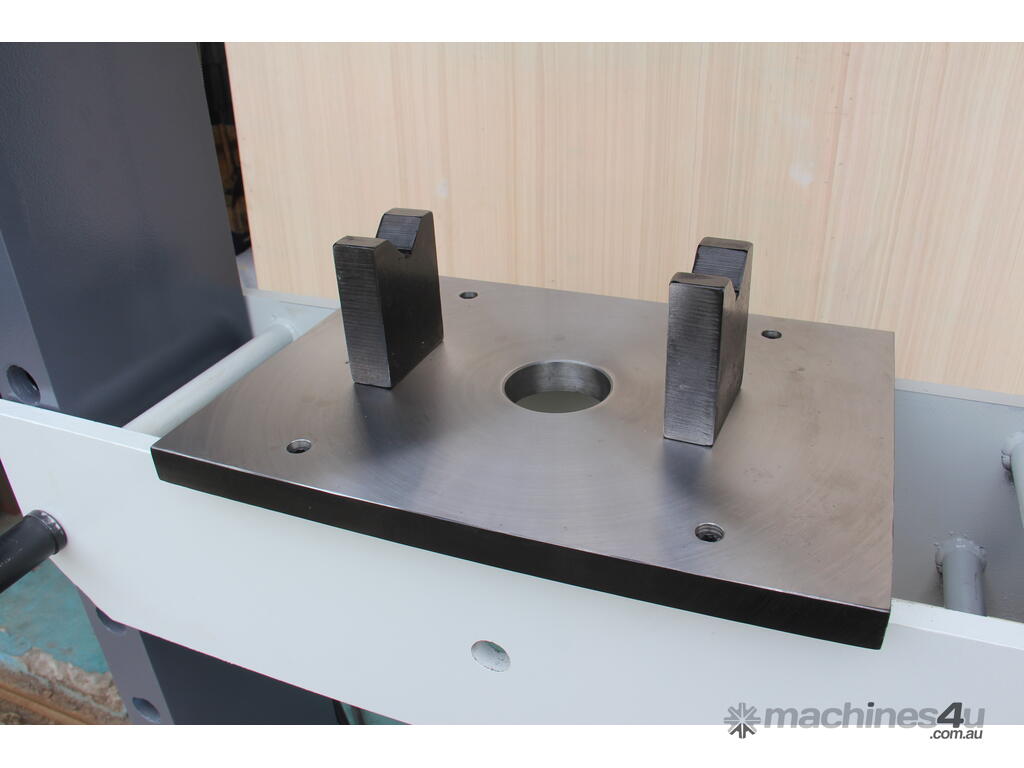

Table Length (mm) 480
Table Width (mm) 360
Table Pin Diameter ?38.5

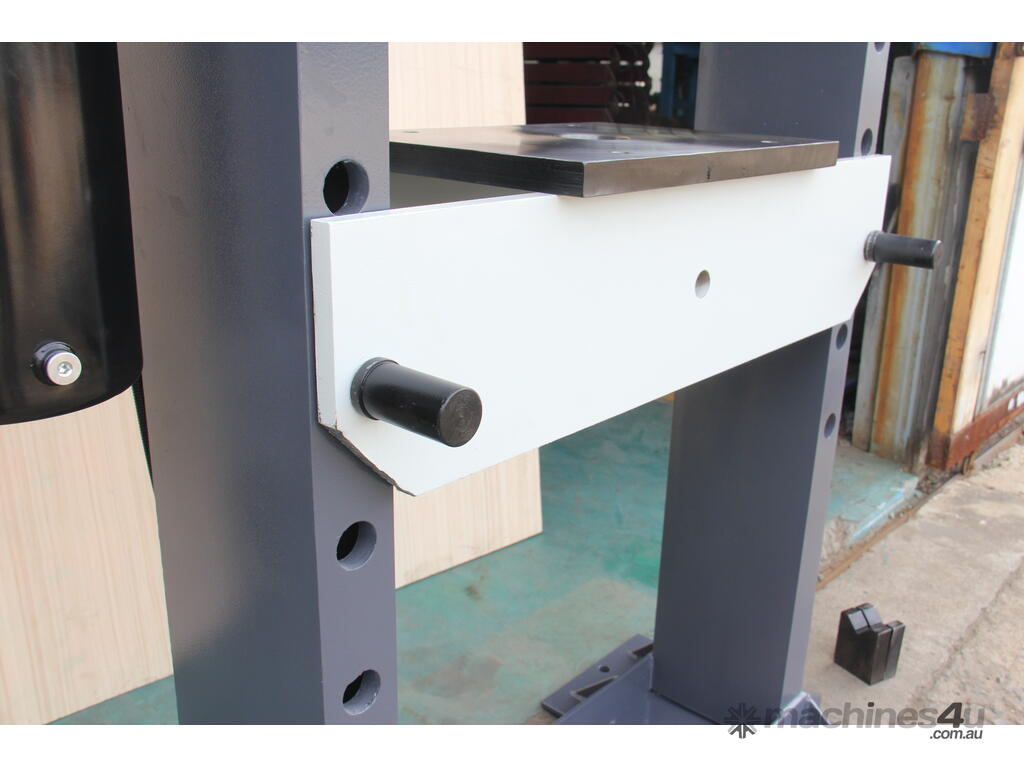

Number of Adjustment Holes 5
Adjustment Hole Spacing (mm) 135
Overall Height (mm) 1770
Overall Width (mm) 500
Overall Length (mm) 1070
Adjustment Hole Diameter ?40
Inner Frame Width (mm) 800
Packing size 148x64x200 cm
N.W./G.W. 520/593 kg
