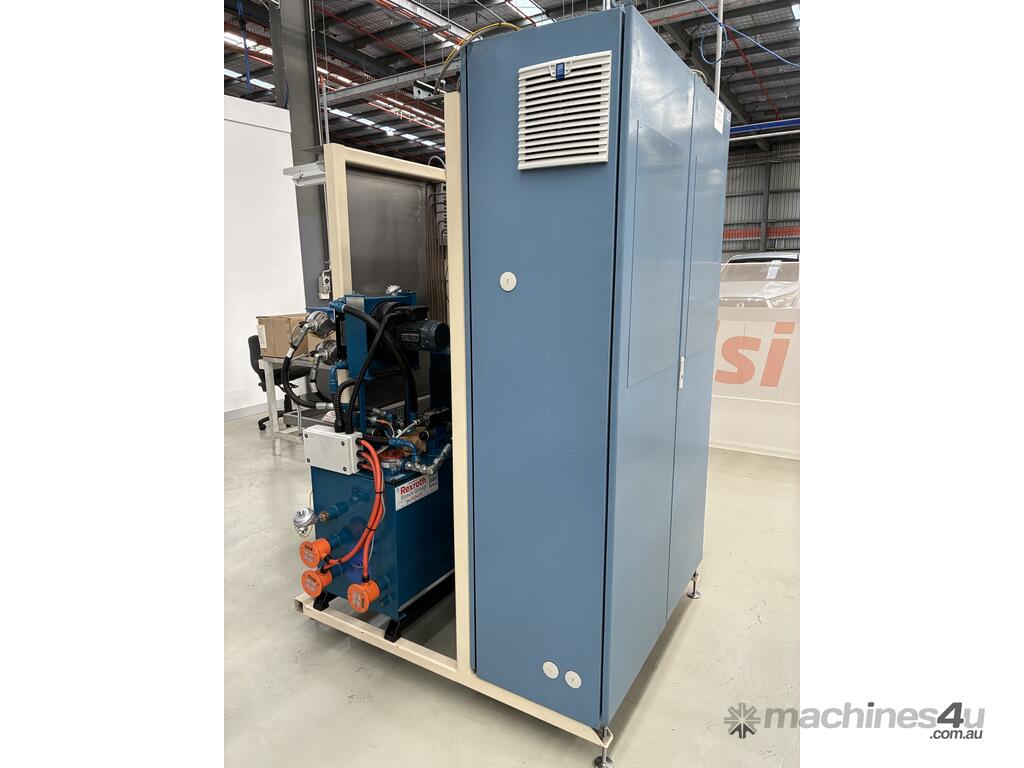

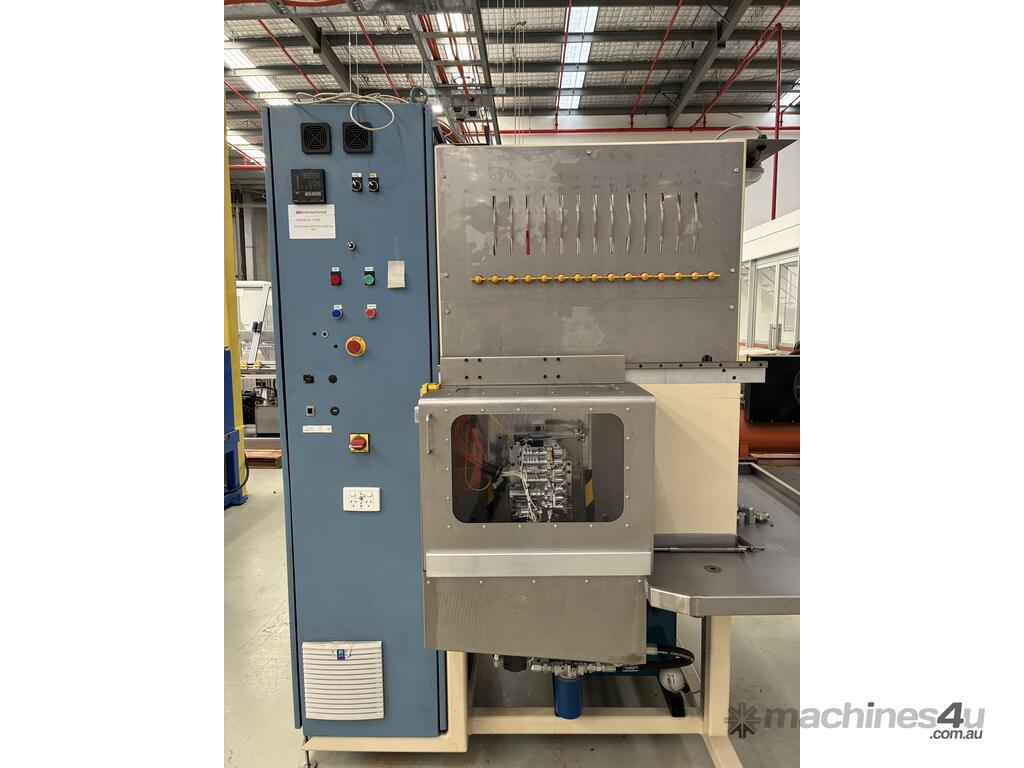

This Hydraulic Test Machine is a precision-engineered system developed for valve body characterisation, hydraulic component testing, and mechanical validation work. Designed for professional R&D environments, it integrates National Instruments PXI control, Rexroth hydraulic power, and Omron temperature regulation into a robust, lab-maintained setup. Ideal for automotive, industrial research, or production QA applications where high repeatability and control are essential.
Technical Description:

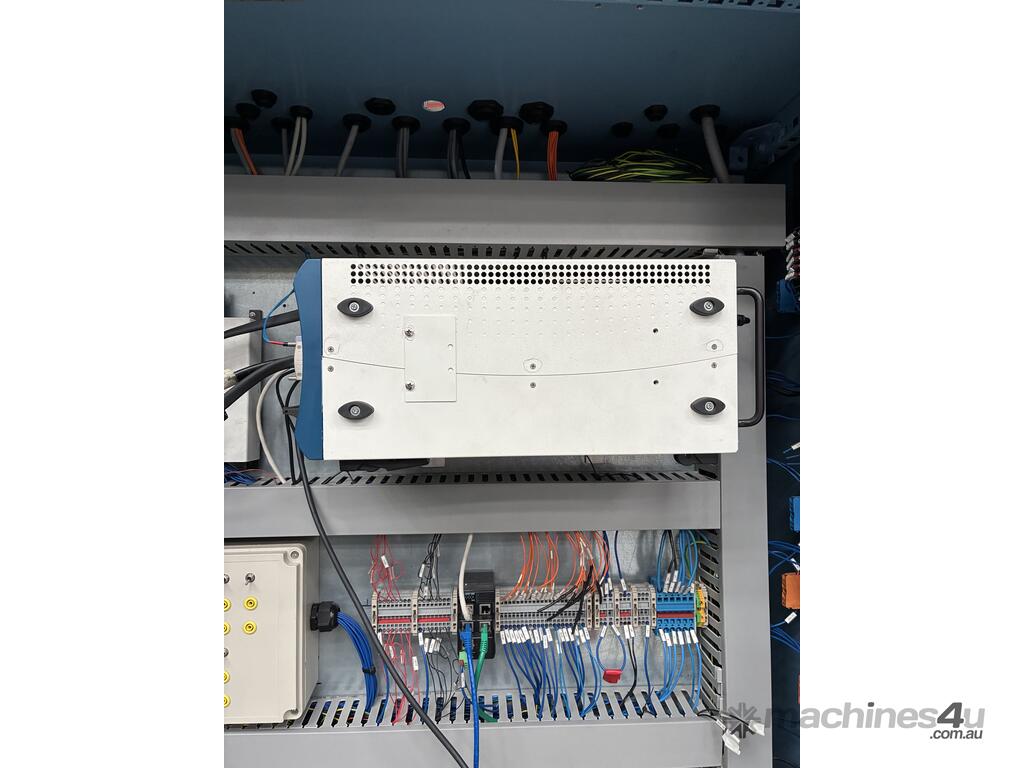

- National Instruments PXI-1042 Chassis: Modular 8-slot system supporting real-time data acquisition and control for hydraulic and mechanical test applications.

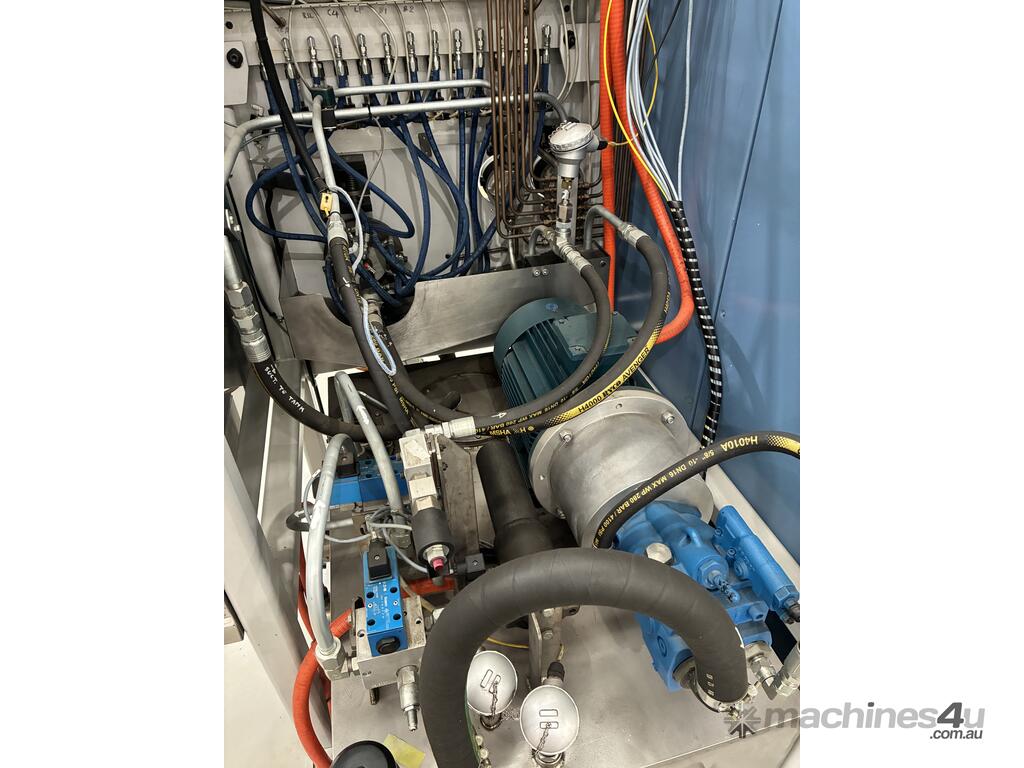

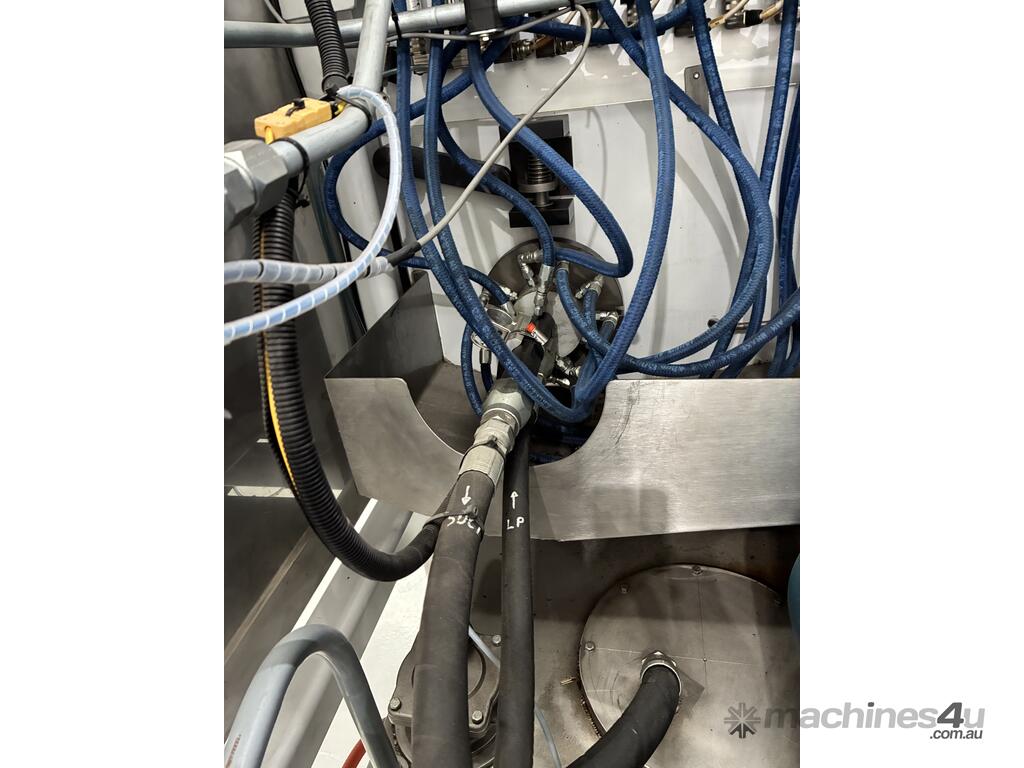

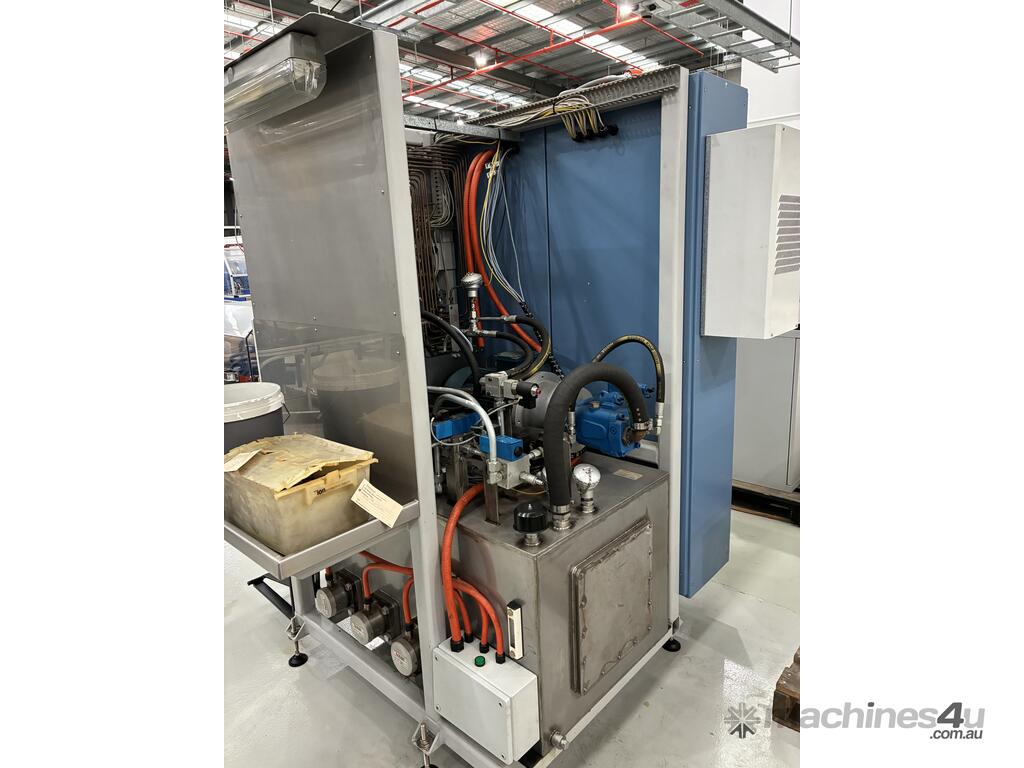

- Rexroth Hydraulic Tank & Power Pack: Heavy-duty hydraulic reservoir and electric pump assembly featuring integrated Hotco heating elements for controlled temperature operation.

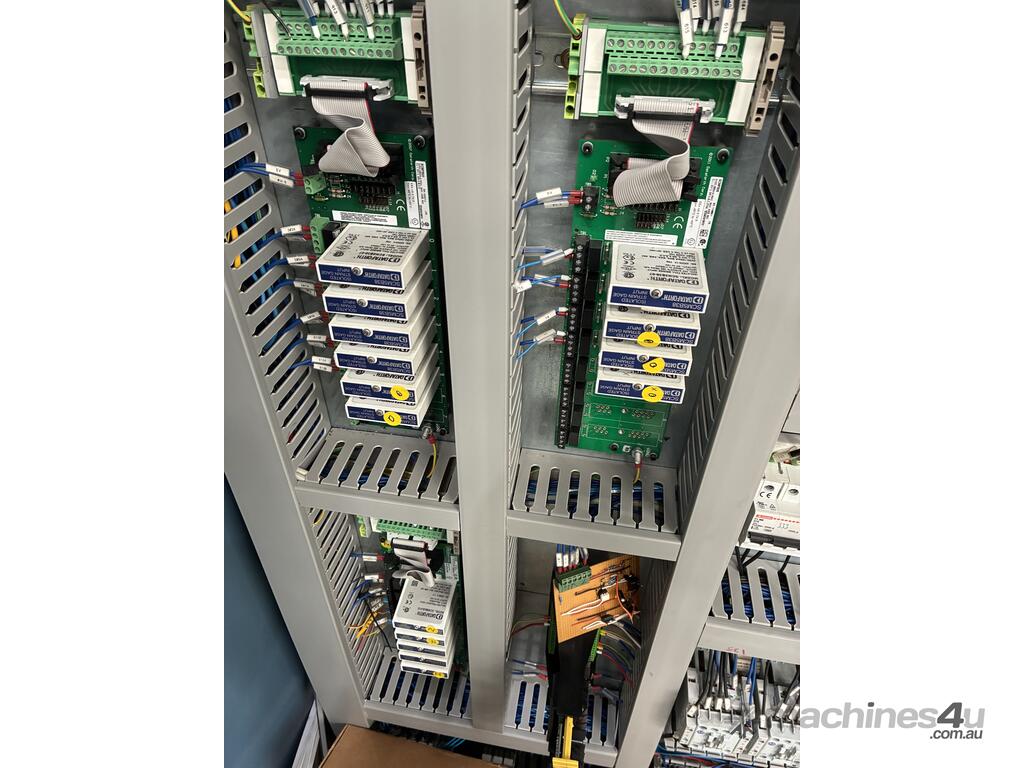

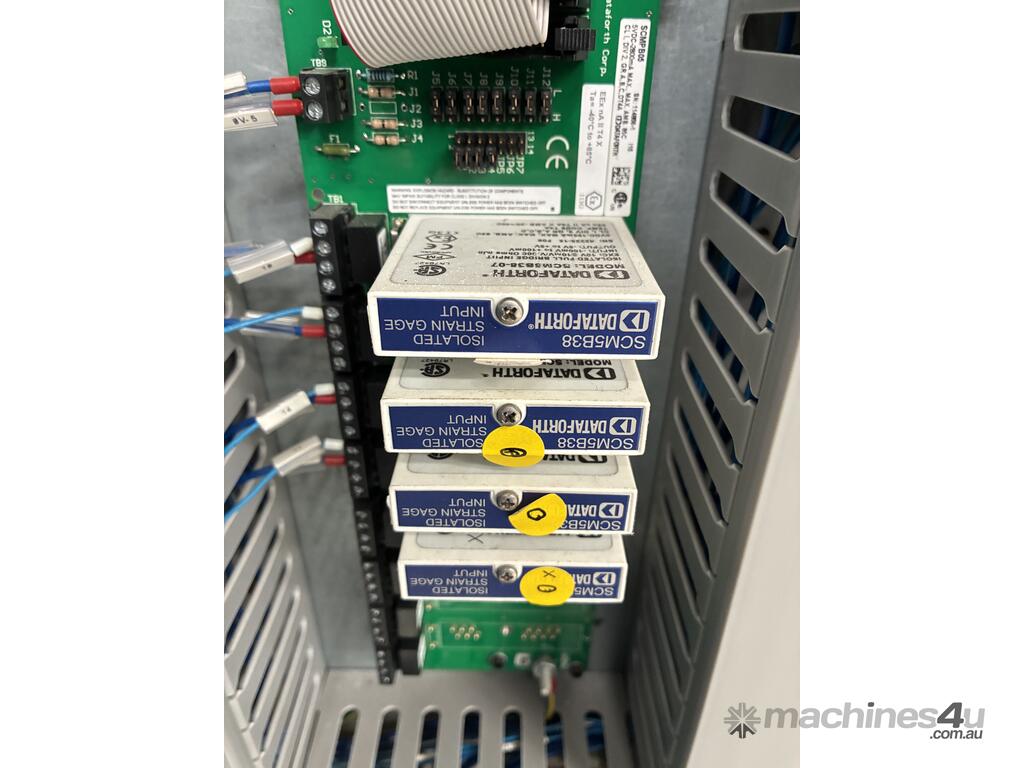

- Dataforth SCM5B38 Modules (x13): High-accuracy isolated strain gauge input modules supporting quarter, half, and full bridge configurations for detailed load and pressure mapping.

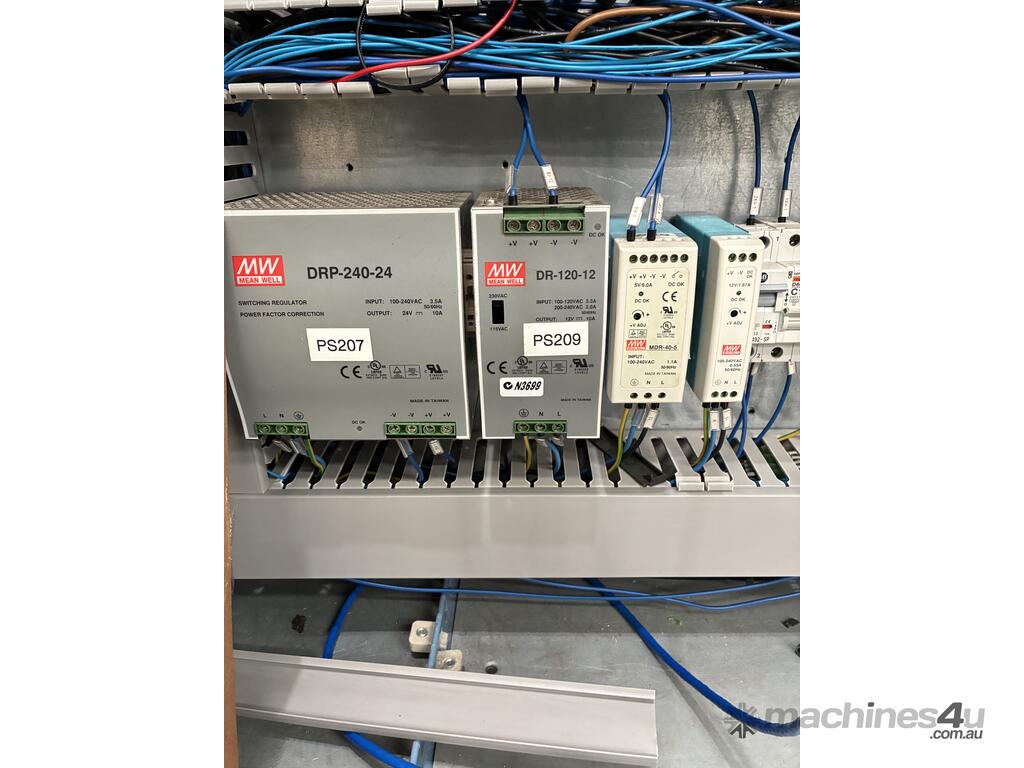

- MW Mean Well Power Supplies:
- DRP-240-24 – 24V 10A regulated DC output
- DR-120-12 – 12V 10A regulated DC output
Provides stable power to controllers and sensor instrumentation.

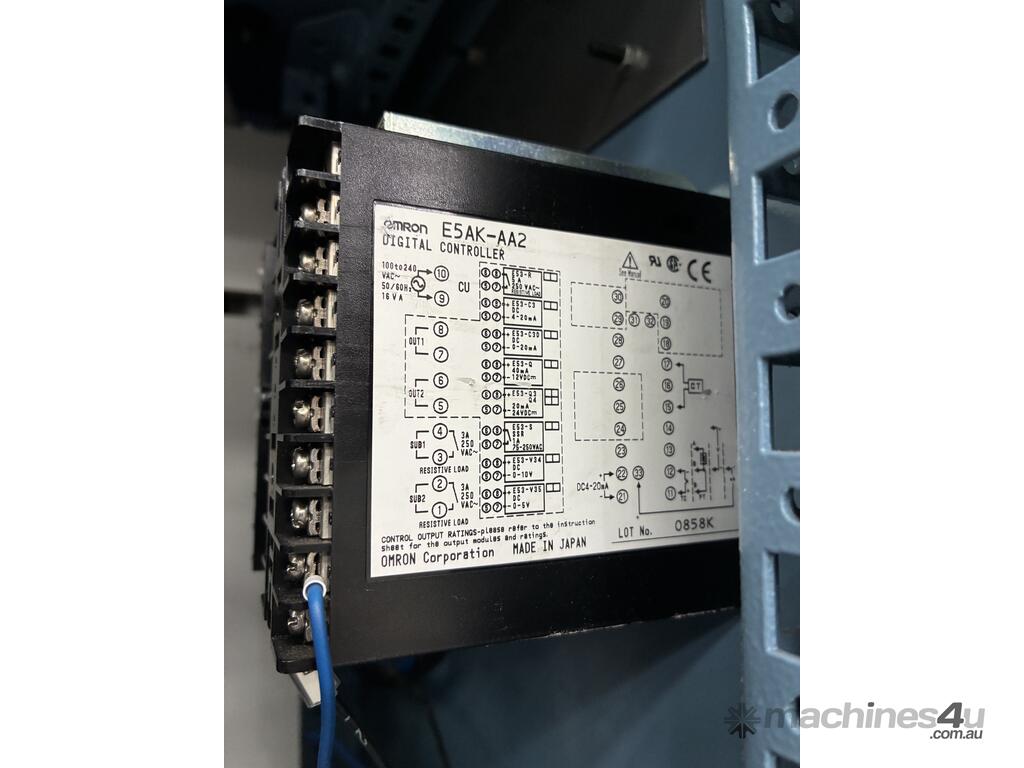

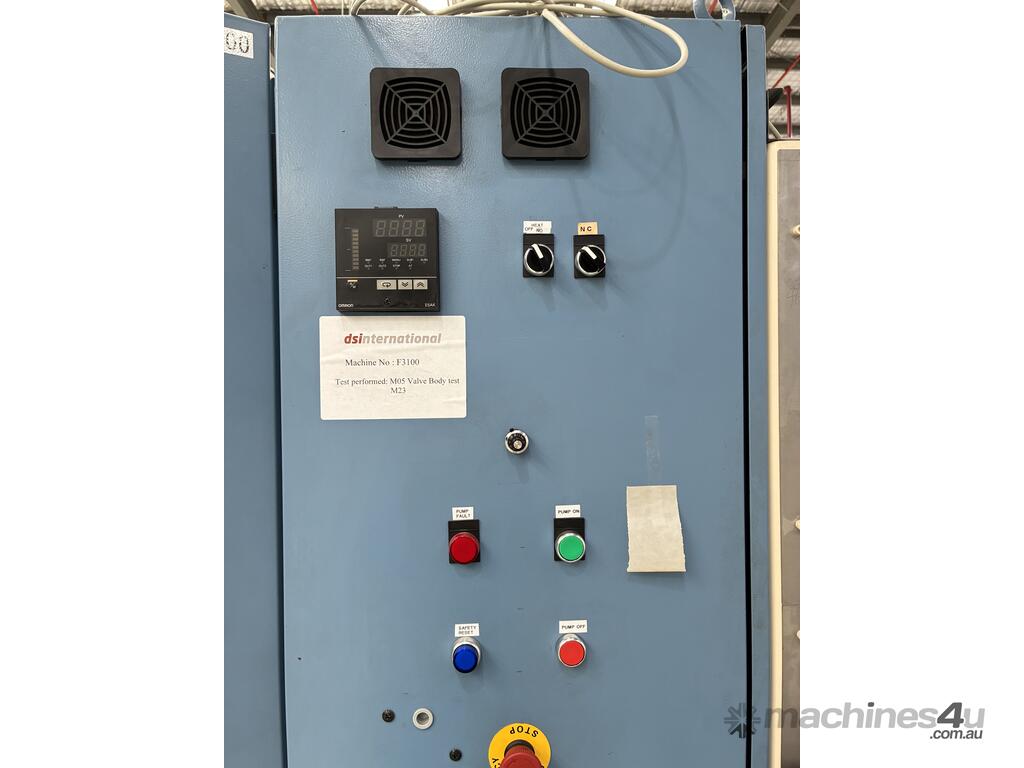

- Omron E5AK-AA2 Temperature Controller: Advanced PID-based control for maintaining precise hydraulic or environmental temperature using thermocouple or RTD input.

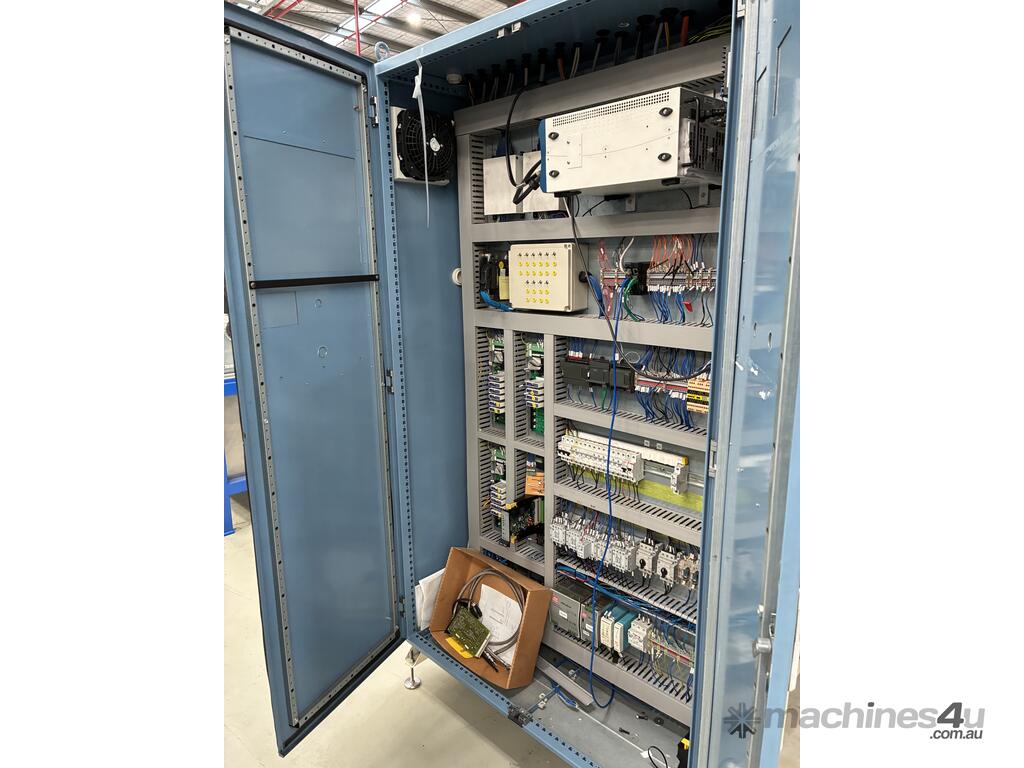

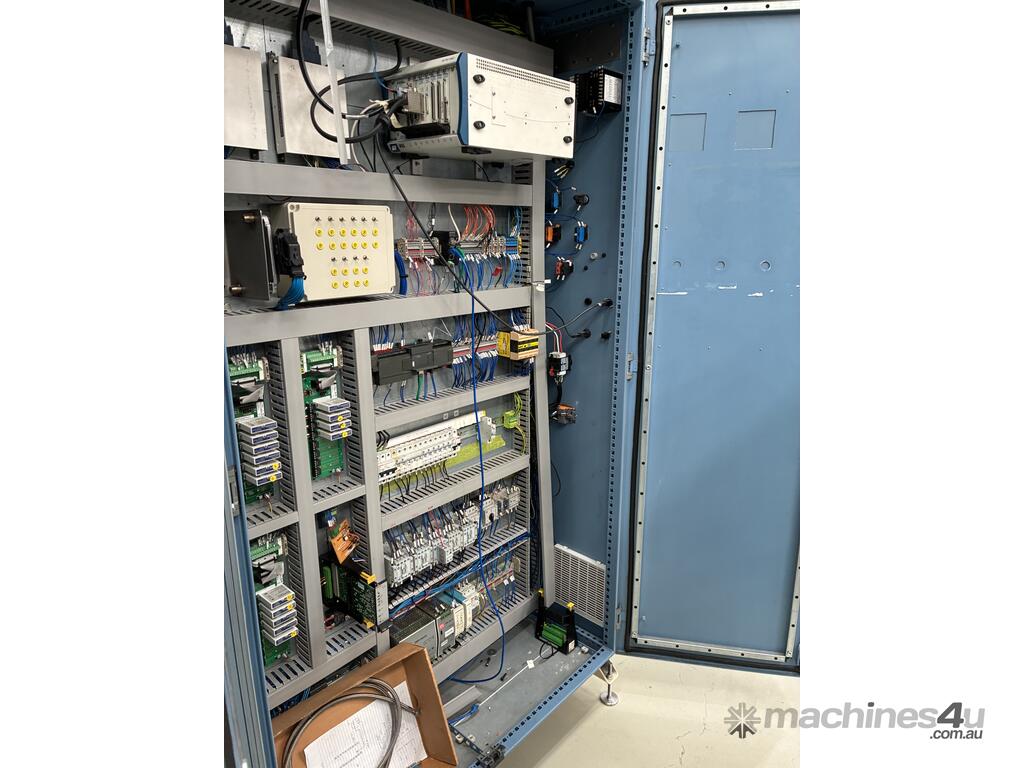

- Industrial Switchboard: Professionally integrated for distribution, system protection, and sensor connectivity.
Applications include:
- Valve body and hydraulic component characterisation
- Load and pressure mapping using strain gauge instrumentation
- Automotive and R&D test benches
- Closed-loop hydraulic testing with temperature feedback
Item is from a factory closing sale and priced to sell. It is in used condition and untested, sold on an as is, where is basis. Photos form part of the description.
Pickup only. We can assist with loading and have a forklift onsite. In special circumstances, freight may be organised at the buyer’s cost.
Inspection available upon request prior to purchase.
