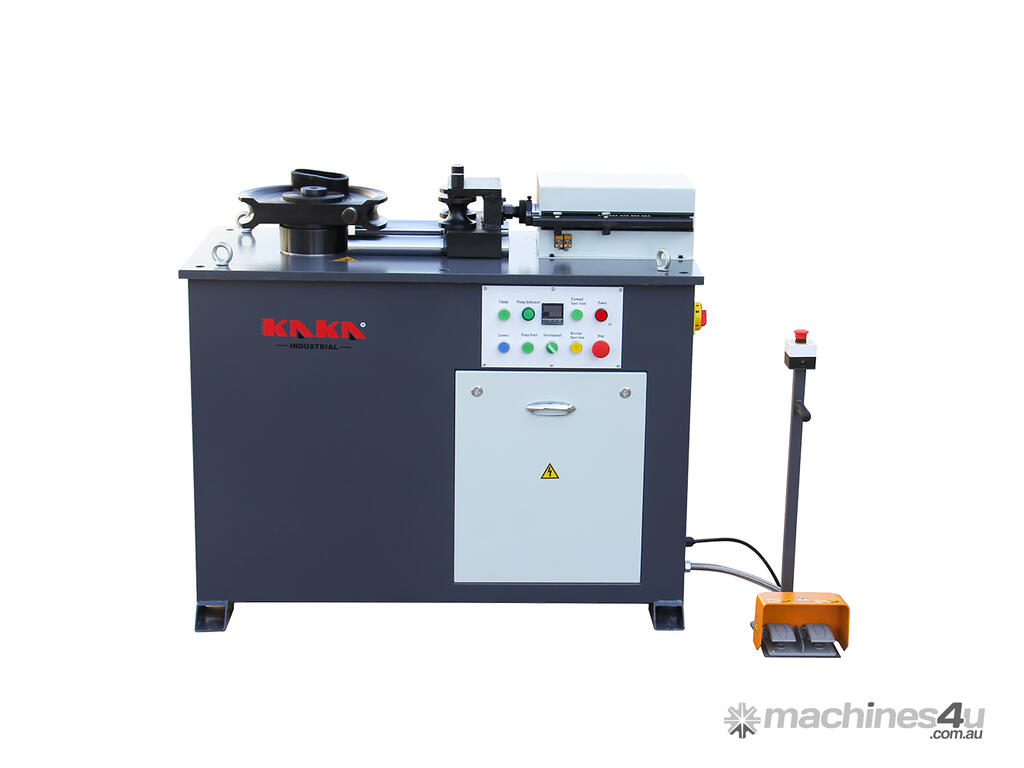

Hydraulic Tube Bender JTB-50
This KANG heavy-duty motorised hydraulic tube and pipe bender JTB-50 is designed for professional workshops, fabrication shops, and industrial use. It offers precise, repeatable bends in round and square tubing up to 50mm, with digital controls for accuracy and efficiency.
The rotary draw bender bends from 0° to 180° and features hydraulic clamping/release for secure operation. Powered by a 415V 3kW motor (three-phase), it includes a digital angle controller for automatic or manual setting, twin foot pedal operation, and a sturdy cabinet base with storage. The package comes complete with 4 sets of tooling: 33.4mm (25NB) round, 42.4mm (32NB) round, 48.3mm (40NB) round, and 40mm square. Additional dies are available for other sizes
Ready-to-Use Tube Bender. Includes 4 popular tooling sets (33.4mm (25NB) round, 42.4mm (32NB) round, 48.3mm (40NB) round, 40mm square), saving thousands compared to buying dies separately—perfect for an immediate start on common Australian pipe sizes (NB standards).
Precision & Repeatability. Digital angle setting ensures accurate, consistent bends every time, ideal for production runs or professional-quality work.
Effortless Operation. Full hydraulic clamping and twin foot pedals reduce manual effort; motorized bending handles thick materials without strain.
Industrial Production Speed. For the mining, agriculture, or commercial fabrication sectors, the 3kW motorized drive is a game-changer. It completes bends significantly faster than air-hydraulic units, allowing for higher output and lower labor costs per part.
Versatility Pipe Bender. Handles round pipe and square tube, and expands with extra dies; suitable for workshops, motorsports, construction, and metal fabrication.
Features
Runs on 415V 3PH motor

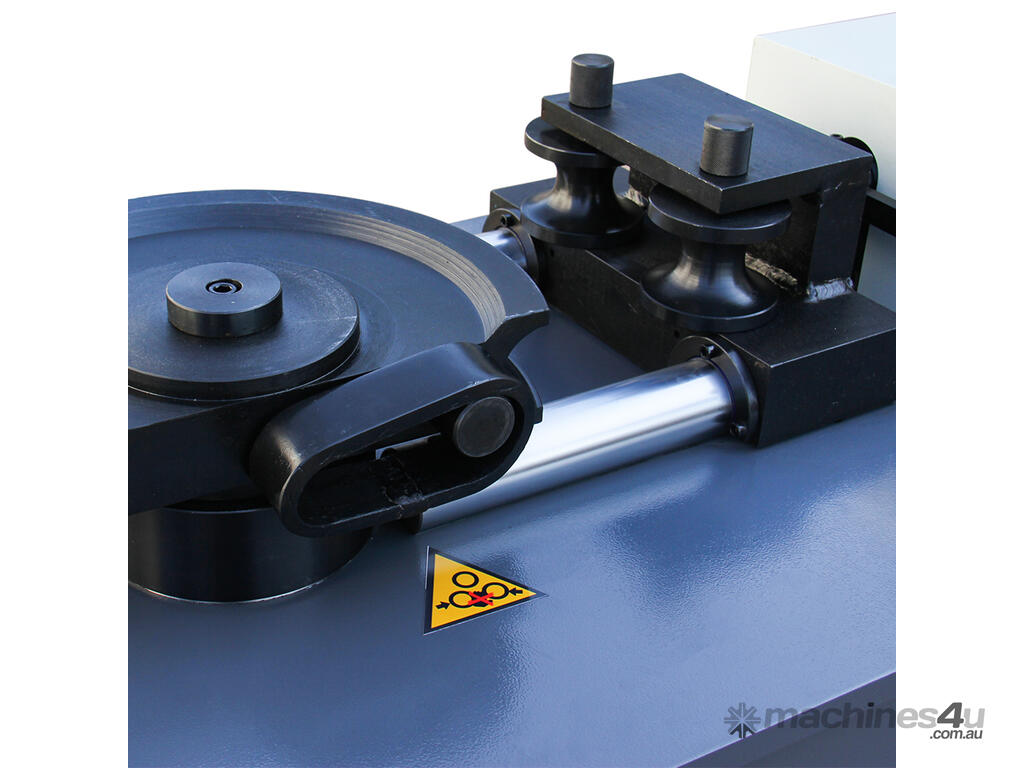

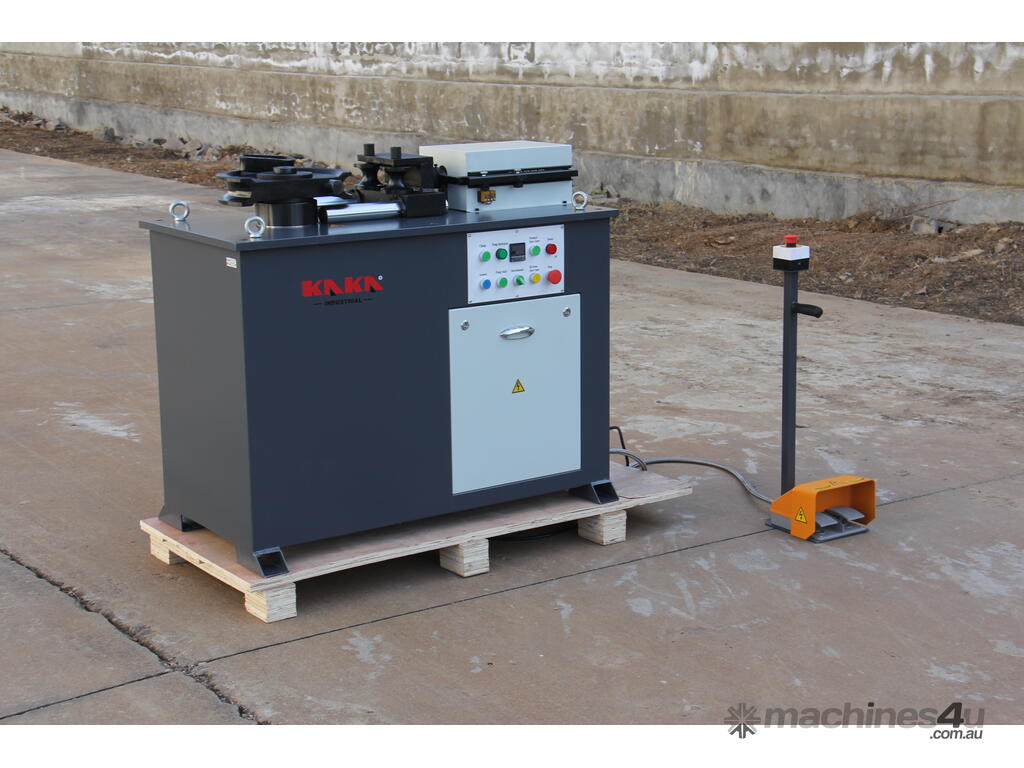

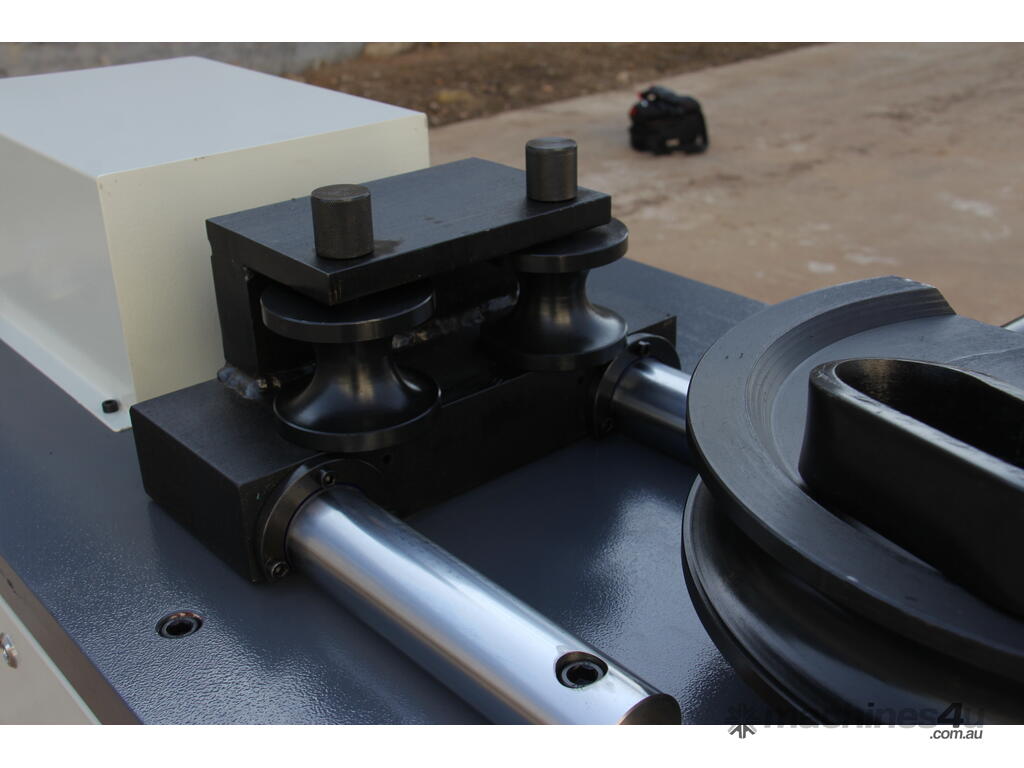

Hydraulic clamping, movable foot pedal control

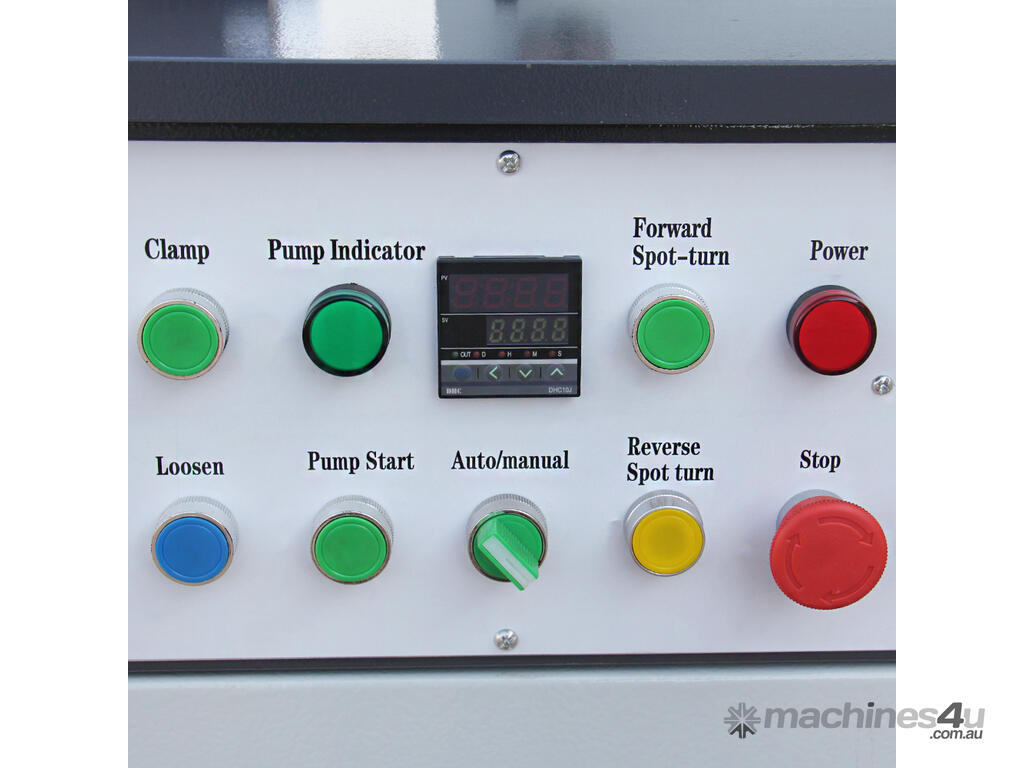

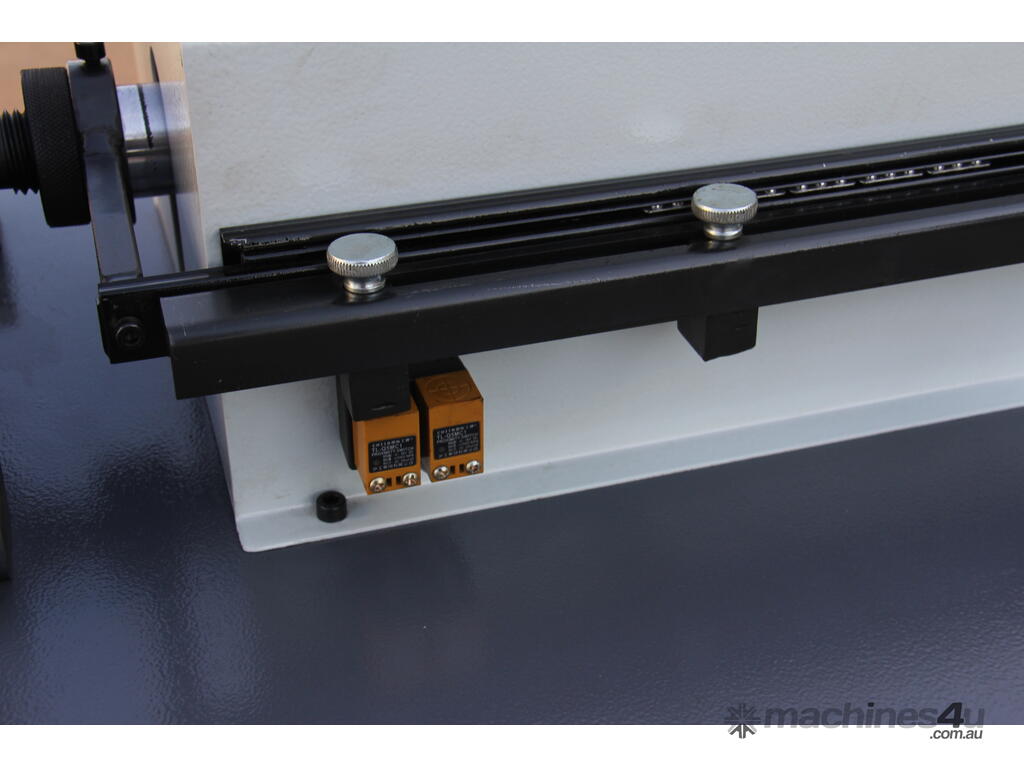

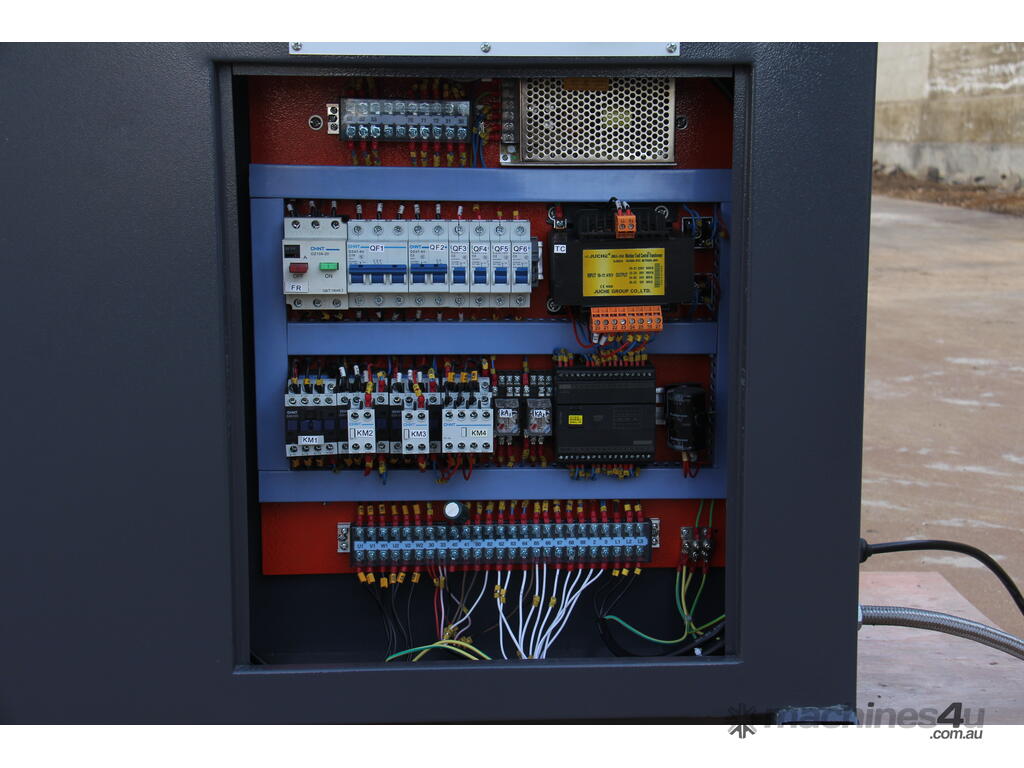

PLC control, easy to set the bending angle

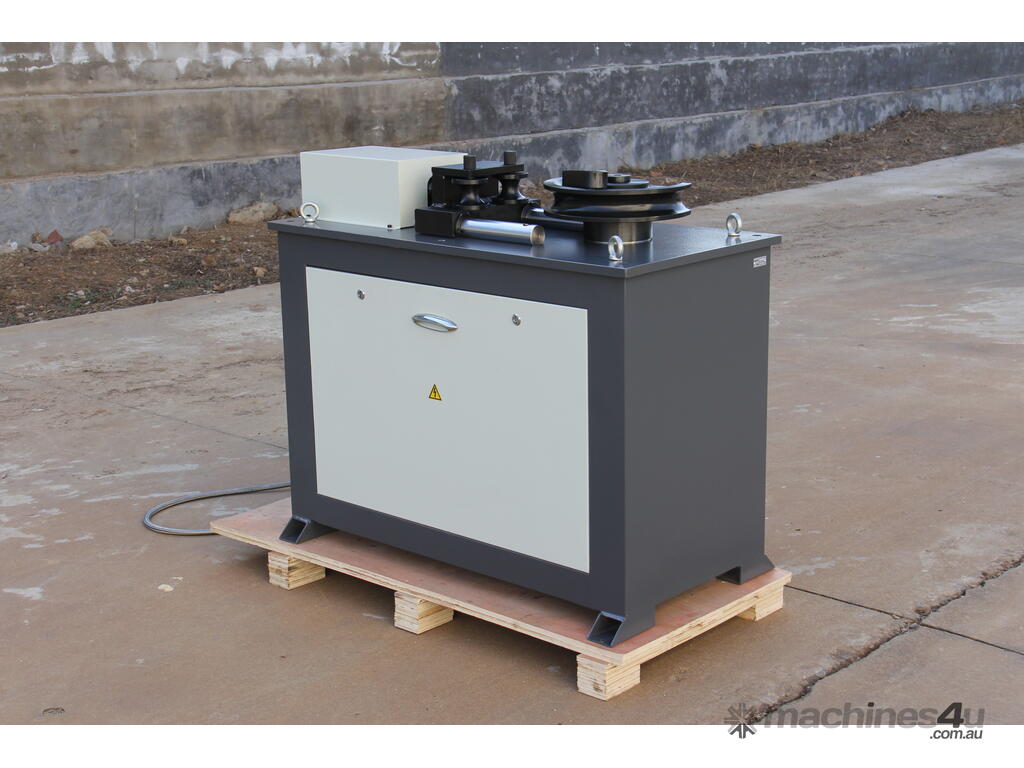

Heavy-duty structure for industrial use

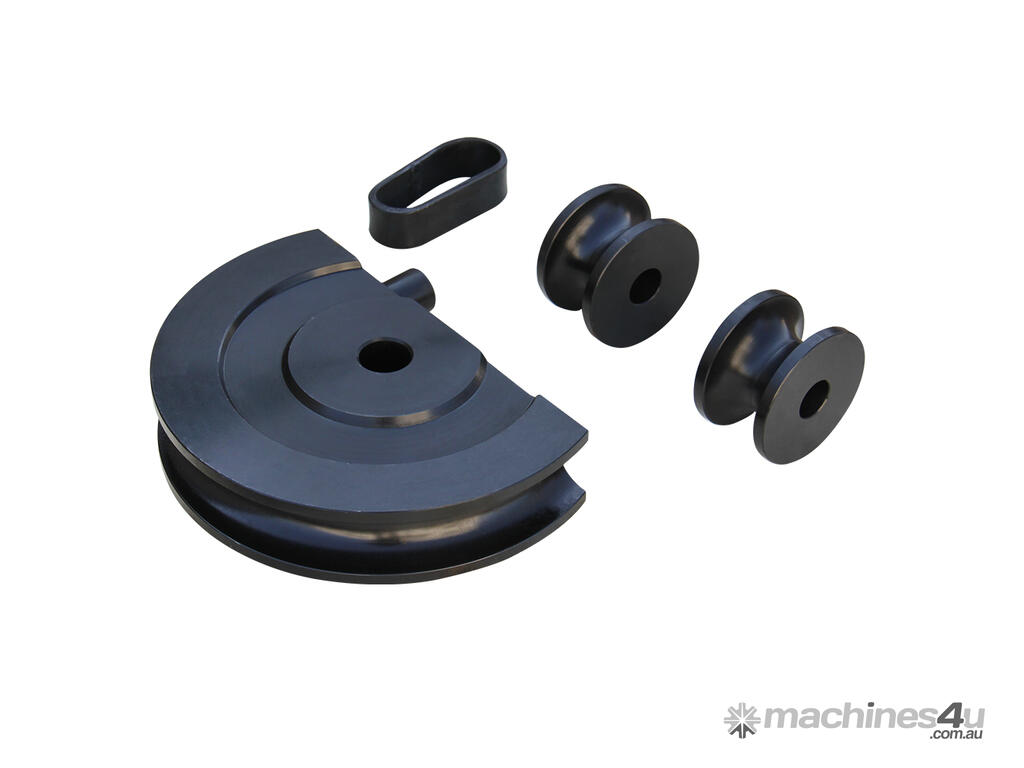

Standard with 4 sets of tooling of 25NB, 32NB, 40NB & 40mm square dies

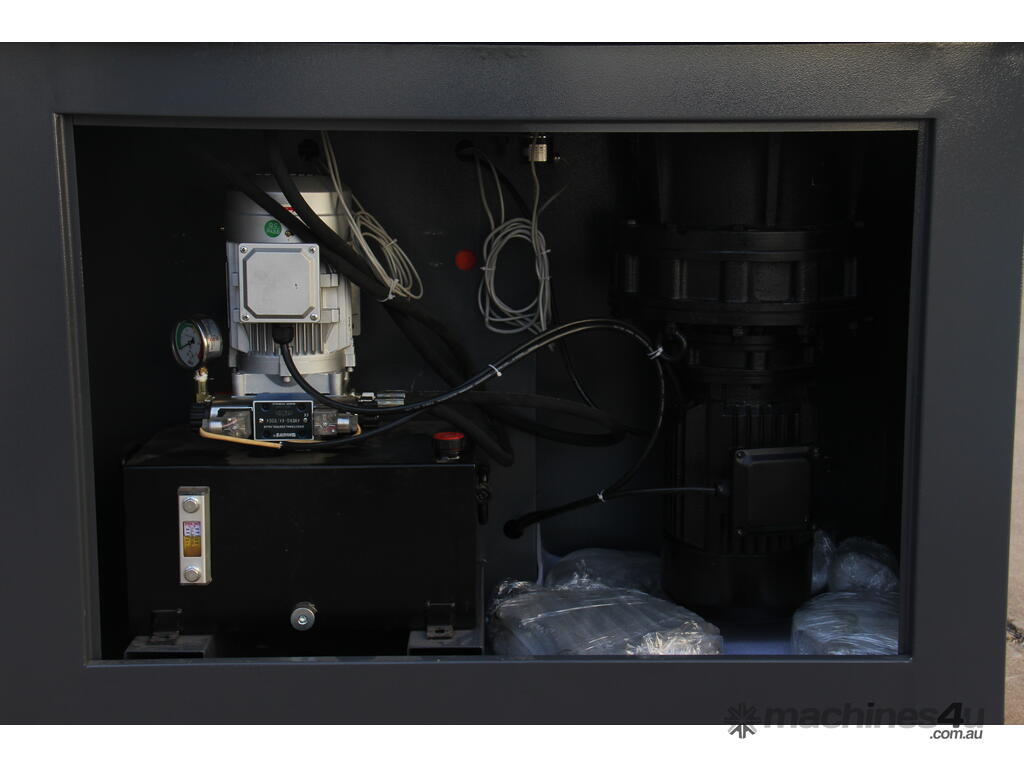

25L Hydraulic Oil is needed to run the machine
Optional Tooling Set for JTB-50
Specifications
Item No. 191063
Model JTB-50
Round tube Max. 51mm, Min. 16 mm
Stainless Steel Pipe Max. 38mm, Min. 16 mm (special dies needed)
Square Pipe Max. 50*50mm, Min. 16x16 mm
Bending Angle Max. 180°
Bending Motor 2.2 kW, 1400 r/min
Clamping Motor 1.1 kW, 1400 r/min
Packing size 145x69x117 cm
N.W./G.W. 550/620 kg
