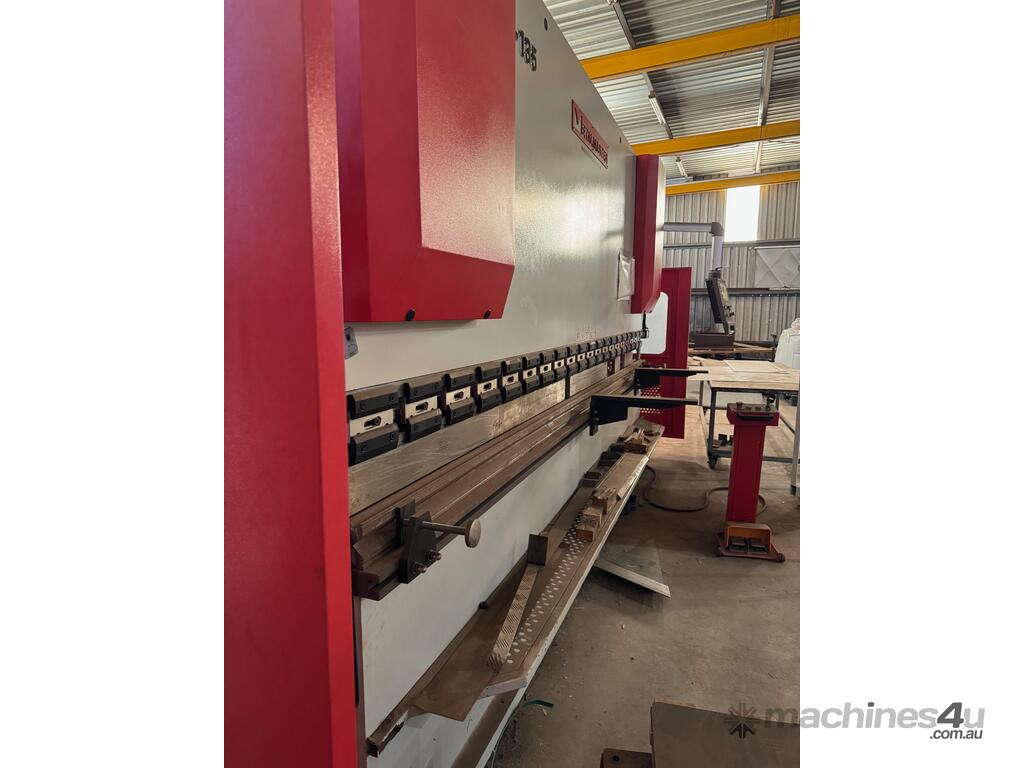

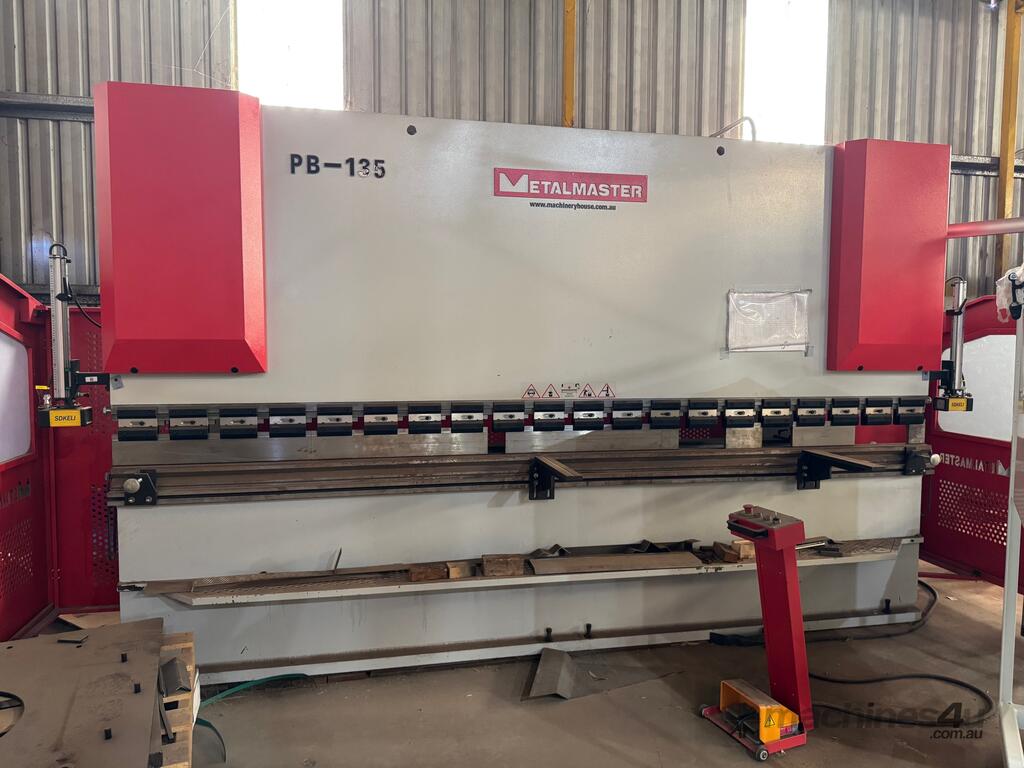

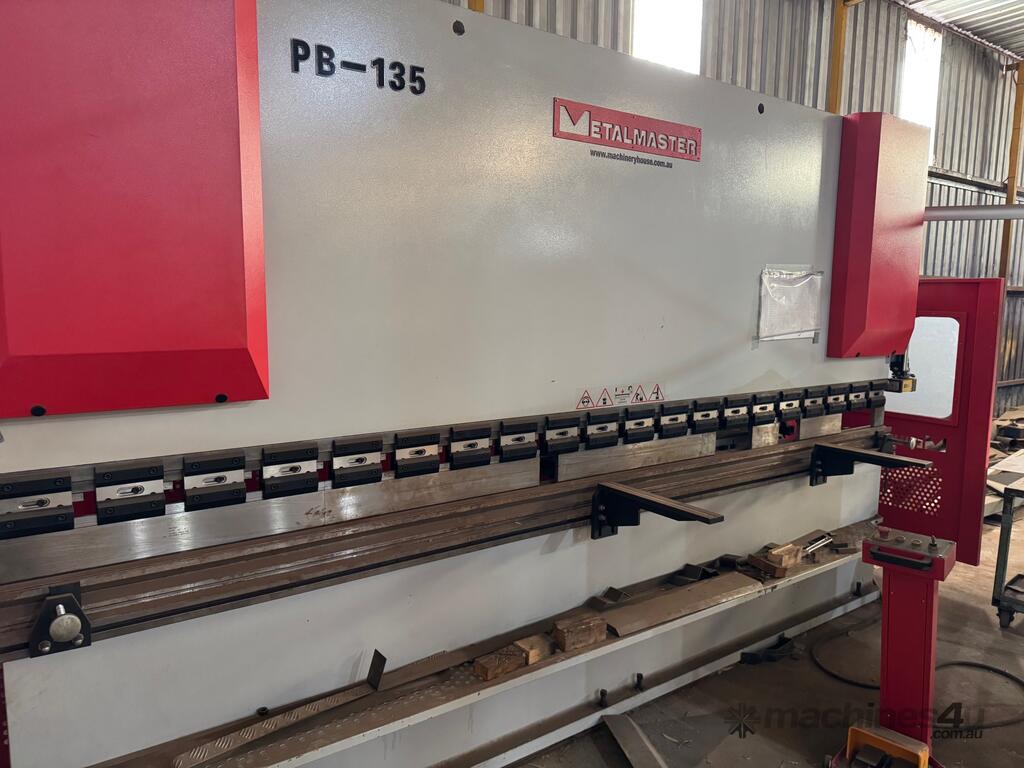

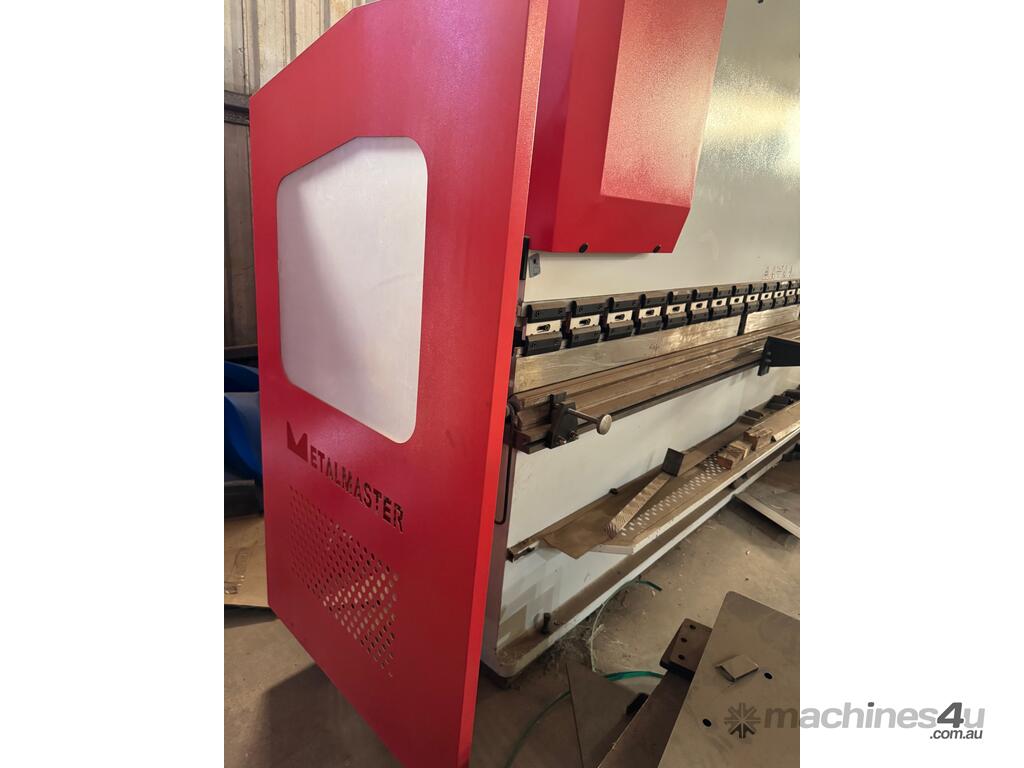

Hydraulic pressbrake

135?Ton 4?Metre Near?New Condition

This machine has had extremely minimal use, only a couple of jobs since purchase and presents in as?new mechanical and cosmetic condition. It is a current?generation NC pressbrake with the Estun NE controller, offering reliable, repeatable bending performance suitable for production or precision jobbing work.

Perfect for fabrication shops needing serious bending capacity without the wait times or price tag of a brand?new unit. Instruction manual and bending chart available.

Key Features
135?ton bending capacity
4000mm bed length
NC controller Estun NE21
Precision hydraulic system
Backgauge with manual or NC control
High accuracy ram repeatability
Foot pedal control

Used only a couple of times — effectively a showroom machine
No leaks, no wear, no hydraulic issues
Stored indoors

Capacity & Structure
Nominal Pressure: 135?ton
Bending Length: 4000mm
Distance Between Frames: 3200–3600mm (model dependent)
Throat Depth: ~400mm
Stroke Length: ~200mm
Open Height: ~460mm
Approach Speed: ~100–120 mm/s
Working Speed: ~8–10 mm/s
Return Speed: ~80–100 mm/s
Frame Construction: Fully welded, stress?relieved steel frame
Guiding System: Precision linear guides for ram accuracy

Ram Accuracy
Repeatability: ±0.01–0.03mm
Parallelism Control: Hydraulic proportional valves + NC feedback

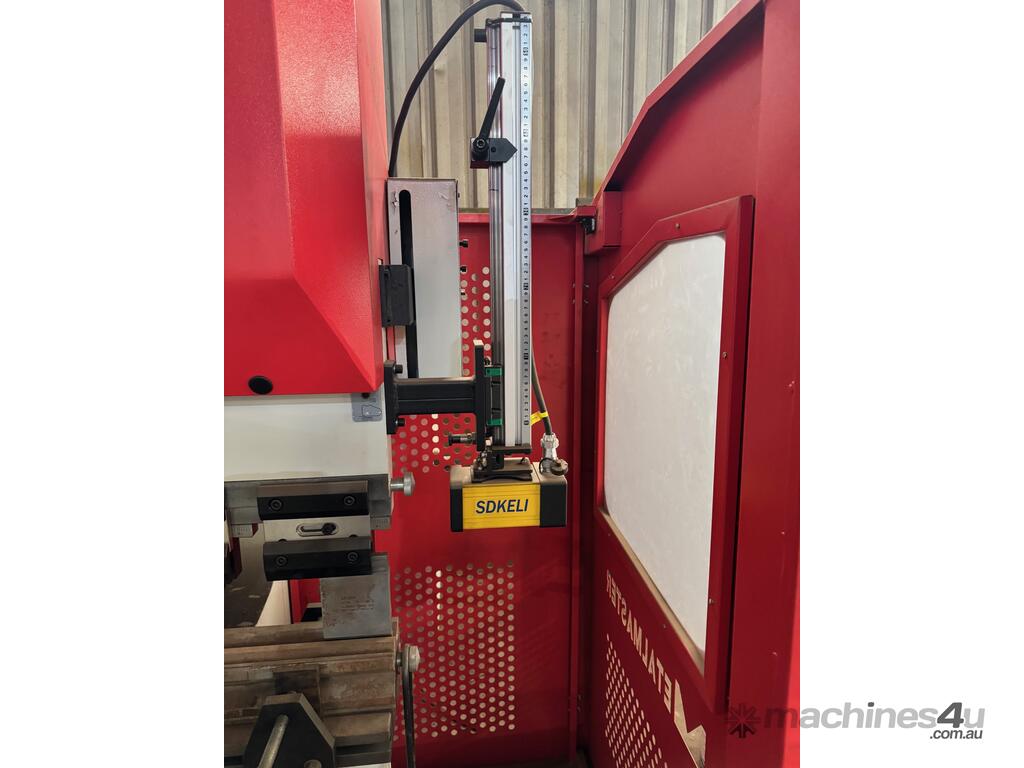

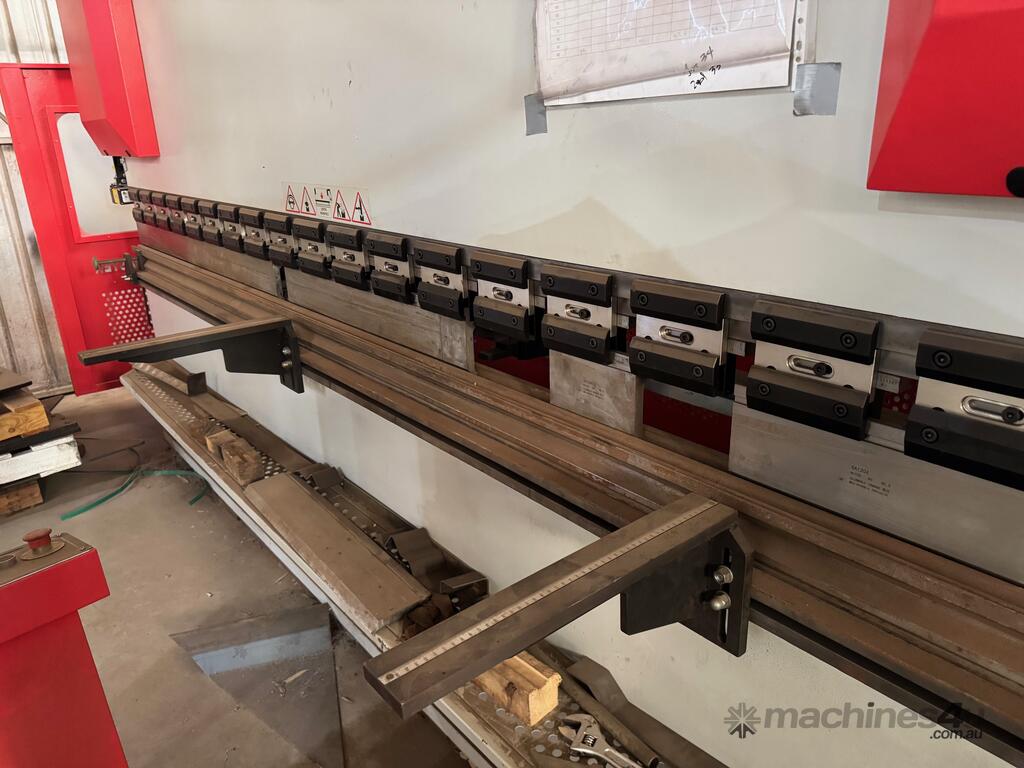

Backgauge System
Controller: NC?controlled X?axis
Travel: Typically 600–800mm
Drive: Ballscrew + linear guide system

Accuracy: ±0.1mm

Hydraulic System:
High efficiency hydraulic pump
Low noise operation
Overload protection
Integrated cooling

A robust, industry standard NC controller ideal for small to medium fabrication shops.

Controller Features:
Programmable X axis and ram depth
Multi step bending programs
Angle, depth, and backgauge control
Large, clear display
Fast setup and operator friendly interface
High reliability and low maintenance
