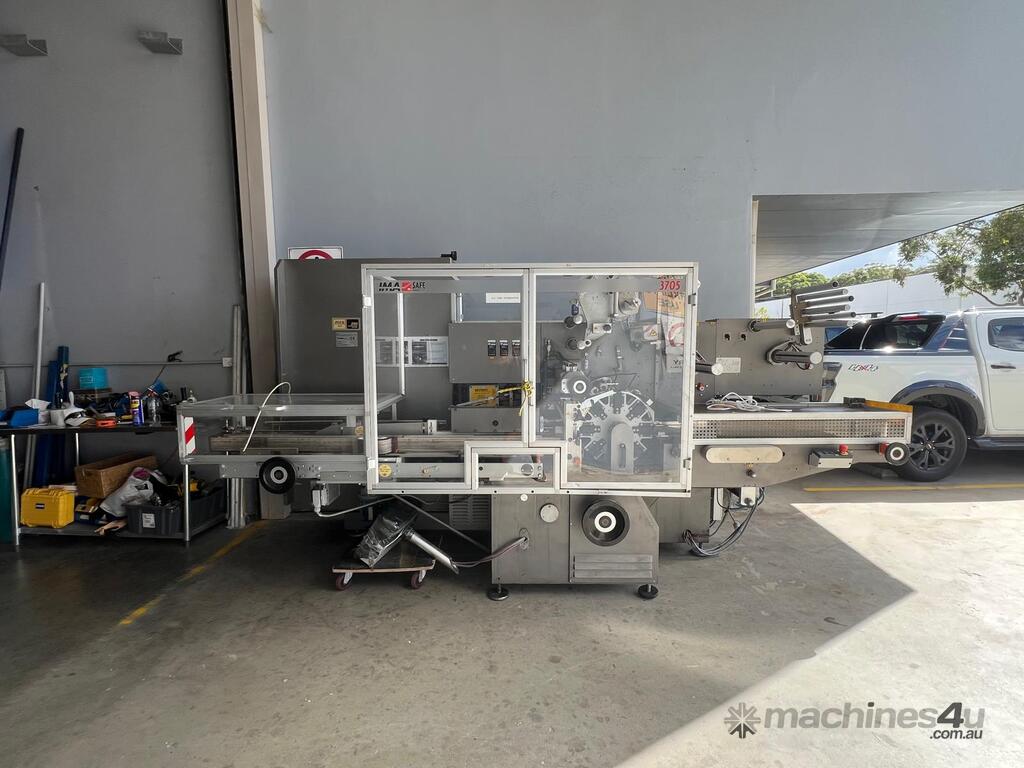

IMA BFB 3705 Overwrapping Machine

High-quality individual or multiple wrapping for regular products.

Also Available is a Leister Heat Shrink Tunnel Wrapper, This was used in in sequence with the Overwrapper. The heat shrink is listed separately but i will add photos here aswell.


With an oil-tight steel frame containing all motions, this machine benefits from the smooth speeds of a servo-controlled main motor which eliminates all abrupt stop-start issues. Changeover by replacement of pre-assembled and pre-adjusted groups is fast and easy, so as to avoid unwanted downtime.

IMA 3705 High-Speed Overwrapping Machine

Model: IMA 3705
Year of Manufacture: 2009
Location: Dural, 2158

The IMA 3705 is a high-speed overwrapping machine designed to handle individual and multiple wrapping of parallelepiped products with high precision. Capable of wrapping up to 300 bundles per minute, it is ideal for industries like food, confectionery, cosmetics, pharmaceuticals, and tobacco.

Key Features:

High-Speed Operation: Capable of wrapping up to 300 bundles per minute for maximum efficiency.
Flexible Wrapping Material: Compatible with cellophane, PP, and all heat-sealable films from a reel.
Servo-Controlled Main Motor: Ensures smooth operation with controlled acceleration and deceleration to avoid rough starts and stops.
Versatile Packaging: Handles both individual and multiple product wrapping on a single layer.
Safety Features: Includes film missing and tear tape missing safety devices, and positive product handling to ensure smooth and safe operation.
Easy Maintenance: Designed with easy cleaning features and oil circulation lubrication system to ensure long-term performance.
Quick Changeover: Simple replacement of pre-assembled and pre-adjusted groups for rapid changeovers.
Technical Data:

Max Speed: 250-300 products per minute
Product Dimensions:
Min: 25x15x60 mm
Max: 140x50x220 mm
Wrapping Film: Cellophane, PE
Carton Rotation: Bottom face infeed, top face exit
Transversal Seal: Located at the exit area


Optional Groups:

Photocell for film print registration
Tear tape group
Additional reel holder
Automatic film splicing
This IMA 3705 Overwrapping Machine offers advanced features for the most demanding wrapping applications, ensuring a reliable and efficient solution for high-volume packaging needs.
