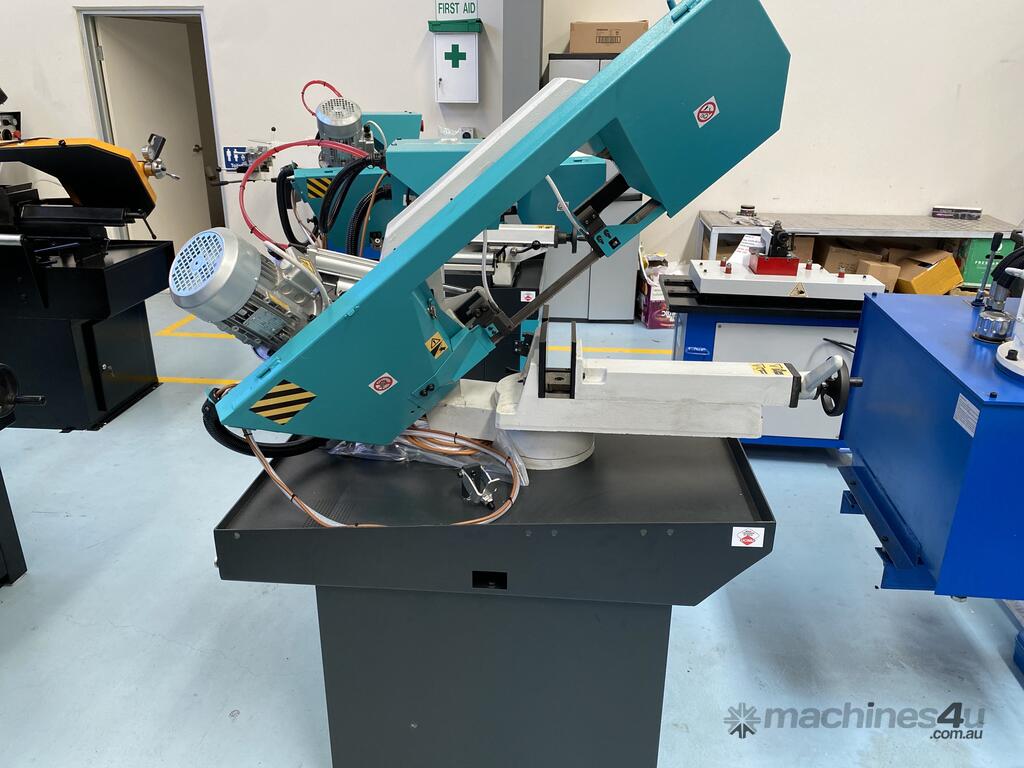

IMET BS 300/60 GH BANDSAW | SINGLE MITRE | MANUAL | 300MM x 180MM (ITALIAN MADE)

The Imet BS 300/60 GH is a gravity saw for cutting medium hard materials. The machine cuts up to 60 ° left and it is an ideal professional tool for small and medium production. The BS 300/60 GH is equipped with a 3-position selector for manual cutting, manual cutting with descent brake and automatic cutting with autonomous descent. This quality made bandsaw is manufactured in Italy.

Features -

Cast iron bow

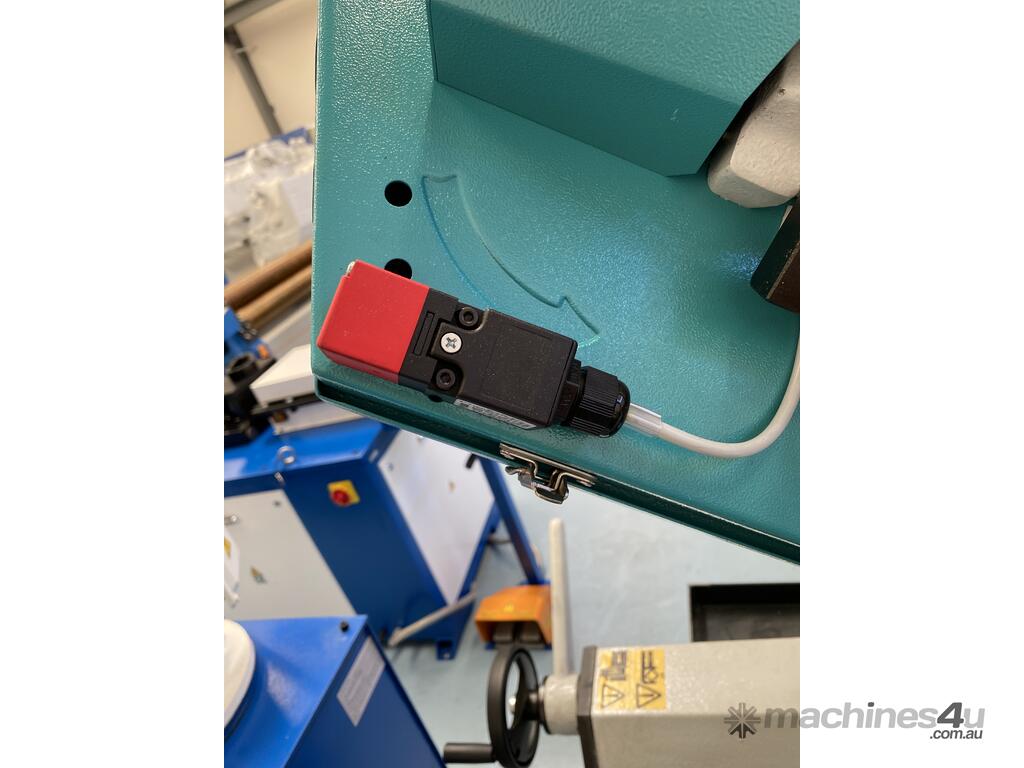

The bow of BS 300/60 GH is in cast iron with tubular section and pulleys with a diameter of 320mm.The tension of the belt is 1700kg / cm2 with front adjustment and control microswitch. The blade guard is hinged to facilitate the blade replacement .

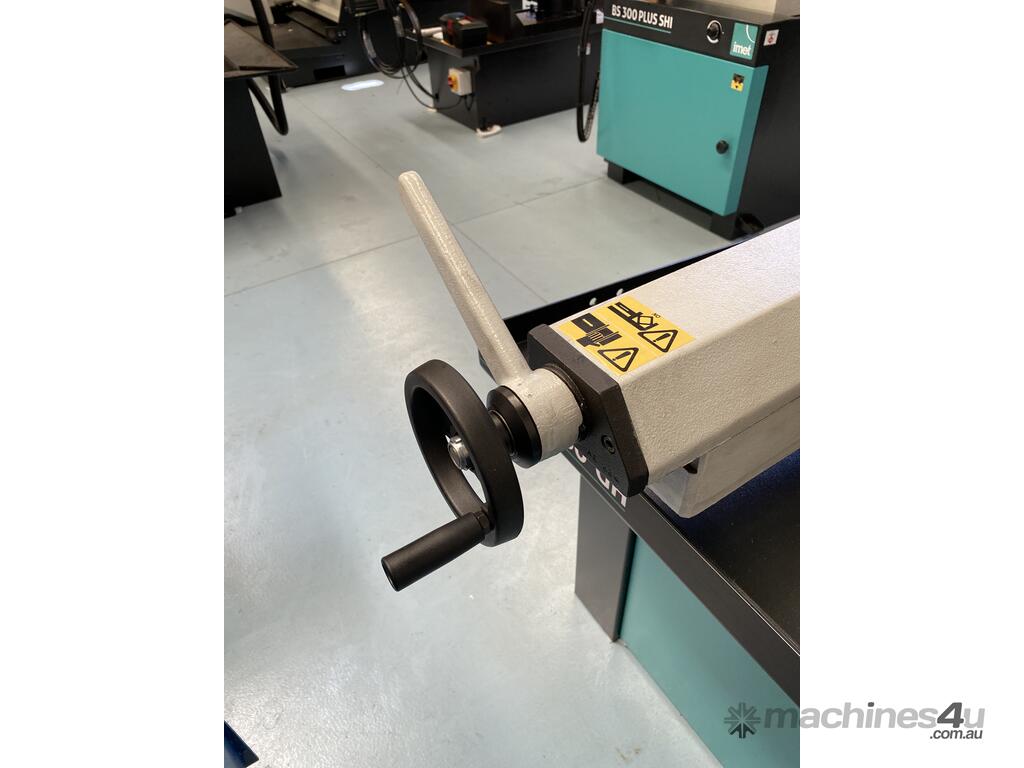

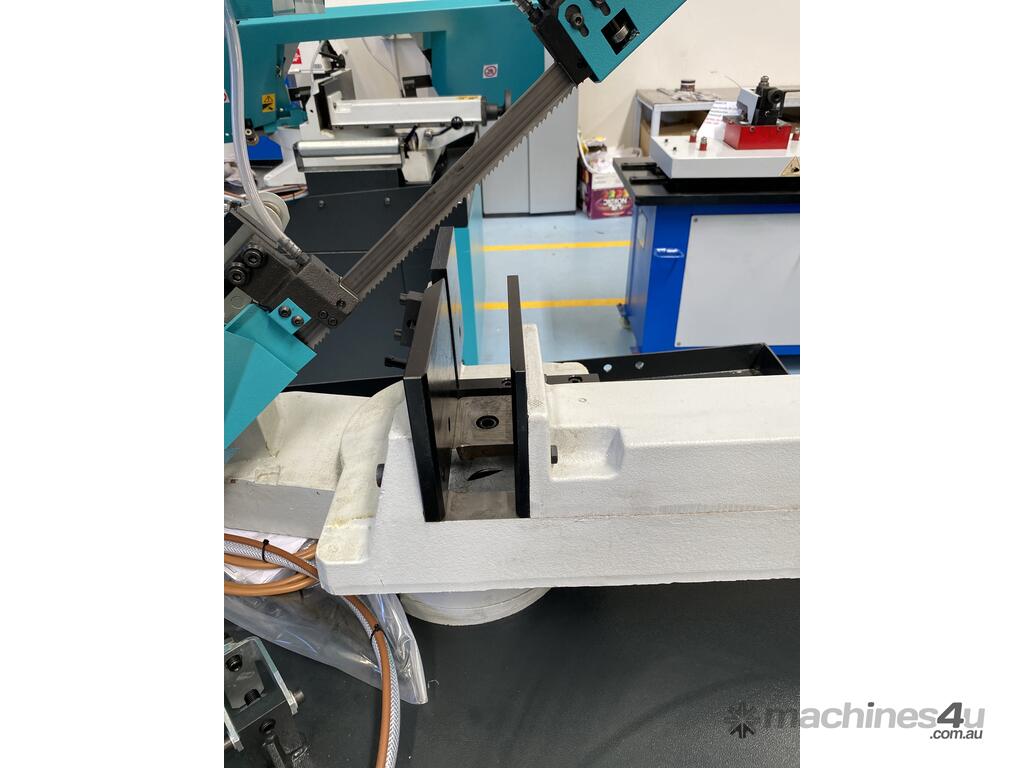

Front vise

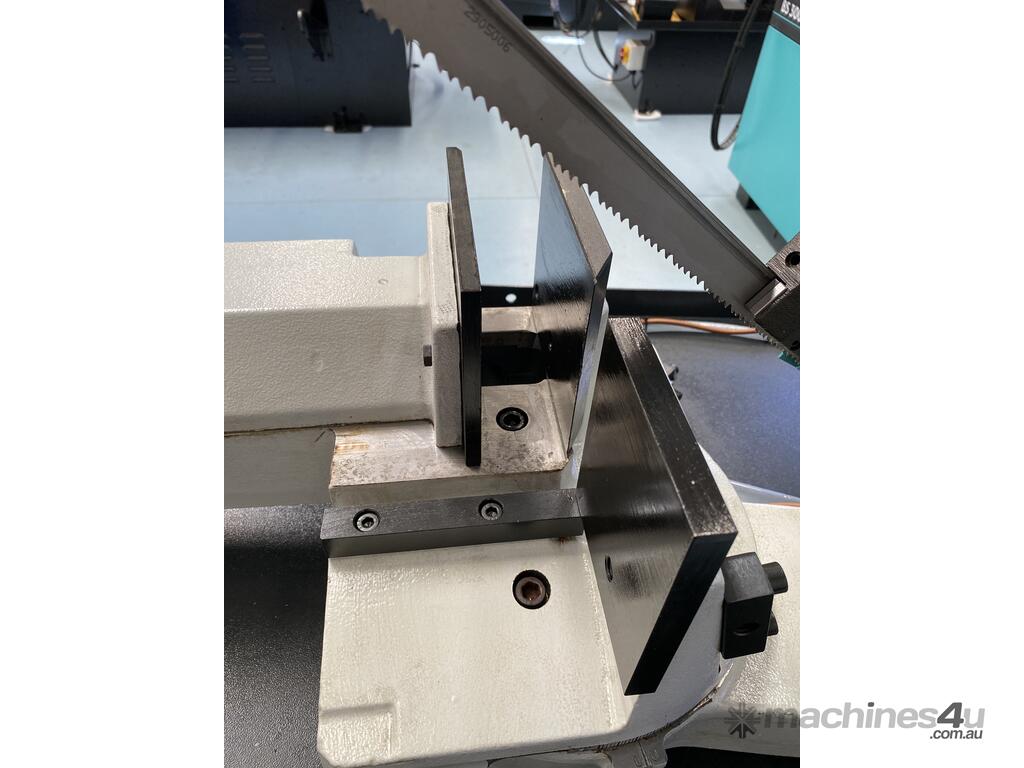

The front vise of BS 300/60 is equipped with a quick locking system and 130mm high jaws and adjustable stop rod for series cutting.

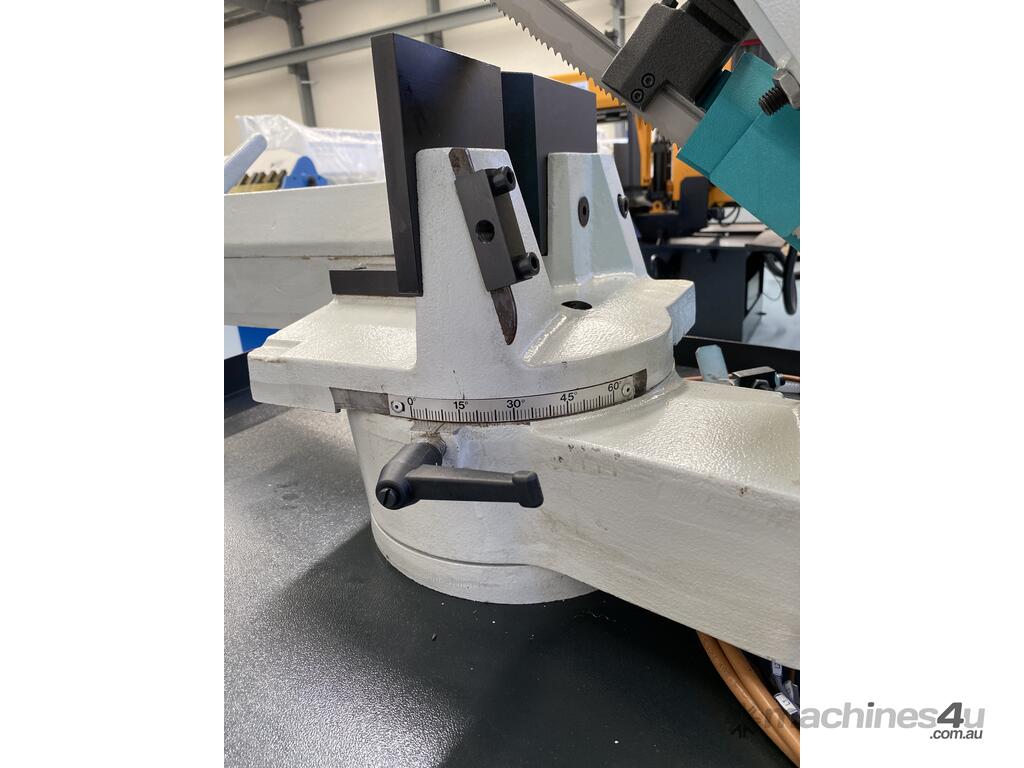

Automatic stops
The machine has an automatic stop system (0 ° and 45 ° left) and a graduated scale for all other cutting angles in order to allow the operator to always have control over the cutting process.

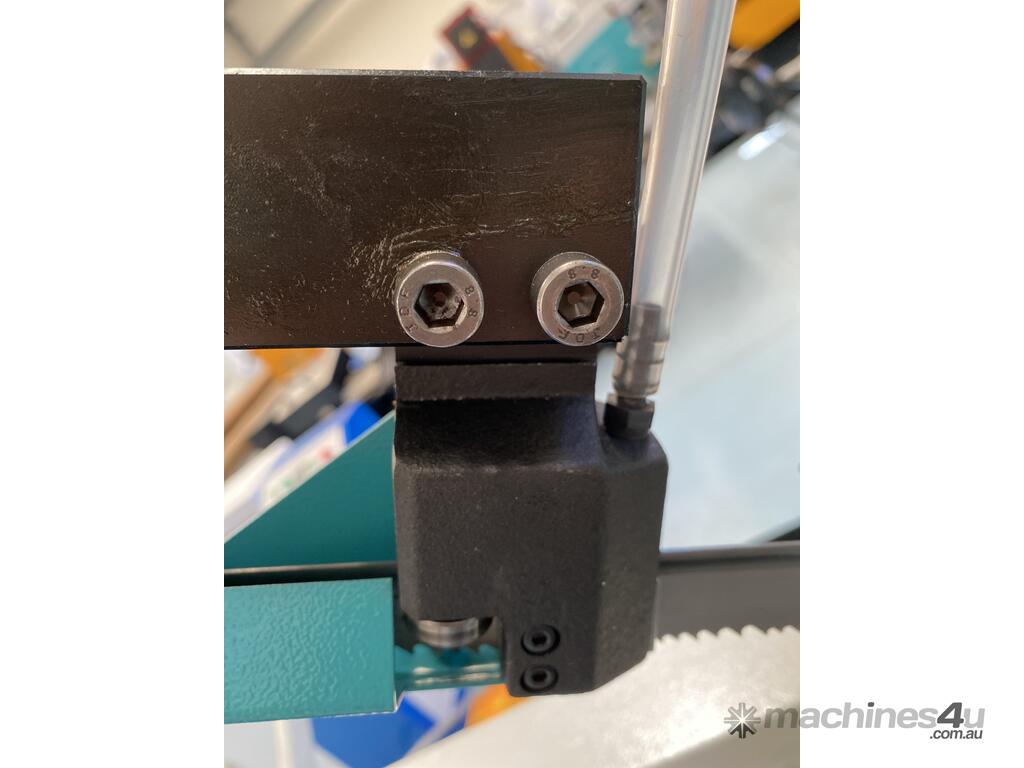

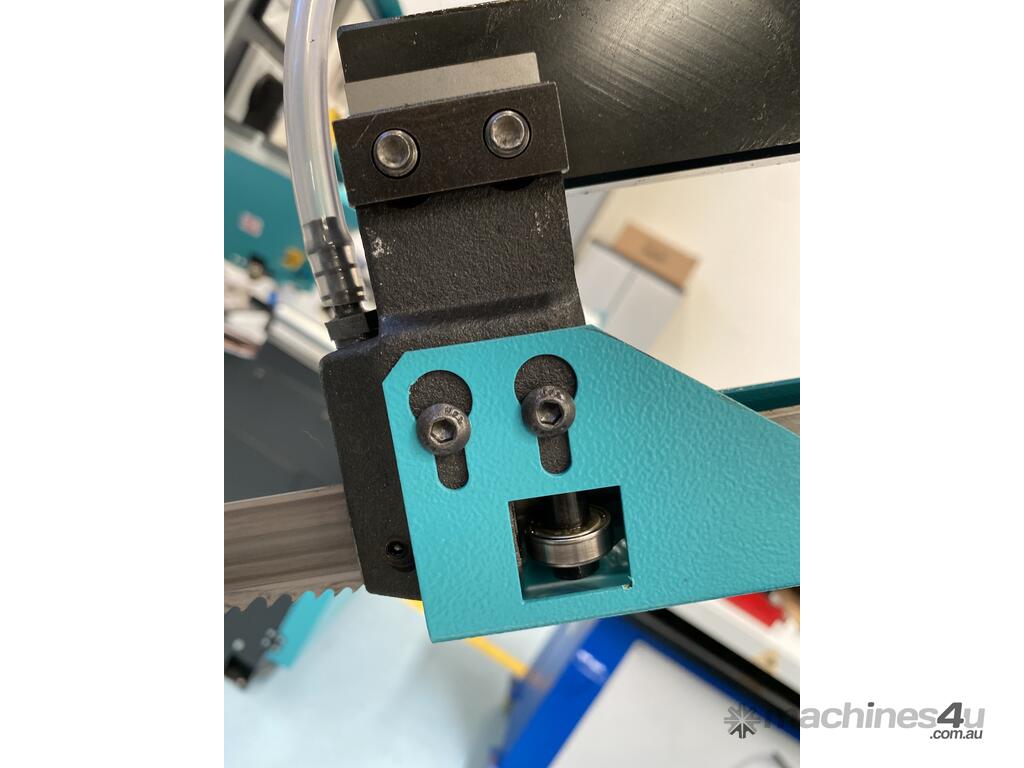

Blade alignment

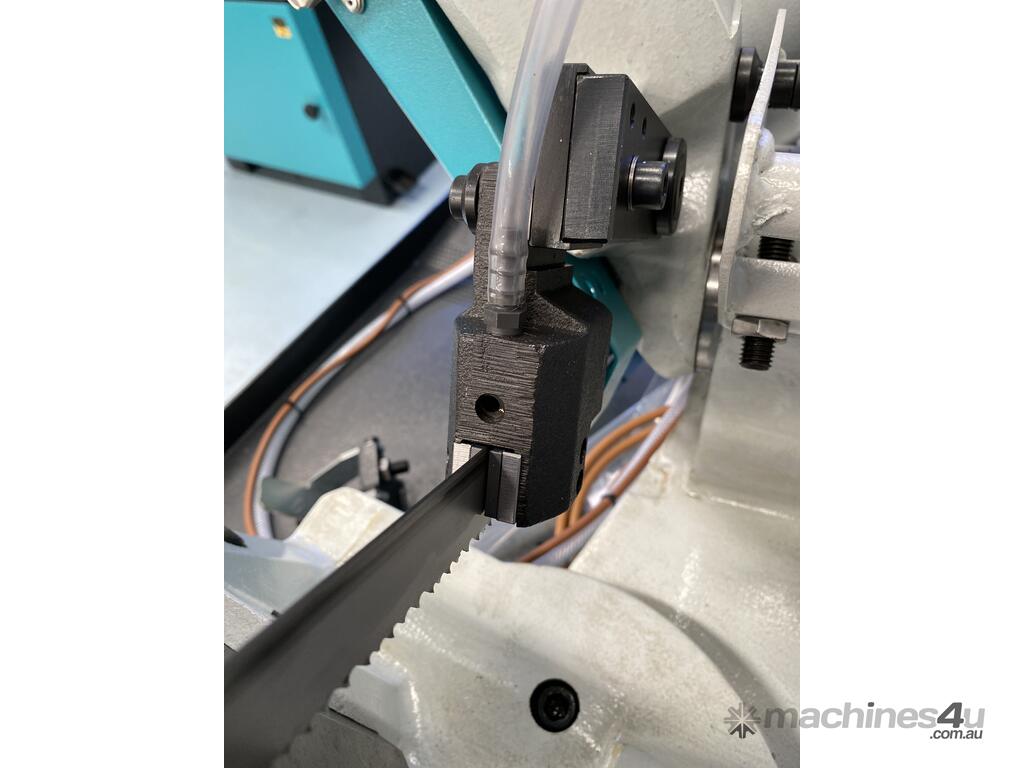

The blade guide with carbide inserts and front bearings ensure optimal blade alignment during the cutting process .

Ease of use

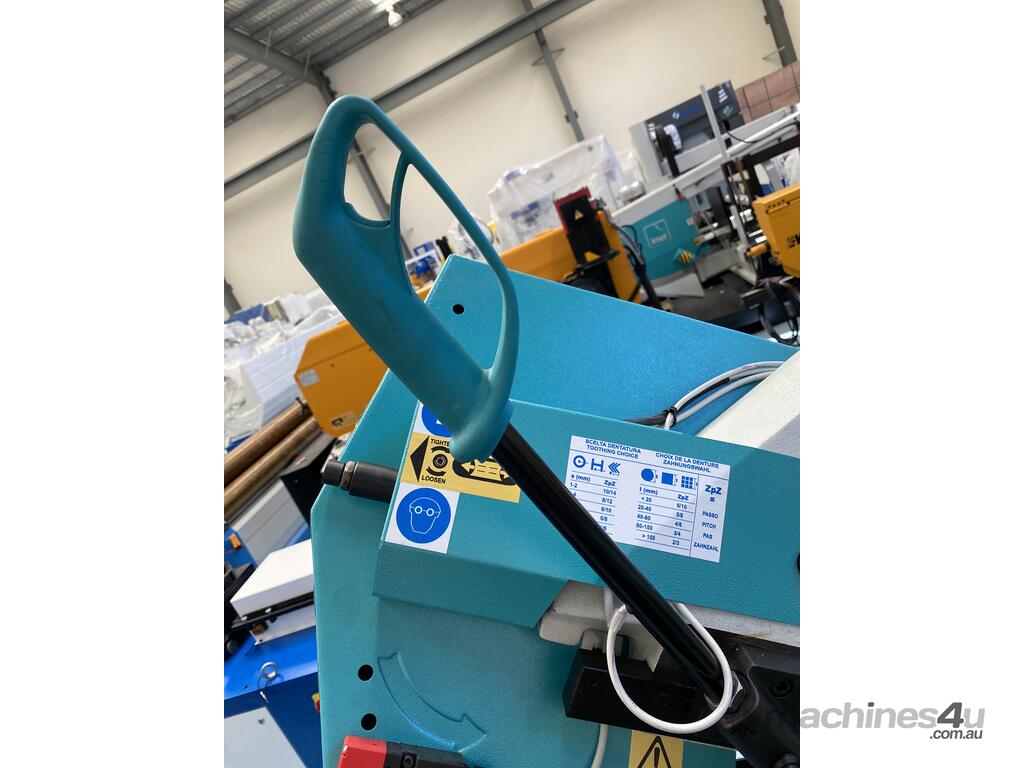

BS 300/60 GH is equipped with a safe start system by means of a start button on the handle and a function control led .

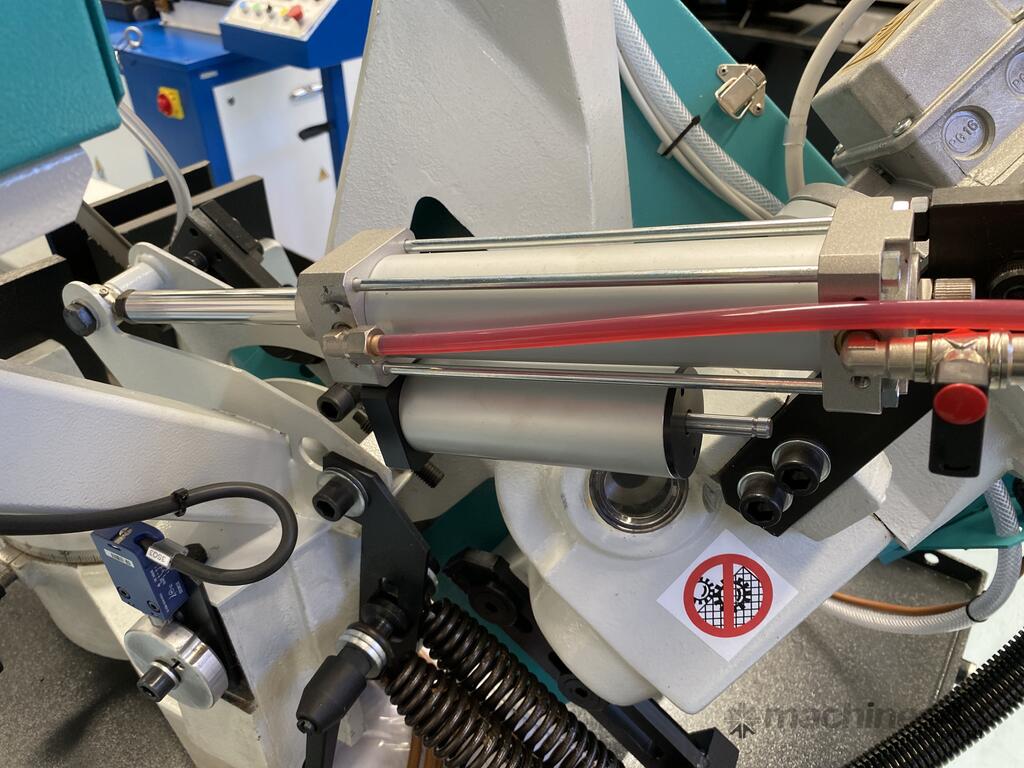

Autonomous cutting

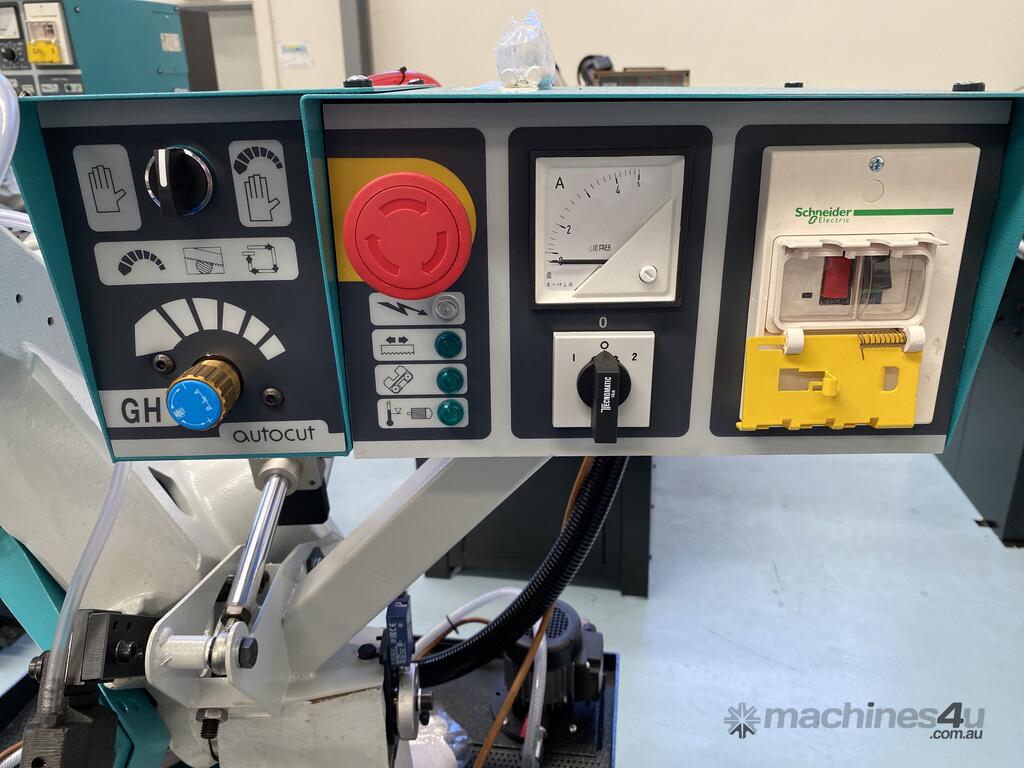

BS 300/60 GH is equipped with an autonomous gravity cutting system with pad lockable magnatothermic switch and under voltage coil with motor absorption ammeter and 3 position selector for:
manual cutting
manual cut with descent brake

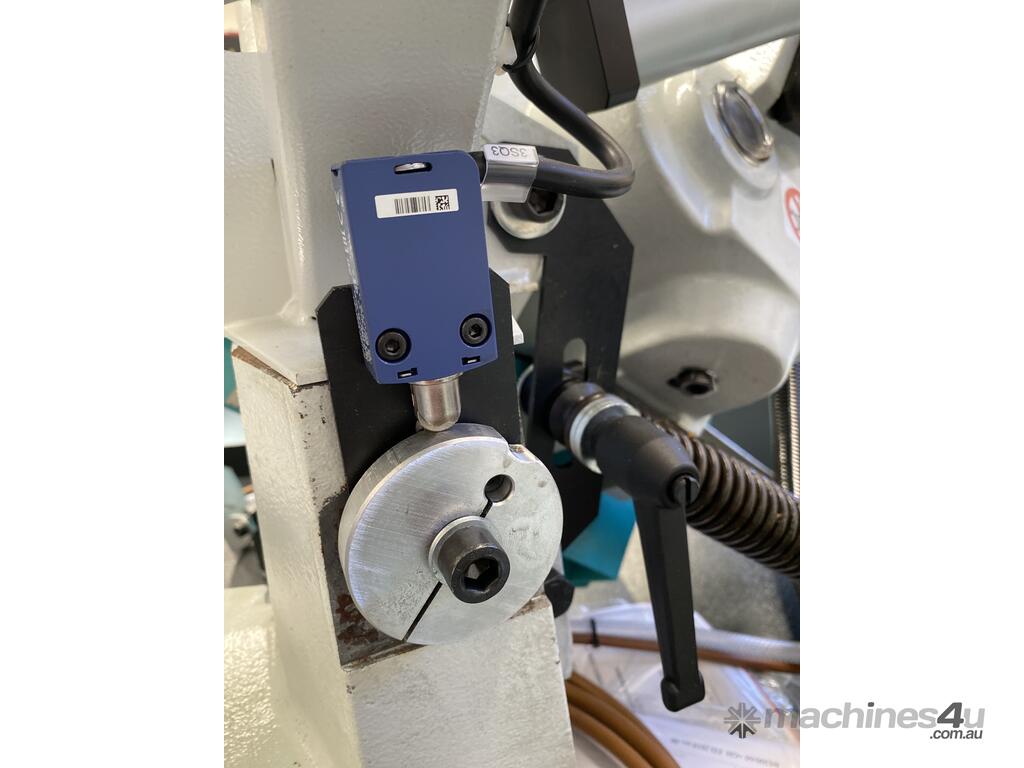

automatic cutting with independent disk and adjustable speed and stop microswitch at the end of the cut

Inverter speed variation (Optional)
Speed variation for band saw blade with inverter. Speed: 18-110 m /min

Minimal lubrication system (Optional)
It is possible to request for any machine the minimal lubrication which cancels the dispersion of coolant typical in the use of the emulsifiable oil. The life of the blade is in no way affected.

Pneumatic vice (Optional)
Pneumatic vice with opening and closing controlled by the bow.

Laser ray (Optional)

TECHNICAL INFORMATION

Cutting capacity at 0°

Round: 255mm
Square: 240mm
Rectangular 300x180mm

Cutting capacity at 45° left

Round: 210mm
Square : 190mm
Rectangular 200x160mm

Cutting capacity at 60° left

Round: 135mm
Square: 110mm
Rectangular: 130x100mm

Blade dimensions 2765x27x0.9mm
Blade speed 35-70 m/min

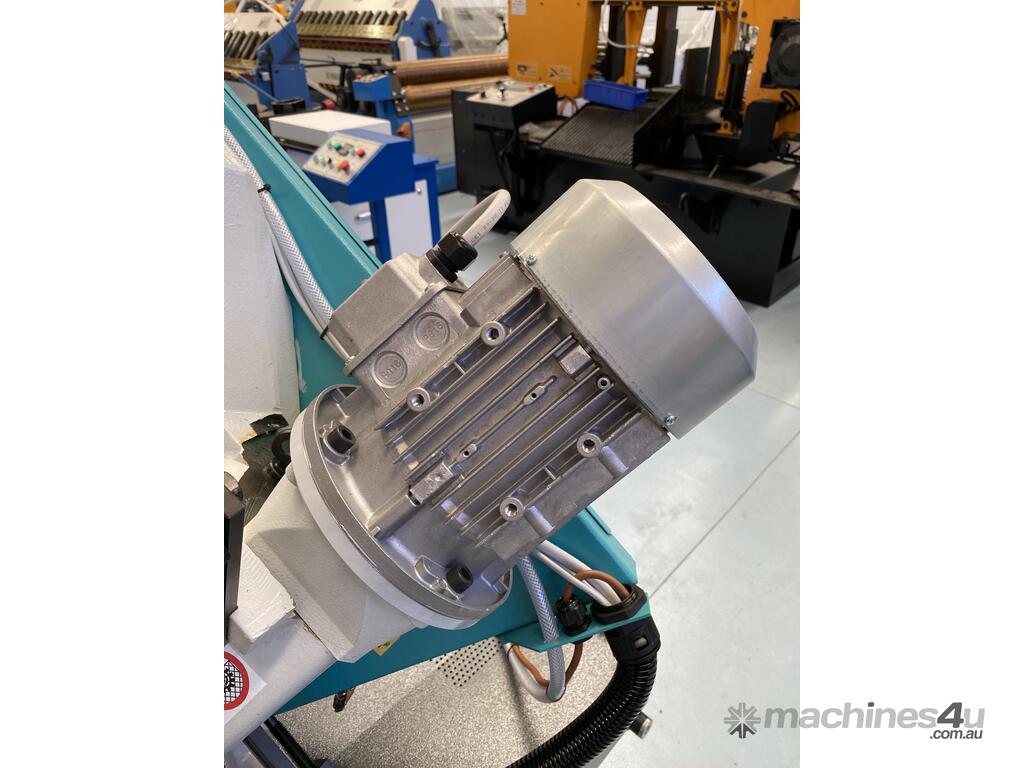

Blade motor 1.5/1.8 KW
Height of the work surface 940mm
Dimensions 900x1700x1860mm
Weight 308kg
