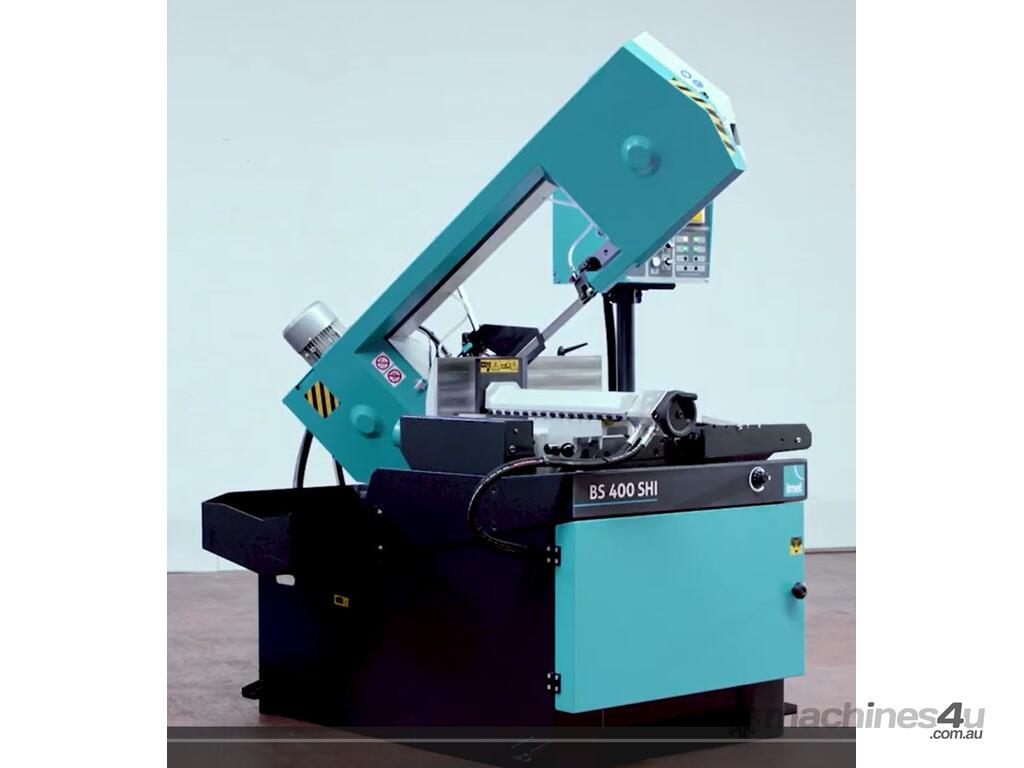

IMET - BS 400 SHI - Semiautomatic pivotal bandsaw to cut steel [made in Italy]

Short description Imet semiautomatic pivotal bandsaw BS 400 SHI is the professional tool suitable for medium sized production of tubes and profles for carpentry. It's able to cut up to 45° on the right and 60° on the left. The machine can be used in every working environment and workfow to cut steel (even with high resistance) and cast-iron materials

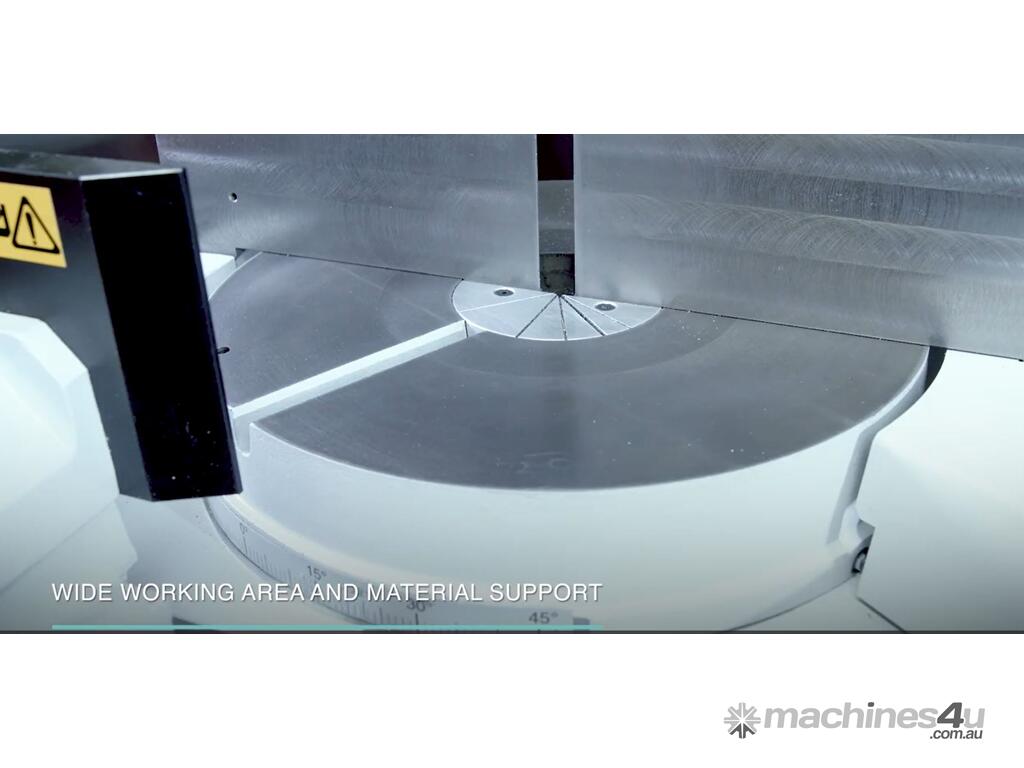

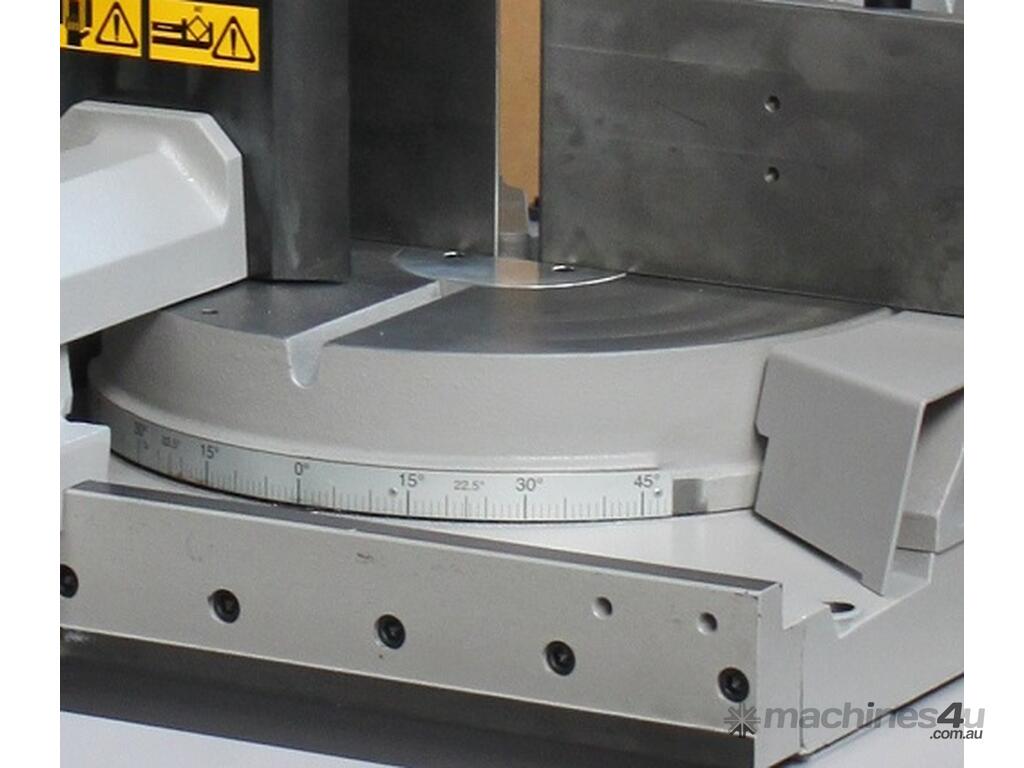

Working area
BS 400 SHI has a wide working area able to optimize the user workfow: the working table allows to have full support of the material and rotate together with the saw to avoid damages on its surface.

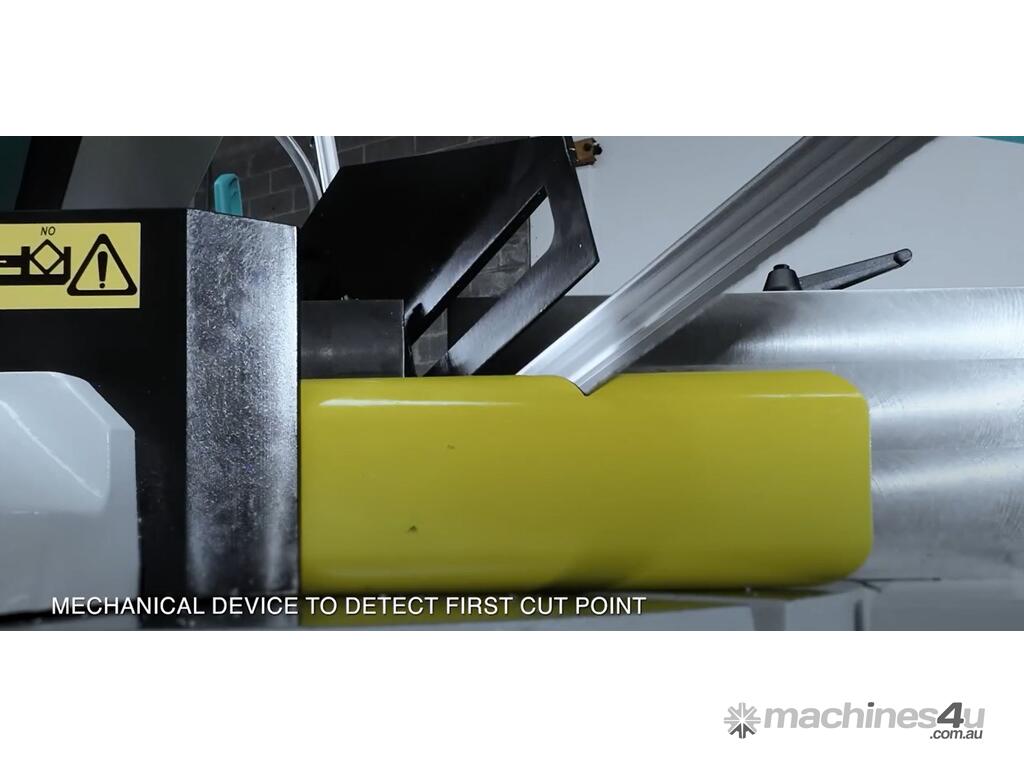

Material detect device
To ease the cutting process and increase the user-experience, the machine is equipped with a mechanic material detect device that automatically detect the material position and frst cut point. End cut is processed with a microswitch.

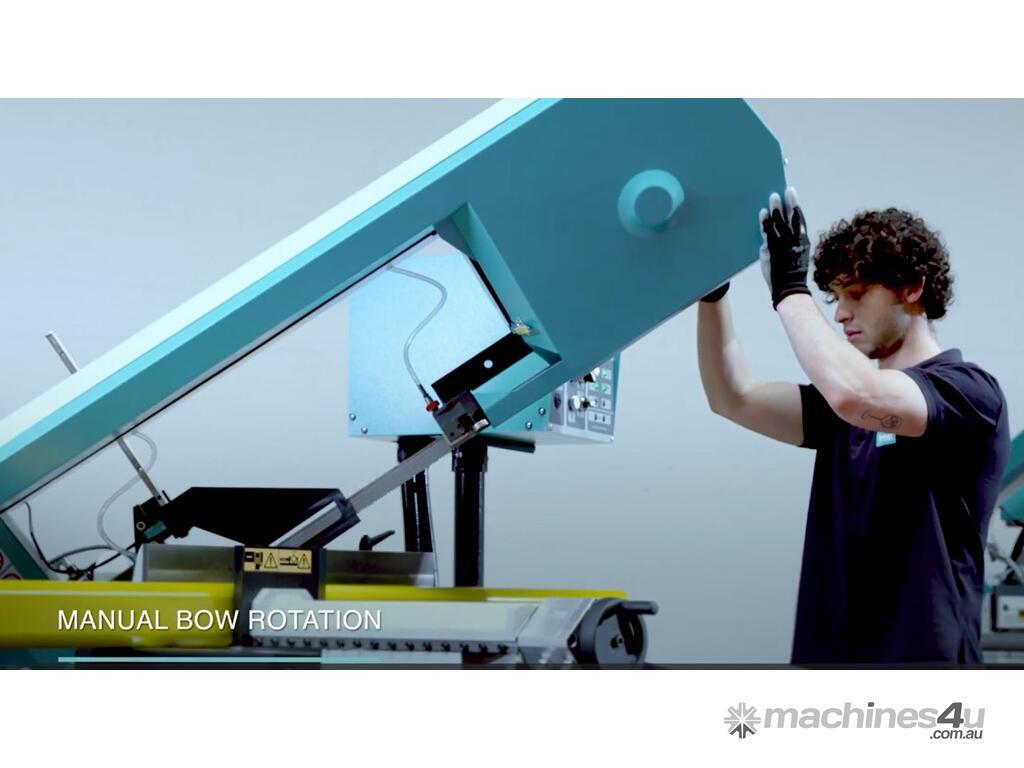

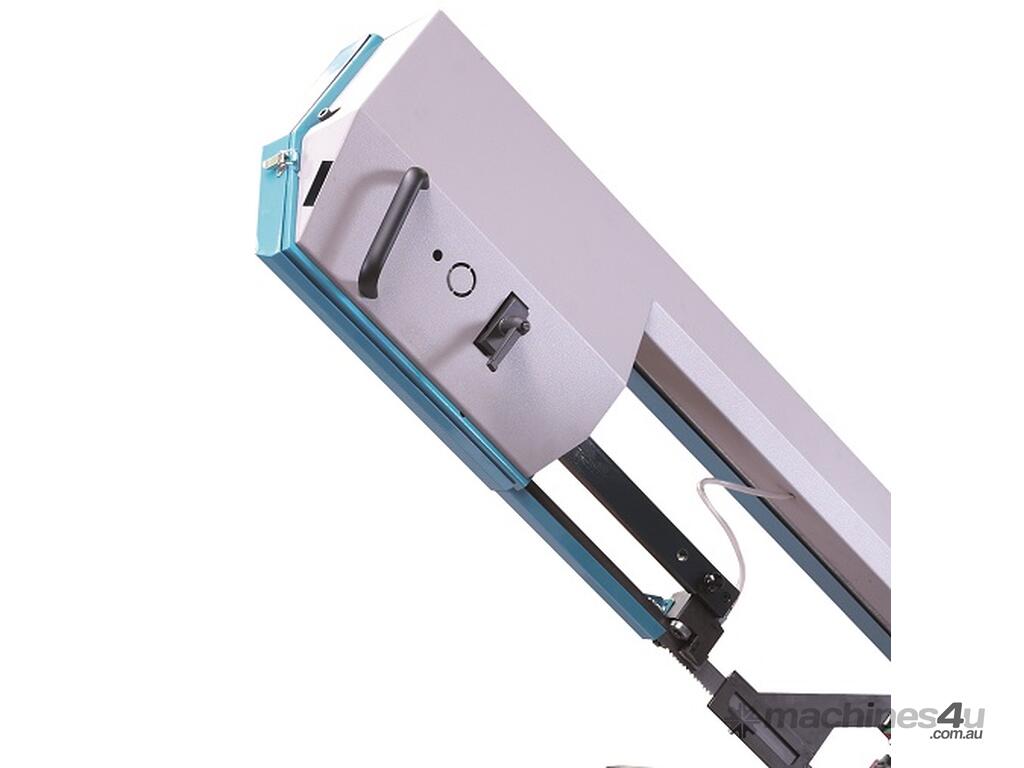

Rigid sawframe
BS 400 SHI bow is made in steel with tubular section, 360mm pulleys while the blade is protected by metal sheet. A dedicated support piston allows to change the blade easily. The blade is 34 mm height with high tension (2000 kg/cm2) to reduce vibration, breakage and slow-downs while feeding inside the material.

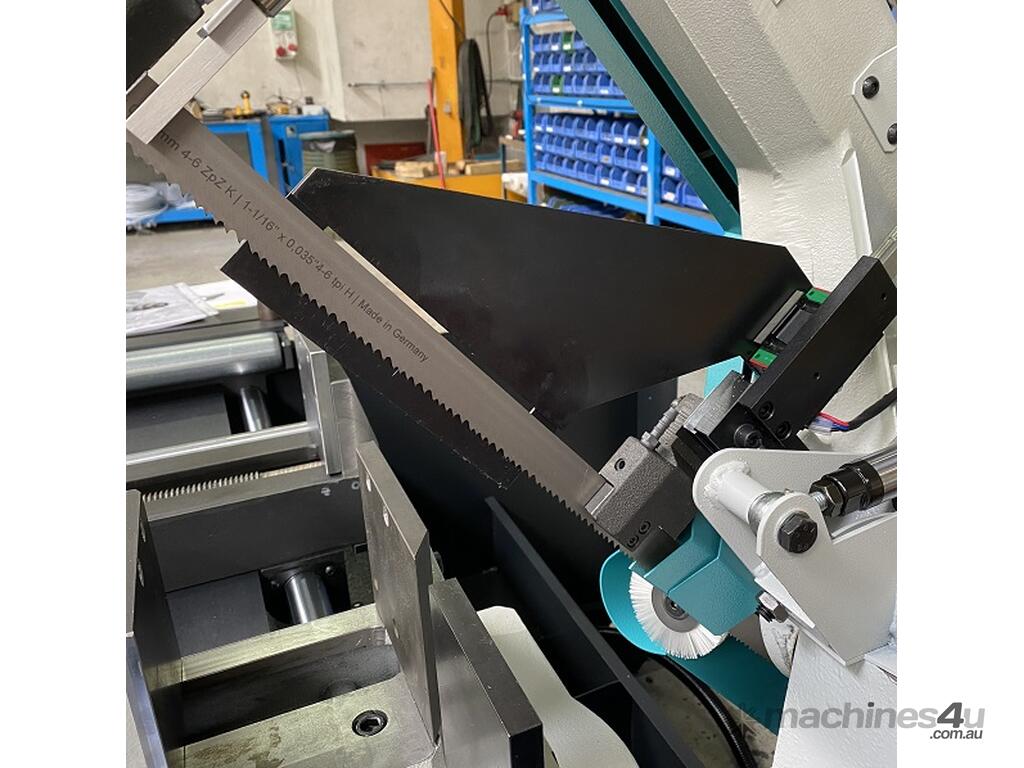

End cut with canted blade
The machines uses an innovative system for the end cut with canted blade to reduce strain on the blade and increase cutting performances. The canted blade eases the process even on solid material, allowing to work on material sections and not on the full solid part.

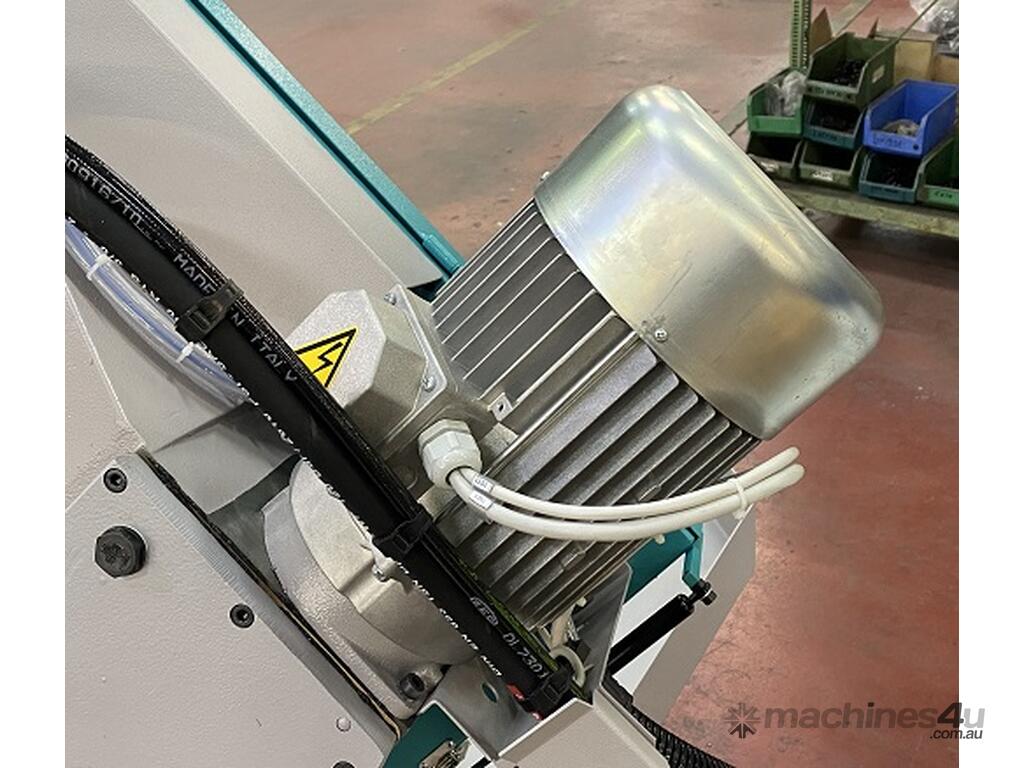

Motoreducer
BS 400 SHI is equipped with a strong, powerful motoreducer made in cast-iron.

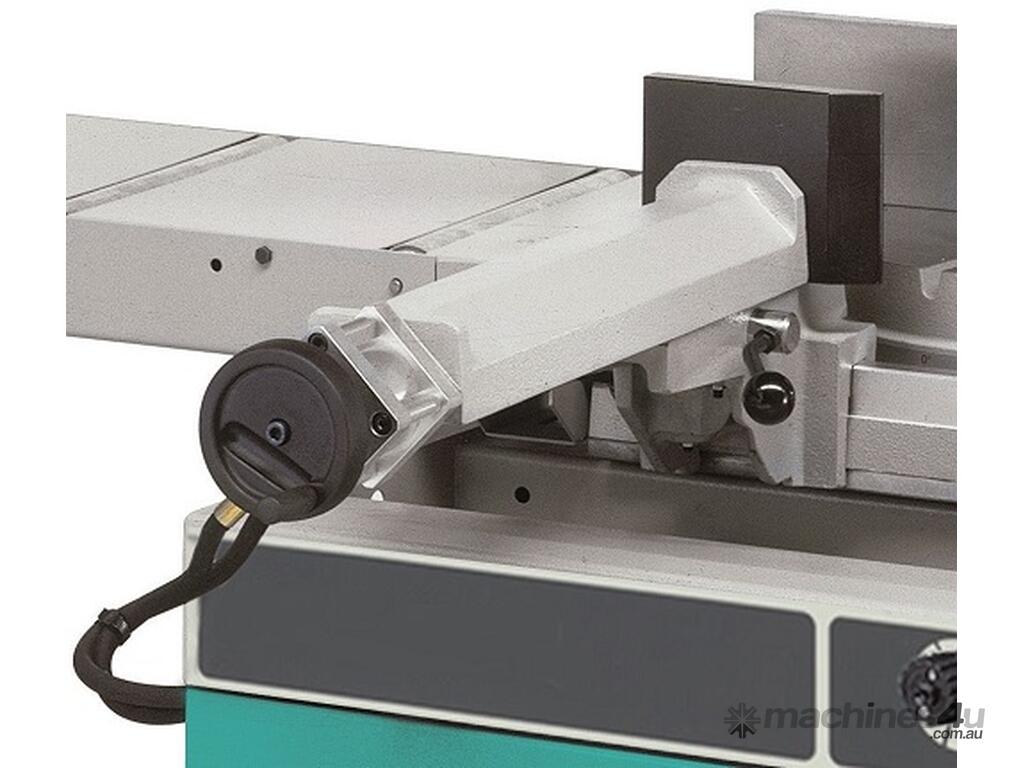

Hydraulic vice
The vice is hydraulic with sliding guides on the blade with fast approach system.

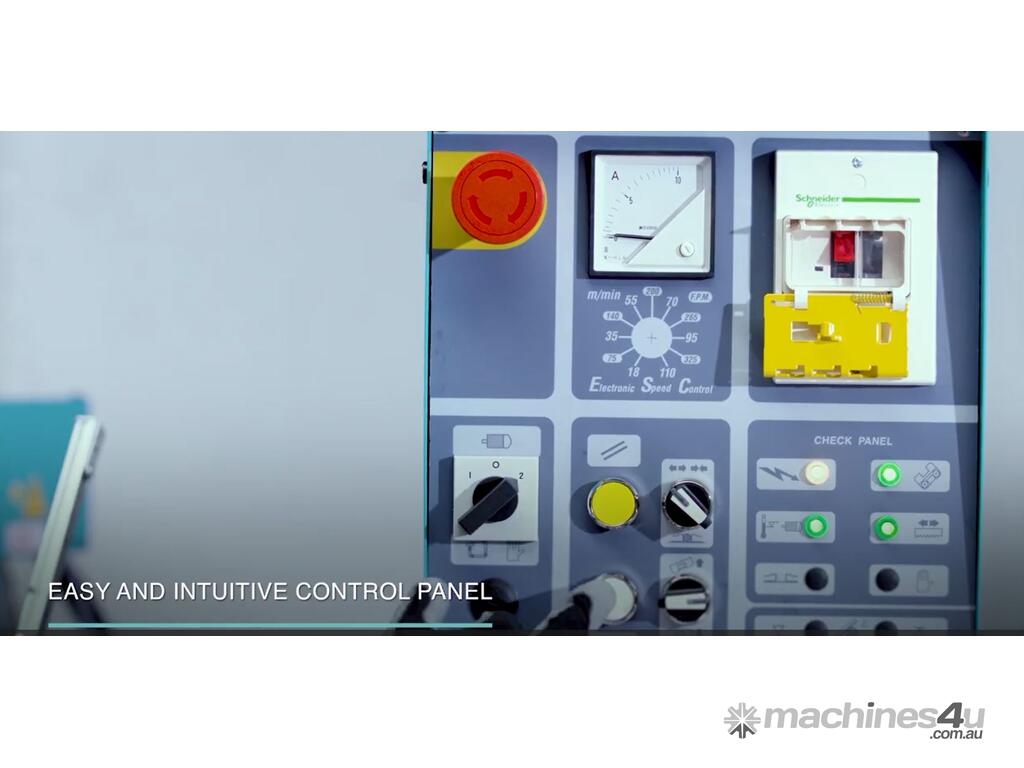

Blade speed (Optional)
The ESC blade speed variator allows to increase speed range to work with a wide range of different material.

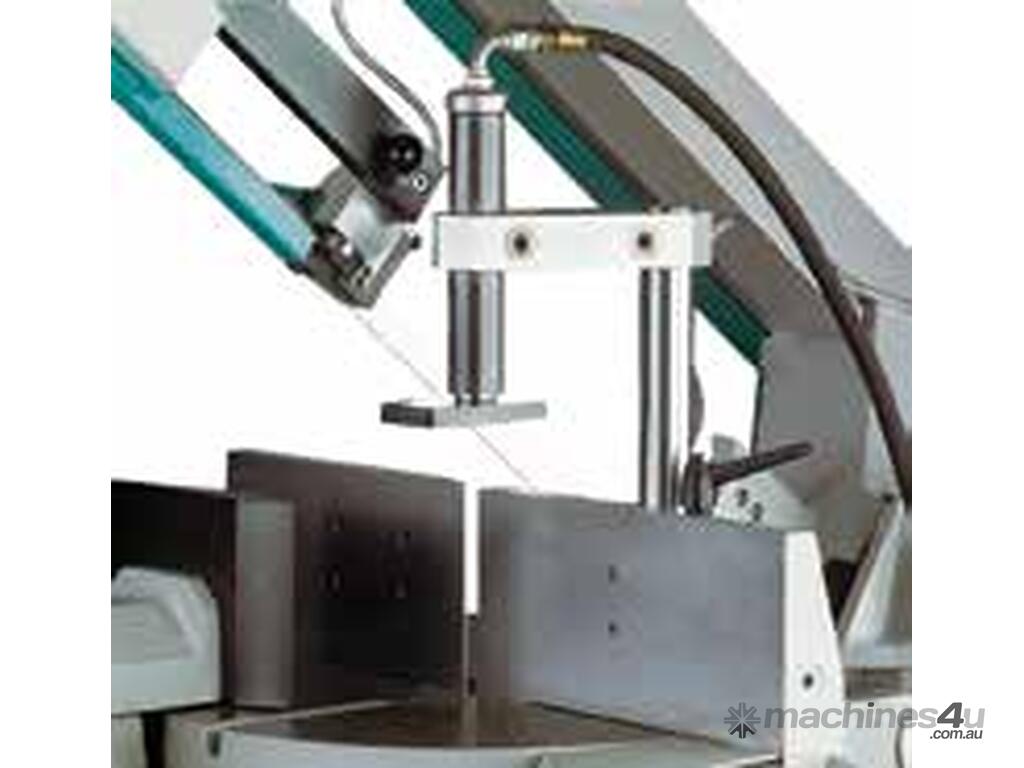

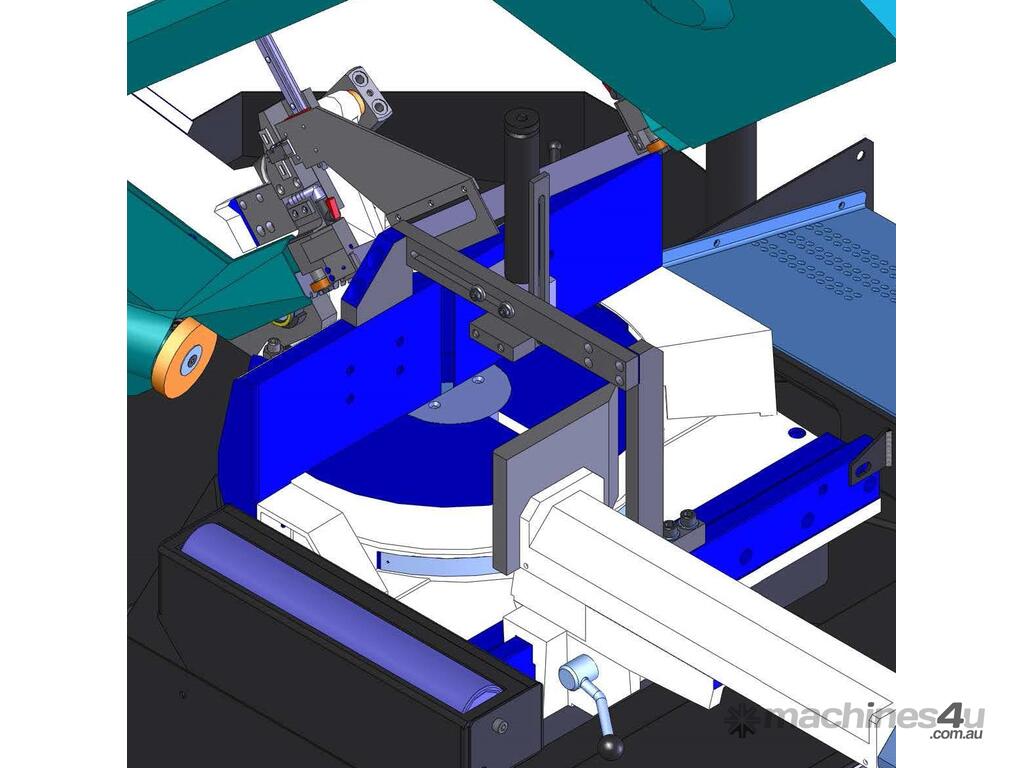

Bundle cutting (Optional)
BS 400 SHI can be used with an mechanic bundle cutting device to work with bundles. The bundle allows to cut only at 90°; in the case the user has to cut at a different angle, the device must be disassembled. Maximum cutting capacity is 280x160mm, minimum capacity is 90x10mm.

Laser ray (Optional)
Laser ray to detect the cutting line.

Foot pedal (Optional)
Equipped with power supply and electric cable.

Connection for roller table (Optional)
Connection element for unloading side roller table with 2 rollers included.

Loading/unloading roller table (Optional)
Roller table suitable for both the loading and unloading side with free rolls.
Complete with 2 foot, maximum loading capacity 700kg, 2m length.
