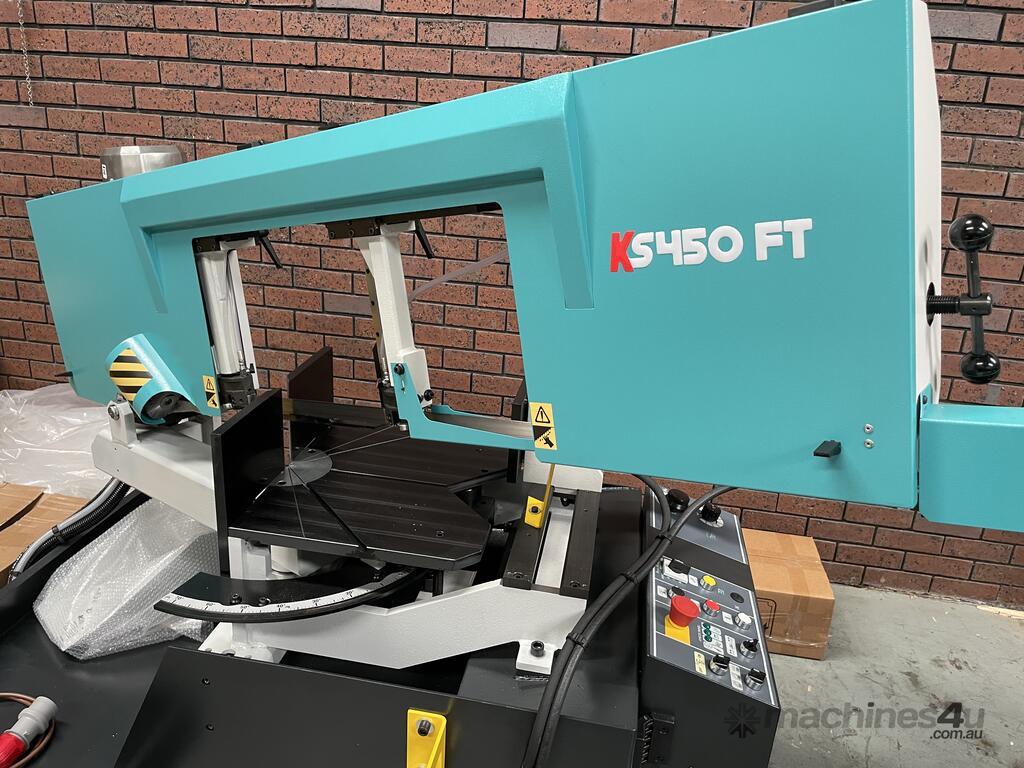

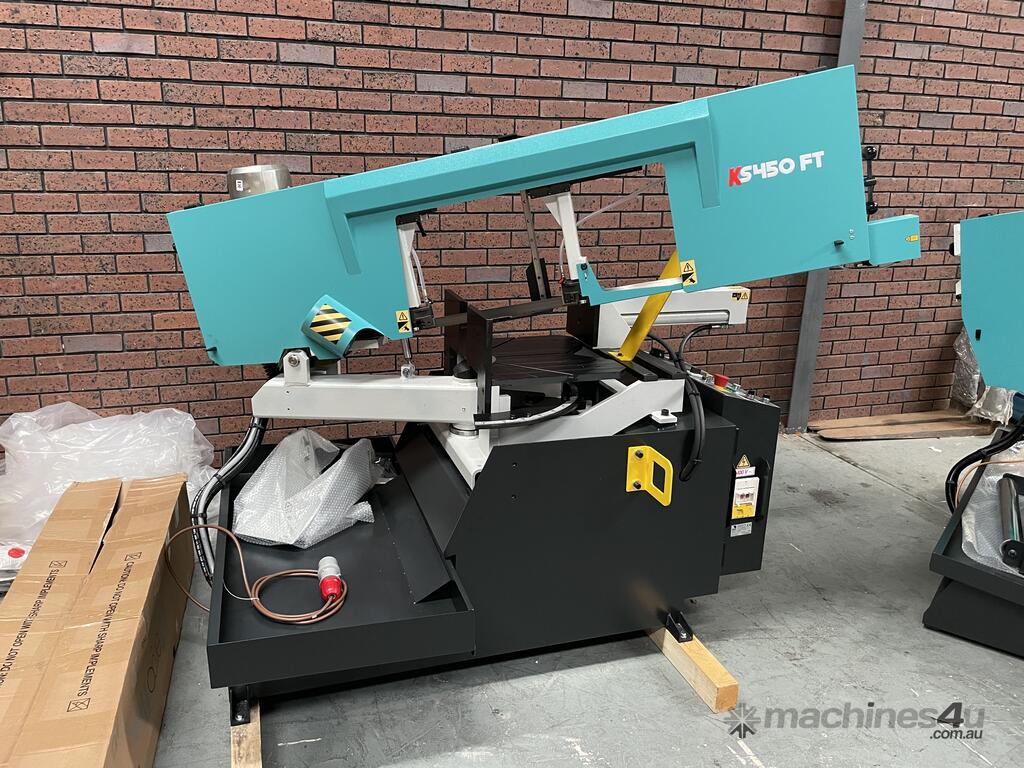

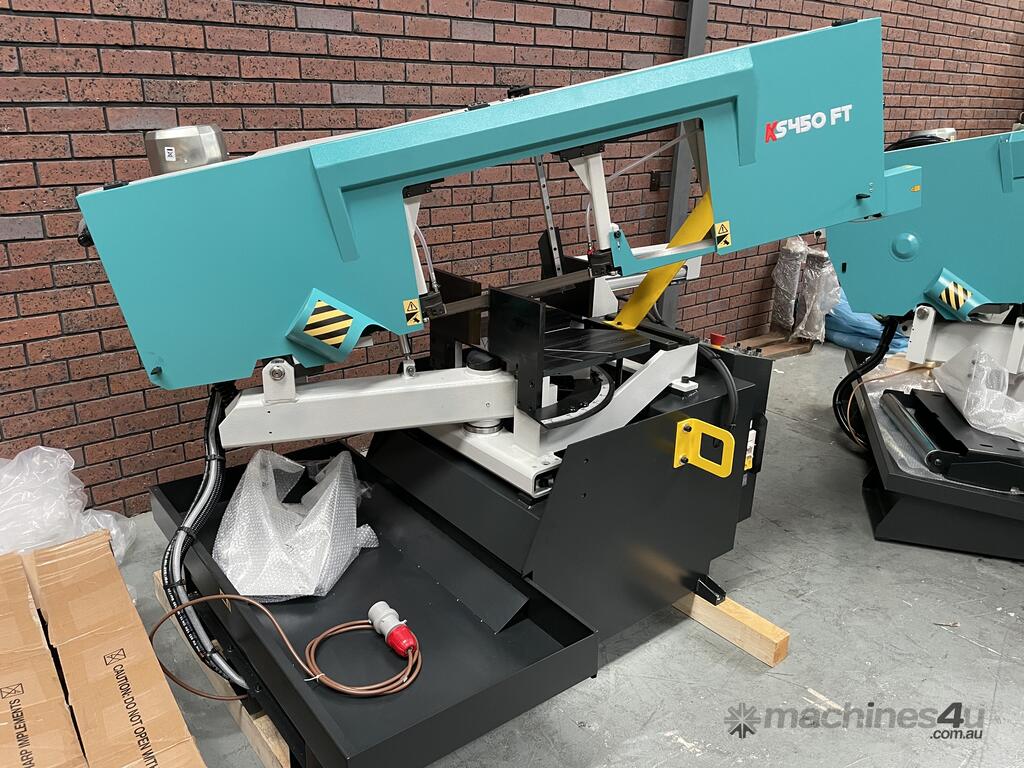

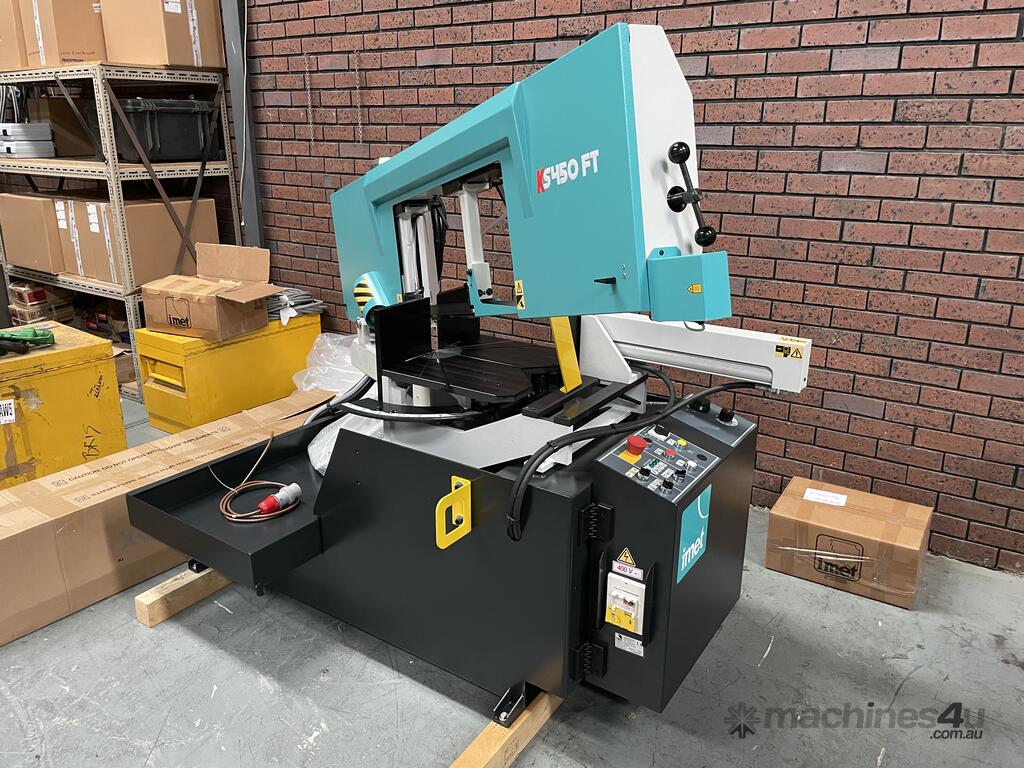

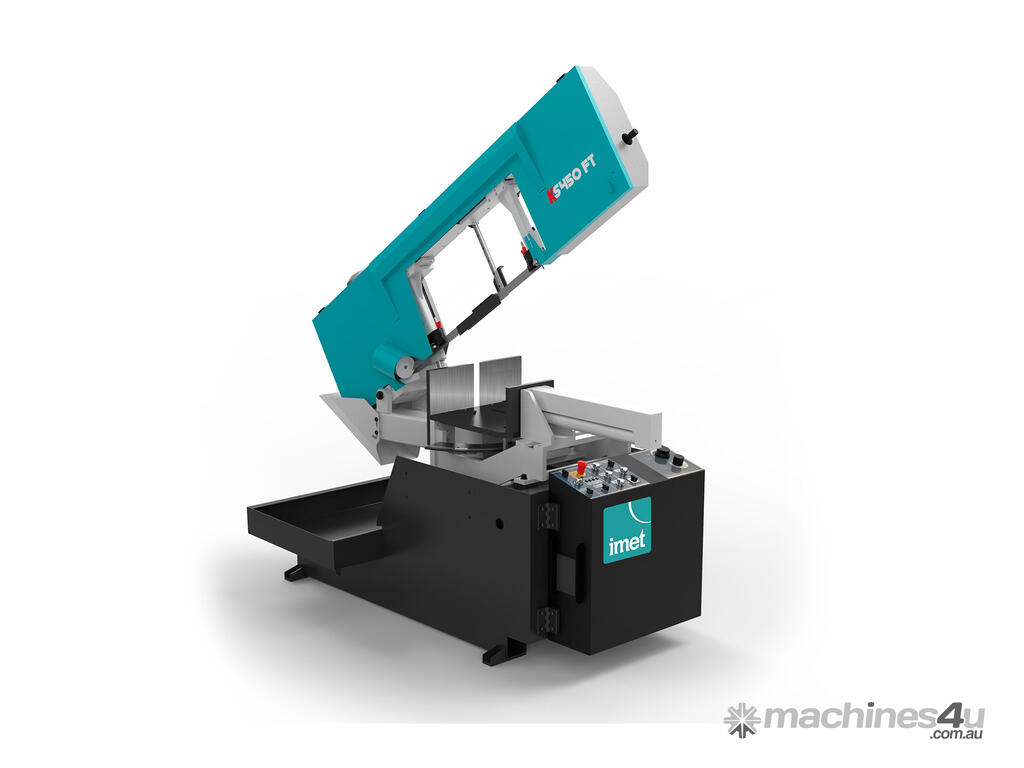

IMET KS 450 FT is the compact semi-automatic sawing machine for cutting pipes, beams, profiles and for steel constructions. The machine cuts at angle from 0 ° to 60 ° right and left.
Cutting capacity at 0° Round: 350mm
Square: 330mm
Rectangular: 450x320mm
Cutting capacity at 45° right/left Round: 330mm
Square: 320mm
Rectangular: 320x300mm
Cutting capacity at 60° left Round: 210mm
Square: 200mm
Rectangular: 180x270mm
Cutting capacity at 60° right Round: 160mm
Square: 150mm
Rectangular: 150x270mm
Cutting capacity at 90° (solids) Round: 250mm

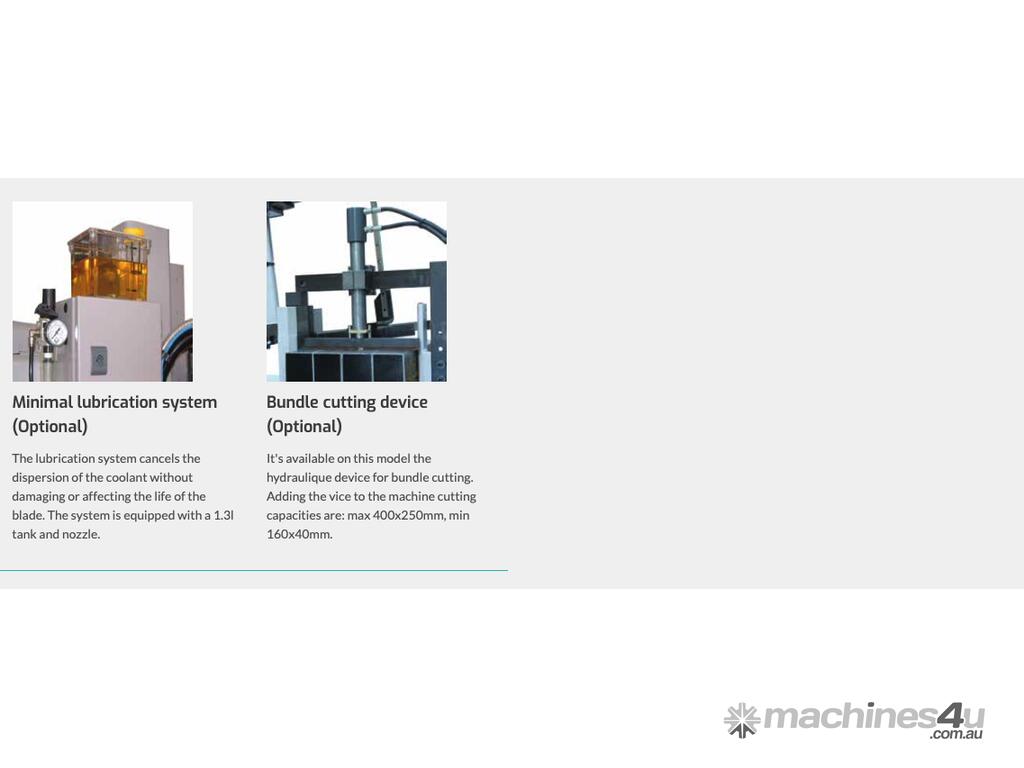

Cutting capacity (BUNDLE) Max. 400x250mm
Min. 160x40mm
Blade size 4250x34x1.1mm
Blade speed 40/80 m/min
Variable speed inverter (ESC) 15/100 m/min
Blade motor 1.7/2.2 KW
Blade motor with inverter (ESC) 2.2 KW
Working table height 850mm
Dimensions 900x2500x2180mm
Weight 865kg
