IMET KTECH 652 CNC Auto Mitre Bandsaw 650mm capacity - Made in Italy

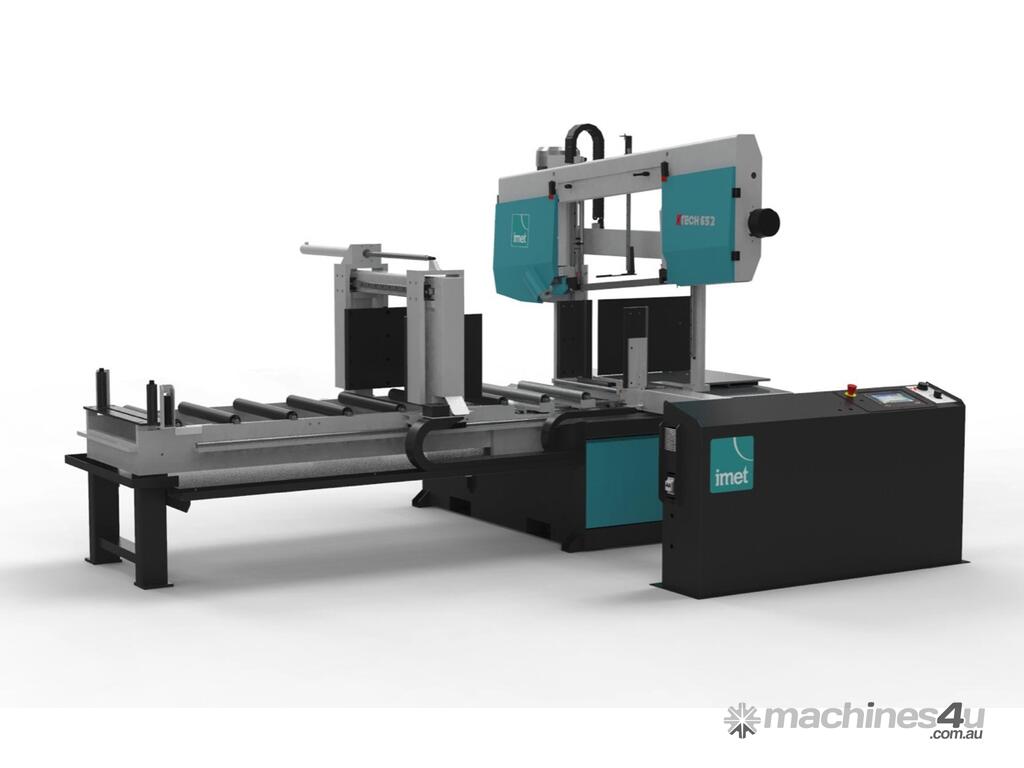

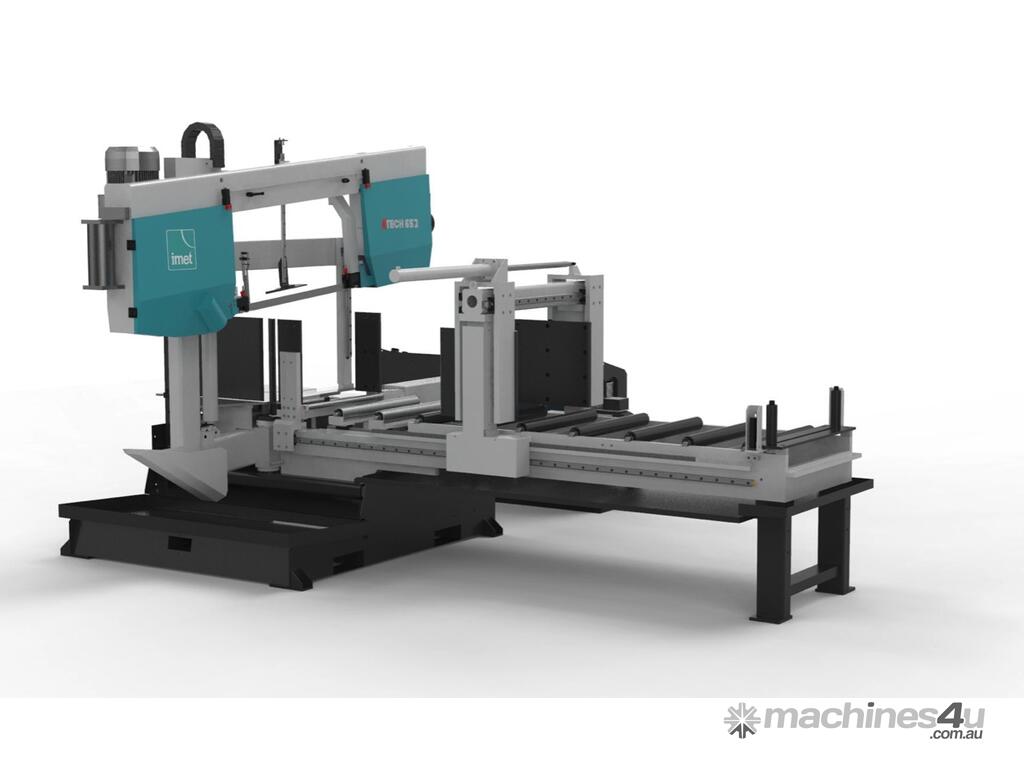

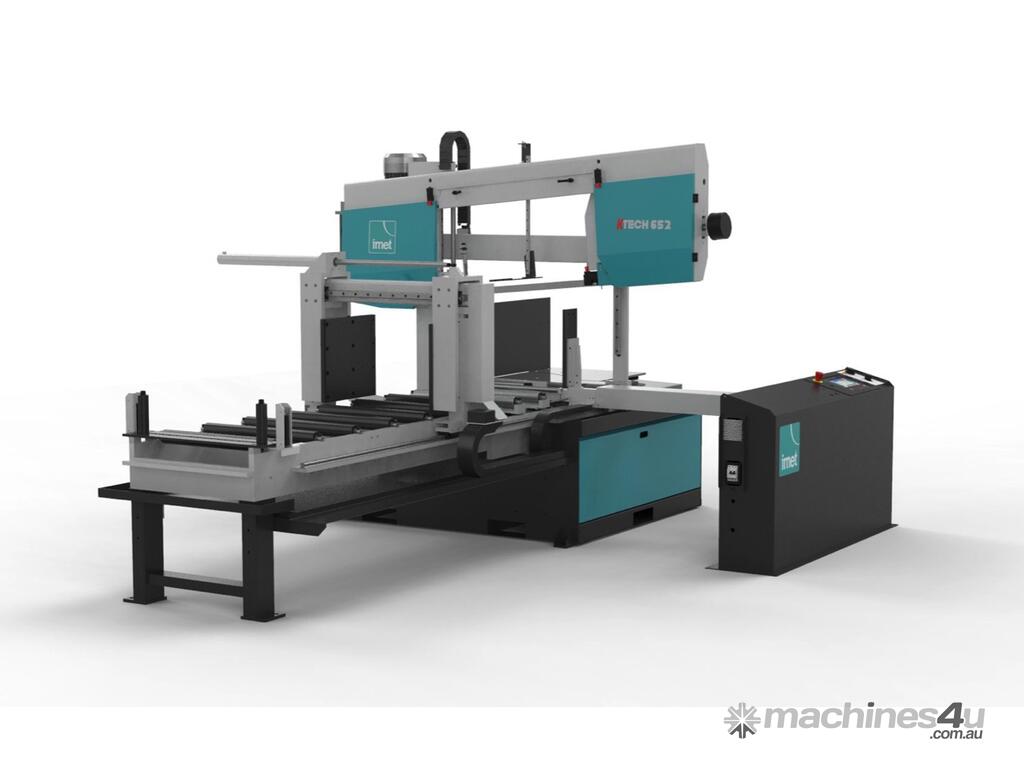

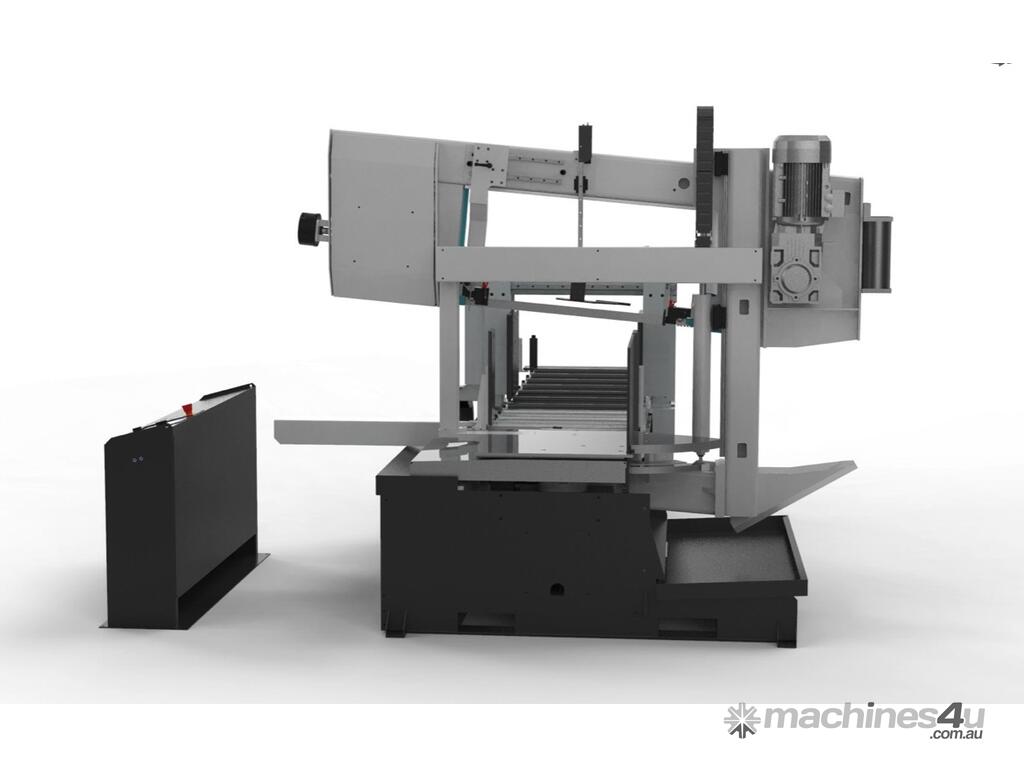

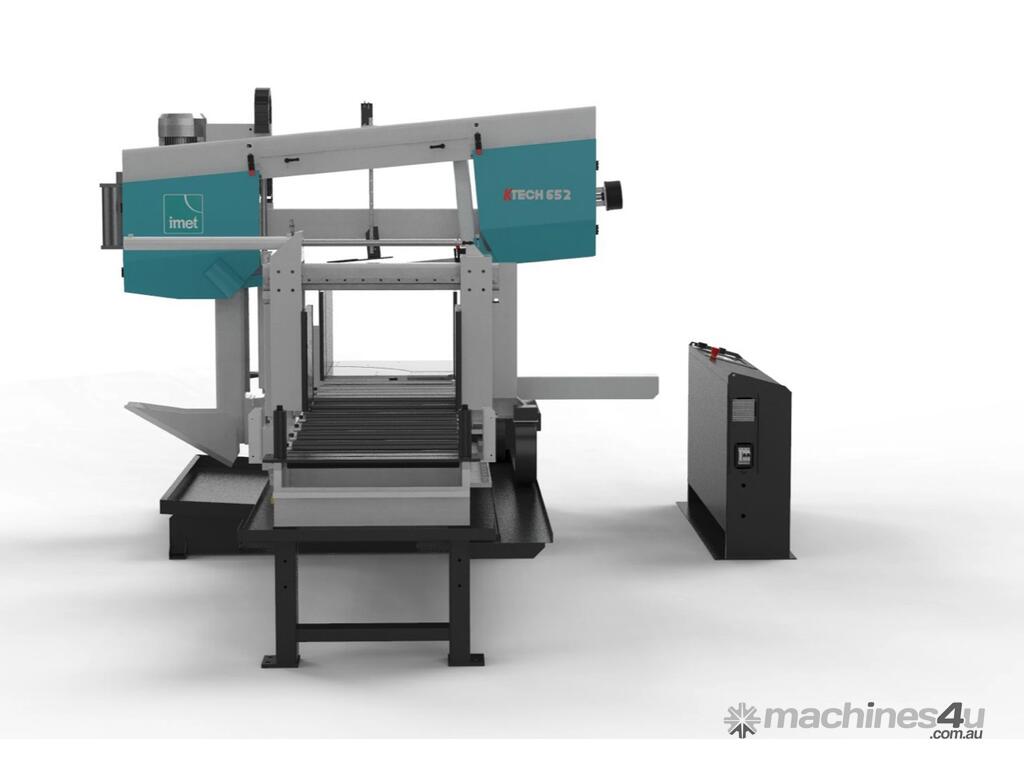

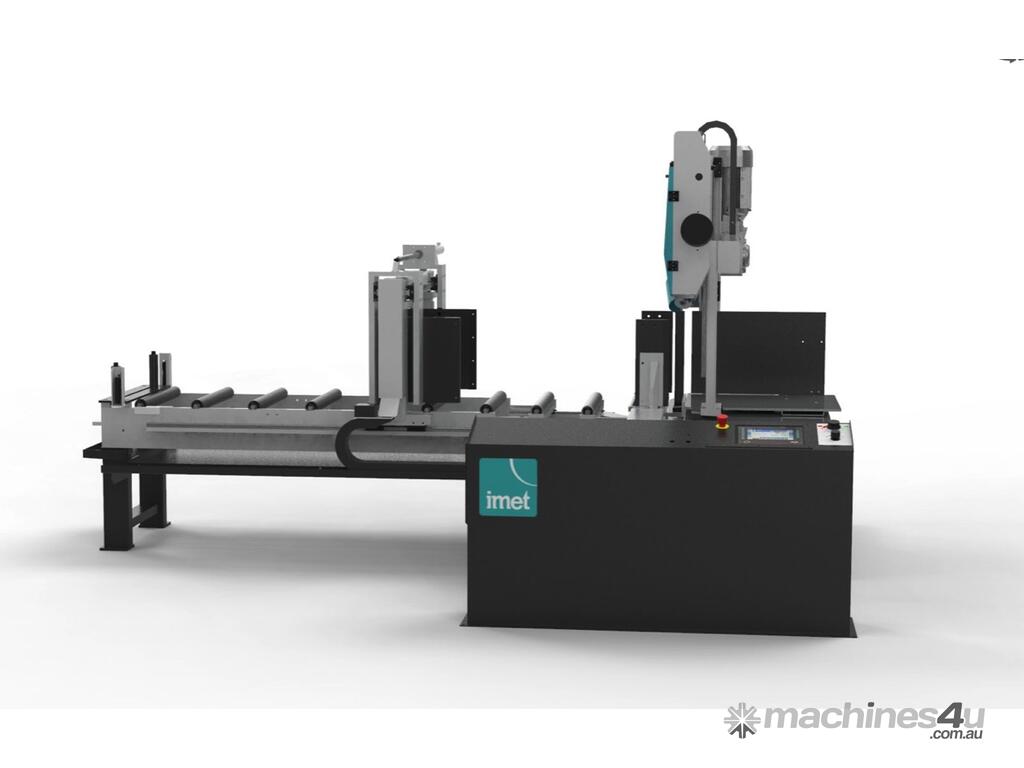

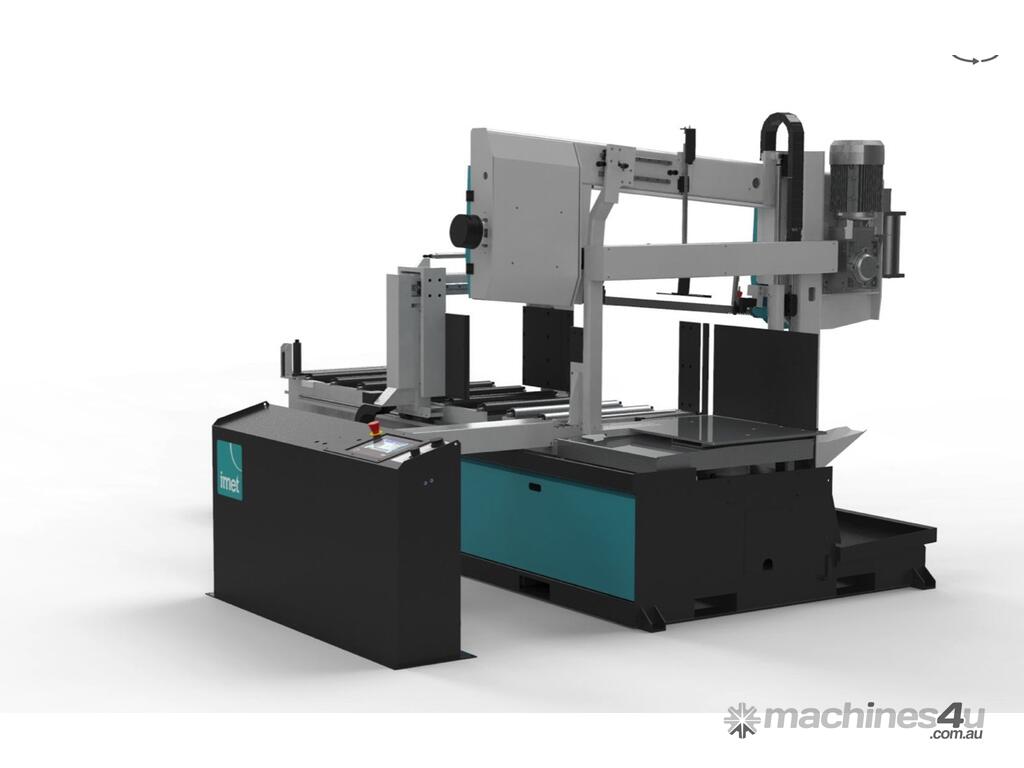

IMET KTECH 652 is an automatic double column bandsaw that includes the most advanced technology available to cut bars, tubes, solids, and profiles up to 60° both left and right. An automatic sawing machine with CNC managed feeder and saw frame, KTECH has a 10" touch screen interface to manage the cutting process and is the perfect working tool for professionals.

3 CHOPICES FOR AUTOMATIC FEEDING STROKE - 2000mm - 3000mm - 6000mm

Cutting capacity at 90° Round: 510mm
Square: 480mm
Rectangular: 650x450mm
Cutting capacity at 45° (left) Round: 440mm
Square: 440mm
Rectangular: 440x440mm
Cutting capacity at 45° (right) Round: 440mm
Square: 440mm
Rectangular: 440x440mm
Cutting capacity at 60° (left) Round: 250mm
Square: 250mm
Rectangular: 250x450mm
Cutting capacity at 60° (right) Round: 250mm
Square: 250mm
Rectangular: 250x450mm
Cutting capacity at 0° bundle - scrapend Max: 650x450mm
Min: 130x20mm
Scrap-end: 280mm
Cutting capacity at 0° solids (C45) 280mm (350mm with blade 41mm)
Minimum cutting diameter 10mm
Minimum cutting length 25mm
Minimum scrap-end 265mm (single cut at 90°)
Blade size 5320x34x1.1mm
Blade speed Da 18 a 100 m/min
Blade power 3KW (4KW motor reducer available with blade 41mm)
Blade tension 1900kg/cm2

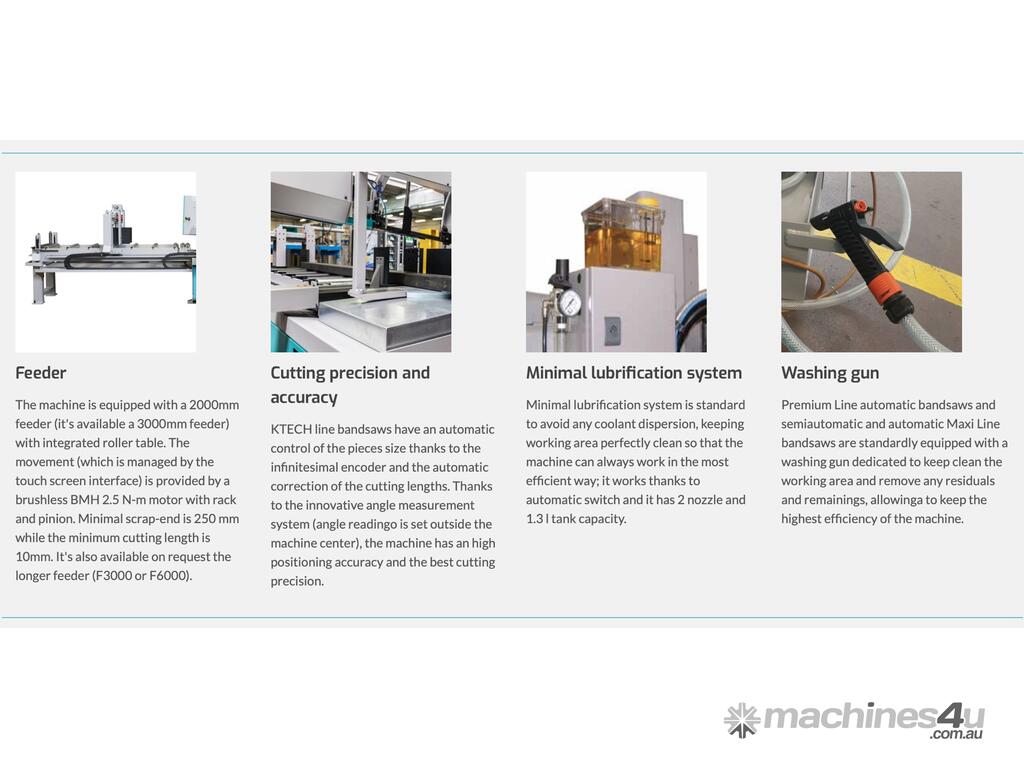

Feeder length 2000mm with automatic repetition (available 3000mm length option)
Feeder motor power Brushless BMH 2.5 N-m
Hydraulic unit motor power 0,55Kw
Sawframe rotation motor power 0,55Kw
Working table height 845mm
Weight 4000kg
Size 3930x2870x2300mm
