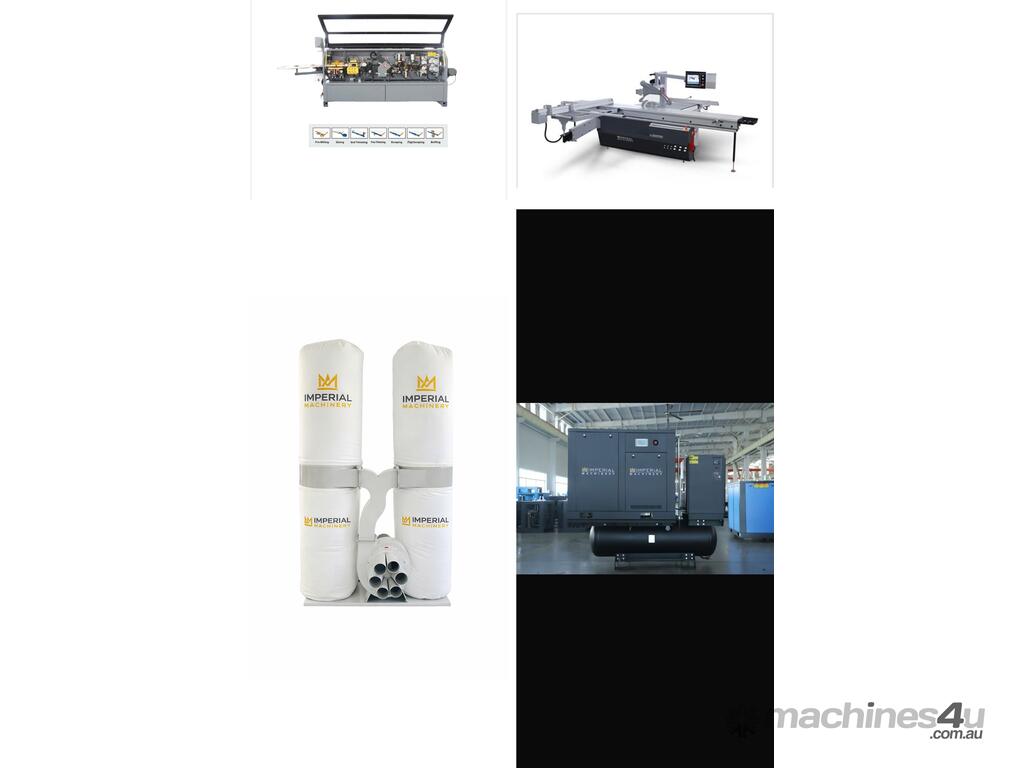

IMPERIAL MACHINERY COMPACT FACTORY STARTER PACK

Imperial Machinery – Compact Production Starter Pack

Smart. Compact. Production-Ready.

The Imperial Machinery Compact Starter Pack is a fully integrated production solution designed for cabinet makers, joinery workshops, and growing manufacturers ready to step into efficient automated production.

This compact yet powerful lineup combines cutting, edging, drilling, dust extraction, and compressed air supply into one streamlined workflow — delivering reliable output, faster turnaround, and professional finish quality from day one.

Engineered for real workshop conditions, this system transforms small to mid-size workshops into efficient production environments without requiring a massive factory footprint.

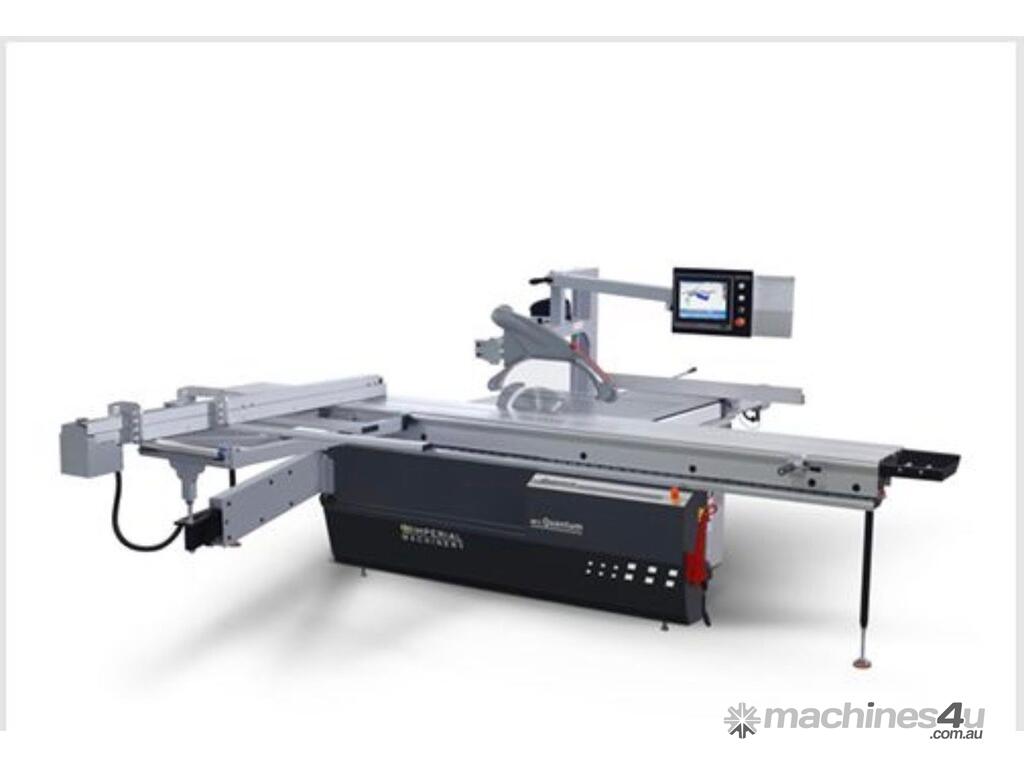

IM72 Quantum Panel Saw

Fast Sizing. Clean Cuts. Industrial Accuracy.

The IM72 Quantum is a fully automatic beam saw engineered for high-precision panel sizing in modern cabinet production.

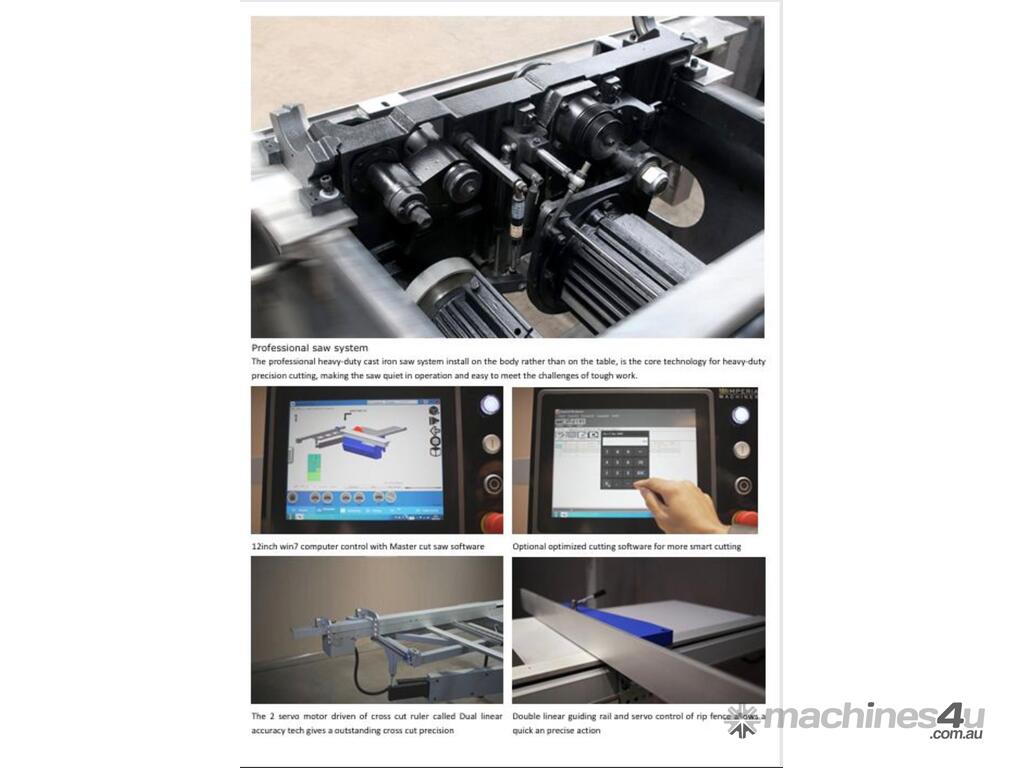

Built around a professional cast iron saw system mounted to the machine body, it provides superior stability, reduced vibration, and outstanding cutting performance under demanding workloads.

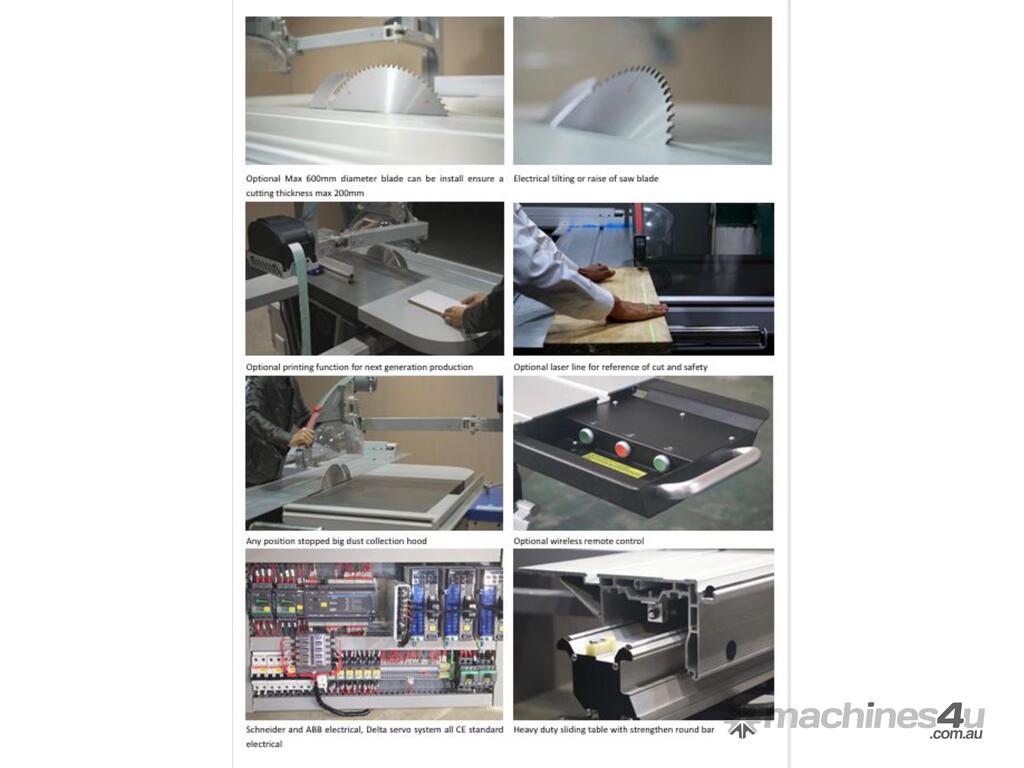

Key Features

• Heavy-duty cast iron saw unit
• Dual servo motor crosscut system
• Double linear guiding rails
• Intelligent industrial control system
• Optional optimisation software
• Electrical blade lifting & tilting
• Heavy-duty sliding table
• Large dust extraction hood
• Industrial electrical components
IM-306TSPF Automatic Edge Bander



The IM-306C is a compact automatic straight edge bander designed for workshops that require professional edge finishing in a space-efficient footprint.

Combining pre-milling, precision gluing, trimming, scraping, and polishing, this machine delivers strong bonding and consistent factory-quality edges.

Key Features

• Pre-milling unit
• Quick-change glue pot
• Teflon-coated gluing system
• Automatic end trimming
• Fine top & bottom trimming
• Edge scraping unit
• Flat scraping unit
• Cleaning agent sprayer
• Buffing / polishing unit
• Compact footprint

IM-DC55 Dual-Bag Industrial Dust Collector – 5.5kW

Powerful Extraction. Cleaner Air.

The IM-DC55 is a high-efficiency industrial dust extraction system designed to maintain a clean, safe, and productive woodworking environment.

Powered by a robust 5.5kW motor, it delivers high-volume air extraction with stable airflow across multiple machines.

Key Features

• Heavy-duty 5.5kW motor
• 6200 m³/h airflow capacity
• Dual large dust collection bags
• Multi-port inlet design
• High-velocity suction
• Efficient chip separation
• Easy maintenance
• Compact floor-standing design

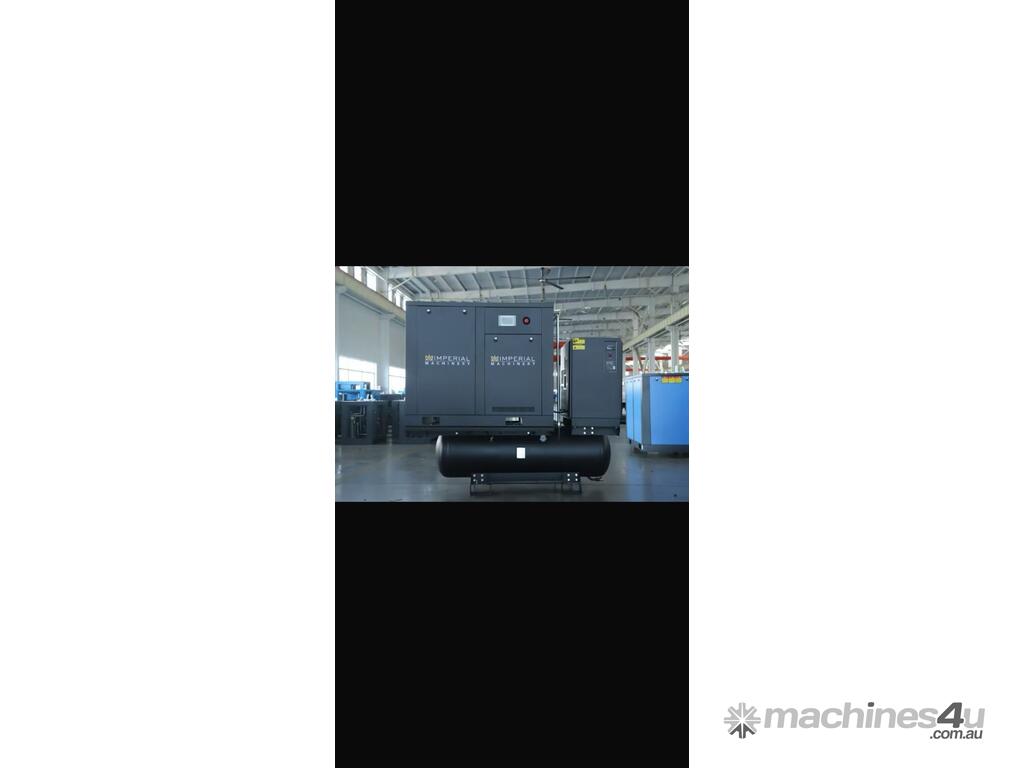

IM7.5 Industrial Screw Compressor – 10 Bar

Reliable Power. Continuous Air.

The Imperial Machinery Screw Compressor delivers stable, high-efficiency compressed air for demanding industrial environments.

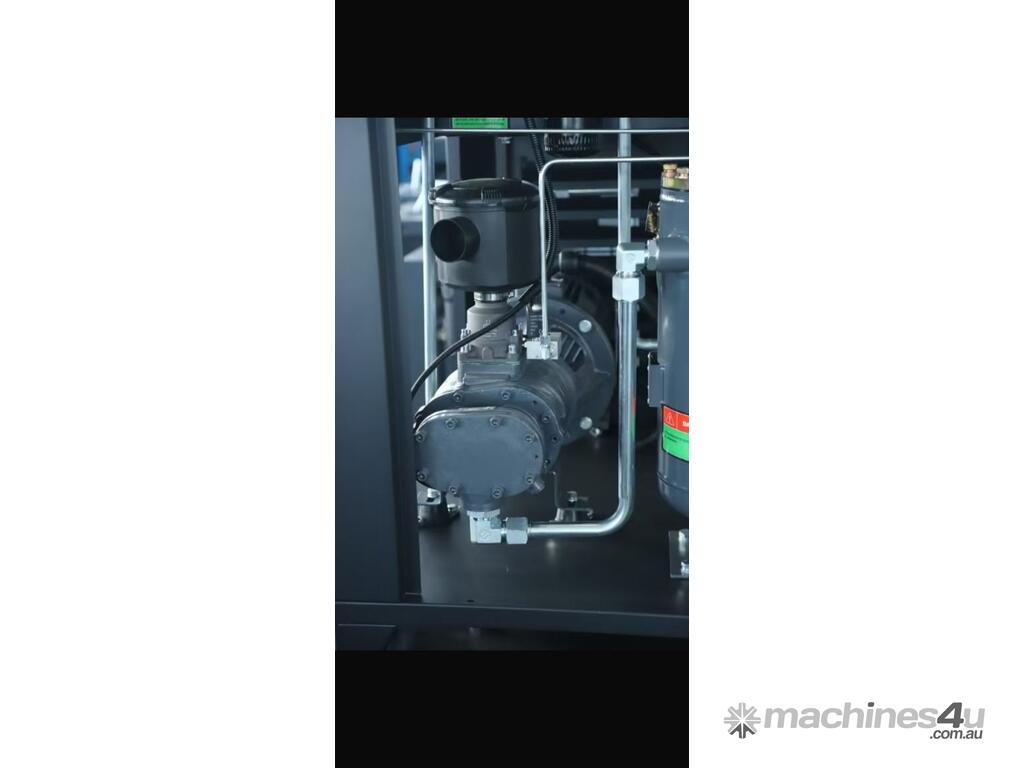

Built with a direct-drive rotary screw system, it ensures consistent pressure, low noise output, and long service life.

Key Features

• 10 bar working pressure
• High-efficiency rotary screw air end
• Direct drive system
• Low noise operation (? 78 dB)
• Air-cooled design
• IP54/F motor protection
• Automatic start system
• Compact footprint

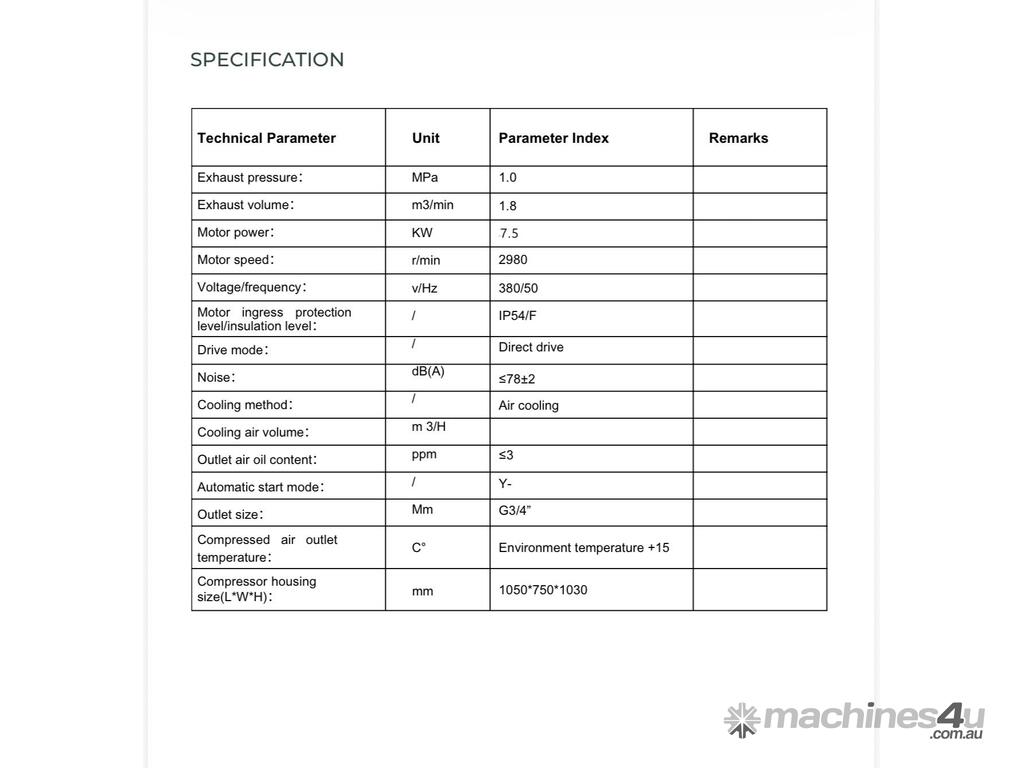

Performance Highlights

• Exhaust Pressure: 10 Bar
• Air Volume: 1.8 m³/min
• Motor Power: 7.5 kW
• Motor Speed: 2980 r/min
• Voltage: 380V / 50Hz
• Dimensions: 1050 × 750 × 1030 mm
