IMPERIAL MACHINERY IM-306C COMPACT EDGEBANDER UNDER 3M

Imperial Machinery IM-306TSPF
Compact Automatic Straight Edge Banding Machine
Compact Size. Professional Finish. Built for Everyday Production.

The Imperial Machinery IM-306TSPF is a compact automatic straight edge banding machine designed for workshops and growing factories that require professional edge finishing in a space-efficient footprint.

Combining pre-milling preparation, precision gluing, trimming, scraping, and polishing, this machine delivers strong bonding, clean edges, and consistent factory-quality results while maintaining simple operation and low maintenance.

Despite its compact design, the IM-306TSPF integrates the same critical processing stations found on larger production machines, making it a reliable and cost-effective solution for daily manufacturing.

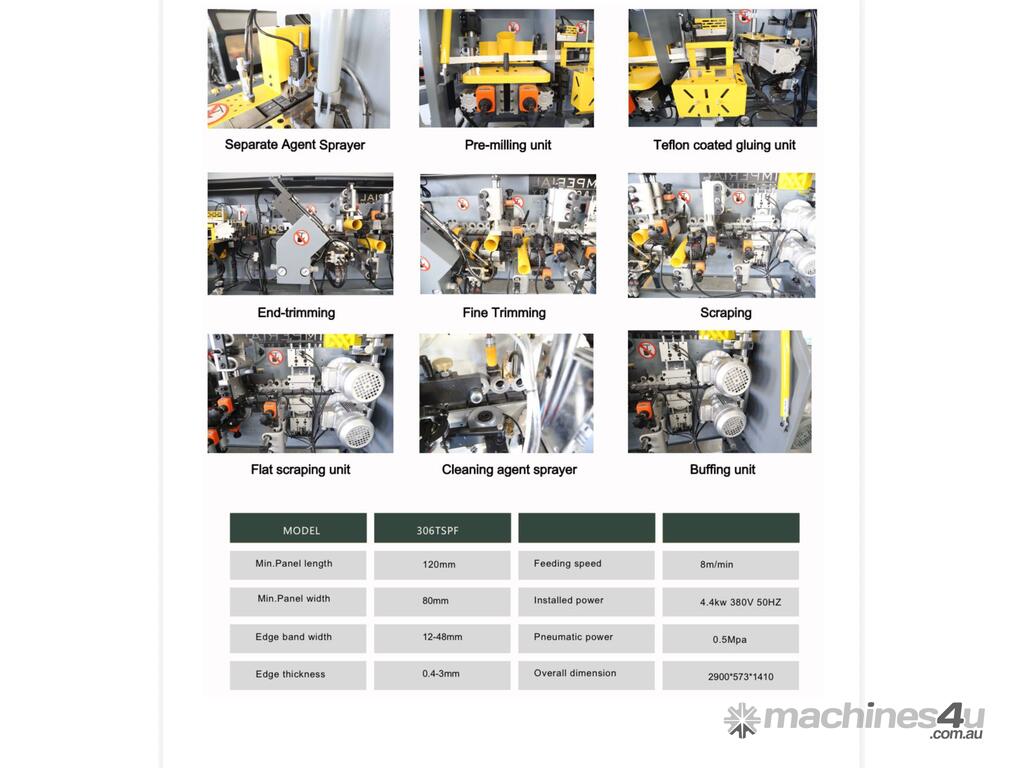

Key Features

• Pre-milling unit
• Quick-change glue pot
• Teflon-coated gluing system
• Separate anti-stick agent sprayer
• Stable feeding guidance system
• Automatic end trimming
• Fine top & bottom trimming
• Edge scraping unit
• Flat scraping unit
• Cleaning agent sprayer
• Buffing / polishing unit
• Compact space-saving footprint
• Easy maintenance design

Technical Specifications

• Feeding speed: 8 m/min
• Edge thickness: 0.4–3 mm
• Edge band width: 12–48 mm
• Minimum panel length: 120 mm
• Minimum panel width: 80 mm
• Installed power: 4.4 kW
• Pneumatic pressure: 0.5 MPa
• Voltage: 415V / 50Hz
• Machine size: 2900 × 573 × 1410 mm
