IMPERIAL MACHINERY IM-568J STRAIGHT EDGE BANDER

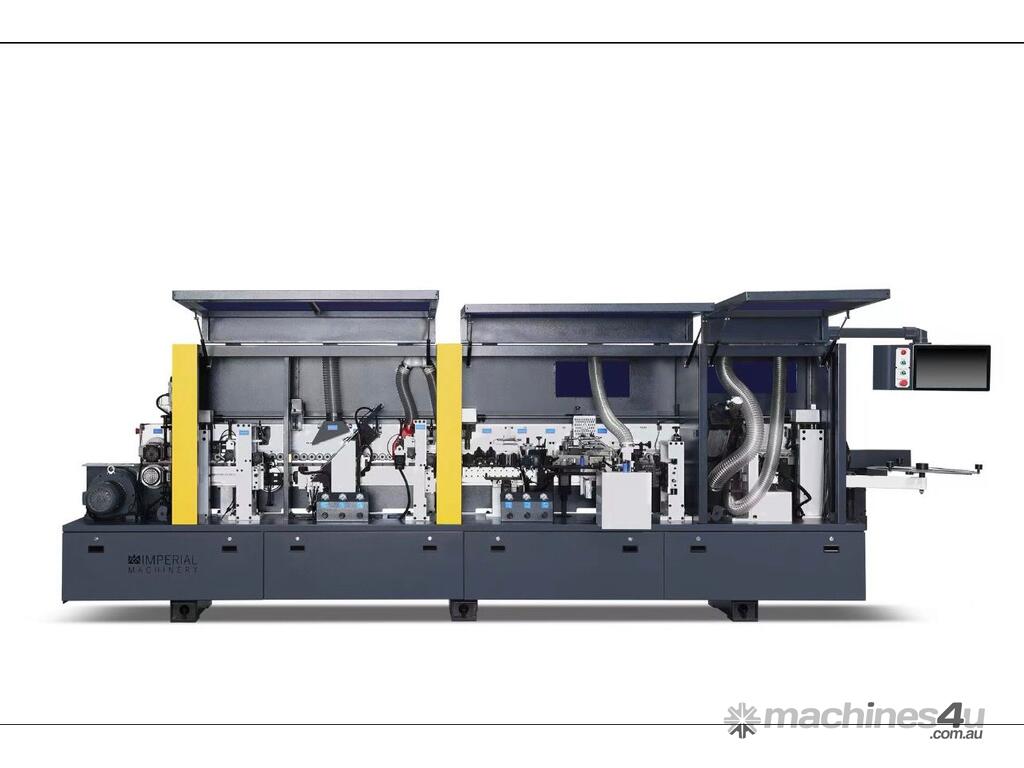

Imperial Machinery IM-568J
Fully Automatic Intelligent Straight Edge Banding Machine
High-Speed Precision. Intelligent Control. Built for Continuous Production.

The Imperial Machinery IM-568J is a fully automatic intelligent straight edge banding machine designed for modern cabinet and panel furniture production. Engineered for high-speed operation and superior finish quality, the IM-568J delivers precise edging, strong bonding, and flawless surface results in demanding factory environments.

With advanced automation, heavy-duty construction, and a complete multi-station processing line, the IM-568J ensures consistent performance, reduced labour dependency, and maximum productivity for medium to large-scale manufacturing operations.

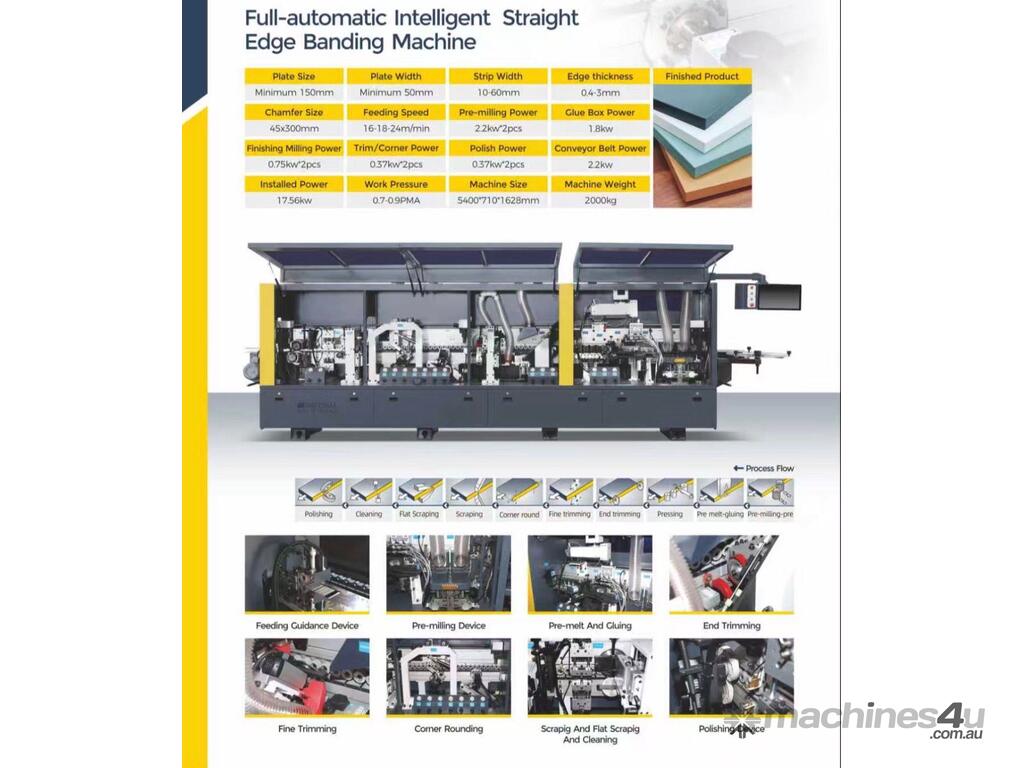

Complete Processing Line – Station by Station
Feeding Guidance Device

Ensures accurate panel alignment and stable board feeding for consistent straight-edge processing.

Pre-Milling Device

Removes surface imperfections and squares the panel edge before glue application, creating the perfect bonding surface.

Pre-Melt & Gluing Unit

Applies hot-melt adhesive evenly for strong, durable bonding between edge tape and board surface.

Pressing Unit

Multi-roller pressure system firmly secures the edge tape to the panel, ensuring tight adhesion without gaps.

End Trimming

Automatically trims excess tape at the front and rear edges for a clean, flush finish.

Fine Trimming

High-speed trimming motors remove surplus tape along the top and bottom edges for sharp, precise results.

Corner Rounding

Creates smooth, rounded panel corners for enhanced finish quality and safer handling.

Scraping & Flat Scraping

Removes excess glue residue and micro imperfections to achieve a seamless edge transition.

Cleaning Unit

Cleans and refines the finished surface for a professional factory-grade appearance.

Polishing Device

Buffing wheels polish the edge to produce a smooth, glossy, high-quality finish.

Key Performance Features

• Fully automatic straight edge banding system
• Intelligent control interface
• Feeding speed: 16–24 m/min
• Edge thickness: 0.4–3 mm
• Strip width: 10–60 mm
• Minimum panel width: 50 mm
• Minimum panel length: 150 mm
• Pre-milling power: 2.2 kW × 2
• Glue box power: 1.8 kW
• Finishing milling power: 0.75 kW × 2
• Trim/Corner power: 0.37 kW × 2
• Polish power: 0.37 kW × 2
• Conveyor belt power: 2.2 kW
• Installed power: 17.56 kW
• Working pressure: 0.7–0.9 MPa
• Machine size: 5400 × 710 × 1628 mm
• Machine weight: 2000 kg
