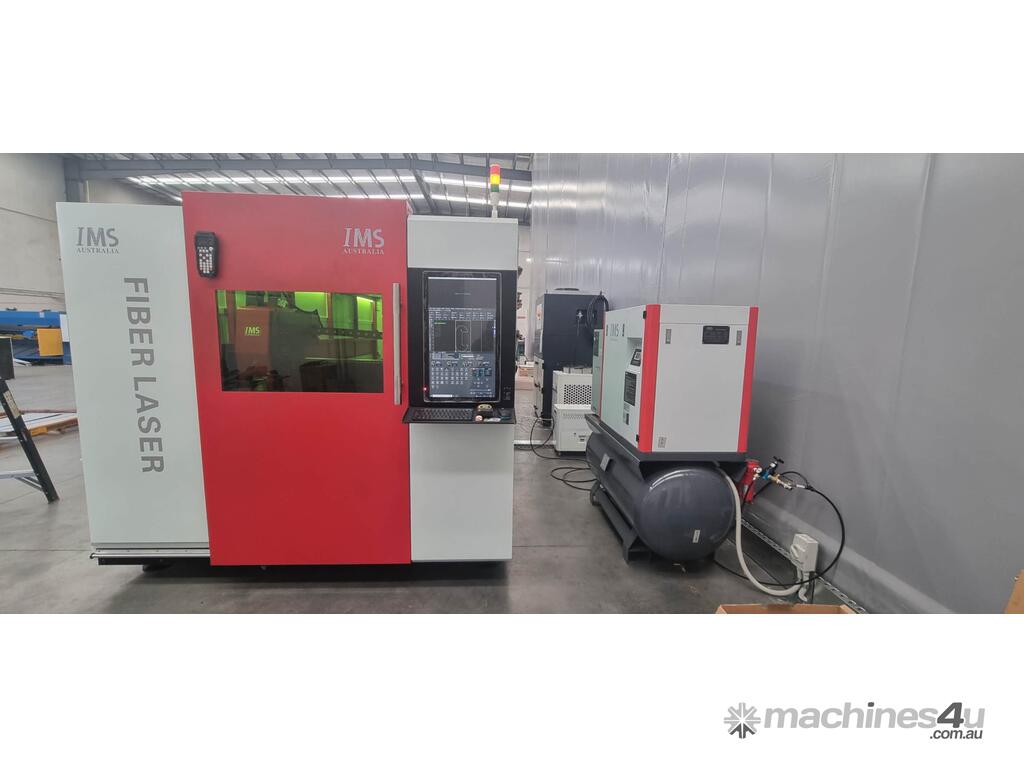

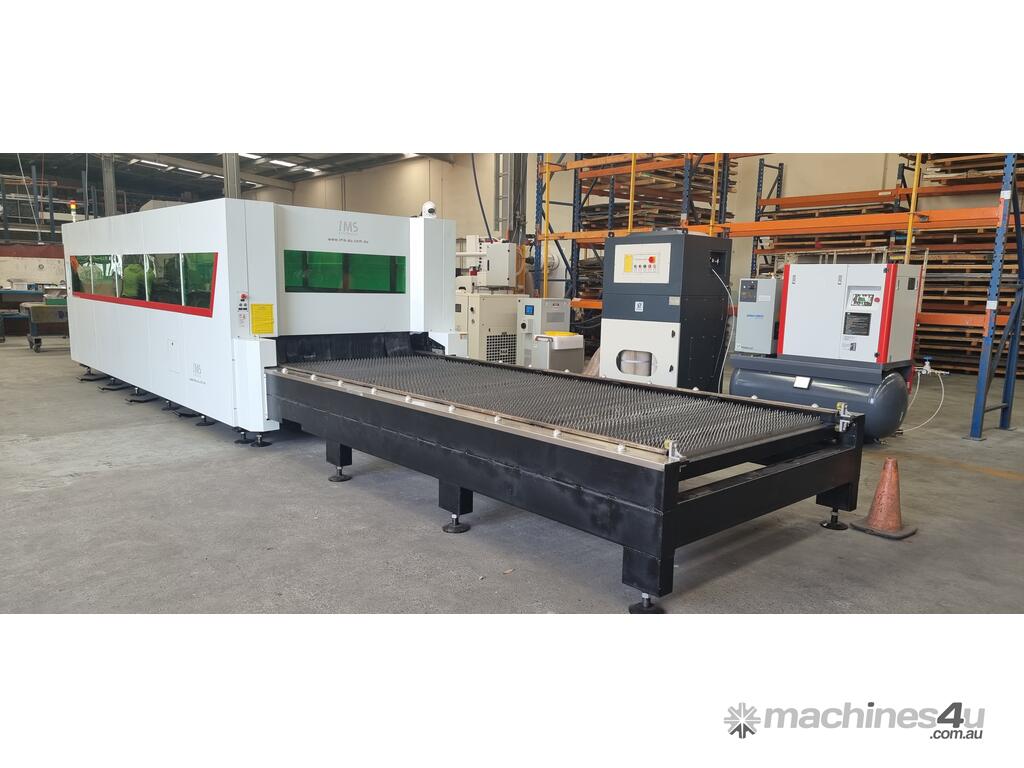

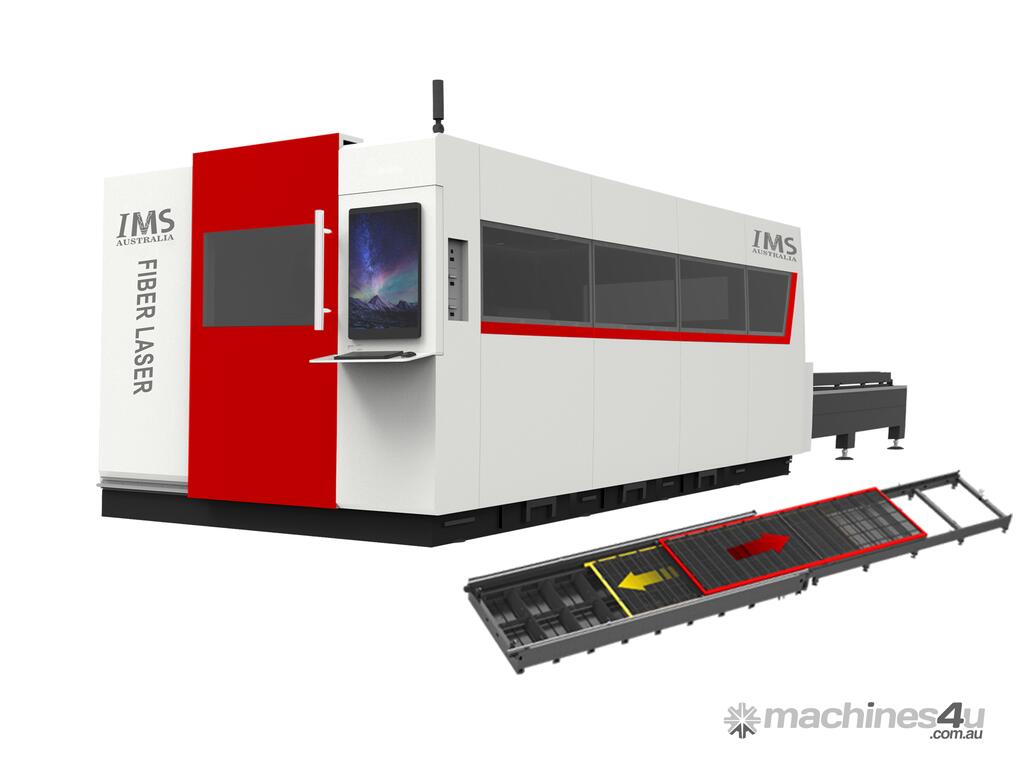

IMS -12Kw |1.5x3m Fiber Laser | Enclosure | Exchange table | Delivered & Installed.

IMS-TRITON 12Kw Fibre laser cutting machine comes with:

• Heavy duty gantry type welding structure

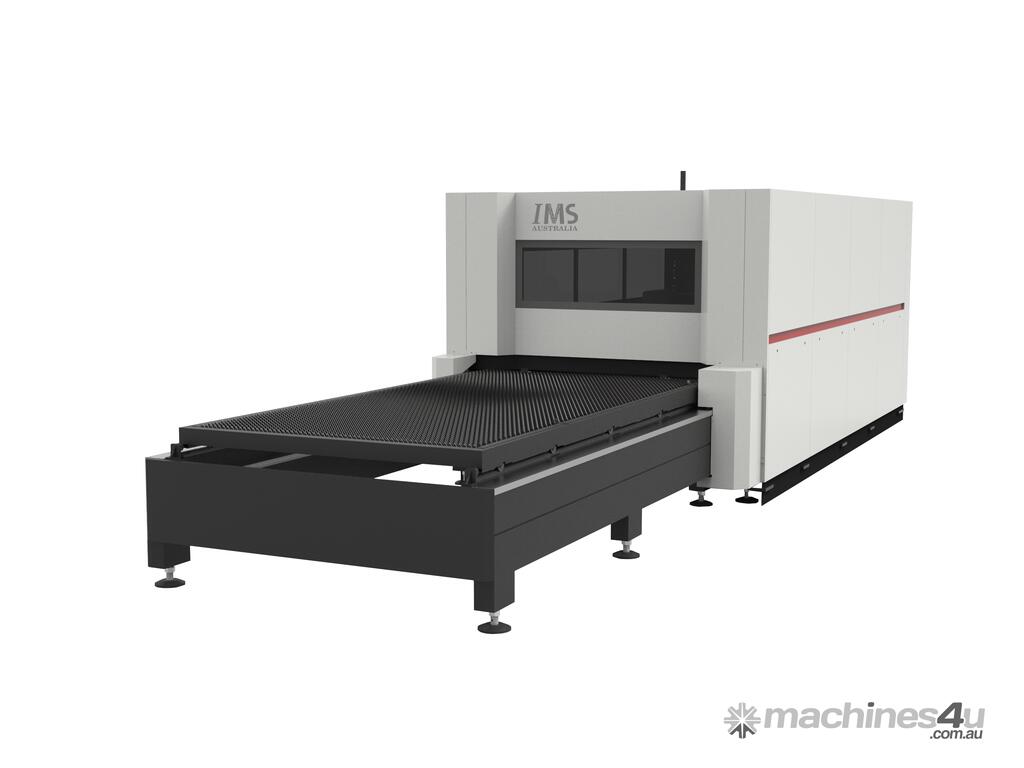

• Heavy duty work and exchange table
• Crossbeam: Extruded Aviation aluminum

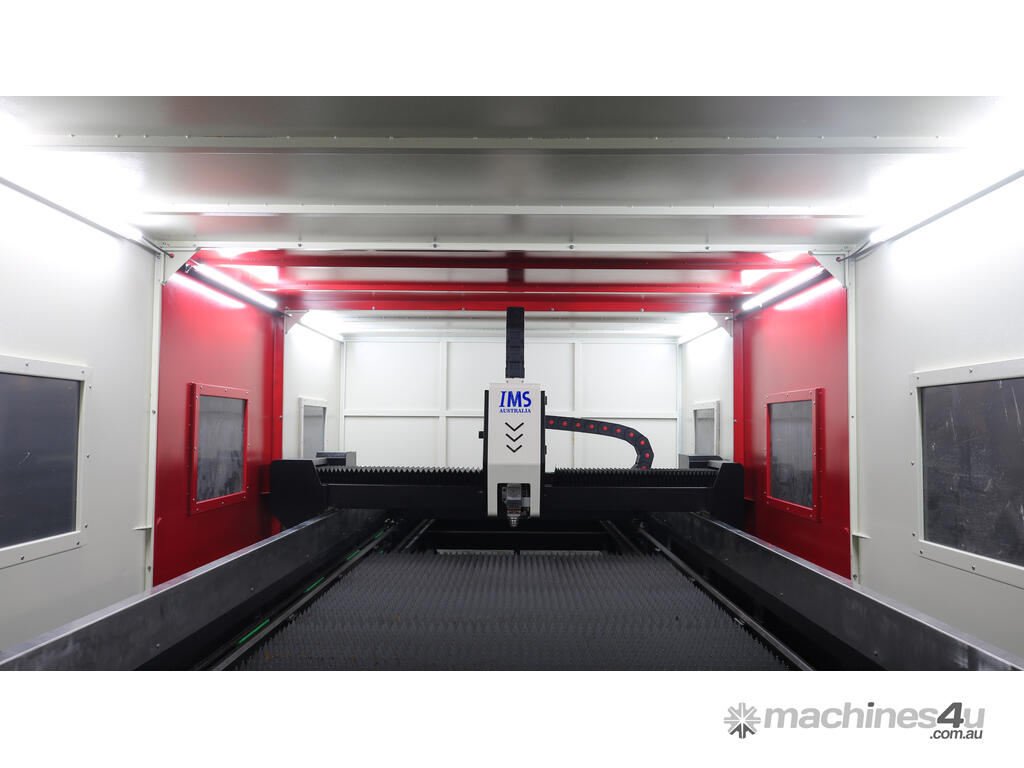

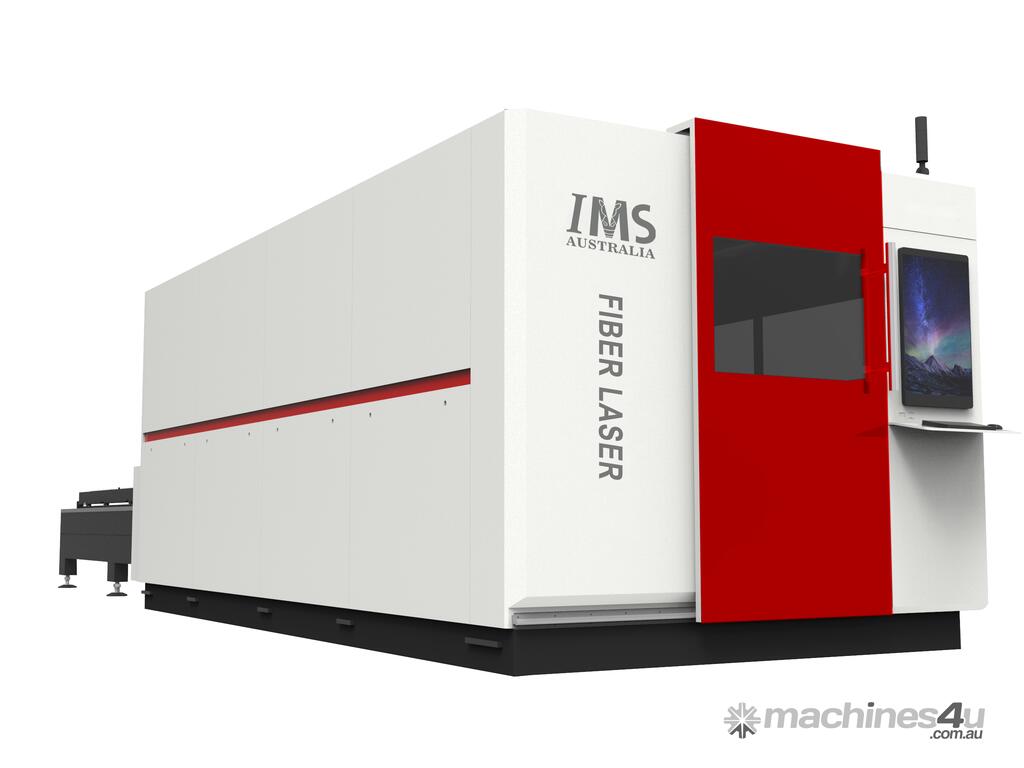

• The Working Area is fully enclosure meeting Australian safety standard
• large monitor screen with a safety camera
• Advanced control system and very easy to learn and operate
• Automatic lubrication system to protect the machine
• High dynamic performance thanks to all high-end, world-famous components
• All cutting gases with individual high-pressure proportional control valves
• Built-in computer, rotation screen and wireless mobile controller
• Free Software update
• Free Supporting phone calls and internet video cam
• Ongoing training and maintenance schedules are available.

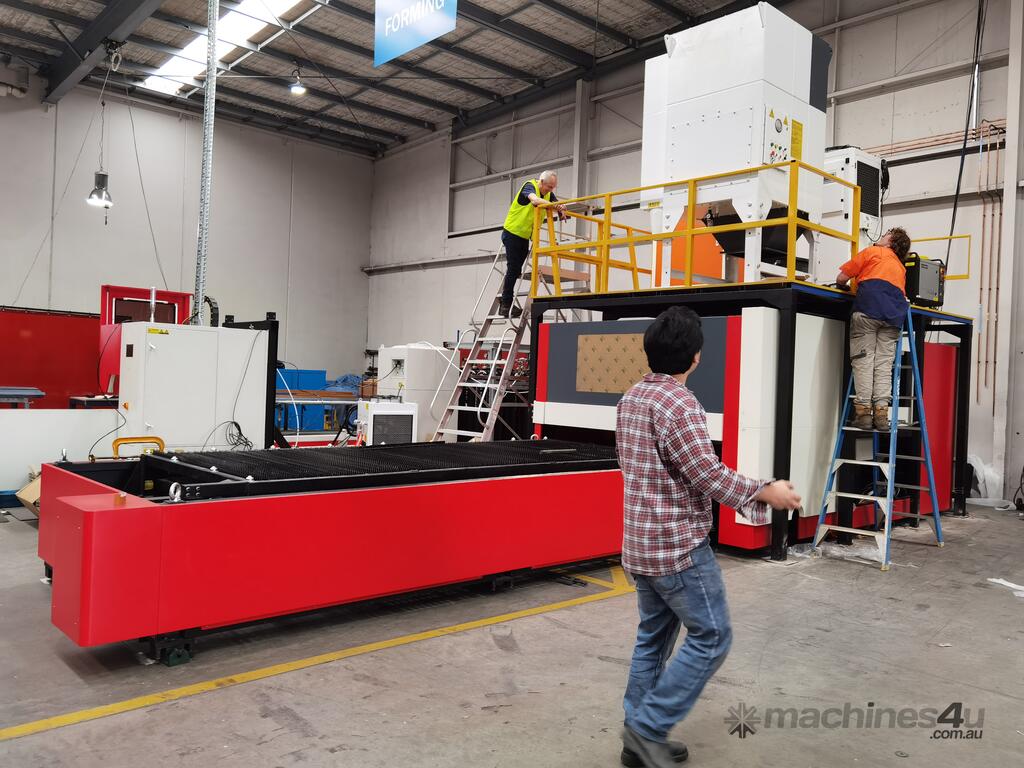

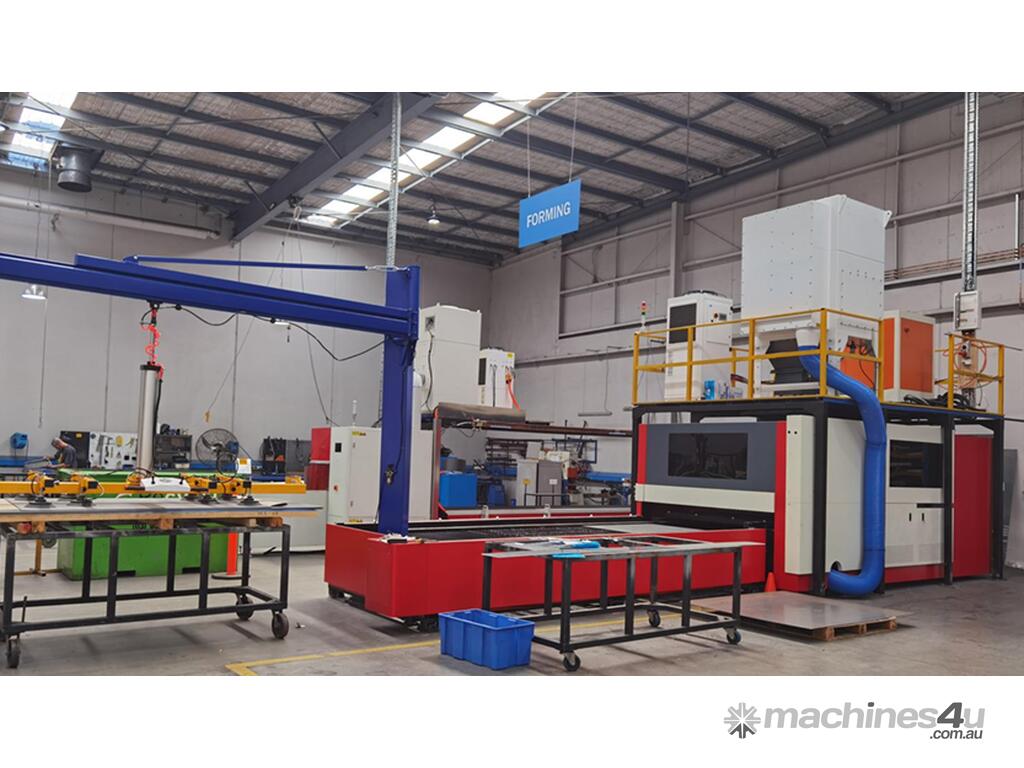

• Delivered and installed in Melbourne

Specifications:

12Kw GW (America) laser source
Fiber Cutting Head (RAYTOOL, Switzerland)
Chiller (Teyu or Tongfei, China)
X, Y, Rack & Pinion (YTC, Taiwan)
Decelerator, Reducer (ROUST, Germany)
Guide Rail (ROUST, Germany)
Pneumatic System (SMC, Japan)
Electrical components (SCHNEIDER, France)

Working Area: 1530mm x 3050mm
X-axis running area: 1510 mm
Y-axis running area: 3050mm
Z-axis running area: 320mm
Max running speed: 140m/min
Accelerated speed: 1.5G
Position Precision: +/-0.03mm
X/Y axis repeated precision: +/- 0.02mm
Power: 3 Phase 380v +-5%/50Hz
Machine size:11000 x 2315 x 2000mm

Options available at additional costs:
• Stabilizer power supplier
• Fume extraction unit
• Compressed air system
• Material lifting system (500Kg)

**Advantages of the IMS Laser Cutting System Compared to Other Suppliers: **

1. **Expertise in Technology**: Our R&D technician living in Melbourne has over 38 years of experience in laser cutting machine technology, including exceptional design and laser cutting applications.

2. **Advanced Anti-reflective System**: The IMS Laser team collaborates with GW Company in America to design an advanced anti-reflective system. This system protects the laser generator from damage while cutting highly reflective materials such as aluminum, copper, and brass.

3. **High-Quality Components**: Our laser cutting systems are built with high-quality parts sourced from Australia, America, Germany, and Japan, ensuring minimal breakdowns and reliable service.

4. **Local Support**: As an Australian company, we provide local services for laser cutting machines and generators.

5. **Cost-Effective Manufacturing**: Our manufacturing facility is located in China, which allows us to offer competitive pricing compared to other suppliers and well-known global brands.

6. **Efficient Design**: Our compact design reduces shipping costs, and our shutter tables can fit into a 40ft high-cube container.
