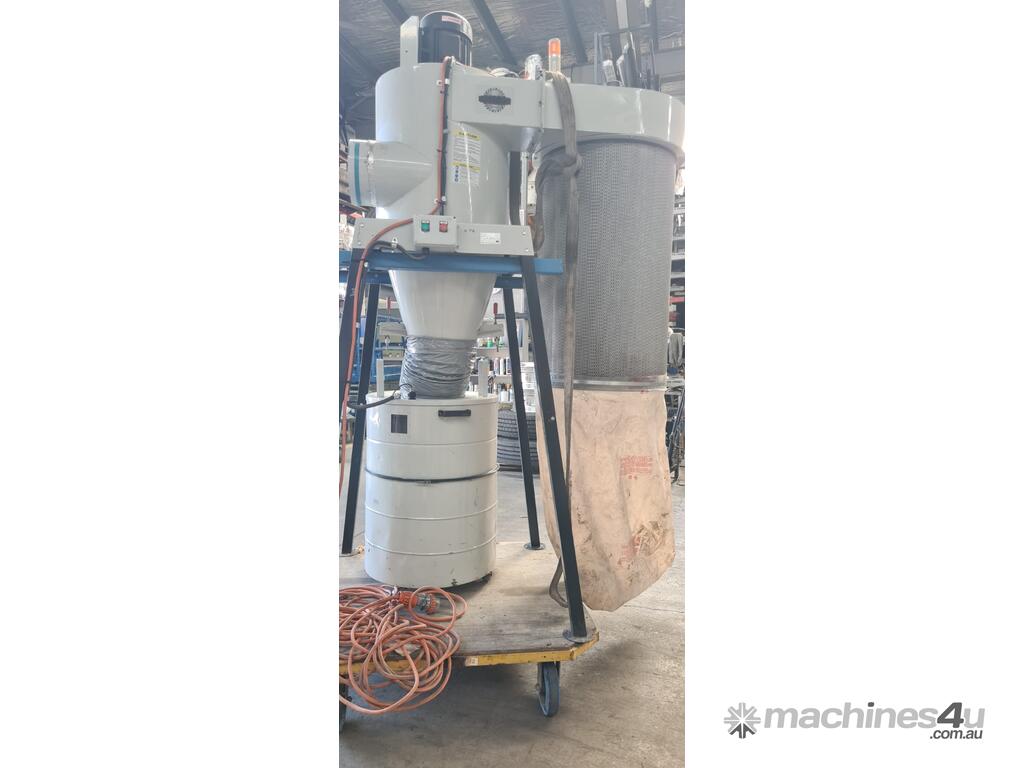

Industrial Dust Extractor DE-25SECK 5HP Two stage dust cyclone (with Filter Auto Cleaning system)

DE-25SECK
5 HP Two Stage Dust Cyclone (with Filter Auto Cleaning System)

FEATURES:

A cyclone separated the bulky wood waste from the air stream as it enters the dust collection system.
It is much safer buy with high quality which the cyclone remotes potentially destructive objects before they can enter the impeller.
A cyclone is more efficient because it consolidates saw dust into an easy to empty container and the airflow won’t restricted by filter clogging.
Always attached the dest with high quality 1-micron filter bag with 74% efficiency for upper filtration and clear plastic bag for the bottom bag.
The quick and smart handle for pulling out collecting drum easily with only one person operating.
The canister is equipped fashionable with high quality with 1 micron filter and it goes 30 second forward and 30 second reverse direction for auto cleaning when machinery turn off.

SPECIFICATION:
Model: DE-25SECk
Motor: 5 HP / 60hz
Air suction capacity w/o bag 3600 CFM
Max. static pressure 16 InH2O
Inlet diameter 10"×4"×4
Canister demension Dia. 600 x 1000mm
Sound rating 3M 75~85 db at 3M position
Overall dimension 1800×1300×3000 mm
Packing size
800×900×1520 mm, 1440x 720x 750mm

N.W / G.W / CUFT 194 kgs / 244 kgs / 56'


Serial number: D11120037
