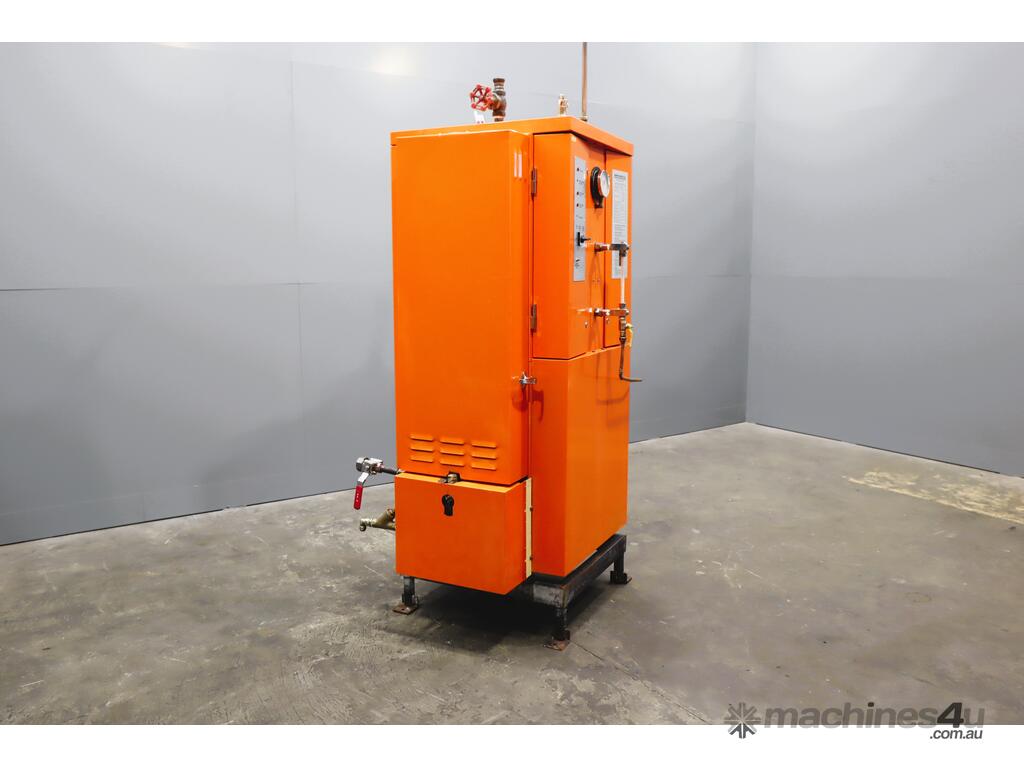

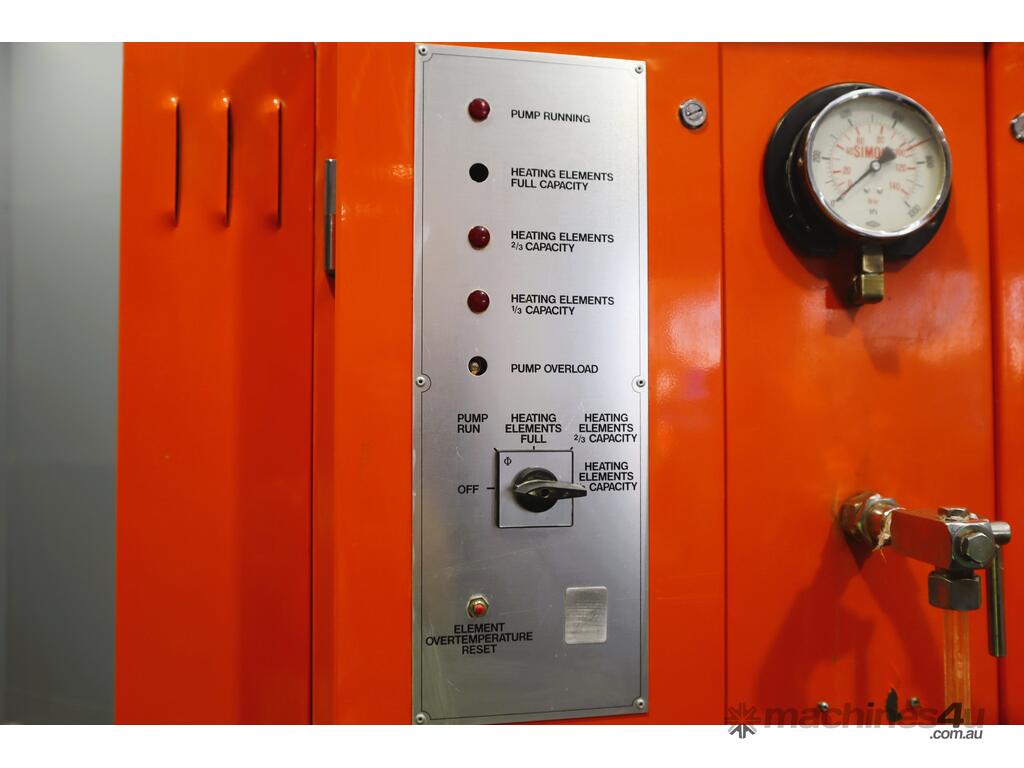

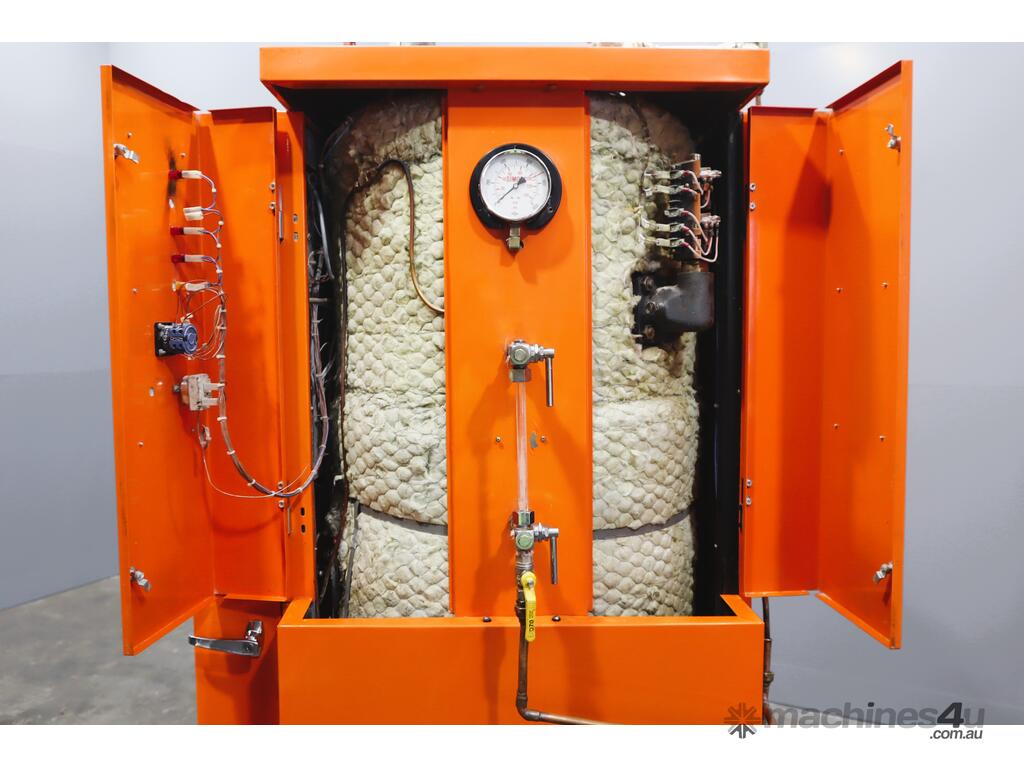

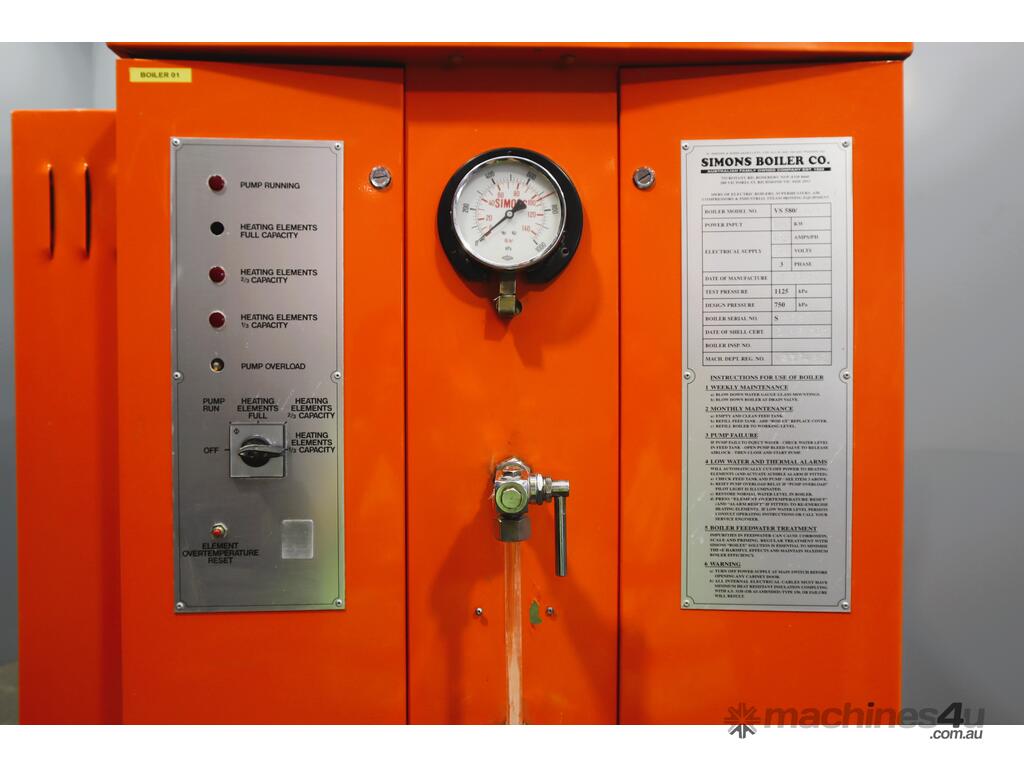

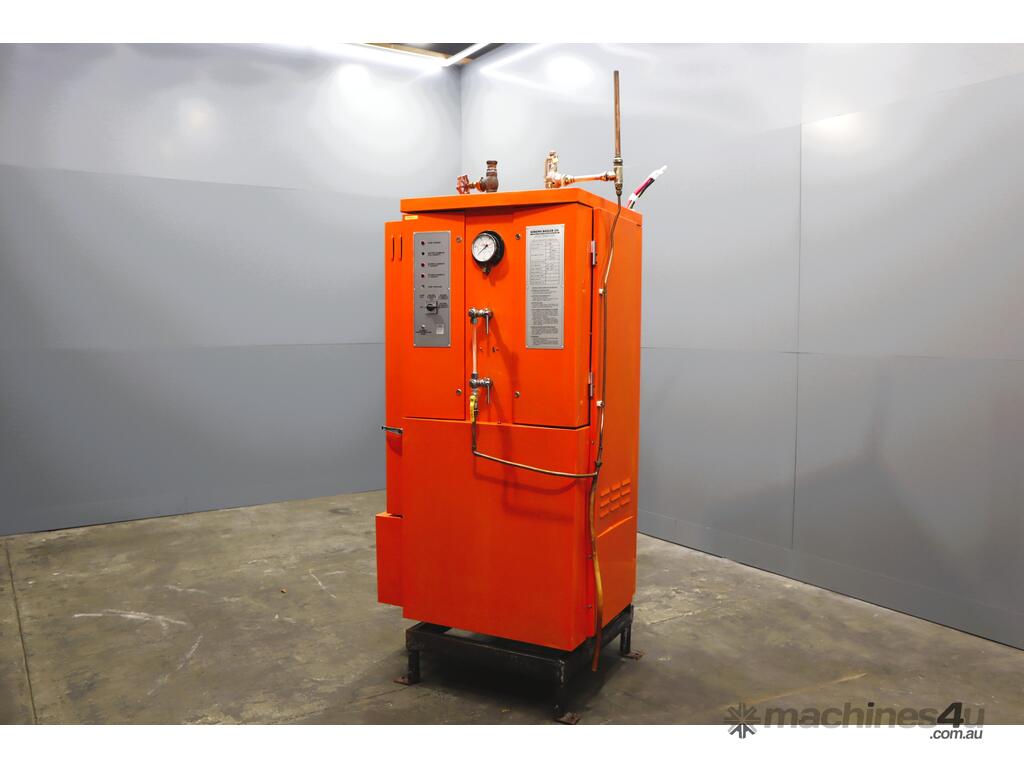

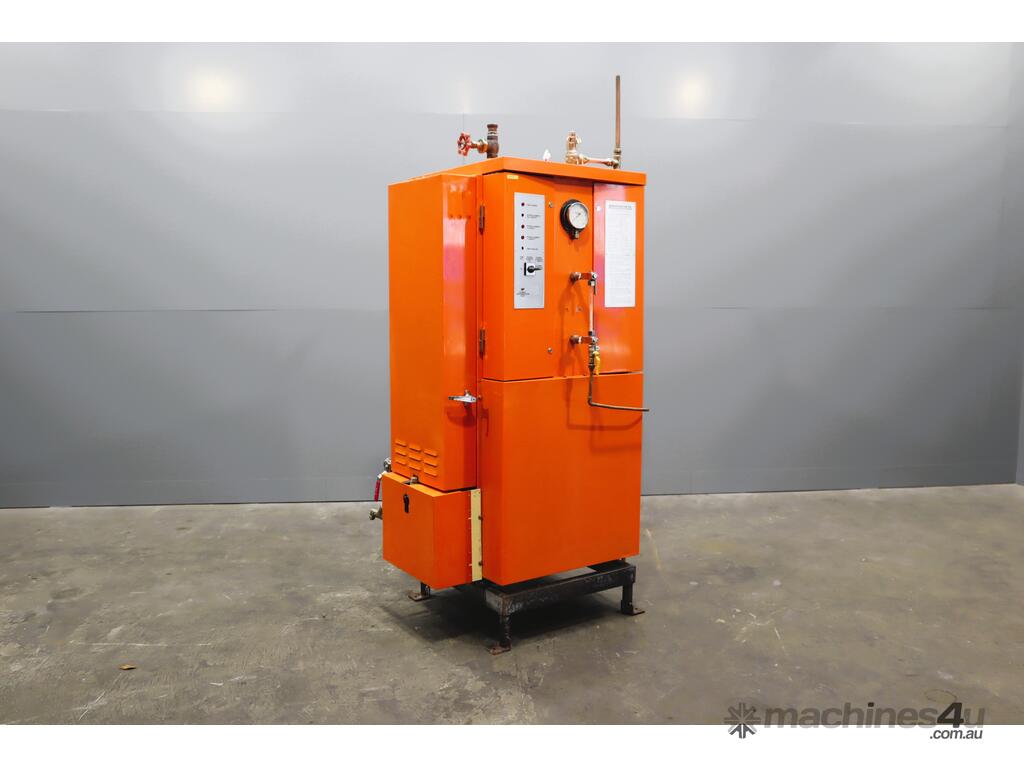

Simons VS 580 electric steam boiler in excellent condition. Australian made heavy duty industrial unit designed for reliable steam generation in commercial and industrial environments. This boiler is rated at 100 kW and well suited to facilities requiring consistent, controllable steam output with minimal combustion related maintenance. Unit presents in solid condition and is fitted with pressure gauge, safety valves, and inspection access.

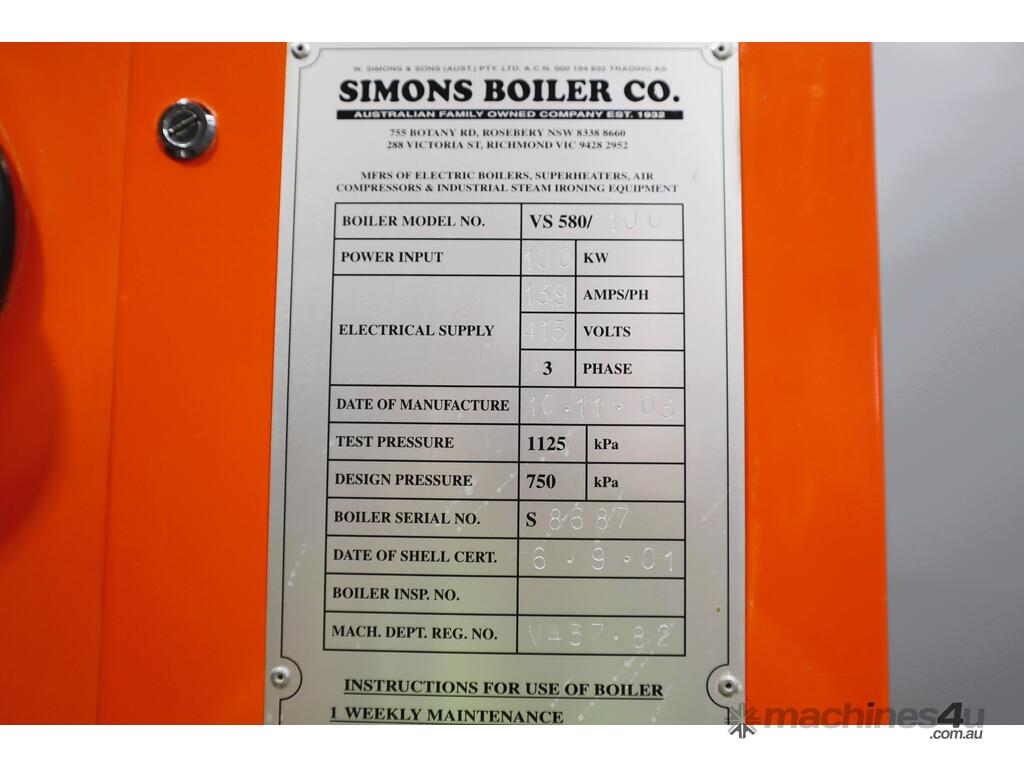

Make: Simons
Model: VS 580/100
Year: 2003
Made in Australia
Burner/Type: Electric Element
Number of elements: 3
Test Pressure: 1125 kPa
Design Pressure: 750 kPa
Steam Capacity: 159.1 kg/hr (from and at 1000C) / 133.6 kg/hr 690 kPa
Steam Outlet Valve (mm): 25
Heat up time: 22 mins (from cold start)
Water Content: 200L
Rated Voltage: 415V 3 Phase
Power Input: 100kW
Boiler HP: 10
Overall Dimensions (mm): 1100 L x 945 W x 2300 H
