Industrial Fine Grinding Disk Pin Mill - 37 kW - Jehmlich Rekord C-SSt

Make us an offer! We take all reasonable offers into consideration and are highly negotiable.

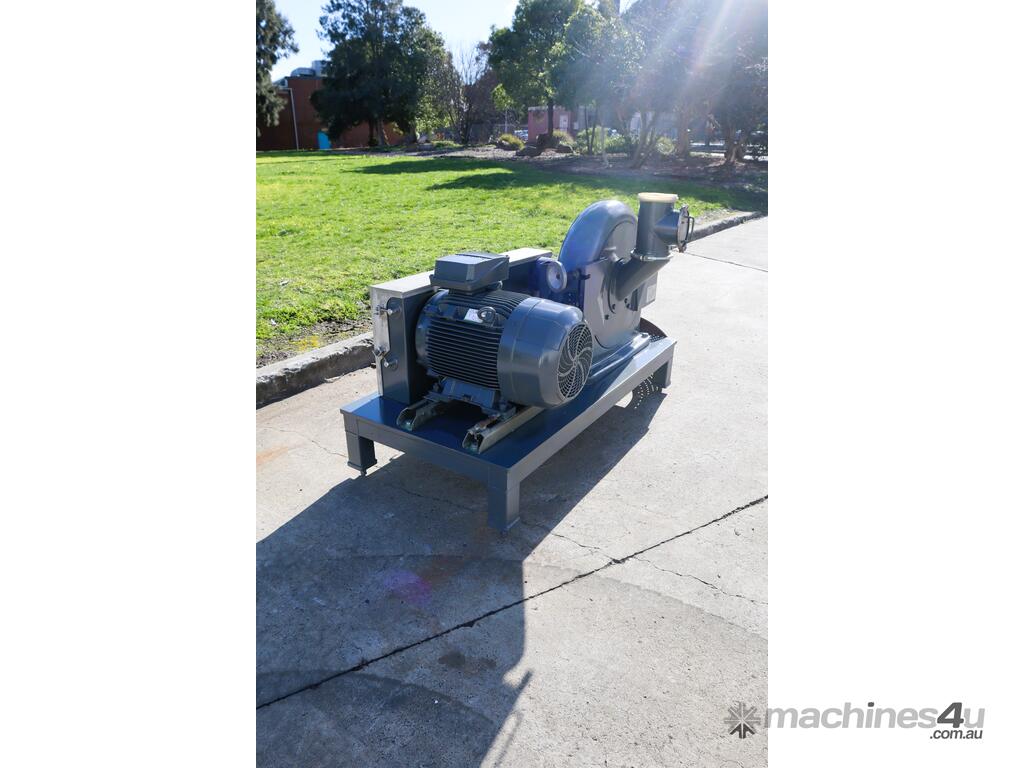

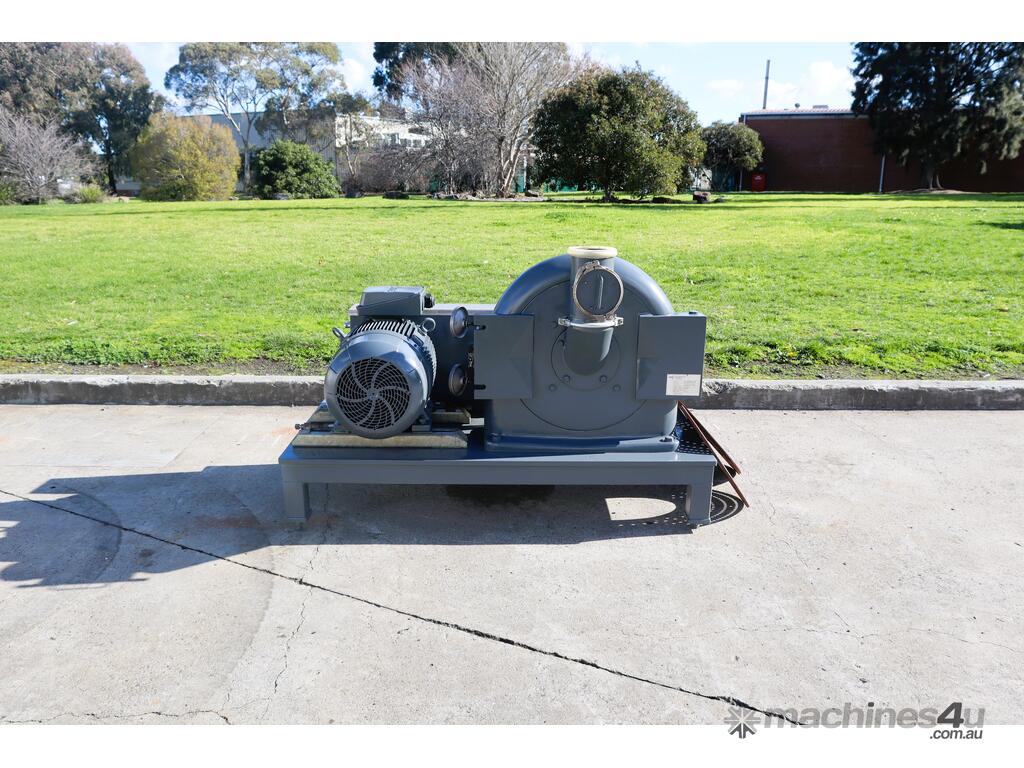

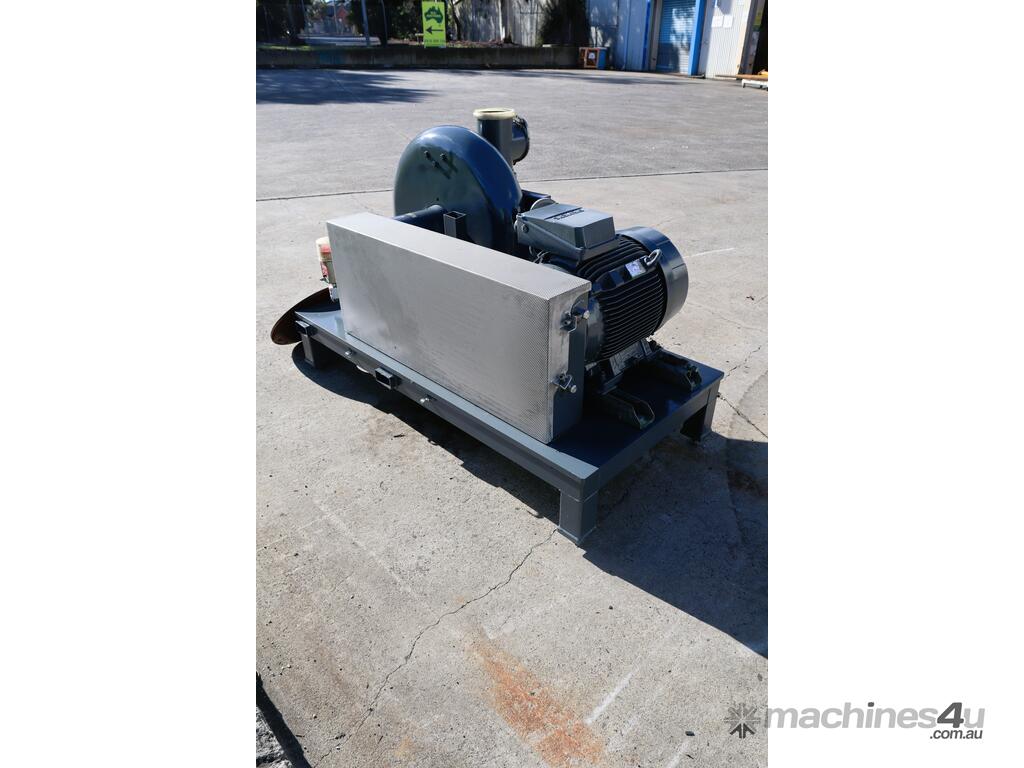

This industrial pin mill (mild steel) is designed for fine grinding of dry bulk materials. Conforms with 2006/42/EC and EC No. 1935/2004.

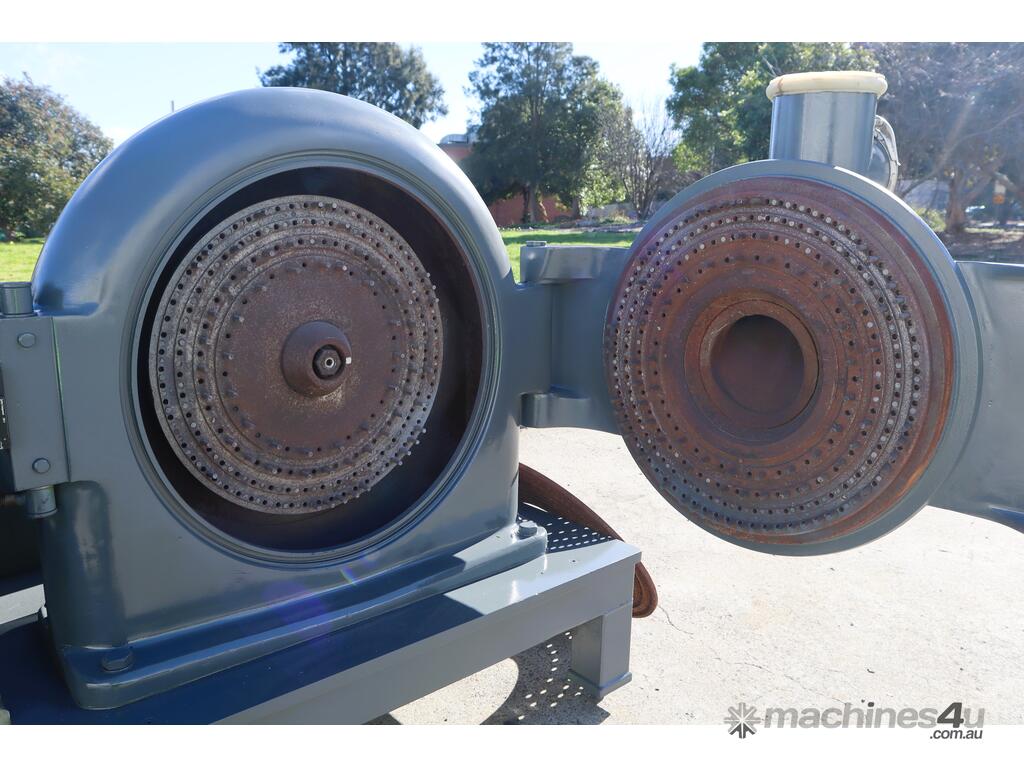

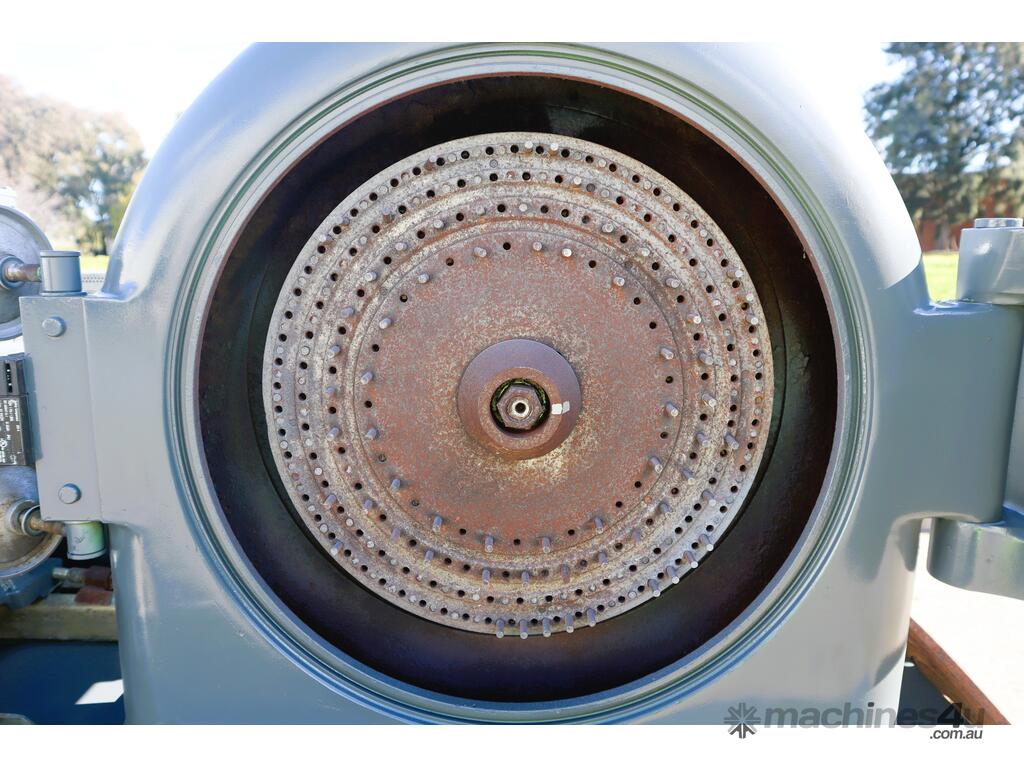

Using a high speed rotor and disc system, it reduces materials to uniform sizes suitable for further processing. The robust, pressure shock resistant housings and customized grinding elements are perfect for grinding brittle, crystalline and fibrous materials. Common uses include grinding sugar into icing sugar, processing cereals, spices or similar sized products into fine powders.
German made and will deliver consistency in performance in demanding production environments.

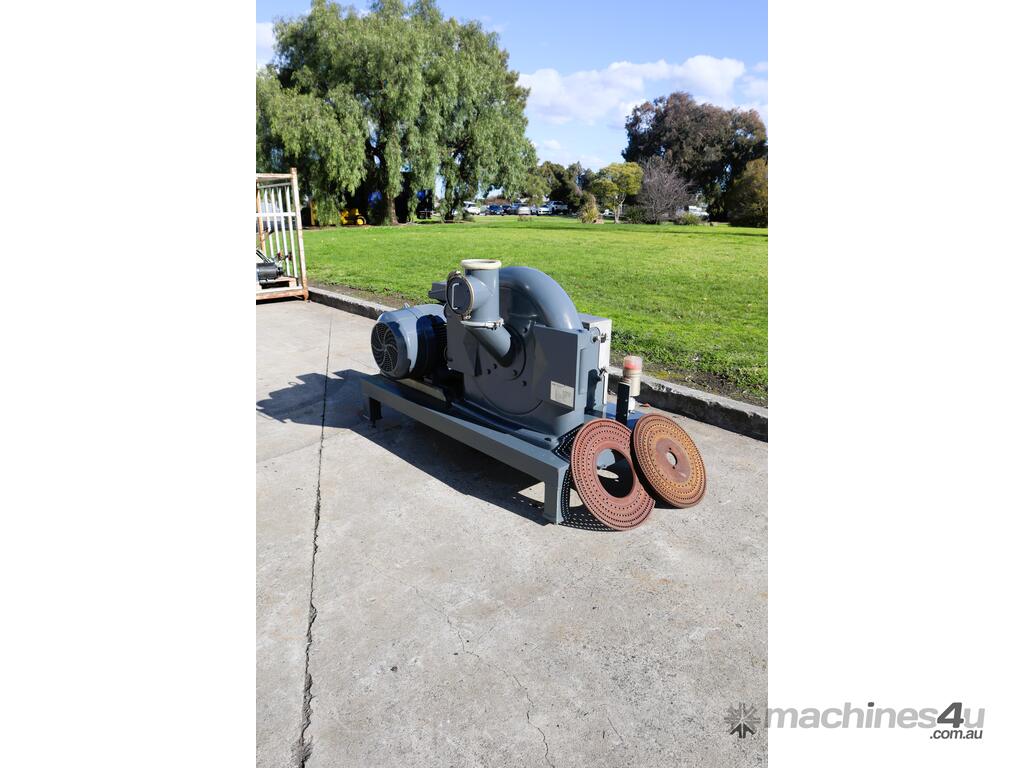

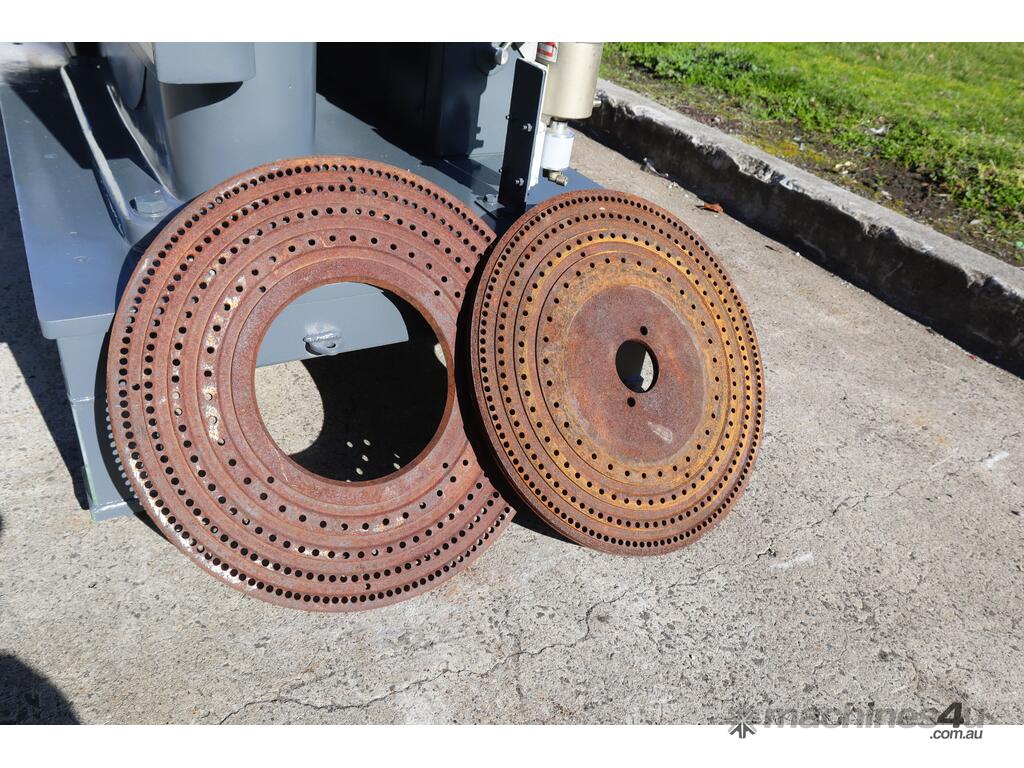

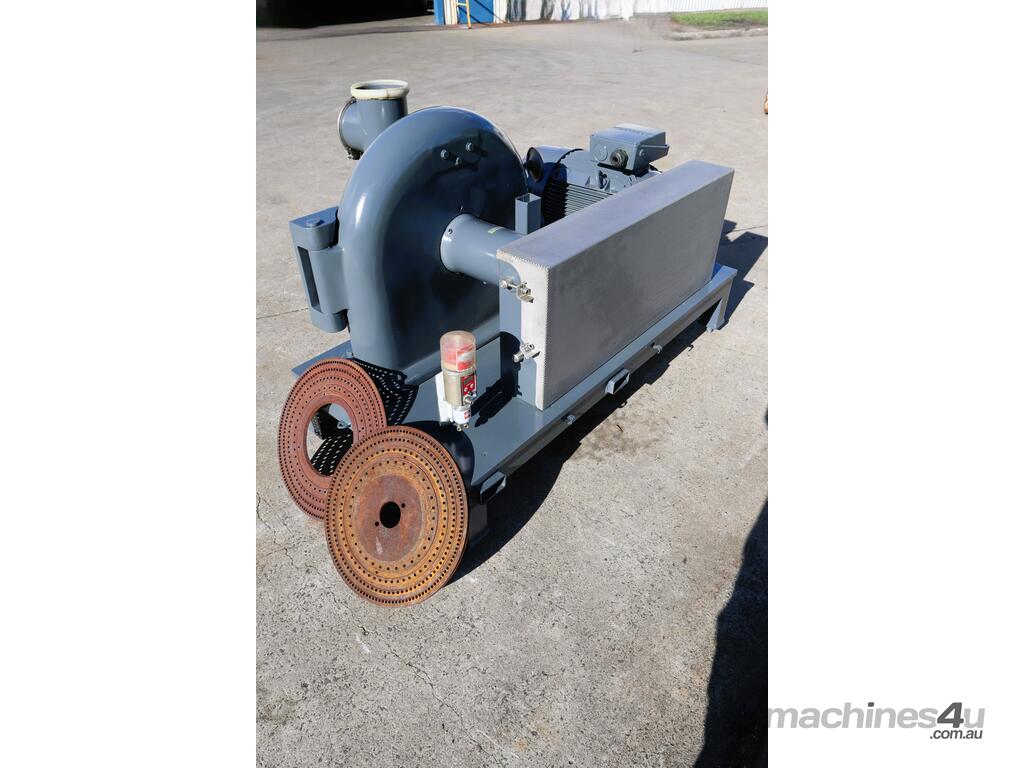

Comes with spare alternate rotor and stator (no pins).

These units are typically in excess of $125,000 AUD excluding works and shipping. A new rotor or stator typically costs $8,500 AUD each.
Buy as is and have the new pins for the rotor & stator ordered or manufactured yourself or we can order and supply new rotor and stator on application if requested (price not included in buy price).

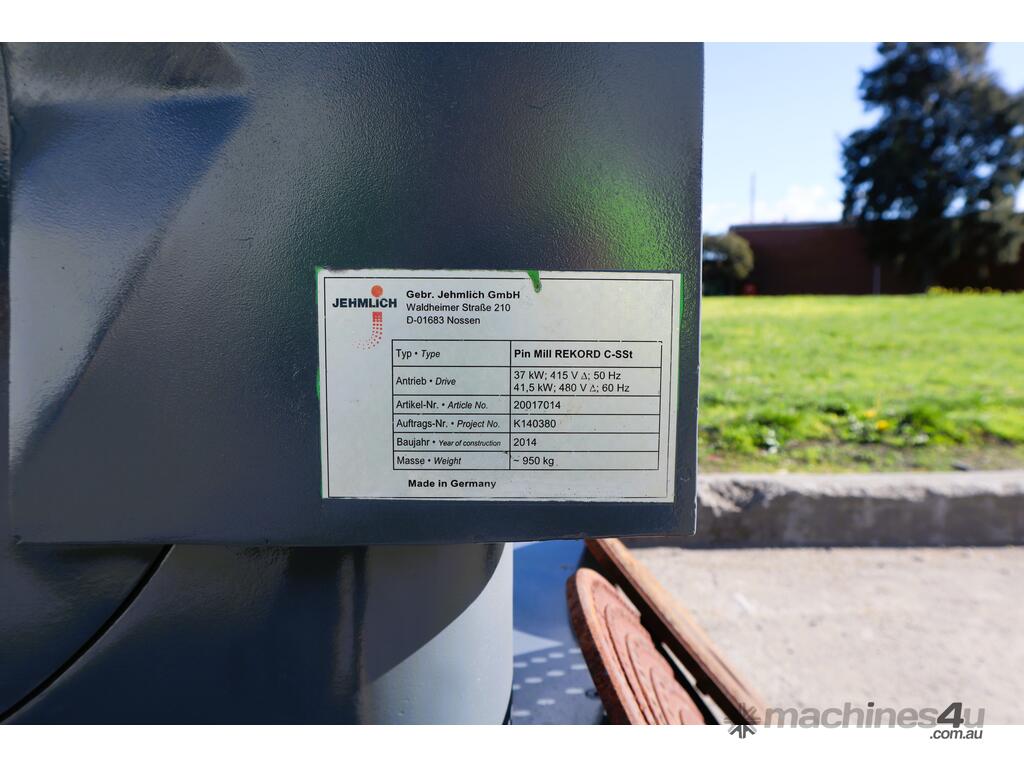

Make: Jehmlich
Model: Rekord C-SSt
Mild Steel
Year: 2014
Made in Germany

Max Circumferential Speed (m/s): 176
Max Capacity (kg/h): 2500

Rotor Size (mm): 450
Stator Size (mm): 500 Diameter
Top Inlet Diameter (mm): 150
Bottom Outlet Dimensions (mm): 480 x 140

Voltage: 415V 3 Phase
Rated Power: 37 kW

Machine Weight: 950 kg approx.

Overall Dimensions (mm): 1660 L x 810 W x 1110 H
