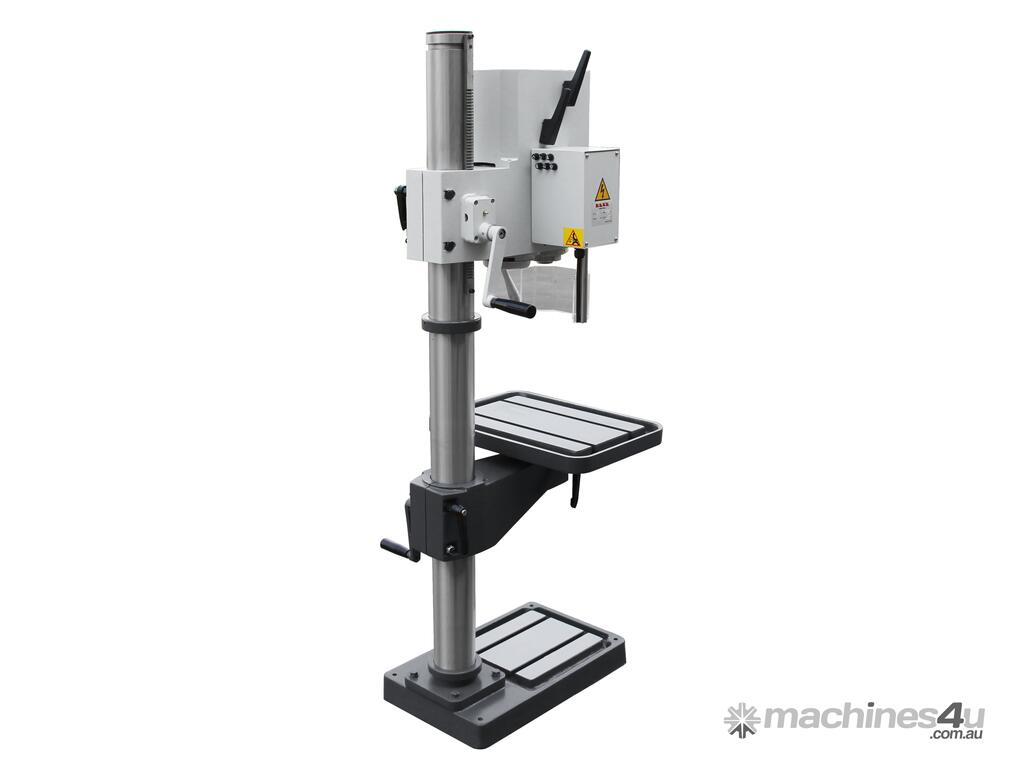

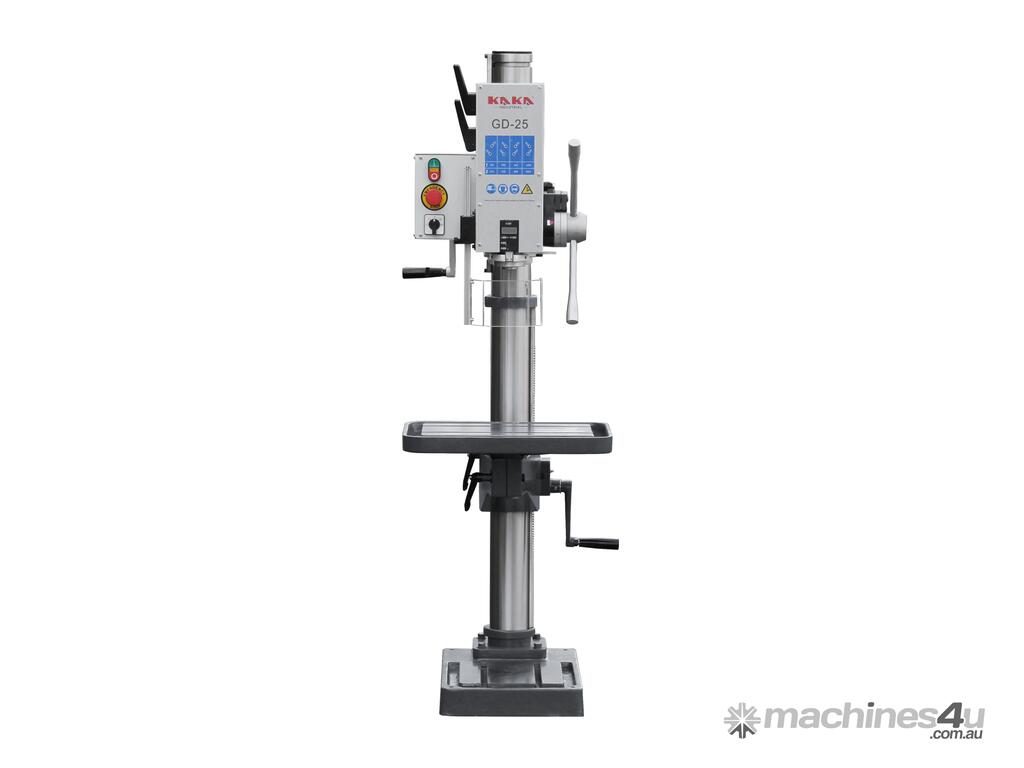

Industrial Grade Pedestal Drill Press GD-25, Gear Head Vertical Drill, 25mm Drilling Capacity Drill

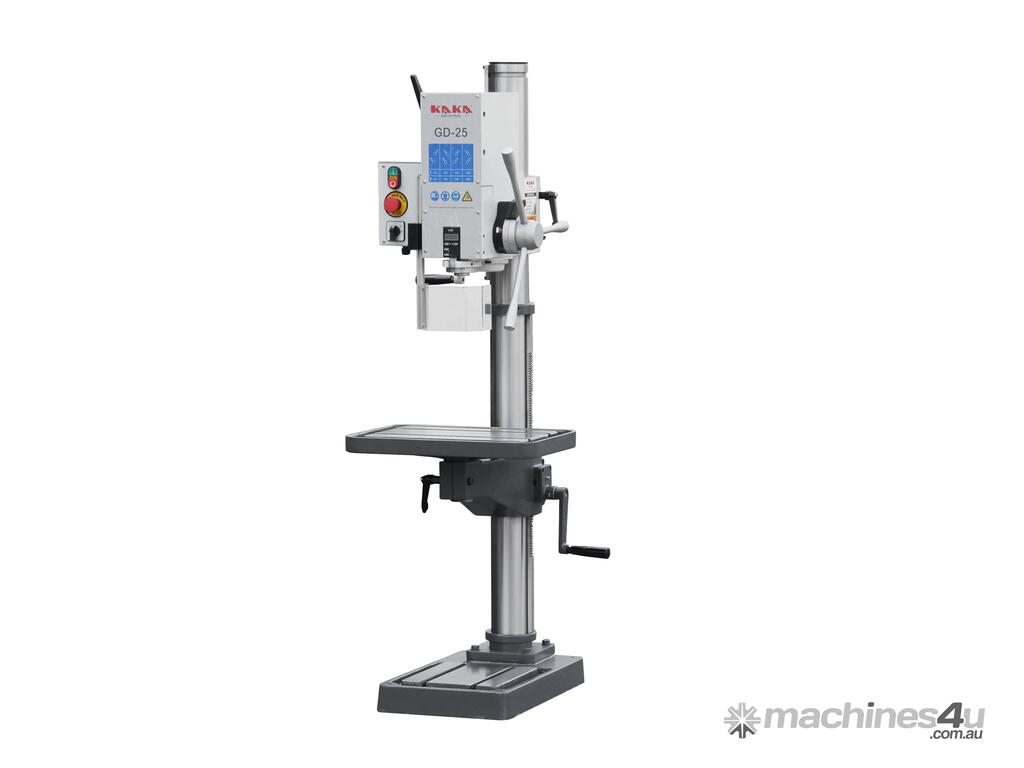

Kang Industrial Vertical Drill Machine GD-25

The KANG GD-25 is a heavy-duty, industrial-grade pedestal drill press. Unlike hobbyist drills that use belts and pulleys to change speeds, this machine uses a geared head system, allowing for much higher torque and more efficient speed transitions.

High Torque for Maintenance Repairs. The geared head provides the high torque necessary to drill through thick structural steel without the belt slippage common in standard drill presses.

Precision & Repeatability Drilling. With a built-in drilling depth gauge, the technicians can perform repeatable tasks (like drilling mounting holes for a series of sensors) with high precision.

Safety & Compliance Drill Press. The GD-25 comes with an interlocked spindle safety guard (which prevents the machine from starting if the guard is open) and a dedicated emergency stop.

Versatility for Diverse Tasks. The 360° rotating table and tilting head allow technicians to clamp and drill awkwardly shaped parts common in specialised automated machinery. The ability to switch between 8 speeds also allows the machine to handle everything from small precision holes to large-diameter boring.

Features

Industrial-grade drilling machine, geared head, 415V Motor

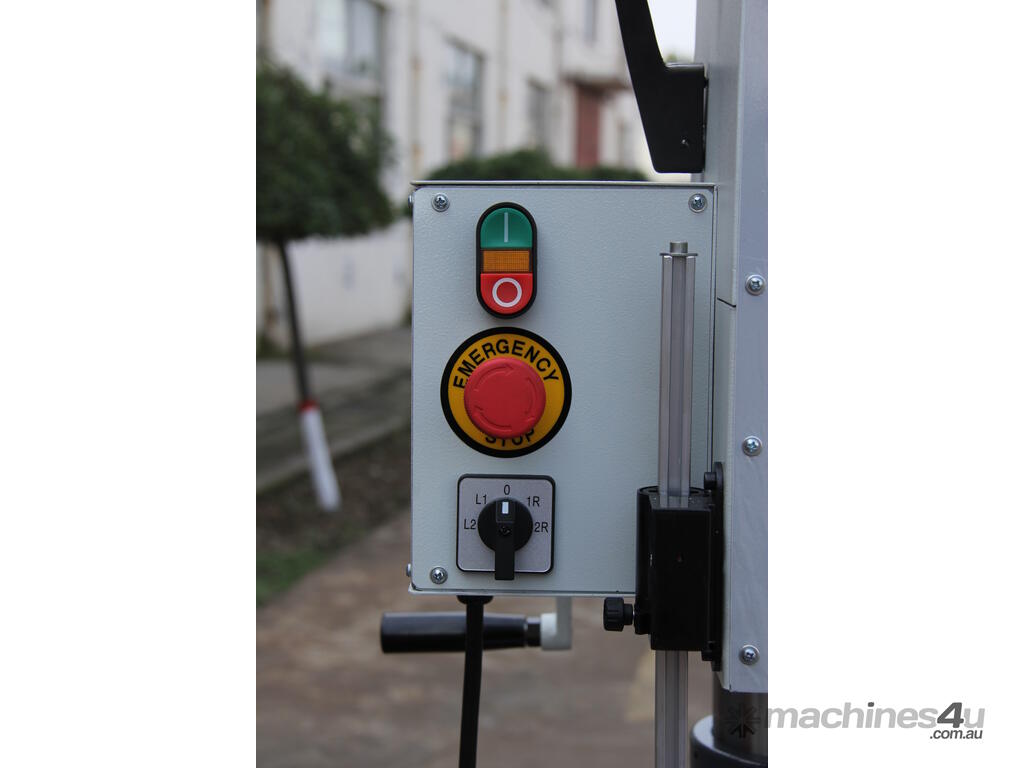

High / Low with forward reverse switch, drilling, and manual tapping

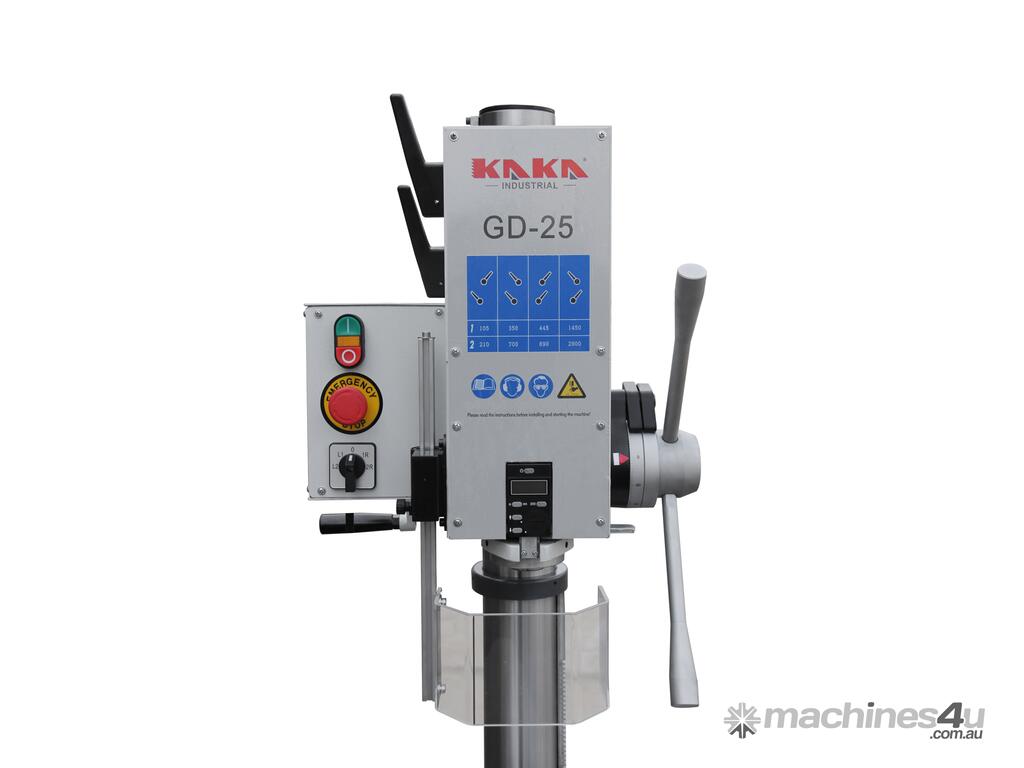

8 different drilling speeds by the speed lever, 105-2900 rpm

Interlocked spindle safety guard

Sturdy 100mm dia. column reduces flexing to ensure accurate results

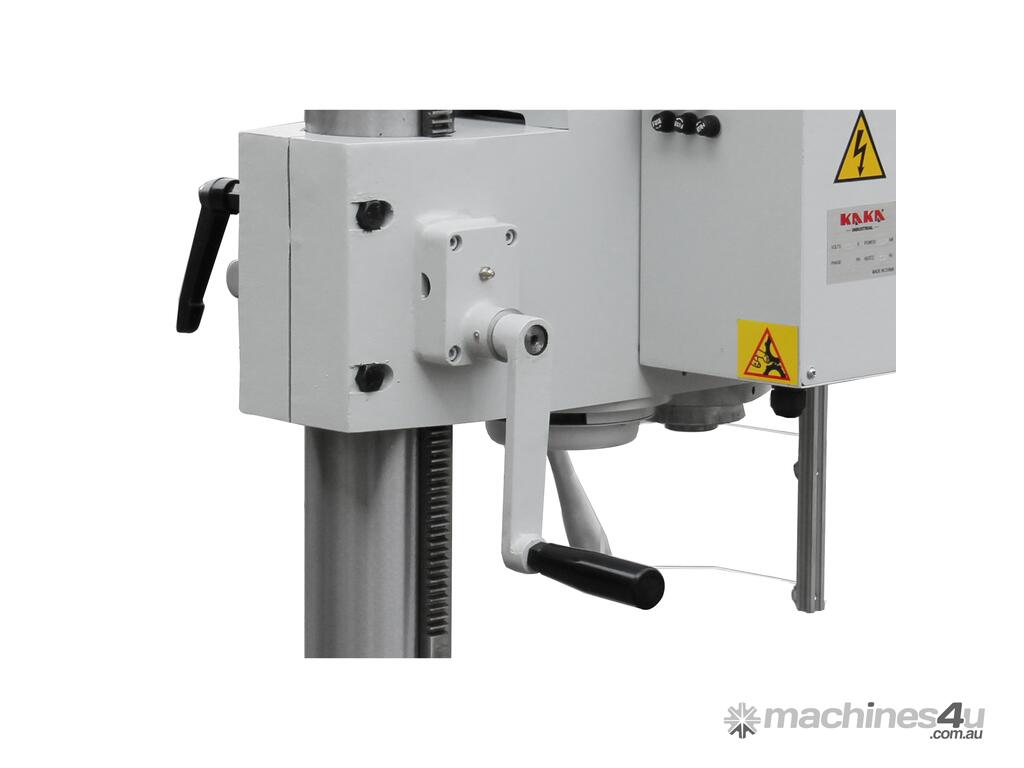

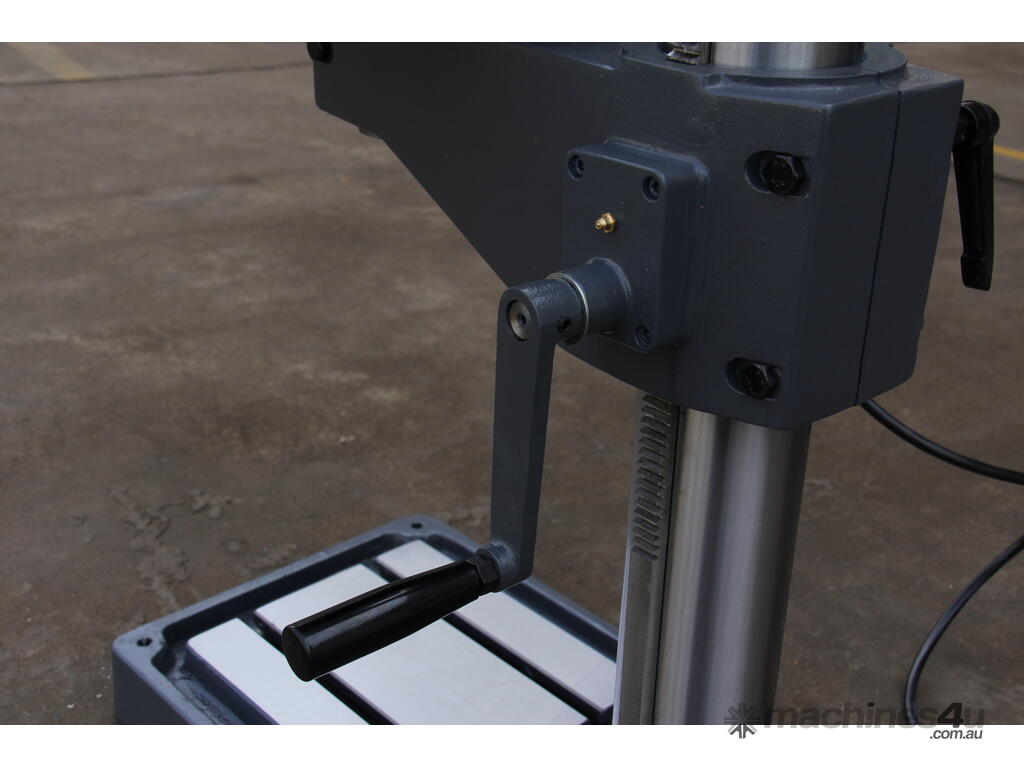

With a rack and crank handle, easily adjust the head table up and down on the column

Worktable rotates 360 degrees

T-slotted base for big high-size material

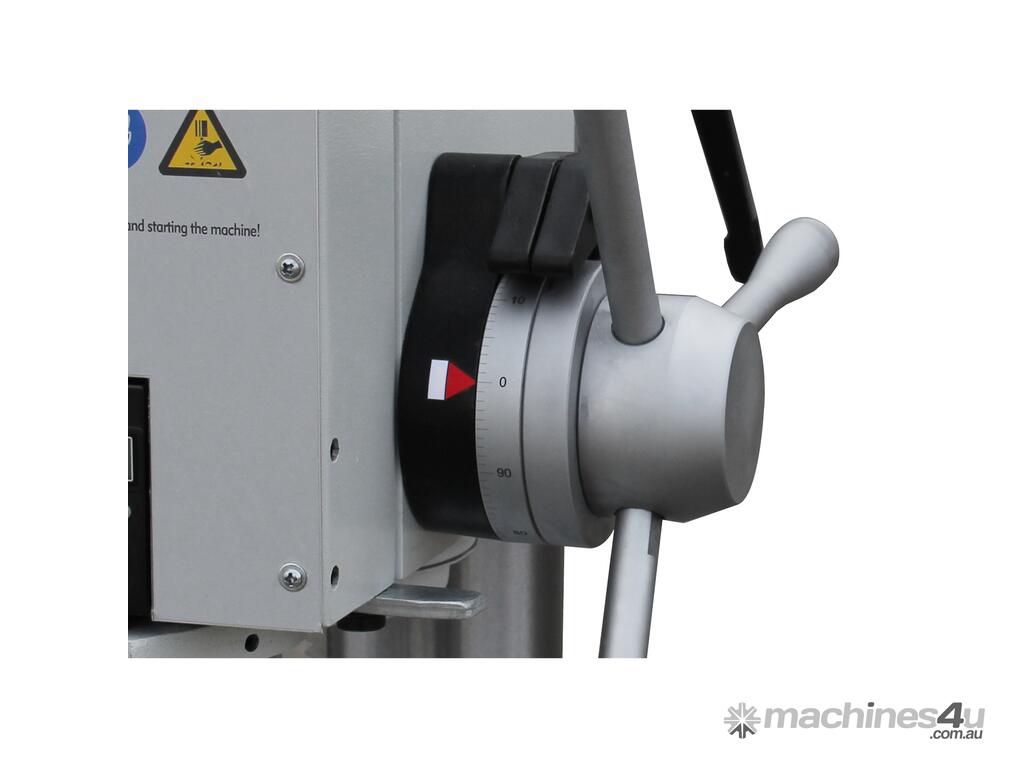

A digital depth reader to get the drilling depth

Standard with Keyed drill chuck arbour, Drill Drift, safety guard

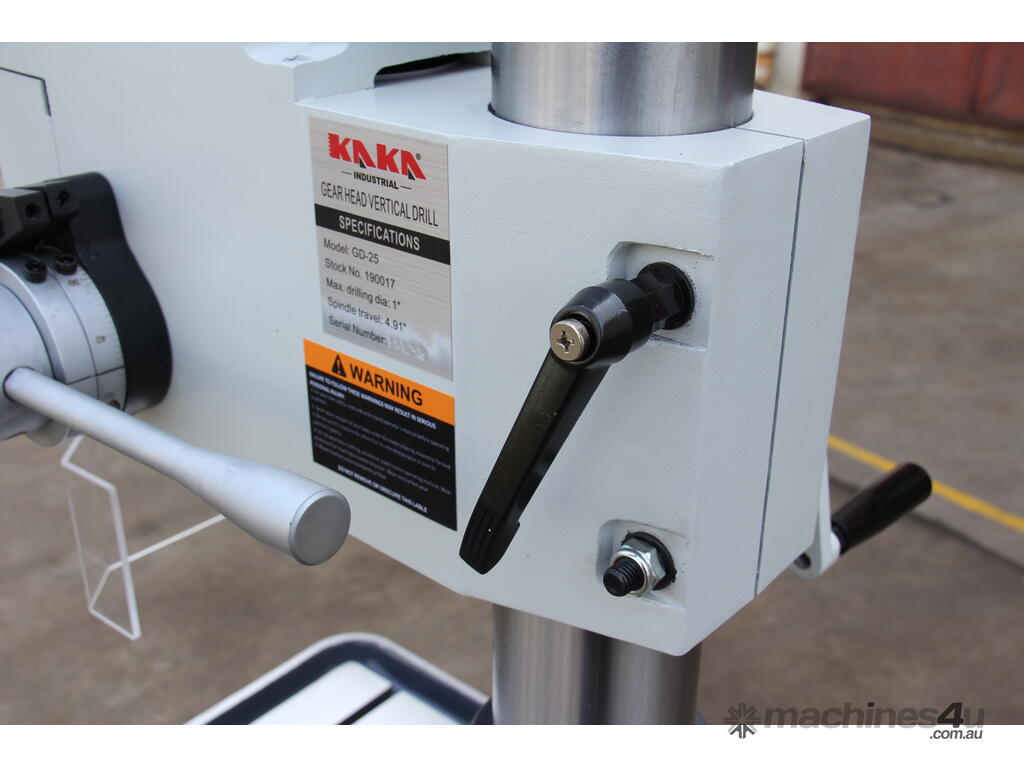

Specifications
SKU 190017V415
Model GD-25
Max. drilling dia. 25 mm
Spindle taper MT3
Spindle travel 125 mmm
Tapping in Steel/Cast Iron M10/M16
Motor power 0.65/0.9 kW
Spindle speed 105, 210, 350, 445, 700, 890, 1450, 2900
Packing size 167x57x72cm
N.W./G.W. 210/245 kg
