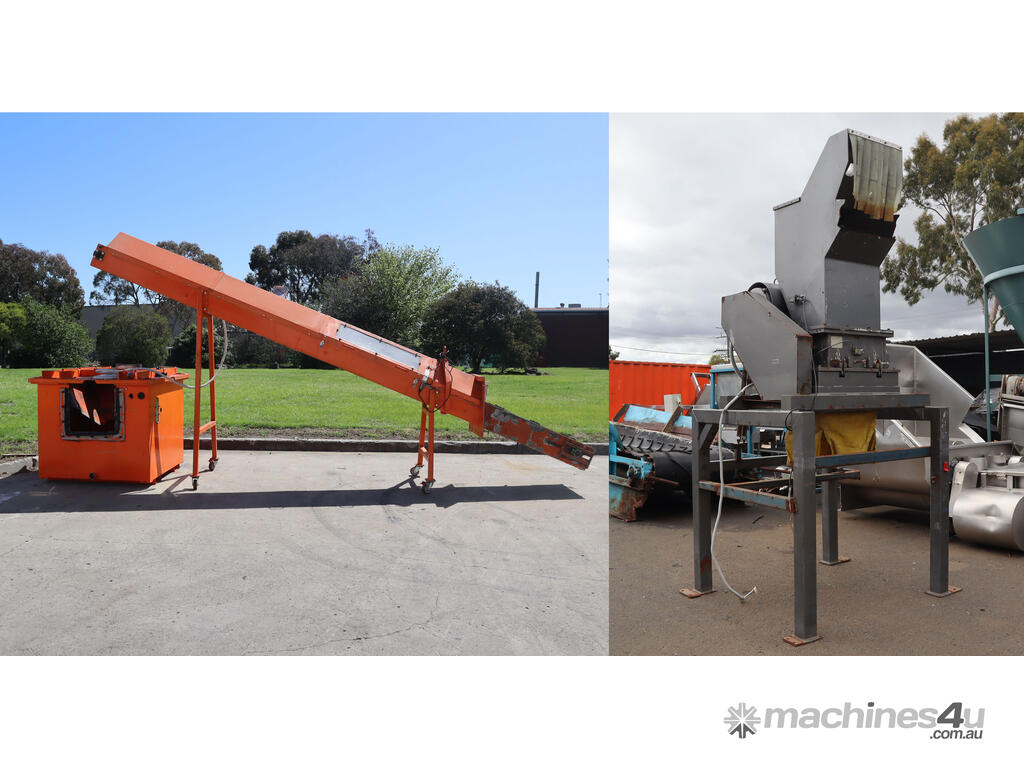

Industrial granulator and industrial incline and fire suppression hopper system package.
The conveyor was previously used as part of a product destruction line for battery operated items such as vapes and mobile phones. The conveyor features a cleated belt and the hopper is fitted with fire suppression system, intended to assist with cooling and fire risk mitigation during operation. The granulator is powered by an 18.5 kW electric motor and is suited to recycling, waste processing, and material recovery etc.
Features:

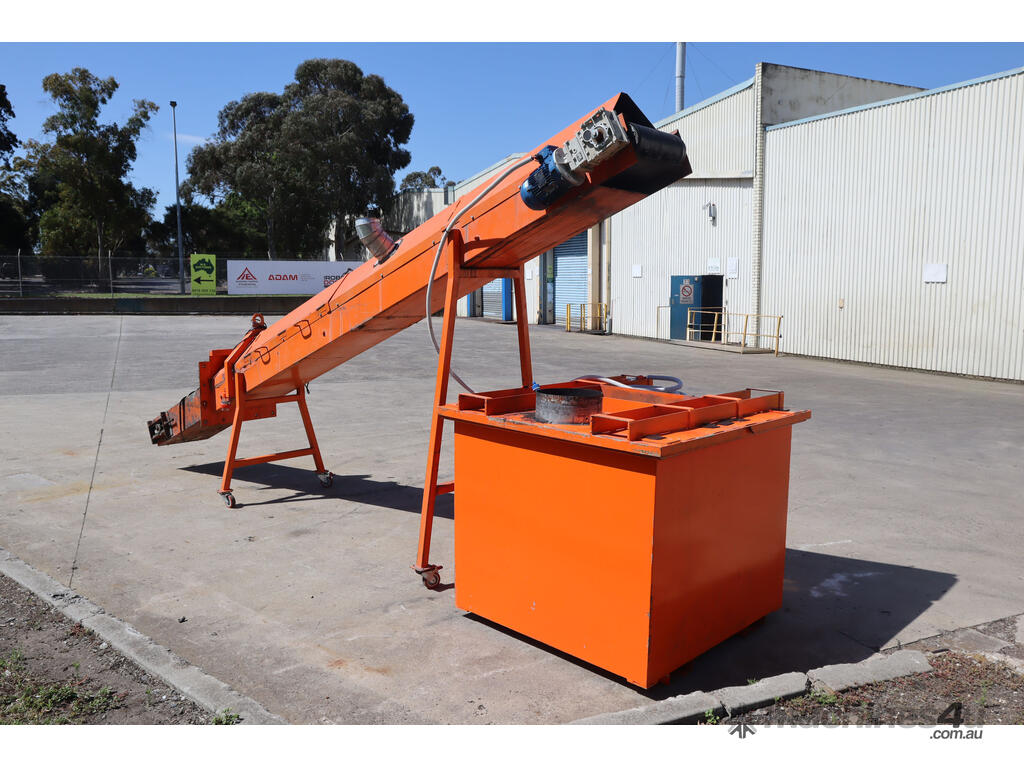

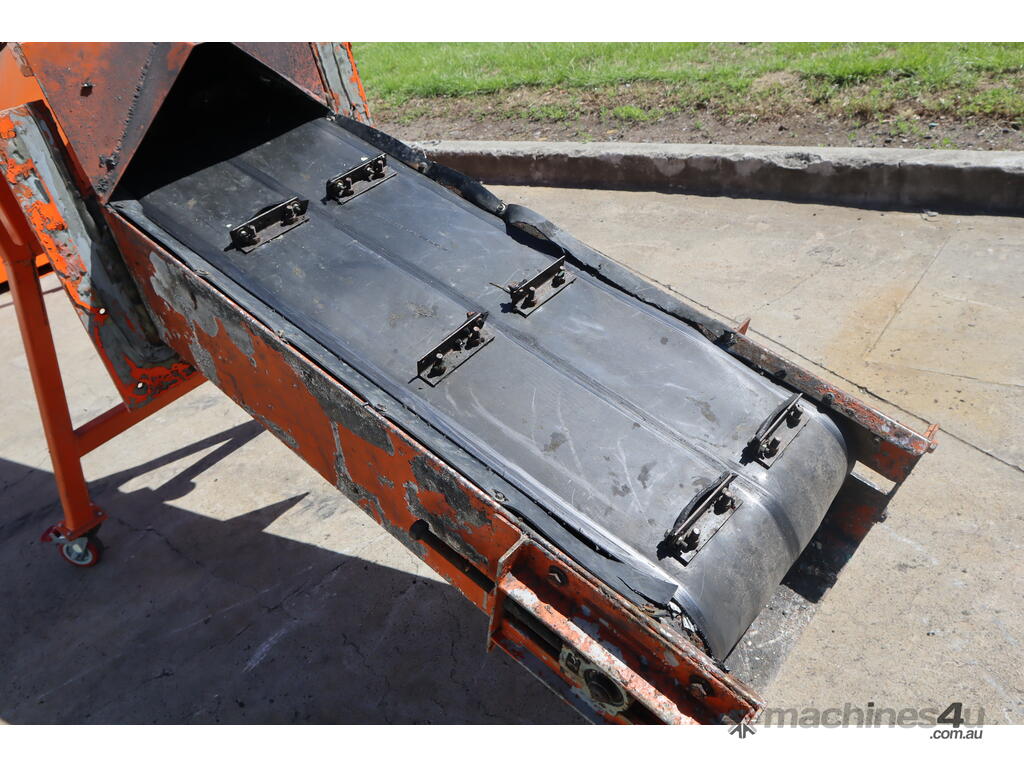

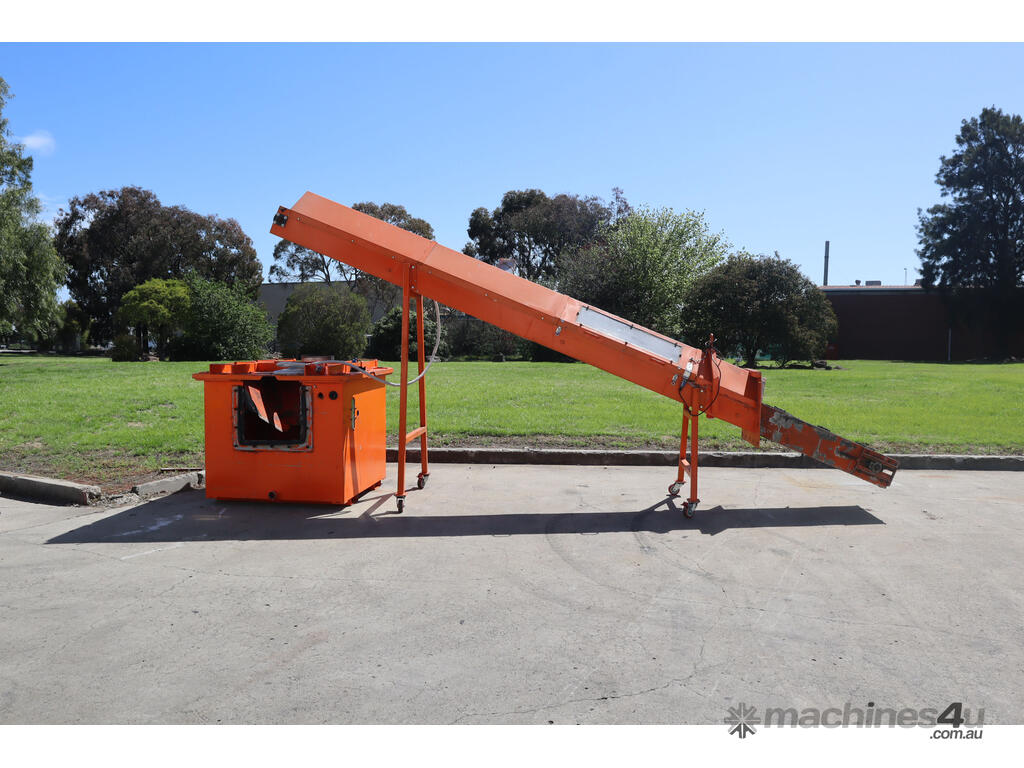

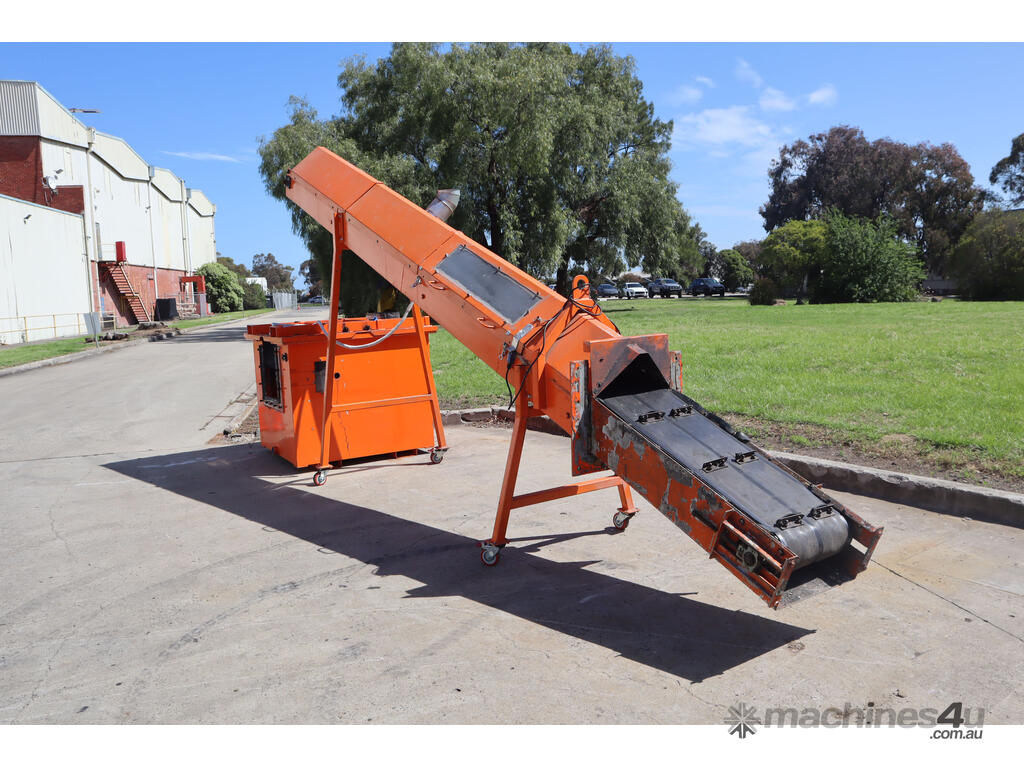

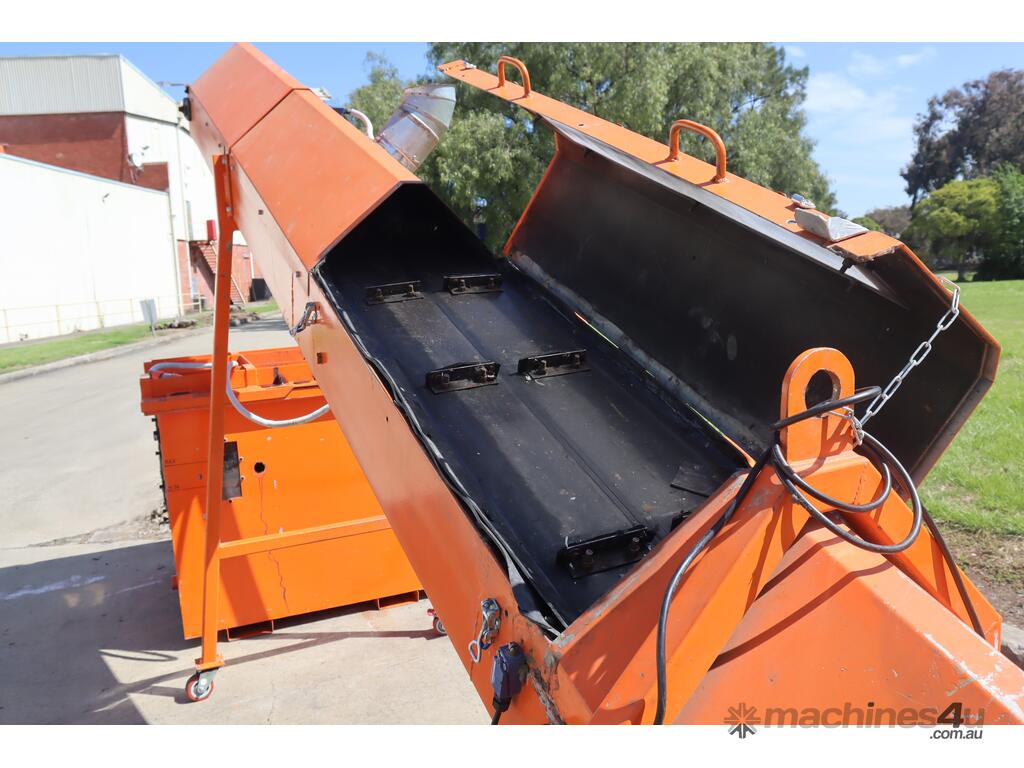

- Incline elevator conveyor with enclosed incline and cleated belt

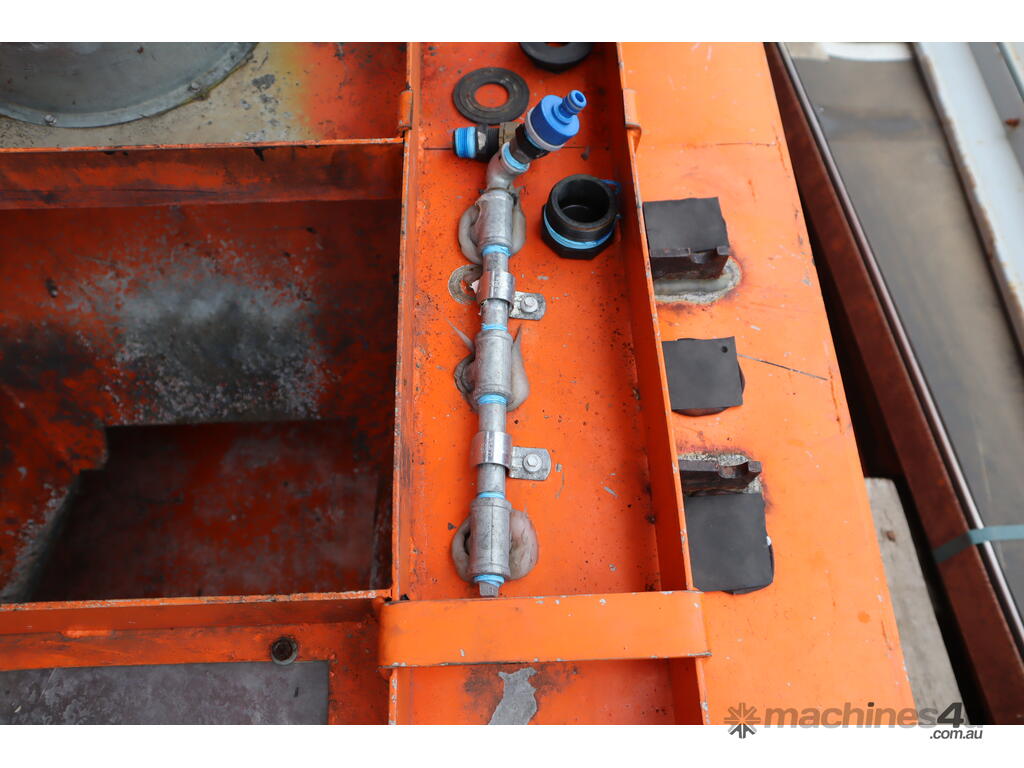

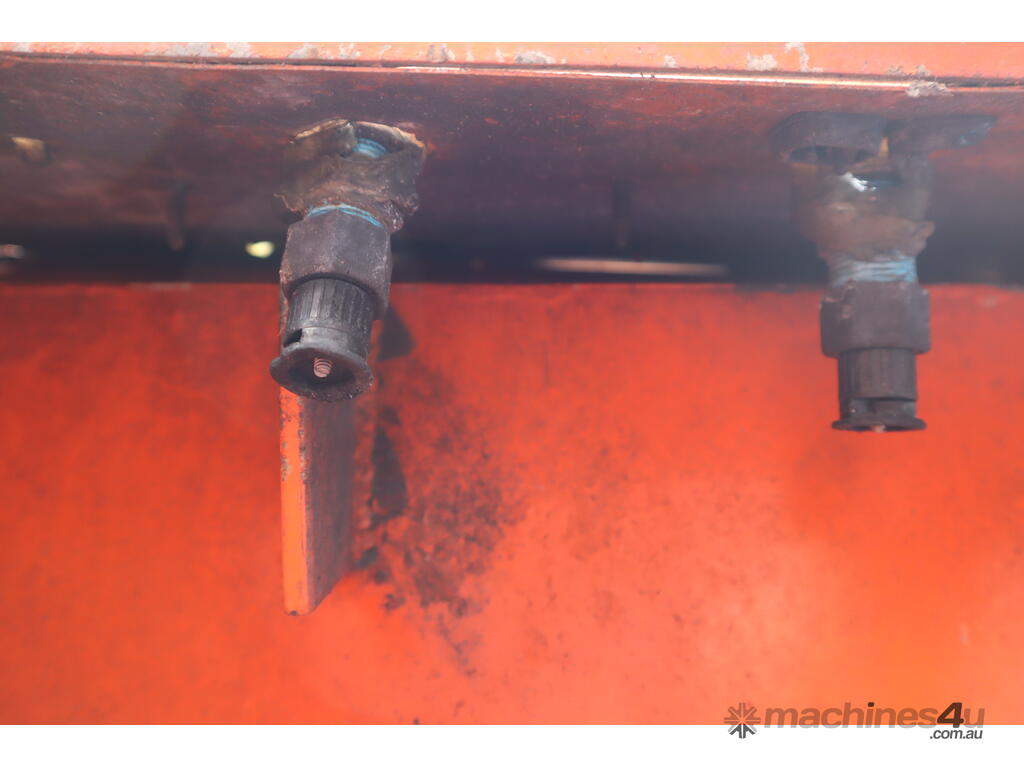

- Hopper with Fire Suppression system for cooling and fire risk mitigation
- Industrial granulator driven by 18.5 kW electric motor

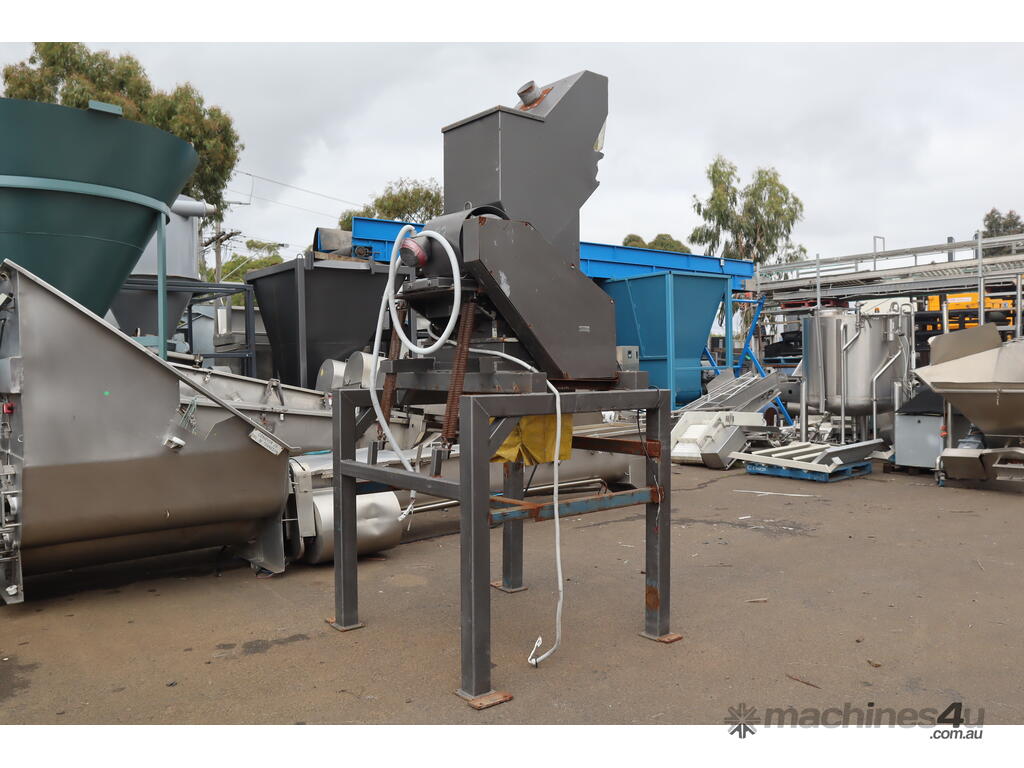

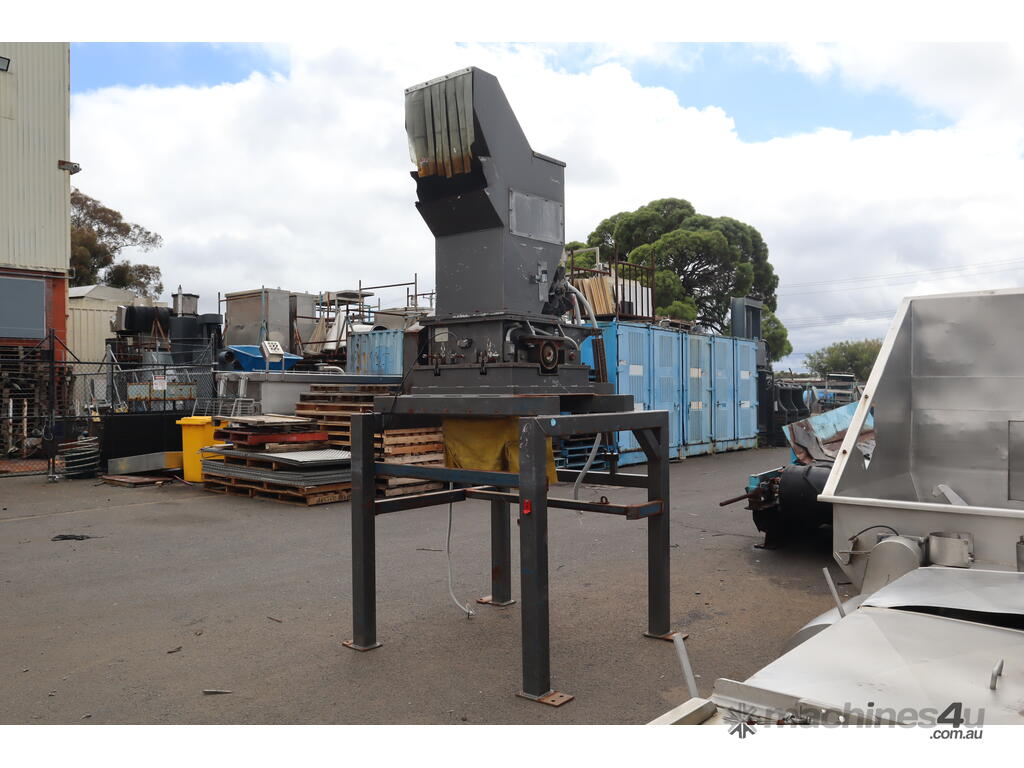

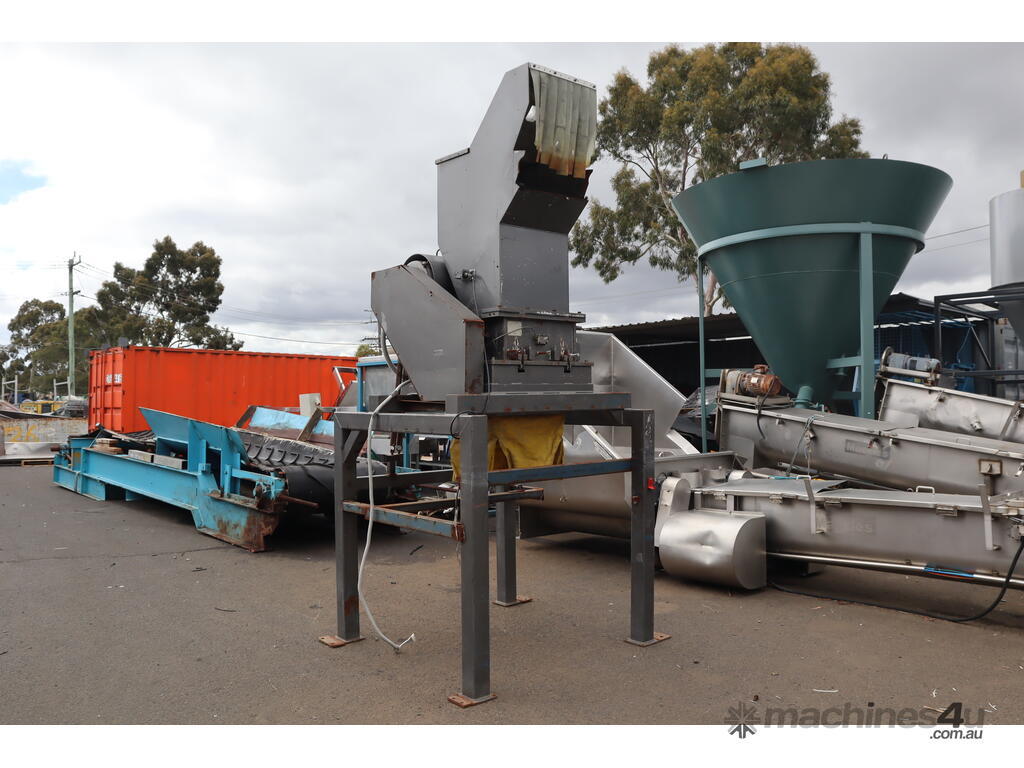

Granulator Details:
Hopper/Feed Opening (mm): 650 x 520
Hopper/Feed Height - From bottom lip (mm): 2550
Throat Size (mm): 520 x 350
Rotor Size (mm): 300 Diameter x 510 Long/Wide

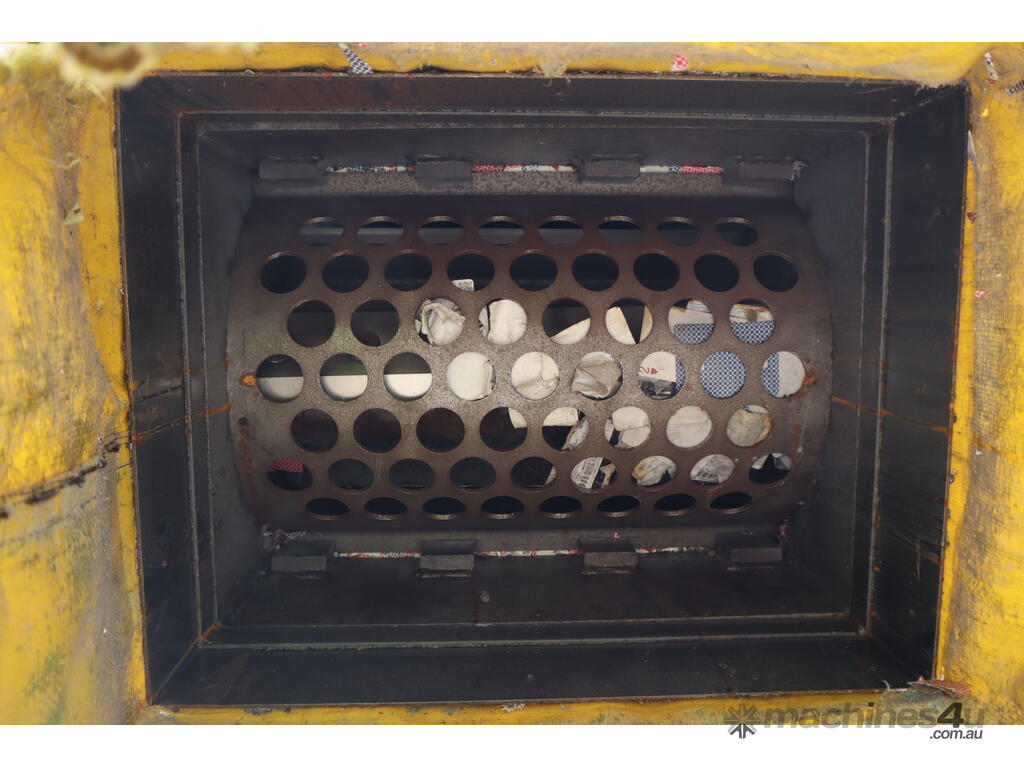

Screen Size: 42mm Diameter
Rated Voltage: 415V 3 Phase

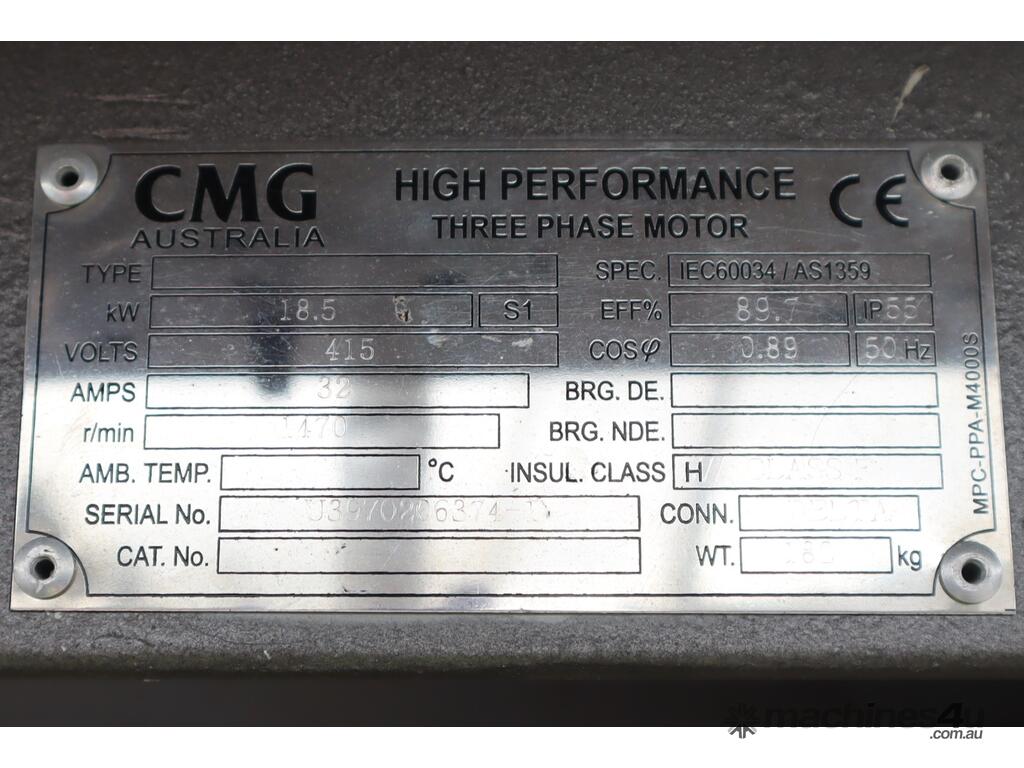

Motor Power: 18.5kW
Motor Speed: 1470 RPM
Granulator Dimensions (mm): 1350 L x 1350 W x 3200 H

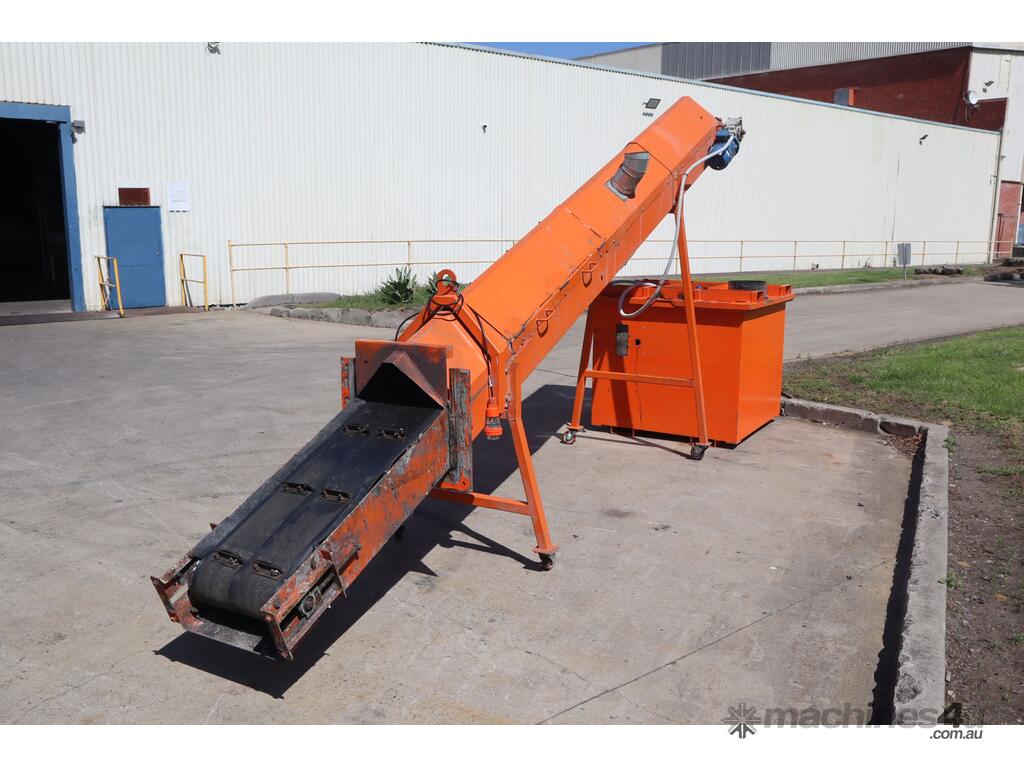

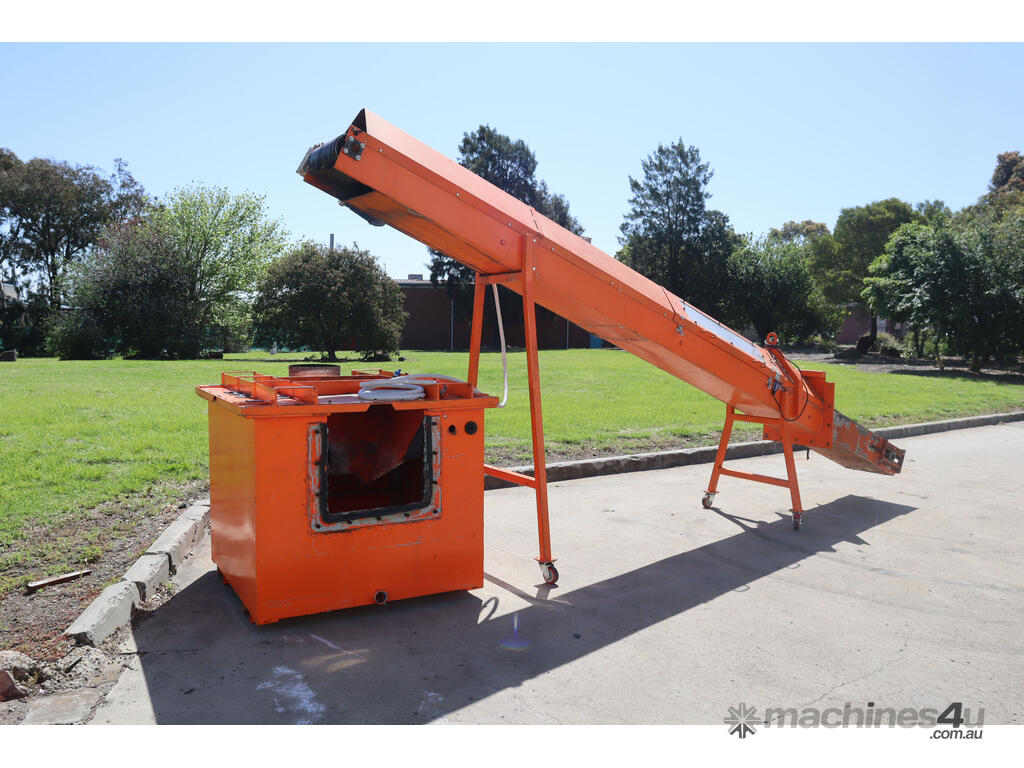

Incline Conveyor Details:
Travel (mm): 5000
Belt Width (mm): 410
Belt Height - Lowest Point (mm): 450
Belt Height - Highest Point (mm): 2470
Cleat Height (mm): 35
Cleat Width (mm): 120 (325 Wide for both per row)
Distance Between Cleats (mm): 410
Voltage: 415V 3 Phase

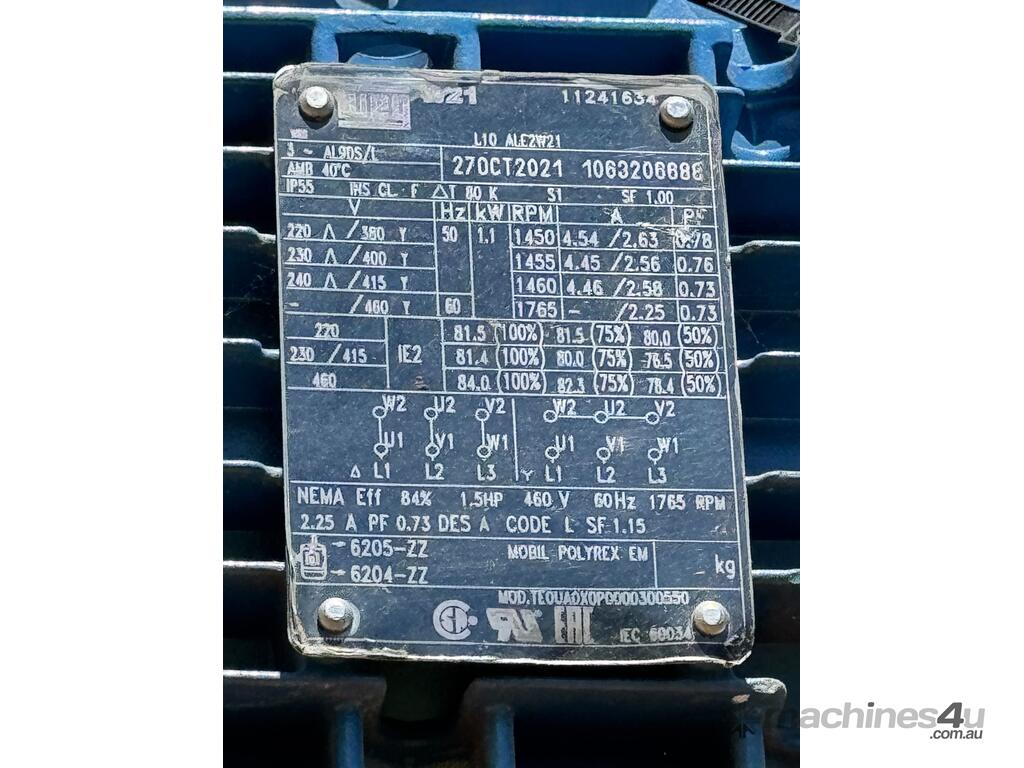

Motor Power: 1.1 kW
Motor Speed: 1460 RPM
Conveyor Dimensions (mm): 5250 L x 975 W x 2970 H

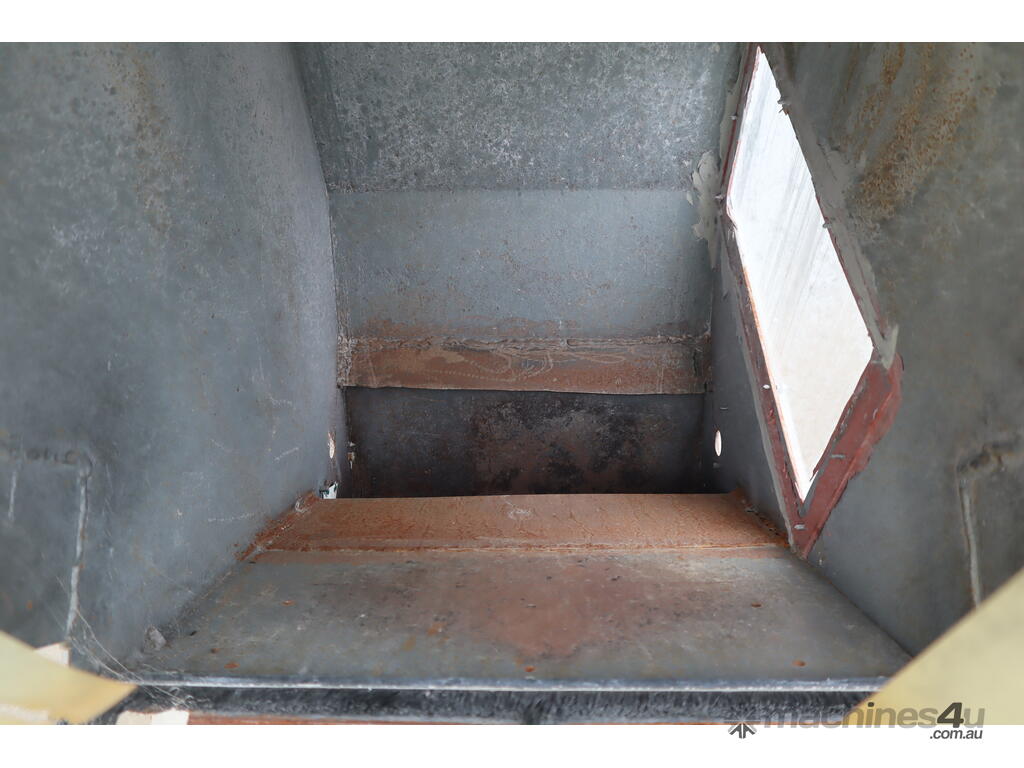

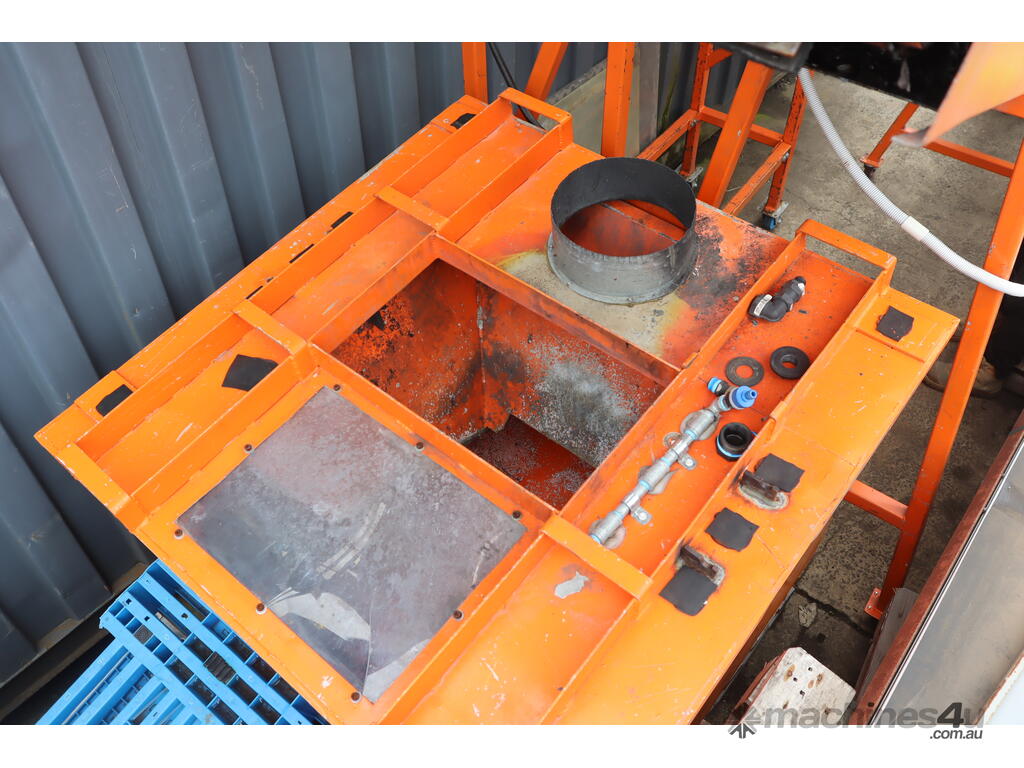

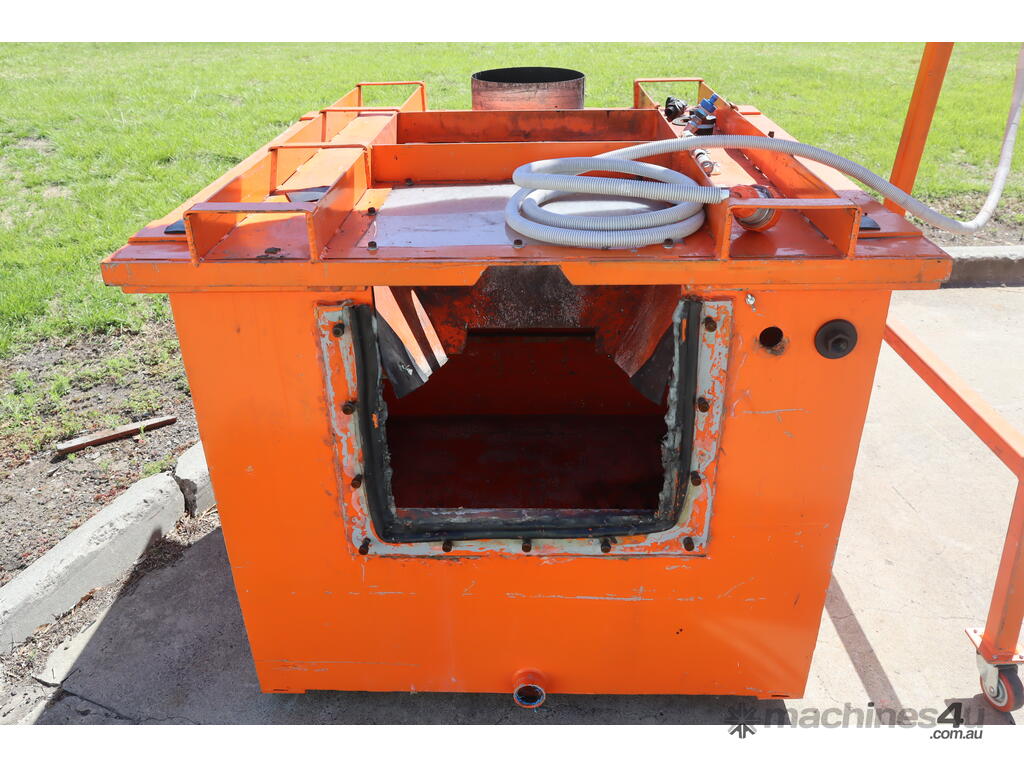

Hopper Interior (mm): 1200 L x 1200 W x 975 H
Side Opening (mm): 500 x 500
Top Opening (mm): 625 x 360
Circular Cut Out (mm): 300 Diameter
Hopper Dimensions (mm): 1325 L x 1325 W x 1205 H
