Industrial Microwave Dryer Continuous Conveyor Tunnel - 200kW - Kelid KLD200

Make us an offer! We're highly negotiable and take all reasonable offers seriously.

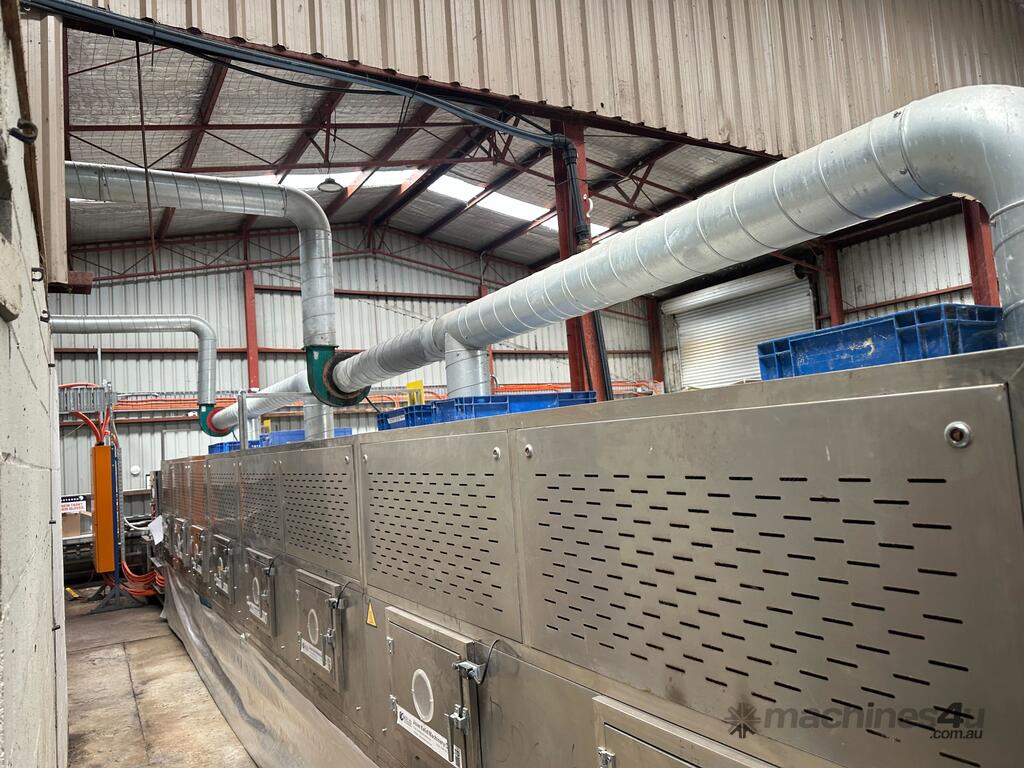

High capacity industrial microwave dryer in excellent condition. Designed for fast, uniform drying and sterilization of food, herbs, powders, and granular materials. Built for continuous operation with a durable stainless steel frame and user friendly PLC control system.

Typical Applications:
High volume food dehydration, herb and leaf drying, powder processing, chemical drying, insect or larvae processing, and other industrial drying or sterilization processes etc.

Features:
- 200 kW microwave output for rapid, efficient drying

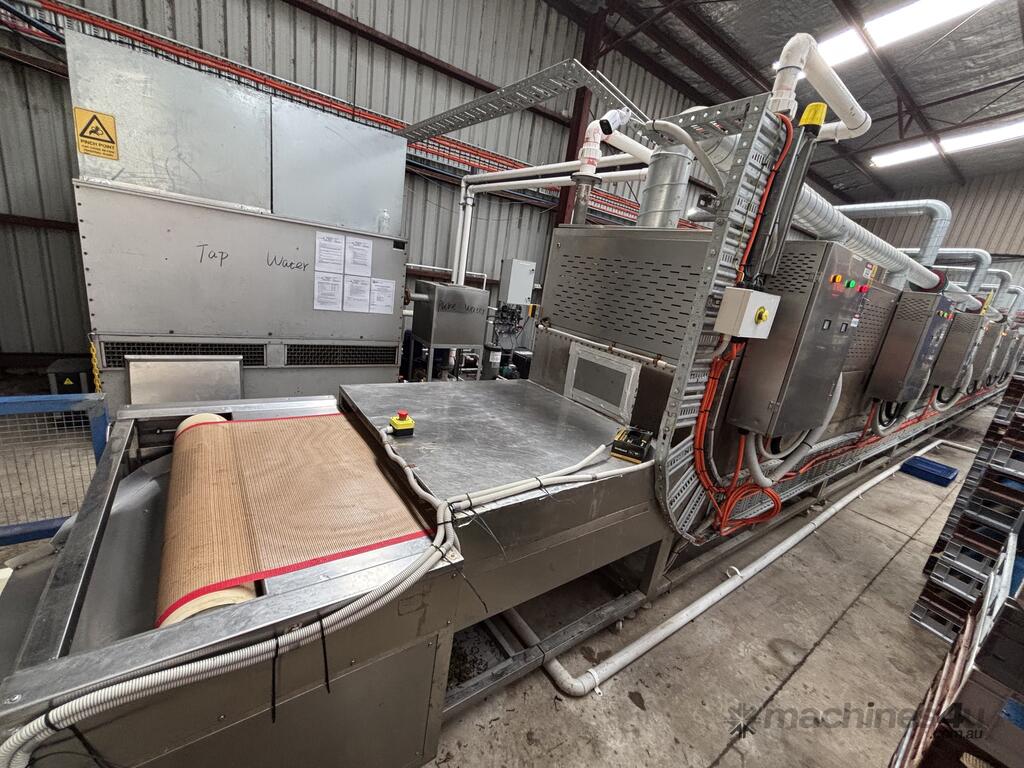

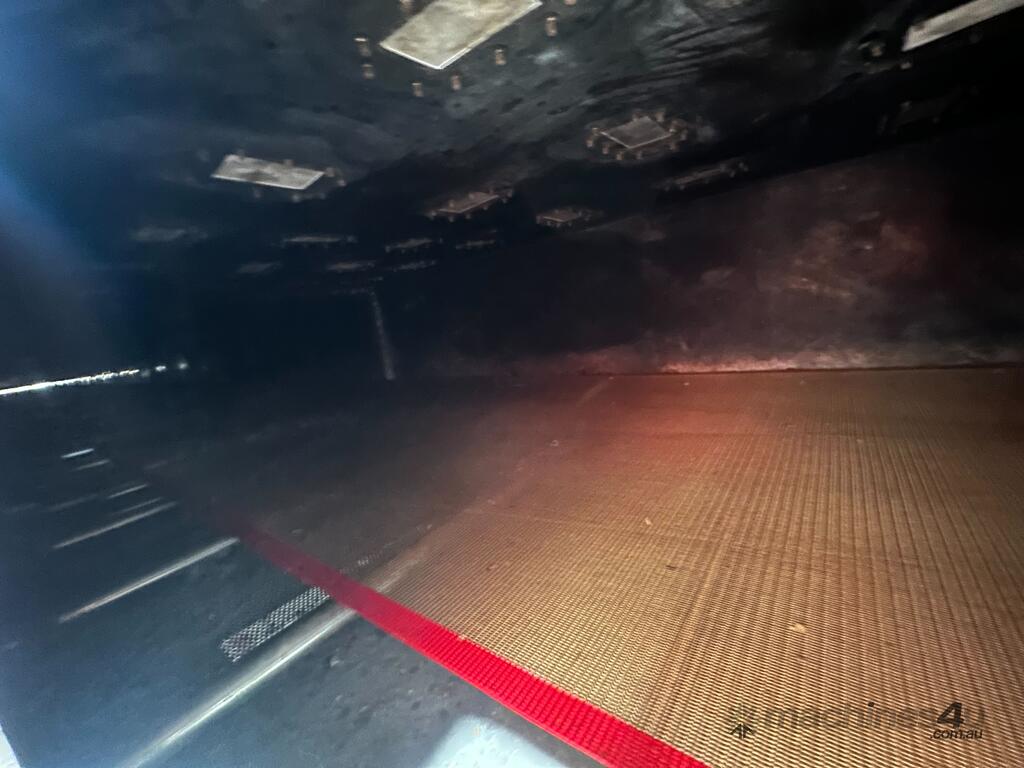

- Conveyor based continuous operation with PTFE food-grade belt
- Adjustable transmission speed: 1–6m per minute
- Water cooled magnetrons for 24-hour continuous operation
- PLC control system with adjustable temperature range (0–300C)
- Built with stainless steel for hygiene and durability

Make: Kelid
Model: KLD 200 SL

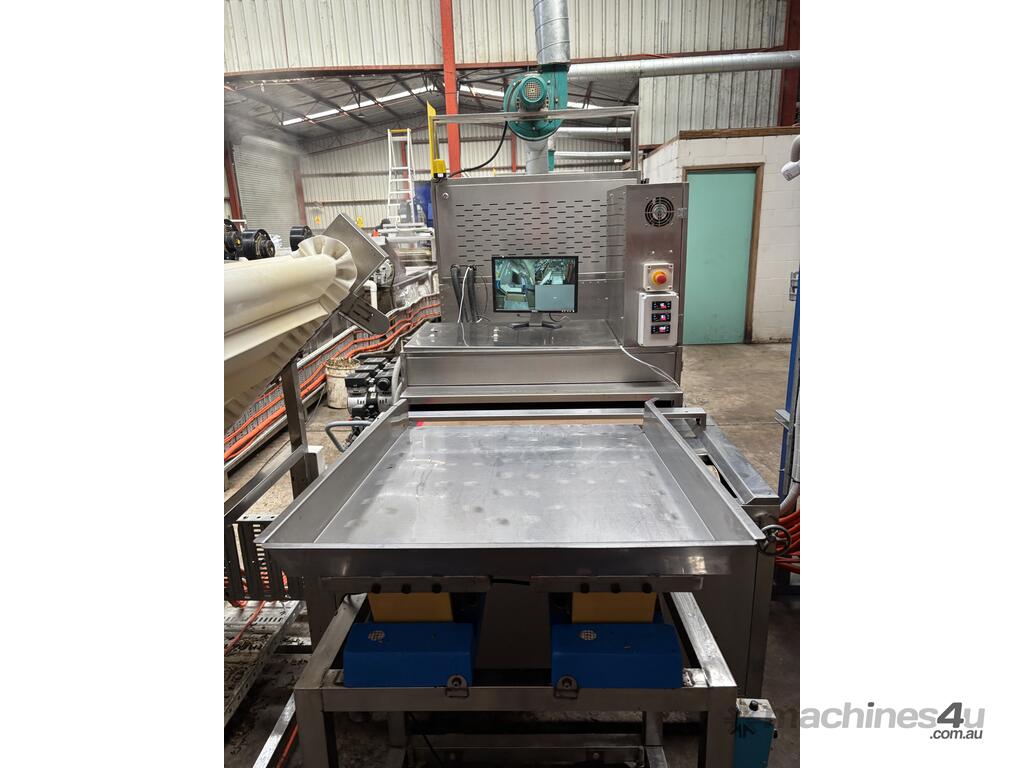

Entrance & Exit Length (mm): 800 x 2
Suppressor Opening Height (mm): 55
Suppressor Length (mm): 1200 x 2
Anti-Microwave Leakage Guide Piece: 800

Conveyor Belt: PTFE
Conveyor Belt Width (mm): 1000
Conveyor Belt Ground Clearance (mm): 800 +/- 50

Microwave Frequency: 2450 MHz +/- 50 MHz
Microwave feed-in method: Top feeding method (Multi-source multi-cavity distribution)
Transmission Speed: 1m to 6m per minute
Transmission Motor Power: 3 kW

Rated Input Power: 250 kVA
Output Power: 200 kW

Microwave effect box quantity: 10 groups

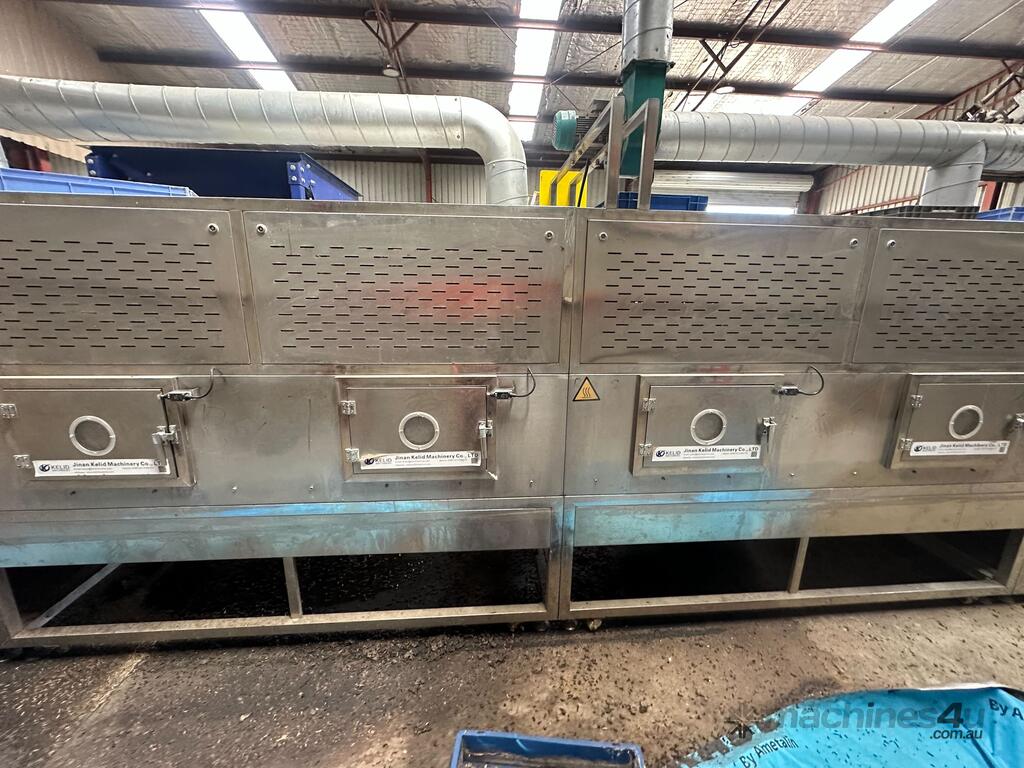

Observation window quantity: 10 groups
Magnetron cooling method: Water cooled( machine can run for 24 hours continuously)
Input water temp: < 30C (or equal to)
Output water temp: < 60C (or equal to)
Transformer: Oil cooling (Inside); Air cooling (outside)

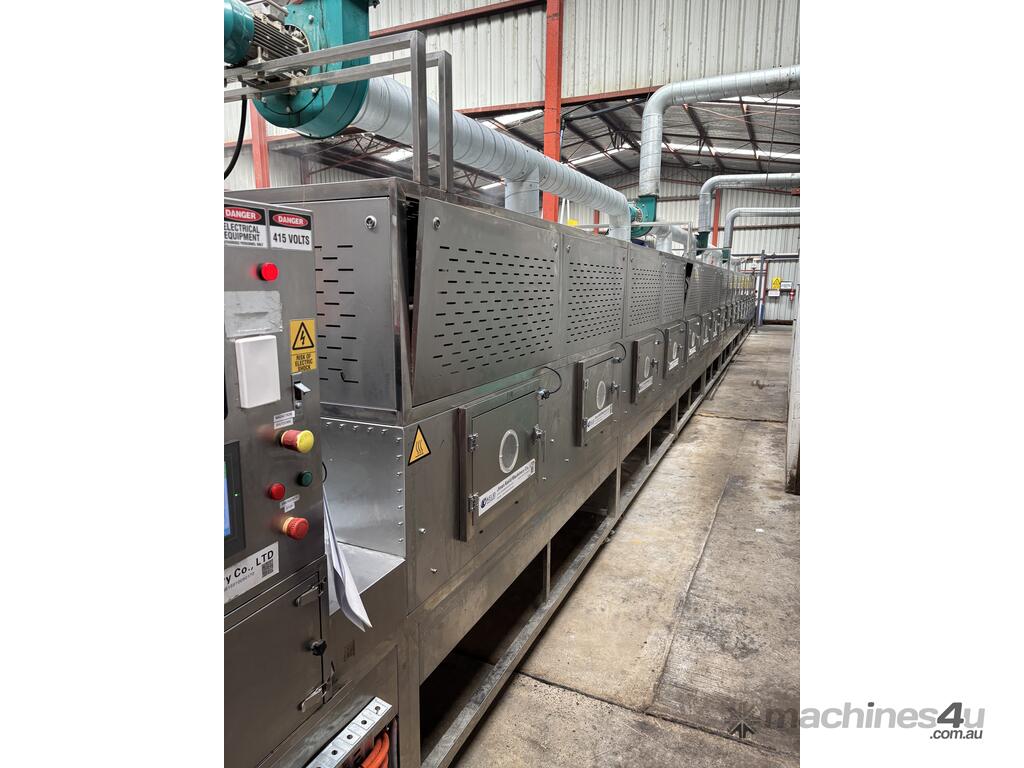

Controller: PLC
Temperature detection range: 0-300C (Adjustable)
Main material: Stainless Steel
Working environment warning: No excessive corrosive gas around; No flammable or explosive gas;
Ambient temp: -10-40C
Ambient relative humidity: < 60% (or equal to)
Microwave leakage standard: In line with national standards: < 2mW/cm²

Overall Dimensions (mm): 23,000 L x 1000 W x 520 H

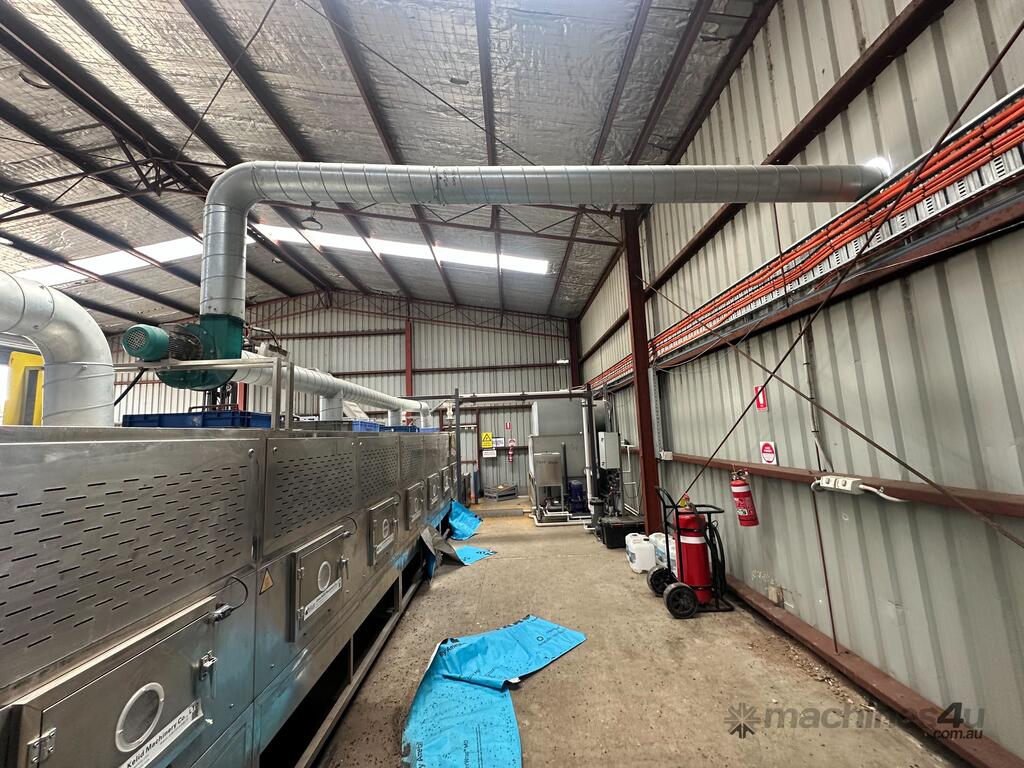

Required Space (mm): 29,800 L x 2500 W x 2500 H (smooth cement floor)

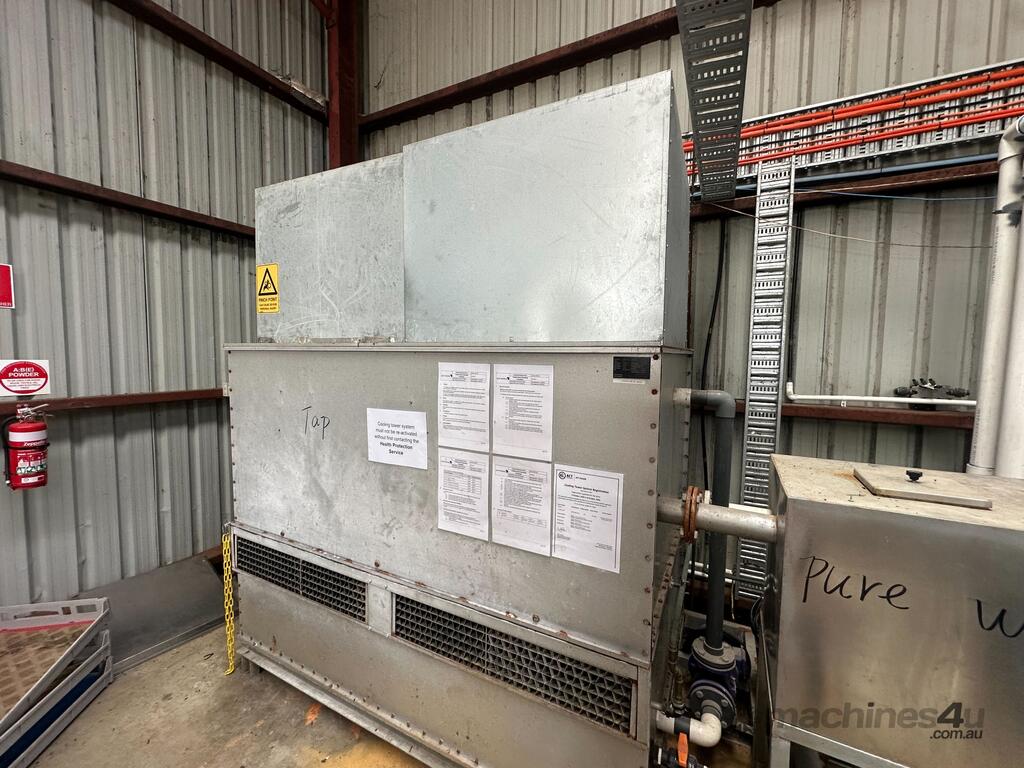

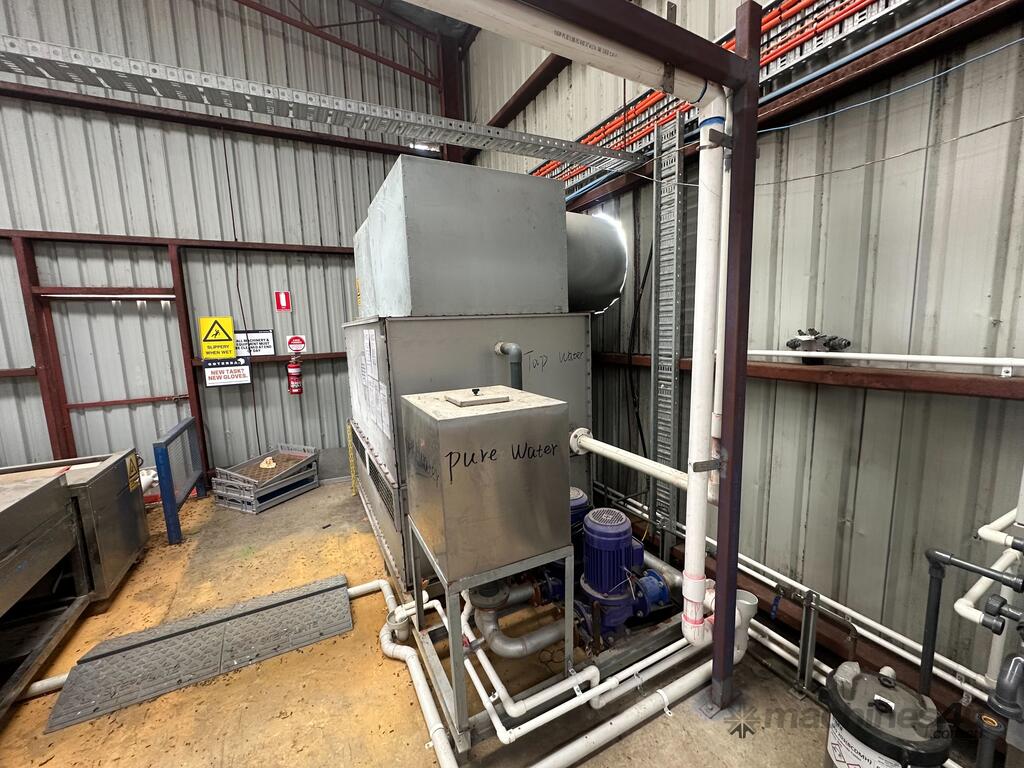

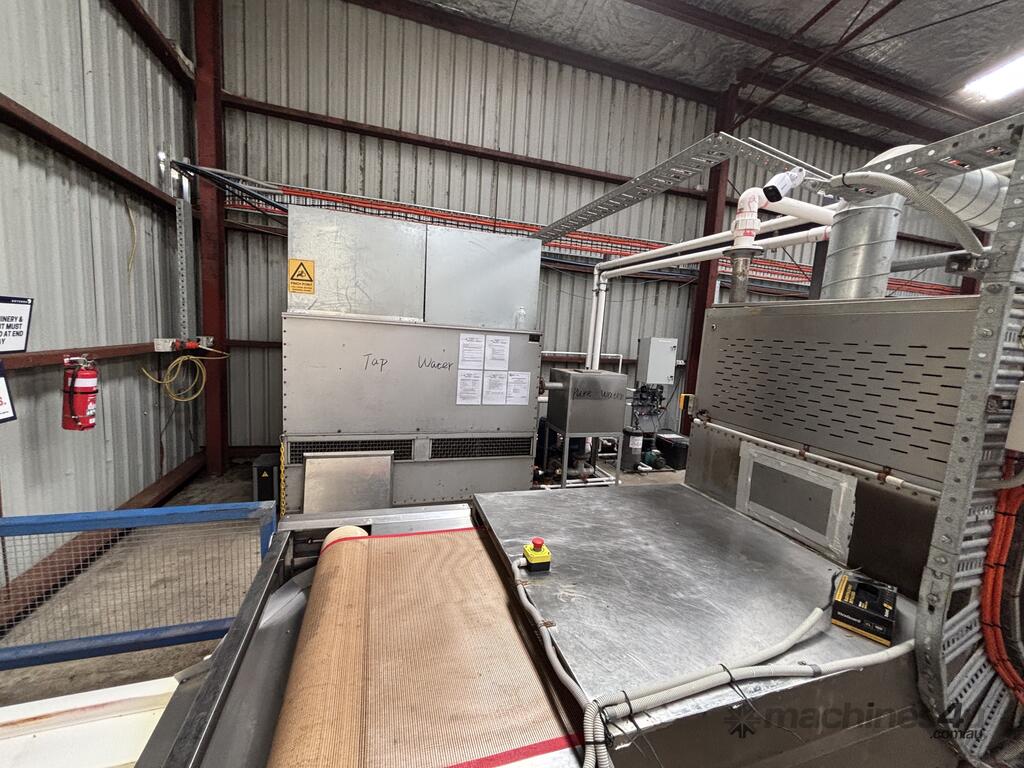

Cooling Tower Model: 30T Closed Type Cooling Tower
Cooling Capacity: 150,000 kcal/h
Water Quantity: 30m3/h
Blower power: 1.5 kW x 2
Spray pump power: 0.75 kW
Main circulating pump power: 4kW
Inlet / outlet diameter: DN:65
Working pressure: 0.1~0.3Mpa
Dimensions (mm): 3000 L x 1400 W x 2300 H
