Industrial Recycling Granulator - 37 kW 50 HP - GENOX GC800T-SI

This system is in excellent working condition. It has come out of a working environment, granulating plastic spruces and rejects.

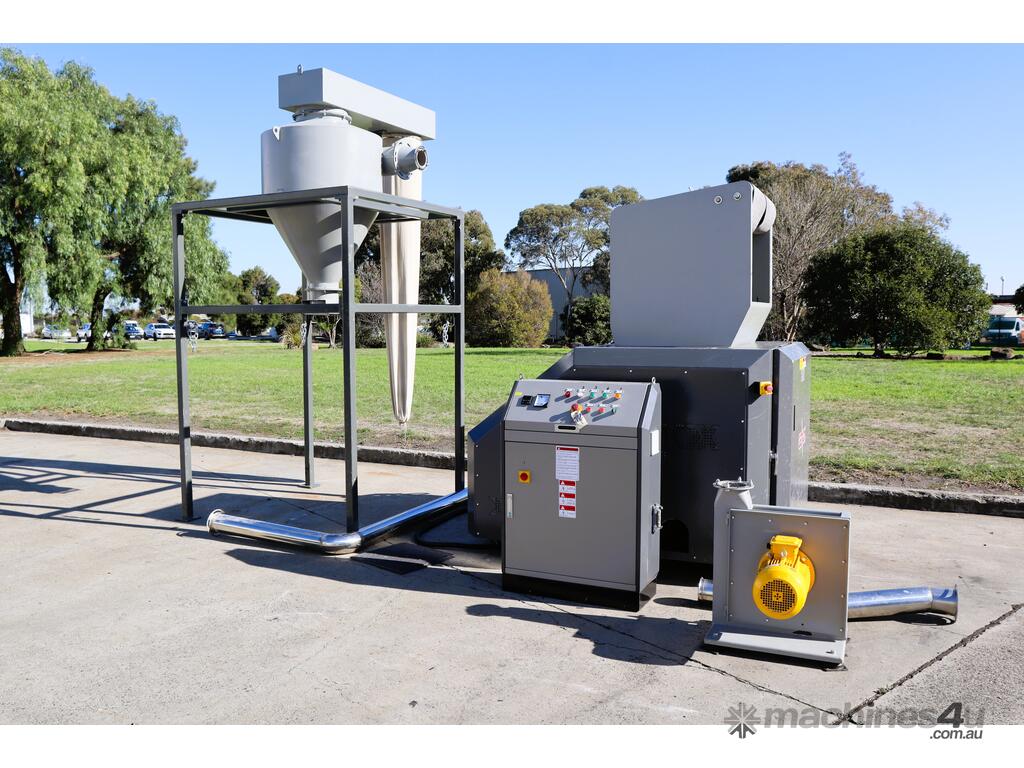

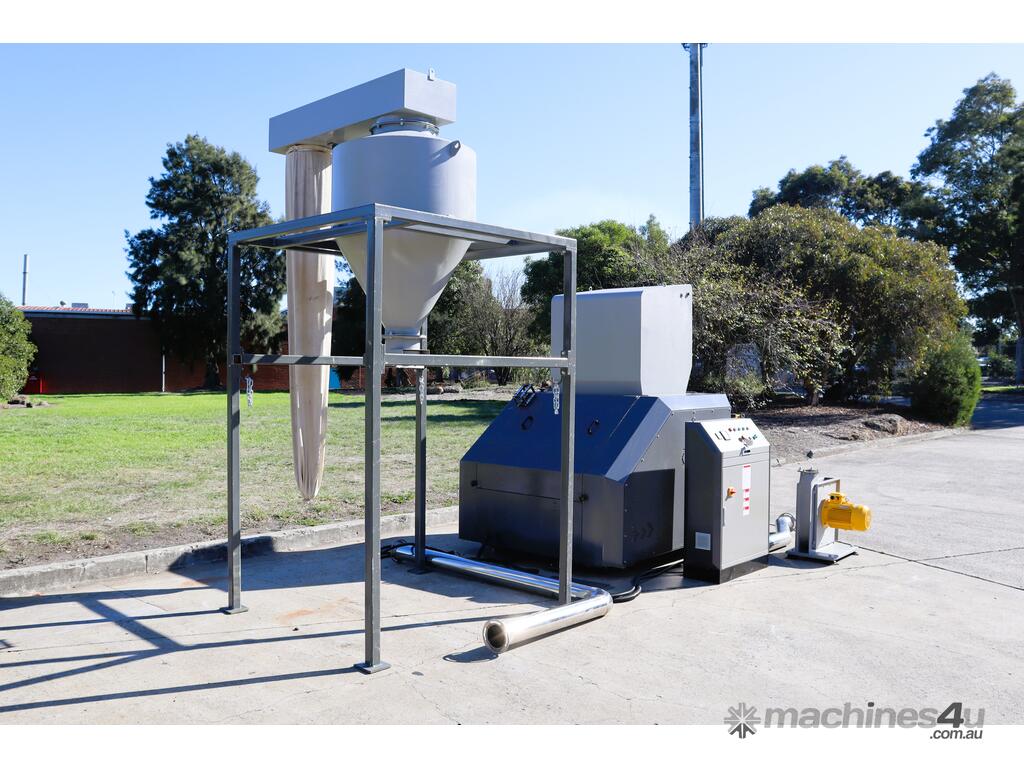

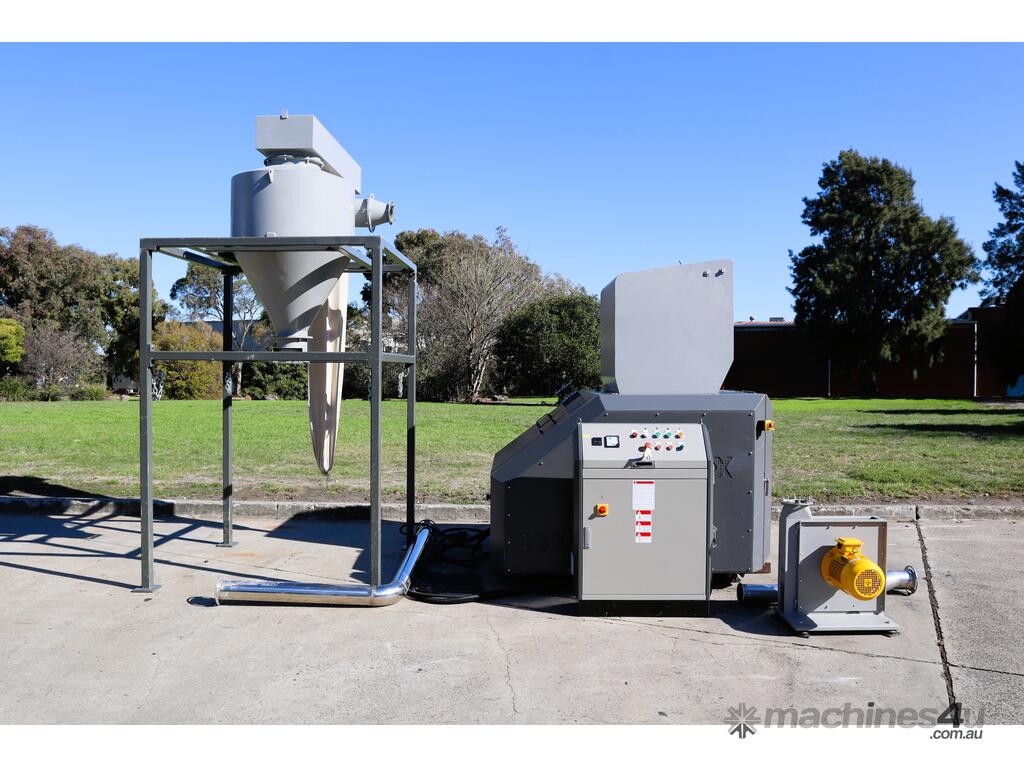

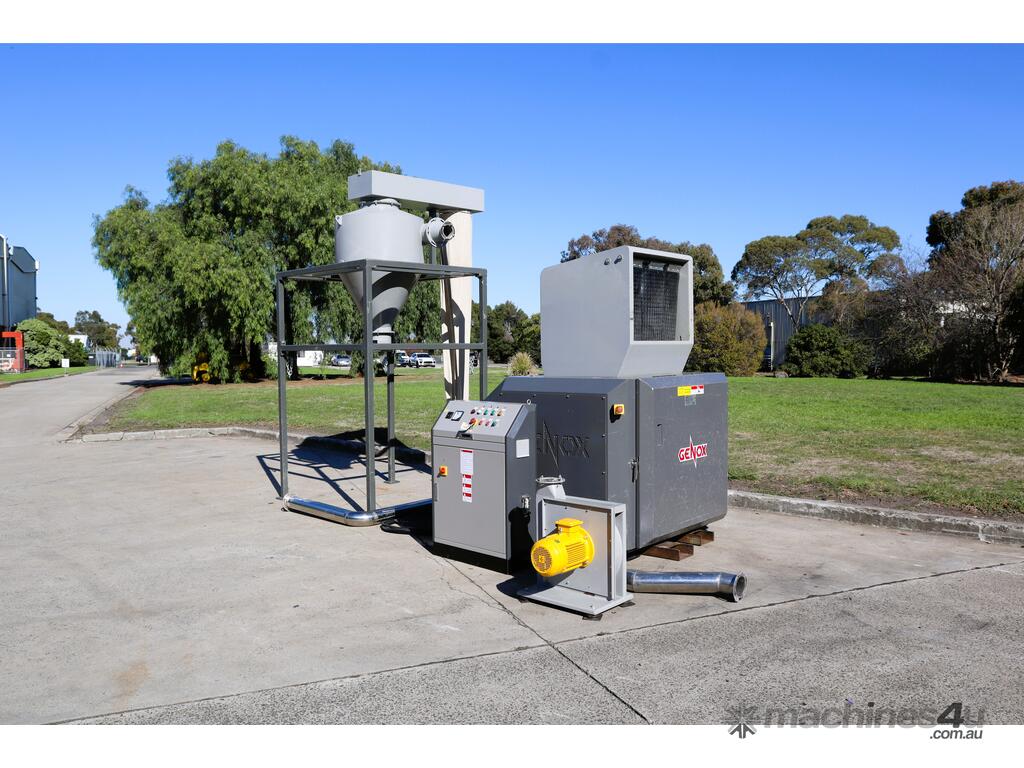

The system consists of:
- 50HP Granulator

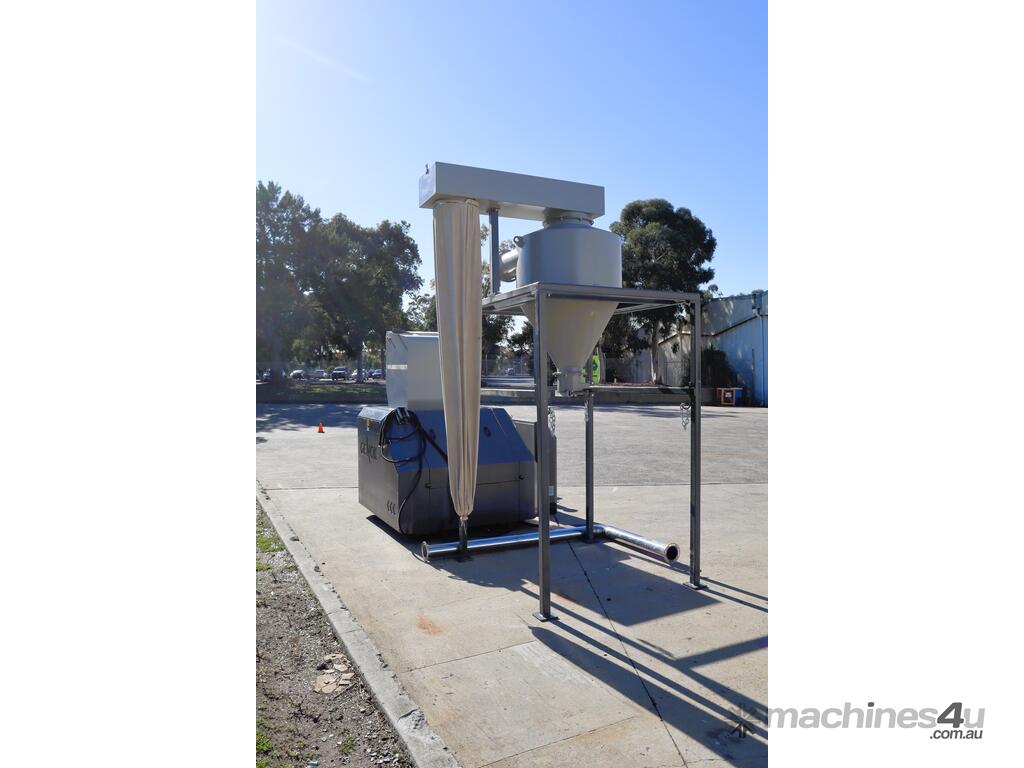

- Blower and Large Cyclone Extraction System

GC Series Granulators are high speed granulation machines designed especially for the efficient size reduction of various materials in a single pass. These machines are ideal for processing a multitude of materials including plastics, rubber, copper cable and organics amongst others.

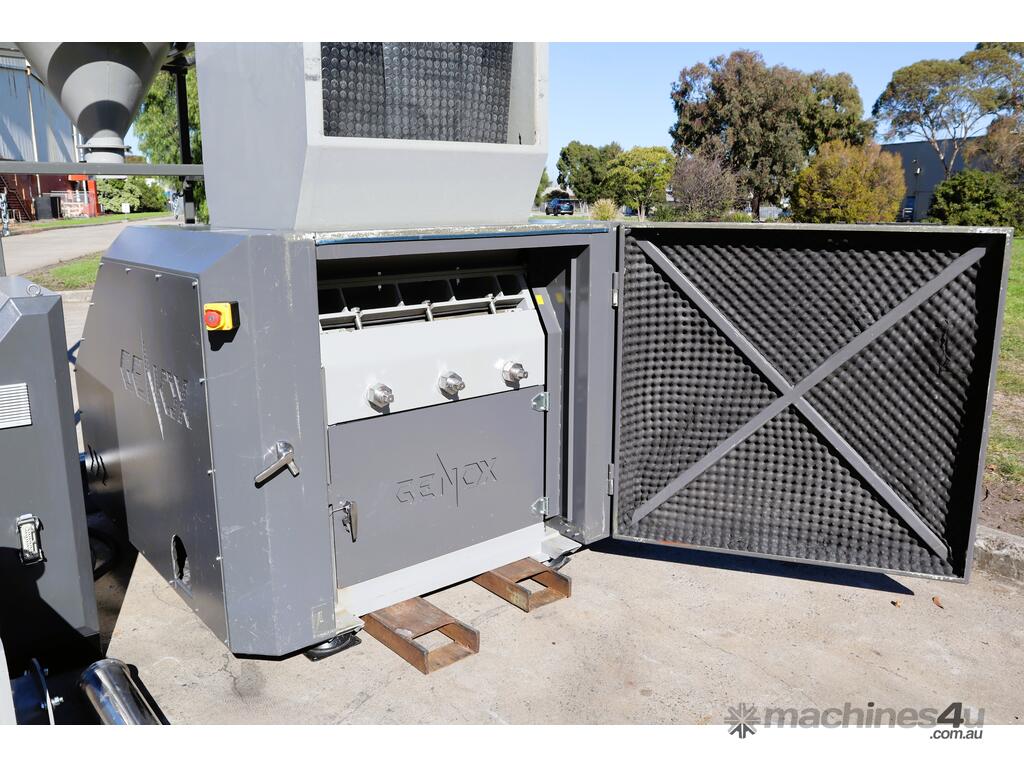

The SI in the model name denotes that this unit is a variant of the GC800T but with internal sound insulation.

· Compact design minimizes on-site space requirements
· Inclined, split cutting chamber design
· Precision machined rotors
· Replaceable wear plates at either end of the rotor shaft
· Standard machines are prepared for air extraction

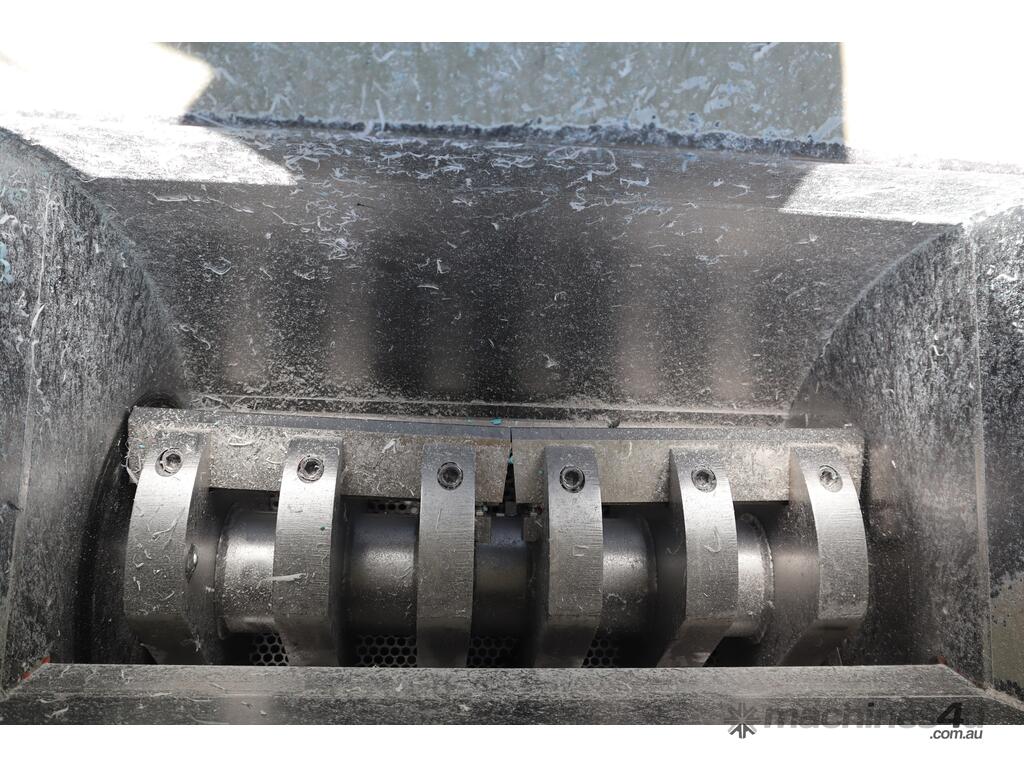

The C-Rotor is a heavy duty, high inertia, semi-closed shaft design which creates a cascade cutting effect. This rotor design is ideal for processing particularly hard or thicker materials, but is also well suited to processing profiles.

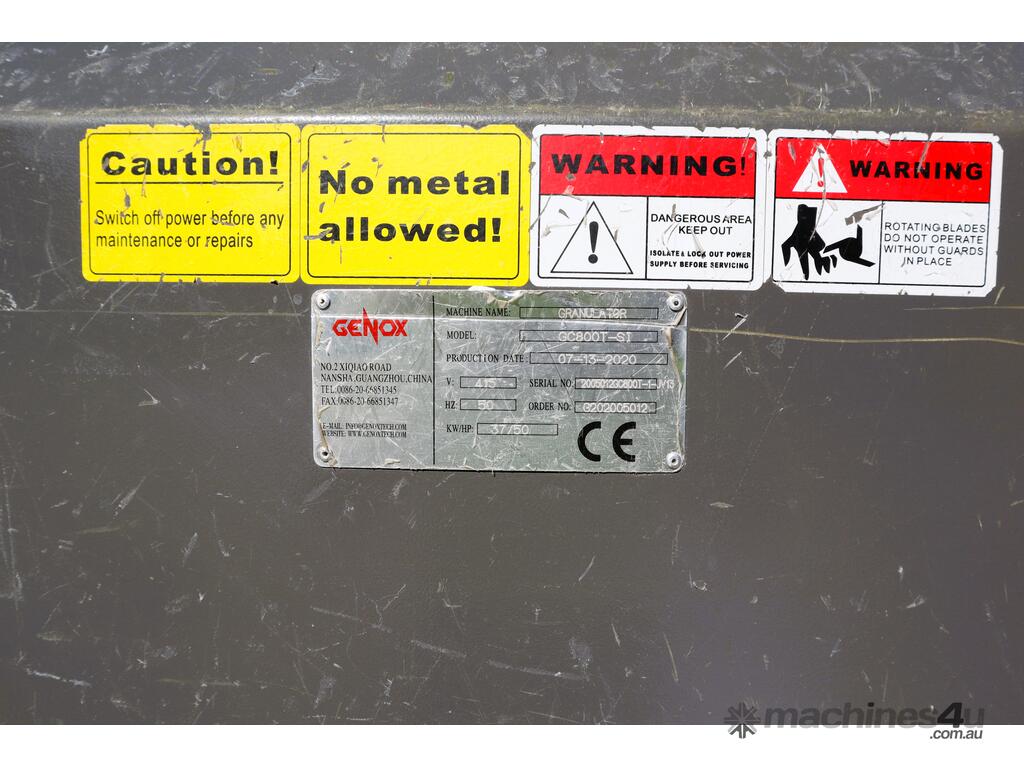

Make: Genox
Model: GV800T-SI
Year: 2020

Voltage: 415V 3 Phase
Power: 37kW/50HP

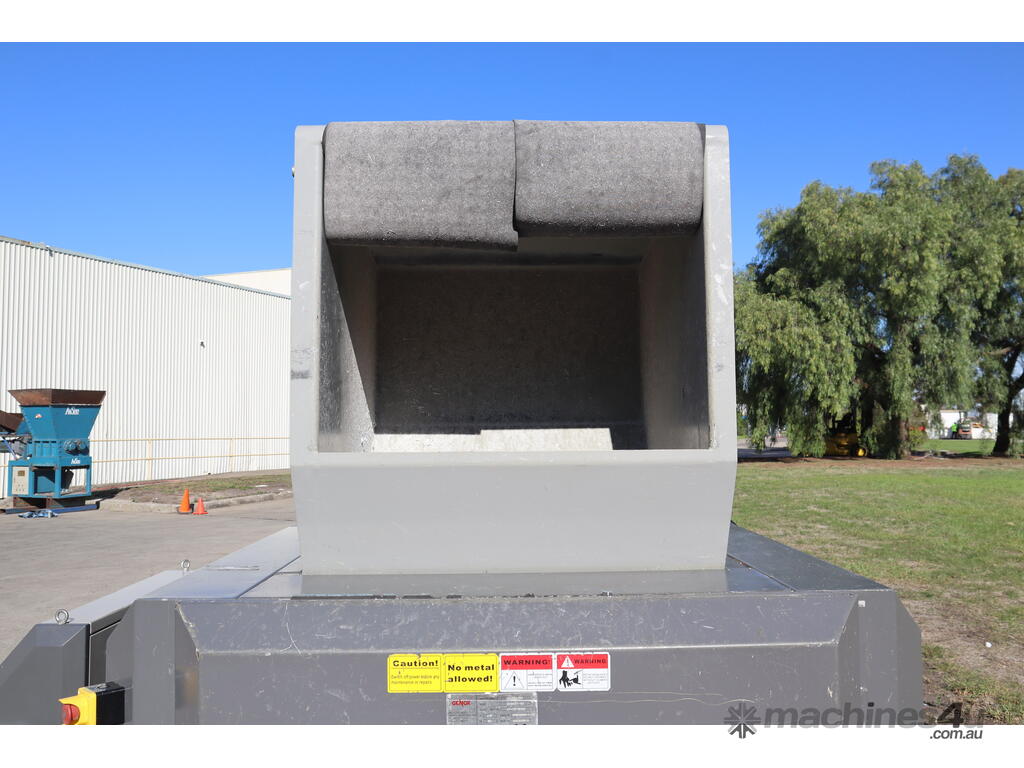

Hopper Opening (mm): 645 L x 810 H
Rotor Diameter (mm): 420
Rotor Length (mm): 800
Rotor Speed: 580 RPM
Rotor Knives: 3 x 2 pcs
Counter Knives: 2 x 1 pcs
Granulator Weight: approx. 2500kg

Cyclone Diameter (mm): 1040
Cyclone Bottom Oulet (mm): 225
Cyclone Top-Side Opening (mm): 120
Cyclone Bag Outlet Diameter (mm): 360
Bag Length (mm): 2500

Overall Granulator Dimensions (mm): 2000 L x 1650 x 2300 H
Overall Cyclone Dimensions - with Frame (mm): 1980 L x 1610 W x 3340 H
