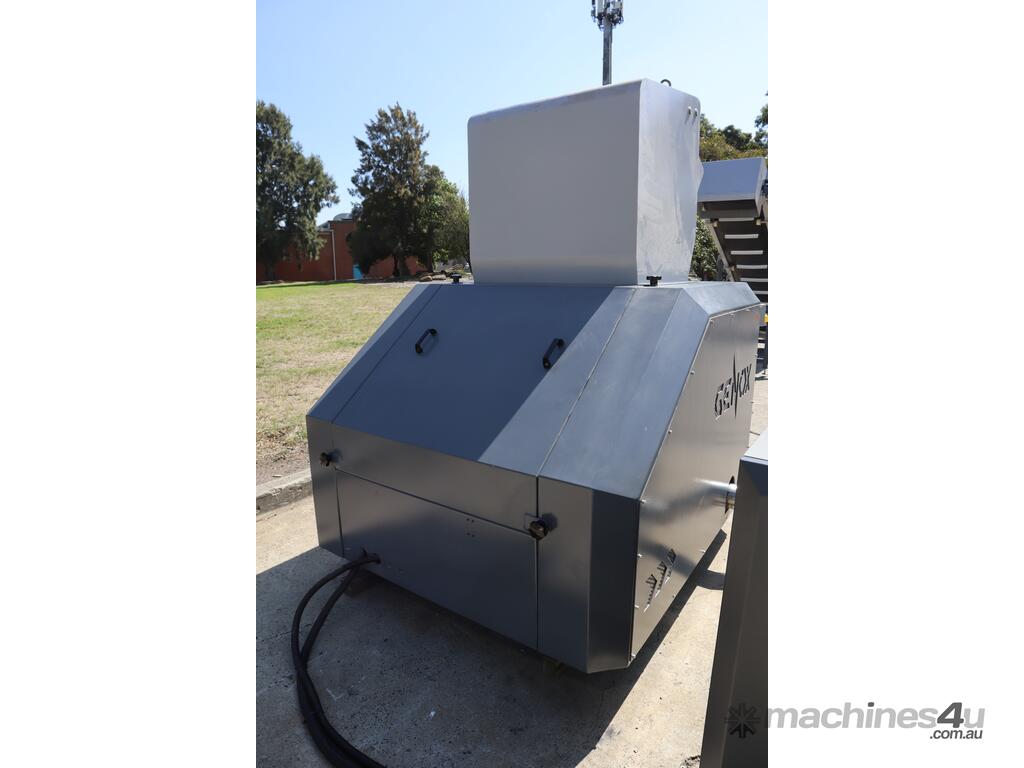

Industrial Recycling Granulator 50HP - GENOX GC800T

This system is in excellent working condition. It has come out of a working environment, granulating plastic sprues and rejects.

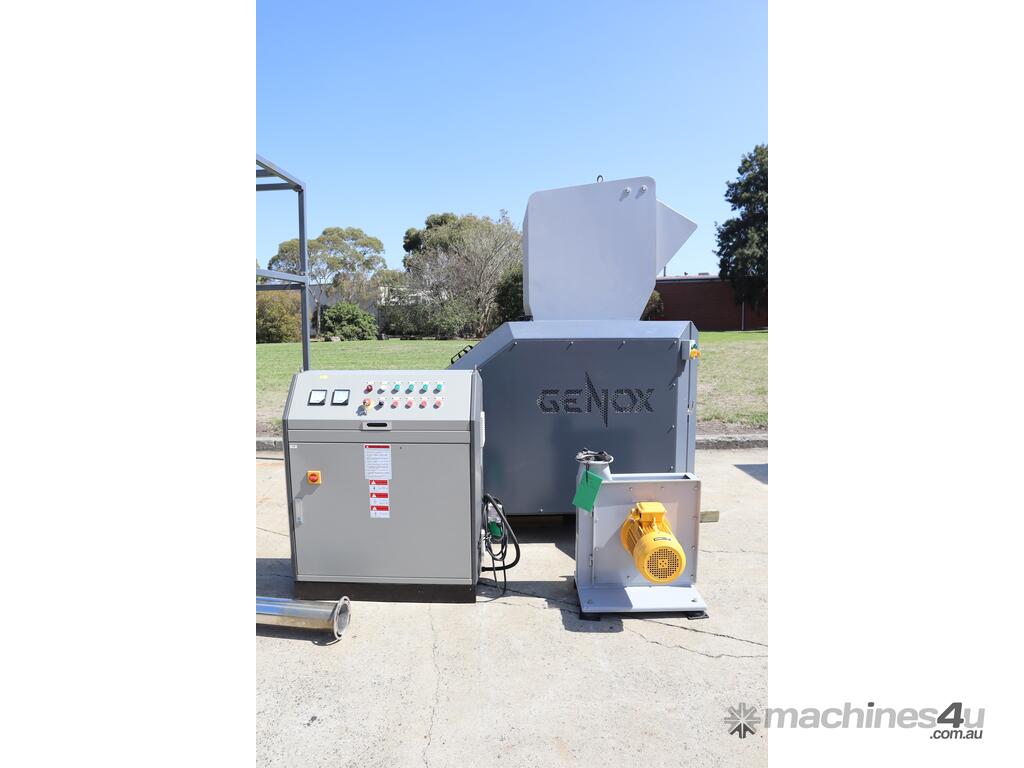

The system consists of:

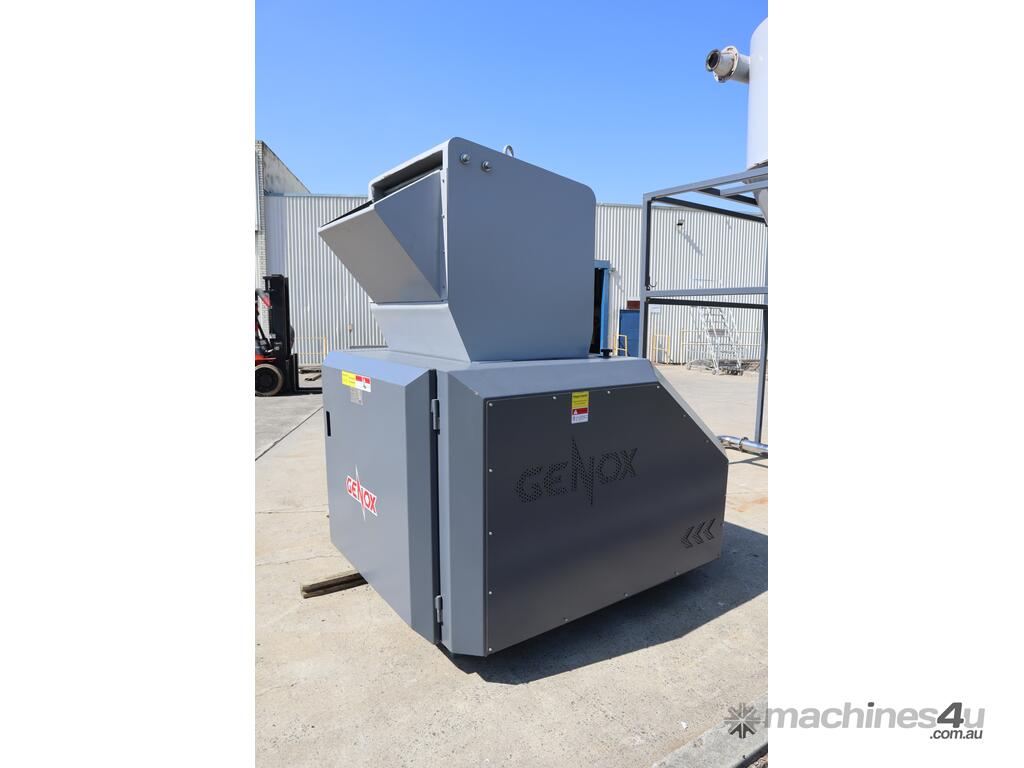

- 50HP Granulator

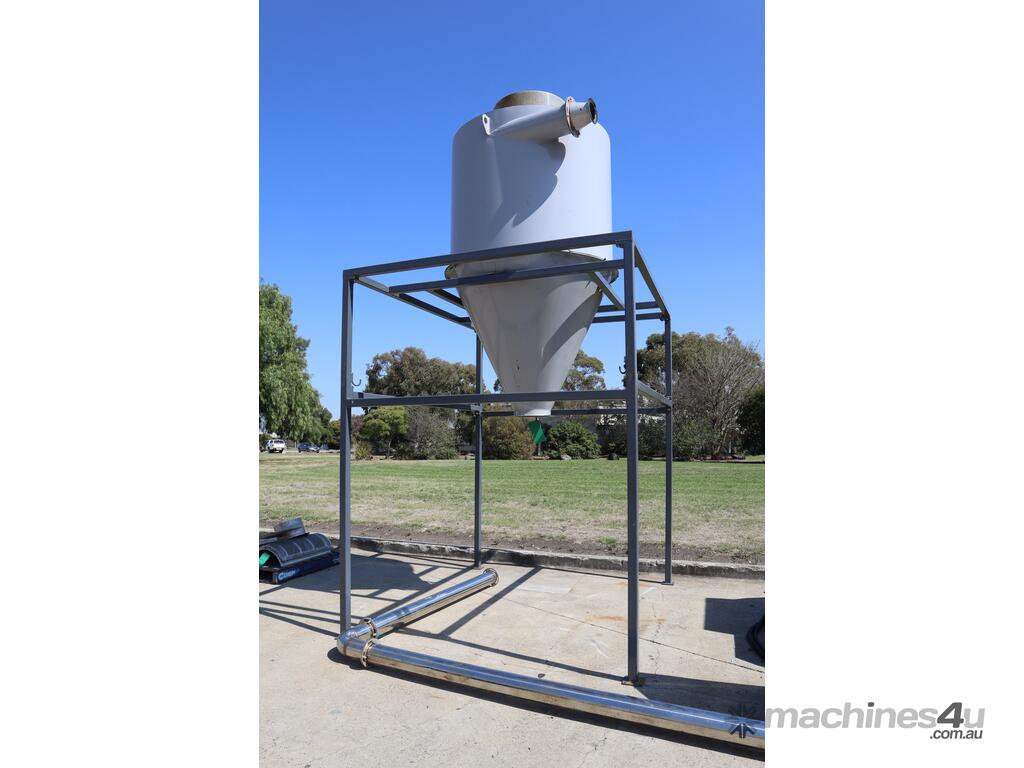

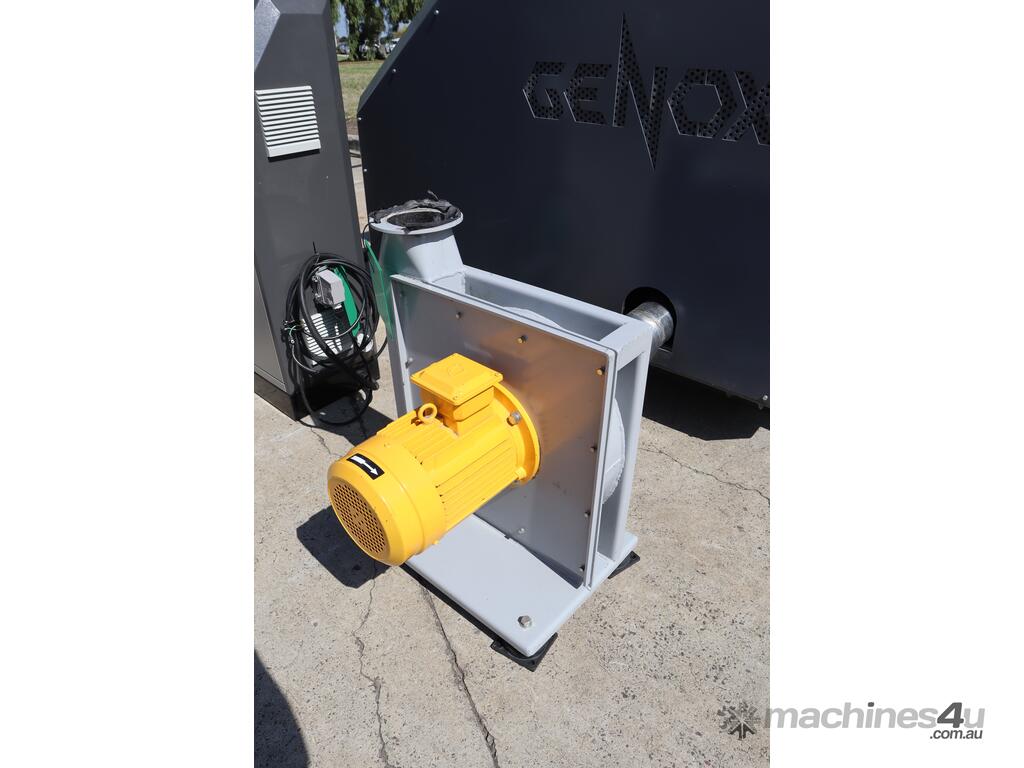

- Blower and Large Cyclone Extraction System

GC Series Granulators are high speed granulation machines designed especially for the efficient size reduction of various materials in a single pass. These machines are ideal for processing a multitude of materials including plastics, rubber, copper cable and organics amongst others.

· Compact design minimizes on-site space requirements
· Inclined, split cutting chamber design
· Precision machined rotors
· Replaceable wear plates at either end of the rotor shaft
· Standard machines are prepared for air extraction

The C-Rotor is a heavy duty, high inertia, semi-closed shaft design which creates a cascade cutting effect. This rotor design is ideal for processing particularly hard or thicker materials, but is also well suited to processing profiles.

Make: Genox
Series: Gran-Calibur
Model: GC800T
Year: 2017

SPECS
Voltage: 415V 3 Phase
Power: 37kW/50HP

Hopper Opening: 750 x 615mm
Rotor Diameter: 420mm
Rotor Length: 800mm
Rotor Speed: 580 RPM
Rotor Knives: 3 x 2 pcs
Counter Knives: 2 x 1 pcs

Granulator Weight: approx. 2500kg

Granulator Dimensions (mm): 2100 x 1700 x 2400 H
Cyclone Dimensions (mm): 2540 x 2250 x 4500 H
