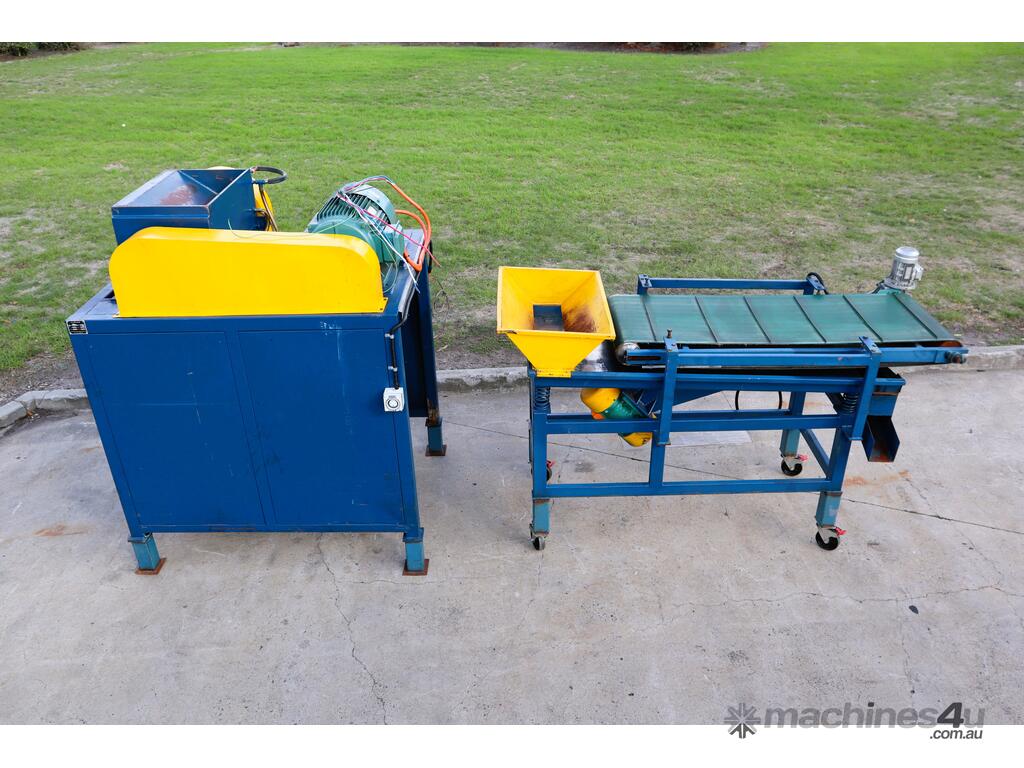

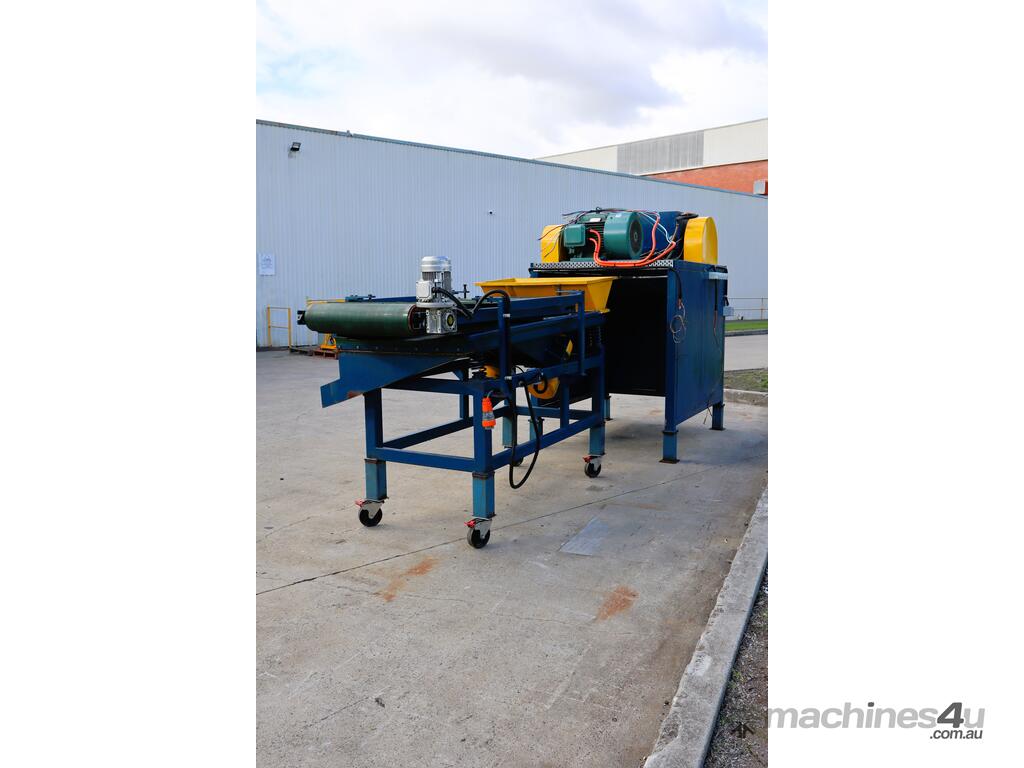

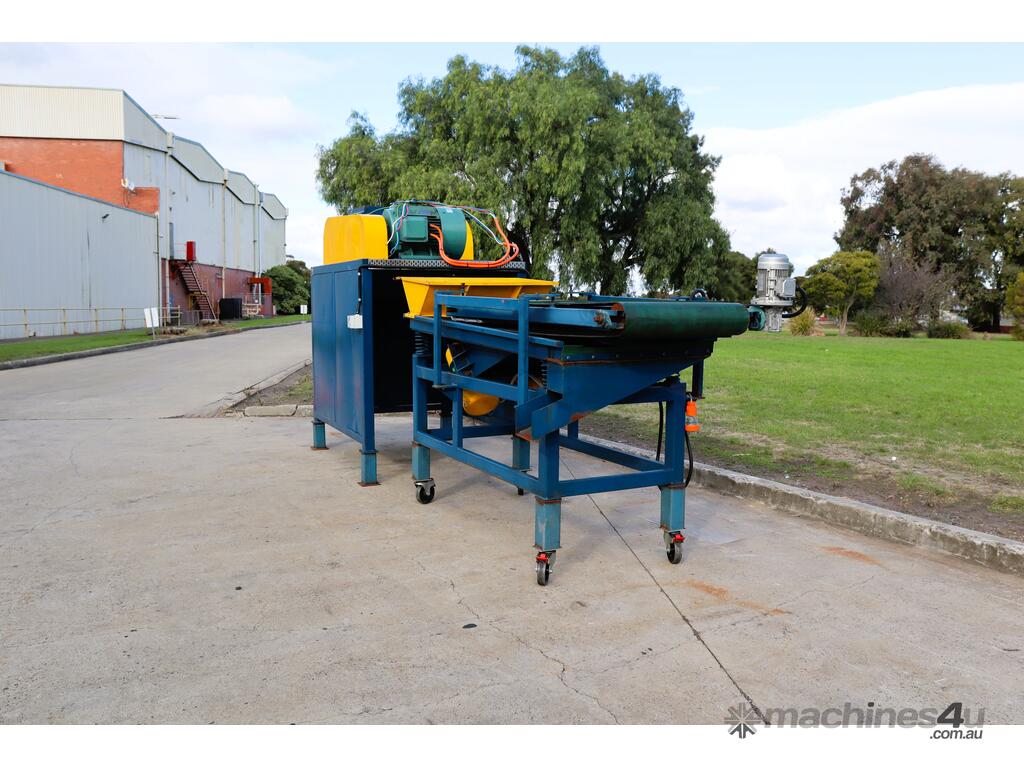

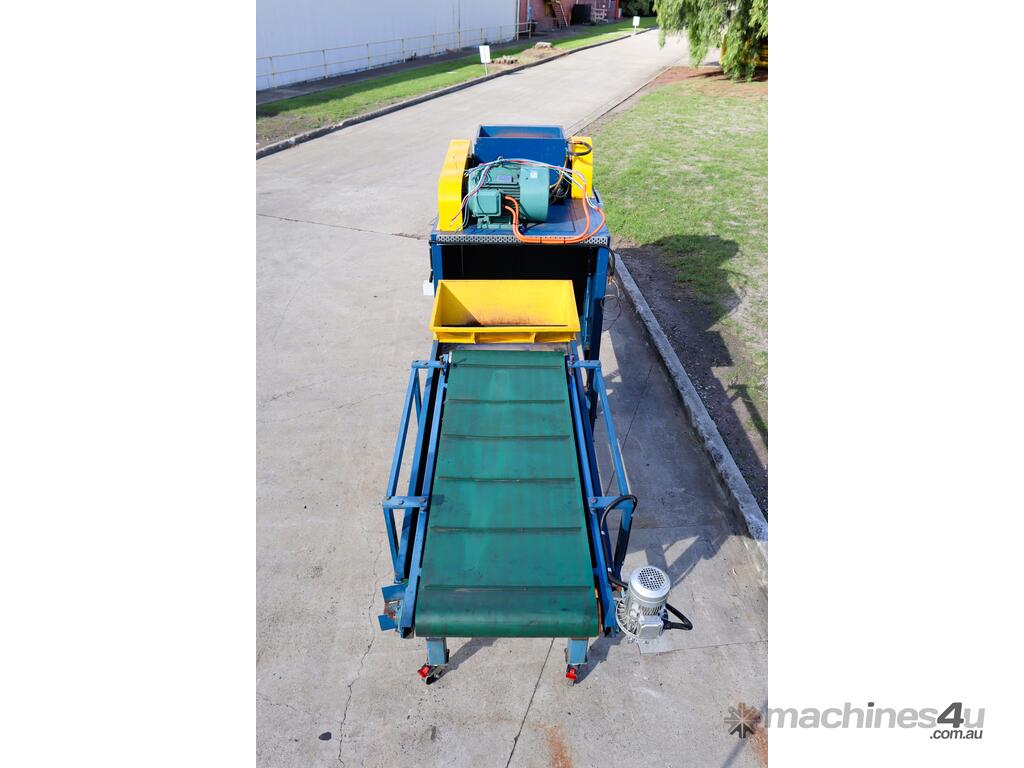

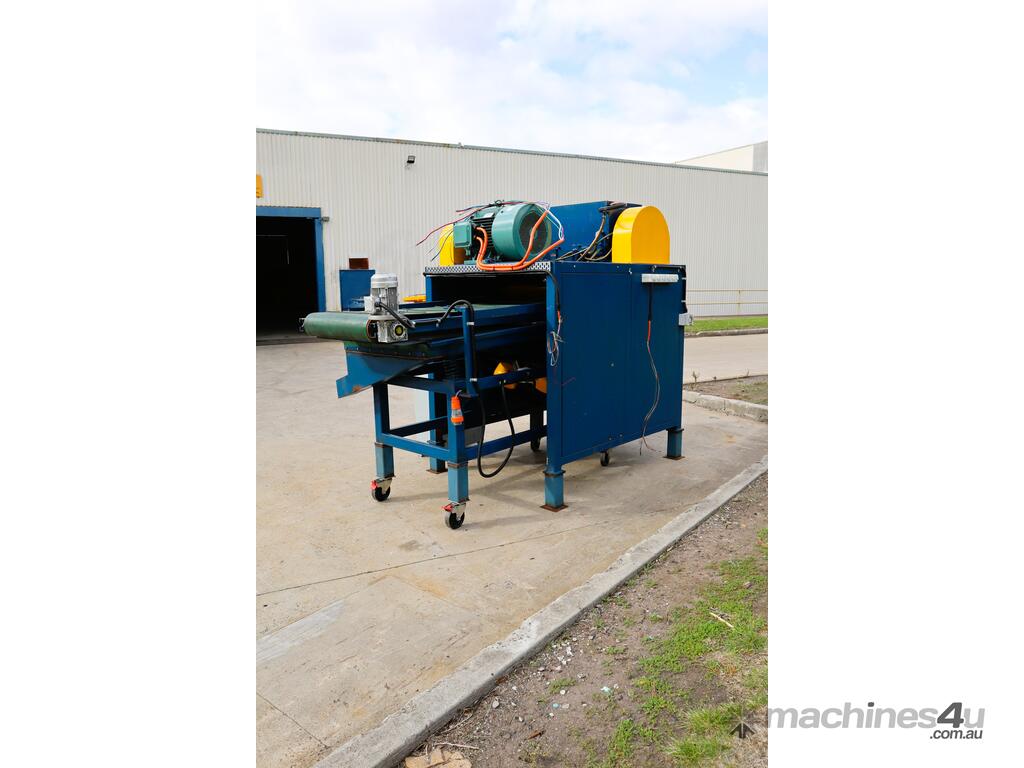

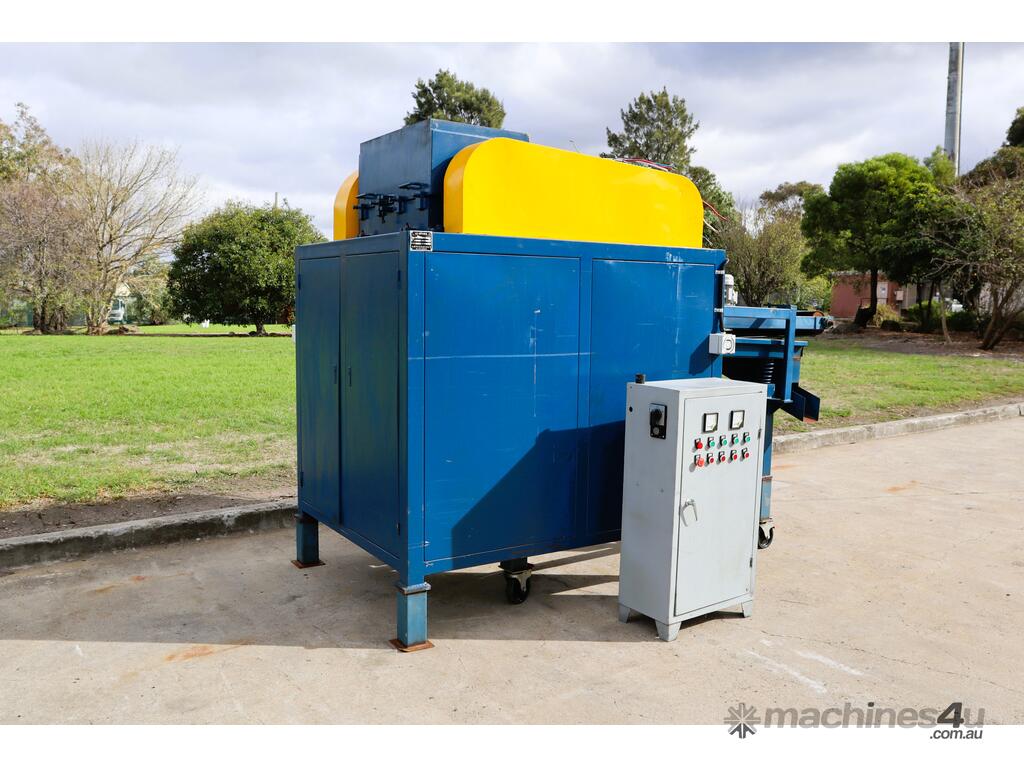

This tire rasper set has two main units, the shredder unit and the conveyor unit. The entire set is in excellent condition.

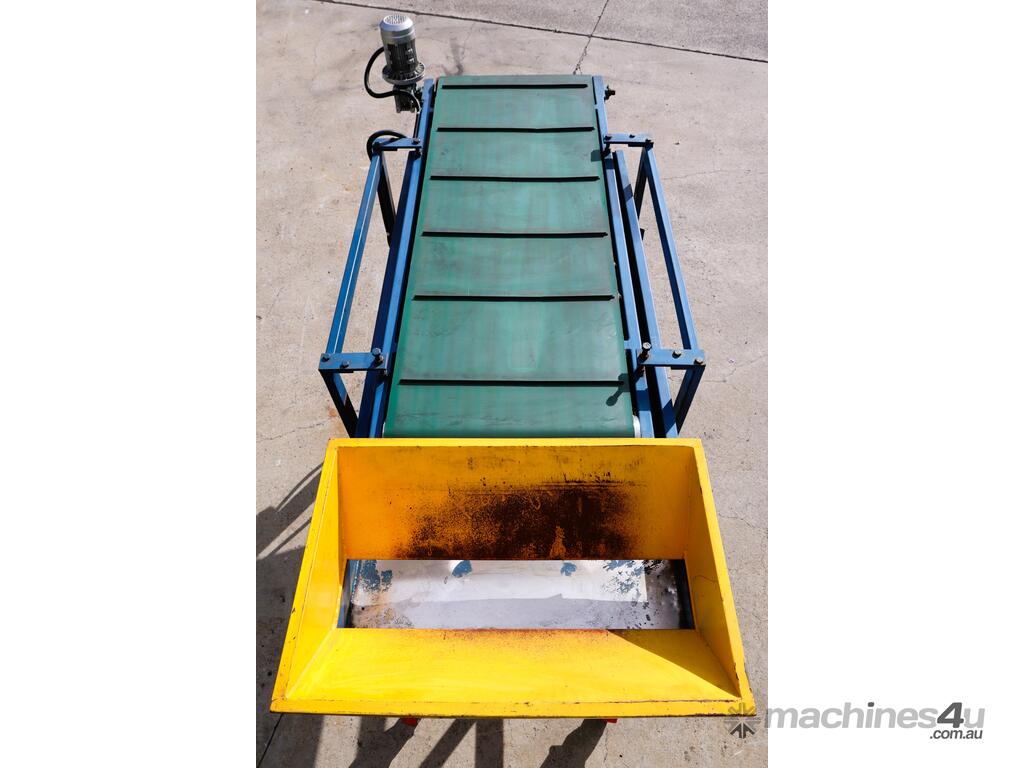

Includes a vibratory conveyor which comes equipped with a magnetic belt that picks up metals, while the leftover debris will roll down an outlet channel that runs out the side.

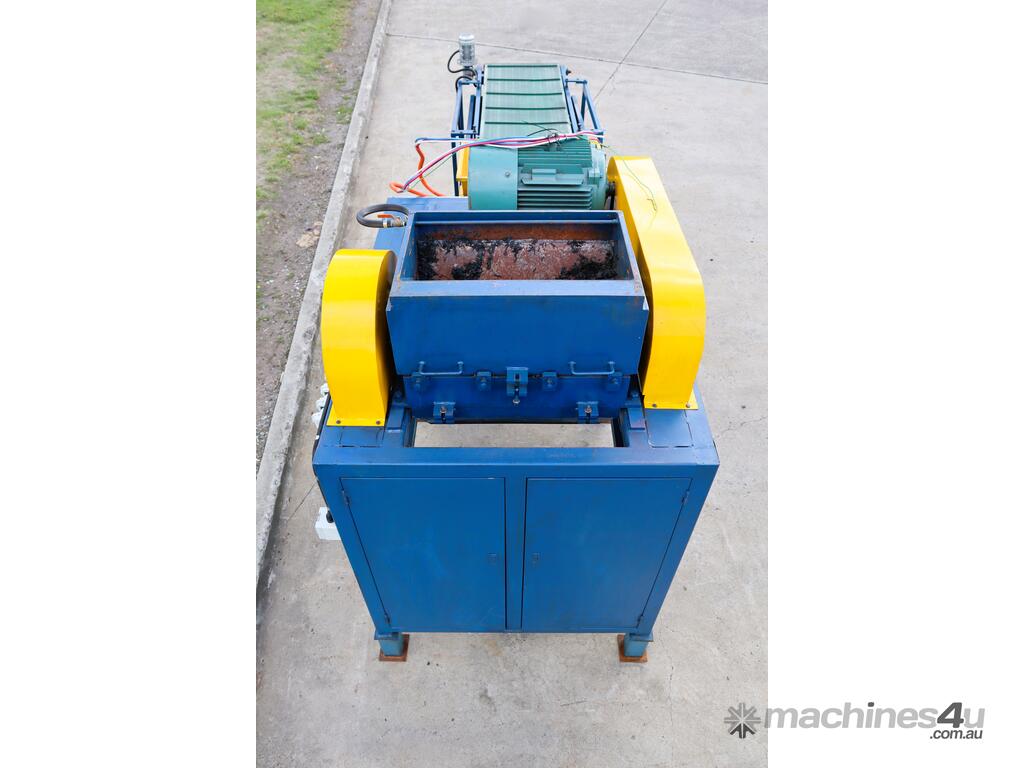

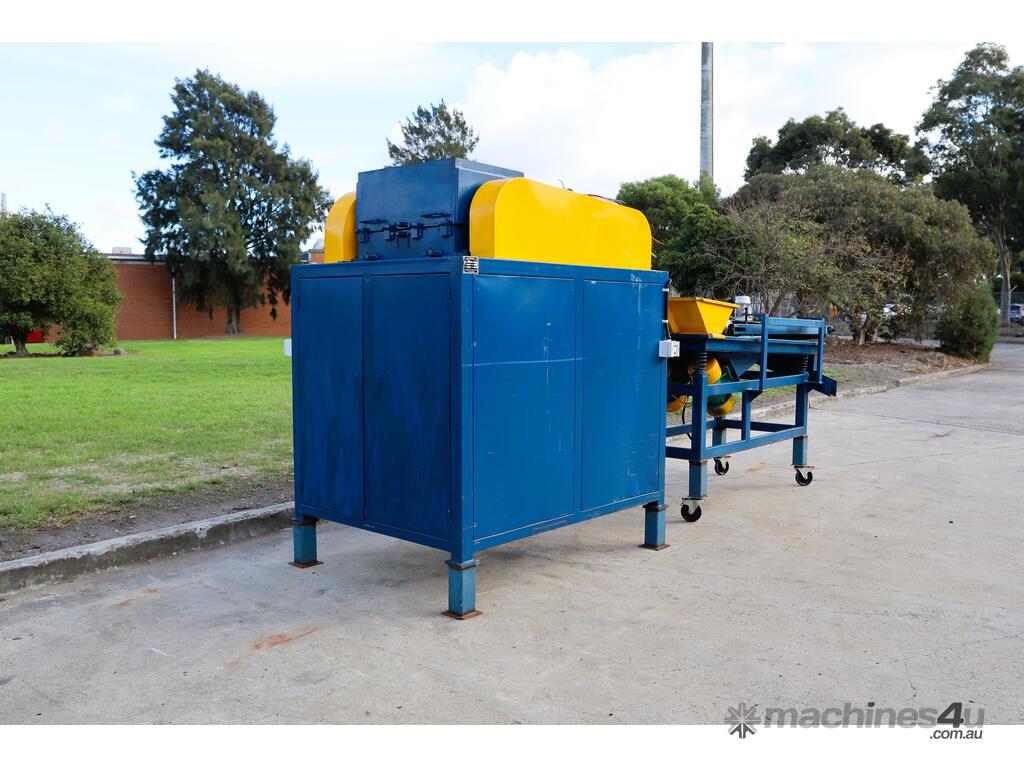

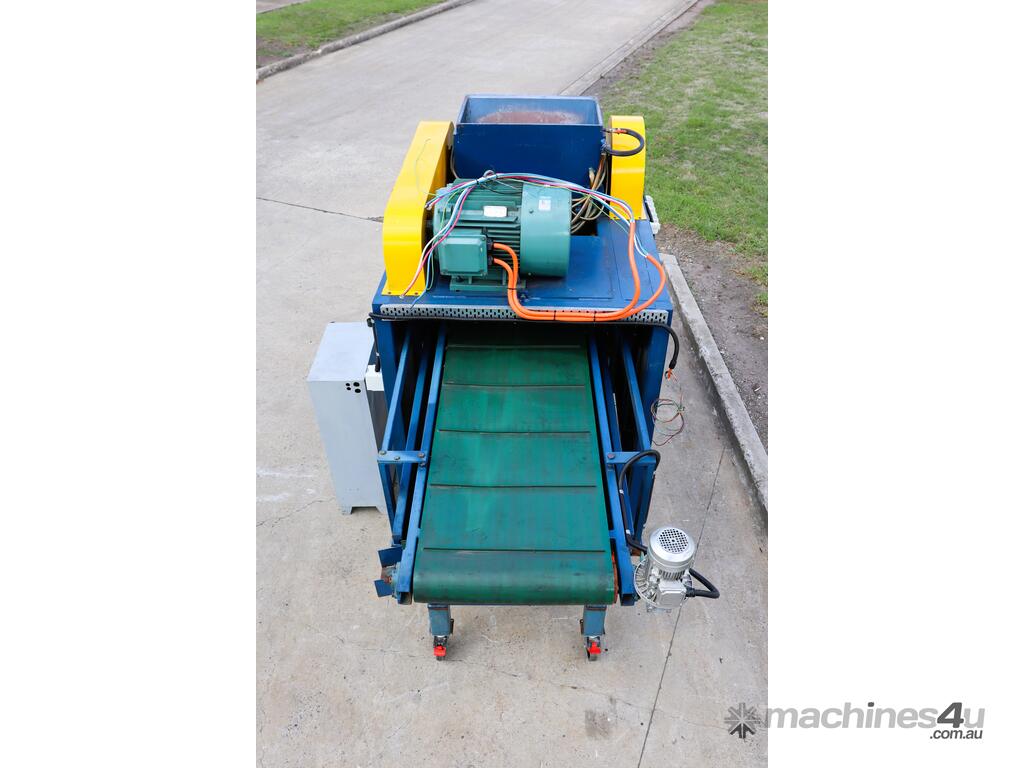

The shredder is attached on top to a sturdy steel enclosure to house the conveyor unit, with access through the back doors.

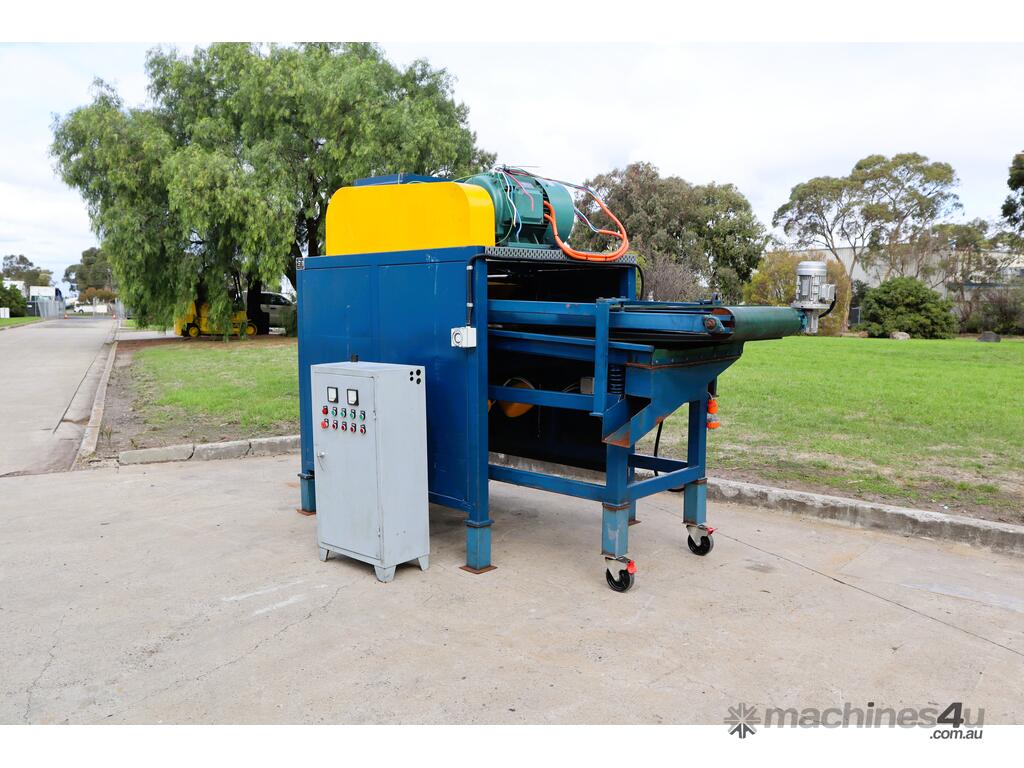

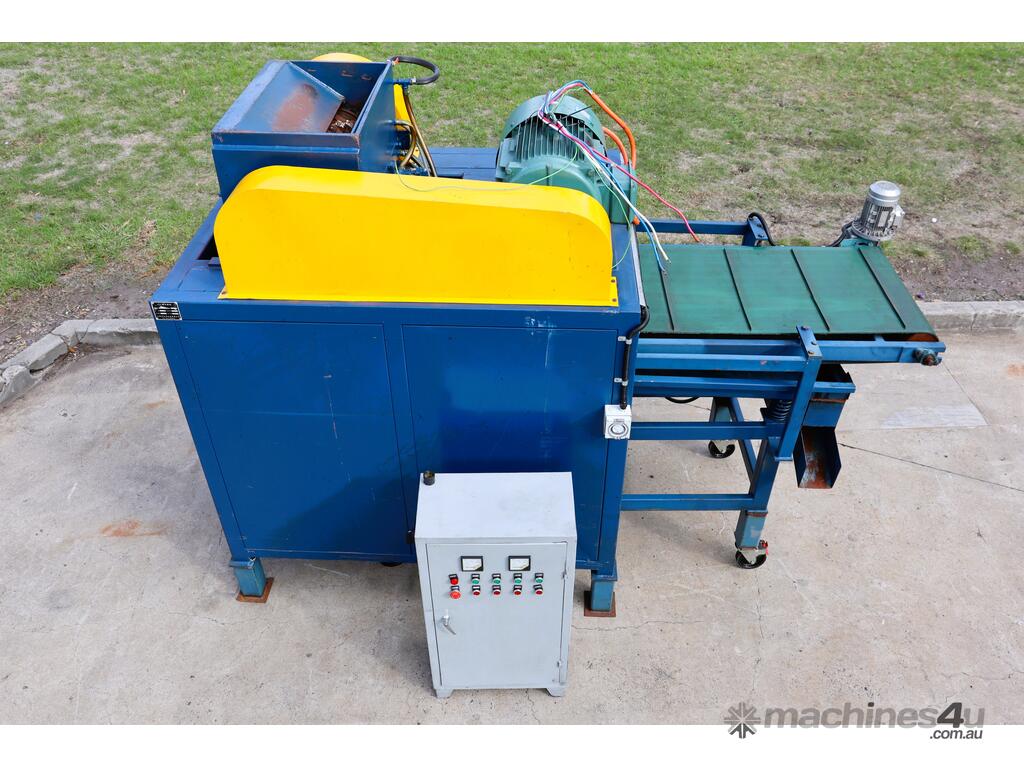

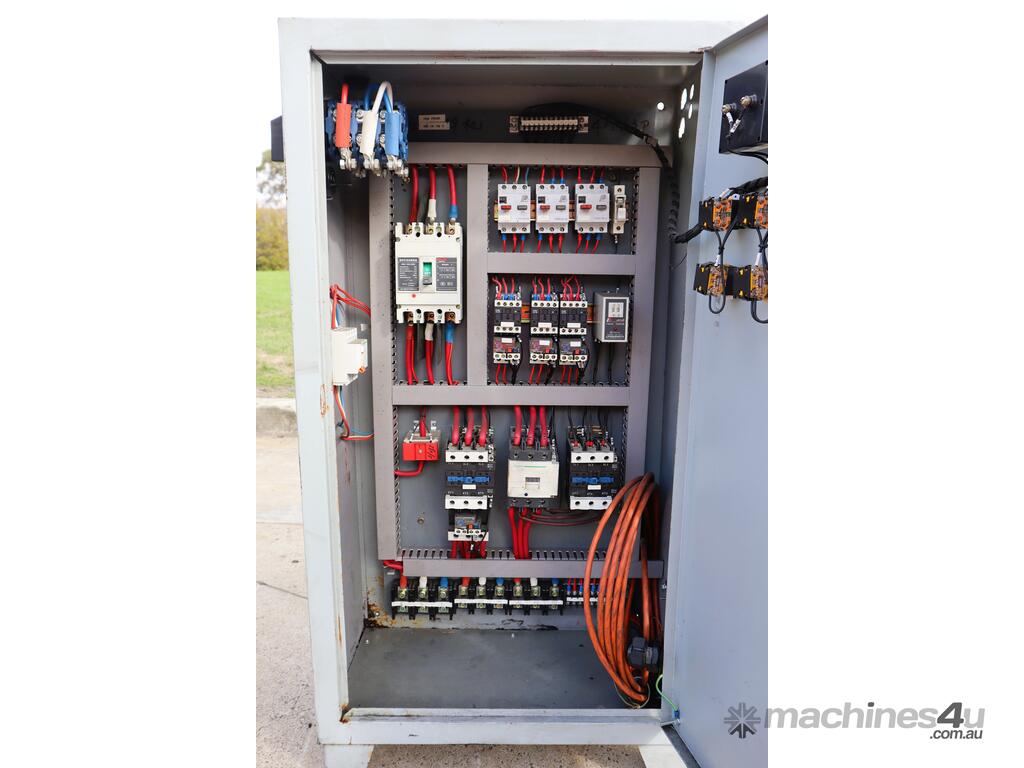

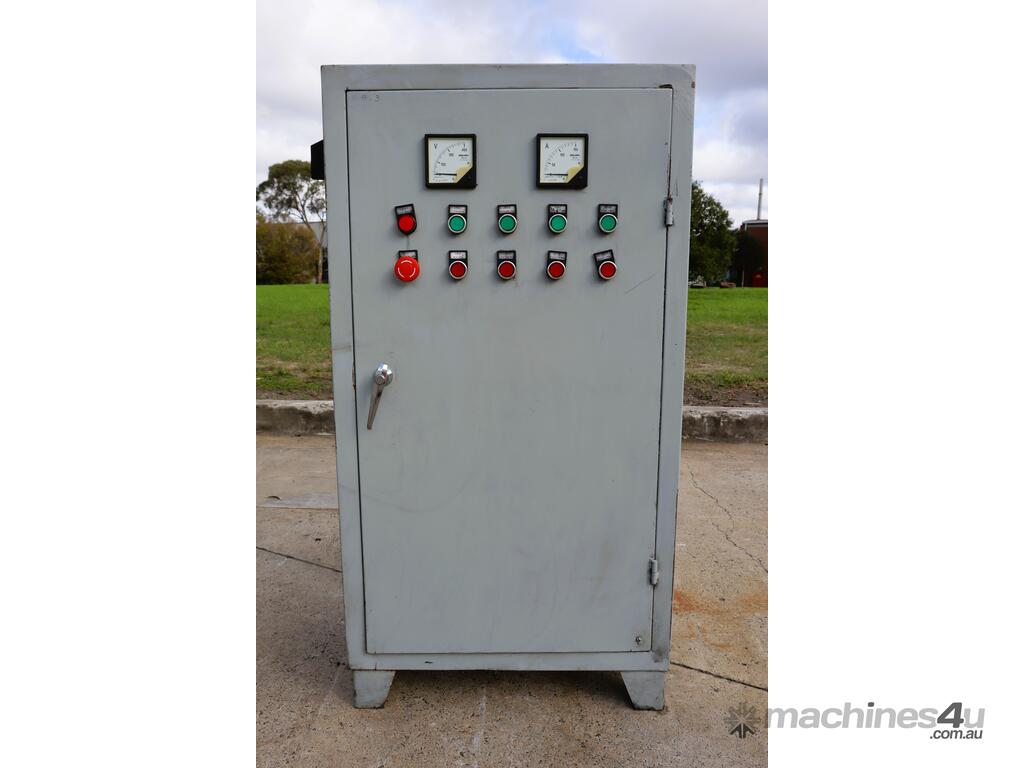

Includes a switch board for simple controls for the operation of the set.

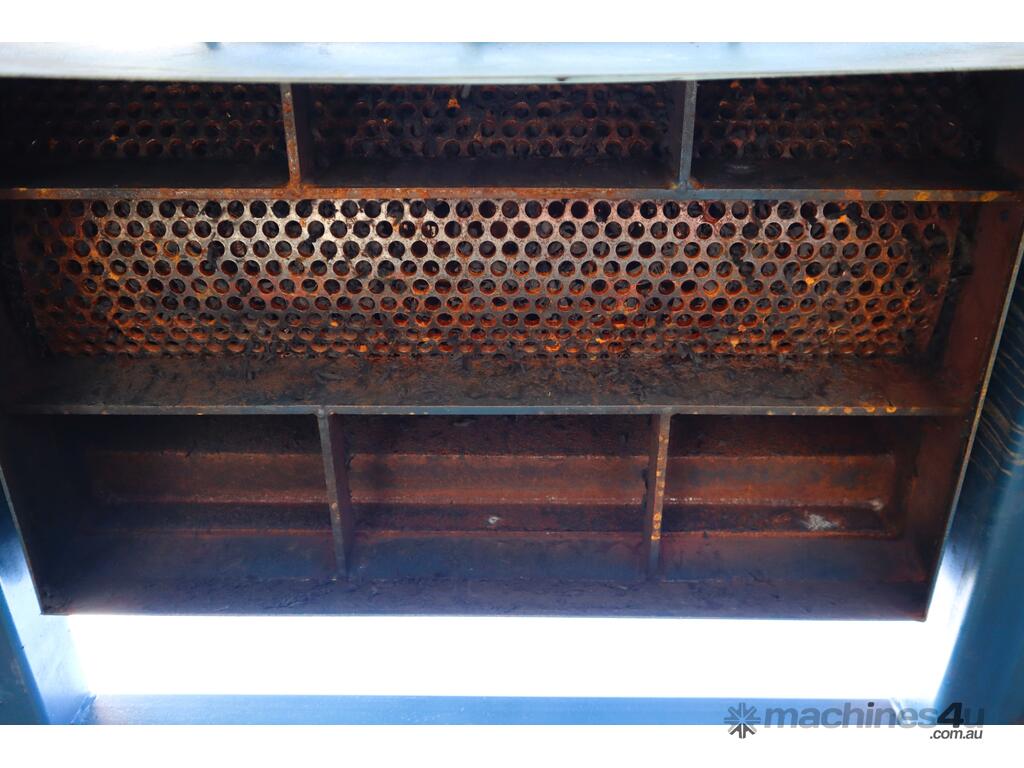

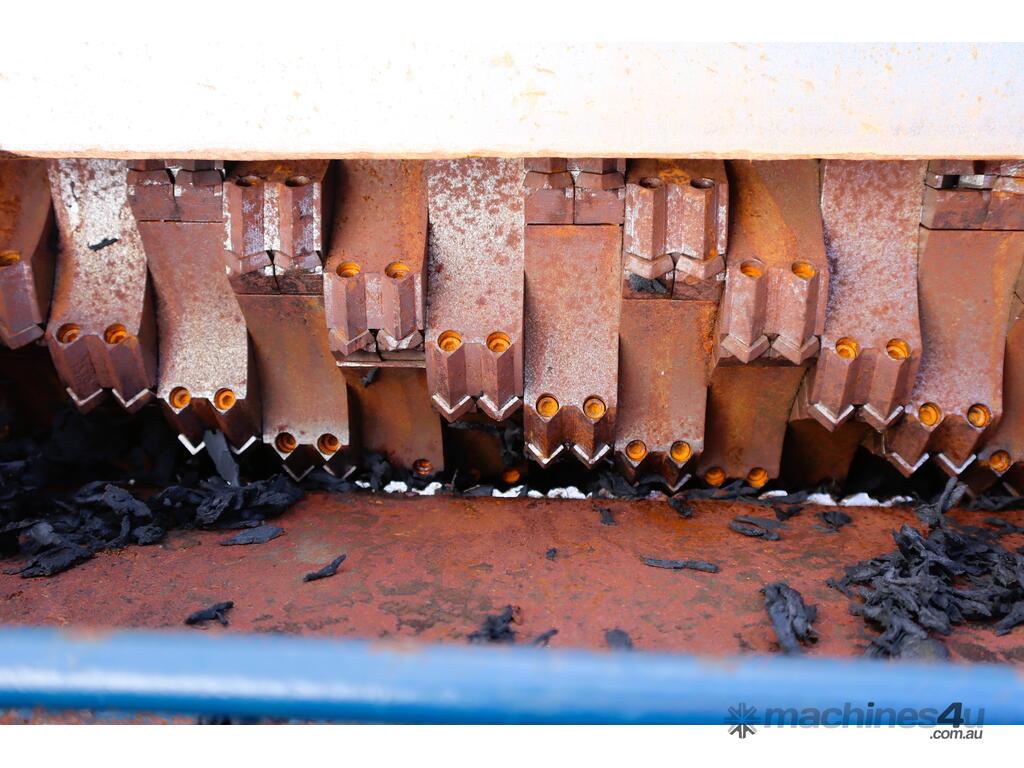

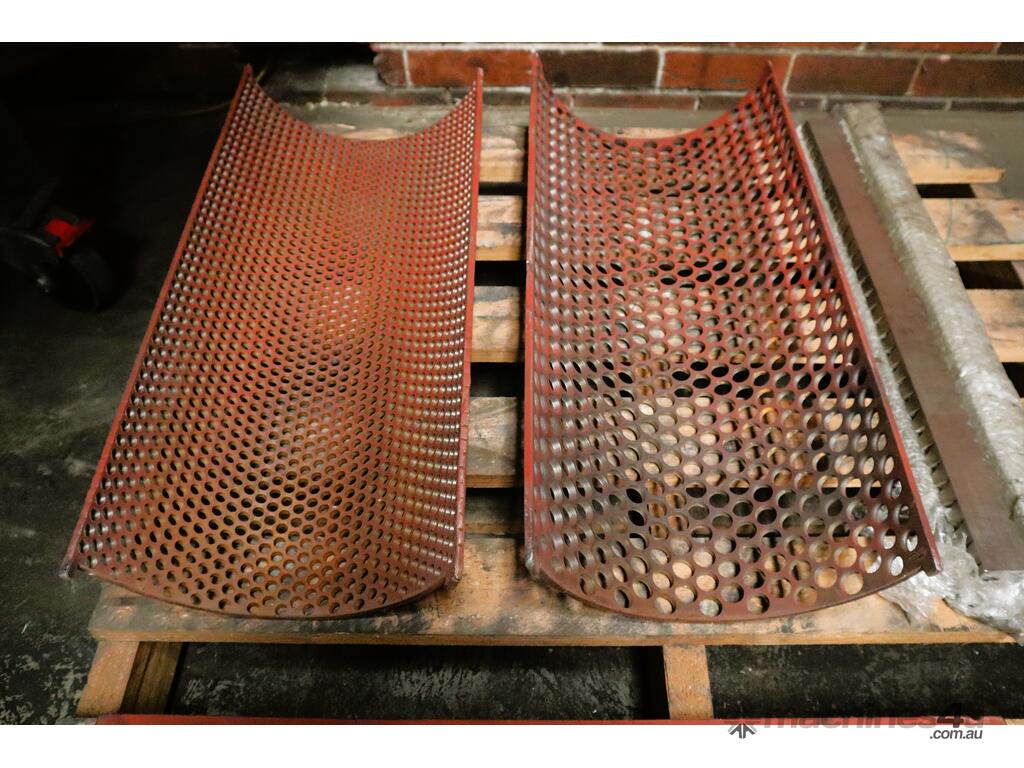

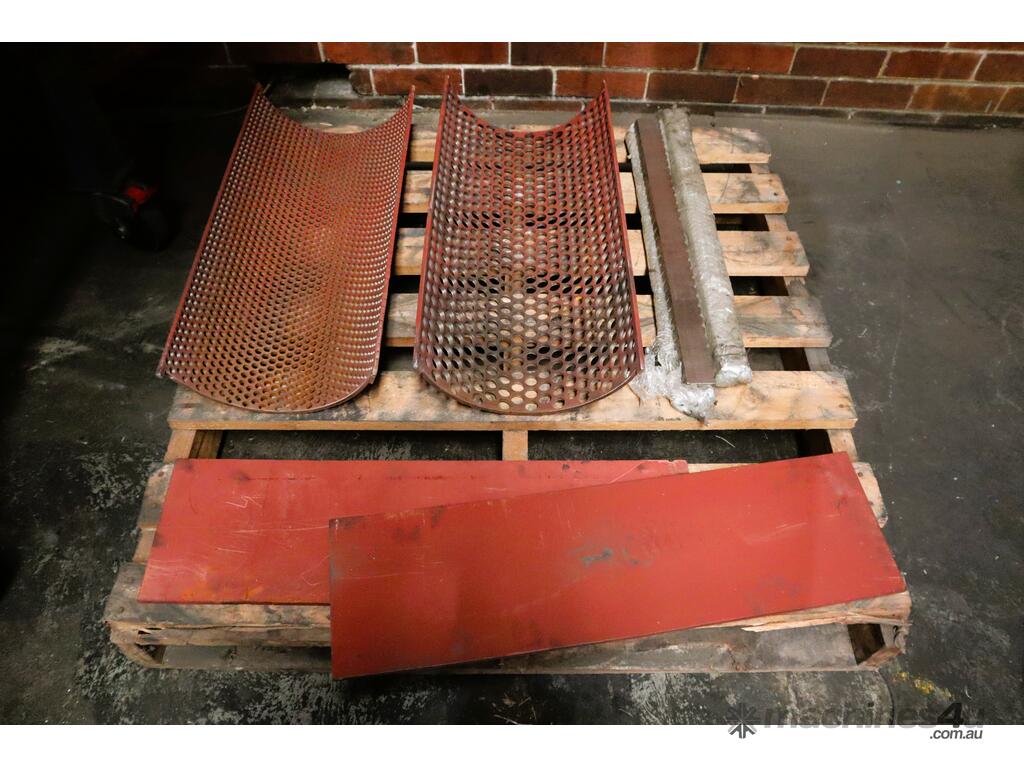

Comes with a set of spare screens (1x screen with 20mm diameter perforations, 1x screen with 10mm diameter perforations), set of 700mm blades and set of 2x plates.
At the time of listing there are two of these units available.

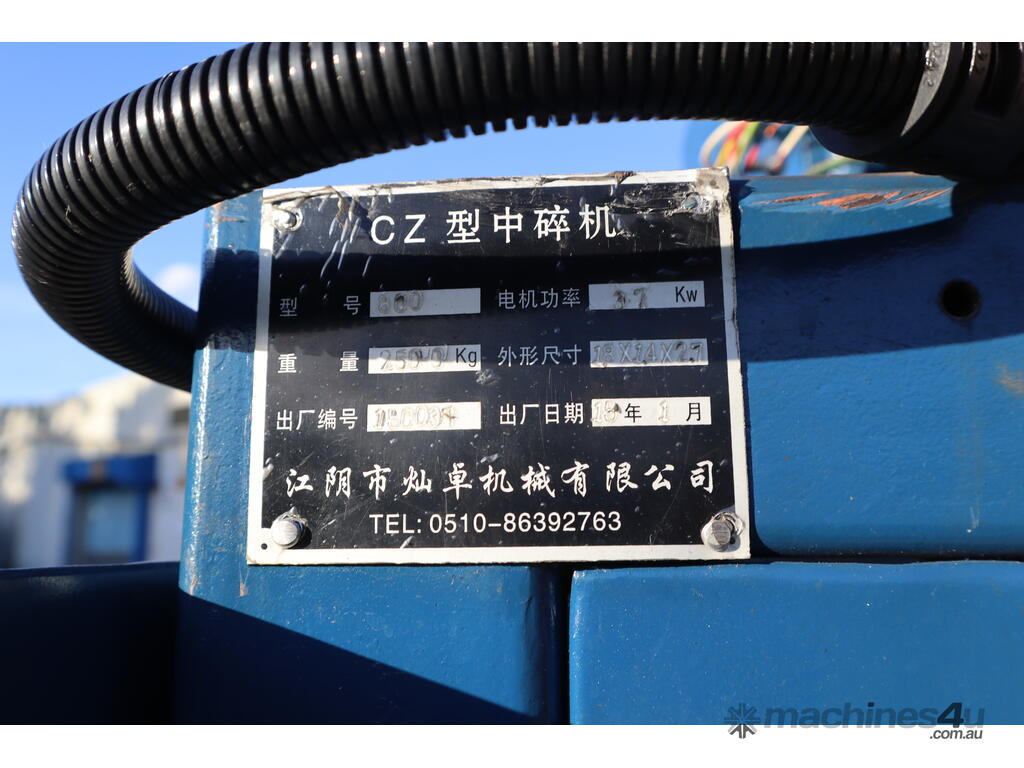

Make: Jiangyin Machinery
Model: CZ
Year: 2010
CONVEYOR UNIT
Belt Travel Length (mm): 1950
Belt Width (mm): 700
Belt Loading Height From Ground (mm): 1440
Feeder Inlet (mm): 900 L x 600 W
Side Outlet Chute (mm): 1120 L x 150 W x 130 H
Voltage (Conveyor Unit): 415V 3 Phase

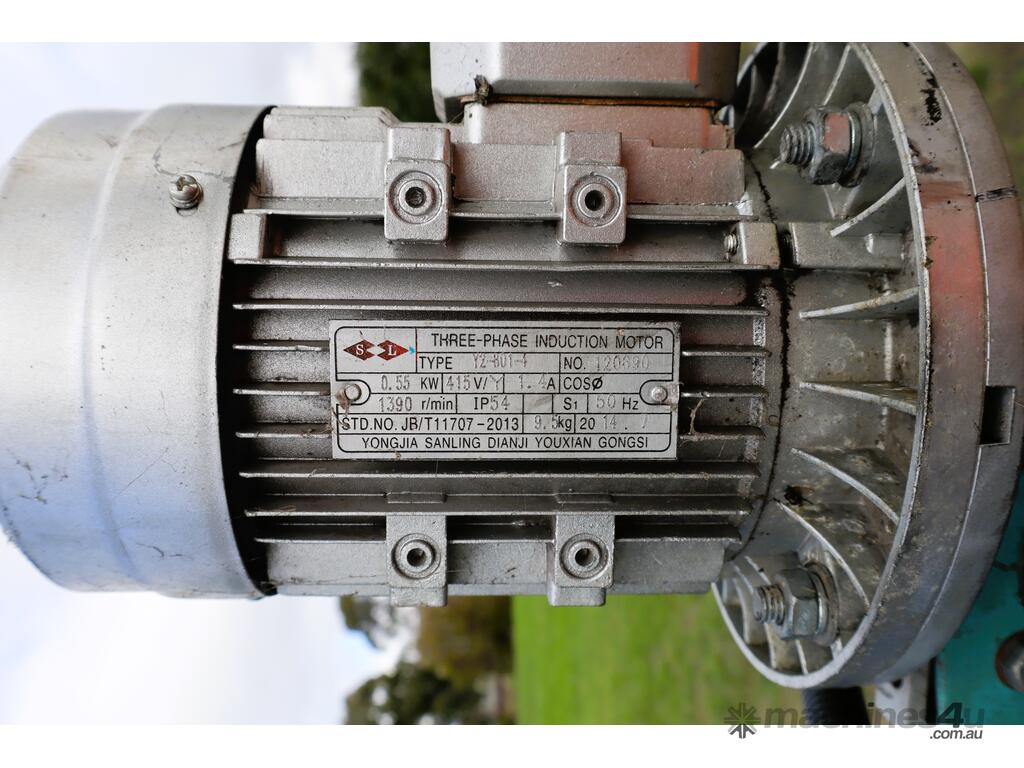

Motor Power (Conveyor Unit): 0.55kW

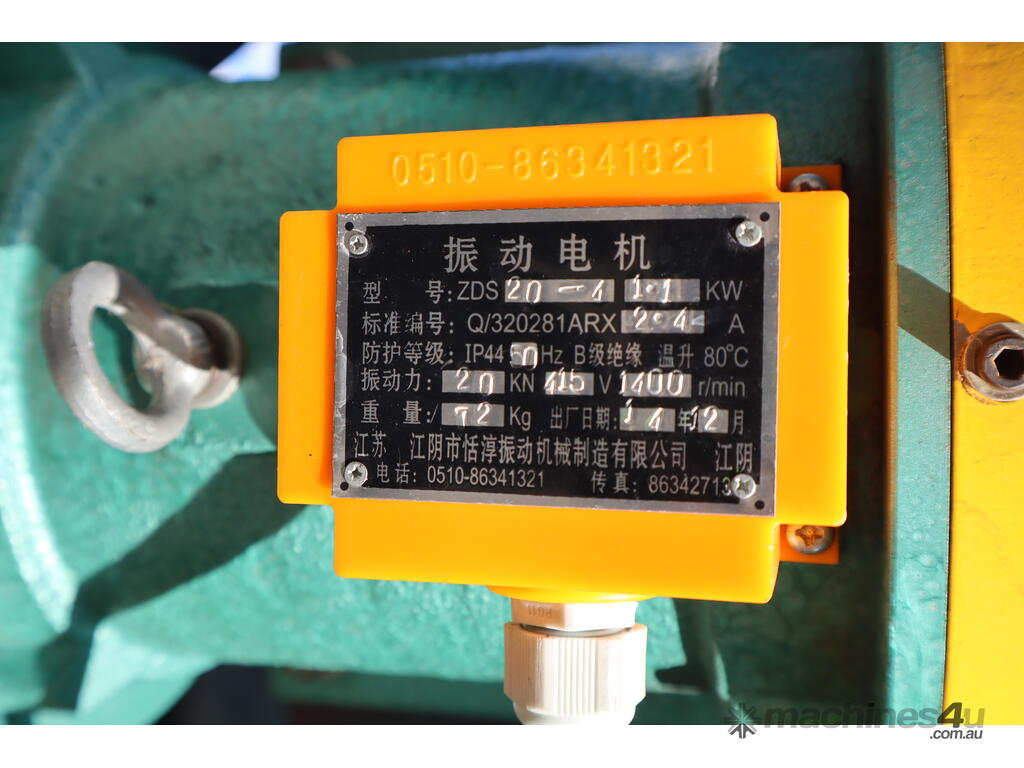

Voltage (Conveyor's Vibratory Component): 415V 3 Phase
Motor Power (Conveyor's Vibratory Component): 1.1kW
Overall Conveyor Dimensions (mm): 2770 L x 1120 W x 1680
SHREDDER UNIT
Shredder Diameter (mm): 300
Shredder Screen Size (mm): 12
Shredder Inlet Size (mm): 750 L x 440 W
Shredder Outlet Size (mm): 660 L x 410 W
Voltage (Shredder Unit): 415V 3 Phase

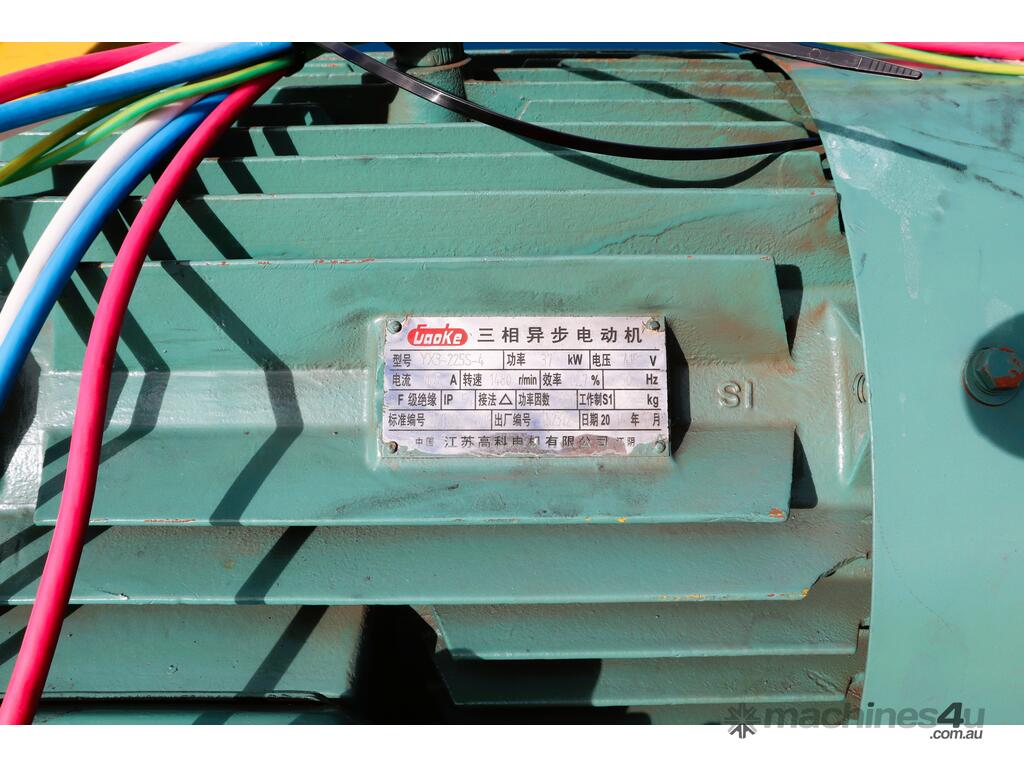

Motor Power (Shredder Unit): 37kW
Overall Shredder Dimensions (mm): 1850 L x 1580 W x 2275 H
