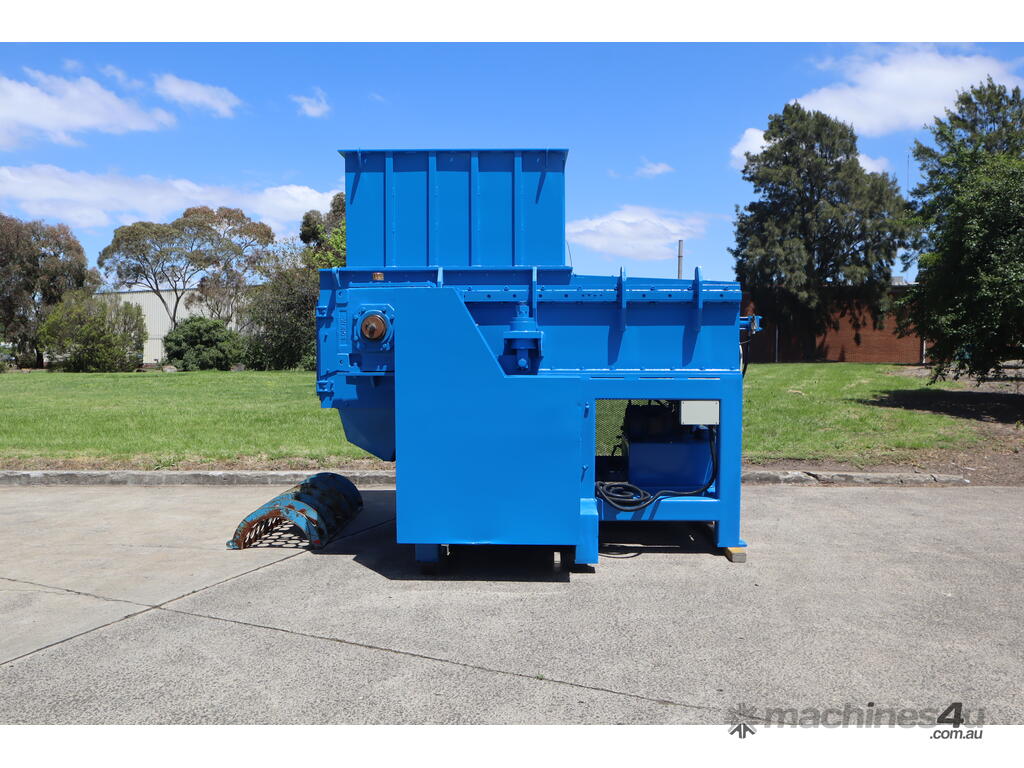

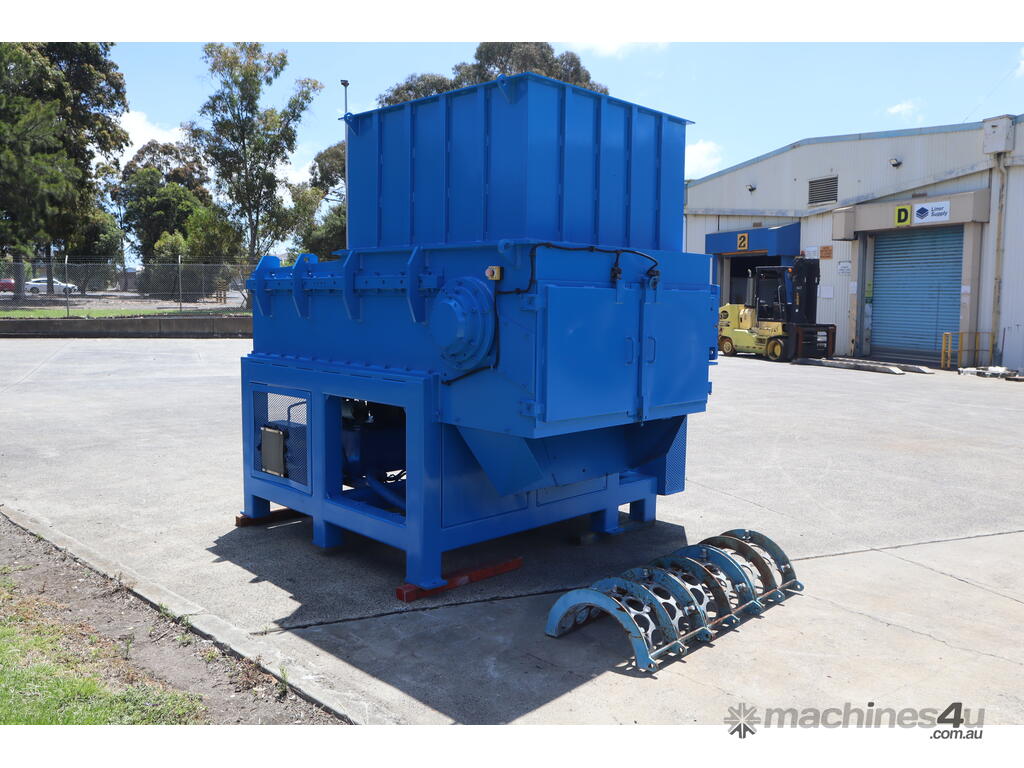

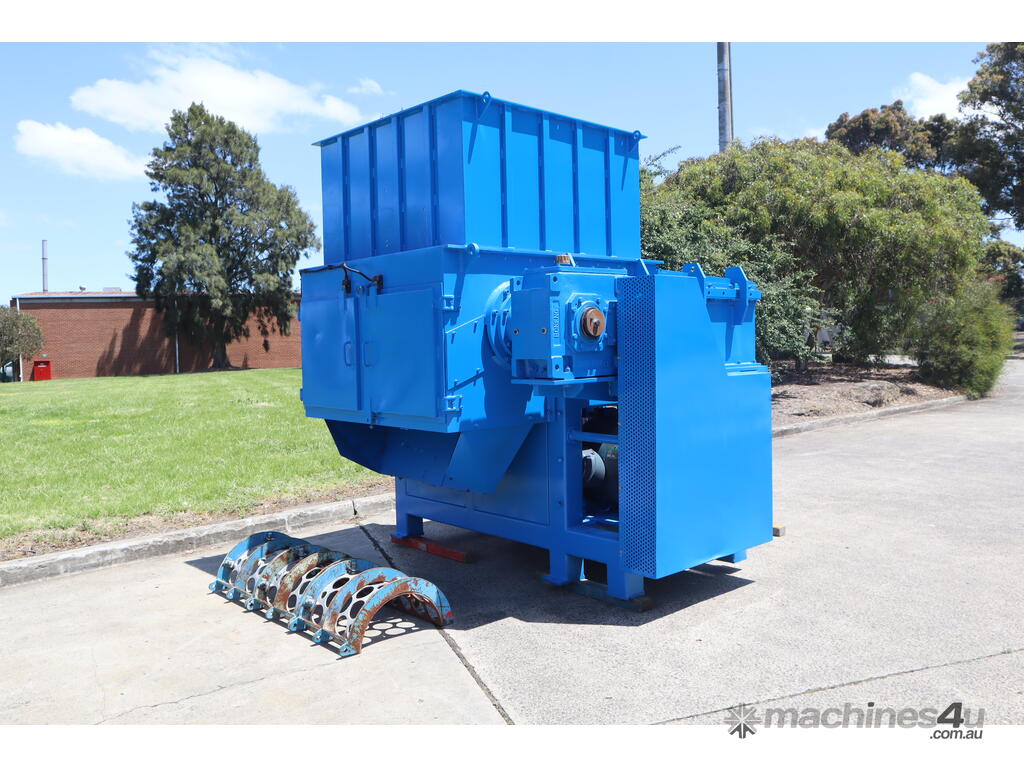

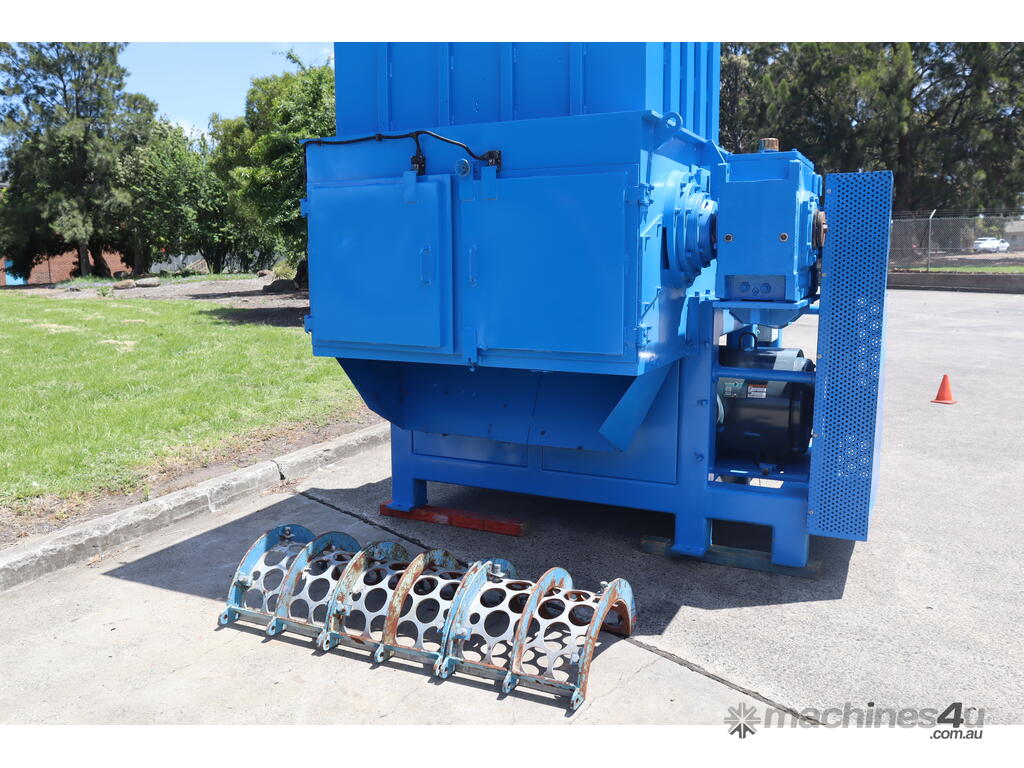

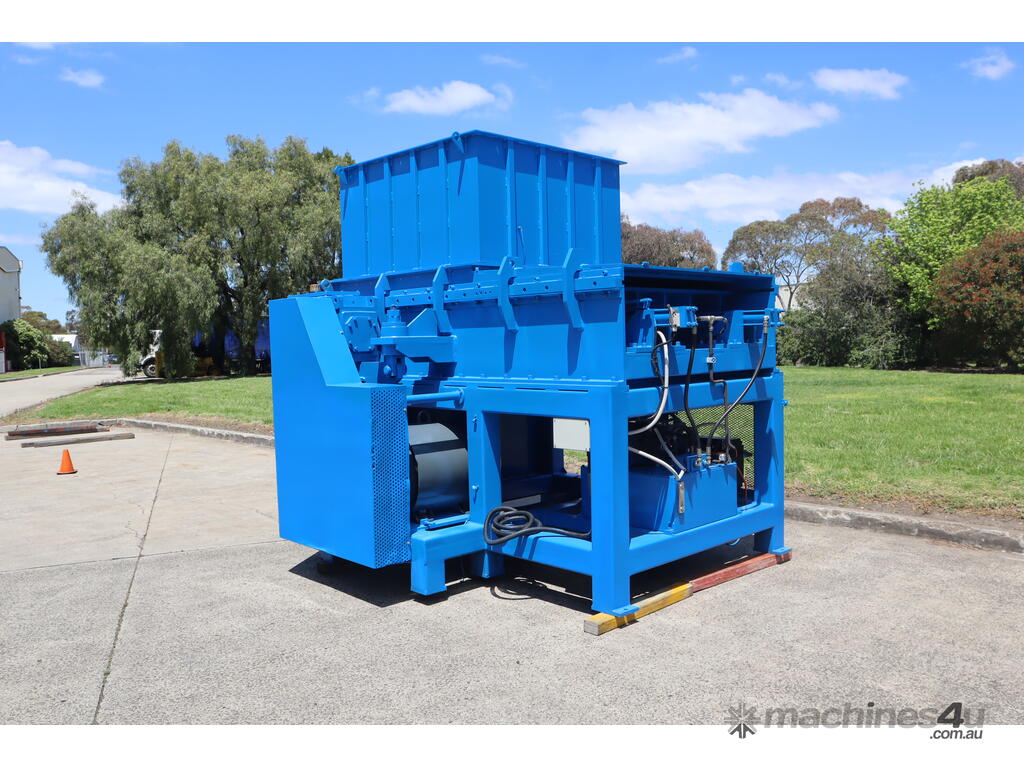

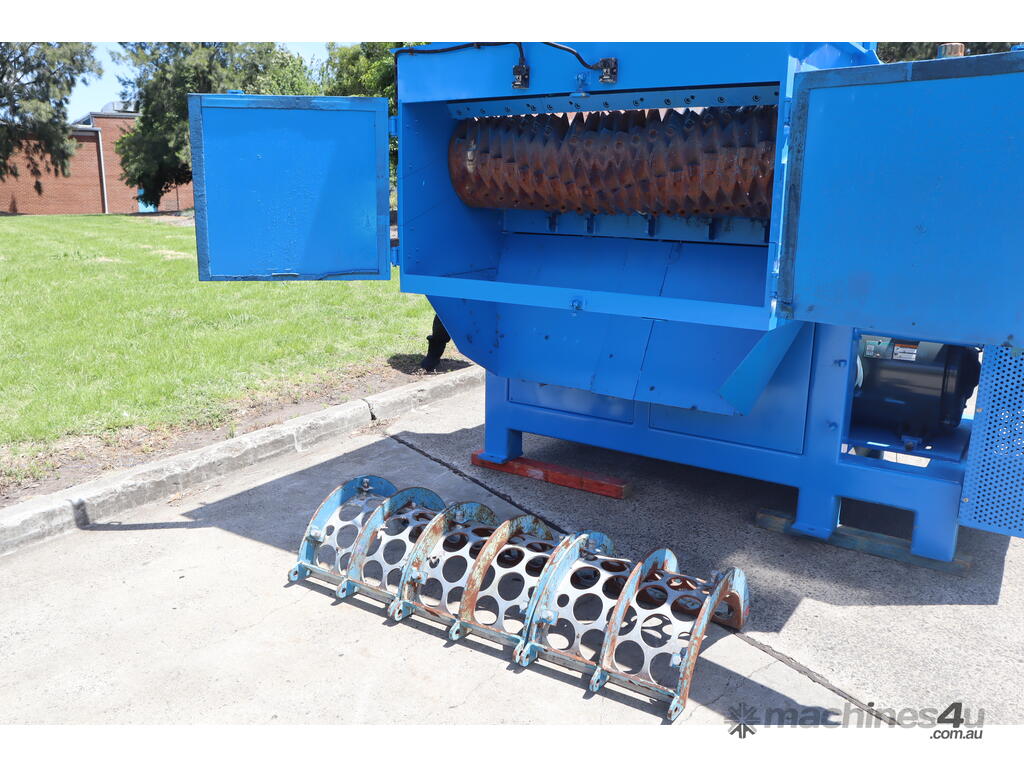

Industrial single shaft shredder fitted with a 125 HP Lincoln motor. This shredder is in excellent condition, has a large square hopper, and is designed for consistent material reduction across a wide range of industrial waste streams such as plastics, paper, wood, fiber, rubber, organic waste and non metallic materials etc.
Note: Price includes new control box (not featured in photos).
Features:

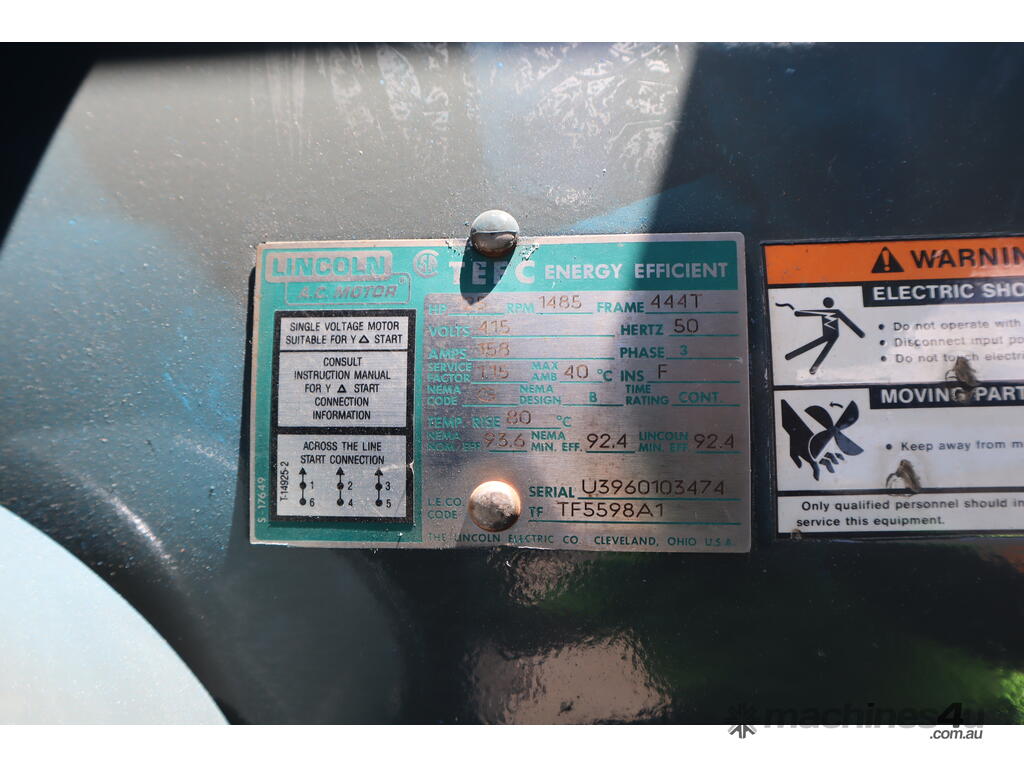

125 HP Lincoln motor with TEFC enclosure and 444T NEMA frame

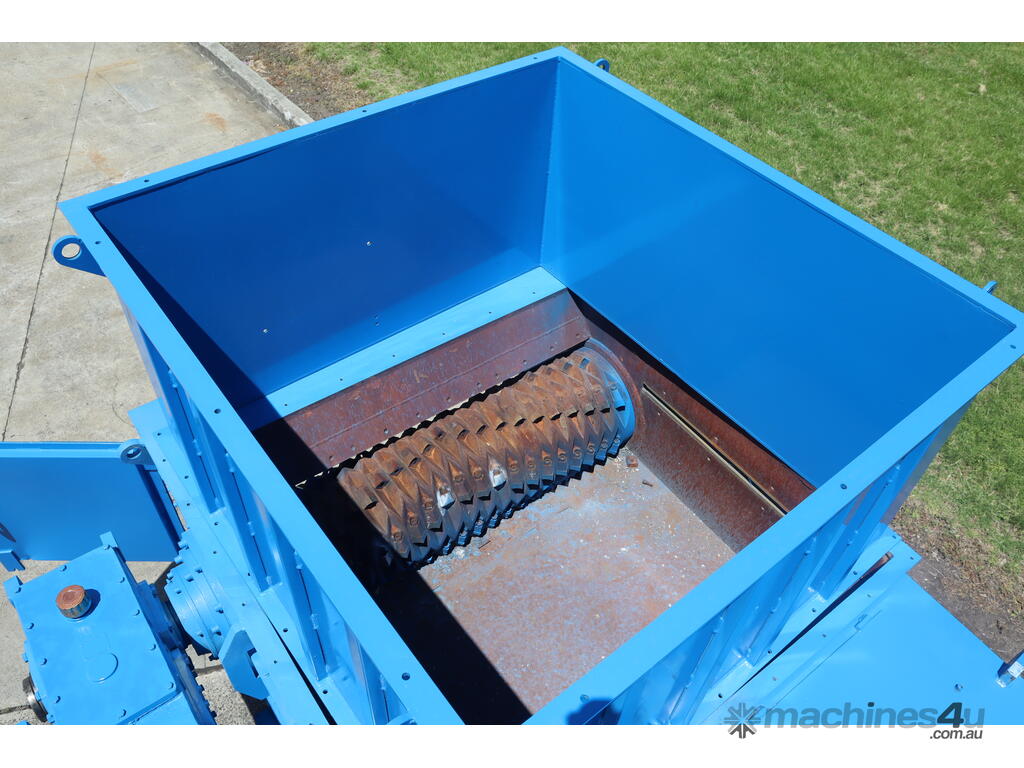

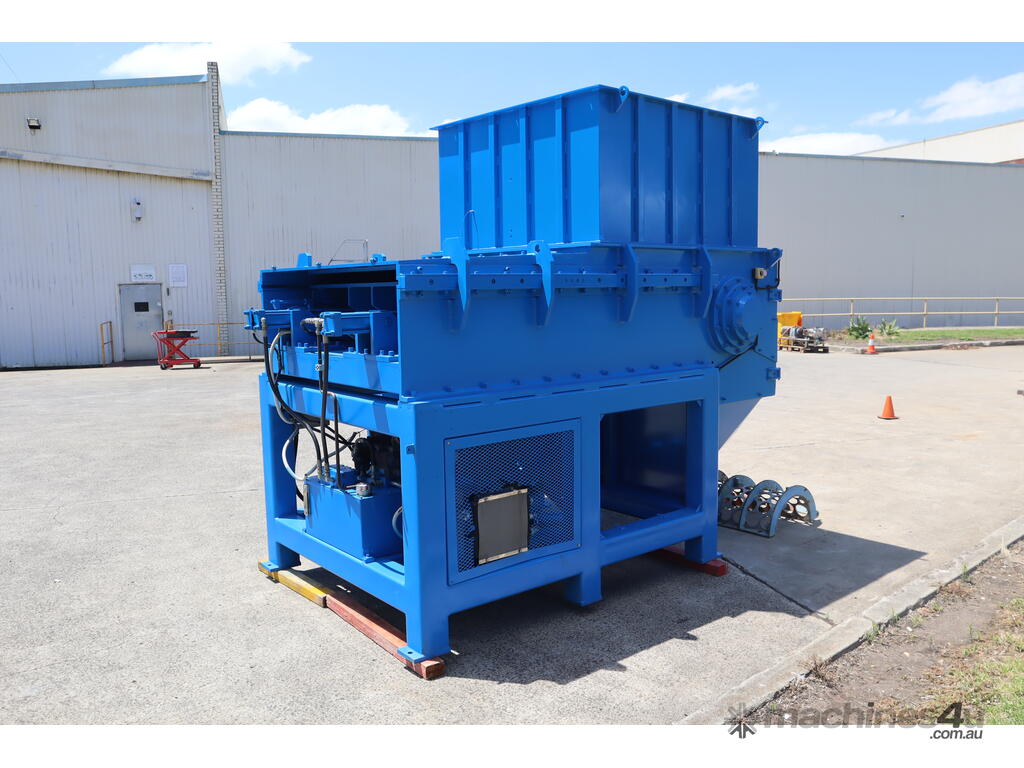

Large-capacity hopper and hydraulic pusher for controlled material feed

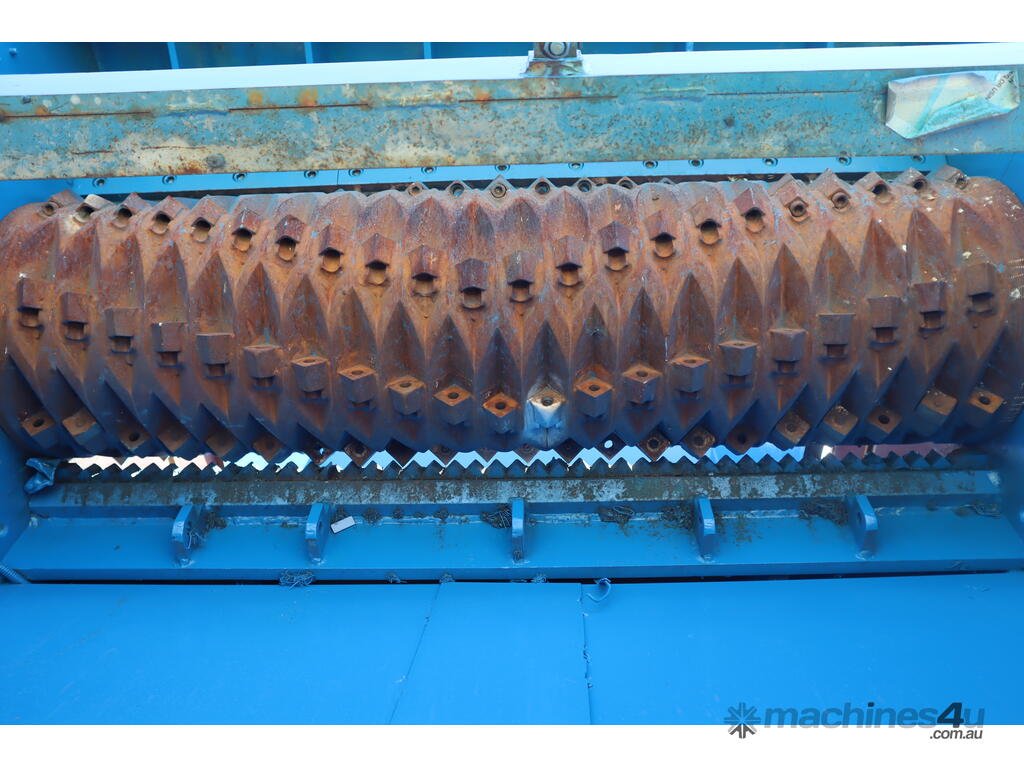

Heavy single-shaft rotor suited to high-throughput duty
Make: Boneno
Model: BWT48150
Hopper Opening Size (mm): 1500 x 1425
Hopper Depth (mm): 1400
Hopper Feed Height (mm): 2735

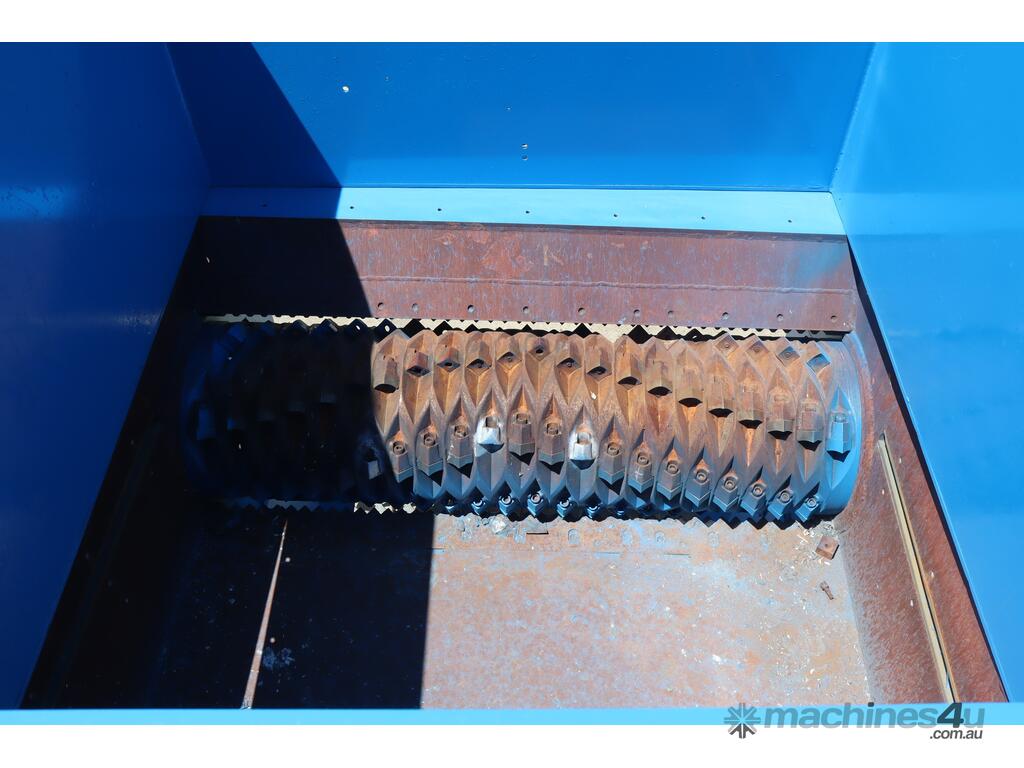

Cutting Chamber (mm): 1650 x 1500
Cylinder Stroke (mm): 1000
Rotor Length (mm): 1500mm
Rotor Diameter (mm): 400mm approx.

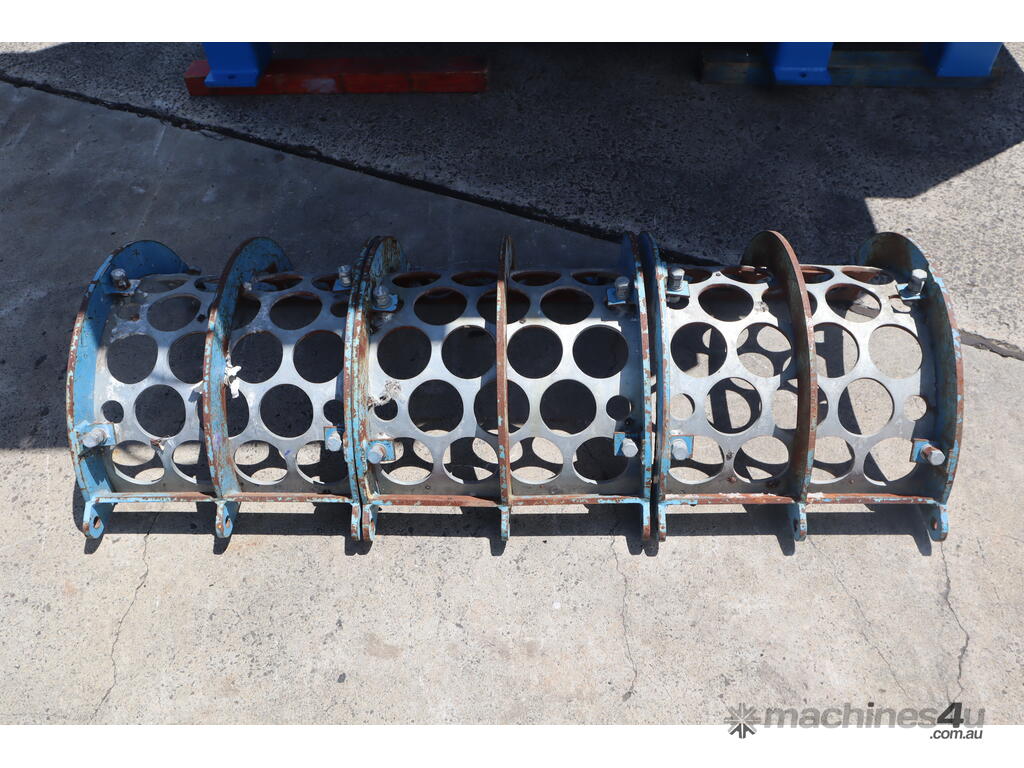

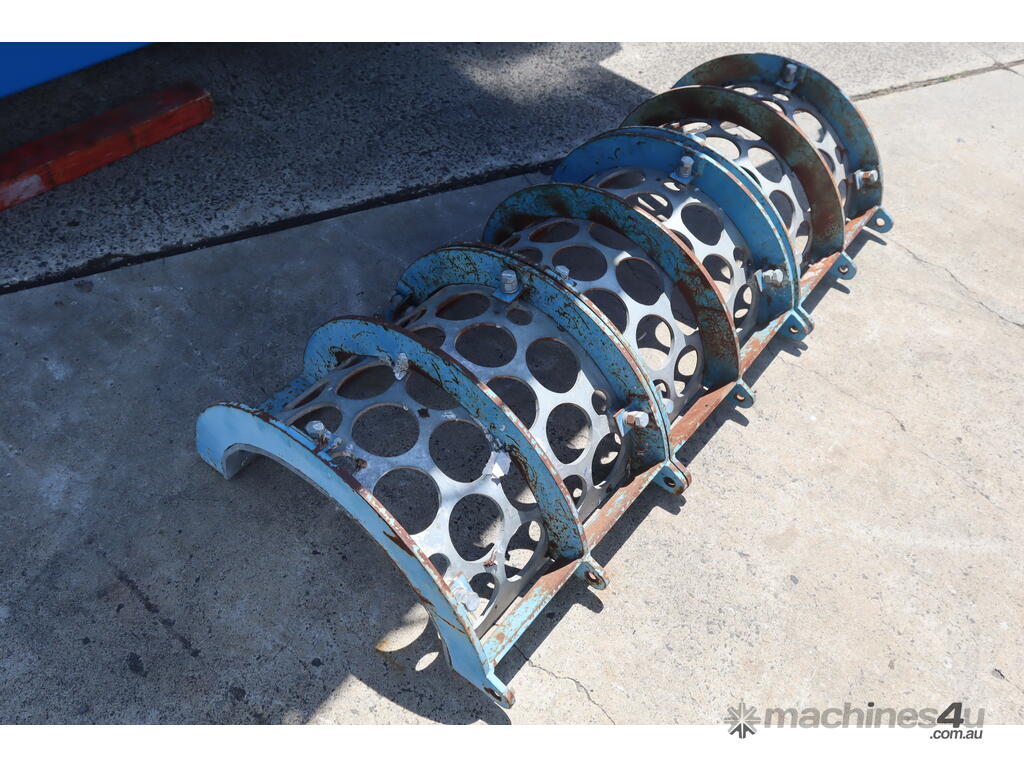

Screen Mesh (mm): 150 Diameter

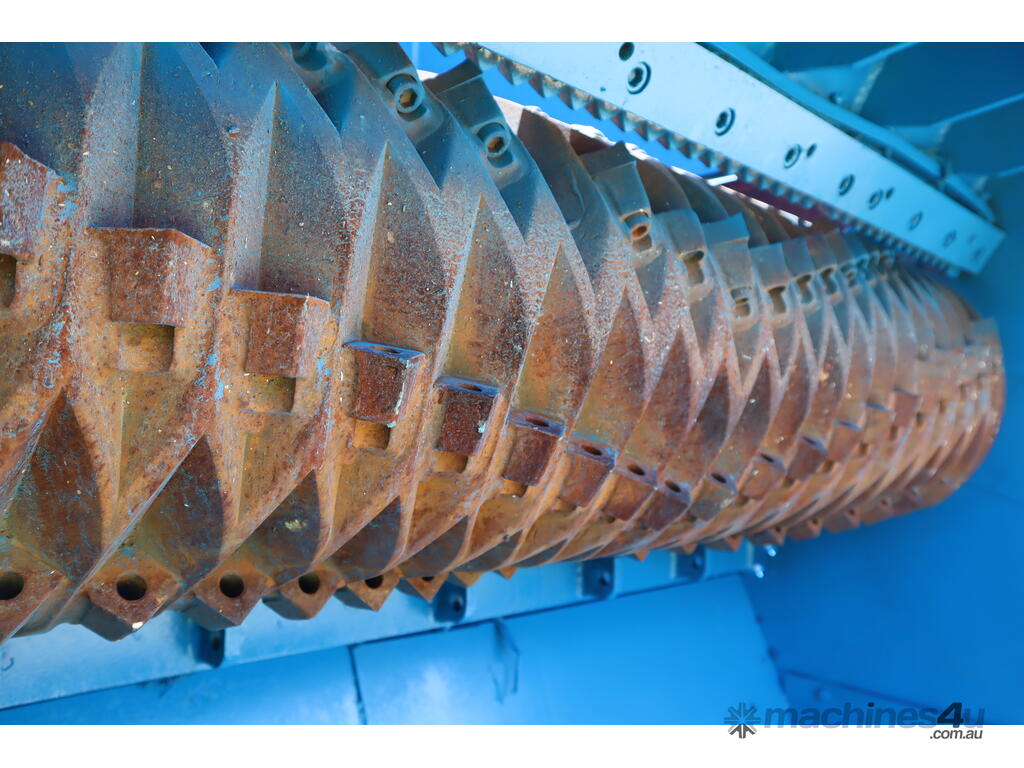

Rotor Knives (pcs): 90+4
Stator Knives (pcs): 3
Discharge Size (mm): 345 x 1120
Discharge Height from Ground (mm): 525
Power Requirements: 415V 3 Phase
Main Motor Power: 125 HP
Main Motor Speed: 1485
Weight: 7800 kg
Overall Dimensions (mm): 3000 L x 2460 W x 2735 H
