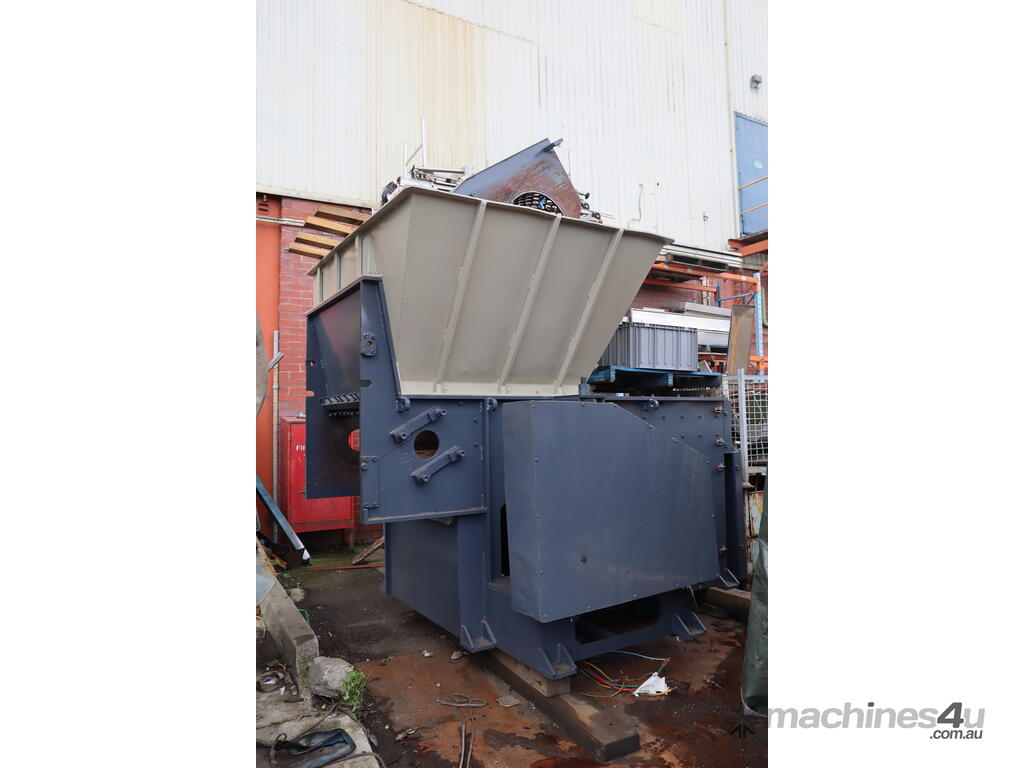

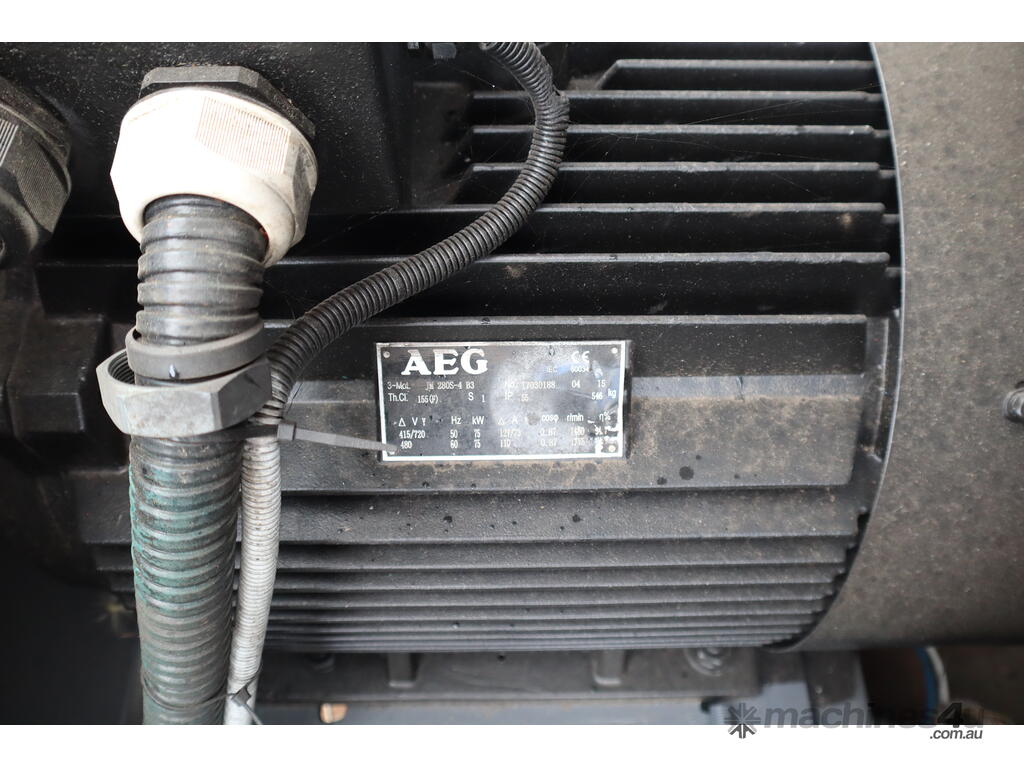

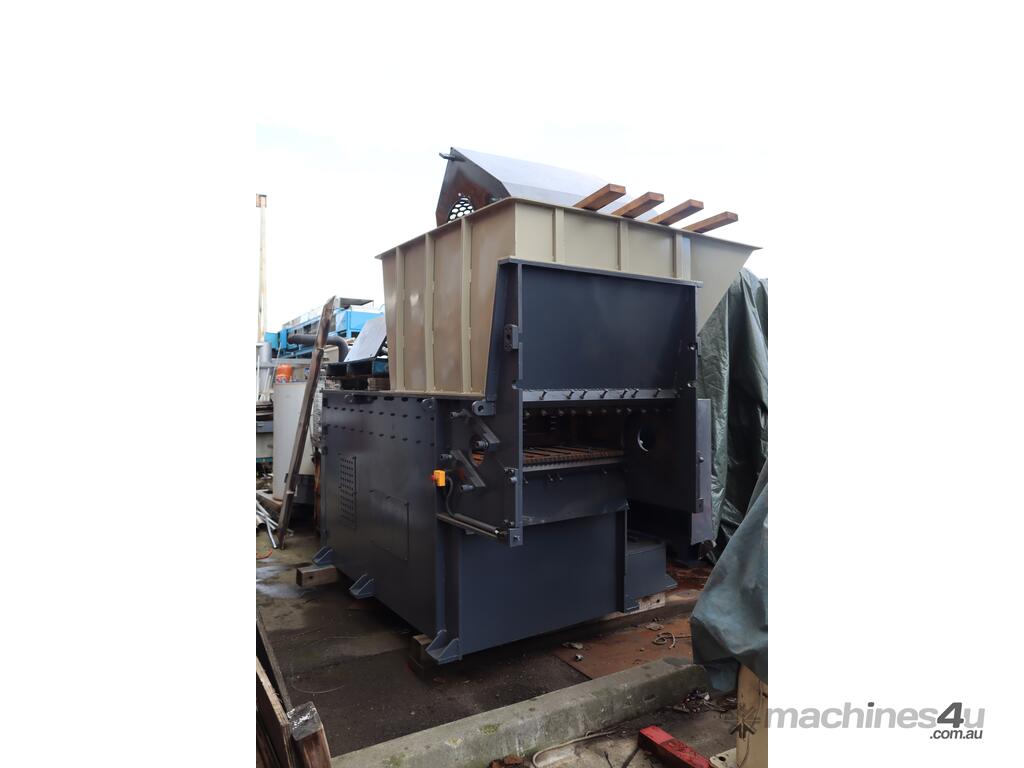

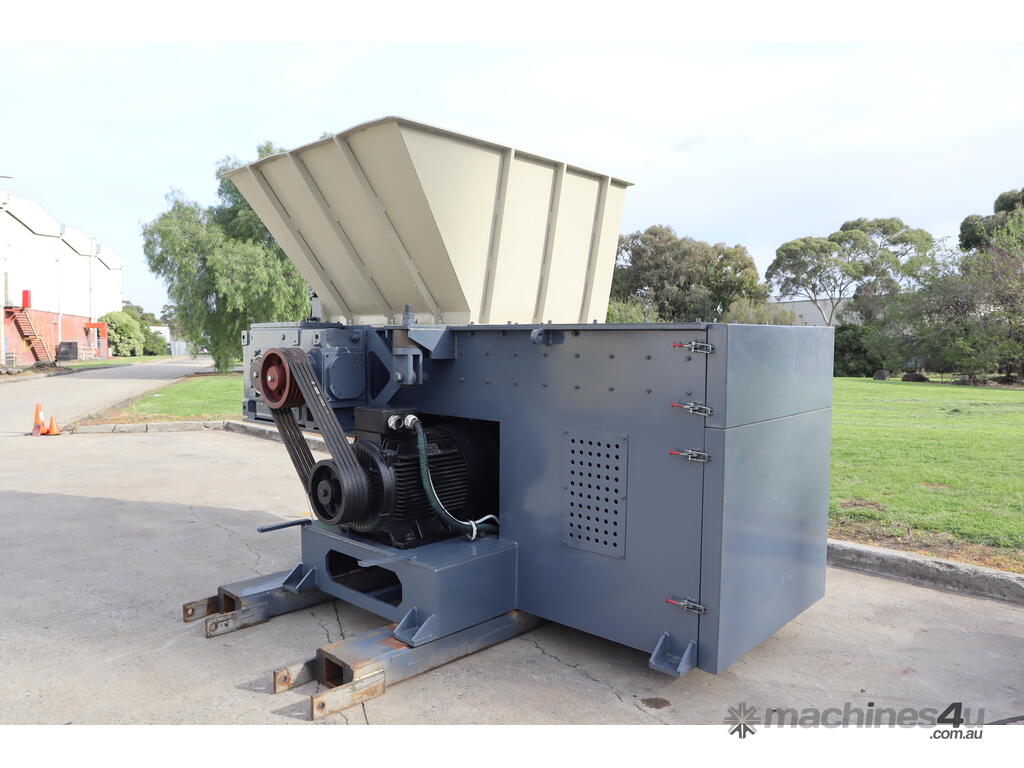

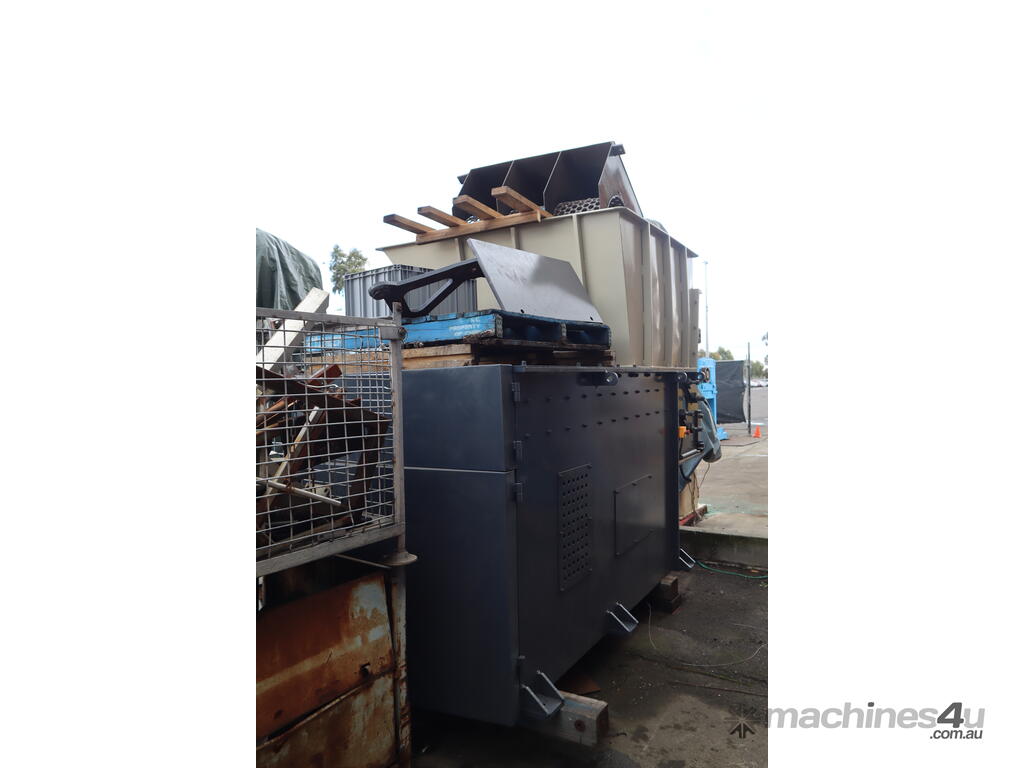

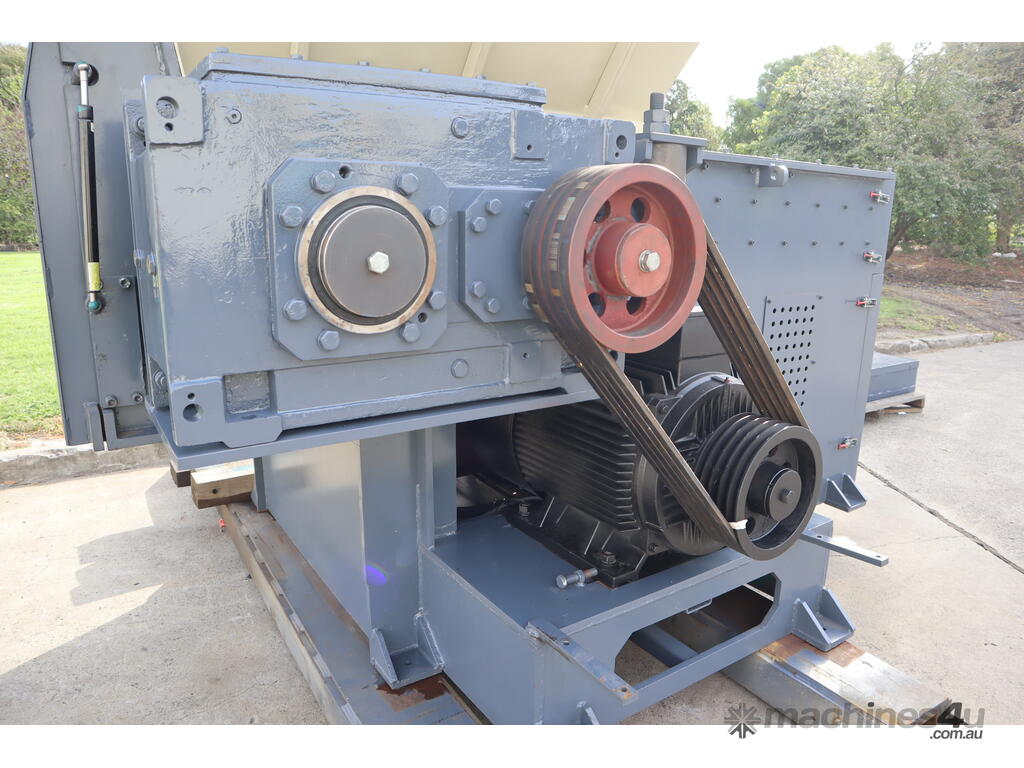

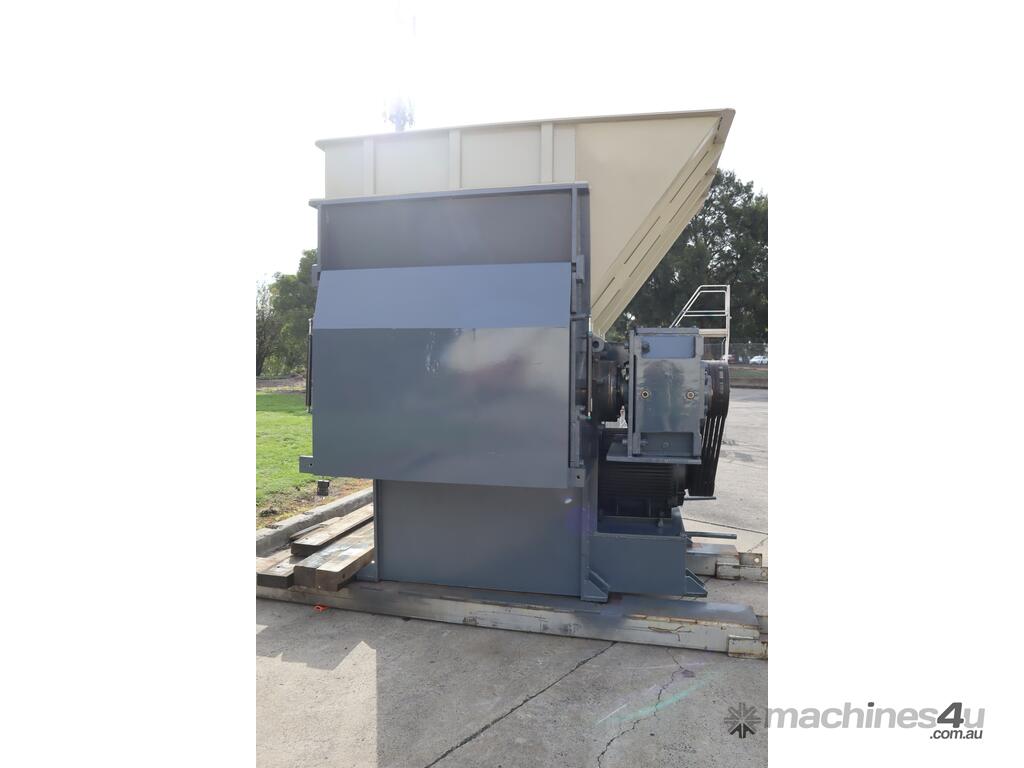

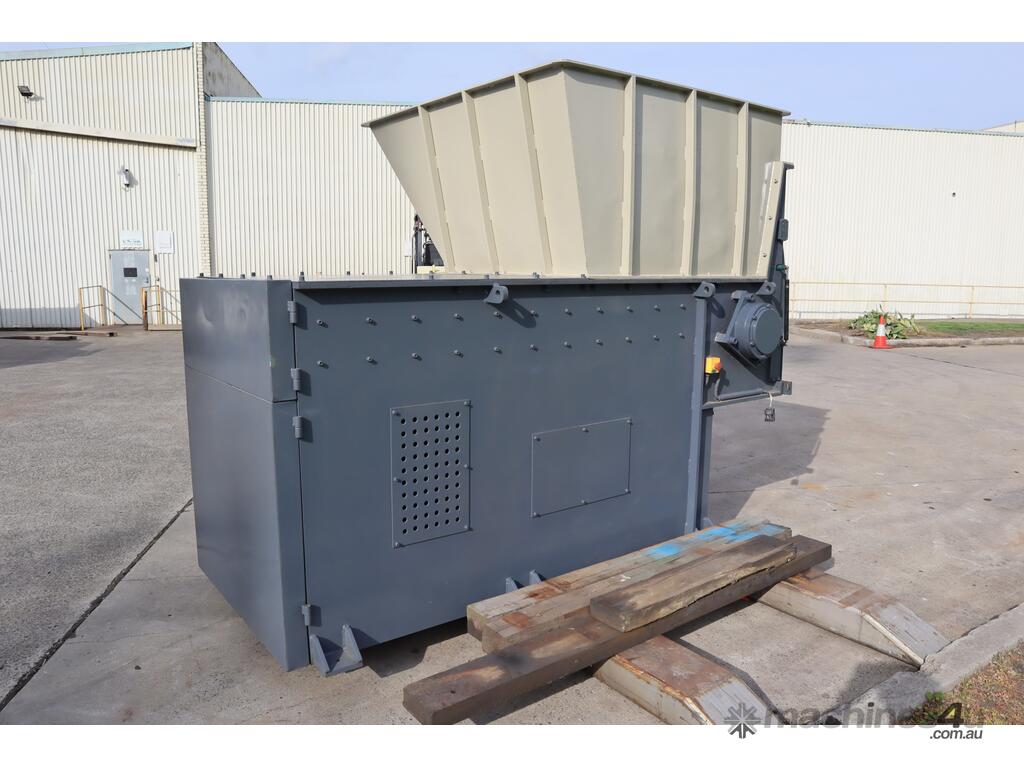

It is a single shaft unit driven by a large AEG motor.
Replacement cost for this shredder is approximately $110,000.

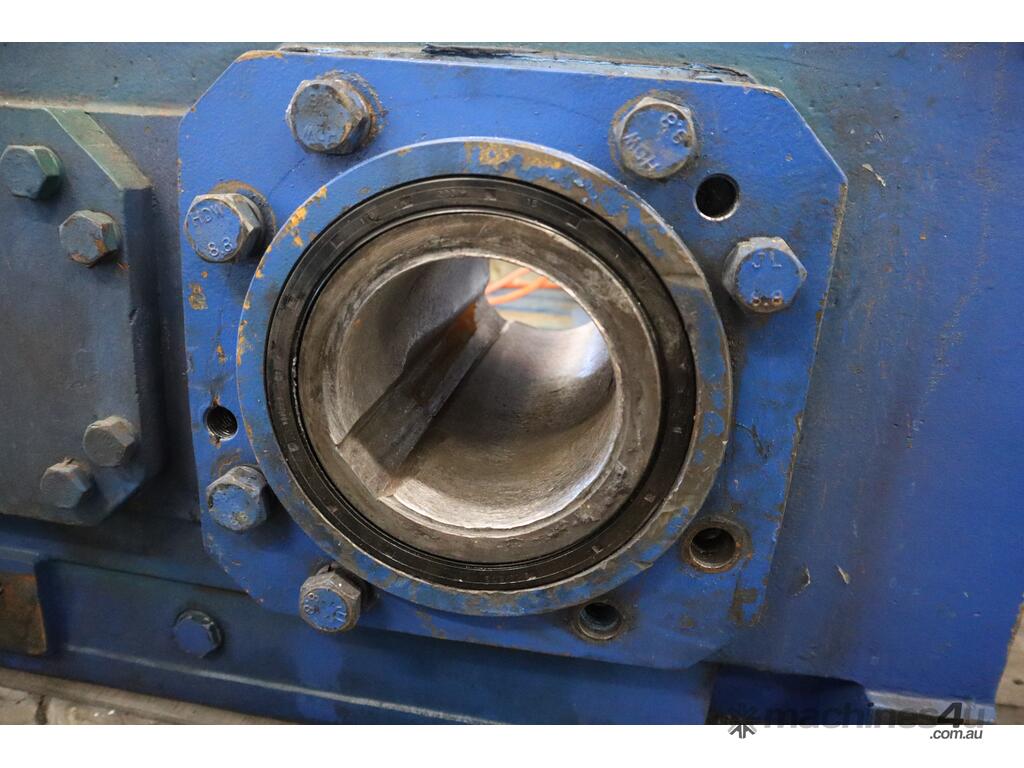

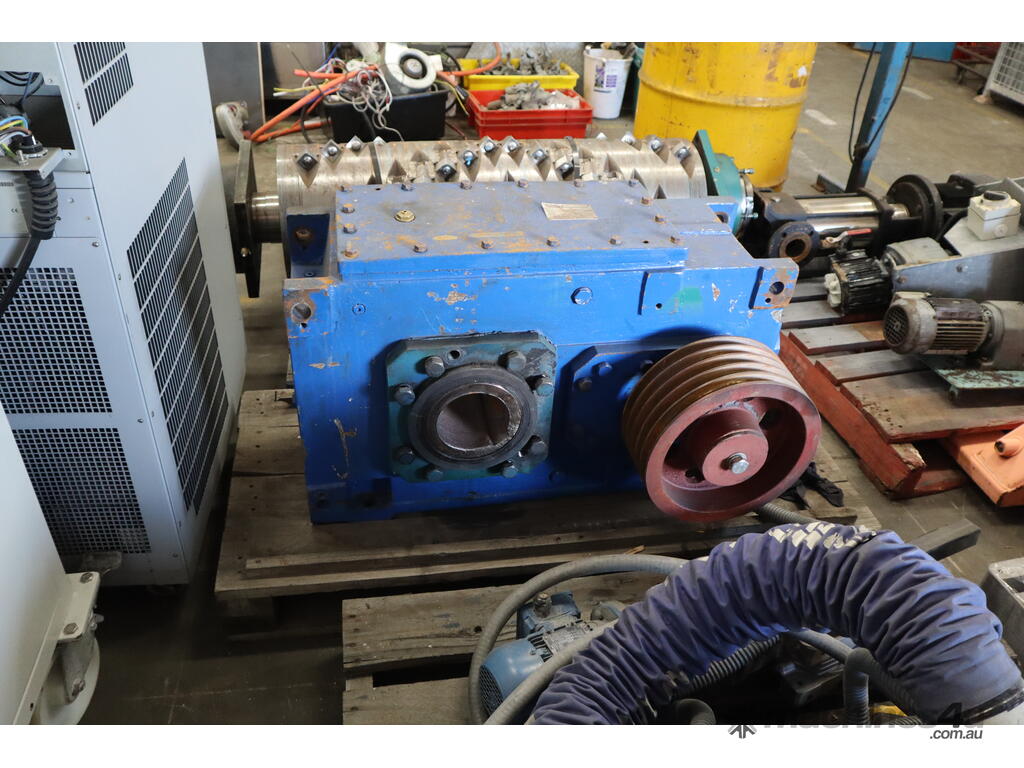

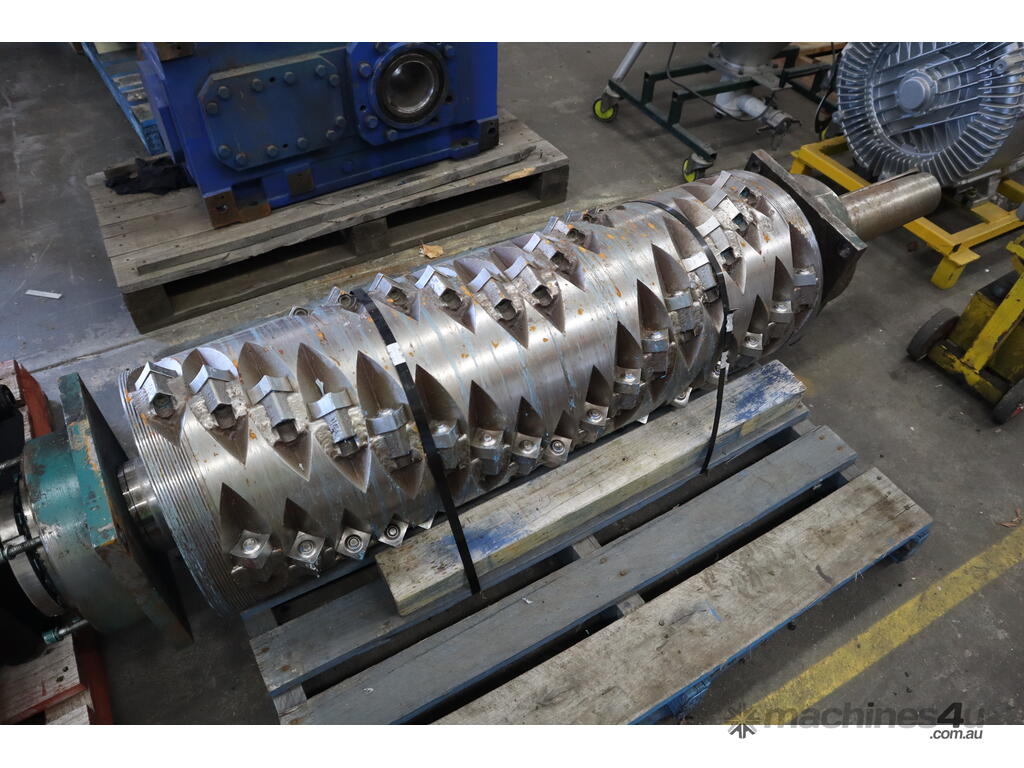

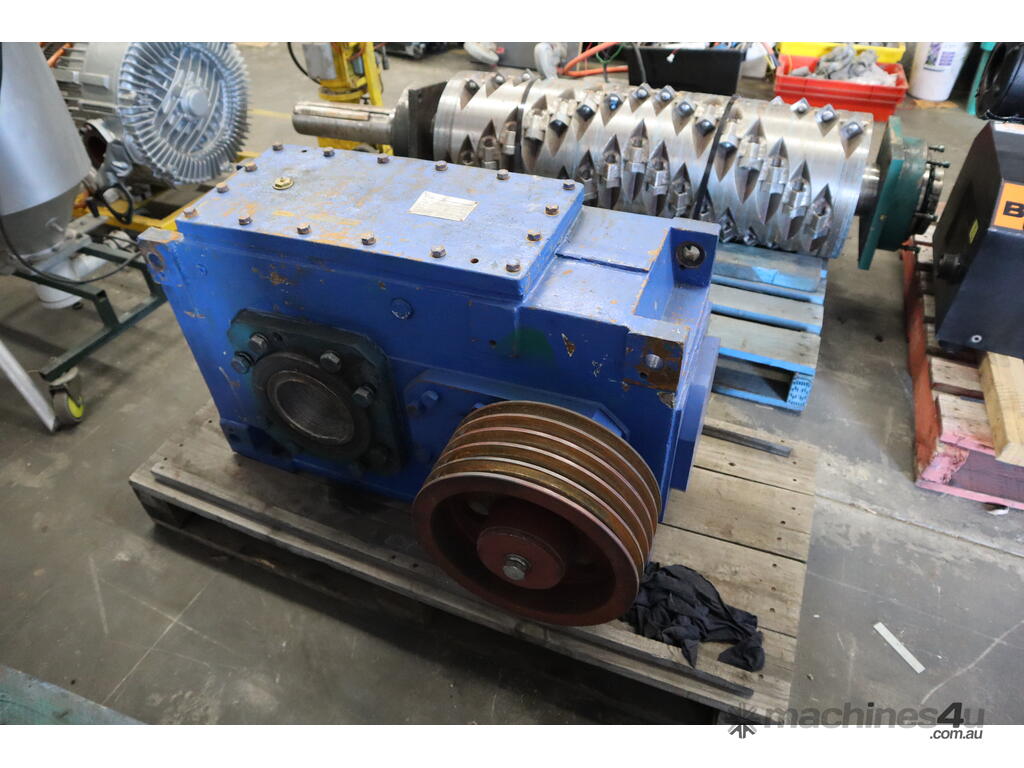

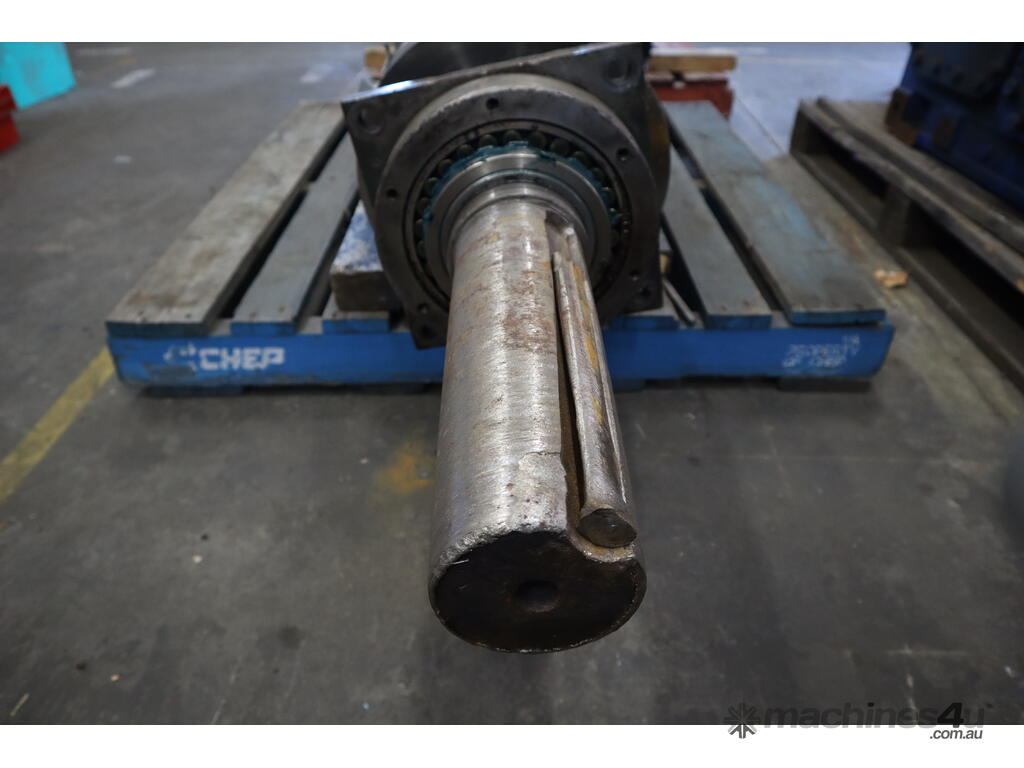

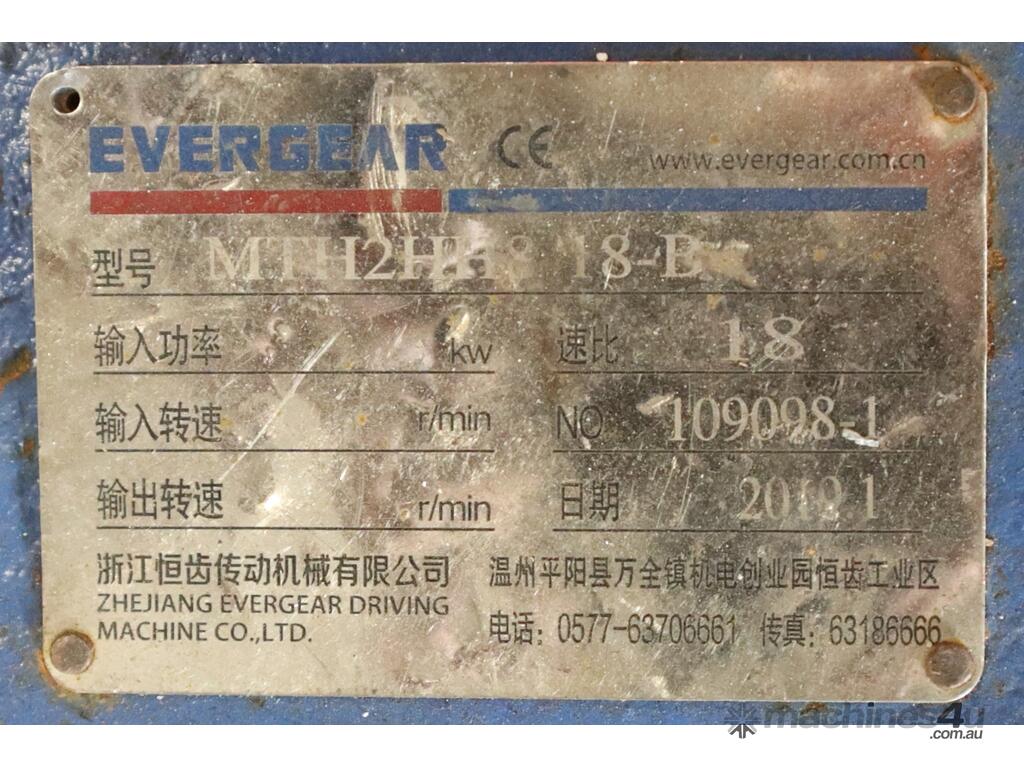

The shaft on the rotor and gearbox has been refurbished.
Make: 3E Recycling

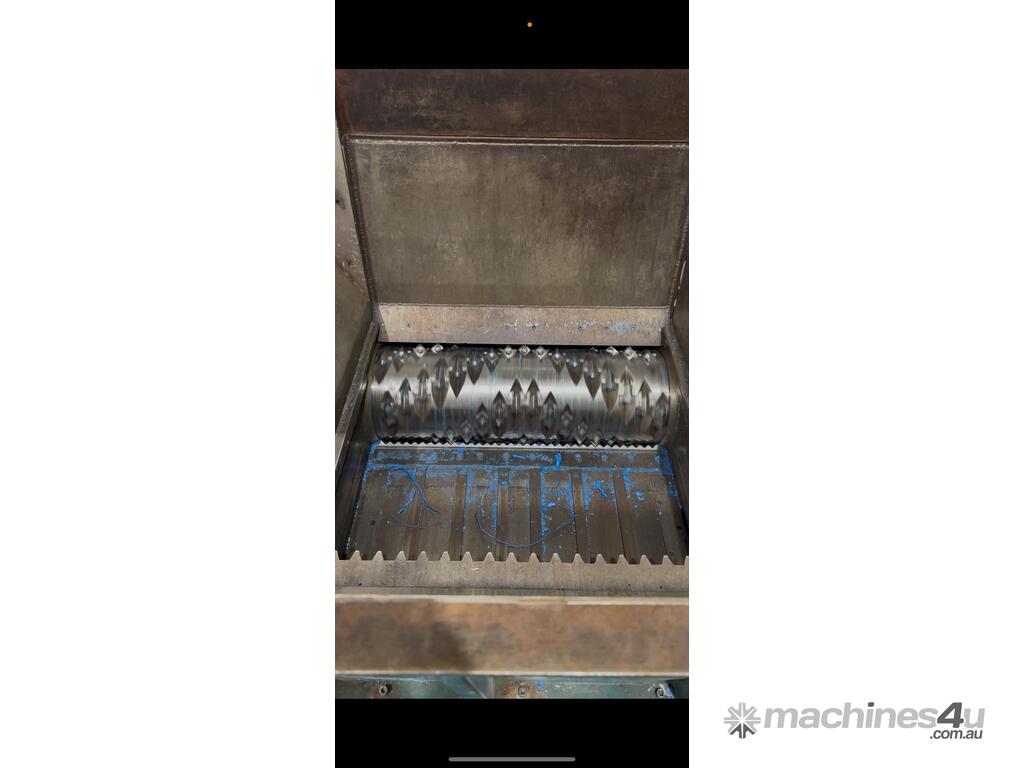

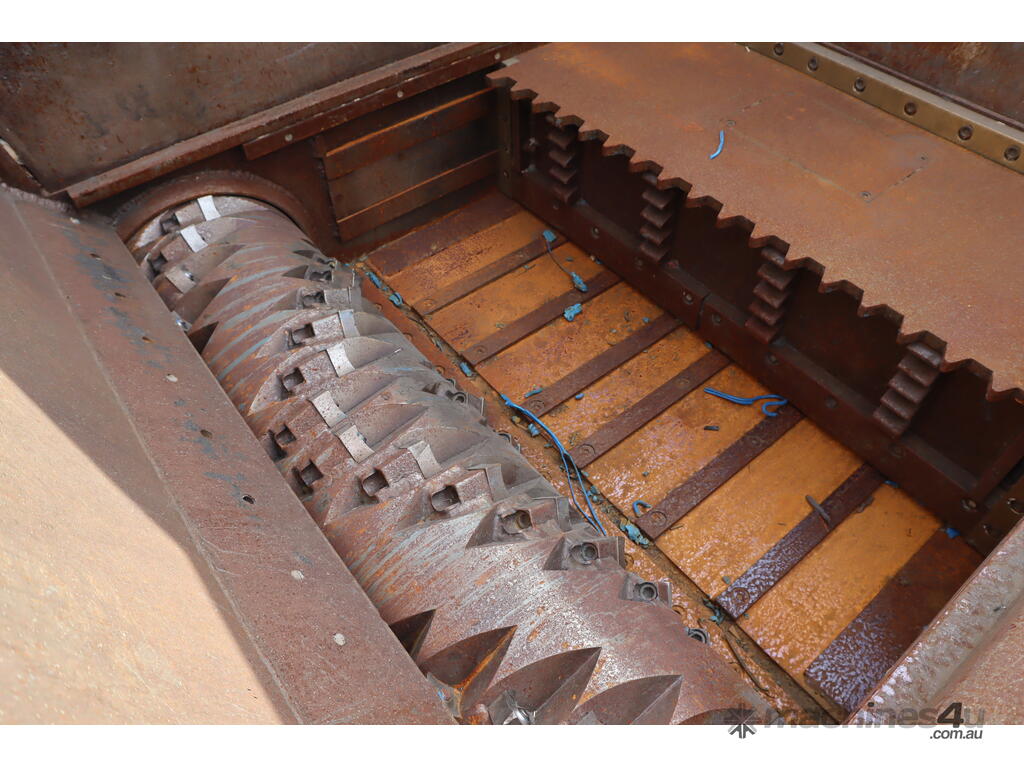

Rotor Length(mm): 1500

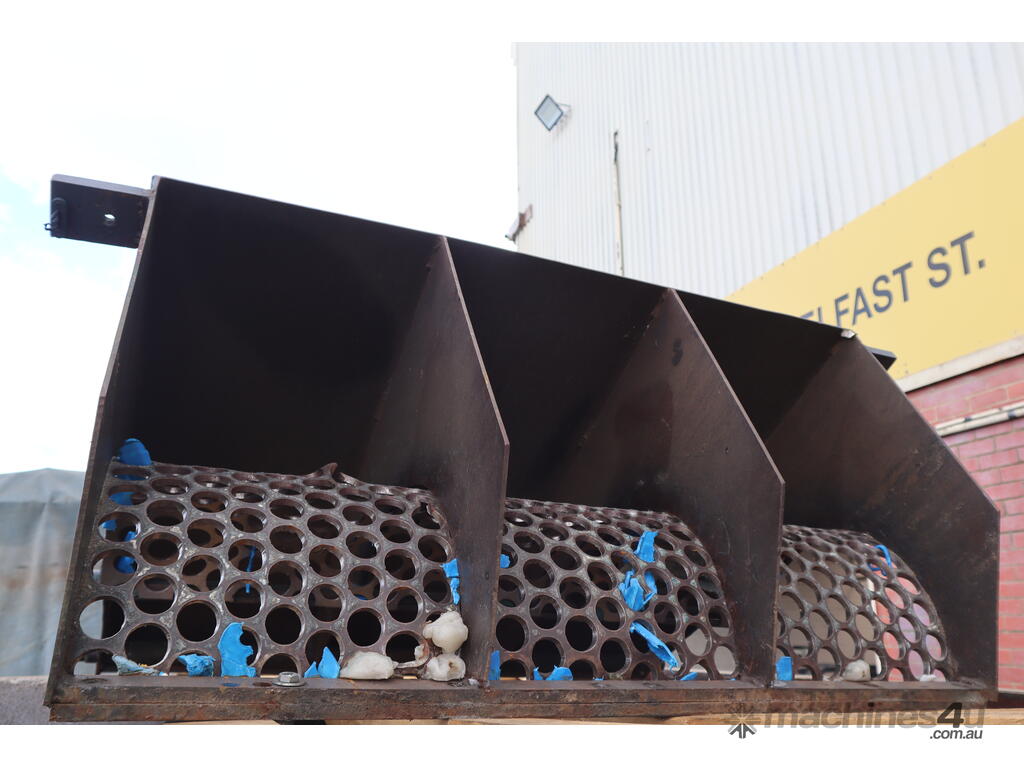

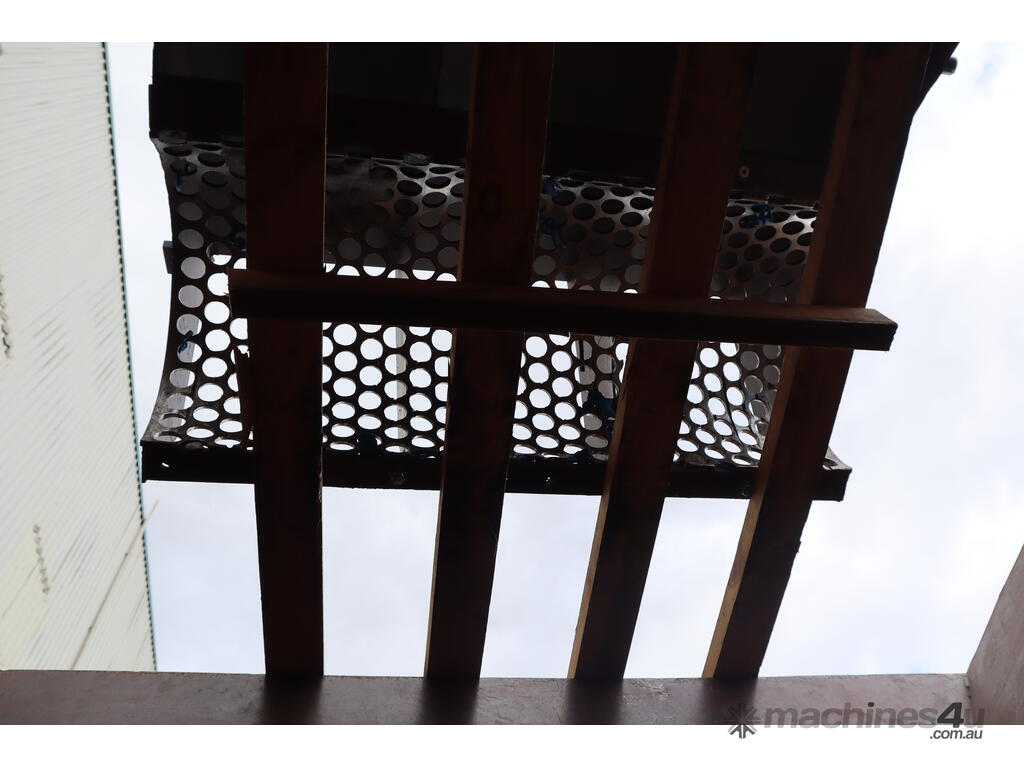

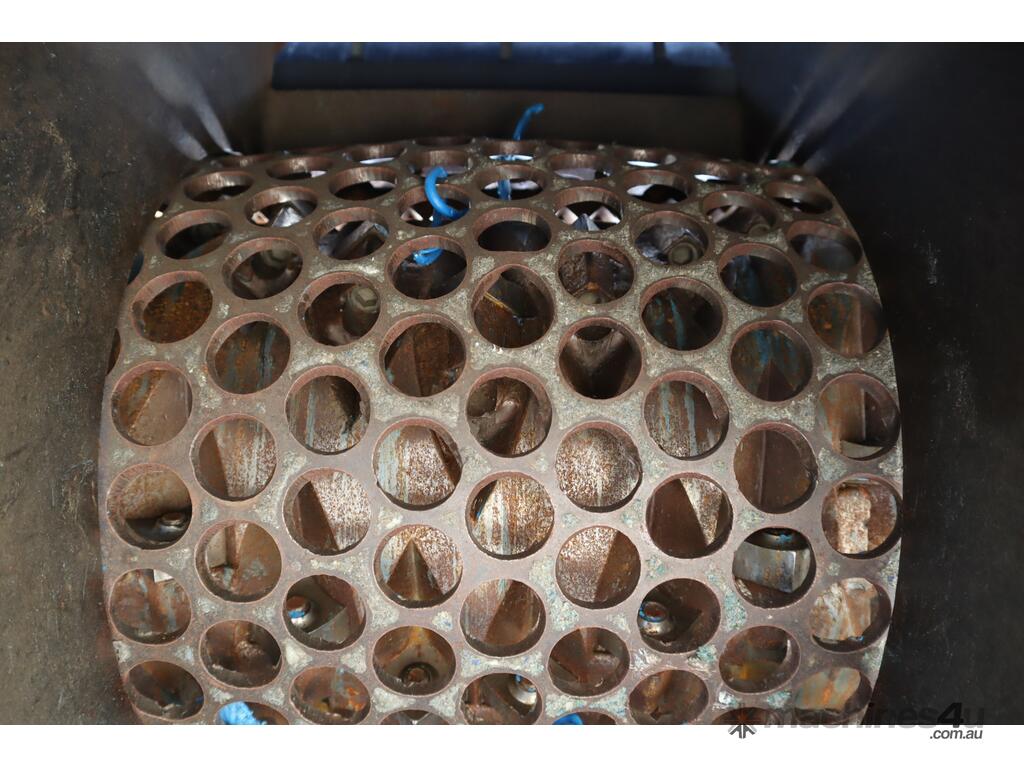

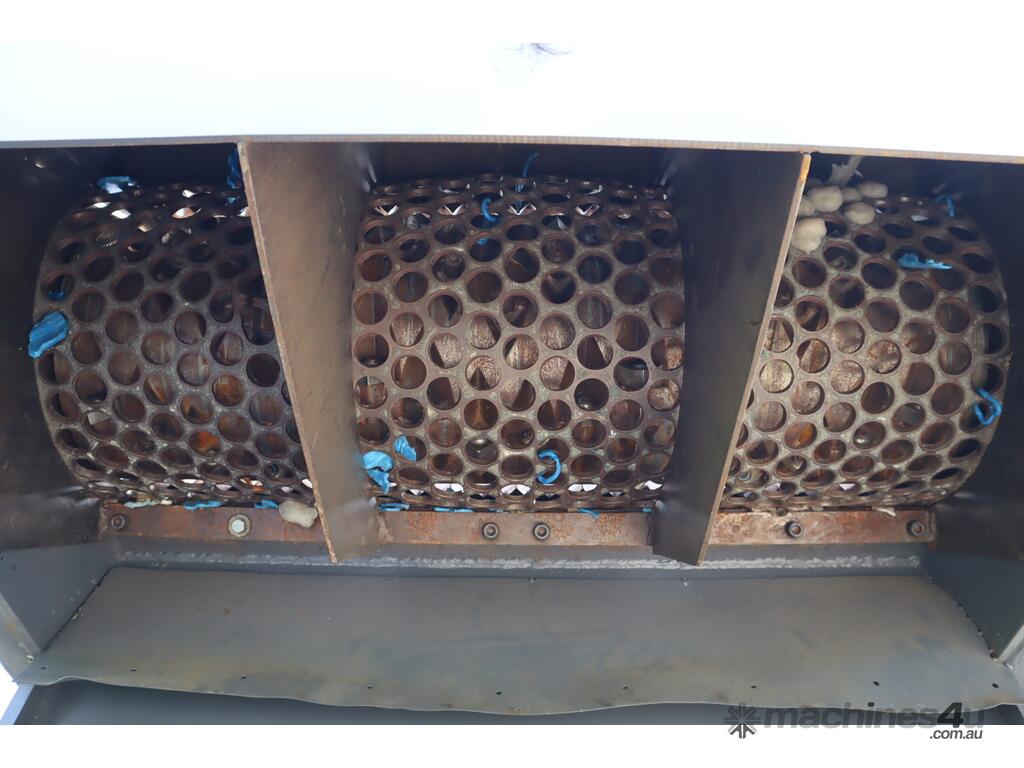

Screen Size – diameter (mm): 50
Feeder Shaft Dimensions (mm): 1850 L x 1650 W
Feeder Shaft Height from Ground (mm): 2580

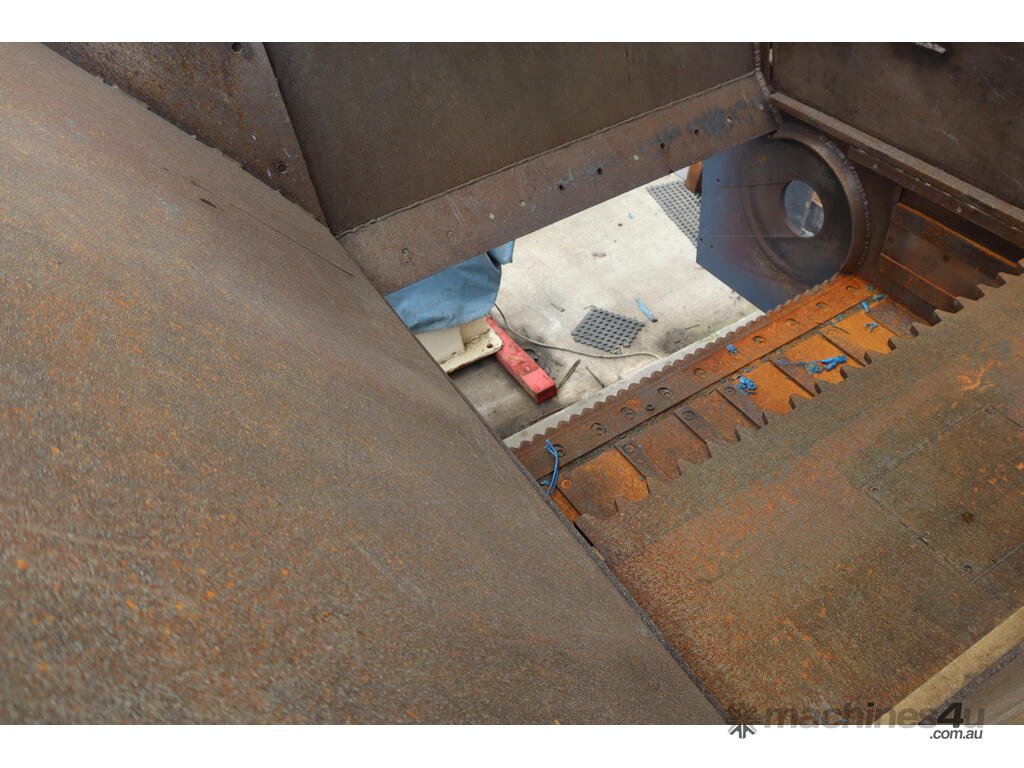

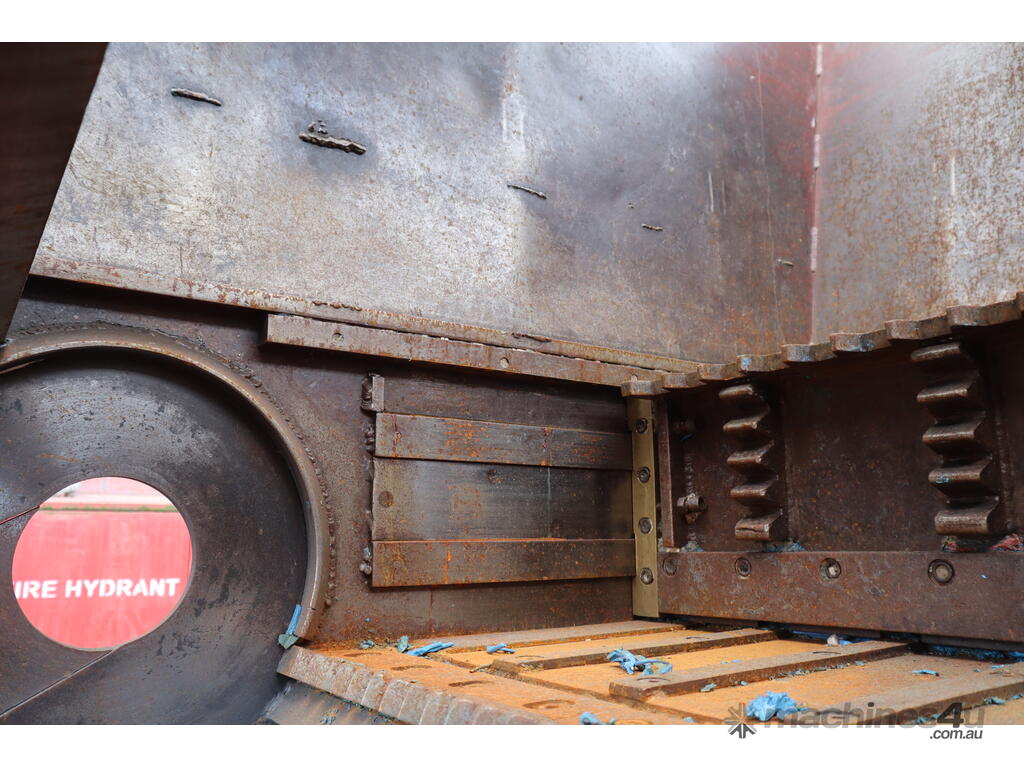

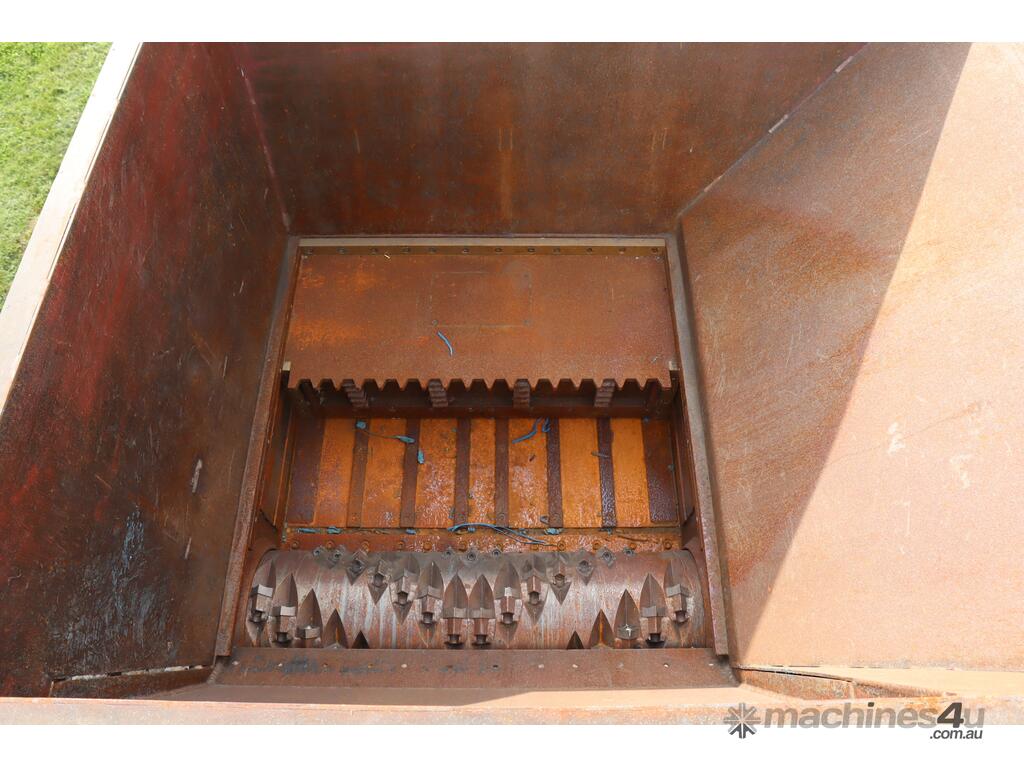

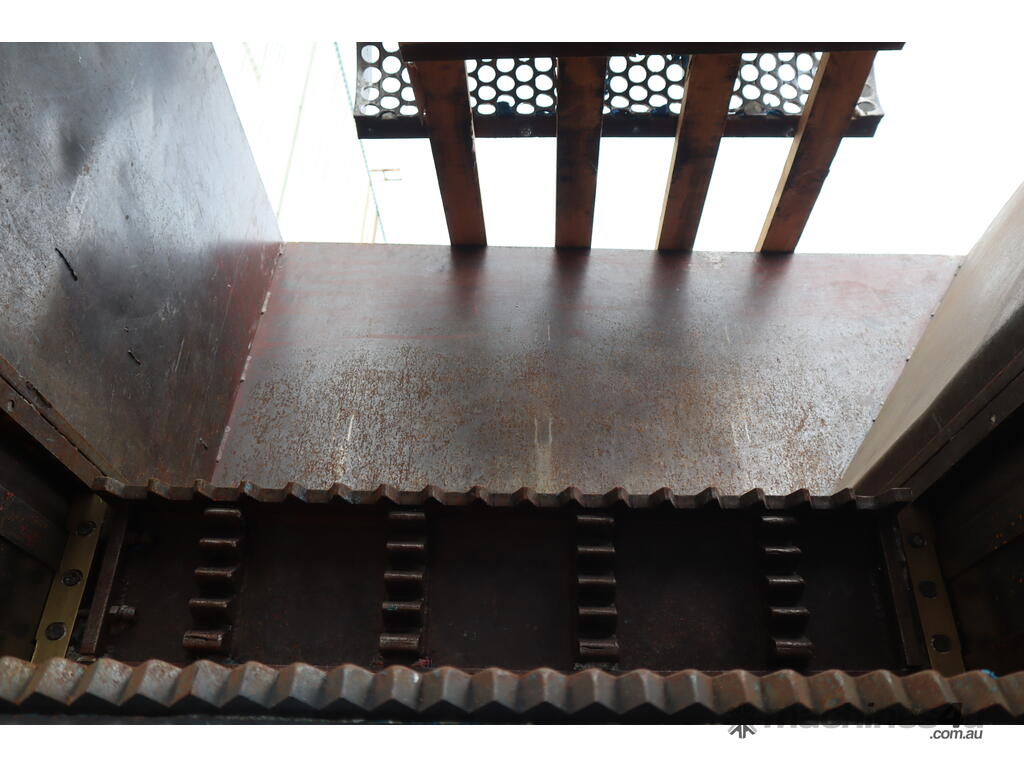

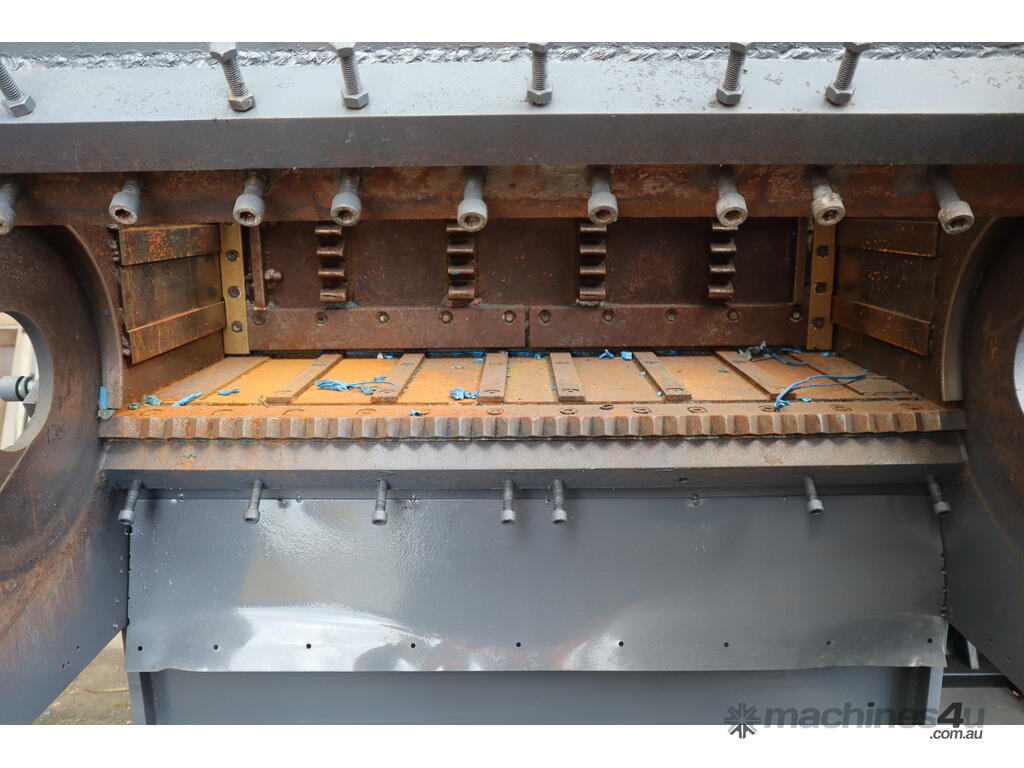

Shredder Chamber (mm): 1200 L x 1135 W x 1250 D
Chamber Opening (mm): 1200 Wide
Chamber Opening Height from Ground (mm): 1270
Voltage: 415V 3 Phase

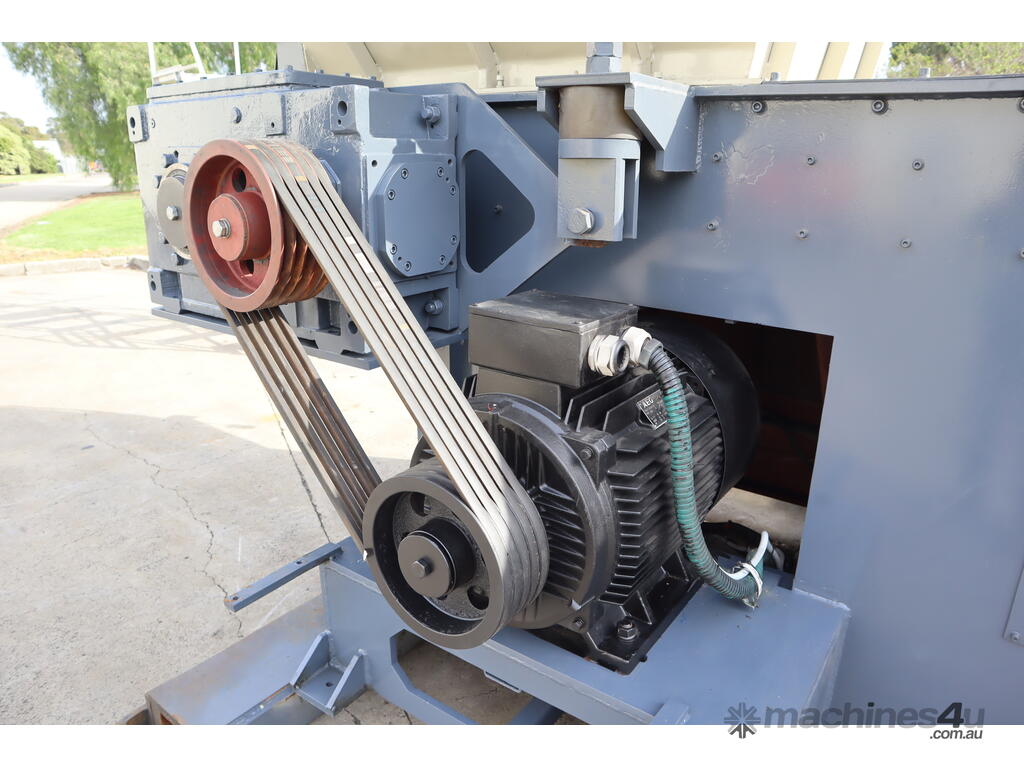

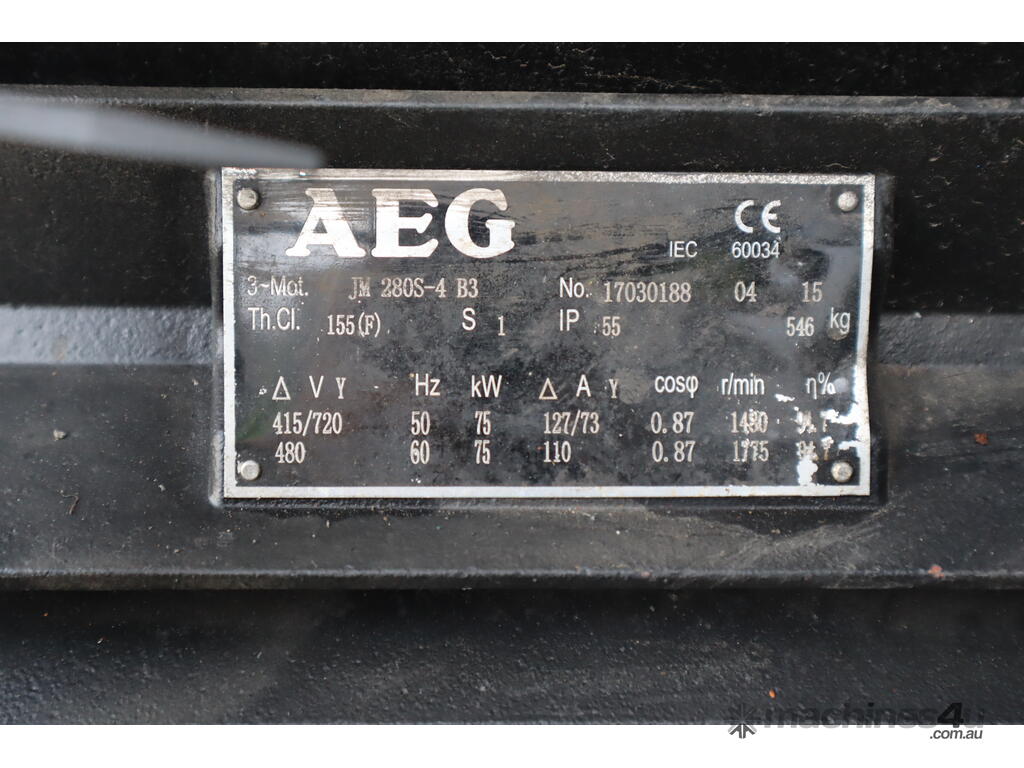

Motor: 75kW

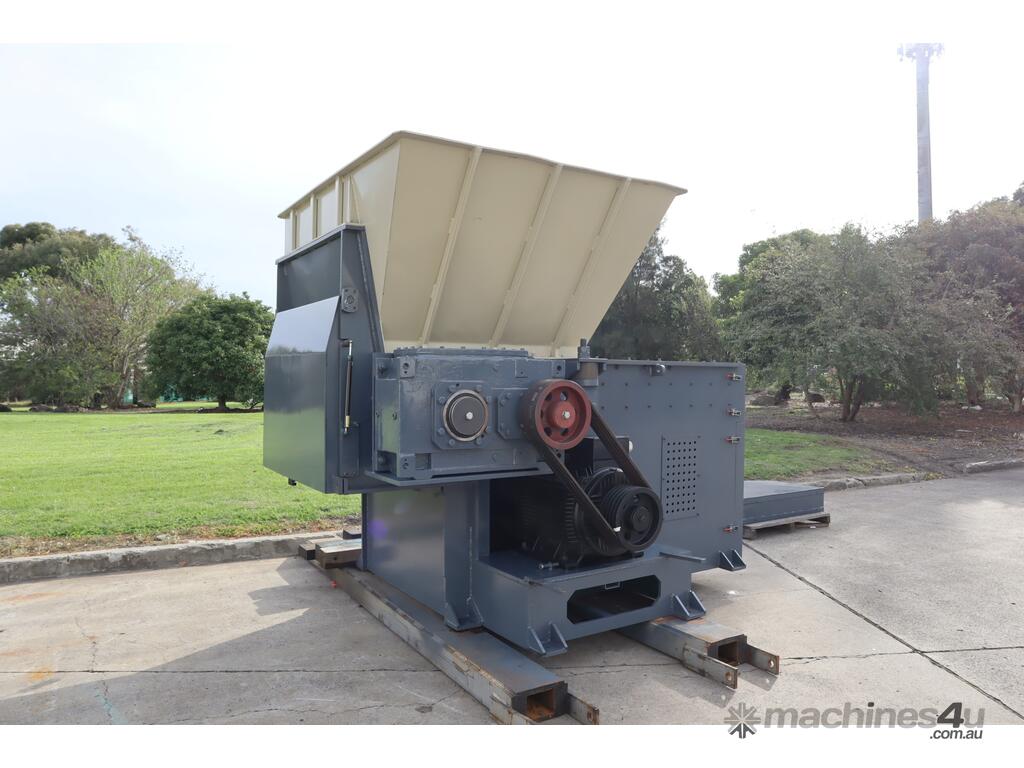

Overall Dimensions (mm): 3100 L x 2300 W x 3000 H approx.
