Industrial Turret Milling Machine BM-63VE Table Travel: (X) - 890mm (Y) - 400mm (Z) - 400mm Includes

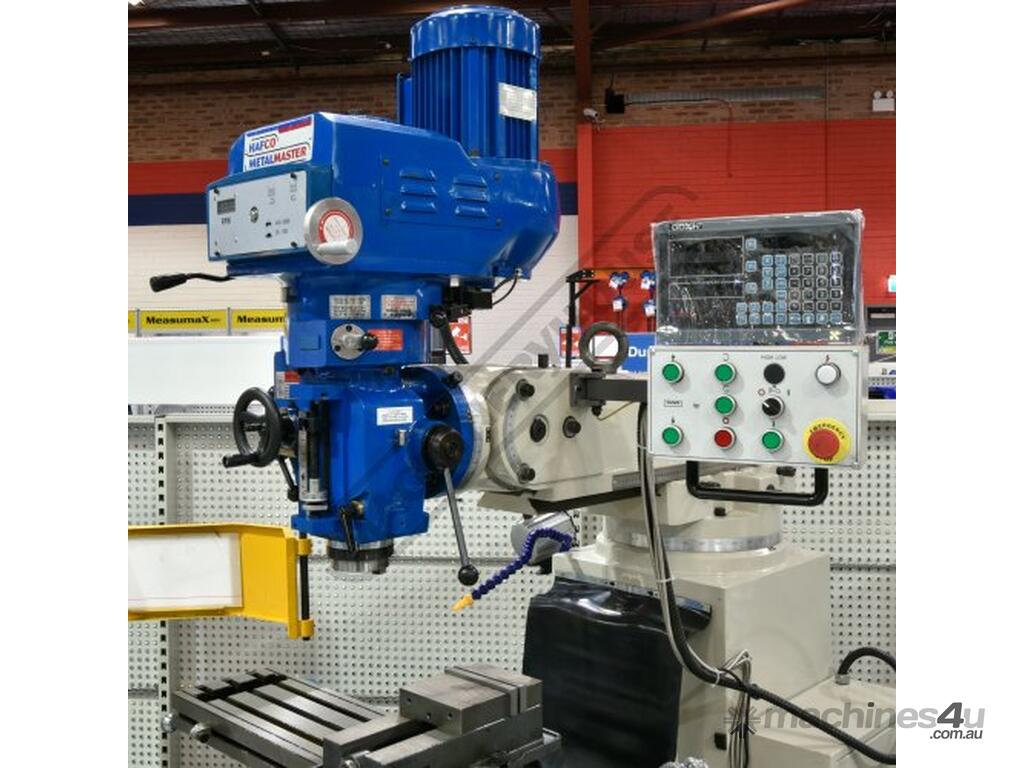

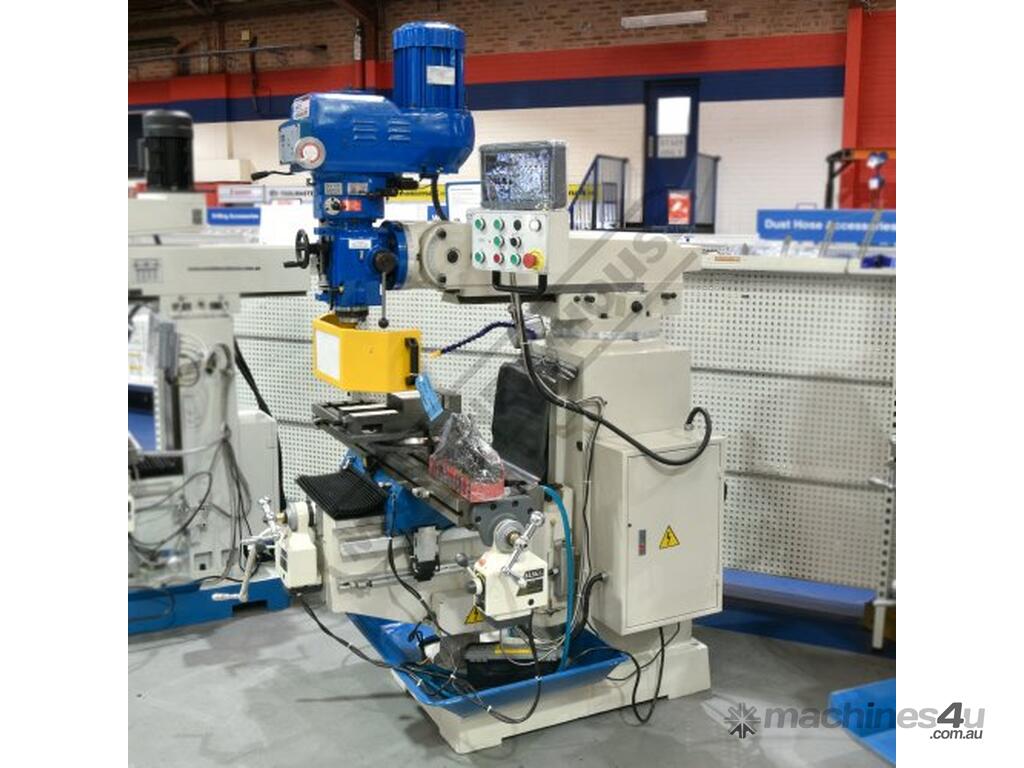

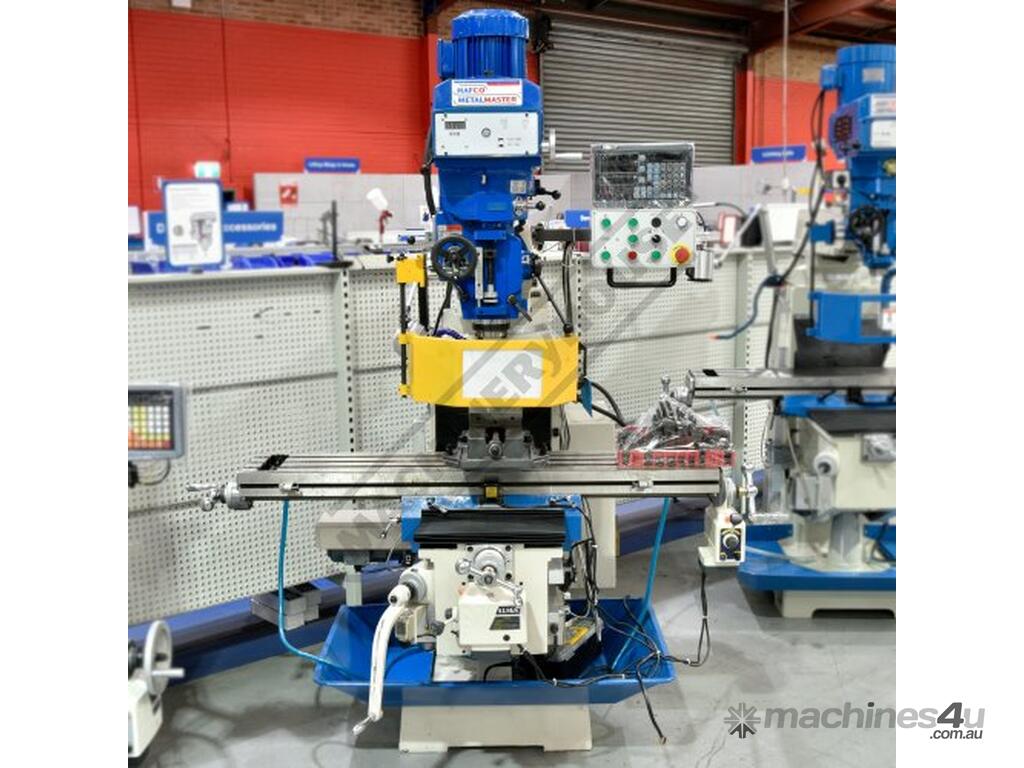

HAFCO-METALMASTER Industrial Turret Milling Machine BM-63VE Table Travel: (X) - 890mm (Y) - 400mm (Z) - 400mm Includes Ballscrews X & Y Axis, Digital Readout System, Machine Vice & Clamp Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: ZM599D-20

Quality product representing excellent value
Some Cosmetic damage

Features:
3 Axis digital readout fitted
5HP 415V motor with mechanical variable speed system
NT40 Spindle taper with a 105mm chrome & ground quill
Hardened ballscrew X & Y-Axis providing smooth and accurate operation
Digital speed readout display for accurate cutter speed
Hardened & ground work table & slide-ways
Square construction slides for Y & Z-Axis to maximise rigidity
Powered elevating motor for Z-Axis
Meehanite casting for high strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.
High / neutral and low gear selection lever to maximise torque
X & Y-Axis power-feed with adjustable micro switch feed stops
Micro switch on the manual knee handle for additional operator safety
Metric dial graduations 0.02mm for X Y & Z-Axis
Automatic quill feed 0.04 0.08 0.15mm/rev
Automatic cut off depth stop on quill
Oil lubrication pump and reservoir
Slide-way covers Y & Z-Axis
Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right
Manual quick action quill lever
Mechanical spindle brake
Tool box and manual

Includes:
- 3 Axis digital readout fitted
- Hardened ballscrew X & Y-Axis
- Digital speed readout display
- One-shot oil lubrication pump and reservoir
- X & Y-Axis power-feed
- Z-Axis powered elevating motor
- Machine vice 160mm
- Clamp kit set
- Drawbar M16 thread
- Coolant system
- Slideway covers
- Safety cutter guard
- Halogen light
- Swarf tray
- Drawbar M16 thread

Specifications:
ORDER CODE: ZM599D-20
MODEL: ~
Type: ~
Brand: Hafco Metalmaster
Capacity: ~
Speed Range (rpm): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Branch The Item is Located (Available): Sydney Pick up
