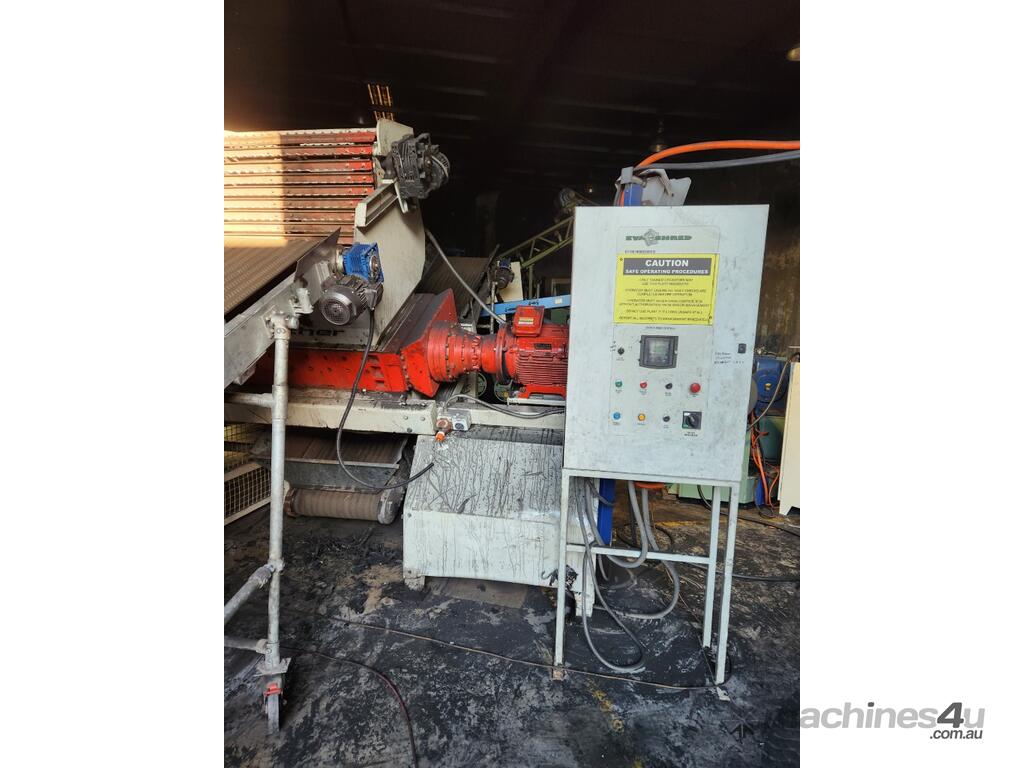

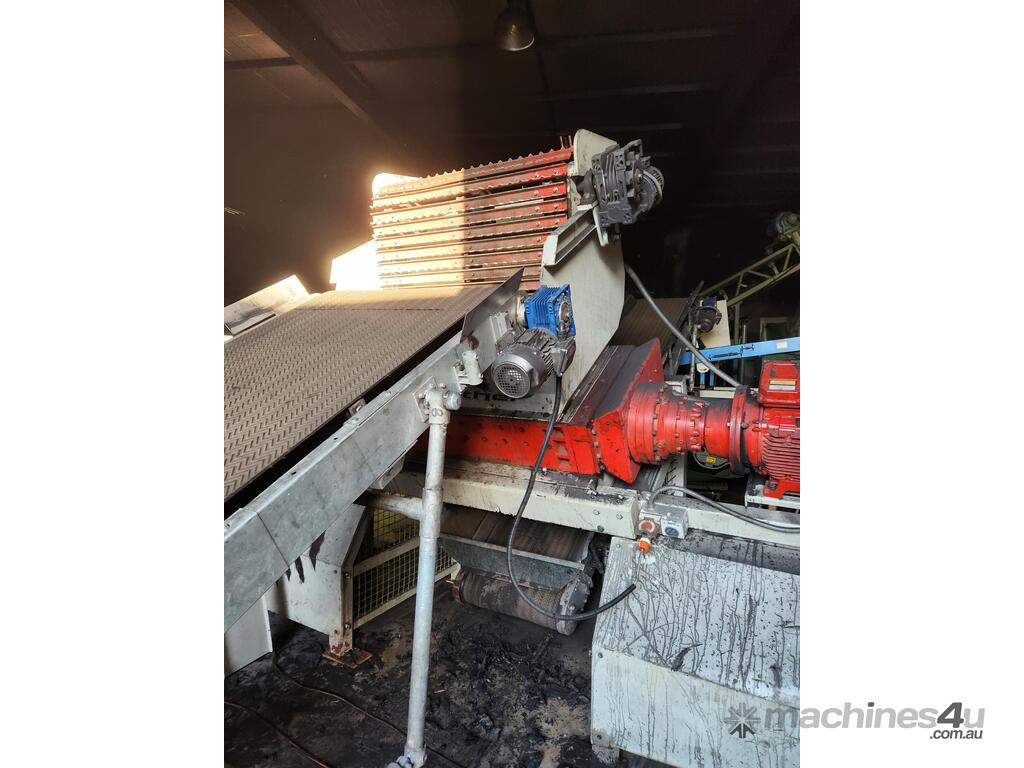

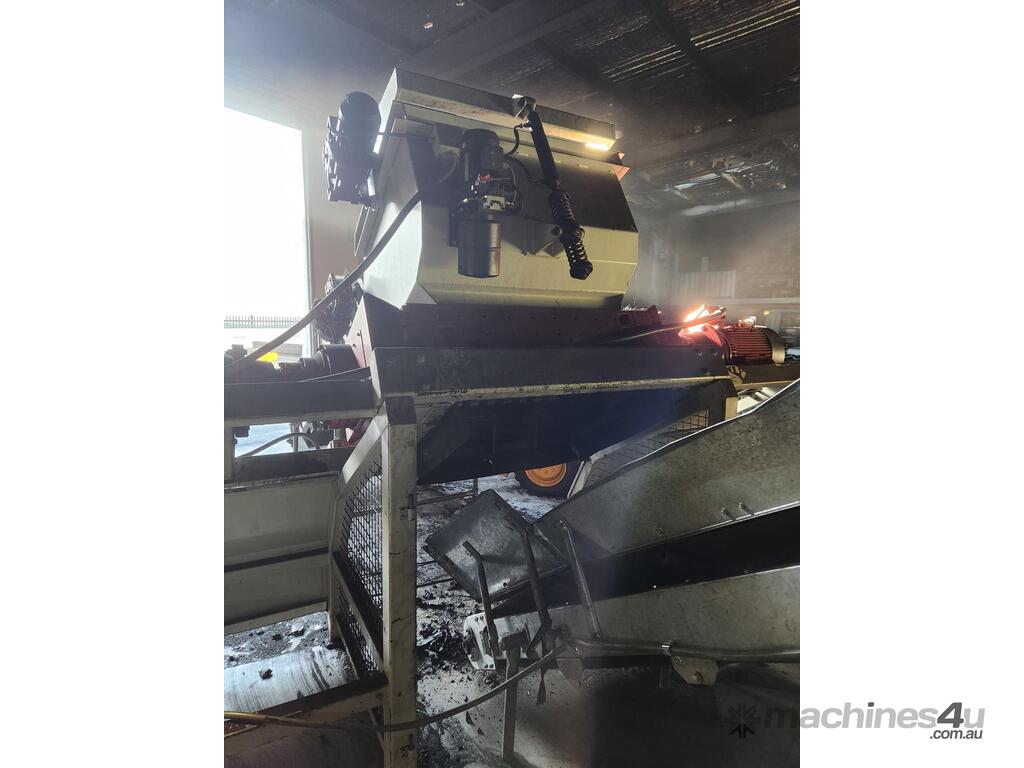

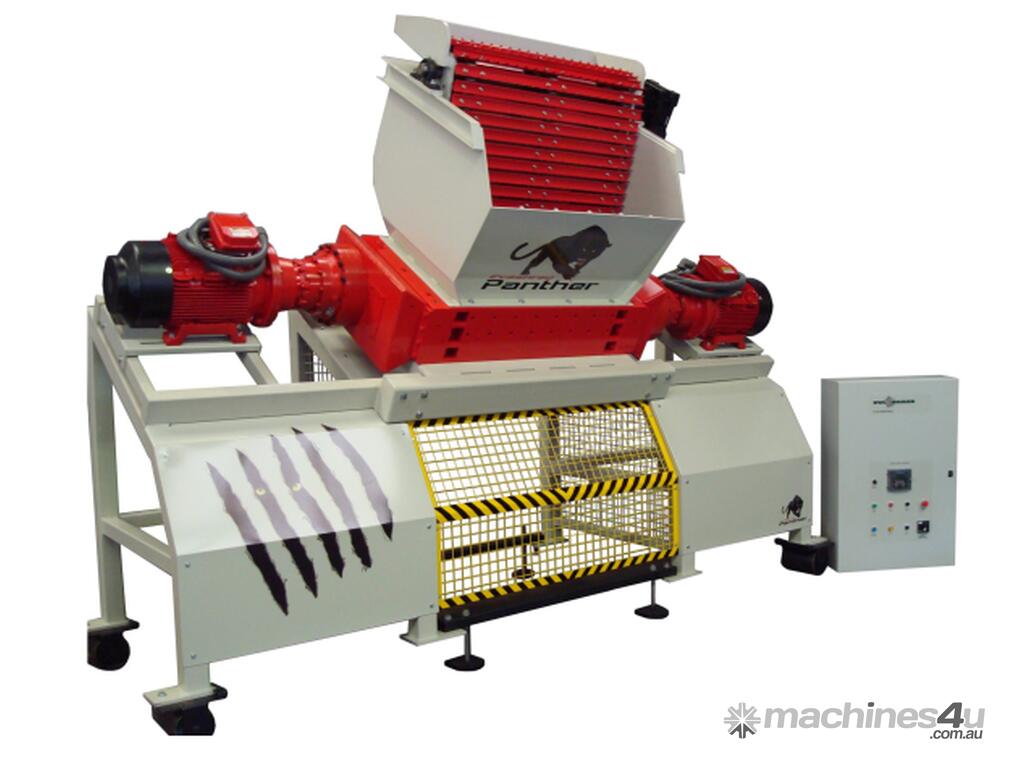

Industrial Twin Shaft Tyre Shredder - 2x 22kW - Evashred EV100E

Mixed waste shredder able to shred paper, plastic, tyres, e-scrap. cardboard, food waste and abattoir, textiles and fabric in a mobile application

Features:
Rated to Shred Up To 6000KG Per Hour*
60Kw/59Hp Maximum Power
22-24 Rpm Cutter Speed Rotation
25mm, 50mm, 75mm or 100mm Cutter Width
1100mm x 600mm Cutting Chamber Opening
72 Dba 1 Meter (No Load)

Hopper Opening (mm): 1200 x 1220
Hopper Lip Height From Ground (mm): 2060
Hopper Height (mm): 1540

Cutter Width (mm): 25, 50, 75, 100
Cutting Chamber Opening (mm): 1100 x 600
Cutting Chamber Height (mm): 470
Cutter Diameter (mm): 310
Hex Diameter (mm): 140AF
Critical Shaft Length (mm): 1100
Number of Hooks per Cutter: 5
Ground Clearance (Under Shredder): 1320mm

Voltage: 415V 3 Phase
Motor Power: 2x 30kW

Machine Weight: 3500 kg
Overall Dimensions (mm): 4100 L x 1400 W x 3500 H

*As per manufacturer's specs. Throughput figures are greatly influenced by the method of in feed into the shredder unit. Variance in cutter widths also have an effect on volume throughput.
