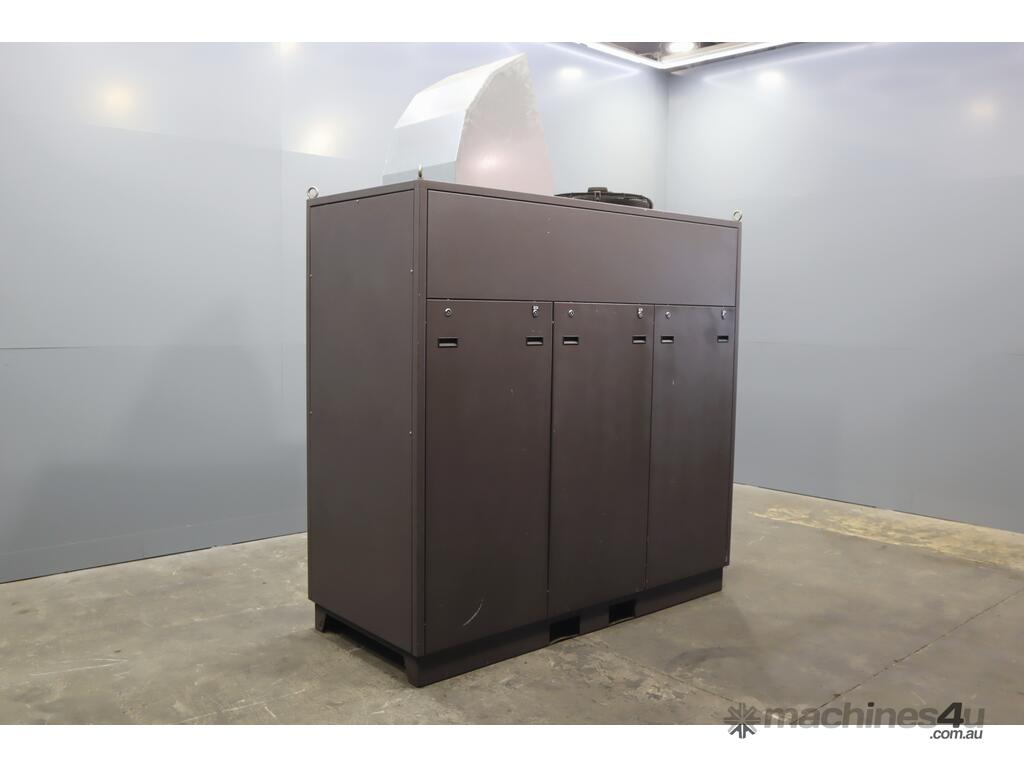

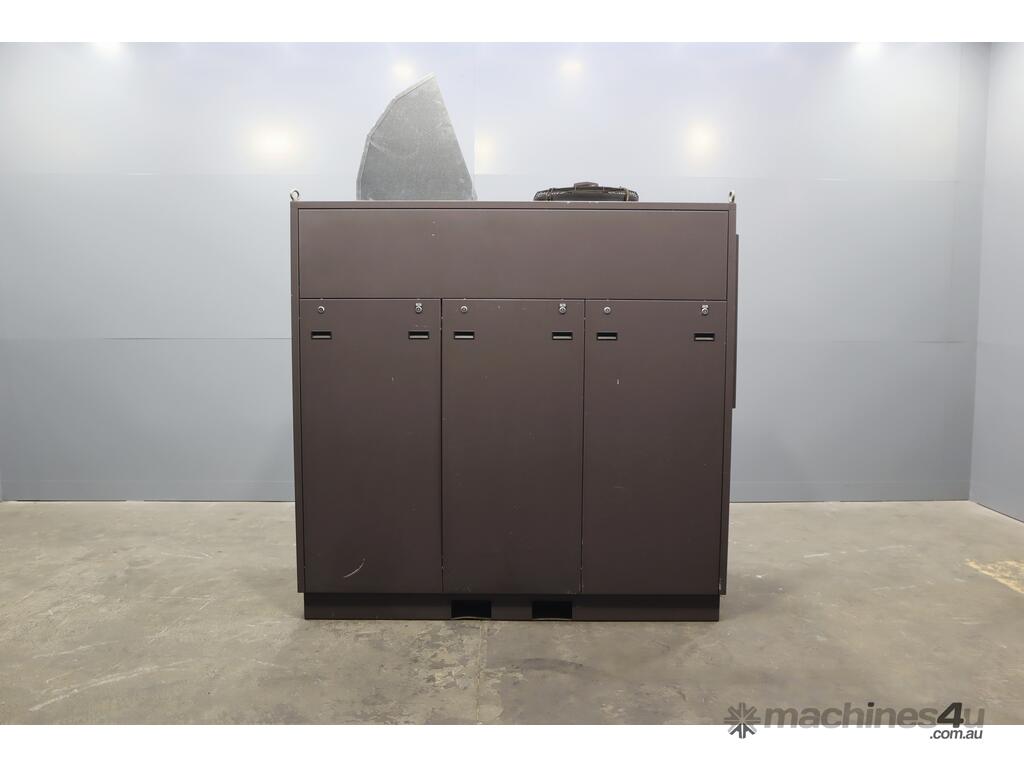

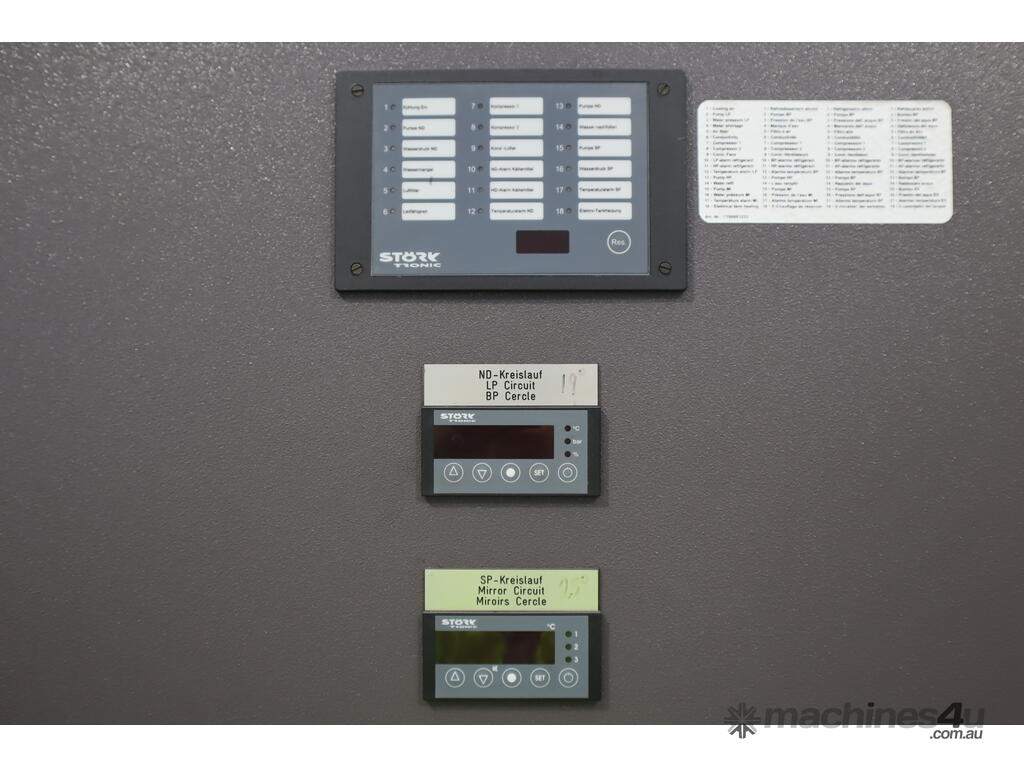

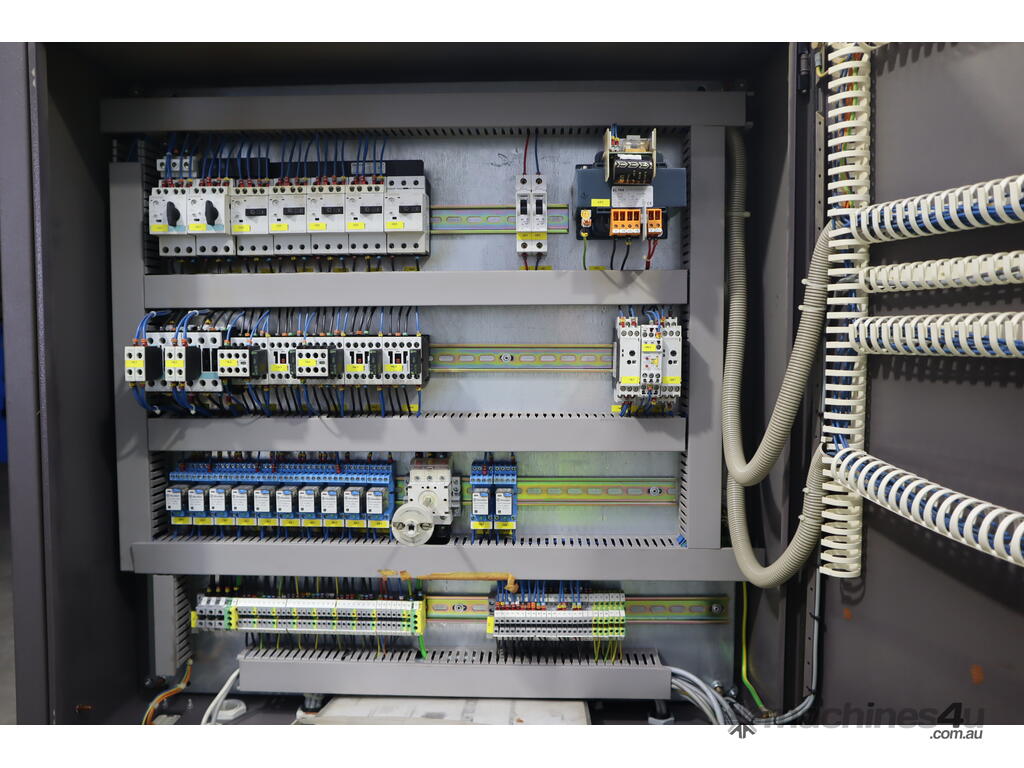

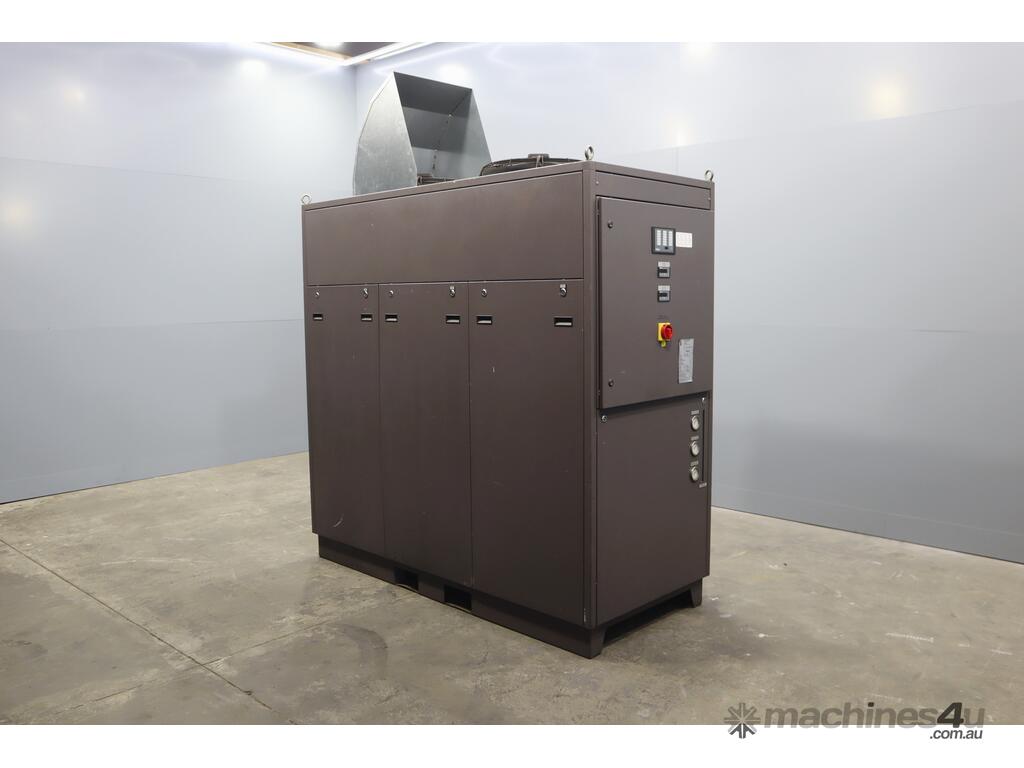

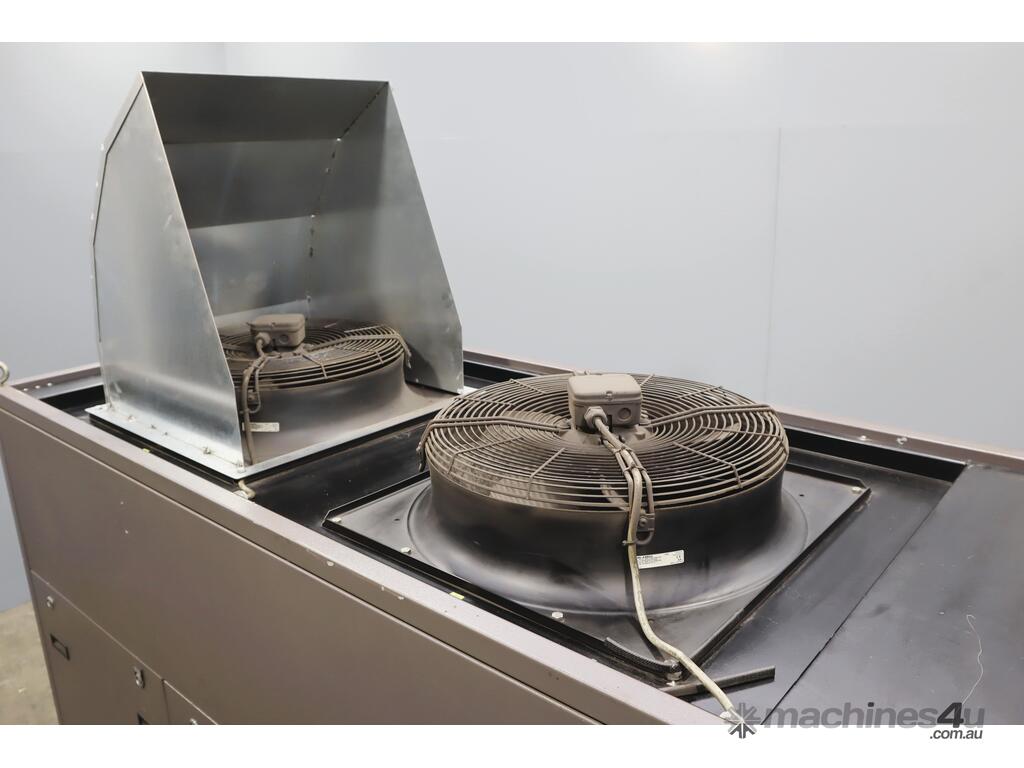

Industrial water chiller in excellent condition. This unit is housed in a fully enclosed cabinet, fitted with a roof mounted condenser fan and ducting. The control panel includes digital temperature and pressure monitoring with safety interlocks, making the system straightforward to operate and integrate into existing plant equipment.

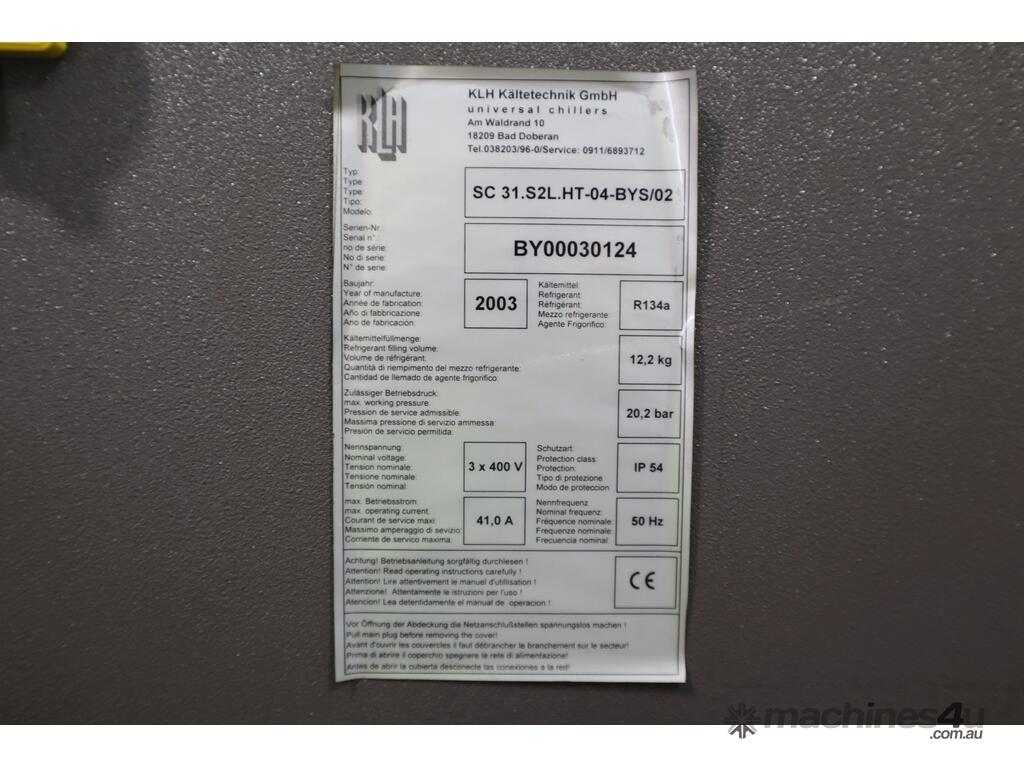

Make: KLH Kaltetechnik
Model: SC 31.S2L.HT-04-BYS/02
Year: 2003
Made in Germany

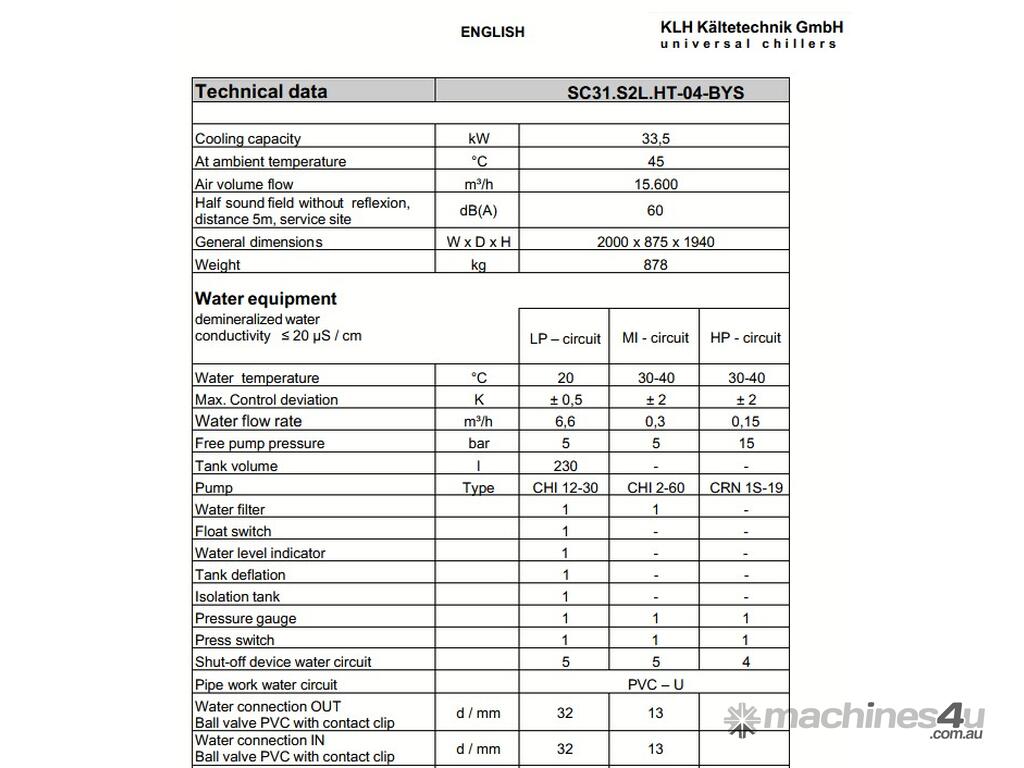

Cooling Capacity: 33.5 kW
Ambient Temperature: 45C
Air Volume Flow: 15,600 m³/hr
Max pressure: 20.2 bar

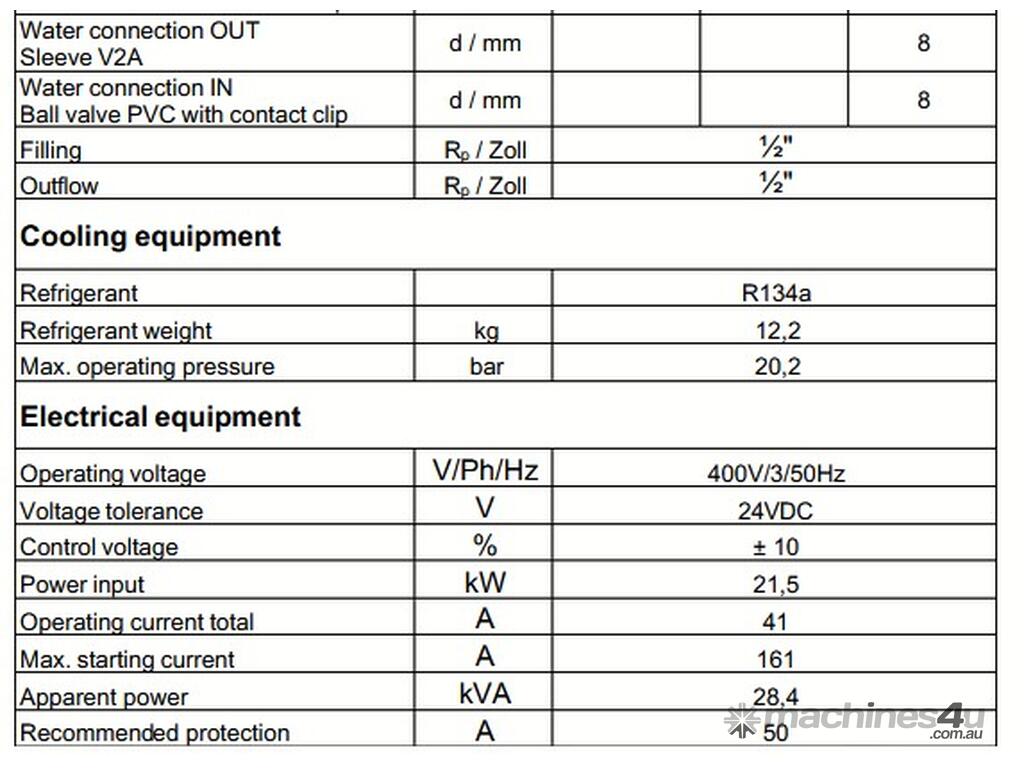

Refrigerant: R134a
Refrigerant Weight: 12.2 kg

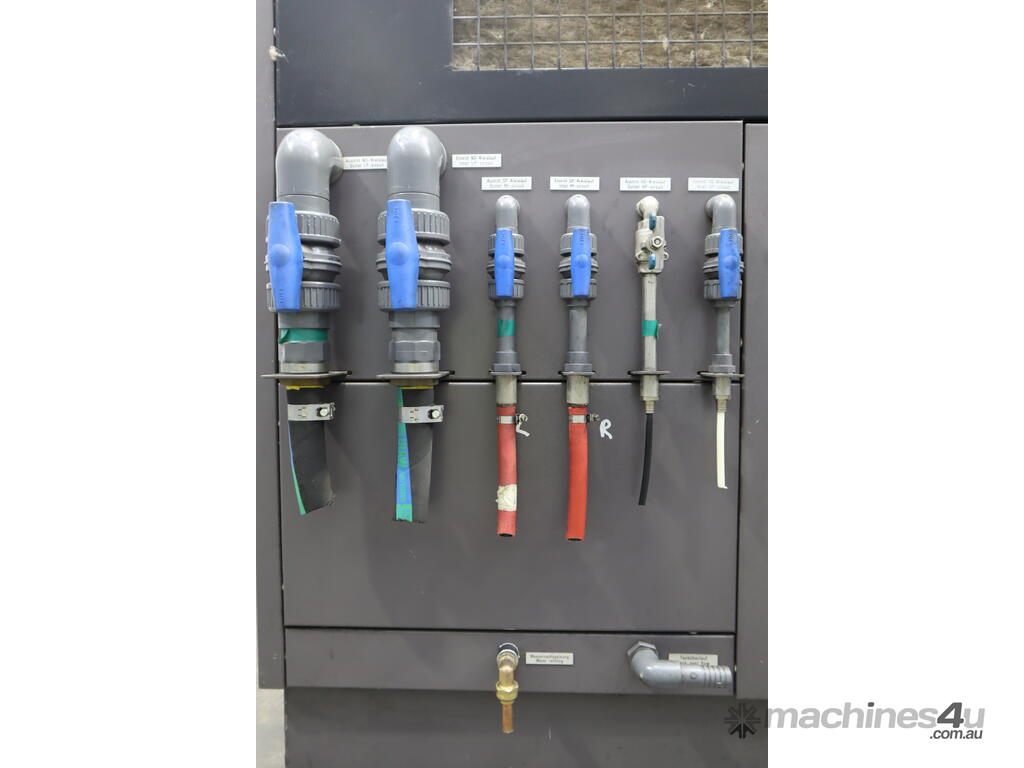

Water in (d / mm): 32 / 13
Water out (d / mm): 32 / 13
Nominal Voltage: 415V 3 Phase
Power Input: 21.5 kW
Operating Current: 41 Amps
Overall Dimensions (mm): 2050 L x 880 W x 2540 H
