Industrial Water Jet Cutting Machine

Feature:
5 axis tilter angle 60°
Europe smart water jet cutting machine software system

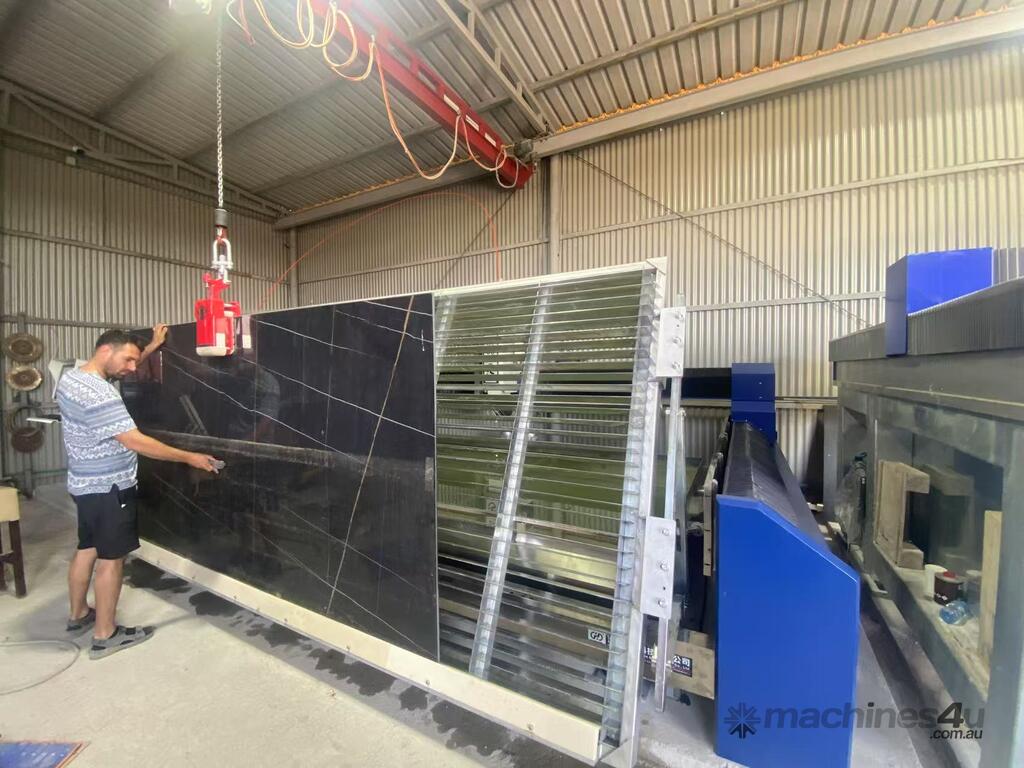

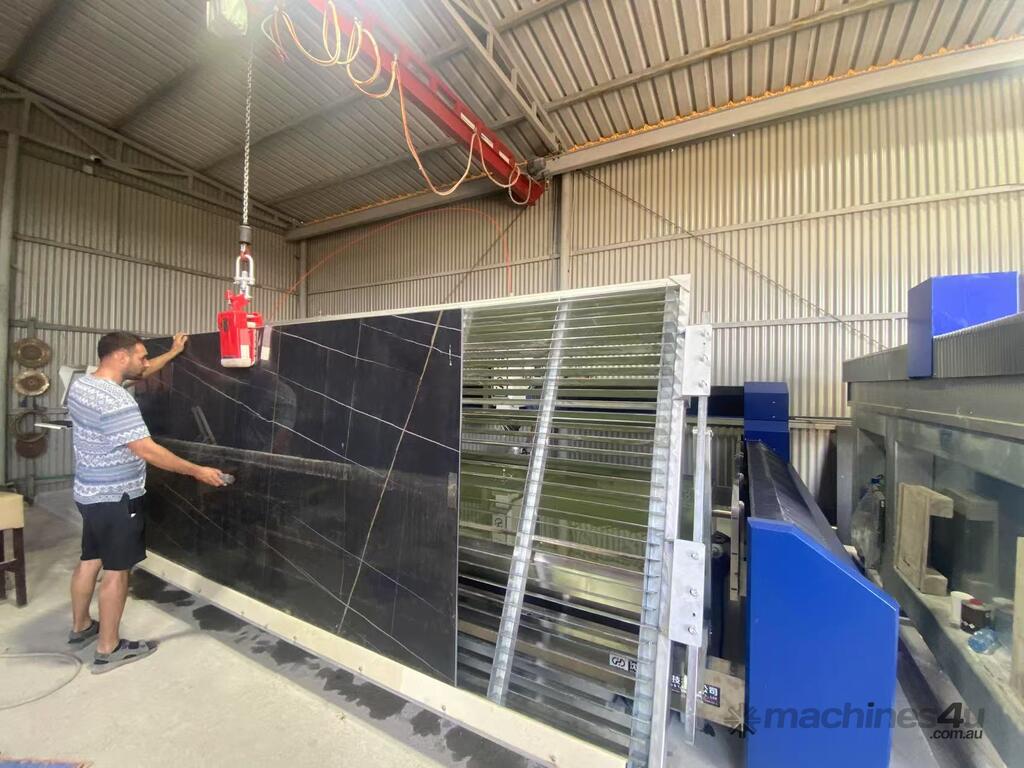

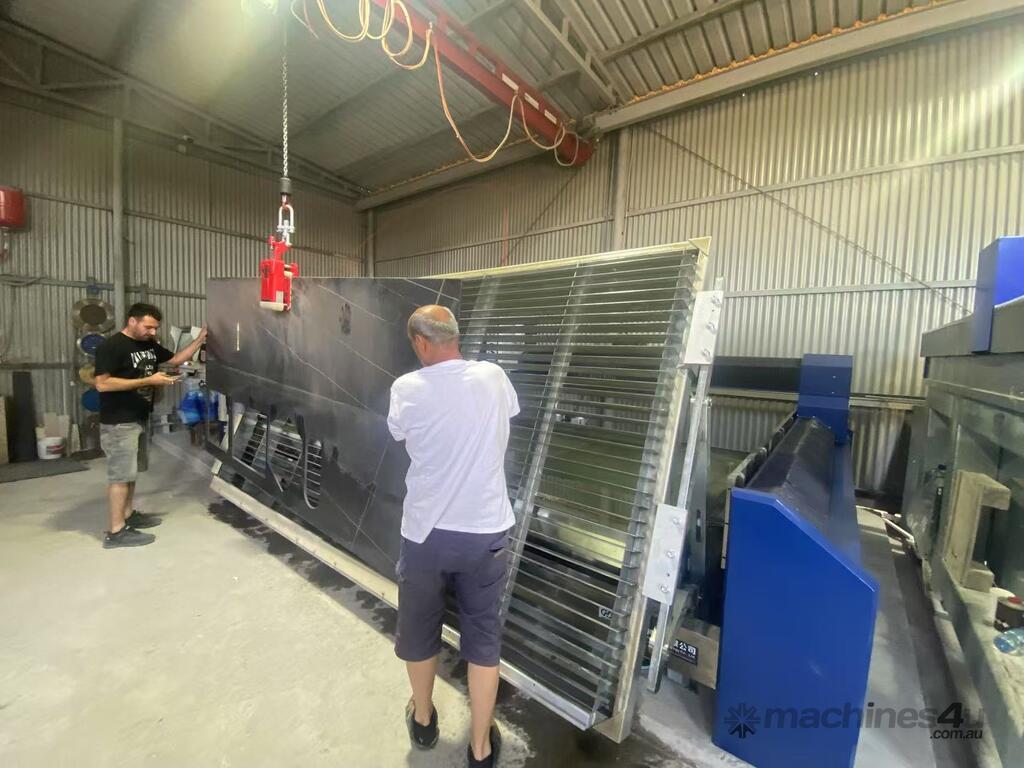

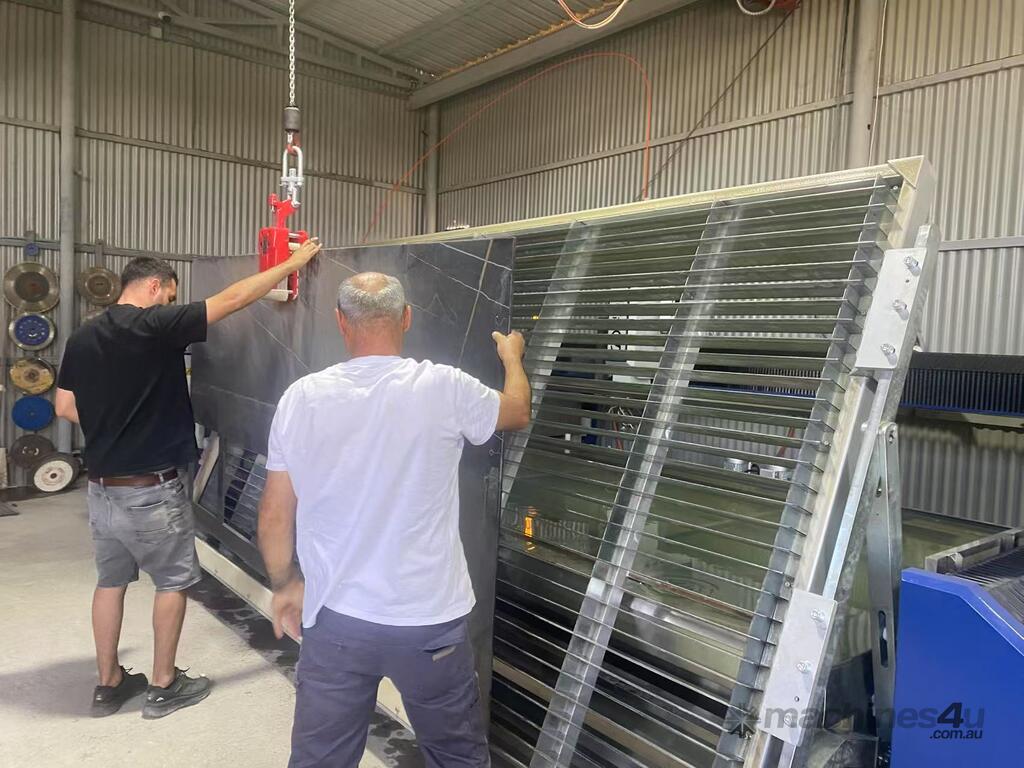

Patent floor loading system
Laser/Mechanical sensor system
Camera system function

Water jet Cutter Technical Parameters

Model HEAD4020BA-5AC/HEAD42037Z-B
Working area 4000*2000 MM
Z-axis 250 MM
Cutting Accuracy ± 0.1 MM
Drive Type Servo
Repeat positioning accuracy ±0.05 MM
Pressure  420 MPA
Cutting Ability 150 MM
Auto Abrasive Supply System 200KG(optional:400KG/1000KG)

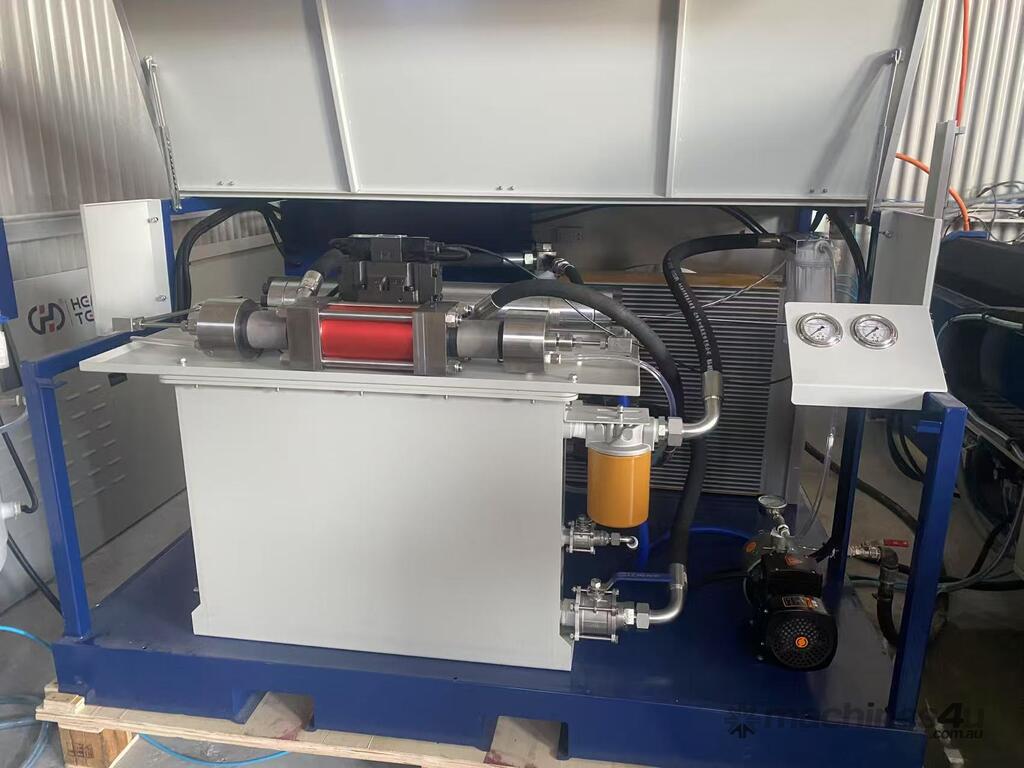

Pump type Intensifier
Max pressure 420Mpa(6000psi)
Working pressure 50-380MPa 7200-55000psi
Max orifice diameter 0.33mm
Water flow rate 3.7L/min
Maximum oil pump flow 119L/min
Pressure ratio 1:20
Main motor power 37KW(50hp)
Voltage 380v 50hz

Key Advantages of HEAD Waterjet Cutting Machines
Rock-Solid Structural Stability

Pyramid-Style Frame: Low center of gravity keeps the machine stable even at high speed, ensuring precise cutting without vibration or misalignment.

Heavy-Duty Build: 5mm thick square tubing and welded steel bed deliver long-lasting strength with no deformation during heavy use.

One-Piece X-Axis: Extruded aluminium with 8mm wall thickness and honeycomb structure provides outstanding rigidity and smooth motion for precision cutting.

High Precision & Efficiency

Dual Lead Ball Screw Design: Achieves speeds up to 20,000 mm/min with stable accuracy, reducing non-cutting time and boosting throughput.

Japanese Servo Motors (Panasonic): Full closed-loop control ensures each axis runs in perfect sync, improving contour accuracy and reducing vibration.

Lubrication System: Automatic volumetric lubrication delivers consistent oil supply, extending component life and reducing maintenance costs.

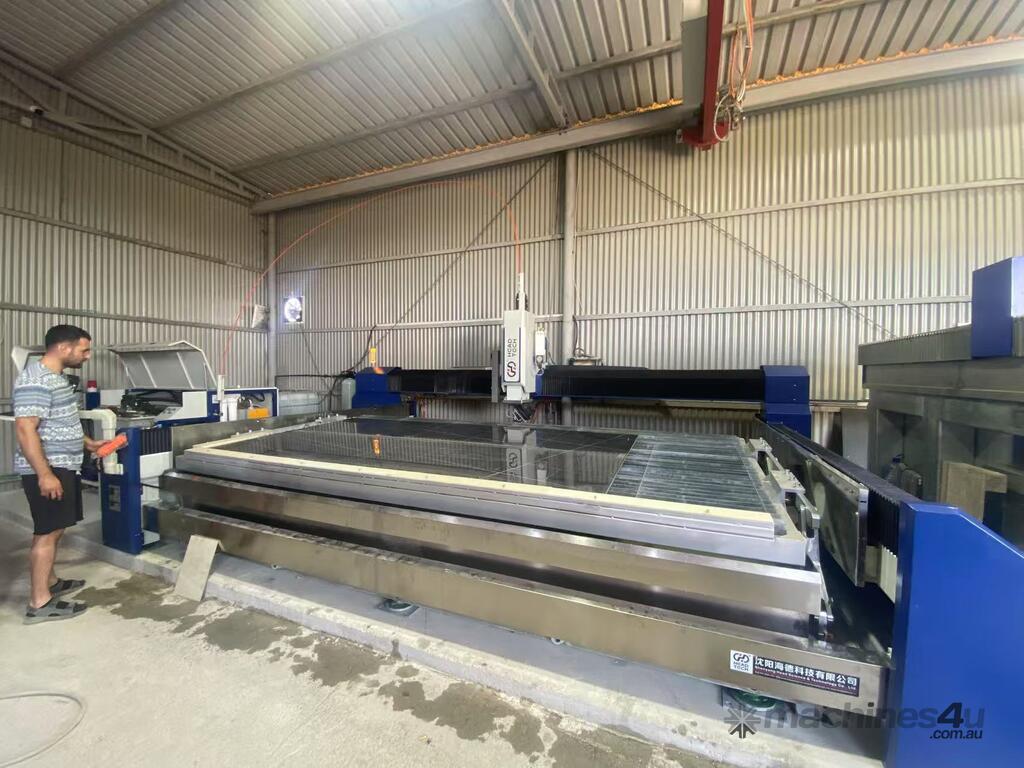

Durable Platform & Tank System

Independent Water Tank Design: Separating the tank from the machine bed prevents deformation from affecting accuracy, lowering long-term maintenance costs.

Reinforced Water Tank: 900mm high, built from thick steel plates with stiffeners for extra rigidity and durability.

Heavy-Duty Grilles: Galvanised steel supports up to 1500 kg/m², with modular quick-install design for easier replacement and service.

Protection & Reliability

Fully Enclosed Protection: Upgraded X-axis and full-cover sealing prevent dust, water, and sand intrusion, extending machine life.

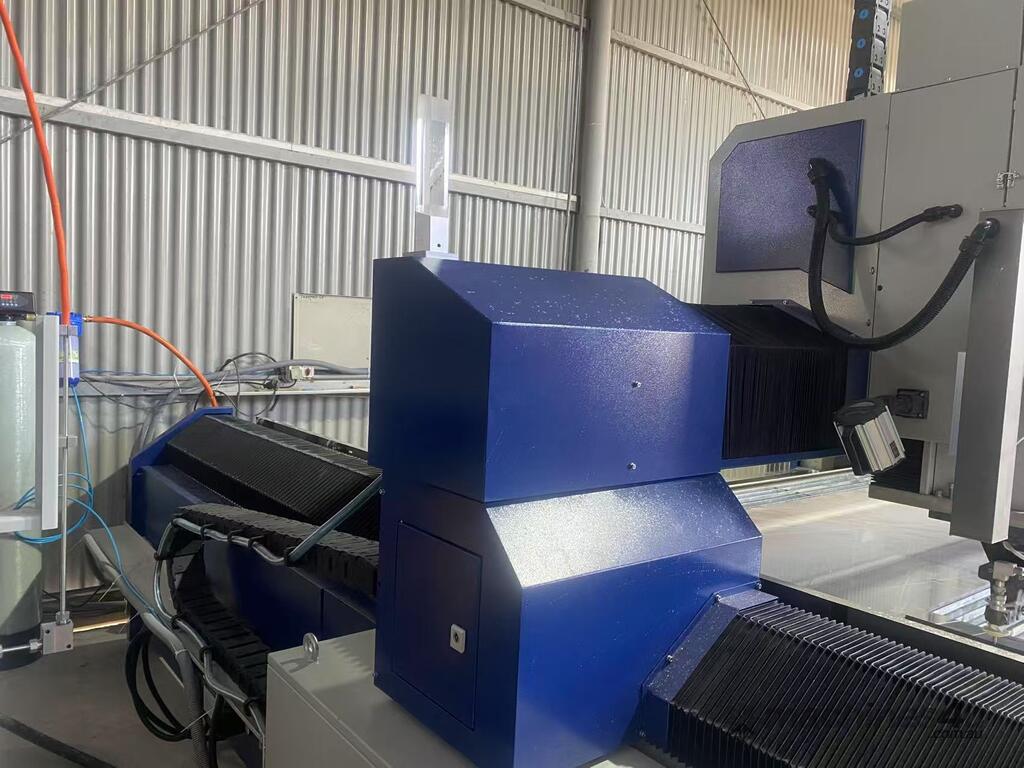

High-Quality Drag Chains: Reinforced, enclosed design protects cables, runs quietly at high speed, and withstands harsh conditions.

Smart Oil Recovery System: Integrated channels collect and drain waste oil, preventing contamination and protecting accuracy.

Operator-Friendly & Safe

Wireless Remote Control: Allows operators to switch modes and adjust positions easily from a distance, reducing fatigue and improving safety.

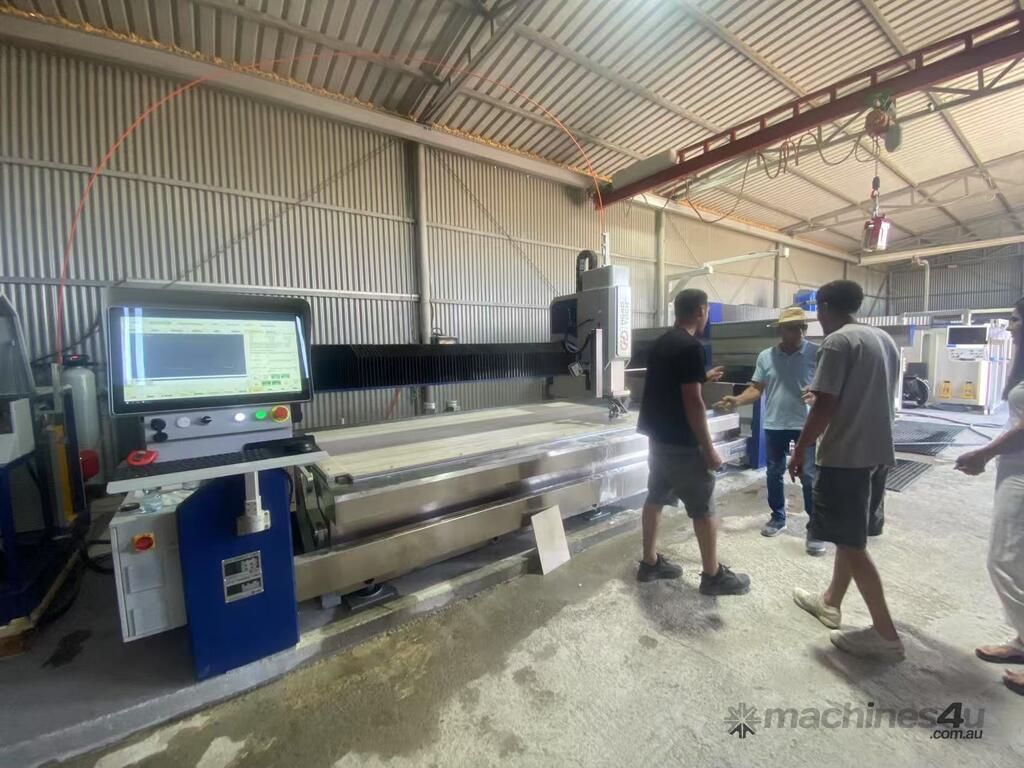

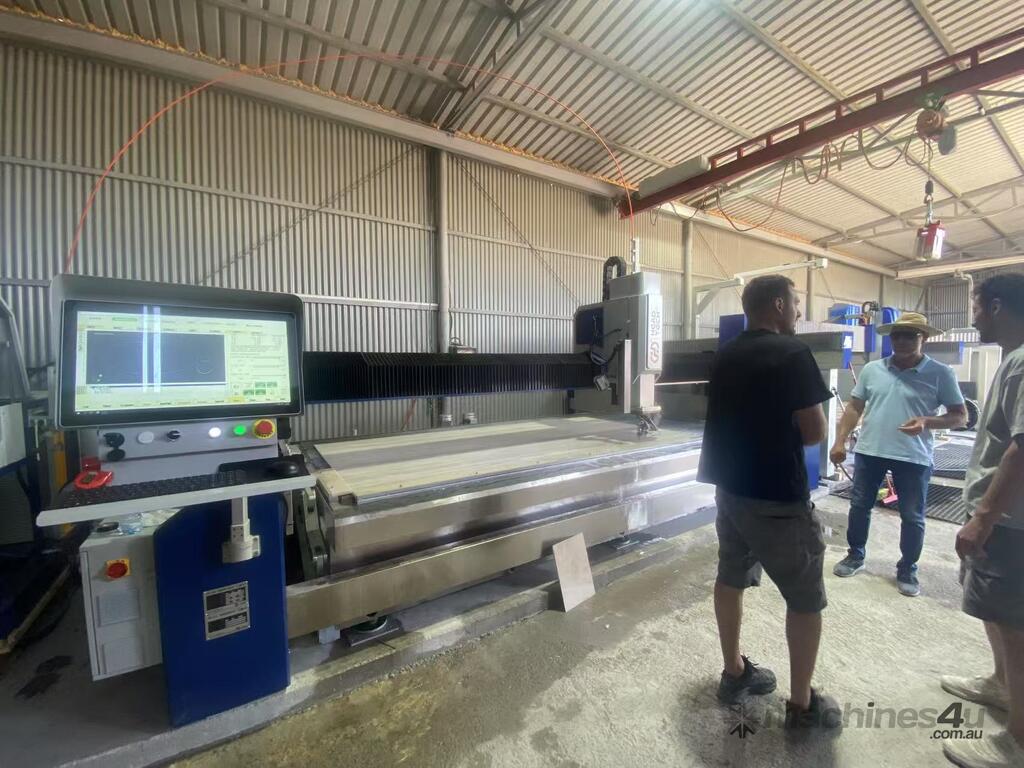

Touch-Screen Console: Ergonomic 21.5" dust- and water-protected touch panel with IP54 rating, intuitive and easy to use.

Lighting Systems: Built-in LED lights above the cutting head and inside the electrical cabinet improve visibility for operation and maintenance.

Optional Safety Systems: Fences, safety gratings, and emergency interlocks comply with ISO/IEC standards, providing all-round protection without sacrificing visibility.

Flexible & Powerful Performance

Extended Z-Axis (up to 250mm): Handles thicker materials and more complex 3D cutting tasks.

Laser Height Measurement (optional): Provides accurate positioning without water jet flow, reducing setup time and material waste.

CNC Control System: Supports bevel cutting, pipe cutting, nesting, and intelligent path optimisation with ±0.01mm control precision.

High Pressure Options: 420 MPa standard, with 500 MPa or 600 MPa available for cutting ultra-thick and hard materials.

? Why Australian Customers Choose HEAD Waterjet

Built for long-term heavy-duty operation with minimal downtime

Delivers ±0.1 mm accuracy and consistent cut quality

Lower maintenance costs thanks to smart design and durable materials

Safe and user-friendly for operators in industrial environments

Offers better value for money compared to other international brands, with reliable after-sales service
