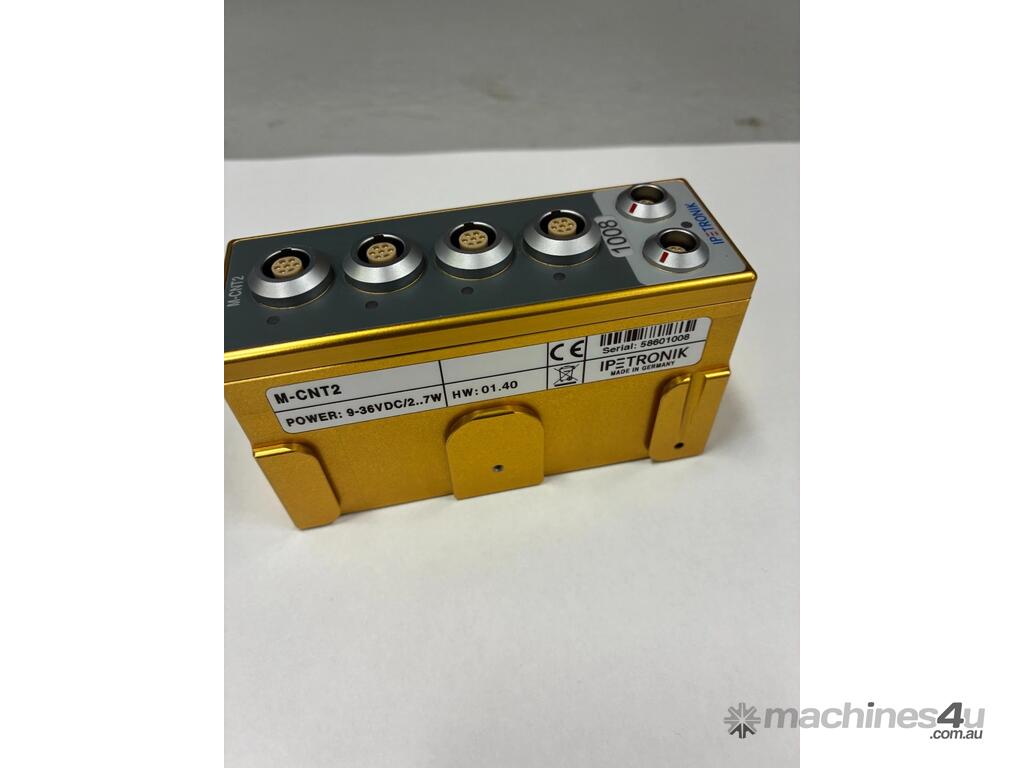

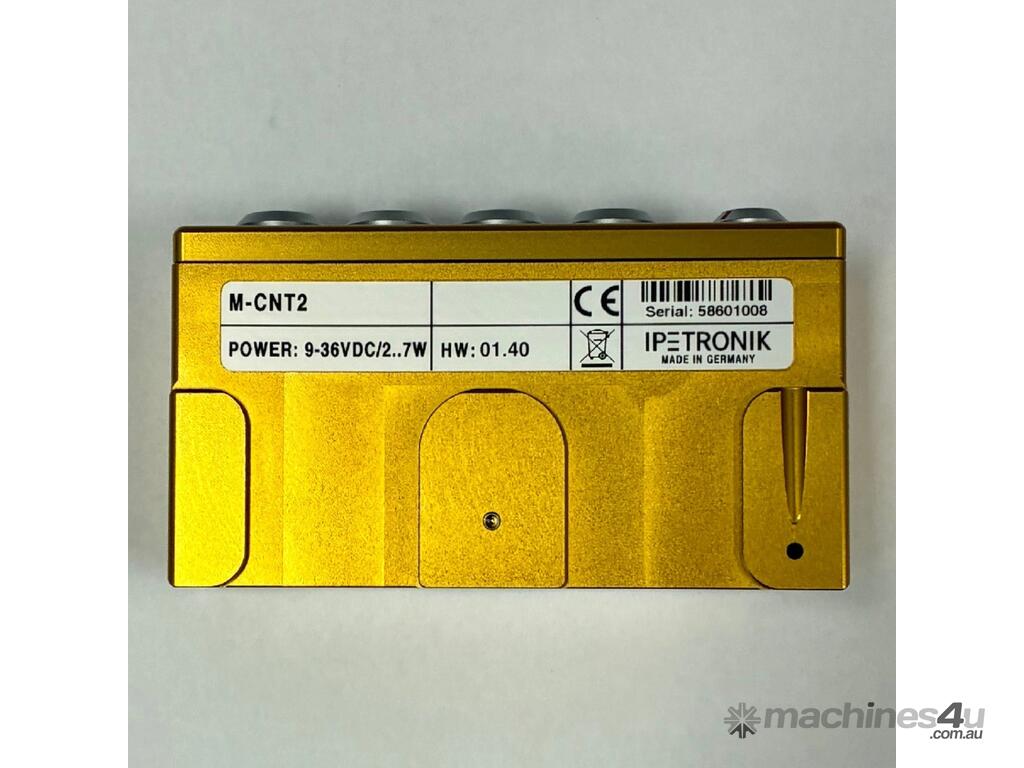

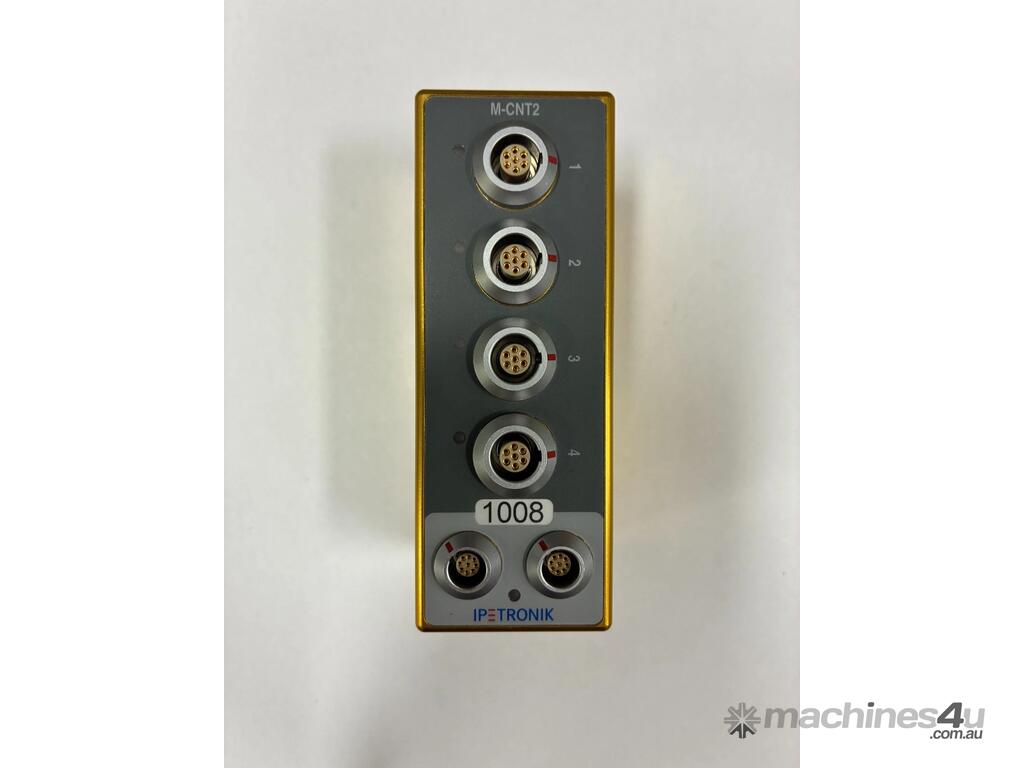

Ipetronik M-CNT2 – 4-Channel Universal Counter Module (Excellent Condition, Untested)

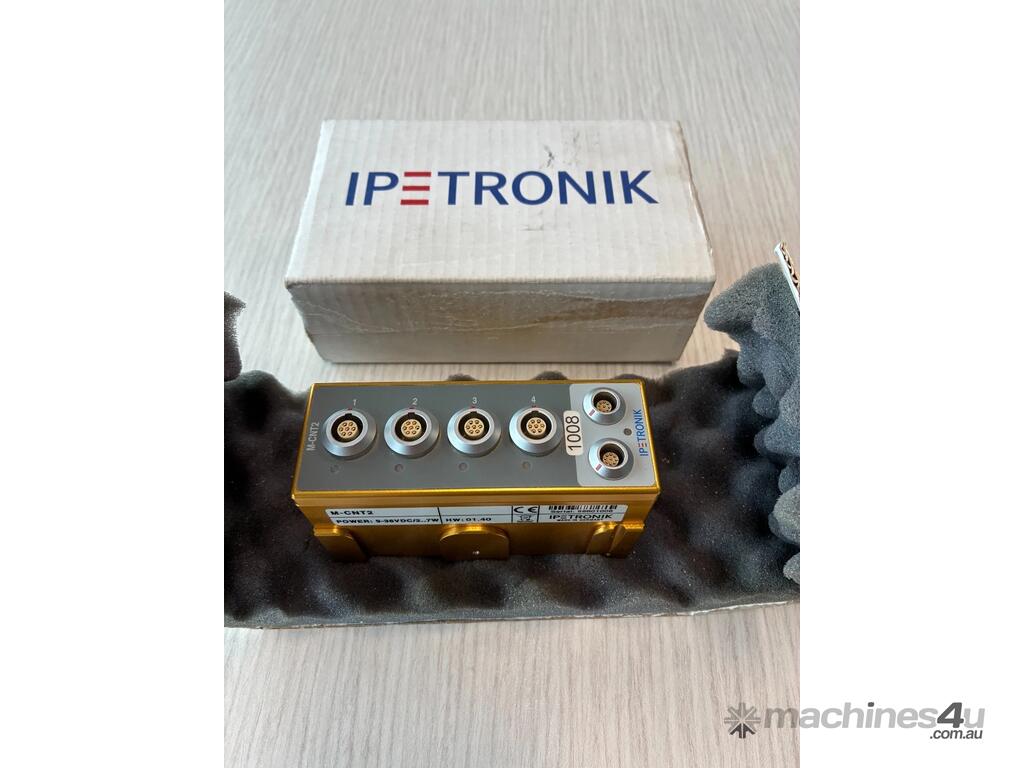

High-performance universal counter module designed for rugged environments, including under-hood applications. This Ipetronik M-CNT2 unit features 4 channels with built-in sensor excitation, galvanic isolation, and high-speed CAN communication. Sold in excellent physical condition in original packaging, but untested and as-is.

Key Features:
4-channel universal counter input module

4 sensor excitations: 15V, up to ±60mA

High-speed CAN data output (up to 1 Mbit/s, ISO11898-2)

Galvanic isolation: CAN, power supply, inputs, enclosure

Rugged IP67 housing (ISO 20653:2013)

Designed for engine compartment use

Compact: 106mm (W) × 43mm (H) × 60mm (D)

Weight: 420g

Operating temp: -40°C to +125°C

Storage temp: -55°C to +150°C

Channel sampling rates up to 5000 Hz, 20 kHz aggregate

Input protection: ±100V continuous, ±200V short-time

Toolless module-to-module connection

Channel LEDs for status indication

Supports Bessel (5-pole) hardware filtering

Condition:
Excellent cosmetic condition

Ideal For:
Automotive R&D and field testing

Harsh environment signal acquisition

Engine bay and high-vibration test applications
