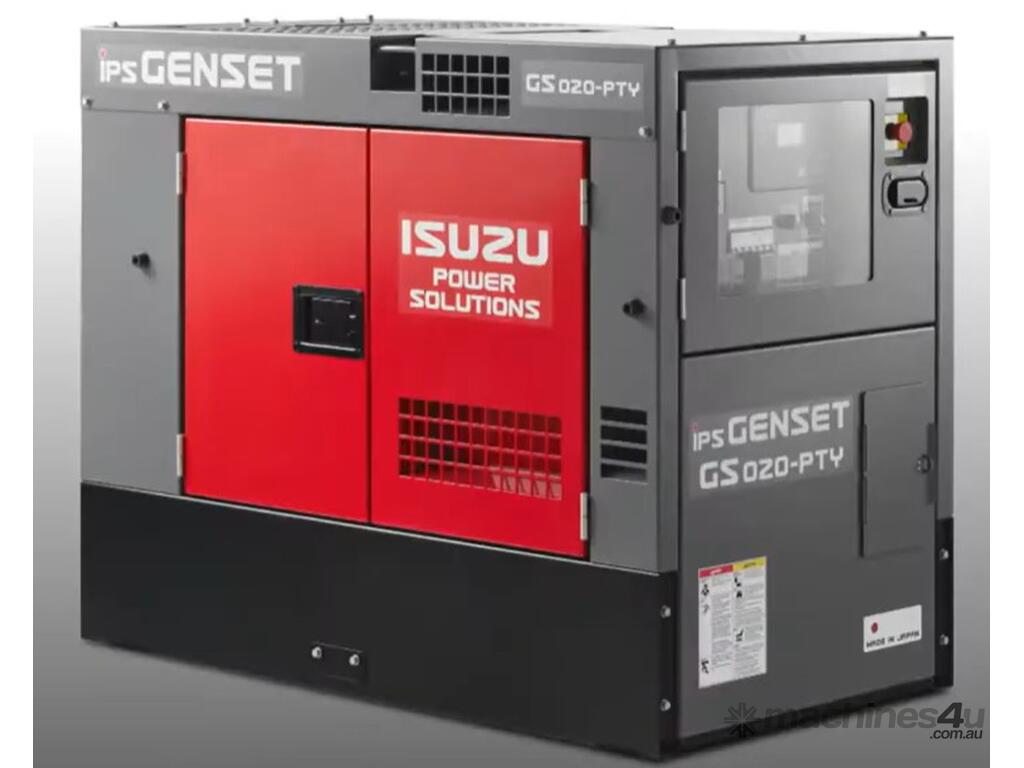

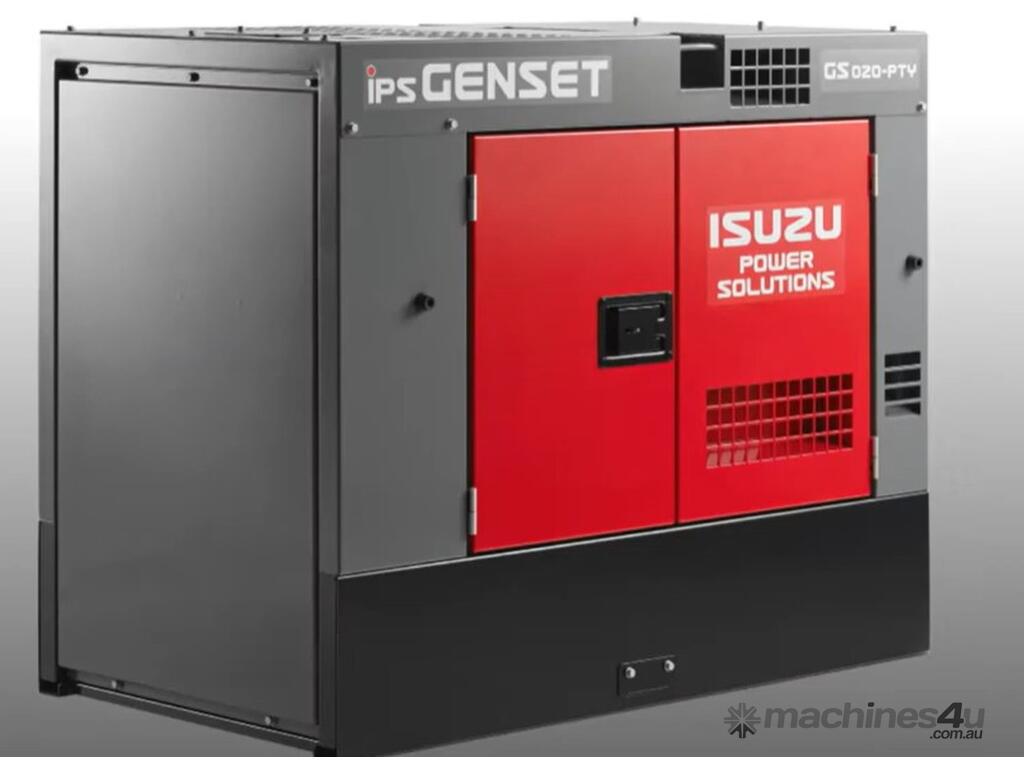

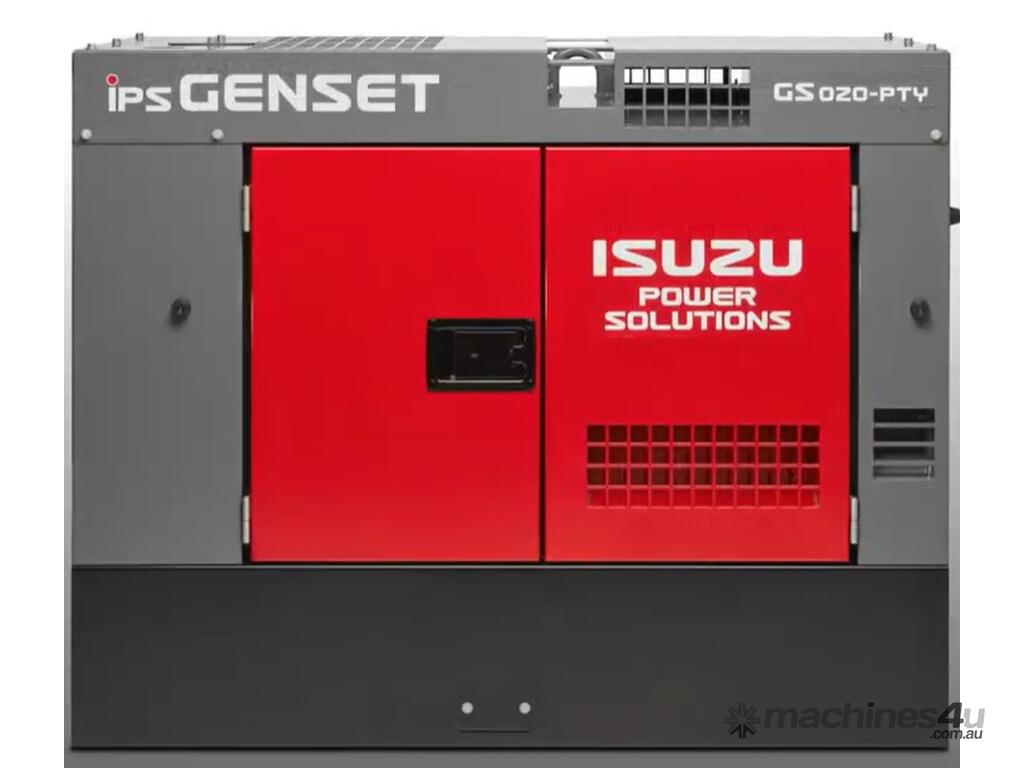

New Isuzu Industrial Generators for sale - Isuzu 20KVA Genset

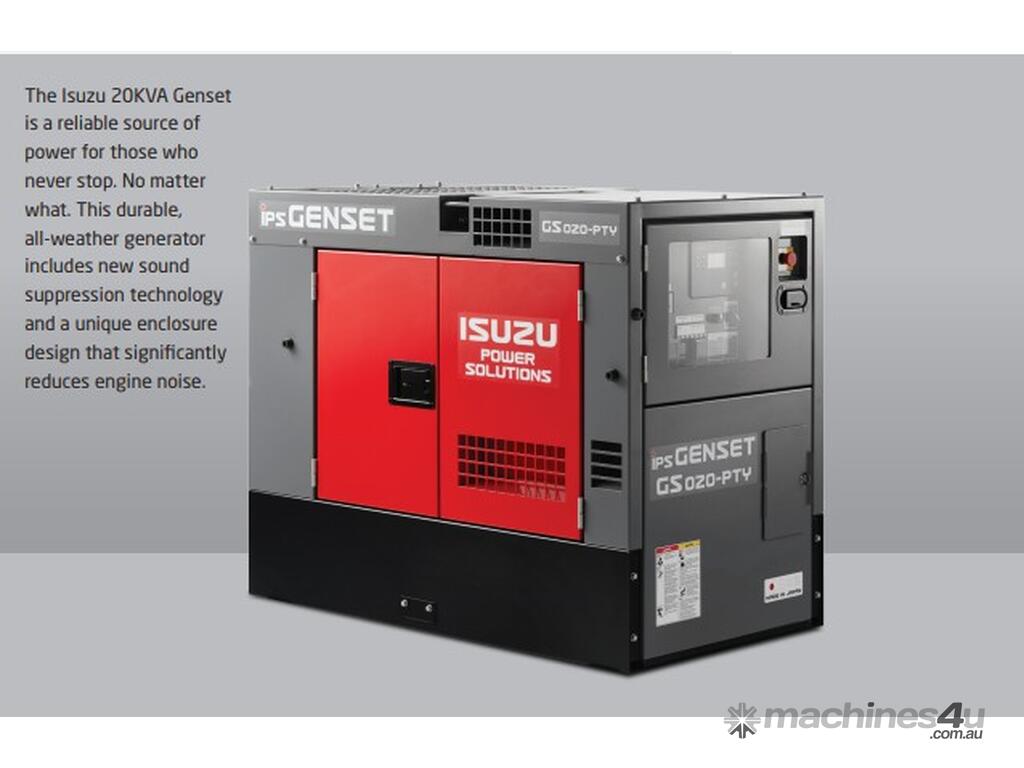

The Isuzu 20KVA Genset
is a reliable source of
power for those who
never stop. No matter
what. This durable,
all-weather generator
includes new sound
suppression technology
and a unique enclosure
design that significantly
reduces engine noise.

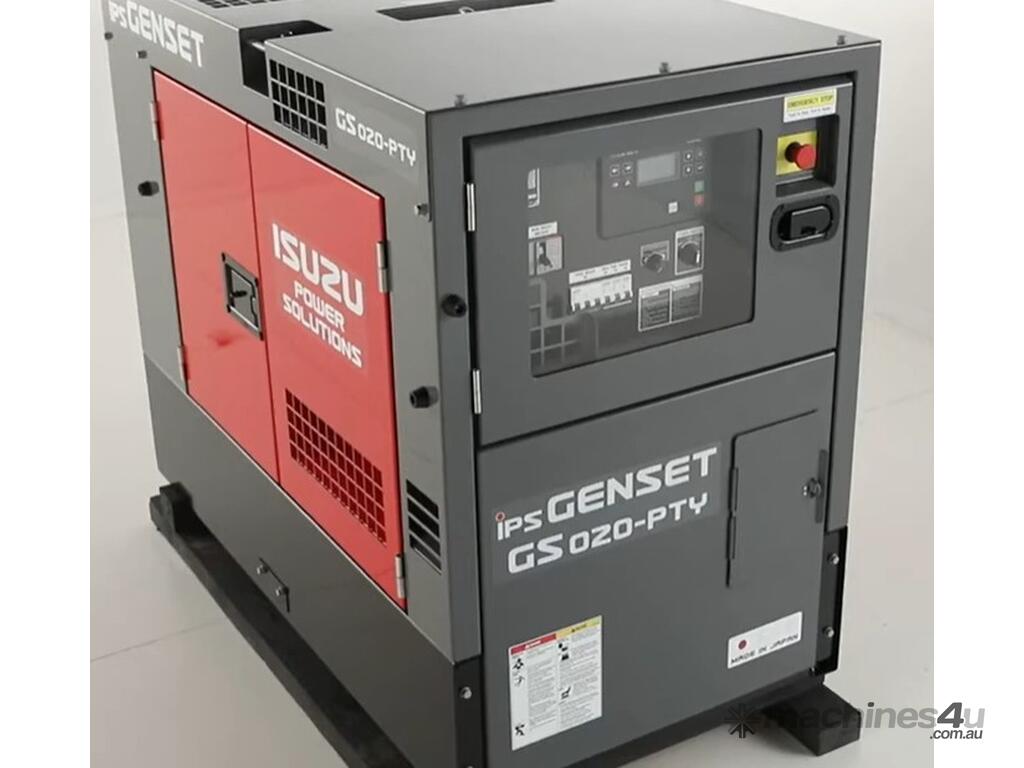

Generator Set GS020PTY
The Isuzu 20KVA Genset
is a reliable source of
power for those who
never stop. No matter
what. This durable,
all-weather generator
includes new sound
suppression technology
and a unique enclosure
design that significantly
reduces engine noise.

UNIT
Rated Output: 20 kVA / 16 kWe (Prime)
Rated Voltage /
Frequency: 415 VAC / 50 Hz
Engine: Isuzu 4LE1
Emission Rating: Interim Tier-4 / Stage-IIIA
Fuel Tank Capacity: 78 L
Sound Level dB(A) 7m: 51 dB(A)
Dimensions (L x W x H): 1440 x 780 x 1140 mm
Weight: 699 kg (dry)

FEATURES
Engine and alternator safety devices
Lockable large maintenance doors
Easy access to service items
External oil drain, coolant drain and fuel drain ports
Emergency stop, adjustable voltage regulator, battery isolator
Power switch / air bleeding system
Australian receptacles: 1 x 415V 20A (3PH), 3 x 240V 15A (1PH)
Earth leakage circuit breakers
ComAp MRS16 generator controller
Medium duty air cleaner with restriction indicator
Internal / external fuel supply switching
Complete fuel filtration with water separation
Central lifting point
Low fuel consumption, low maintenance
Manufactured in Japan for Australian conditions
Premium quality silent canopy

GENERATOR
Rated Output: 20 kVA / 16 kWe (Prime)
Rated Voltage / Frequency: 415 VAC / 50 Hz
Rated Current / Power Factor: 27.8 / 0.80
Alternator: Rotating Field, Brushless 3-Phase
Synchronous Alternator, 4-Pole
Winding / Insulation Class: 3-Phase, 4-Wire / F
Excitation: Self Excitation (Brushless)

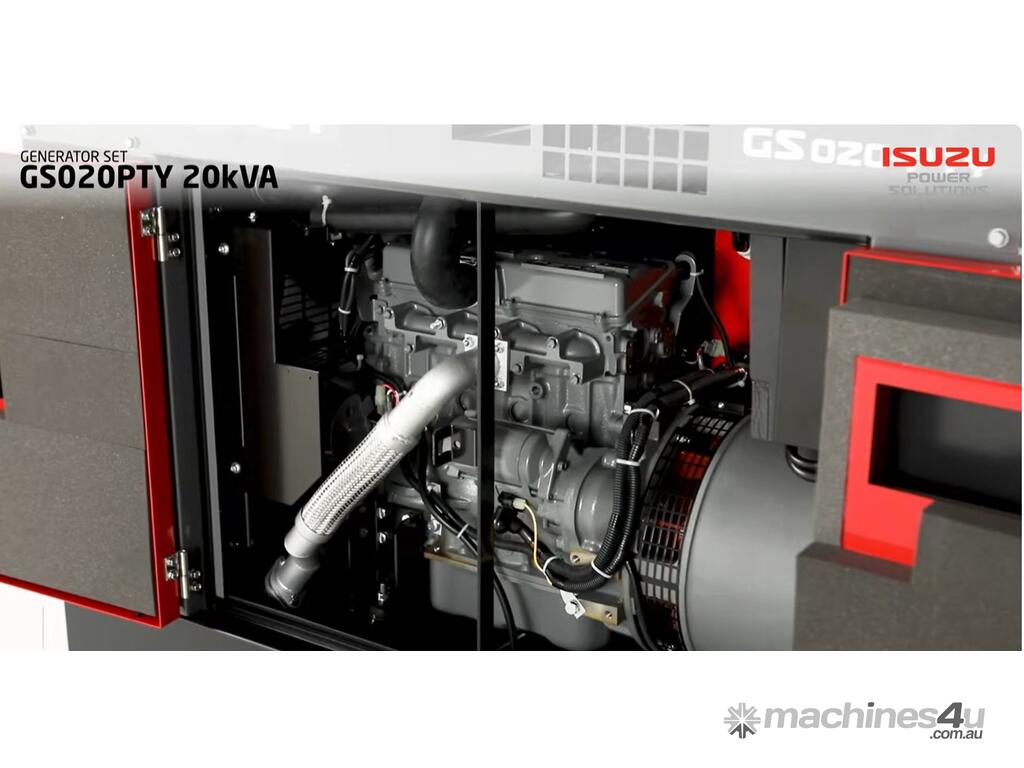

ENGINE
Type: Water Cooled, 4-Cycle Diesel Engine
Model / No. of Cylinders: Isuzu 4LE1 / 4
Displacement: 2.2 L
Continuous Rated Output: 19.1 kW 1500 RPM
Combustion System: Swirl Chambered Indirect Injection,
Naturally Aspirated
Emission Rating: Interim Tier-4 / Stage-IIIA
Cooling Method: Radiator
Cooling Water Volume: 8.2 L (50-50% Water-Glycol)
Lubricating Method: Forced Lubrication
Lubricant Volume: 8.8 L
Fuel: Diesel Fuel (ASTM No. 2-D) only
Fuel Consumption 100% Load: 5.2 L/hour (approx.)
Starting Method: Electric Start
Starter Motor Capacity: 12 V – 2.0 kW
Charging Alternator Capacity: 12 V – 20 A
Battery / Battery Isolator: 75D31R / 1-Pole

DESIGN

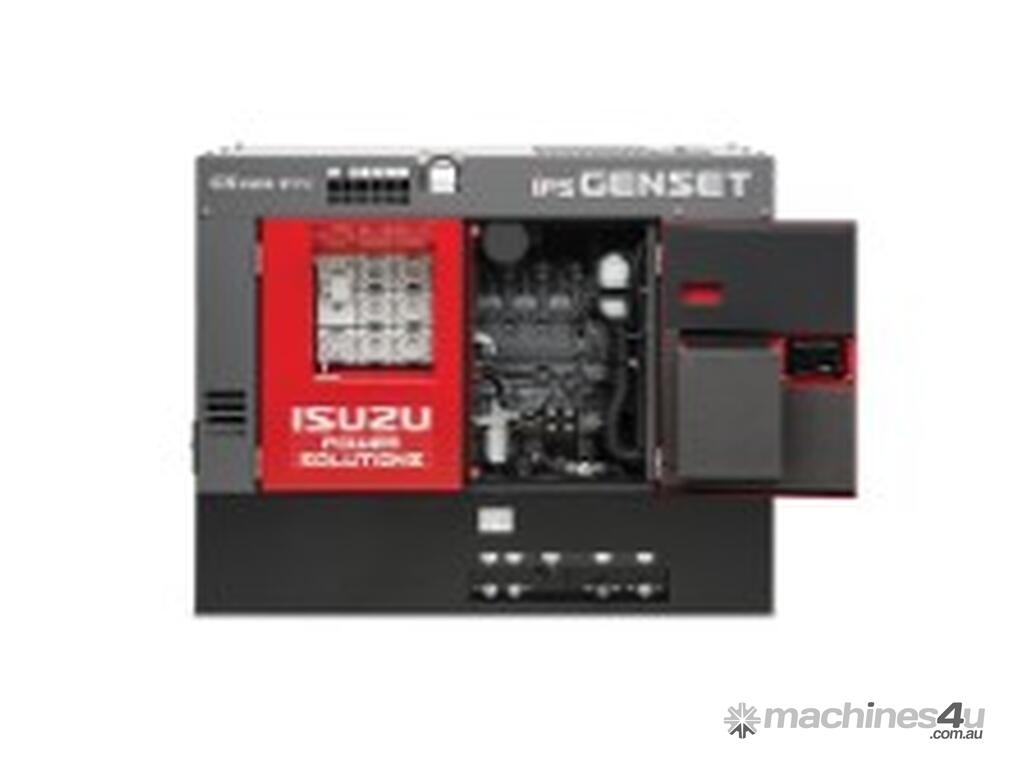

Lockable, large maintenance doors

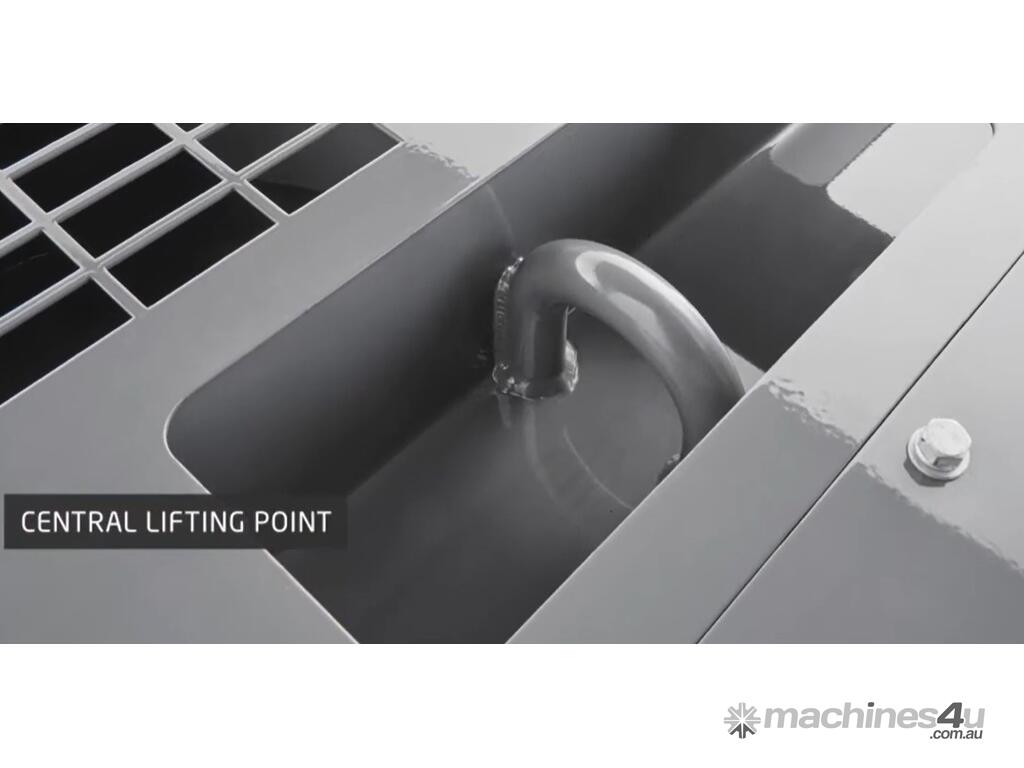

Central lifting point
Easy access to service items
External oil drain, coolant drain and fuel drain ports
Emergency stop, adjustable voltage regulator, battery isolator
Power switch / air bleeding system
Medium duty air cleaner with restriction indicator
Internal / external fuel supply switching
Complete fuel filtration with water separation

SPECIFICATIONS
KEY BENEFITS
GS 020-pty

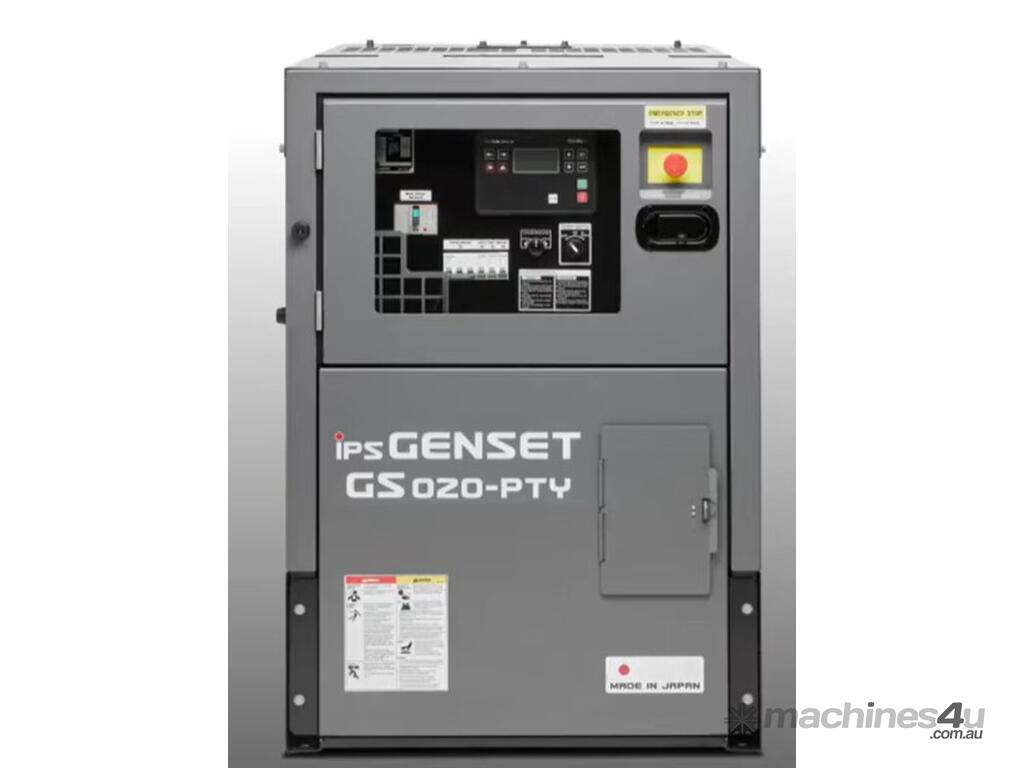

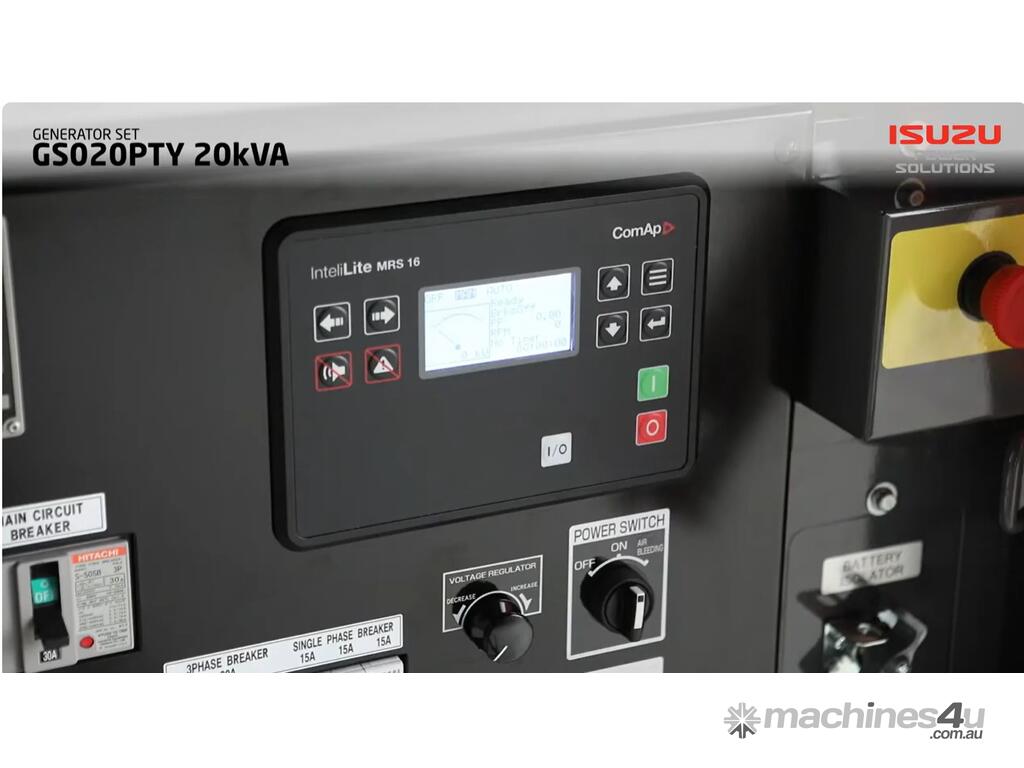

CONTROL PANEL
Premium ComAp InteliLite MRS16 Generator Controller
Manual and Remote Start Applications
Complete Generator Set Monitoring and Protection
True Voltage RMS Measurement, 3-Phase Power Measurement
Load shedding, dummy load capability
PLC programmable
Detailed Event and Performance Log
Fuel Theft Protection and Fuel Level Monitoring
