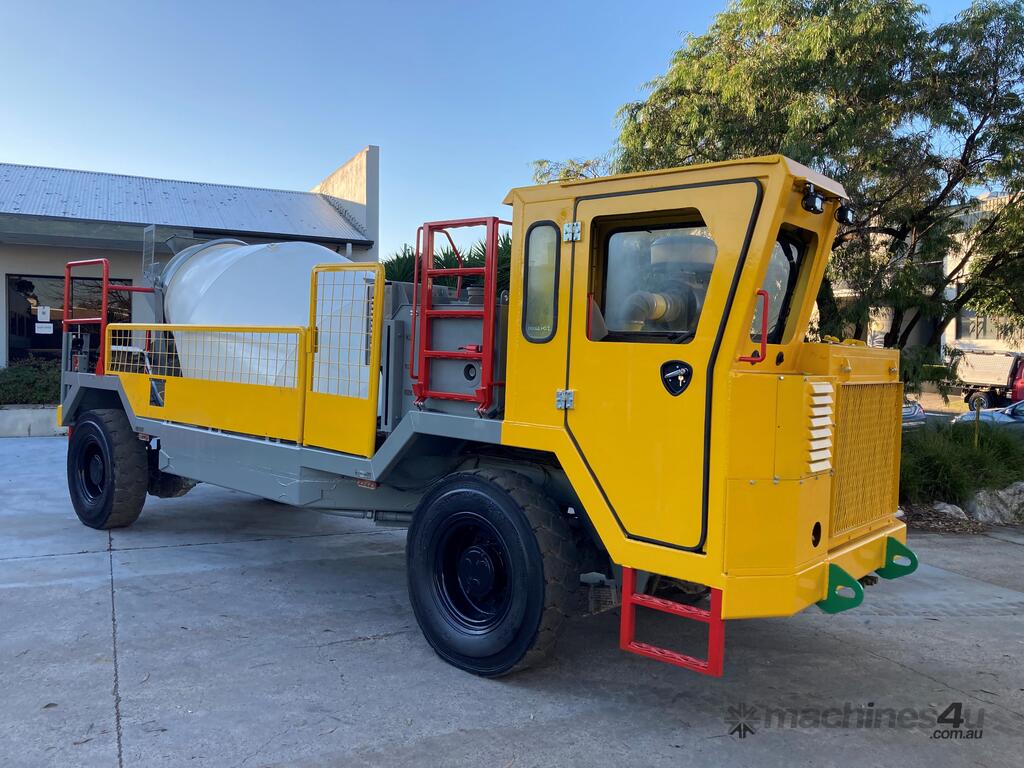

Used jacon Concrete Trucks for sale - JACON TRANSMIX 5000

TECHNICAL SPECIFICATIONS
SERIAL NUMBER: TMX-5055 & TMX-5054
DATE OF MANUFACTURE: 2008 - Refurbished 2022
CURRENT ENGINE HOURS: 1457.6

CARRIER:

• Mercedes 906LA Diesel engine rated at 205 KW 2500 RPM
• Dana LSD steering axle’s front and rear. Four Wheel Hydrostatic Steering.
• Hydraulically applied four wheel internal wet disc brakes. SAHR Park Brakes
• 12.00 X 20, 20 ply tyres. Spare wheel.
• 25 kilometers per hour, fully loaded
• Full road lighting/warning strobe lights and Catalytic converter.
• Leaf Spring suspension.
• Dana steering axles front and back.
• Catalytic converter
• Full operating controls from front and rear cabins.
• Fire suppression system.
• Rear Driving cabin with full controls
• Rear View Camera
• Enclosed front Cabin with Air Conditioning

MIXER:

• Rear control for mixer drum.
• Water pump and 100 litres capacity water tank.
• 5.0 cubic meter capacity, double spiral blades, capable of batch mixing.
Low Voltage Specifications:
• 24 Volt – Compliant to AS4242
• Amber Strobe via isolation switch.
• Isolation switch – engine to shut down
• Park brake test system
• CAT jump start receptacle

DIMENSIONS & OPERATING WEIGHTS:
• Height = 2.65M
• Width = 2.1M
• Overall length = 8.2M
• Operating Weight = 21.6T Tare Weight = 9.6t
• Turning Radius information: Outer Radius = 11m
