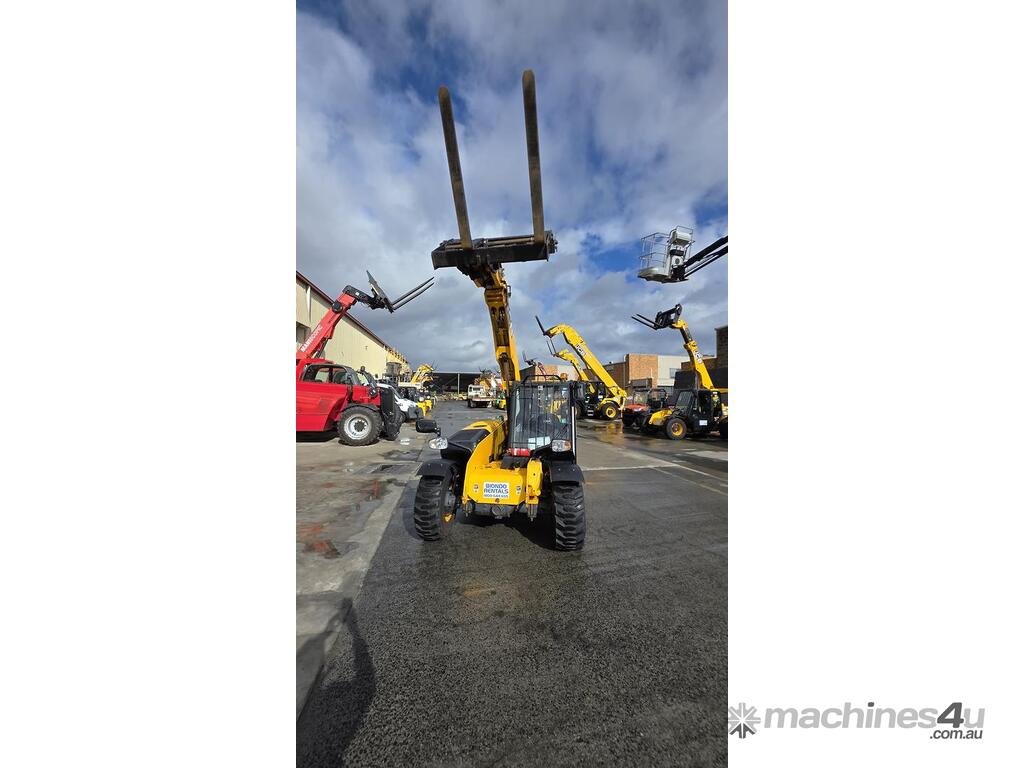

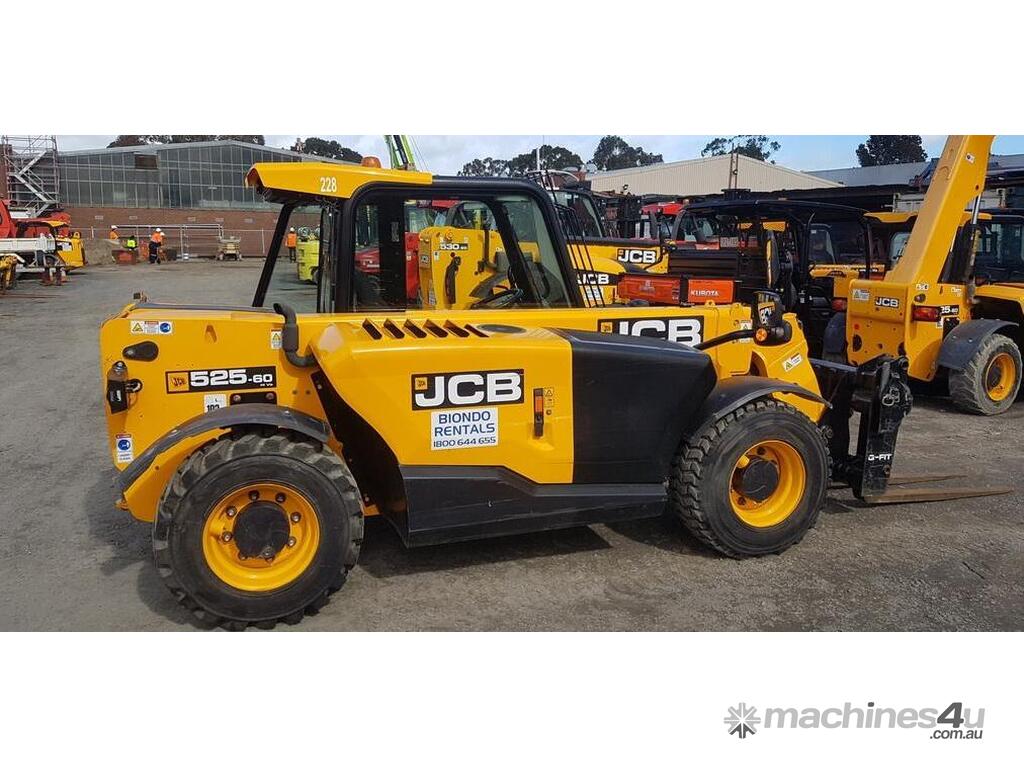

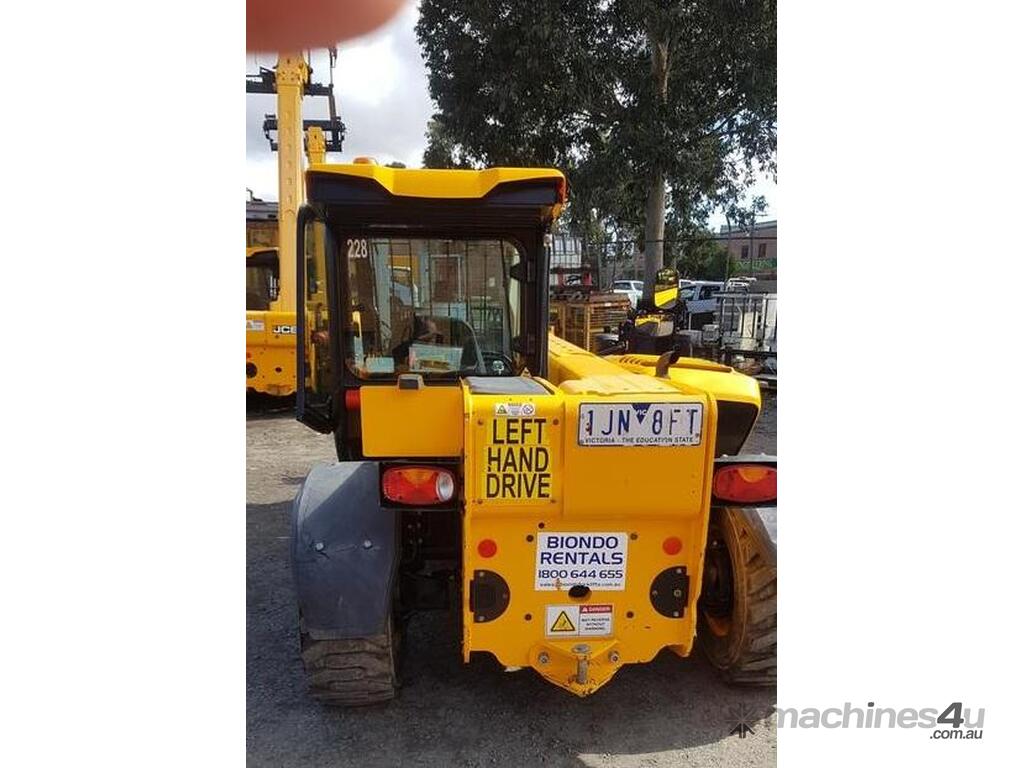

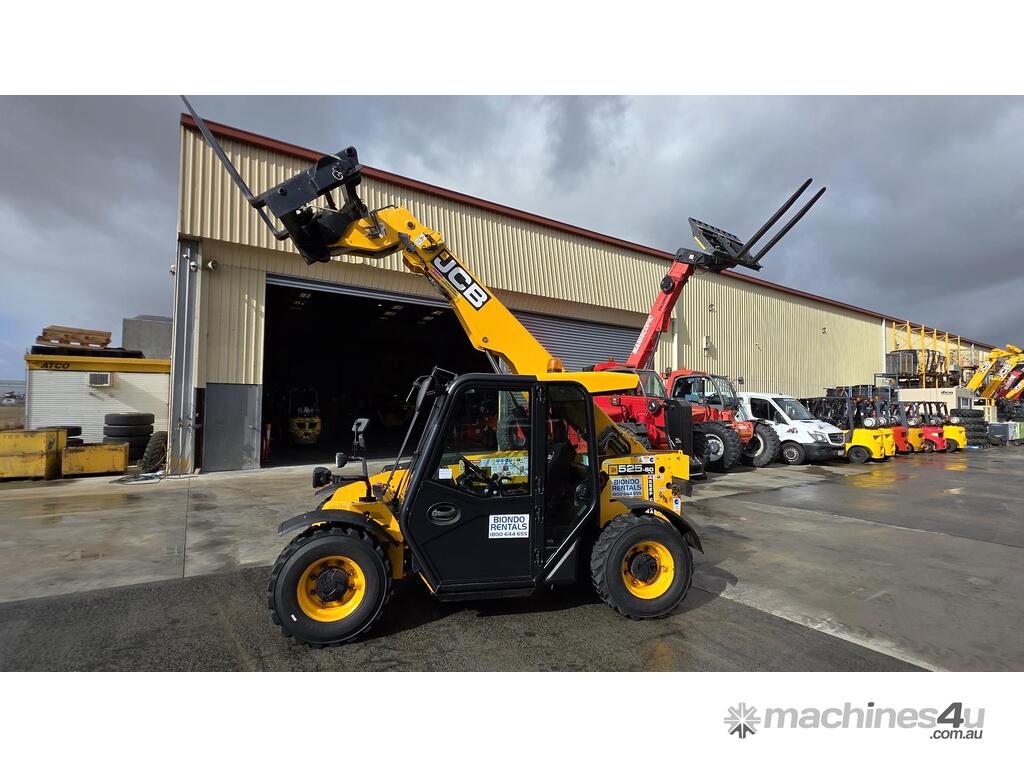

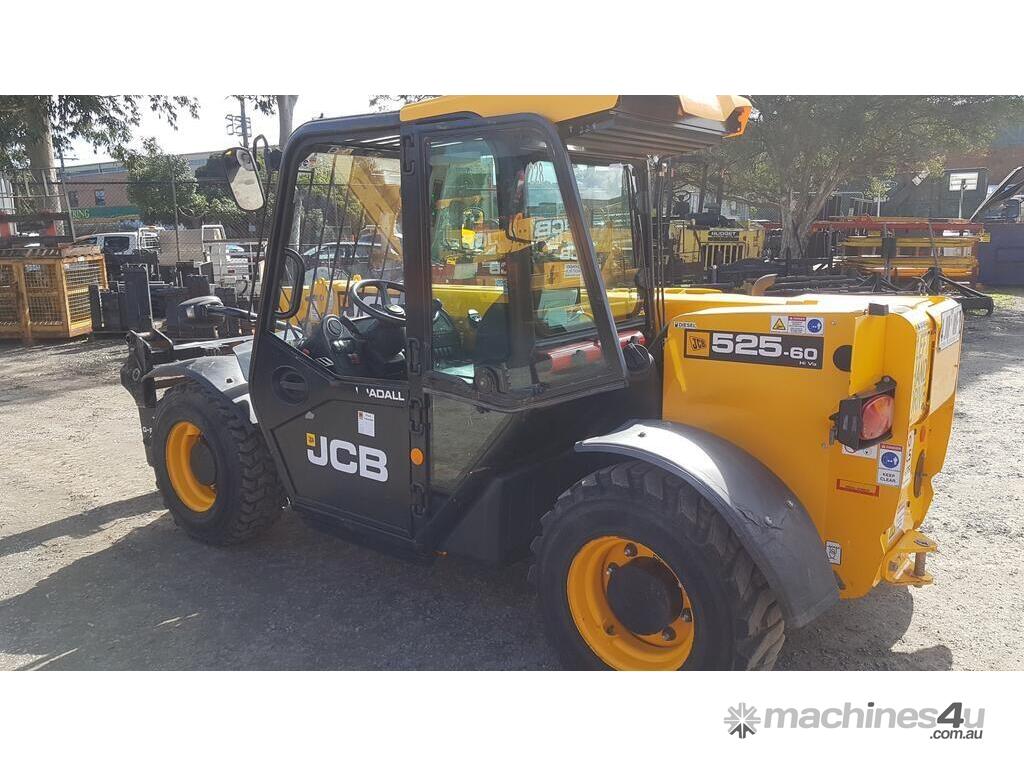

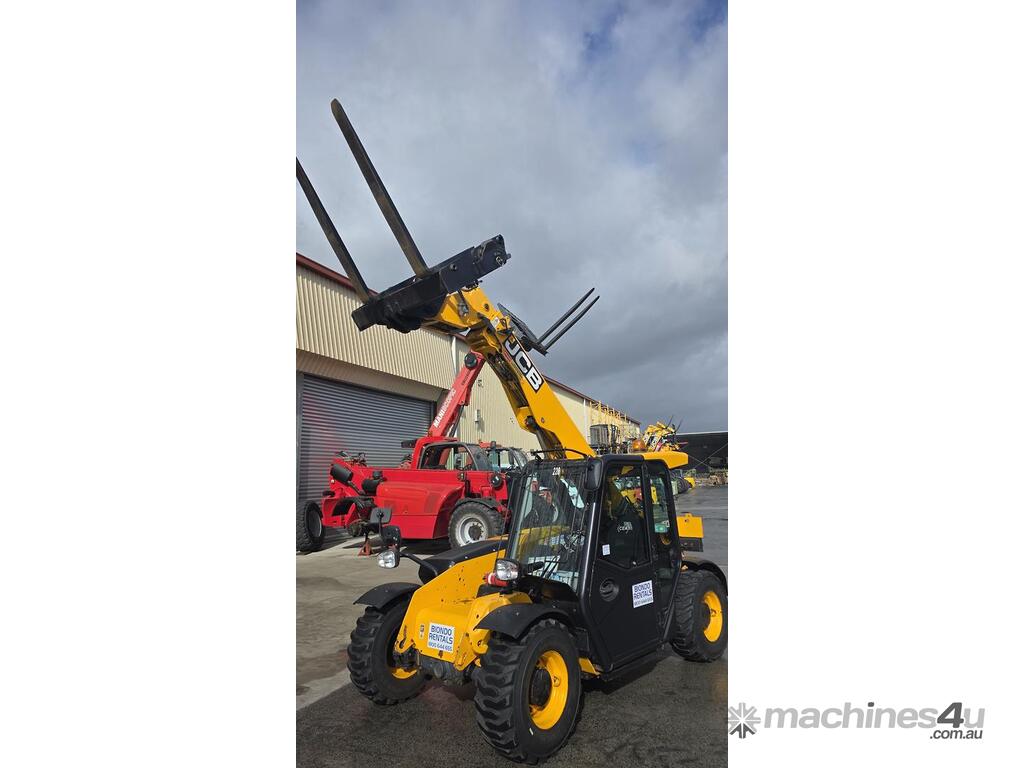

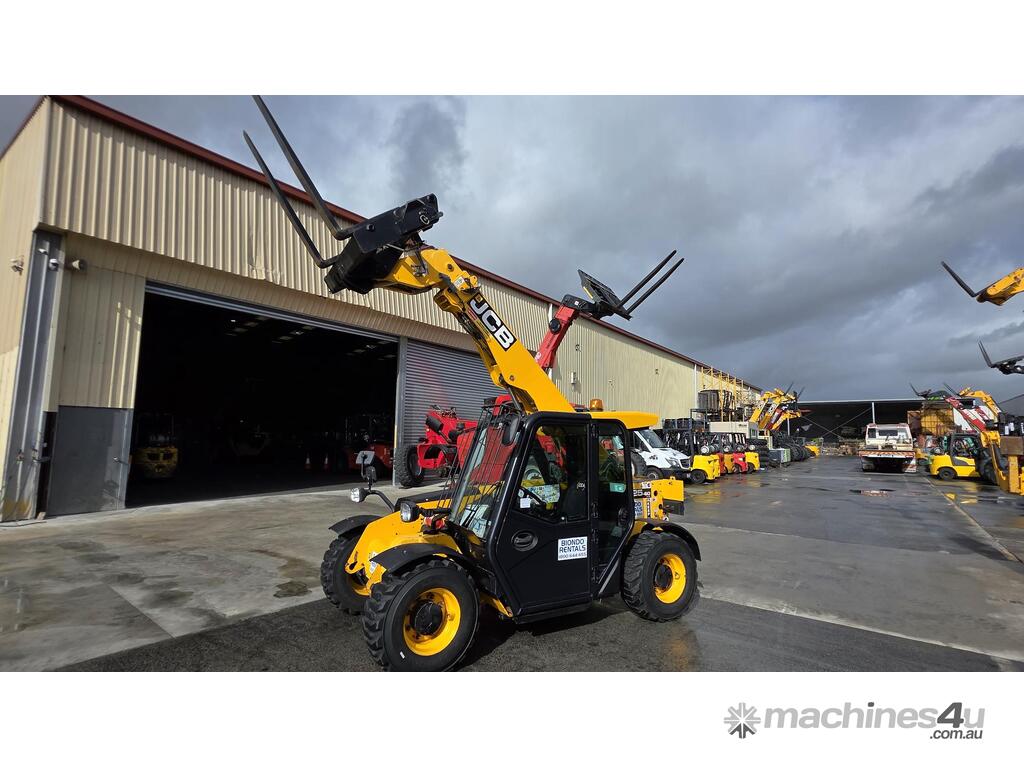

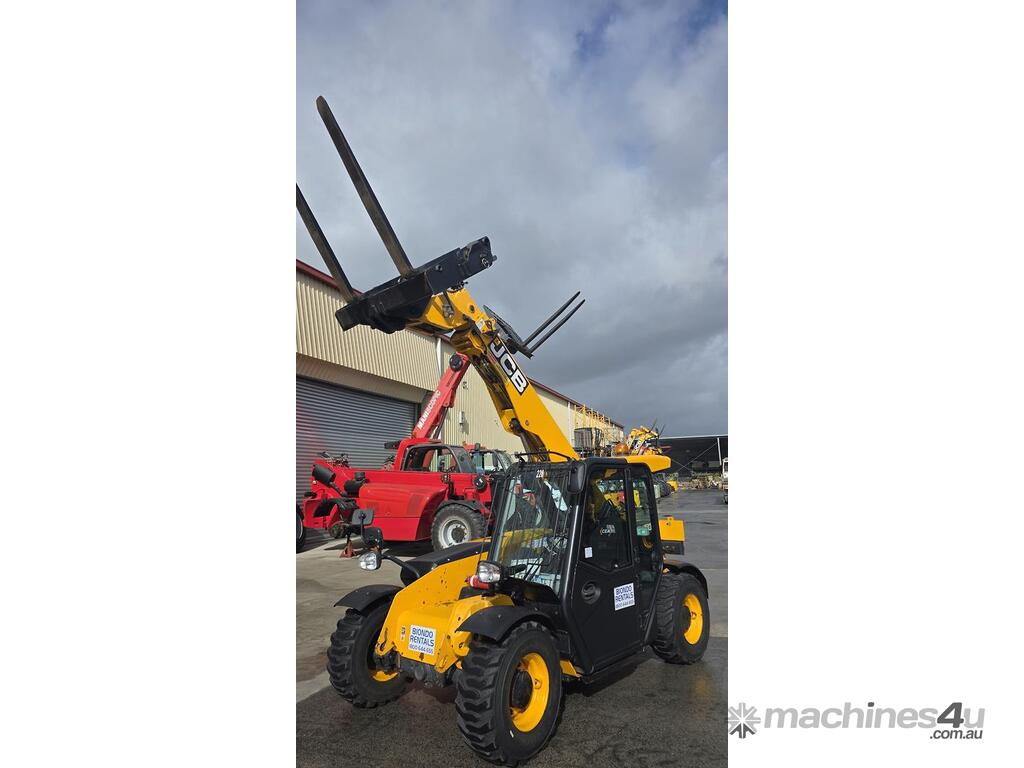

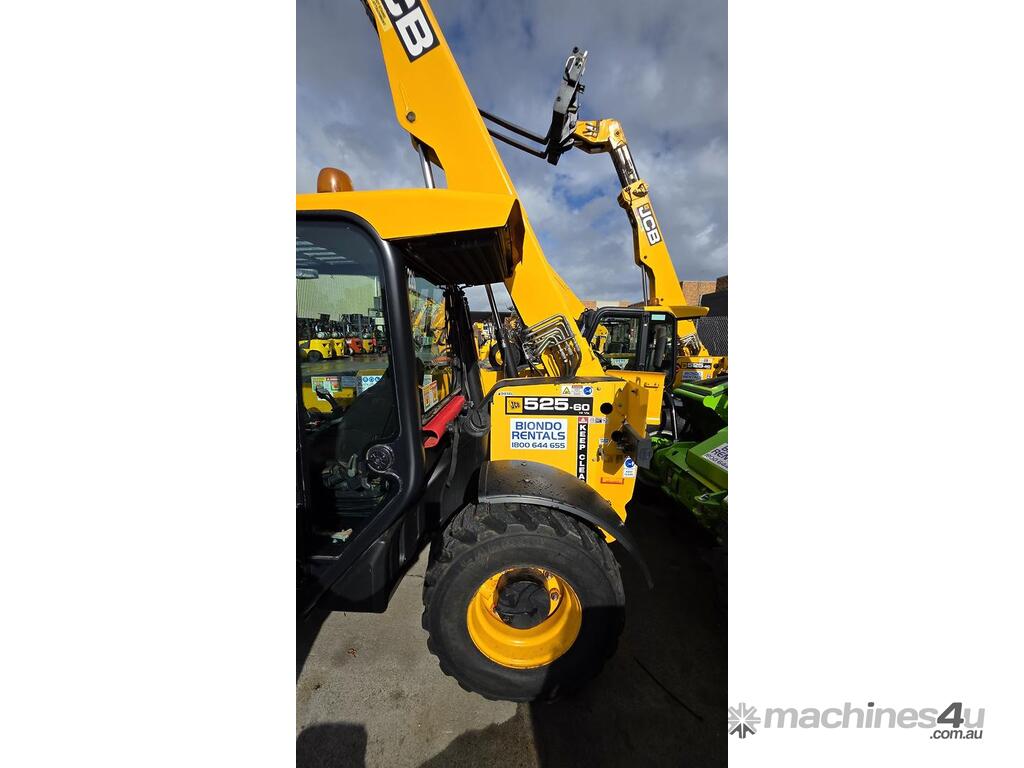

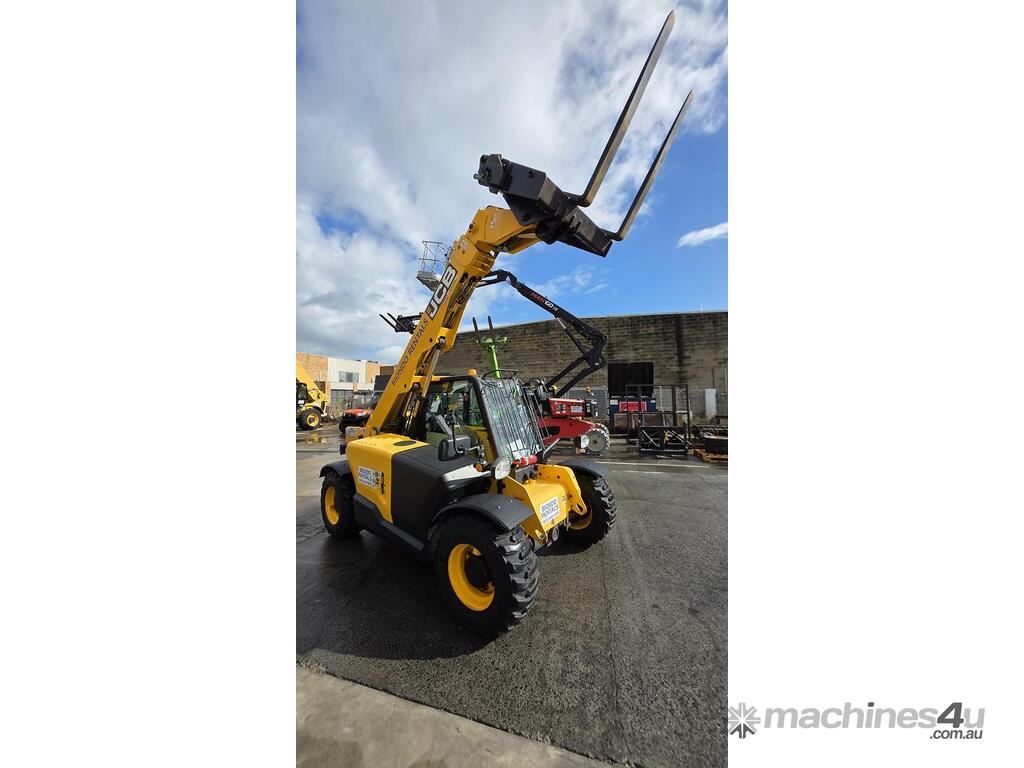

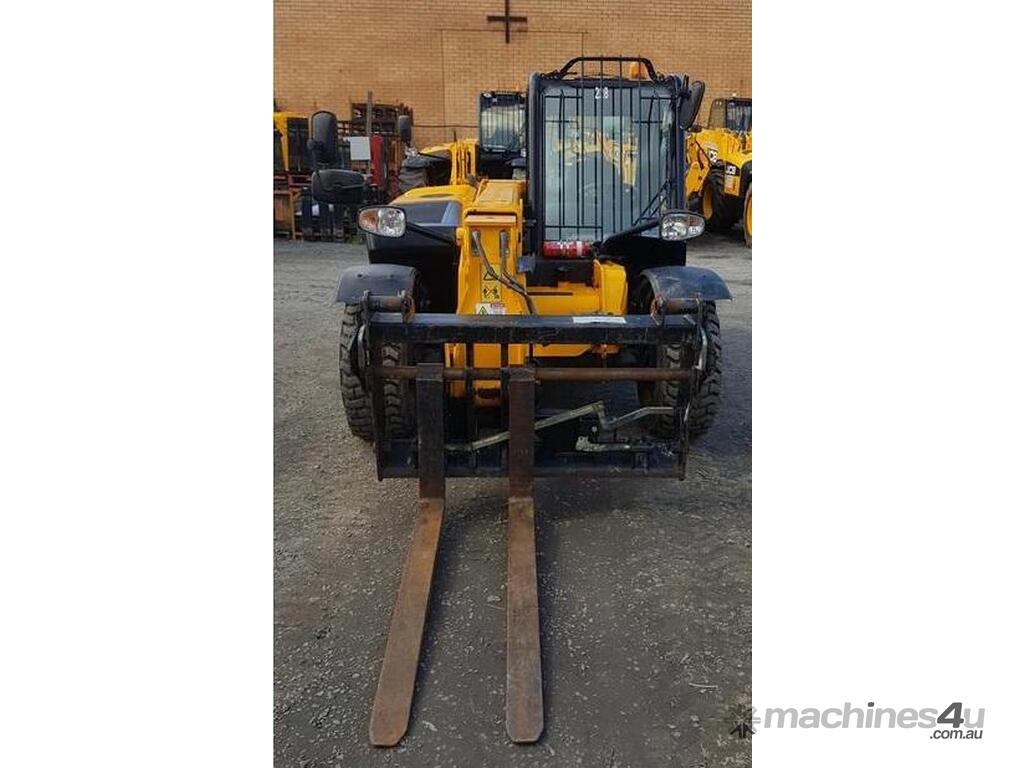

JCB 525-60 Hi Viz
Compact Telehandler for Farms, Yards and Construction Sites
The JCB 525-60 Hi Viz is a compact, highly manoeuvrable telehandler designed to lift, carry and place materials efficiently on farms, worksites and industrial yards. Its narrow footprint and strong lift performance make it ideal for operators who need big capability in tight spaces.
Key Performance Features:
Maximum lift capacity of 2,500 kg, giving strong handling for pallets, bulk bags, produce, feed and building materials.
1,750 kg lifting capacity at full 6 m lift height, maintaining strength when stacking or loading at height.
800 kg capacity at full forward reach, ideal for placing loads over obstacles or into trailers.
Reach and Height
6 m lift height for stacking bales, loading trucks or reaching into high racking.
3.5 m maximum forward reach from the front of the carriage, enabling accurate placement.
Compact Dimensions
1.84 m width for operating in narrow laneways, sheds and tight building sites.
1.89 m overall height, suitable for low doorways and enclosed storage areas.
3.7 m outside turning radius for efficient manoeuvring in confined areas.
Stability and Ground Handling
Machine weight of 5,490 kg for secure and stable lifting.

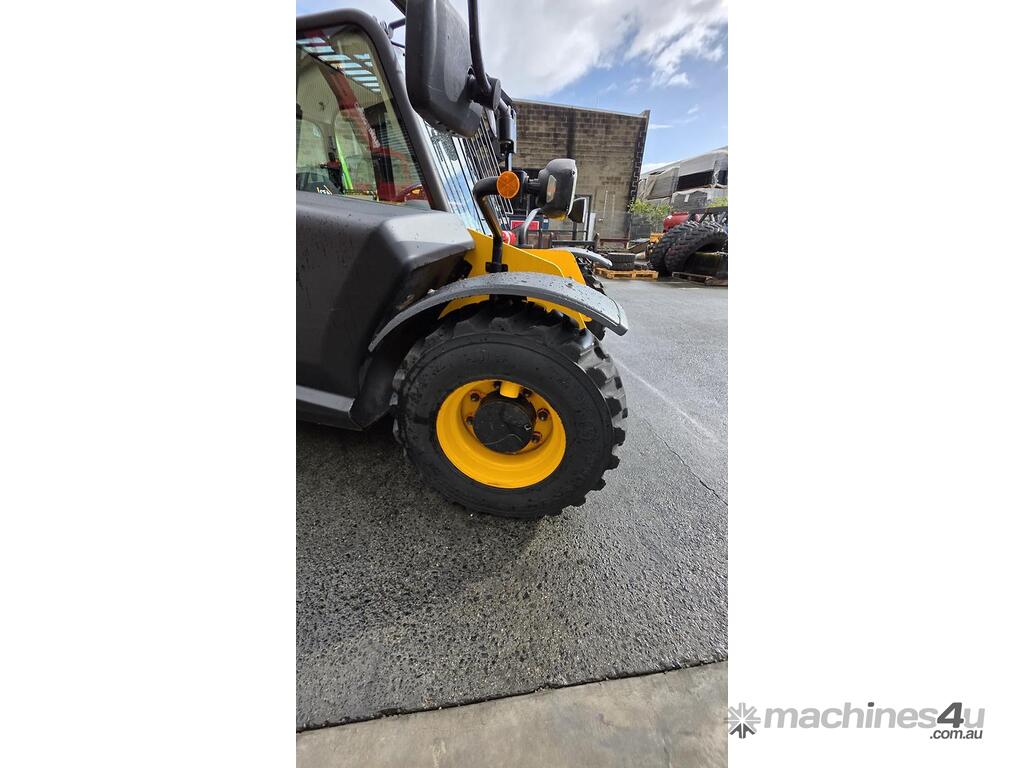

Fitted with 12x16.5 industrial tyres for traction across gravel, dirt, concrete and uneven surfaces.
Applications
The JCB 525-60 Hi Viz is suitable for:
Farm operations including bale stacking, feed loading and general material handling.
Construction and building sites for pallet movement, loading and on-site transport.
Warehouses and industrial yards needing strong lifting within restricted spaces.
Attachments Available
We can quote a full range of attachments for this model, including:
Pallet forks
GP buckets
Bale spears and grabs
Grapple buckets
Custom or industry-specific tools on request
Delivery Australia-Wide
