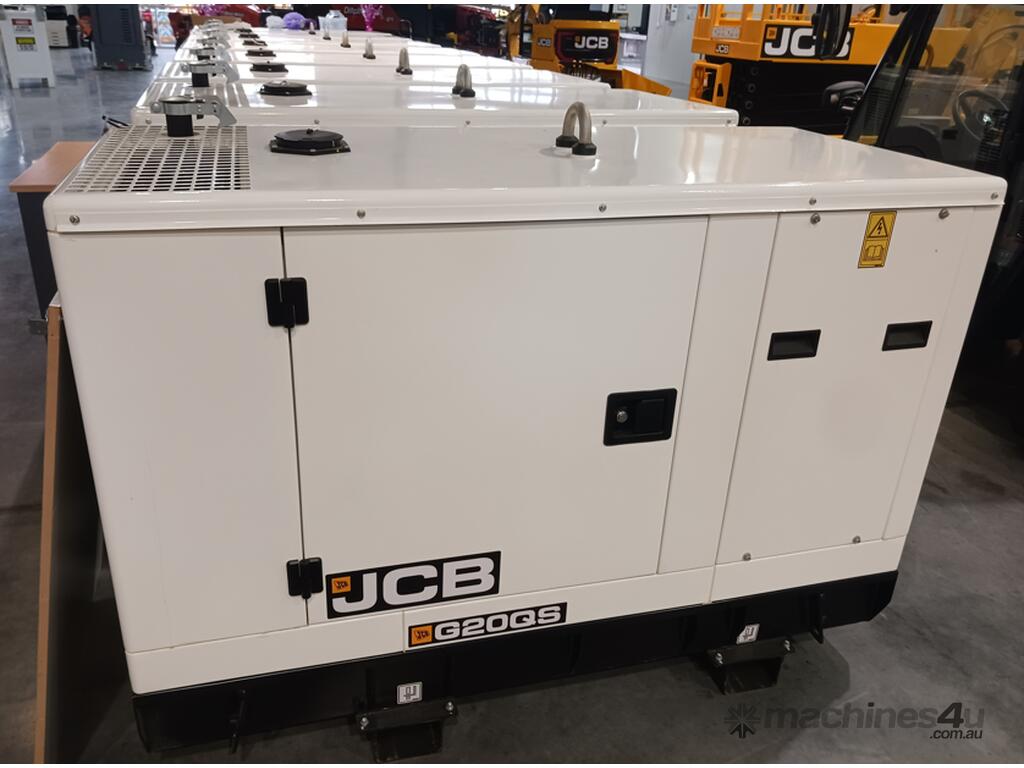

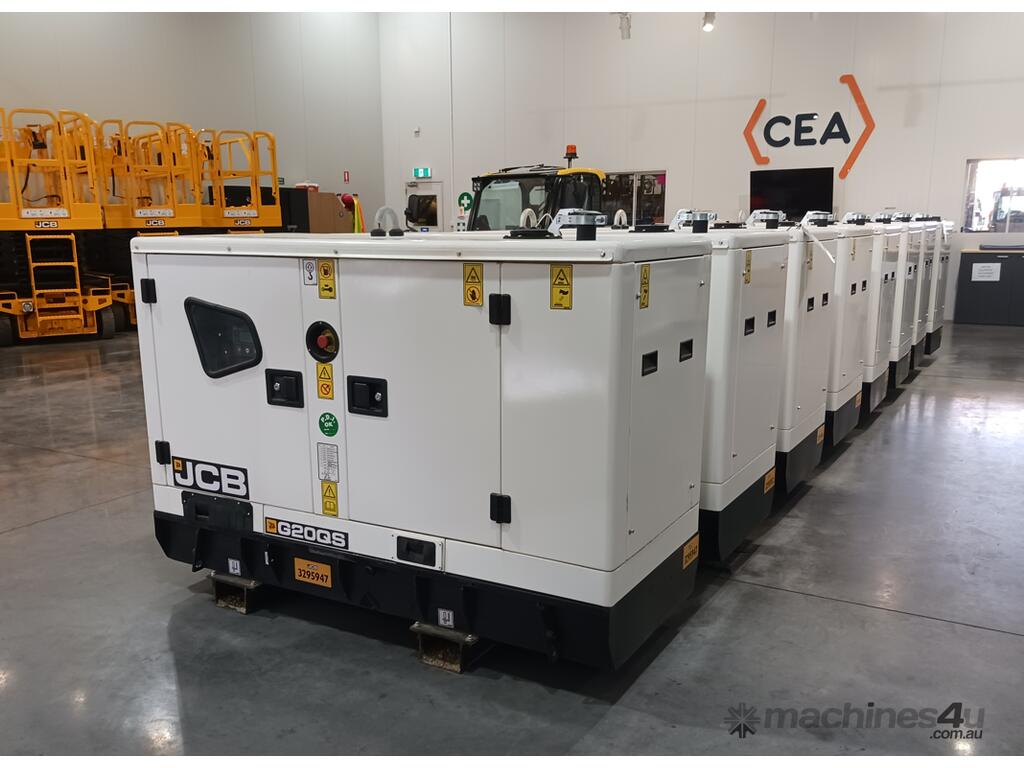

JCB G20QS 3-Phase Generator
JCB QS generator range offers reliable, efficient, and high performance.
Each generator boasts all the quality you’d expect from JCB, including innovative, efficient design, cutting edge and engine technology.
These generators are also backed by unrivalled service and support all over the world, as well as comprehensive warranty cover.
With a JCB generator you can be sure of generating power – and confidence – wherever you operate.
Key Specifications:
• Engine: JCB by Kohler KDI 1903M, Water Cooled, Naturally Aspirated Diesel
• Alternator: Mecc Alte ECP28-2L/4 (Winding protection grey)
• Power Output: Prime – 18.1 kVA (14.5 kW) | Standby – 19.9 kVA (16 kW)
• Controller: Deep Sea DSE-4520
• Voltage Control: AVR
• Governor: Mechanical
• Fuel Tank: 53L with lockable cap
• Fuel Connection: External valve for bulk tank integration
• Frame: 110% bunded base, galvanized steel (painted)
• Noise Level: 60 LpA 7m
• Safety Features: Earth leakage protection, external E-stop
• Dimensions: 1650mm x 650mm x 1200mm
• Net Weight: 590kg
