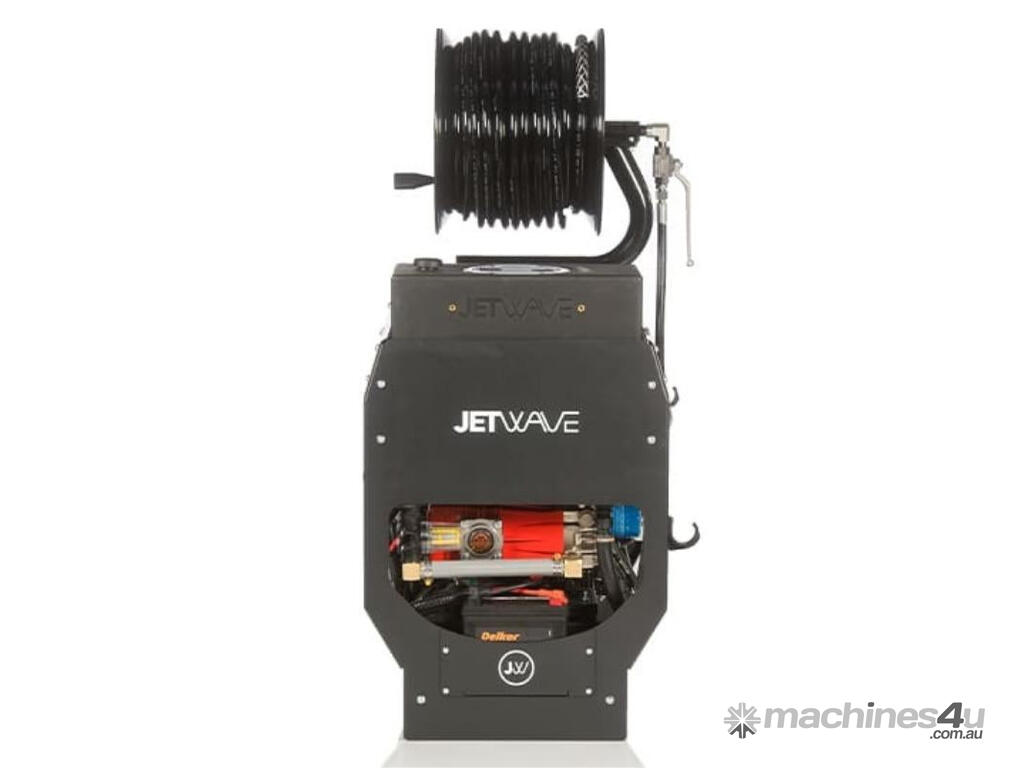

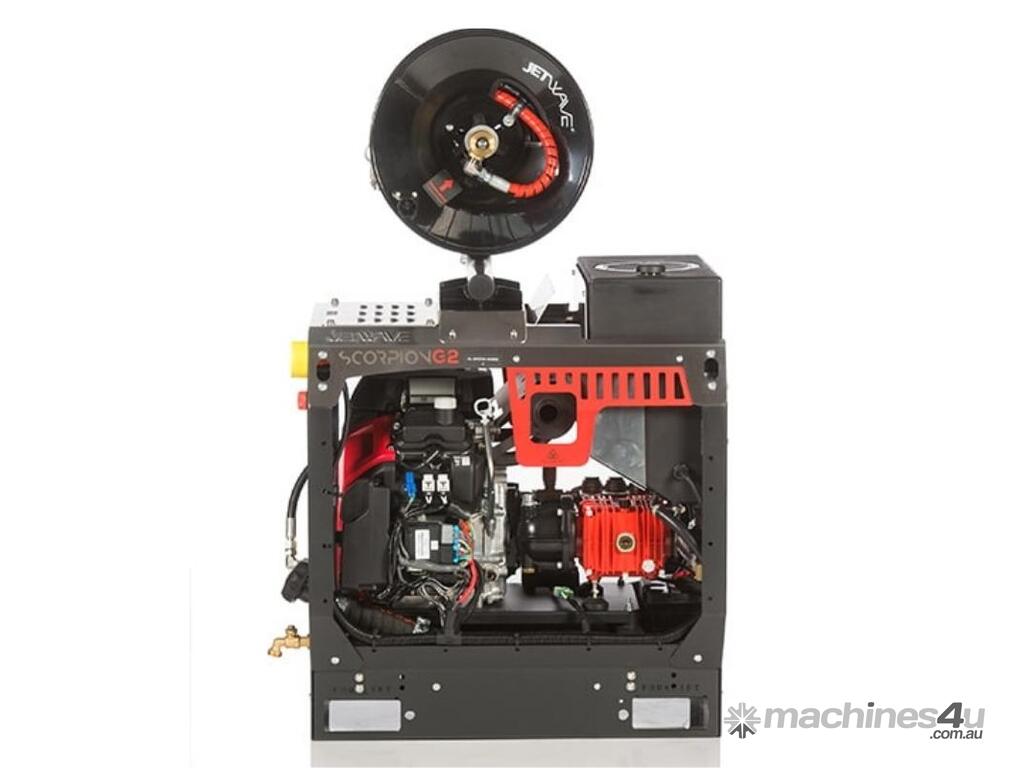

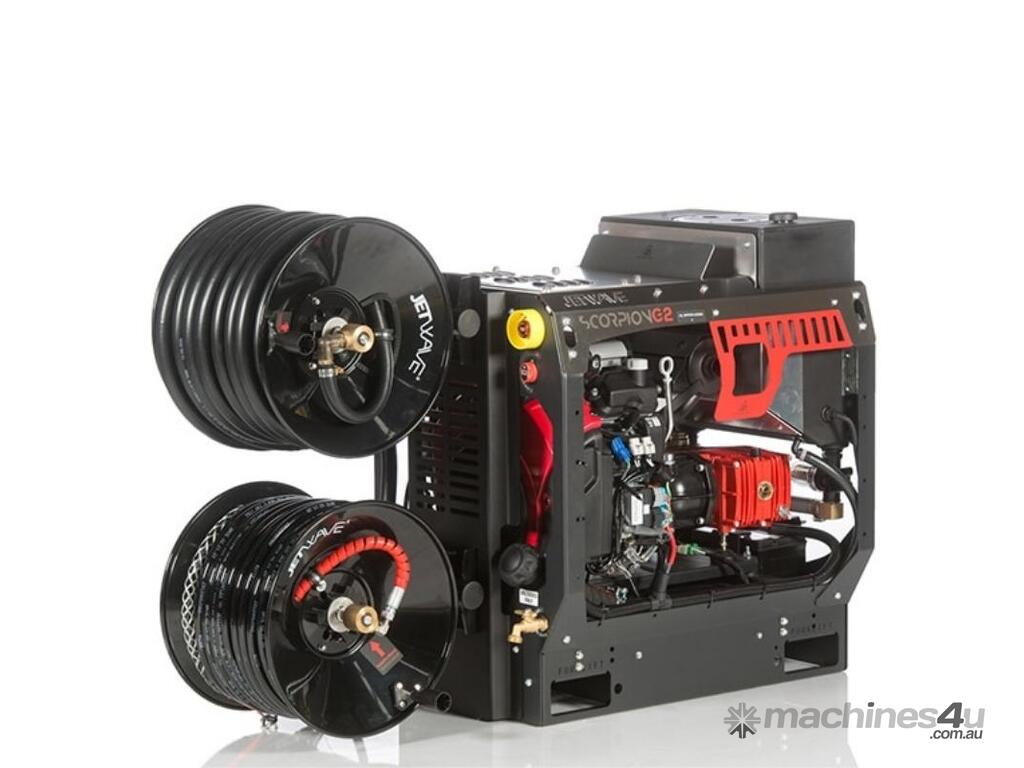

JETWAVE Scorpion G2 300- 4350PSI 26lpm Water Jetting System Drain Cleaner

Revolutionize the pressure washing game.

The Jetwave® Scorpion™ G2 heavy duty professional cold water petrol powered by HONDA™ drain cleaner is revolutionary in its design and innovation. Australian engineered and assembled using only the best quality Italian and global components; it offers world first cover protection to maximise efficiency safety and minimise downtime.

Standout Features

JW® Enhanced Italian triplex plunger pump running at 1450RPM delivers more performance and longer life.
Electric start Industrial V-Twin Honda™ GX690 Series Engine, with digital engine hour meter
Jetwave Safety System™ (JSS) thermal and safety valve to prevent overheating in excessive bypass and over pressurisation.
Seamless & sealed 40L on-board oversized water bypass tank with low level cut out, for unit water supply and pump protection.
Battery isolator
Emergency stop

Includes:
Spray down gun & lance
60m Hose reel w/ 60m 3/8" jetting hose & ball valve
IP68 Professional nozzle kit
Safety whip restraint

Intended Application:
Usage Frequency: 4 Hours Daily

Typical Application:
Municipality Contractors
State and Local Councils
Plumbing Businesses and Contractors
Tree Roots and Debris Removal
Grease, Sludge & Dirt Removal
Centralised Control
Front facing and panel mounted controls for easy accessibility to all controls and adjustment components that ensure that equipment delivers correctly and to adapt to your jetting job at hand in order to maximise blockage clearing efficiency, effectiveness and operator friendliness.

Multi-Configuration
Industry first customisable modular build with precision heavy gauge, steel chassis. Versatility for almost any mounting arrangement you can imagine.

Protection
The semi-enclosed industrial formed steel cover design provides enduring weather protection to the entire machine and importantly its critical working components in the harsh elements due to the unforgiving outdoor working conditions.

Skid Configuration with Top Lift Points
The skid design ensures the unit remains well planted at all times, preventing run-aways. For transportation the forklift pockets and top lift access provide safety and convenience.

Anti-Vibration Protection System
The AVPS (Anti-Vibration Protection System) contributes to a quieter performance. It has a heavy duty steel motor plate to separate vibration frequency created from the power plant via high duro rubber and enforced steel dampeners.

Features
Jetwave Safety System™ (JSS) thermal & safety valve to prevent overheating in excessive bypass and over pressurisation.
Integrated accessory storage for gun and lance.
Professional line accessories.
Stainless steel pressure gauge.
Brass adjustable unloader valve
Emergency Stop.
Forkift Pockets.
JW professional Italian triplex plunger pump delivers performance and longer life.
Low speed professional pump for increased reliability and longer maintenance intervals.
V-TWIN HONDA™ GX690 Industrial Series OHV Engine.
Dual M22 screw hose quick coupling system.
Heavy duty washable inlet water filter.
Battery Isolator.

TECHNICAL DATA
Pressure / Flow : 4350 PSI (300 BAR) / 26 LPM
Max Water Inlet Temp : 60°C
Clas (ASNZS: 4223) : B (7,800 Bar/Litres)
Usage Frequency : Professional: 4 Hours Daily
Nozzle Size : 65
Frame Structure : CNC Modular galvanised steel chassis plus satin powder coat finish and stainless steel cover

MOTOR FEATURES :
Engine / Power : Honda™ GX690 Electric Key Start (air cooled) 23HP / 690cc
Fuel Type / Capacity / Protection : Petrol / 25L (w/level gauge) / Low Oil Shutdown

HYDRAULIC FEATURES :
Pump / Head / Pistons : JW® Italian Triplex Plunger / Brass (Nickle Plated) / Ceramic
Motor Pump Coupling / Pump RPM : Gearbox Drive / 1450RPM
Unloader Valve : Independent
Safety Valve : Yes

DIMENSIONS & WEIGHT :
Machine Dimensions / Weight : Skid: 800mm(L) x 550mm(W) x 1390mm(H) / 195KG (approx.)
