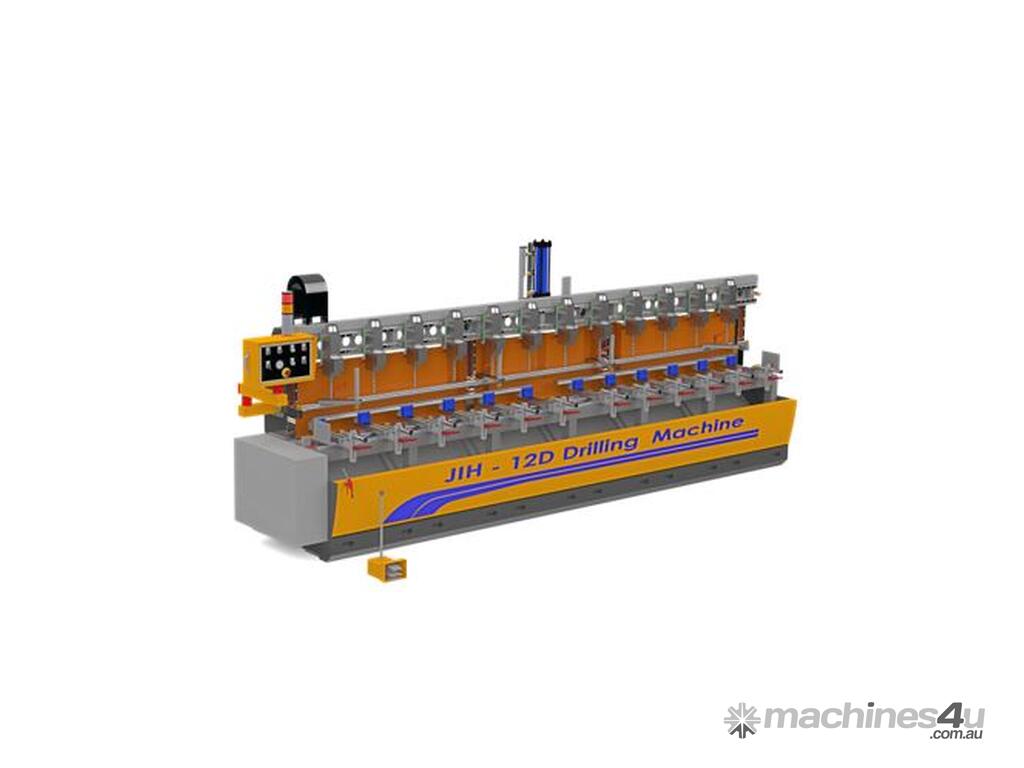

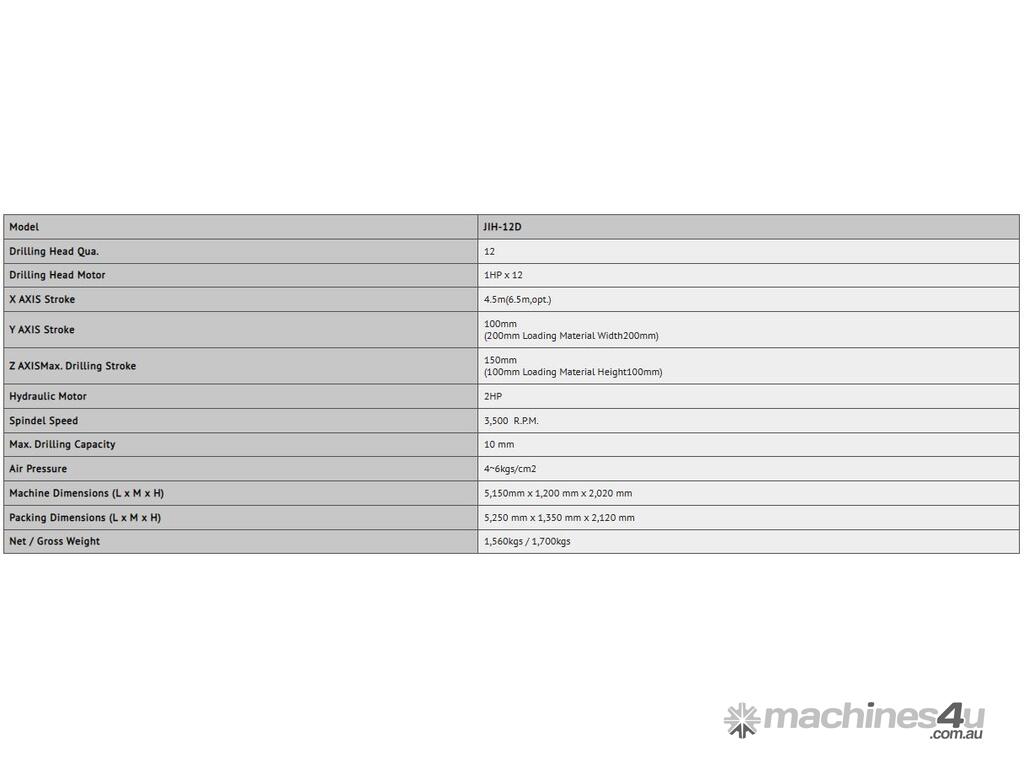

Model JIH-12D
Drilling Head Qua. 12
Drilling Head Motor 1HP x 12
X AXIS Stroke 4.5m(6.5m,opt.)
Y AXIS Stroke 100mm
(200mm Loading Material Width200mm)
Z AXISMax. Drilling Stroke 150mm
(100mm Loading Material Height100mm)
Hydraulic Motor 2HP
Spindel Speed 3,500 R.P.M.
Max. Drilling Capacity 10 mm
Air Pressure 4~6kgs/cm2
Machine Dimensions (L x M x H) 5,150mm x 1,200 mm x 2,020 mm
Packing Dimensions (L x M x H) 5,250 mm x 1,350 mm x 2,120 mm
Net / Gross Weight 1,560kgs / 1,700kgs
