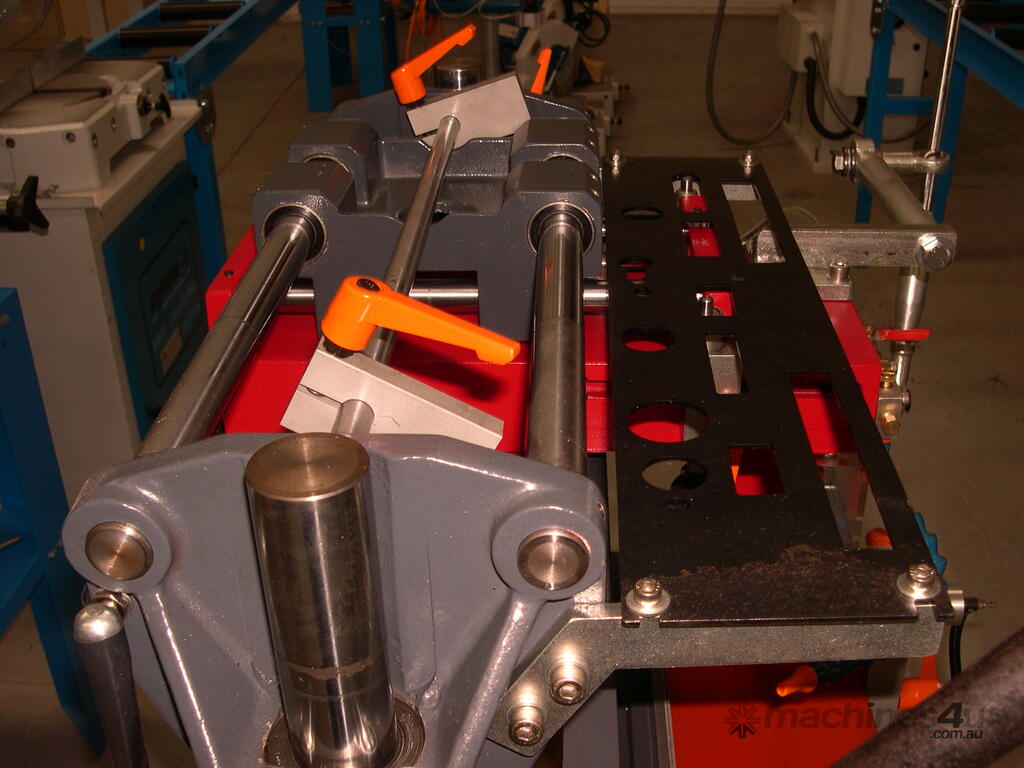

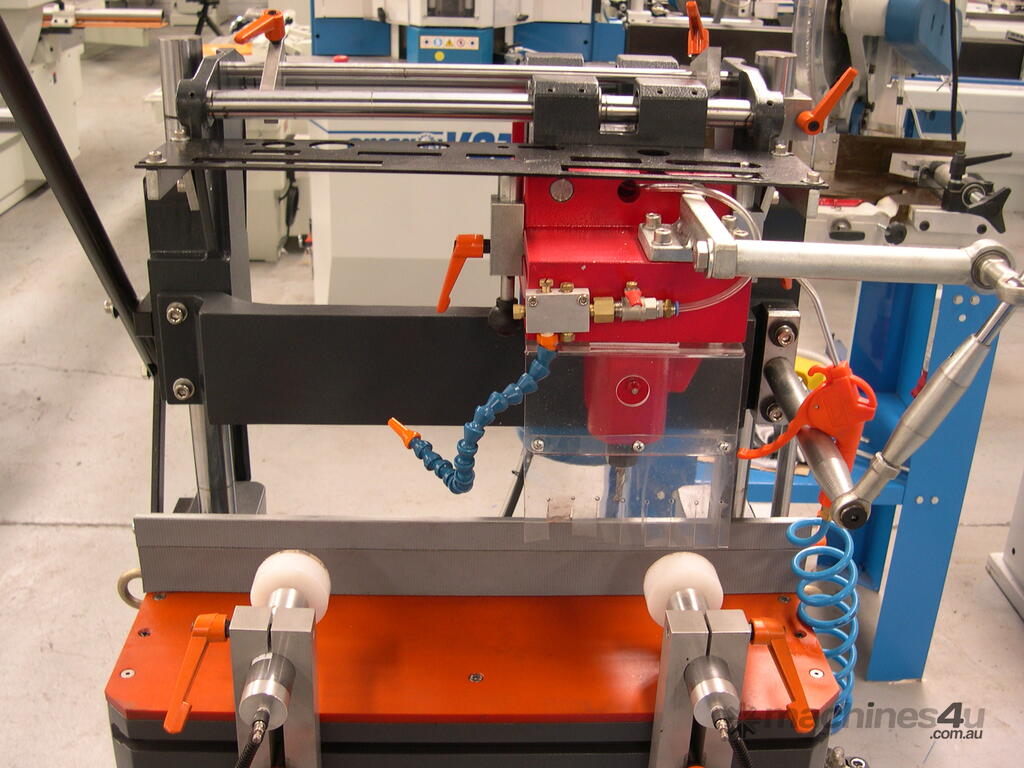

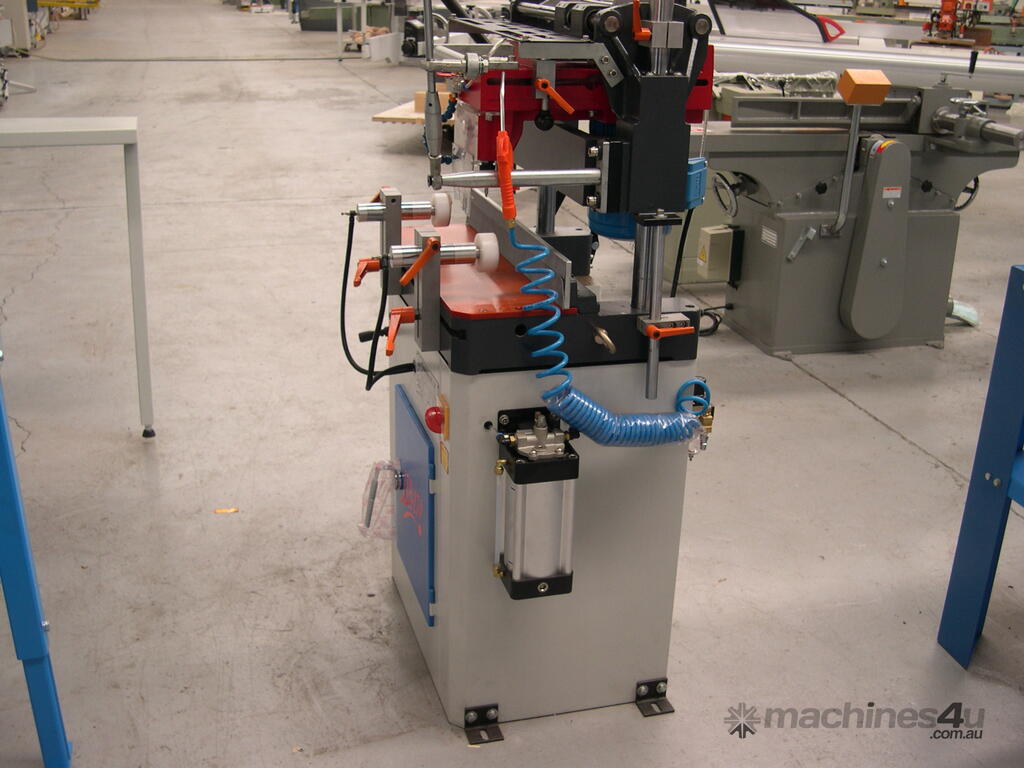

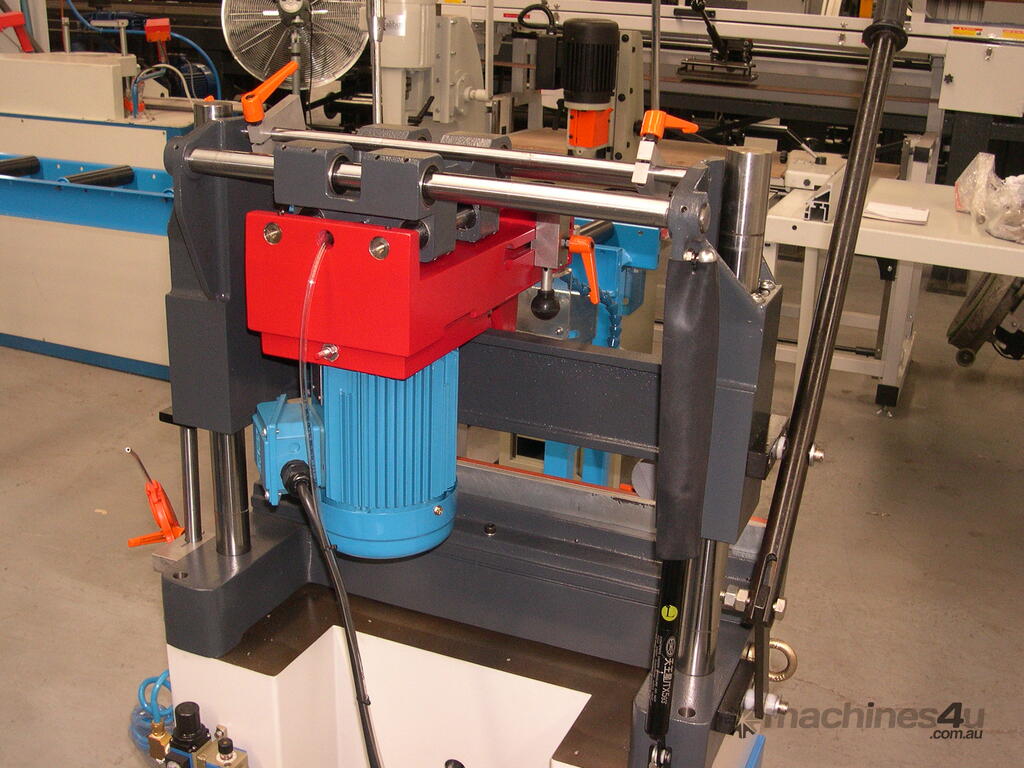

Manually operated copy milling machine designed to follow metal templates to quickly cut profiles in aluminium, timber and composite sections. Includes oil mist system for tool bit lubrication & cooling.
JIH-170
Longitudinal travel 210 mm
Cross travel 120 mm
Vertical travel 90 mm
Table area 630 x 180 mm
Air pressure 6 kg/cm³
Spindle speed 12,000 rpm
Chuck size 6, 8, 10 mm (opt.)
Table height 815 mm
Motor 1hp, 240V
Dimensions (L x W x H ) 780 x 630 x 1660 mm
Net / gross weight 156 / 200 kg
