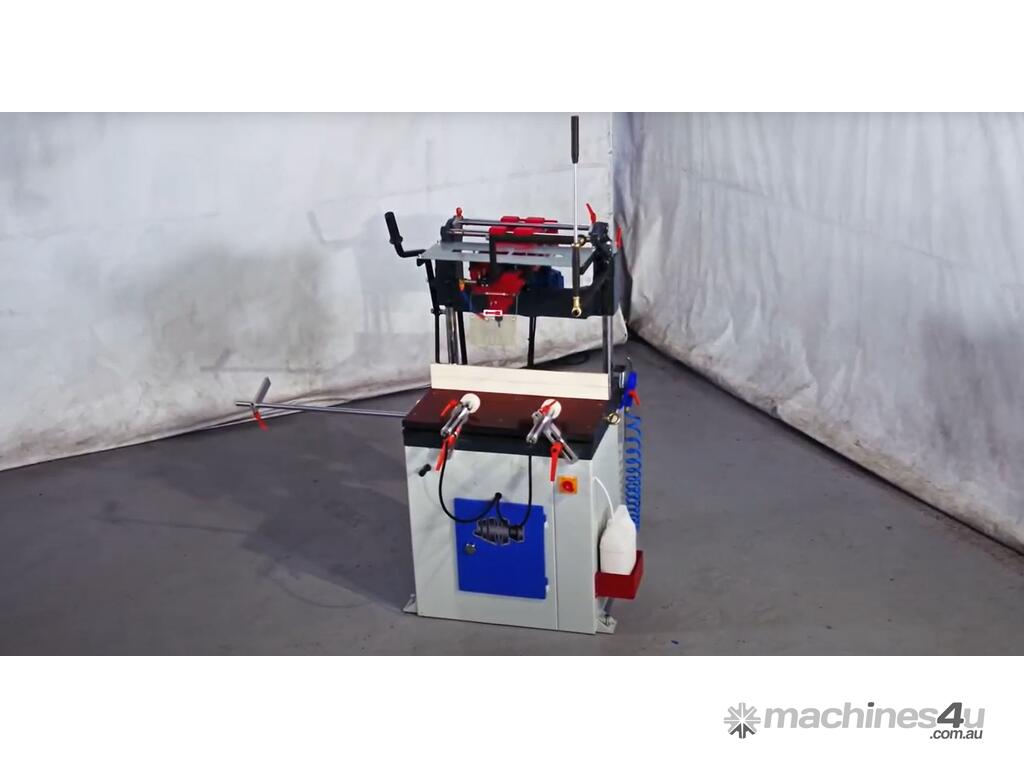

Features

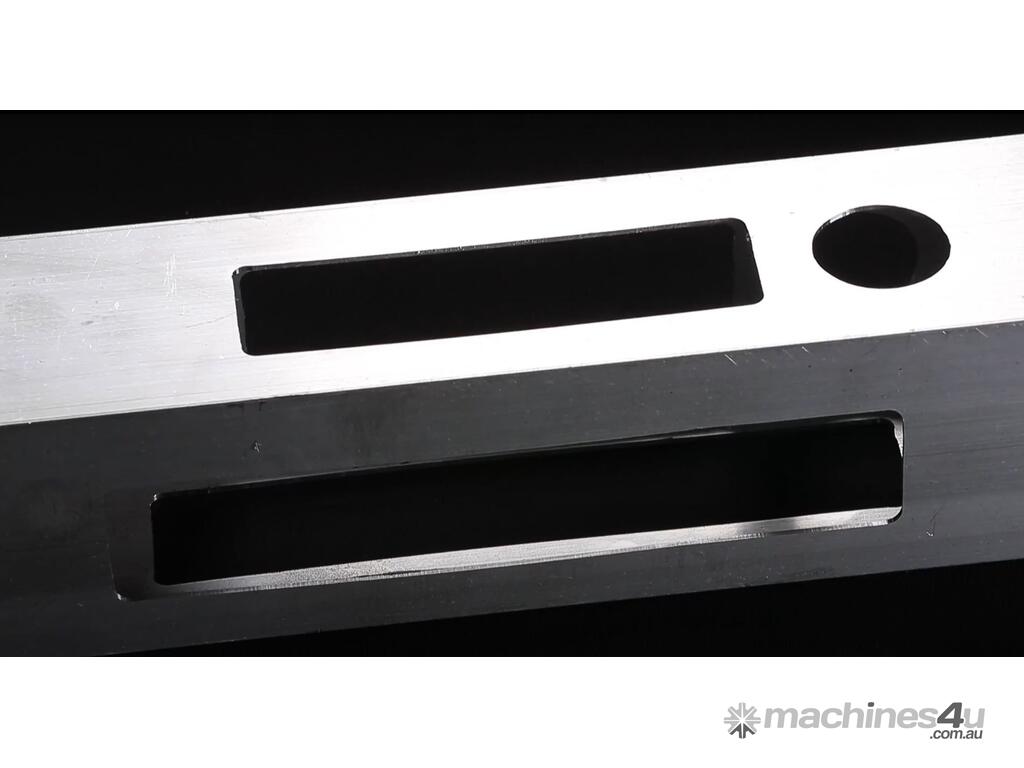

- Designed for irregular milling on irregular aluminum door and window frame.

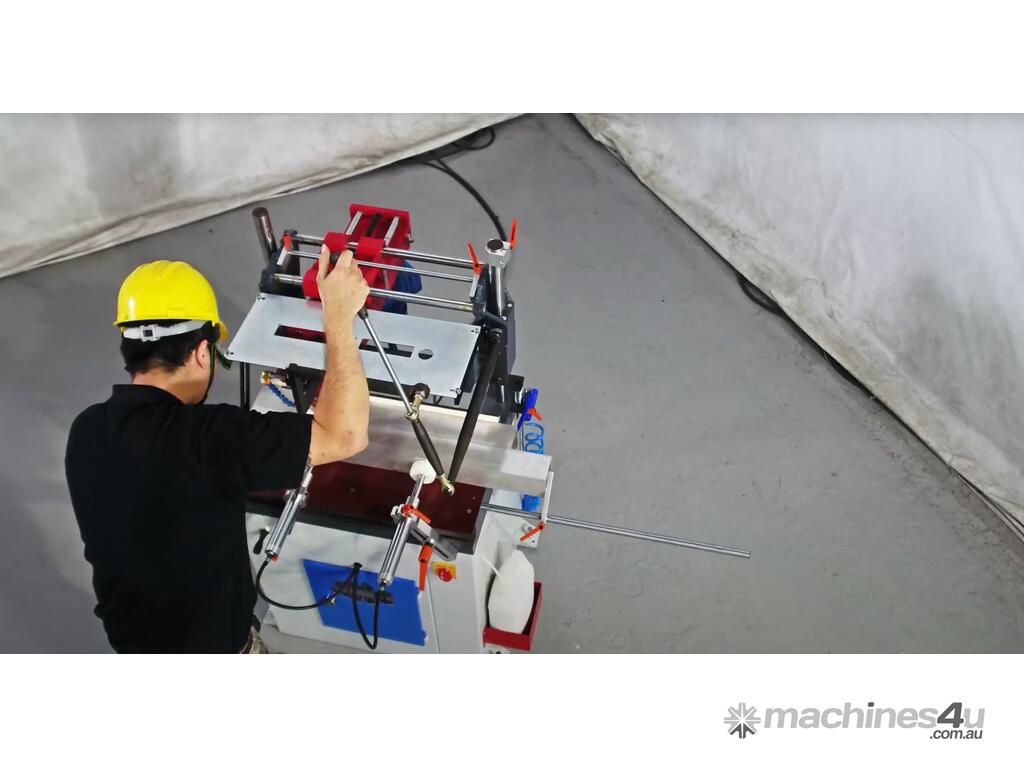

- The right level control cross and longitudinal movement of milling head.
- The left level control the vertical movement of milling head.

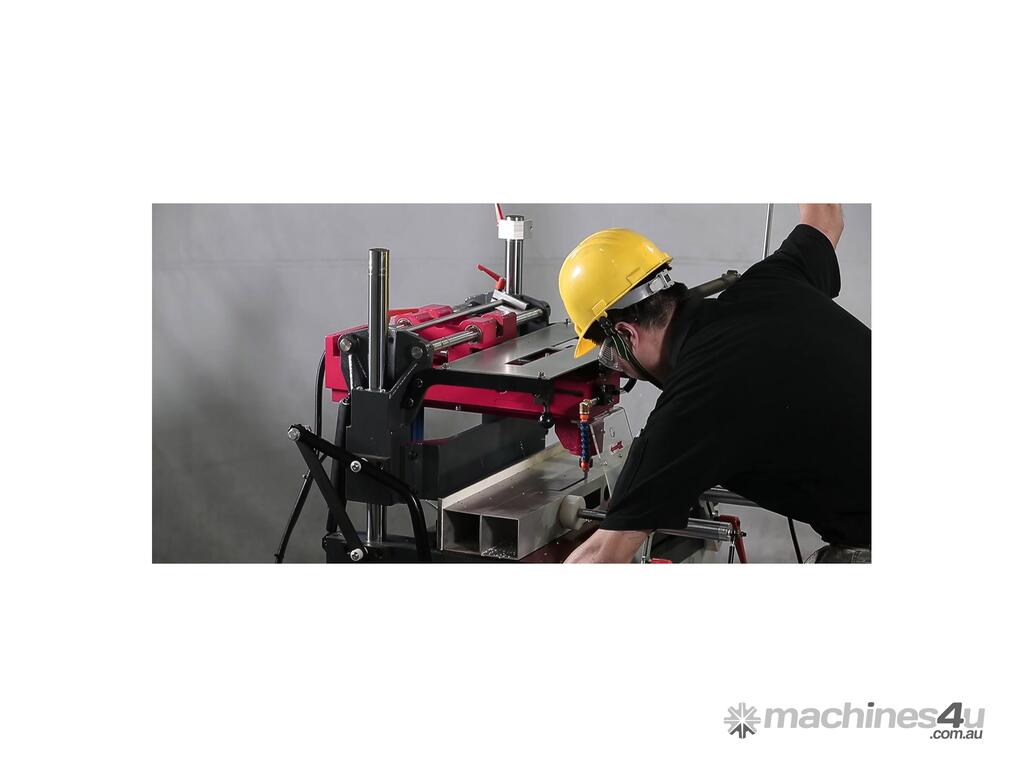

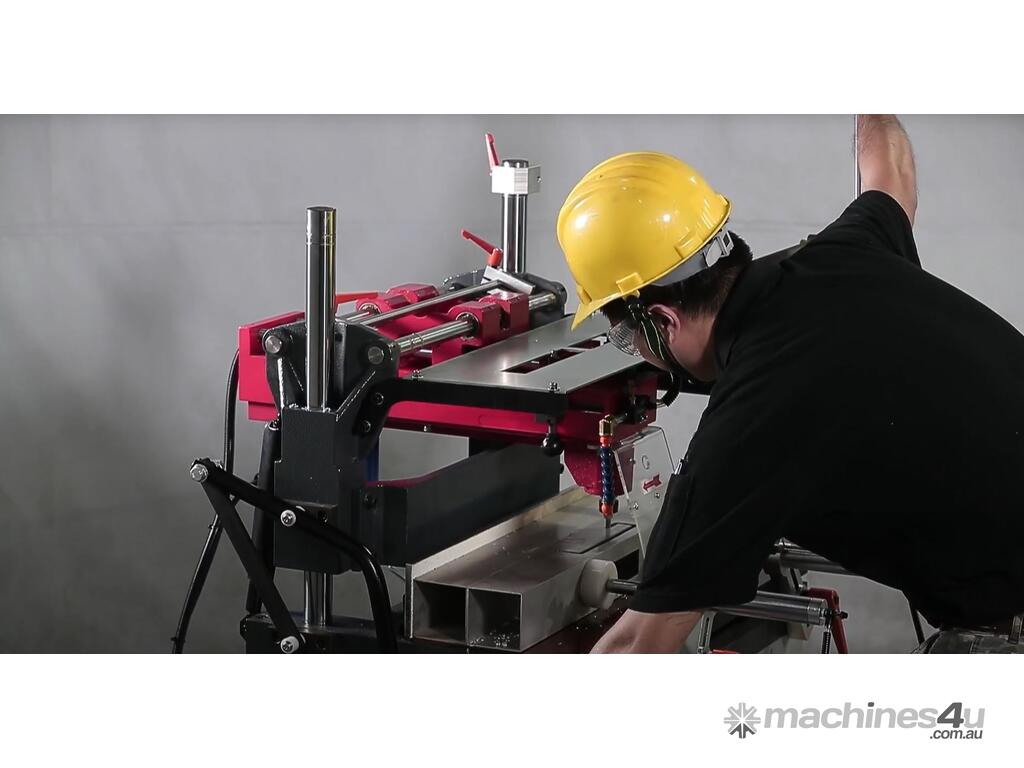

- Extremely smooth motion allows for effortless milling operations.
- Workpiece clamping is pneumatically operated.
- Coolant is conveniently controlled by simply pressing a switch on the left level.

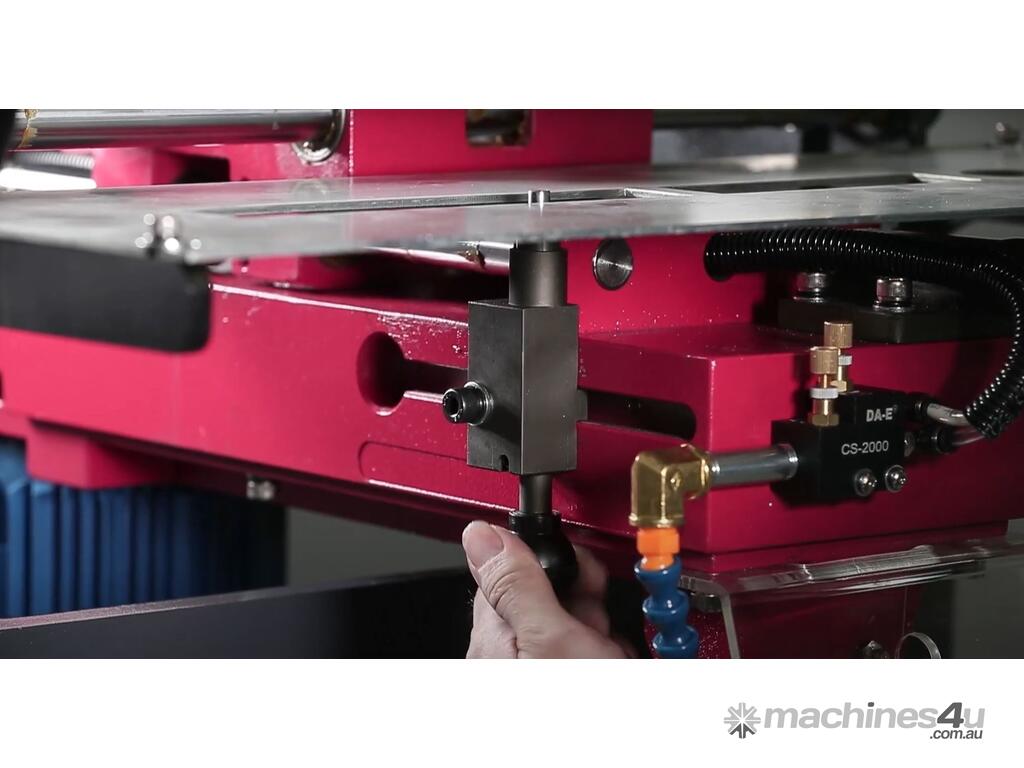

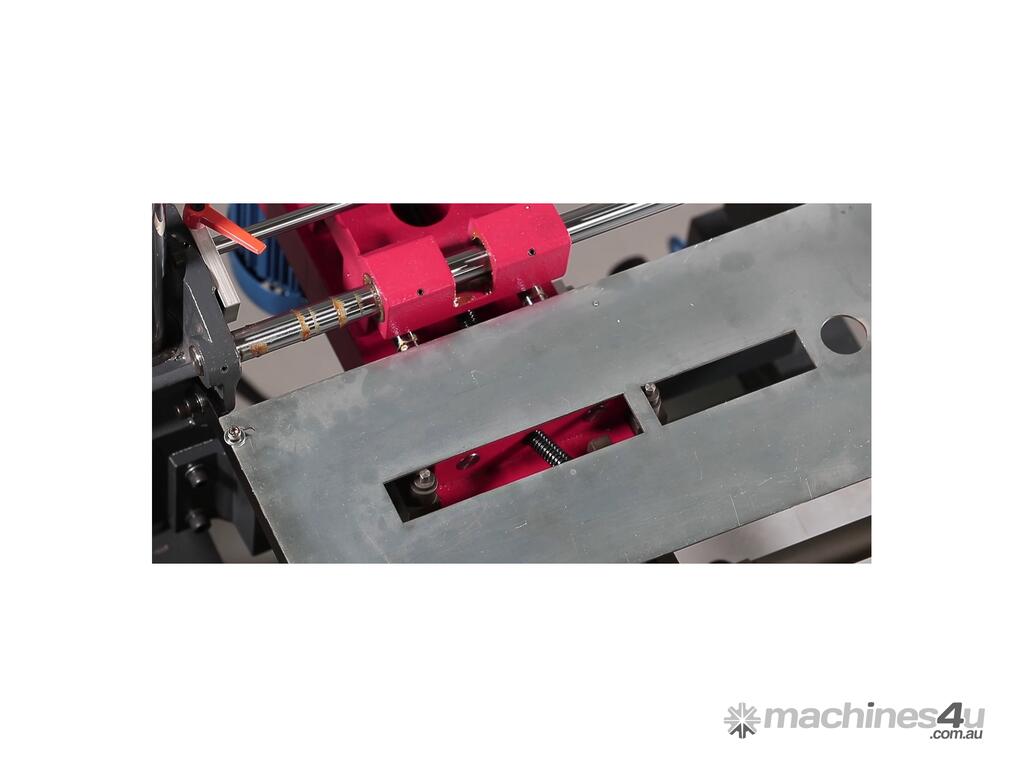

- Template for copy milling.

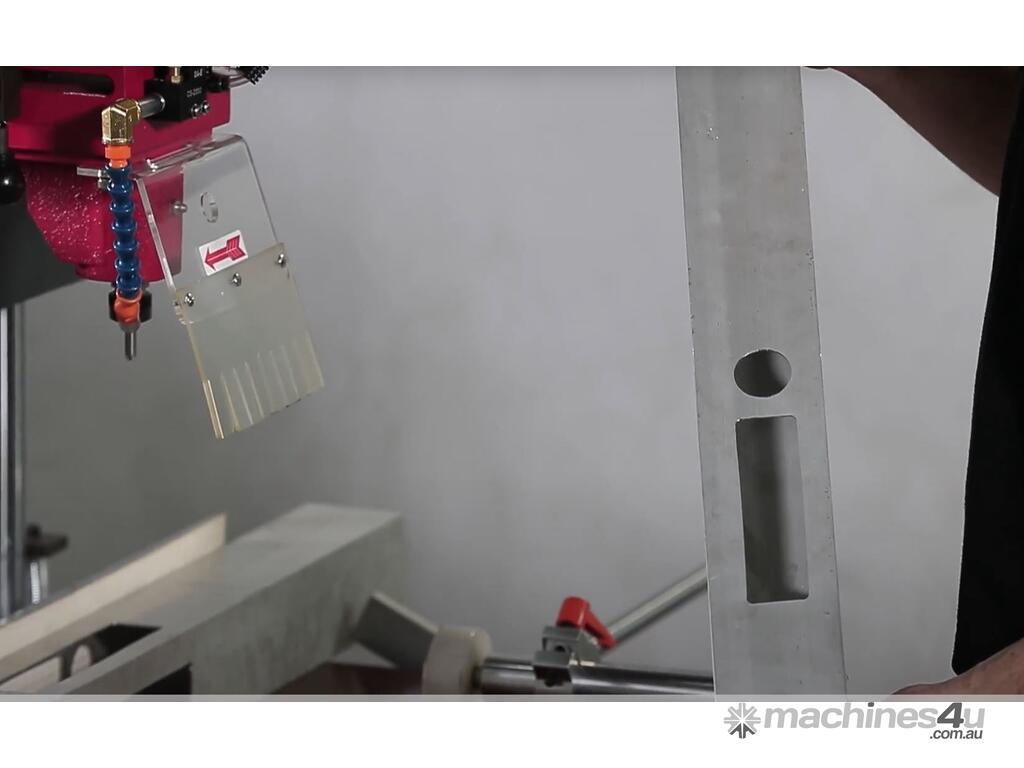

- Oil mist system for cooling the cutter.

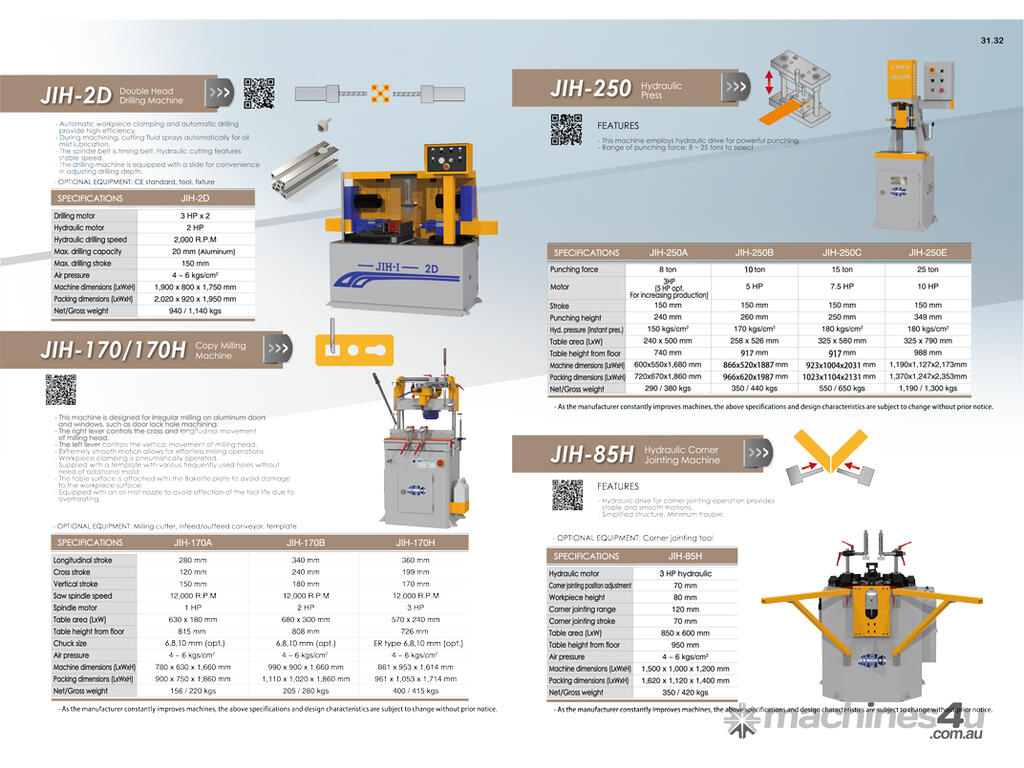

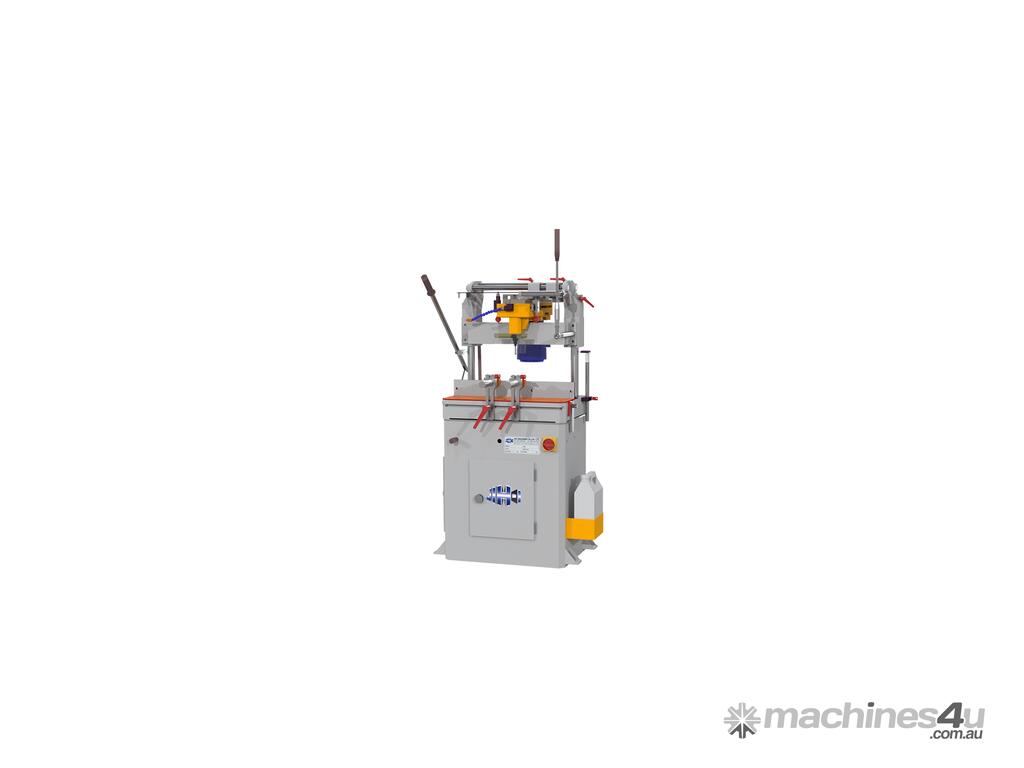

MODEL JIH-170 A JIH-170 B
X Travel 280 mm 340 mm
Y Travel 120 mm 240 mm
Z Travel 150 mm 180 mm
Table Area 630 x 180 mm 680 x 300 mm
Air Pressure 6 kgs/cm2 6 kgs/cm2
Motor 1HP (2HP) 2HP (2HP)
Spindle Speed 12,000 R.P.M. 12,000 R.P.M.
Table Height From Floor 815 mm 808 mm
Chuck Size 6,8,10,mm (opt.) 6,8,10,mm (opt.)
Machine Dim.
(LxWxH) 780 x 630 x 1,660 mm 990 x 900 x 1,660 mm
Packing Dim.
(LxWxH) 900 x 750 x 1,860 mm 1,110 x 1,020 x 1,860 mm
Net / Gross Weight 156 / 220 kgs 205 / 280 kgs
