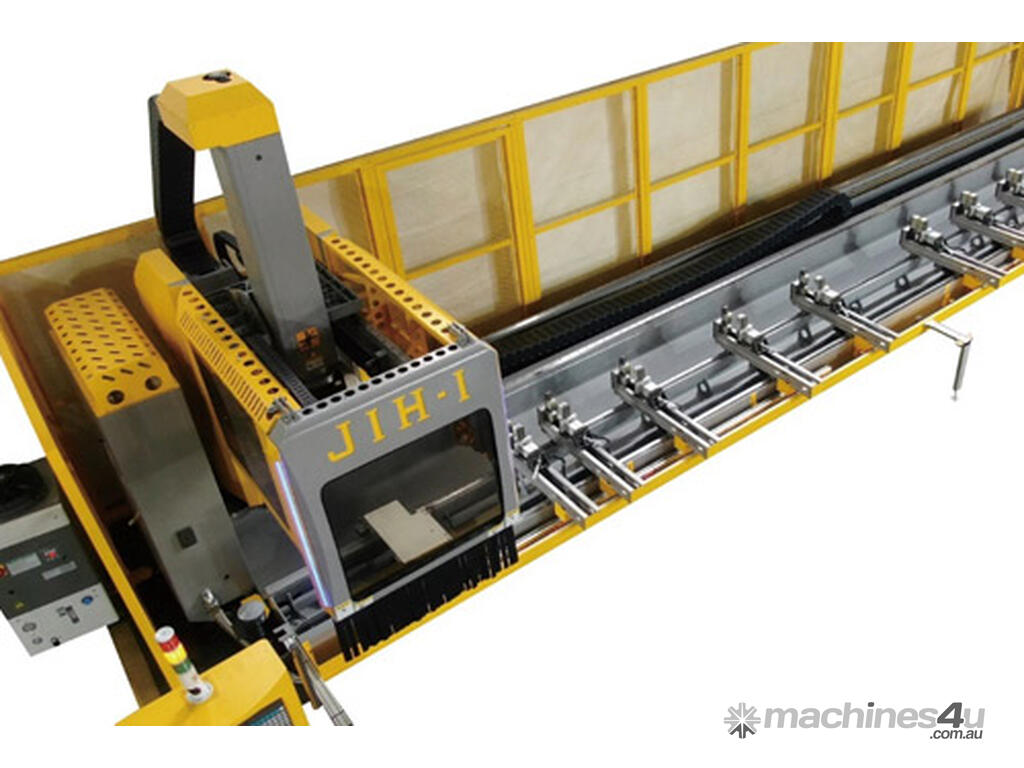

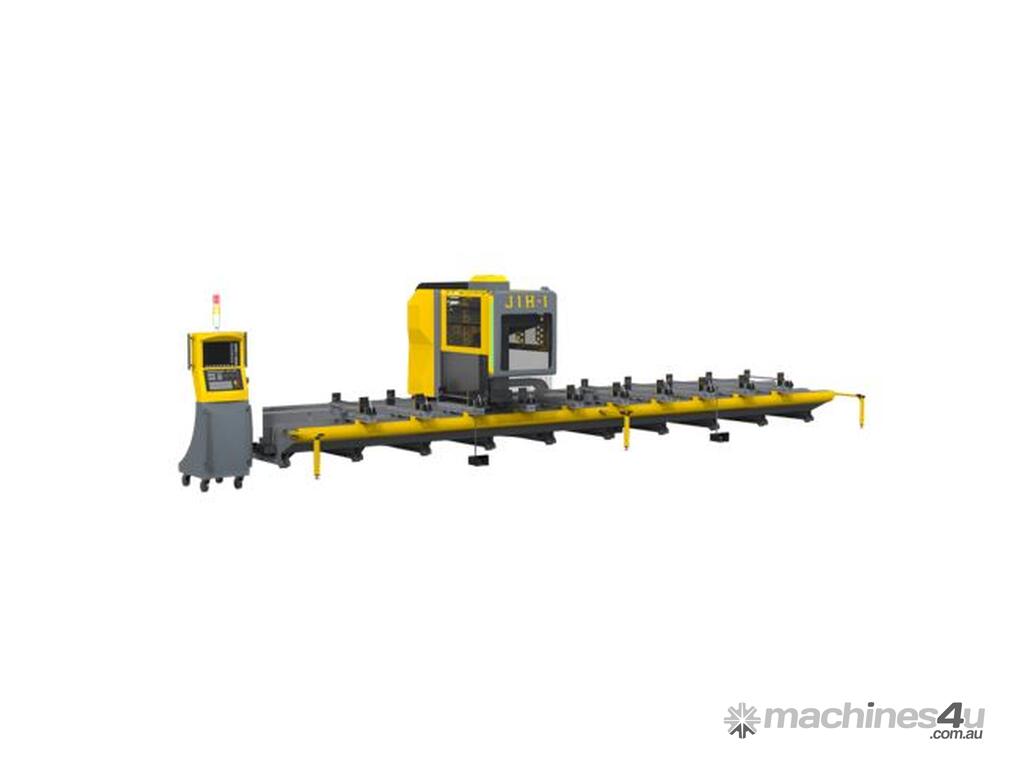

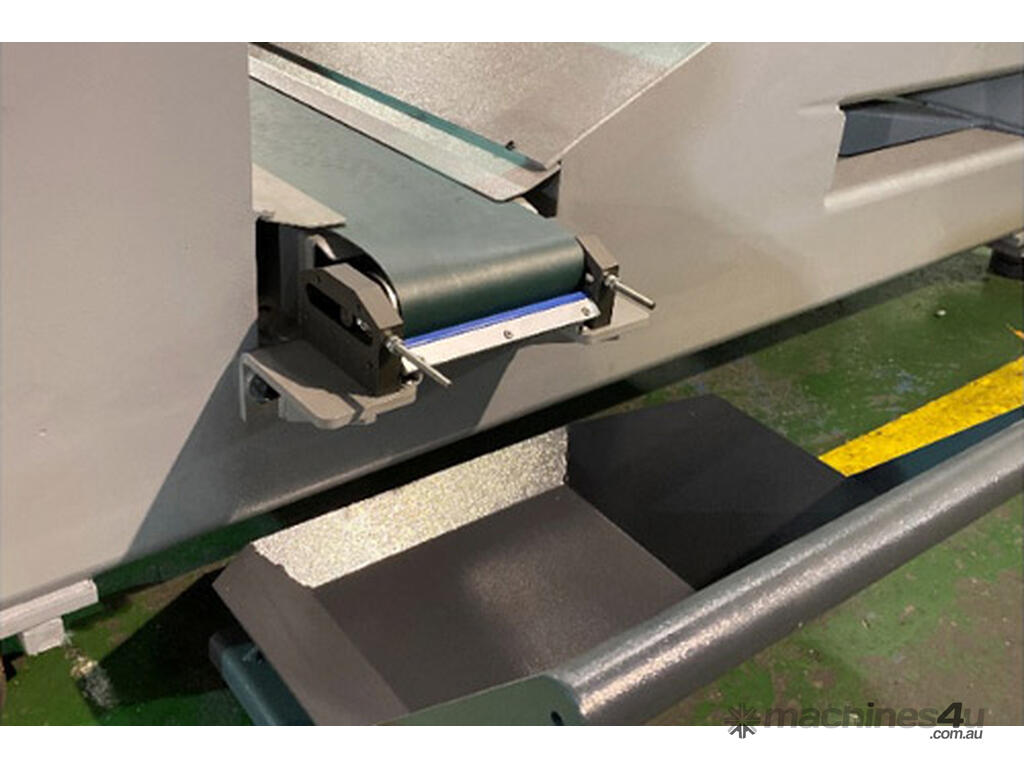

JIH - CNC S5 Type 5 Axis CNC Machining Centre

5-Axes Machining Centre

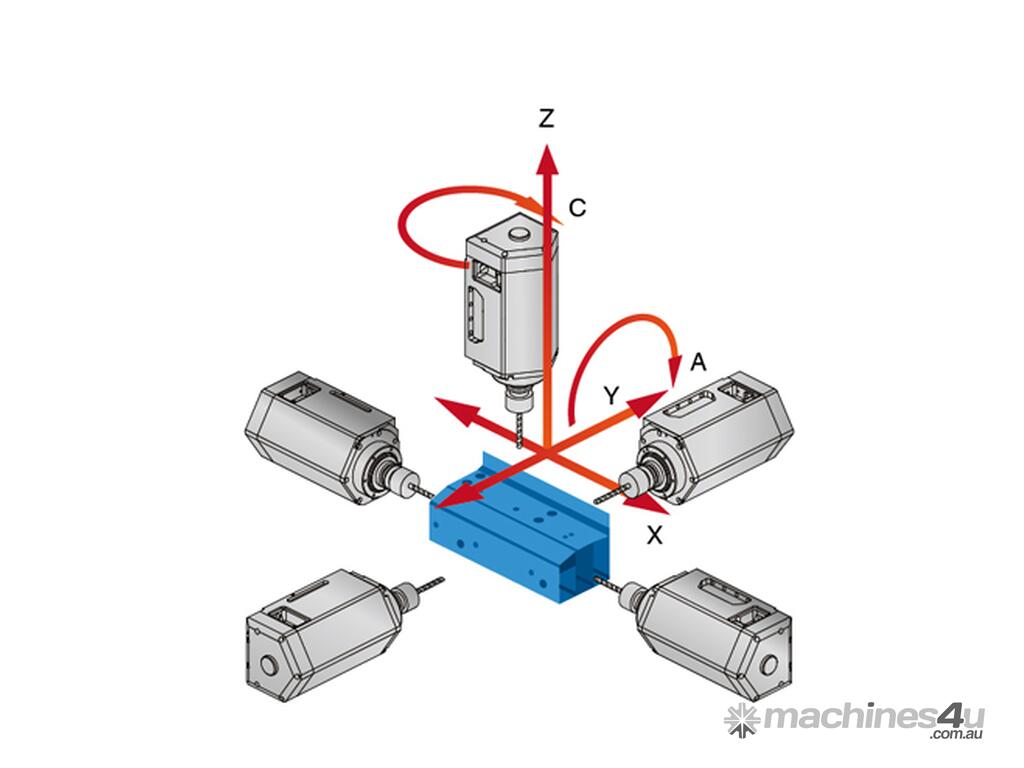

Any surface or plane in 3D space can be processed.
5 axis can rotate into any angle and direction.

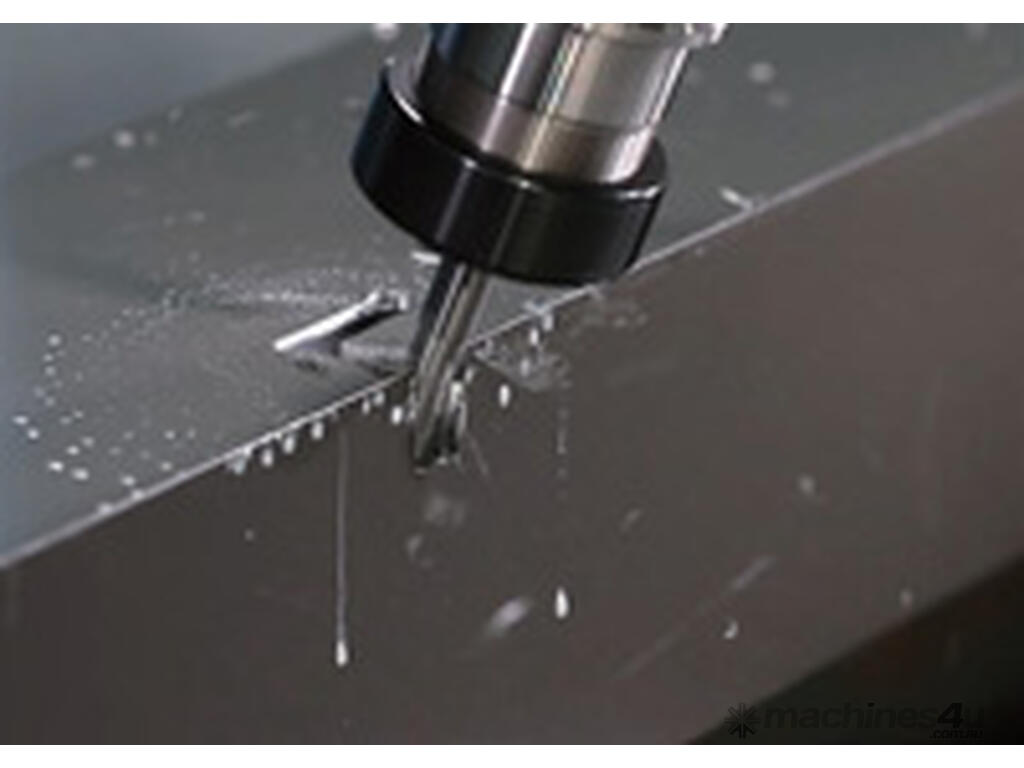

Even machining irregular profile, 5 axis can keep specific angle to the surface.
Specifically for aluminum material, POM, light alloy cutting, drilling, slotting, machining.
Syntec 5 axis controller, with 5 axis head which imported from Italy, can make the five-sided machining once.
Tempering treatment heavy base keeps strong and accuracy.
German CAM software and vise automatic positioning function, make the 5 axis machining process more simplify.

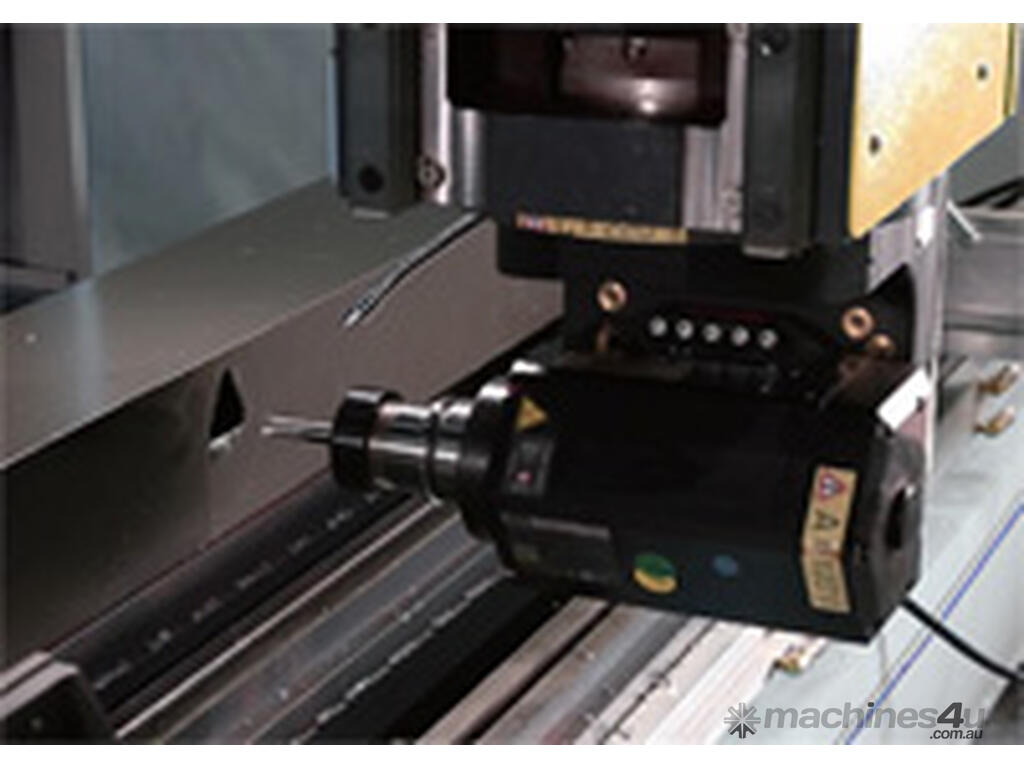

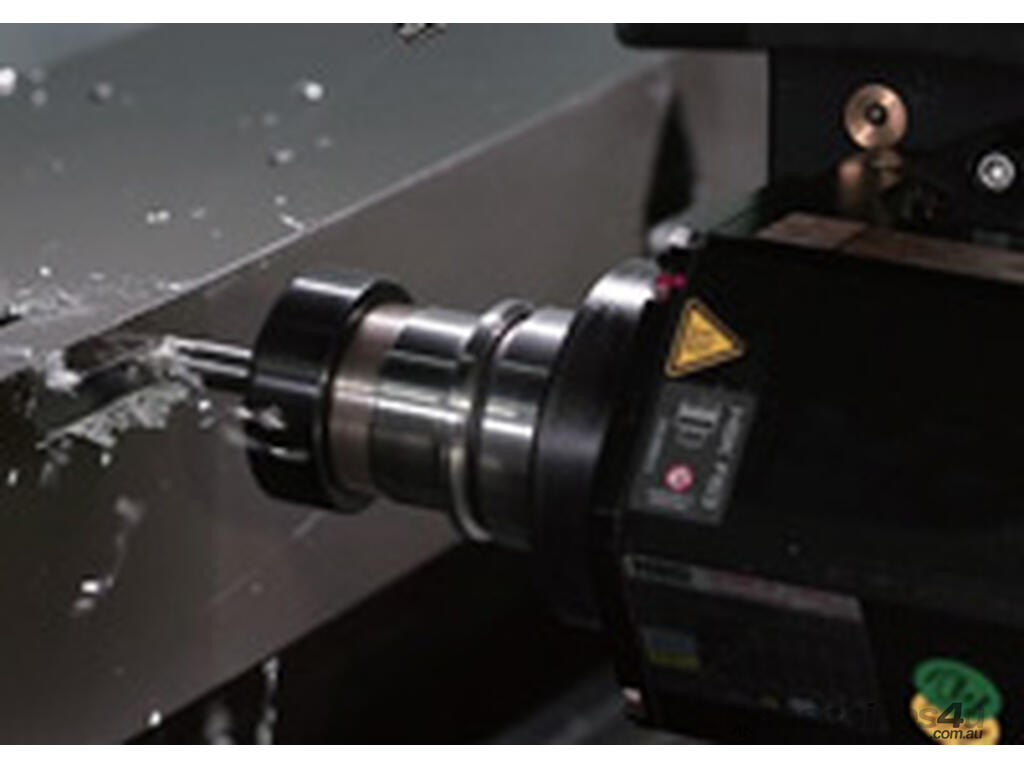

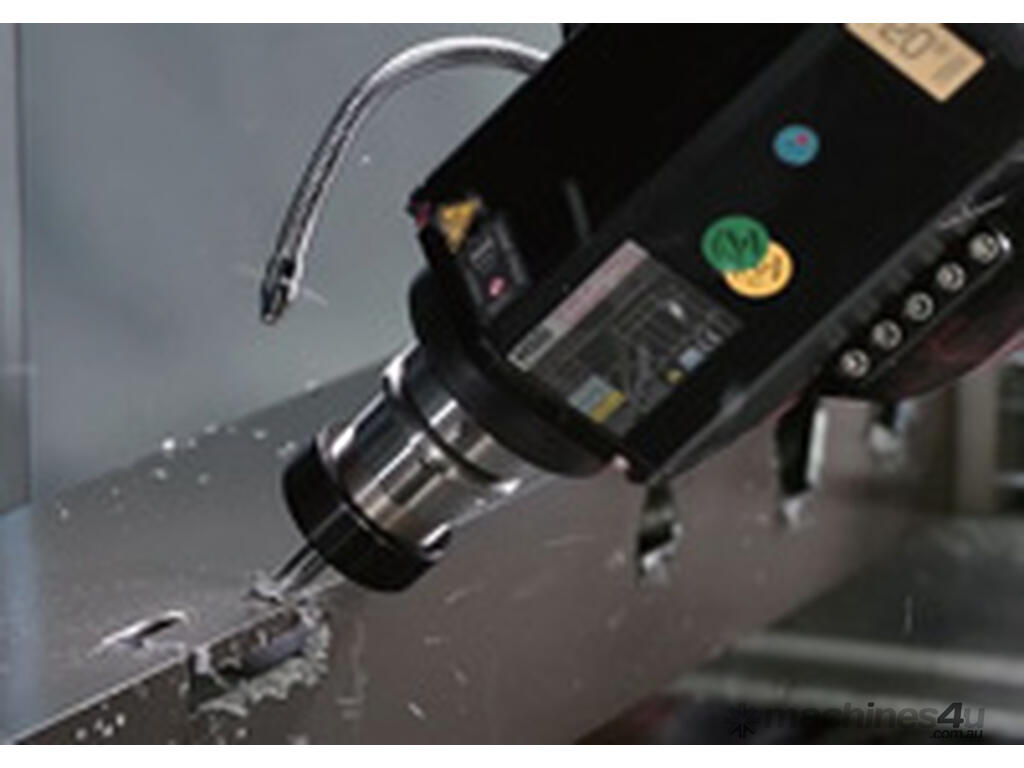

The angular head can be tilting A-Axis : ±120?, Spindle rotary C-Axis : ±120?, Spindle rotary C-Axis : ±220?, making it suitable for angular drilling and tapping operations. Suitable for face milling and multi-surface machining in one setup.
Tilting degree through computer control.
Angle Indexing accuracy
A tool clamp / release button is provided on the angular head.

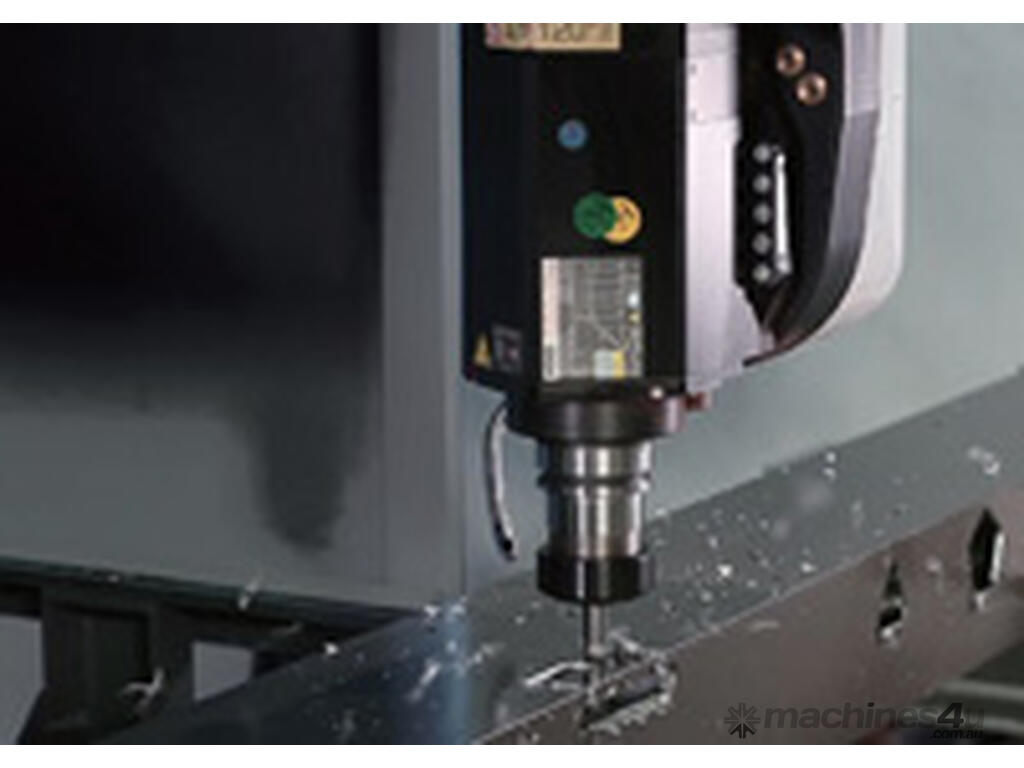

Integrated type spindle features high accuracy, low vibration, low noise and no backlash

Machine Features

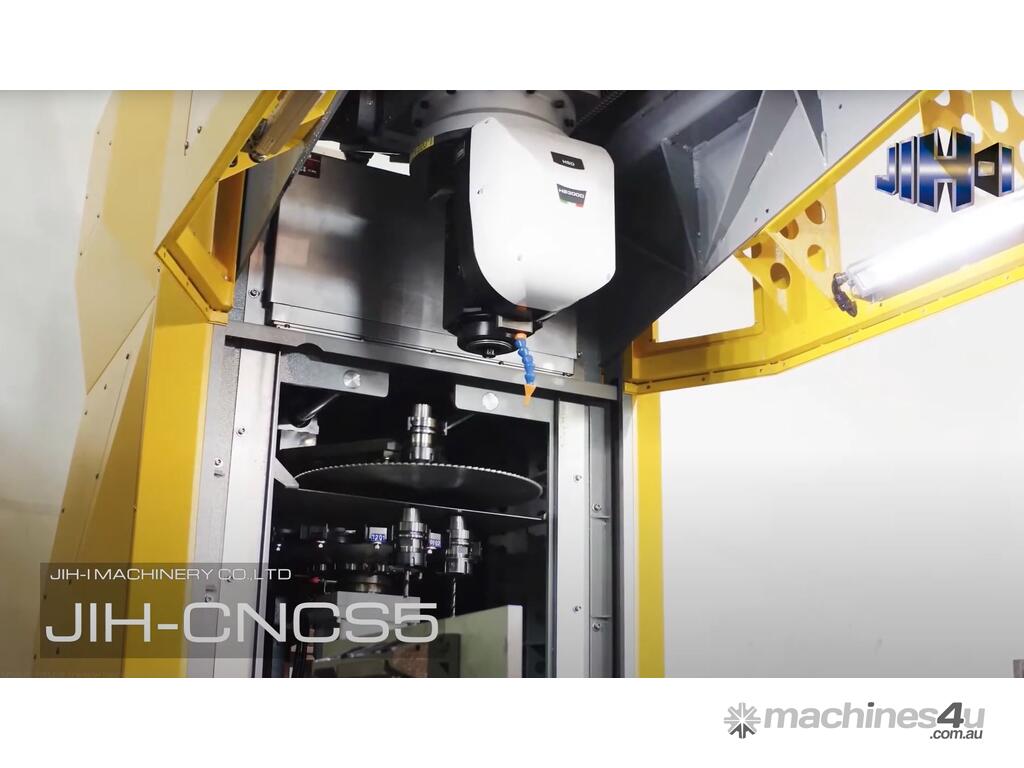

Equipped with two-layer tool magazines for storing sawblade and cutting tools on both upper and lower magazine, featuring fast tool change.

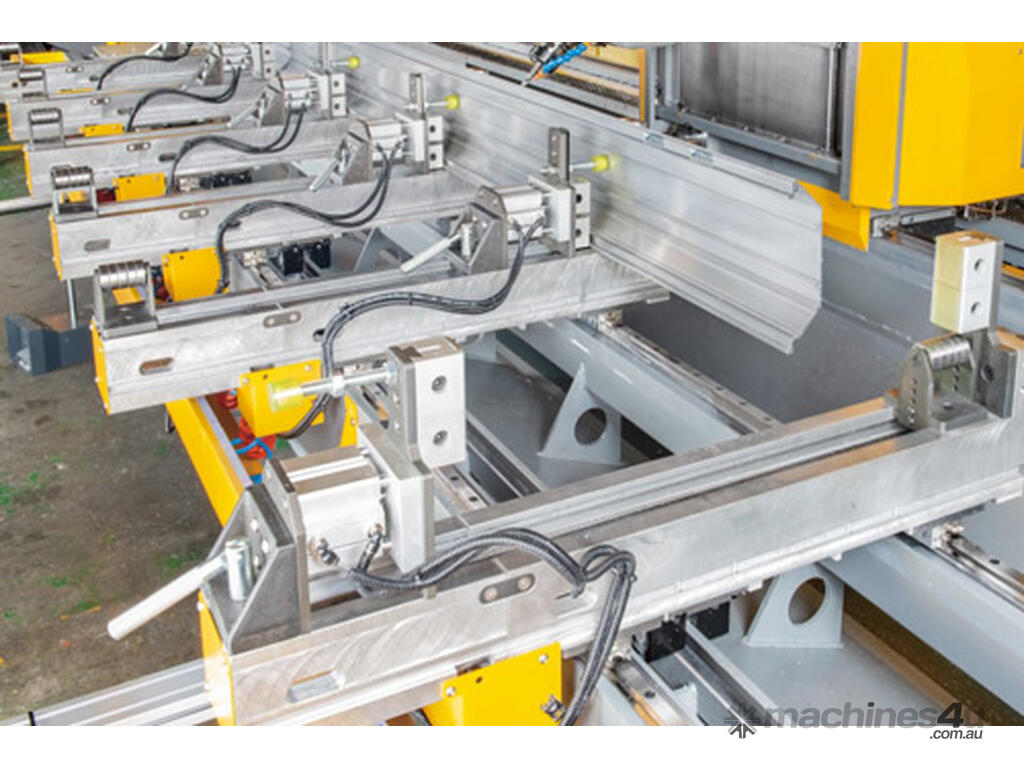

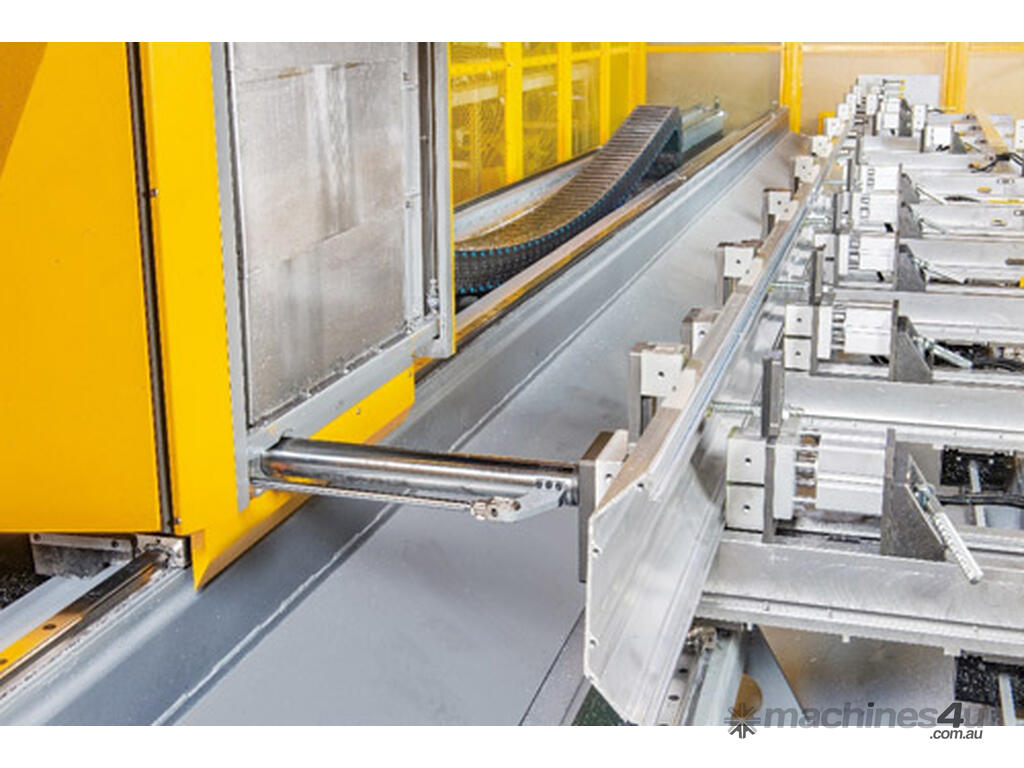

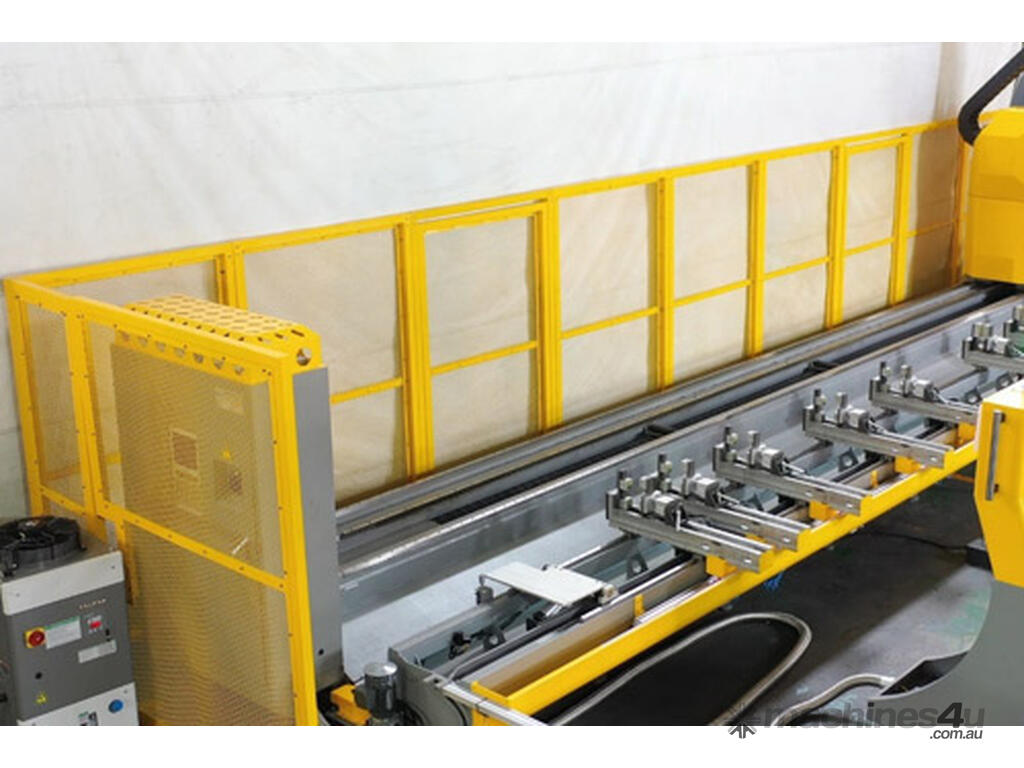

Specially designed clamping for irregular workpieces to keep the clamping stable. The clamp is equipped with roller to avoid workpiece damage.
Automatic clamp moving and positioning system combined with automatic clamp position sensing function effectively prevents the crash from spindle hitting the vise.

Applicable Materials
Aluminum,
Other non-ferrous metals

Applicable Industries:
Public transportation, aluminum, light alloy profile processing.
Aerospace industry.
long-shaped aluminum profiles.
Square tube profile cutting, drilling, slot milling.
Aluminum doors and Windows industry
Curtain wall(glass wall)
Extruded aluminum
Long material parts

MODEL JIH-CNC S5 (5 Axis)

Stroke
X Axis Stroke 3,500 mm/4,500 mm/5,500 mm/6,500 mm(Opt.)
Y Axis Stroke 400 mm (5 axes) (3 axes: 700 mm)
Z Axis Stroke 800 mm (saw blade processing stroke 350 mm)
A Axis Swivelling Angle ±120°
C Axis Swivelling Angle ±220°

Table
Table Type vise
Table Size 400 X 3,500 ~6,500mm
Table Height From Floor 680 mm

Spindle
Spindle Speed 20,000 R.P.M.
Spindle Motor 10HP (7.5kw)
Spindle Taper Cone HSK 63F

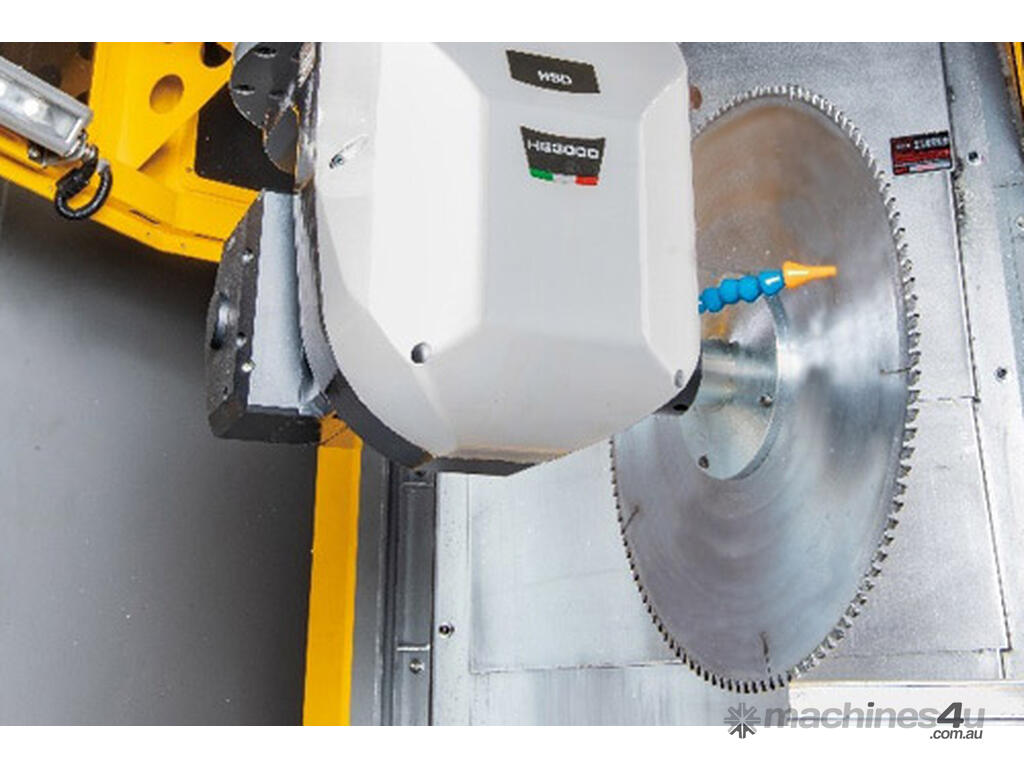

Sawblade size 16"X1" bore

Feed Rate
Rapid Feed Rate (X / Y / Z)
X:50 m/min,(Opt. 70 m/min) Y:24 m/min, Z:24 m/min A:75°/S, C:75°/S
Servo Motors of 3 Axis X:2.9 kw , Y: 850w, Z: 1.8 kw, A:750w, C:750w
Cutting Feed Rate F:1 ~ 5,000 mm/min
Repeatability Accuracy X: ±0.02 mm Y: ±0.01 mm Z: ±0.01 mm

ATC
Magazine Capacity 12 Tools
Tool Holder HSK63F

Dimensions
Required Pneumatic Pressure 6 kgs/cm2
Machine Dimensions?LxWxH? 8,000 ~ 11,000 x 3,150 x 3,900 mm
Packing Dimensions?LxWxH? 8,100 ~ 11,100 x 2,300 x 2,450 mm
Machine Weight 4,500 ~ 6,500 kgs
