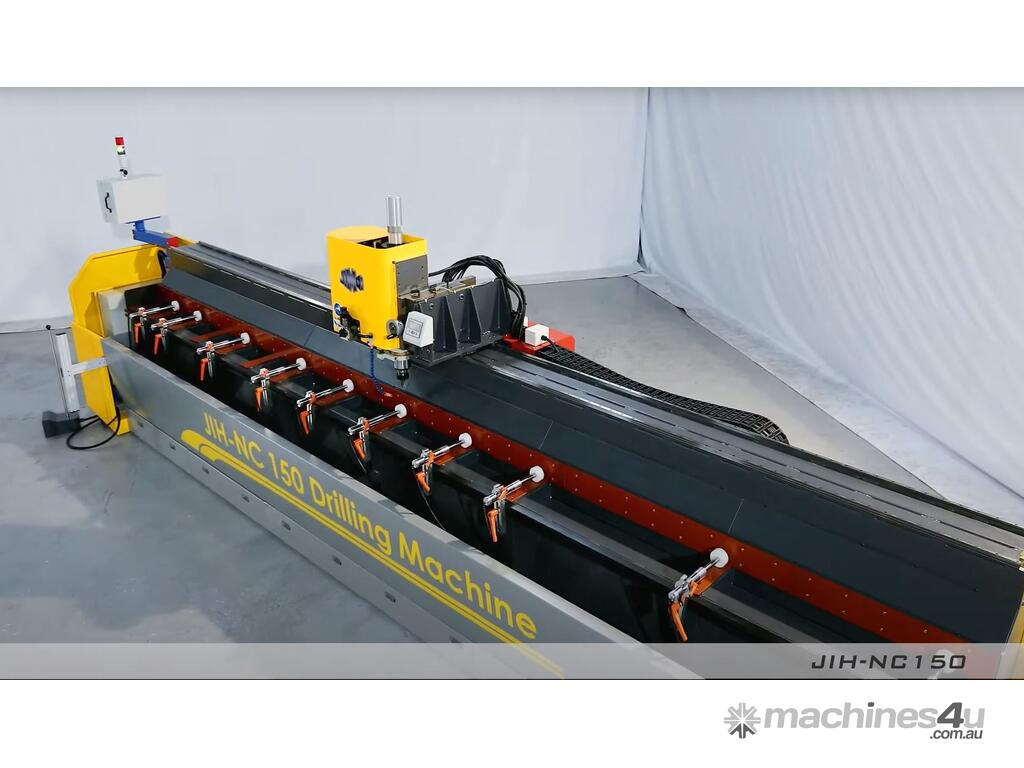

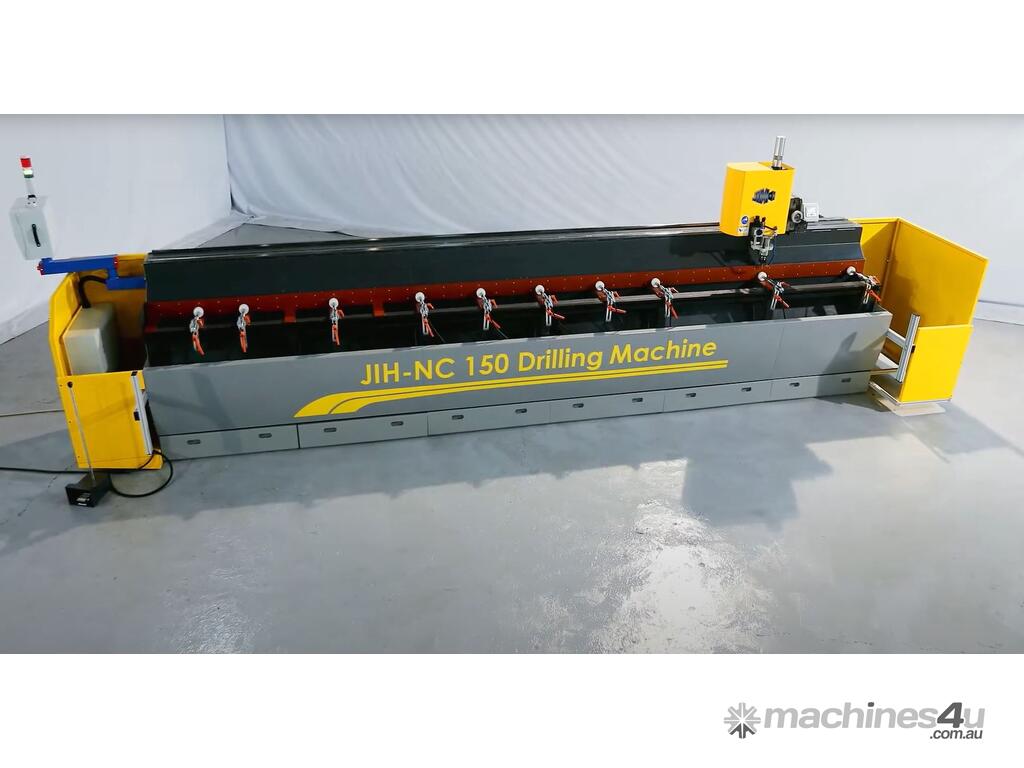

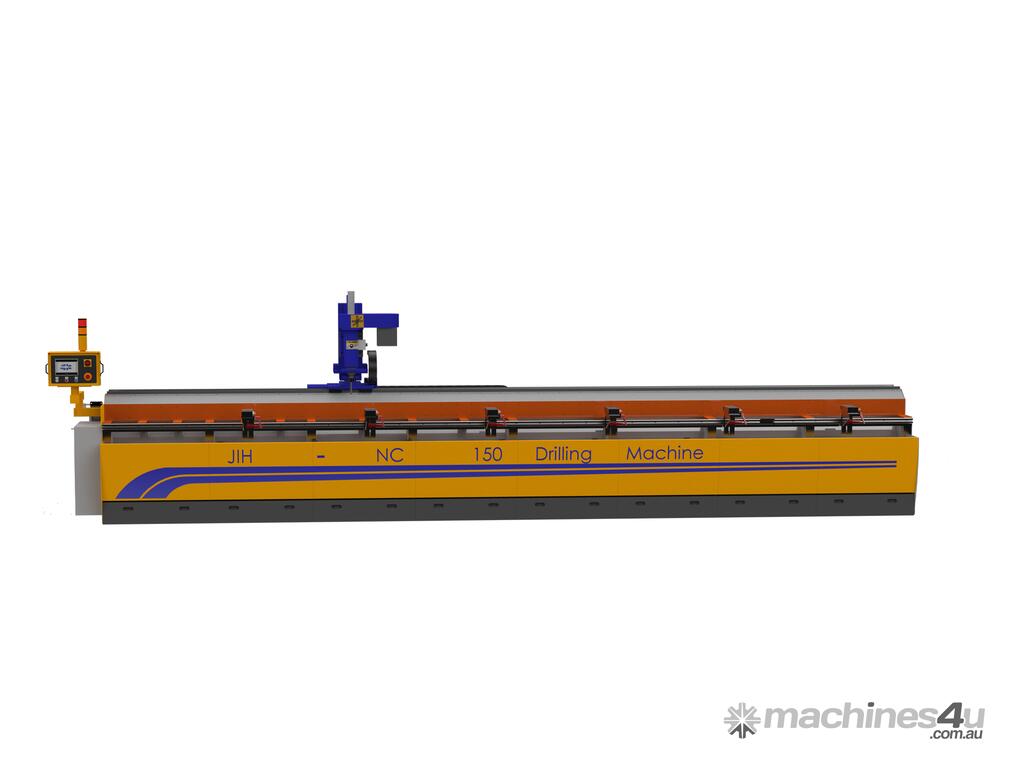

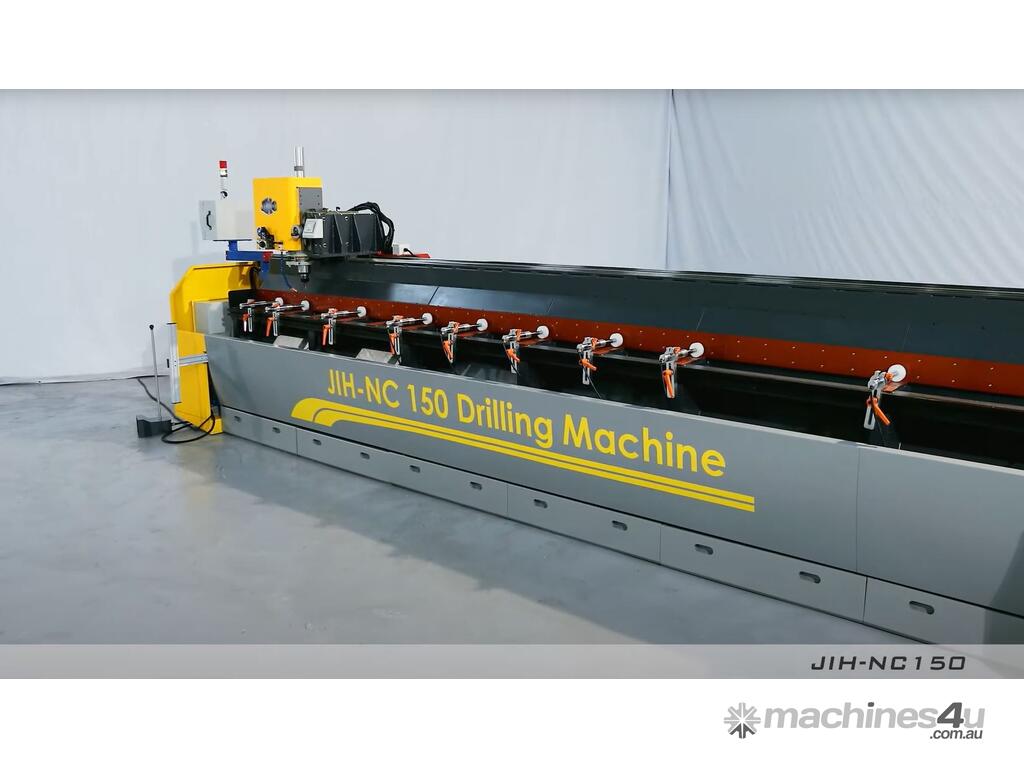

Features
- Automatic drilling operation allows for equal or unequal hole distance
- PLC control

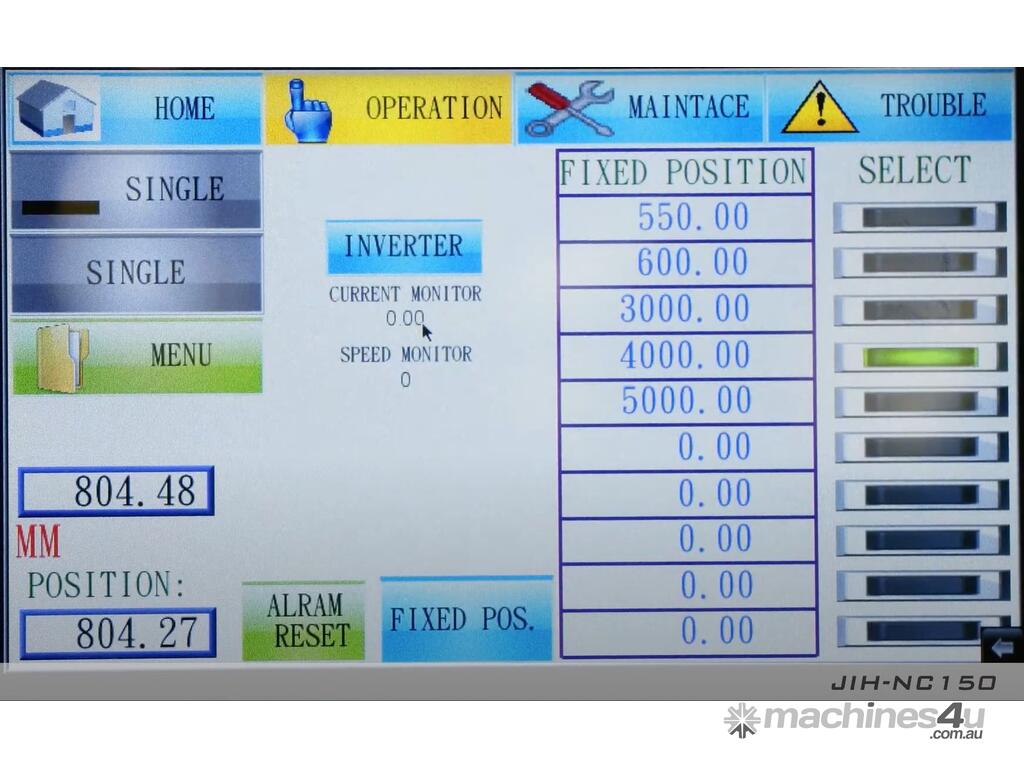

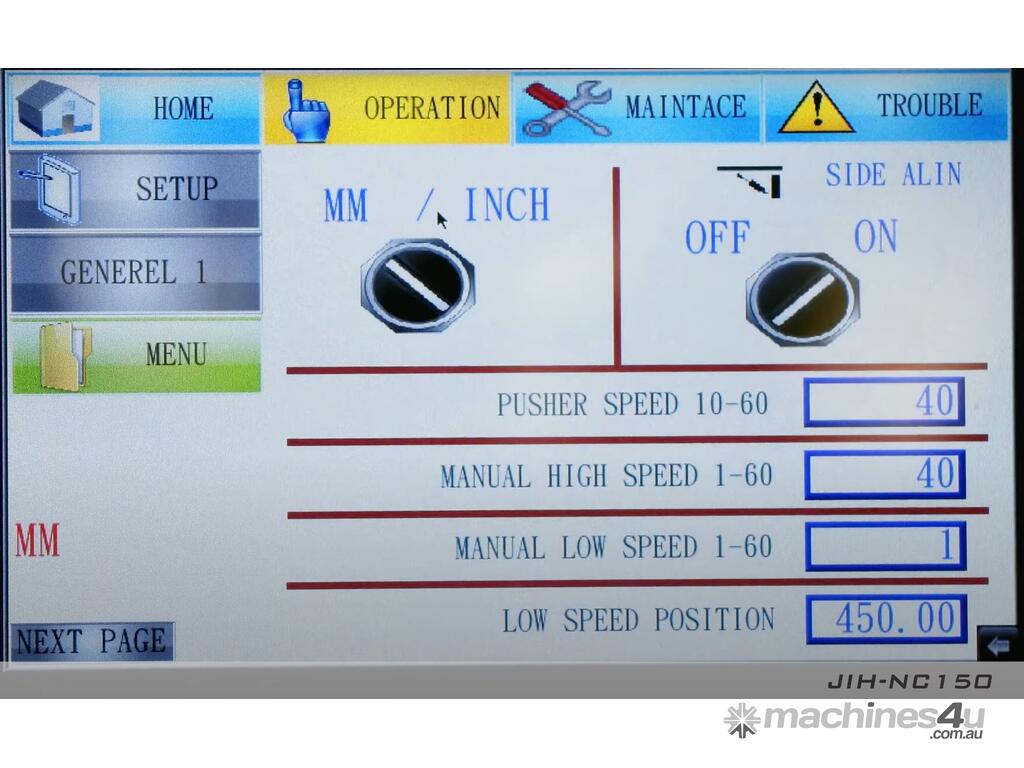

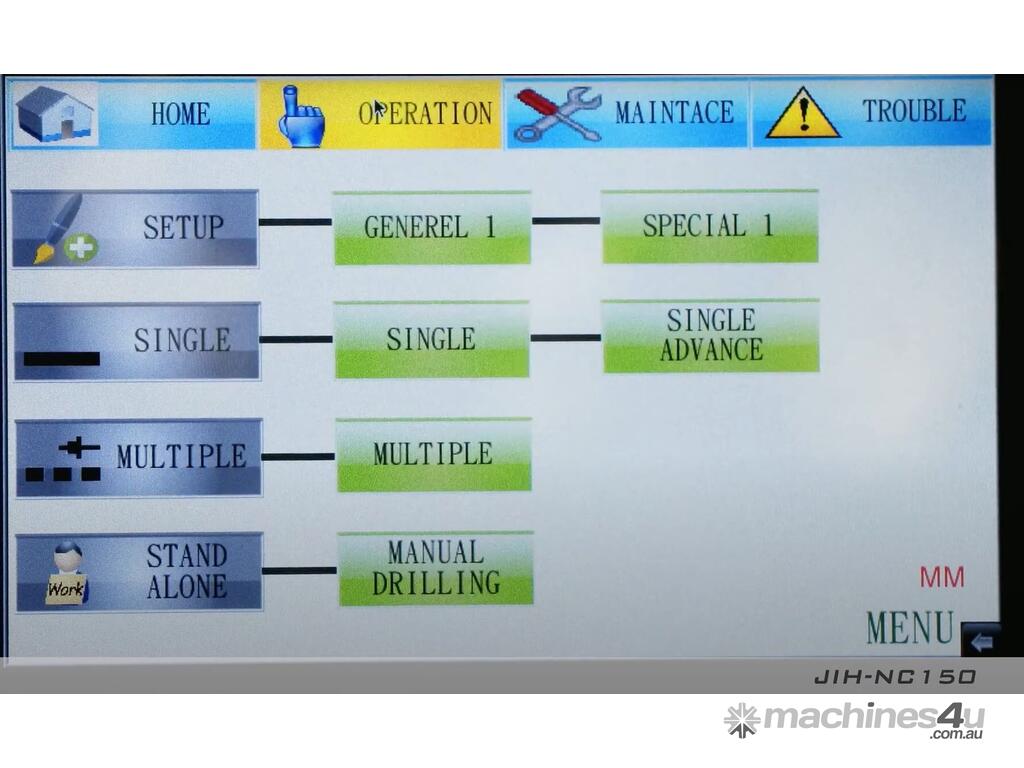

- Touch-sensing screen
- Allows for a selection of manual or automatic drilling mode

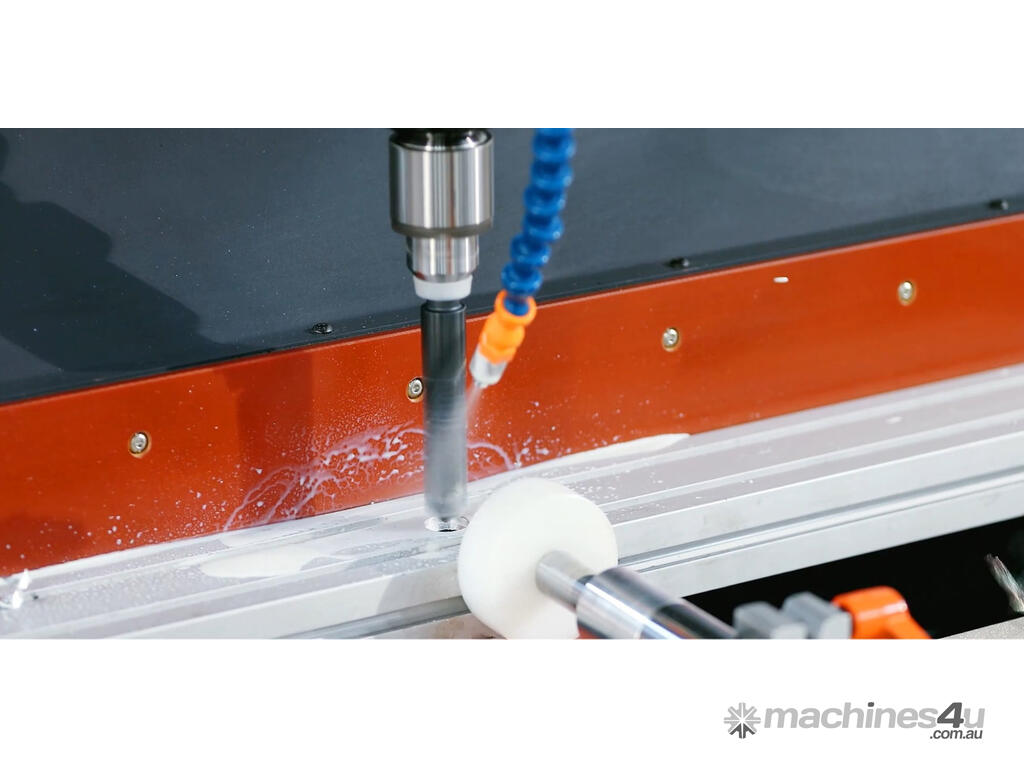

- Forced oil mist lubrication
- Allows for multiple settings, maximum memory capacity: 100 sets

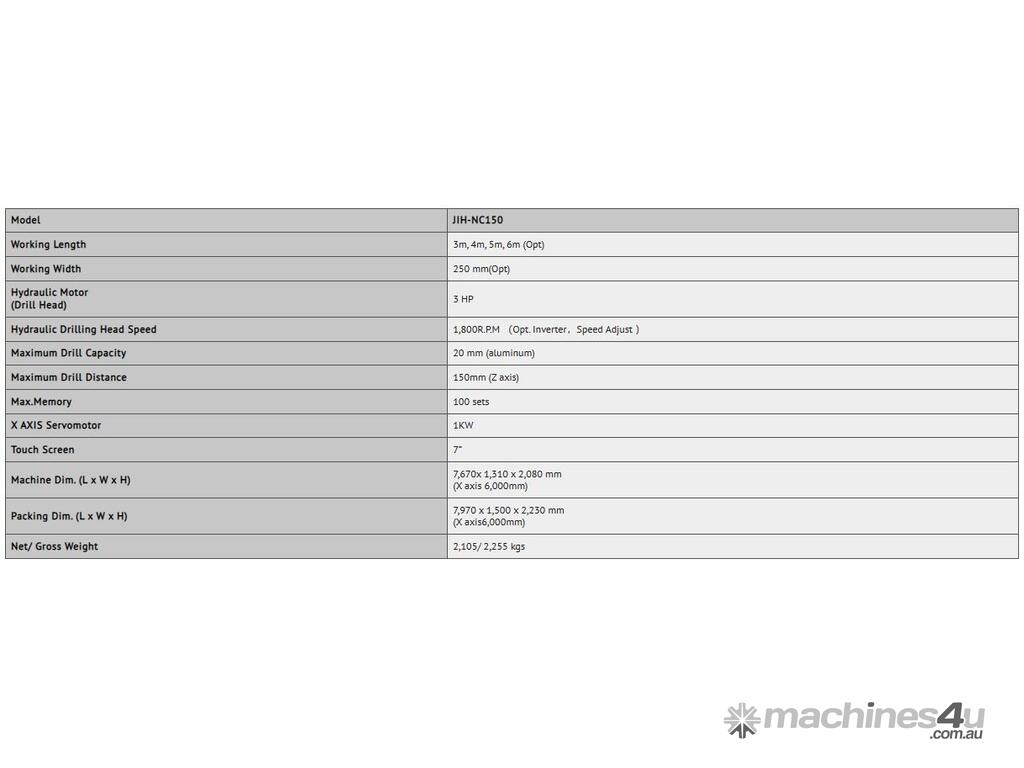

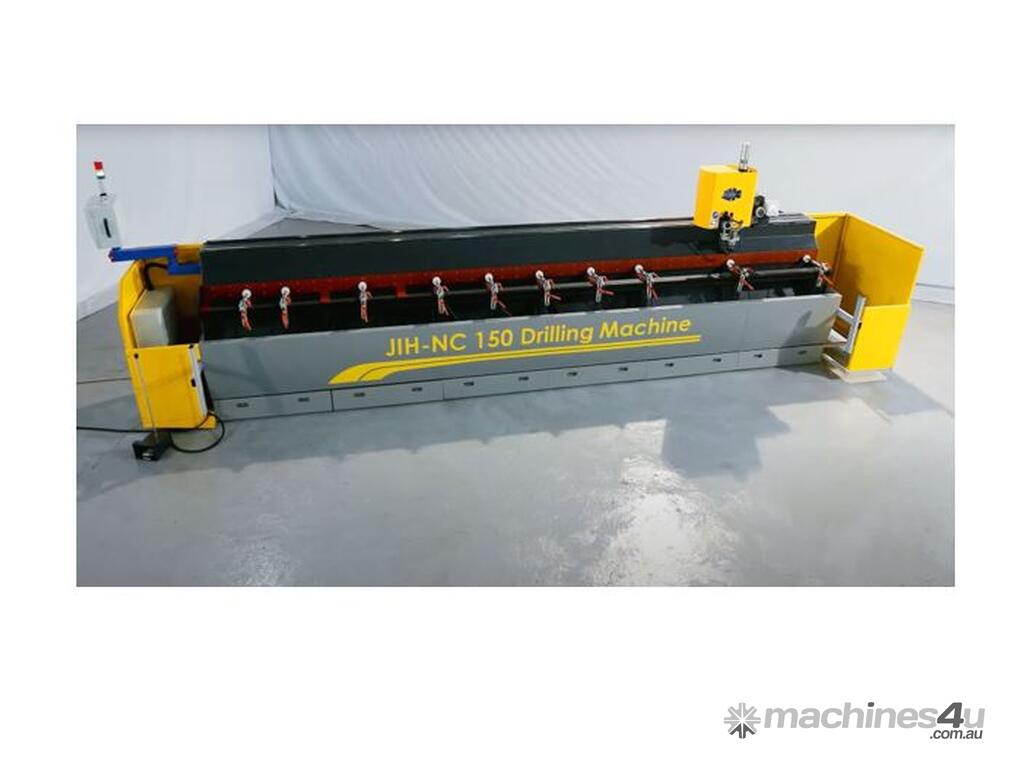

Product Specification: Model JIH-NC150
Working Length 3m, 4m, 5m, 6m (Opt)
Working Width 250 mm(Opt)
Hydraulic Motor
(Drill Head) 3 HP
Hydraulic Drilling Head Speed 1,800R.P.M ?Opt. Inverter?Speed Adjust ?

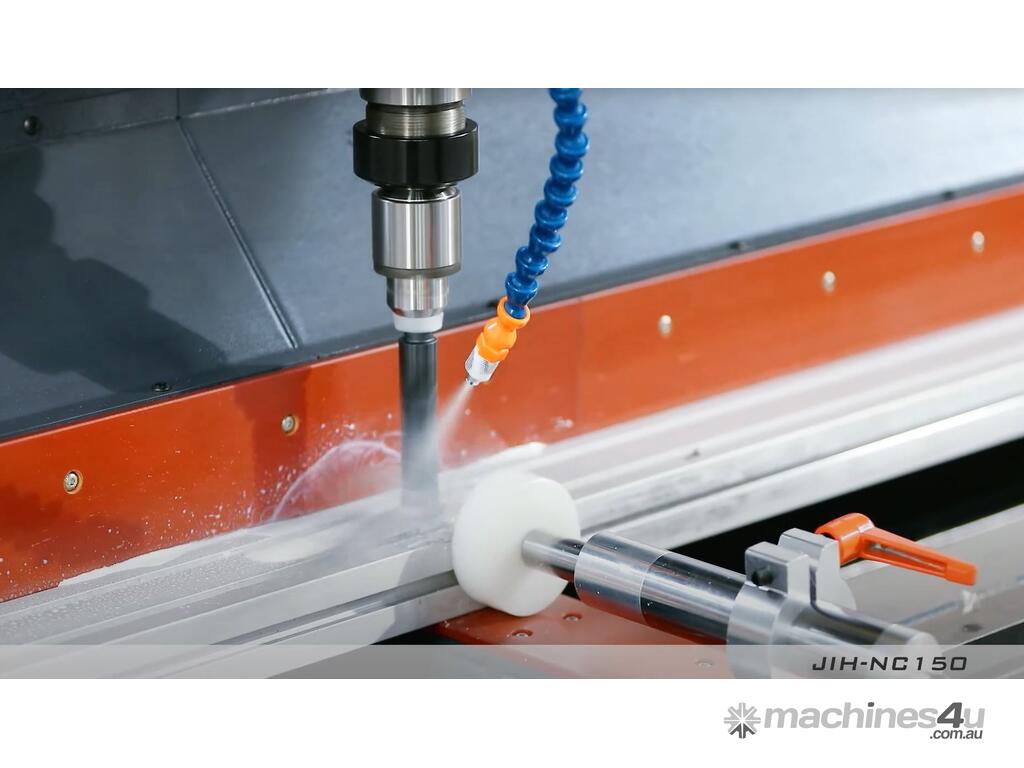

Maximum Drill Capacity 20 mm (aluminum)
Maximum Drill Distance 150mm (Z axis)
Max.Memory 100 sets
X AXIS Servomotor 1KW
Touch Screen 7”
Machine Dim. (L x W x H) 7,670x 1,310 x 2,080 mm
(X axis 6,000mm)
Packing Dim. (L x W x H) 7,970 x 1,500 x 2,230 mm
(X axis6,000mm)
Net/ Gross Weight 2,105/ 2,255 kgs
