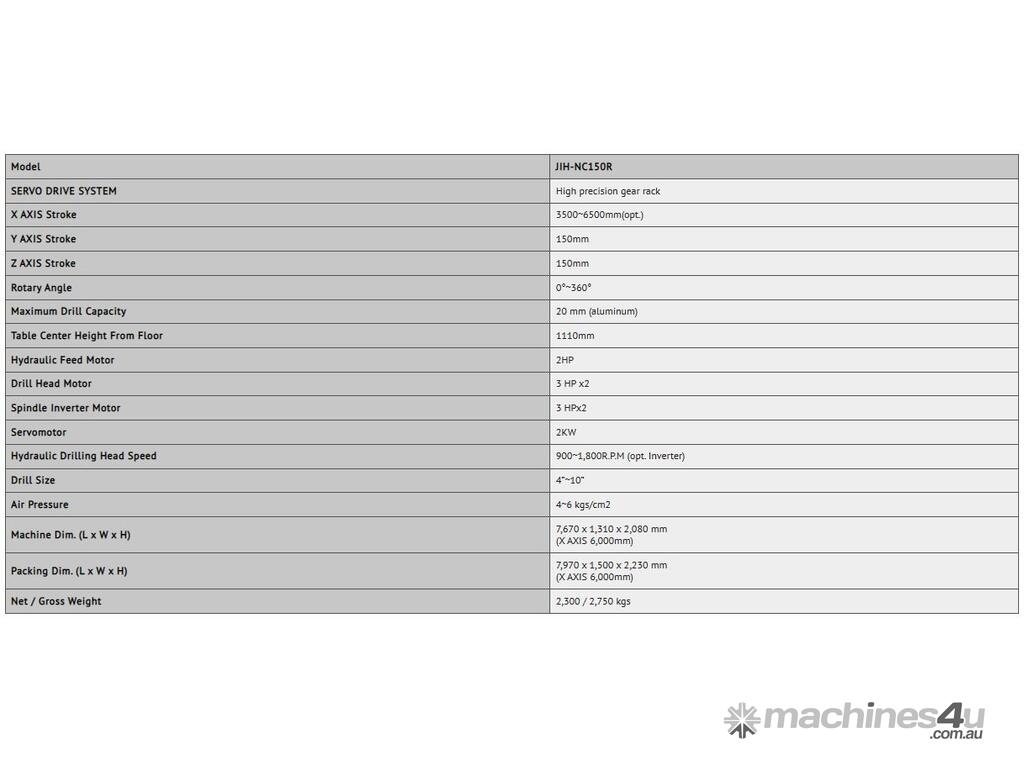

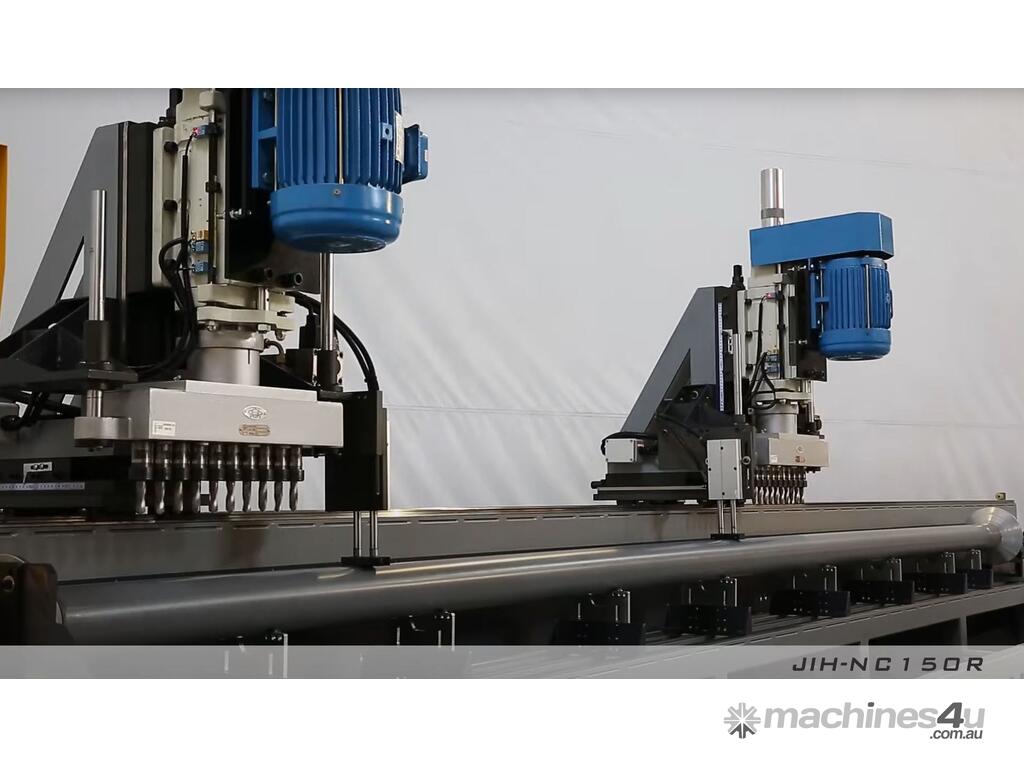

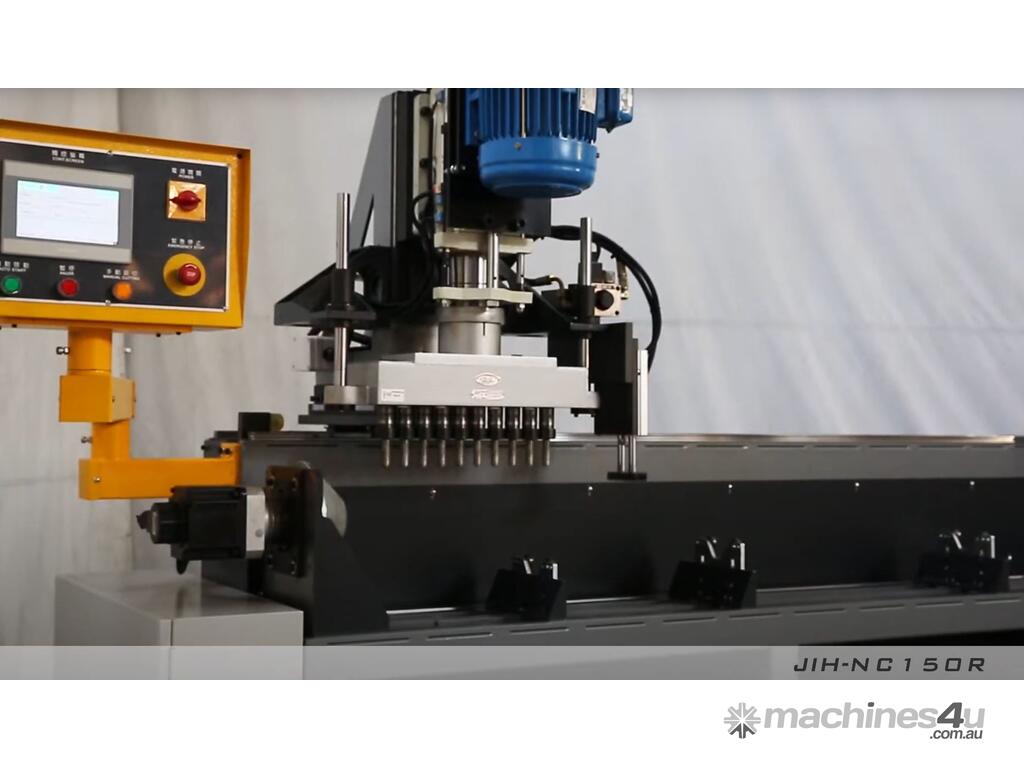

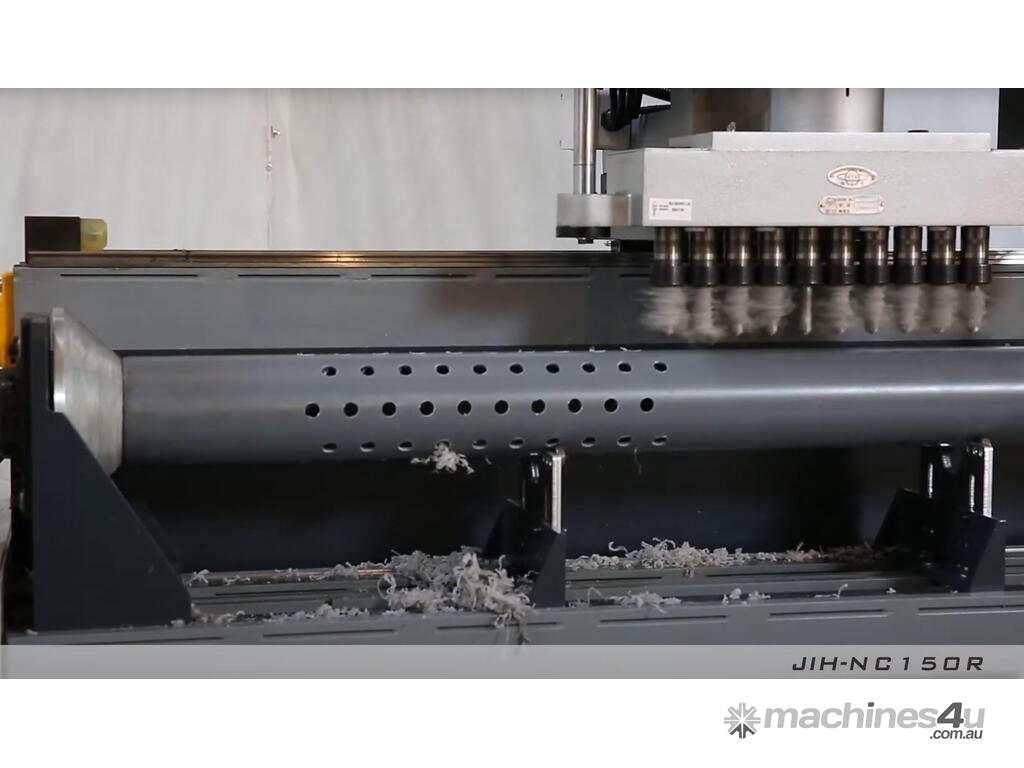

Product Specification: Model JIH - NC150R
SERVO DRIVE SYSTEM High precision gear rack
X AXIS Stroke 3500~6500mm(opt.)
Y AXIS Stroke 150mm
Z AXIS Stroke 150mm
Rotary Angle 0°~360°
Maximum Drill Capacity 20 mm (aluminum)
Table Center Height From Floor 1110mm
Hydraulic Feed Motor 2HP
Drill Head Motor 3 HP x2
Spindle Inverter Motor 3 HPx2
Servomotor 2KW
Hydraulic Drilling Head Speed 900~1,800R.P.M (opt. Inverter)
Drill Size 4”~10”
Air Pressure 4~6 kgs/cm2
Machine Dim. (L x W x H) 7,670 x 1,310 x 2,080 mm
(X AXIS 6,000mm)
Packing Dim. (L x W x H) 7,970 x 1,500 x 2,230 mm
(X AXIS 6,000mm)
Net / Gross Weight 2,300 / 2,750 kgs
