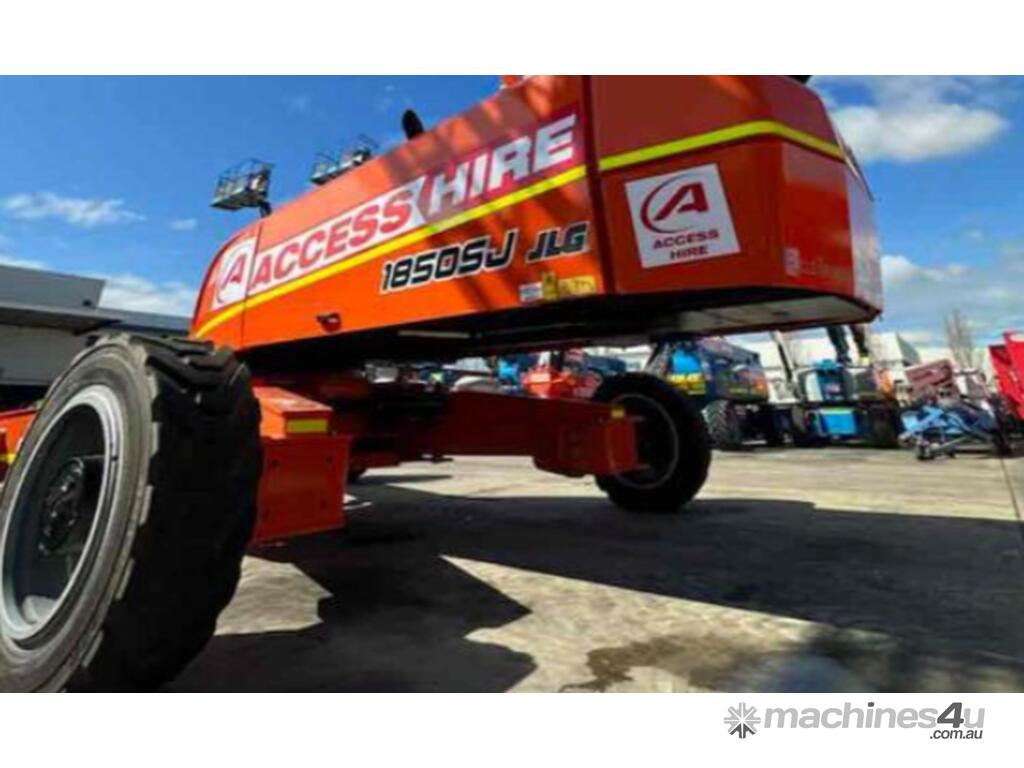

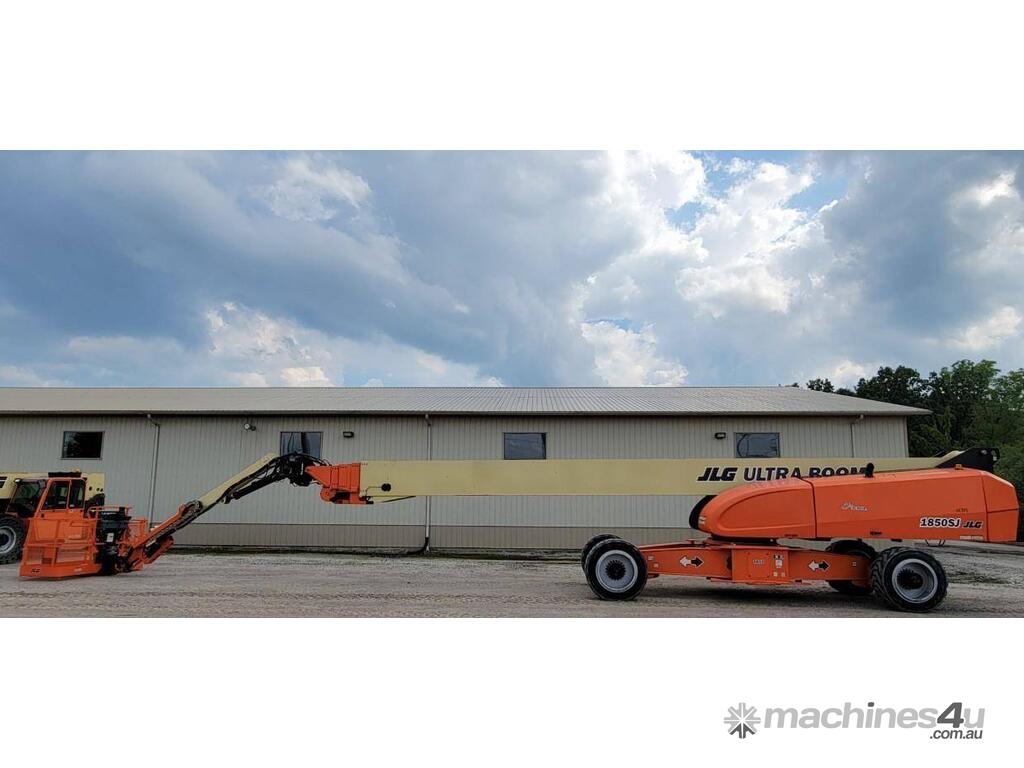

JLG 1850SJ 185ft Ultra Boom Lift - 56.6m Platform Height, 230kg SWL

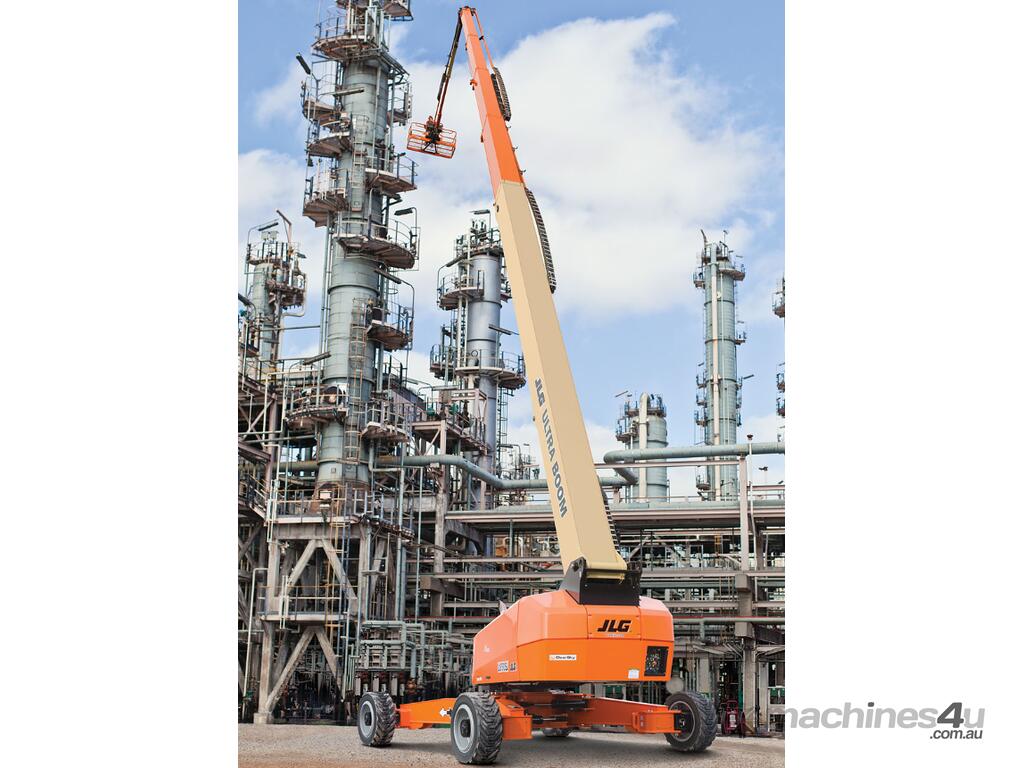

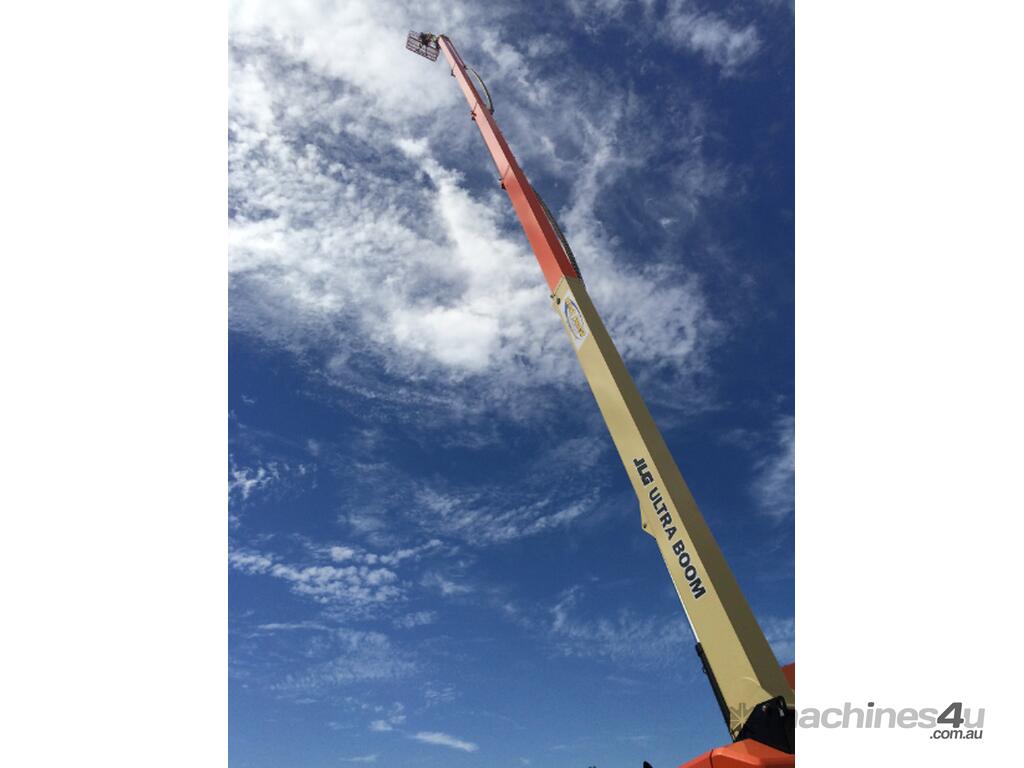

The JLG 1850SJ is a high-reach ultra boom lift built for large-scale construction, shutdowns, and industrial work. It delivers a platform height of 56.6m, horizontal outreach of 24.38m, and a 230kg unrestricted platform capacity. The telescoping boom with an 80ft jib section gives access to high and hard-to-reach areas. With 360° continuous swing, 40 percent gradeability, and full-time AWD, the 1850SJ provides strong performance on demanding sites.

Features:
- Platform Height: 56.6m
- Horizontal Outreach: 24.38m
- Below Ground Reach: 14.7m
- Swing: 360° continuous
- Capacity: 230kg unrestricted / 450kg restricted
- Jib Length: 9.8-61.1m
- Jib Range of Articulation: 120° (+75, –45)
- Gradeability: 40 percent
- Drive Speed: 4.5km/h
- Ground Bearing Pressure: 8.41kg/cm²

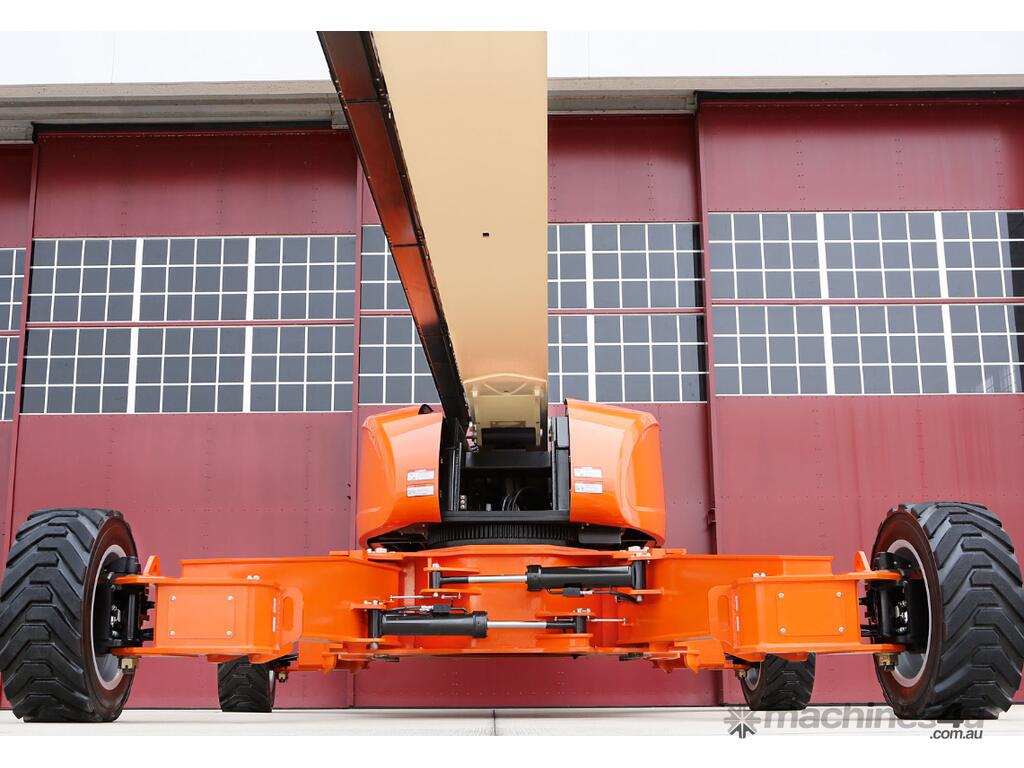

- Turning Radius: 7.12m inside / 23m outside (axles retracted)
- Turning Radius: 9.52m inside / 6.6m outside (axles extended)
- Power: Deutz TCD 3.6L 74.4kW diesel
- Fuel Tank: 200L
- Tyres: 445/50D710 foam-filled
- Hydraulic Tank: 284L
- Weight: 27,532kg

Applications:
- Large-scale construction
- Shutdowns and industrial maintenance
- High-reach inspection and installation
- Mining, refinery, and infrastructure projects
