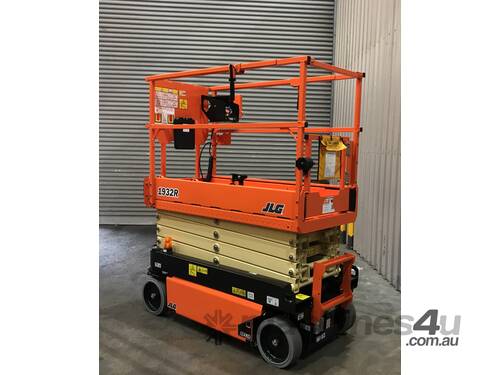

New From JLG the 1932R
Performance
Platform Height–Elevated 5.8 m
Platform Capacity 230 kg
Capacity on Platform Extension 120 kg
Lift/Lower Time 25/26 seconds
Maximum Drive Height Fully Elevated
Weight* 1,590 kg
Drive Speed–Elevated 0.8 km/h
Drive Speed–Lowered 3.2 km/h
Gradeability 25%
Turning Radius (Inside) Zero
Turning Radius (Outside) 1.60
Power Source
Batteries 4 x 6V 220 amp-hr
Charger 20 amp (Universal Algorithm)
Drive Hydraulic Front-wheel
Hydraulic Reservoir
•• Capacity 17 L
•• Pump Fixed Displacement Gear
Tyres
•• Tyre Size/Type (Non-Marking) 323 x 100 mm
Brakes
•• Multi-Disc Friction
Standard Features
•• Proportional Controls
•• Battery Condition Indicator
•• All Motion Alarm
•• 20 Amp Automatic SCR Charger
•• Horn
•• Hourmeter
•• Tilt Alarm and Light
•• Lanyard Attach Points
•• Movable, Removable Platform Control
•• Nickel Plated Pins
•• Lubrication Free Scissor Arm Bushings
•• Scissor Maintenance Prop
•• Active Pothole Protection System
•• Lifting and Tie Down Points
•• Fork Lift Pockets
•• 86 cm Foot-Actuated
Deck Extension
•• Steel Swing-Out Doors
•• Variable Tilt Window
•• Manual Descent Cable
•• Diamond Tread Steel Deck
•• Greaseless Kingpin Joints
•• Analyzer Port for Diagnostics
•• Dynamic Braking
•• Flashing Amber Beacon
•• Self-Closing, Self-Latching Gate
