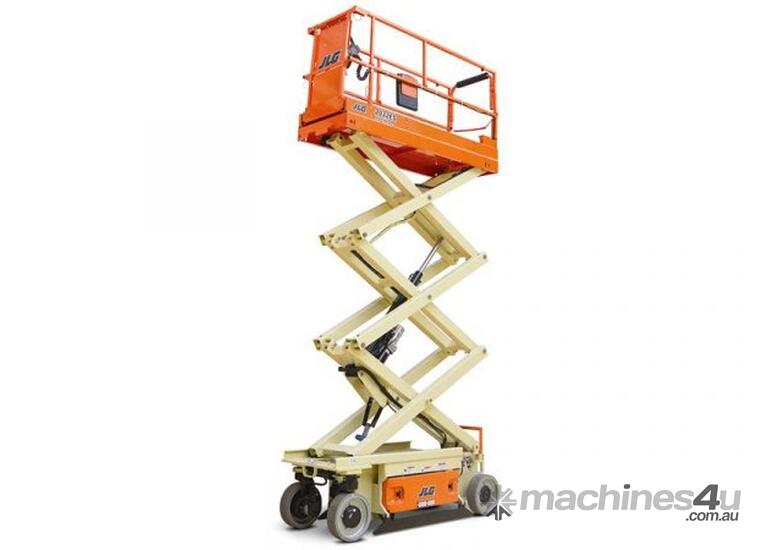

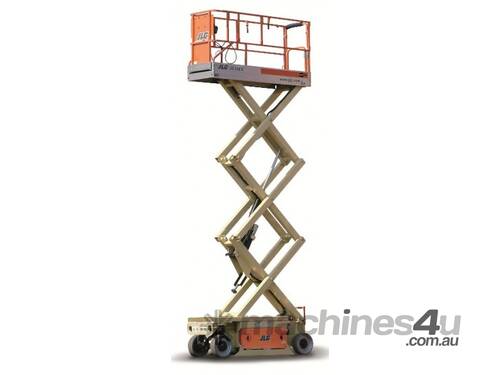

**NEW JLG 2030ES 20 foot (6.1m platform height) Electric Scissor Lift
Quieter, cleaner operation for a variety of environments, both indoors and outdoors
Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
Narrow width fits through most standard doorways and tight aisles
2032ES Specifications
Performance:
Platform Height (max.) 6.10m
Working Height 8.10m
Lift Time 30 sec
Lower Time 30 sec
Platform Capacity Standard 360kg

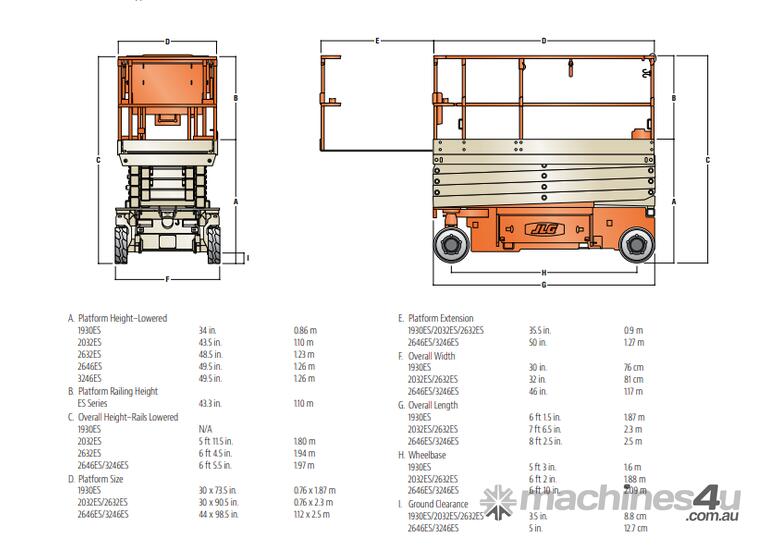

Dimensions:
Stowed Height - Rails Up 2.20m
Stowed Height - Rails Lowered 1.82m
Minimum Transport Length 2.30m
Minimum Transport Height 1.82m
Overall Width 0.81m
Wheelbase 1.88m
Ground Clearance 0.09m
Platform Width 0.76m
Platform Length 2.30m
Standard Platform Extension 0.9m
Platform Height Lowered 1.10m
Maximum Drive Height 6.10m
Power:
Power Source Battery
DC Voltage 24V
DC Power 225 Amp h
Hydraulic Pump - Type Gear
Batteries 4 x 6V
Charger Electronic IP46 Input Voltage 190-250 VAC
Travel:
Tyre Size 406 x 125
Tyre Type (Non-Marking) Solid
Inside Turn Radius 0m
Outside Turn Radius 2.06m
Drive Speed Elevated 0.8km/h
Gradeability 25%
Indoor Rating Person on Platform 2
Outdoor Rating 12.5m/sec Persons on Platform 1
Elevated Drive Time 18 hr
Weights and capabilities:
Hydraulic Tank Capacity 4.73 Ltr
Operating Weight 2,065kg
