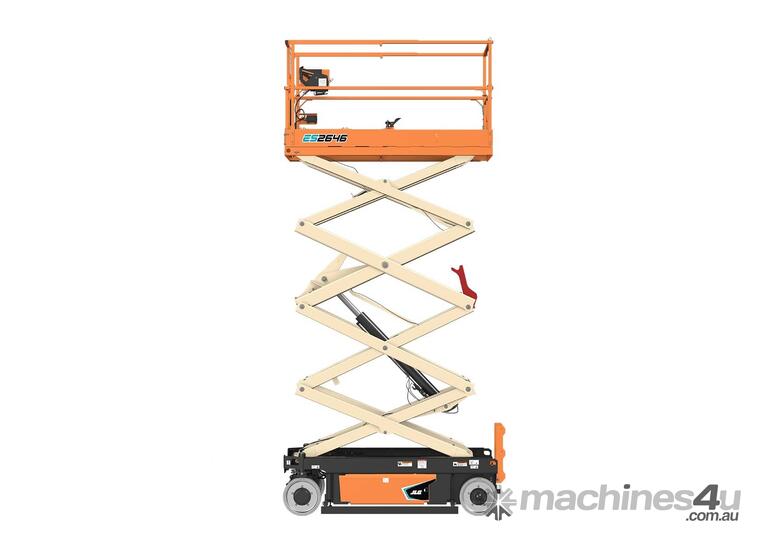

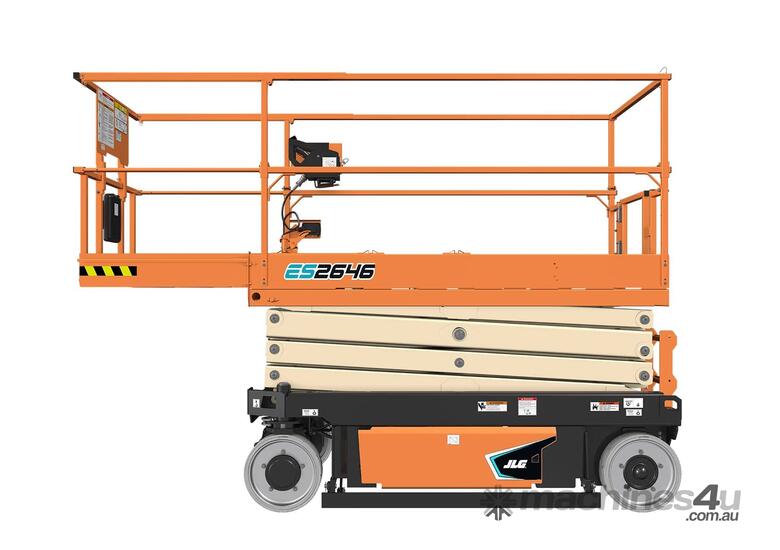

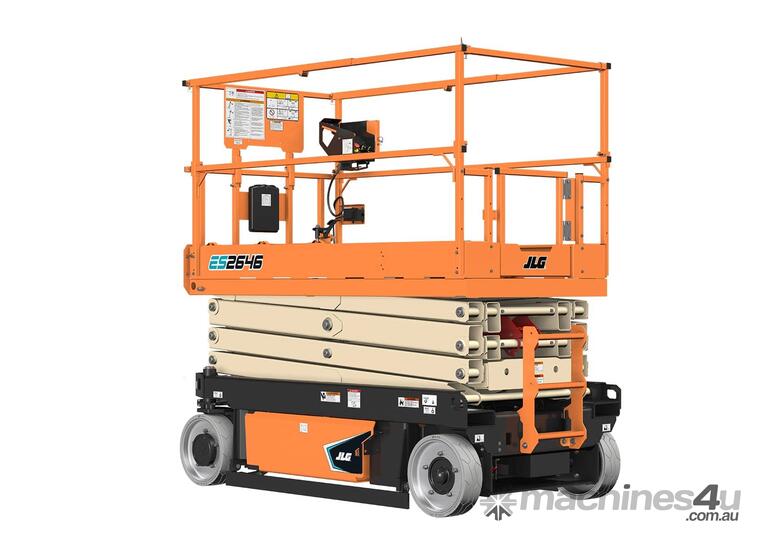

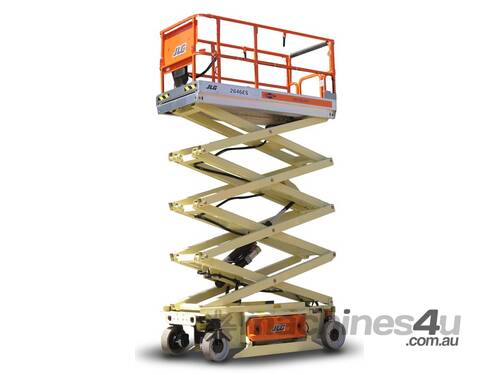

**NEW JLG 2646ES 26 foot (7.92 m platform height) Electric Scissor Lift
Quieter, cleaner operation for a variety of environments, both indoors and outdoors
Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls.
2646ES Specifications
Performance:
Platform Height (max.) 7.92m
Working Height 9.92m
Lift Time 40 sec
Lower Time 40 sec
Platform Capacity Standard 450kg
Dimensions:
Stowed Height - Rails Up 2.36m
Stowed Height - Rails Lowered 1.97m
Minimum Transport Length 2.50m
Minimum Transport Height 1.97m
Overall Width 1.17m
Wheelbase 2.09m
Ground Clearance 0.13m
Platform Width 1.12m
Platform Length 2.50m
Standard Platform Extension 1.27m
Platform Height Lowered 1.26m
Maximum Drive Height 7.92m
Power:
Power Source Battery
DC Voltage 24V
DC Power 225 Amp h
Hydraulic Pump - Type Gear
Batteries 4 x 6V
Charger Electronic IP46 Input Voltage 190-250 VAC
Travel:
Tyre Size 406 x 125
Tyre Type (Non-Marking) Solid
Inside Turn Radius 0m
Outside Turn Radius 2.41m
Drive Speed Elevated 0.8km/h
Gradeability with 2WD 25%
Indoor Rating Persons on Platform 2
Outdoor Rating 12.5m/sec Persons on Platform 2
Elevated Drive Time 16 hr
Weights and capabilities:
Hydraulic Tank Capacity 7.1 Ltr
Operating Weight 2,600kg
STM Equipment is the market leaders in sales of new & used EWP equipment. We are also the factory appointed, Authorised Merlo Telehandler Dealer for the Sydney Basin and Regional NSW.
At STM Equipment we strive to be Australia’s number one provider of all facets of Access & Lifting solutions to new and existing customers. Our Sales & Operations team have a combined total of over 50 years’ experience in the access industry. We also specialise in 10-year re-certification of EWP equipment, preventative maintenance and scheduled servicing. In addition to this STM Equipment also carry out all Merlo warranty and service work in our area.
At STM Equipment no job is too big or small, and we are happy to assist you in any of your equipment needs Australia wide.
Need Transport? Then ask about our Nation-wide delivery service today.
