JLG ES1932 Electric Scissor Lift with Trailer - ES1932 5.8m Platform Height

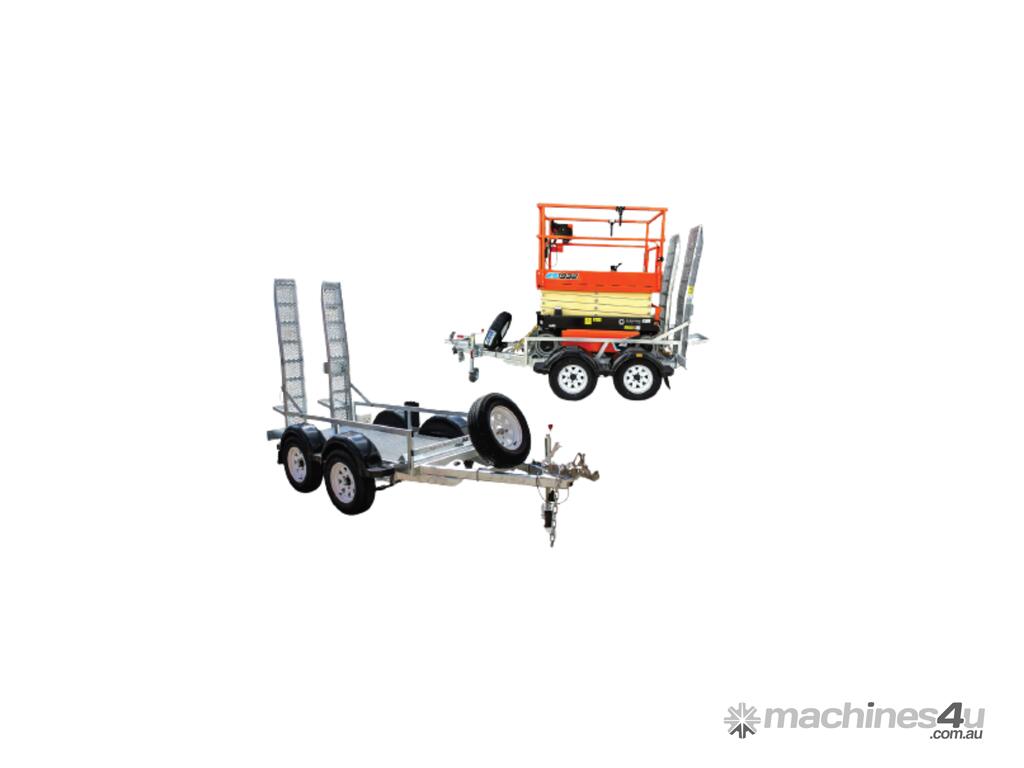

NEW JLG ES1932 19-Foot Electric Scissor Lift with JLG TSL2000- G Galvanised Trailer

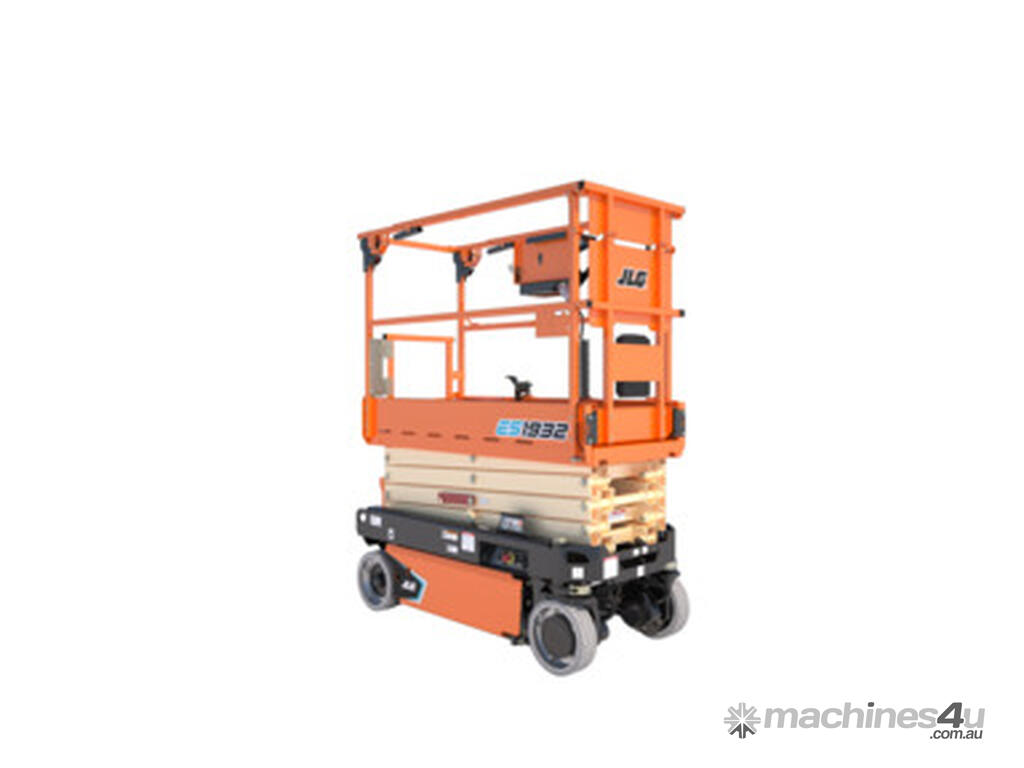

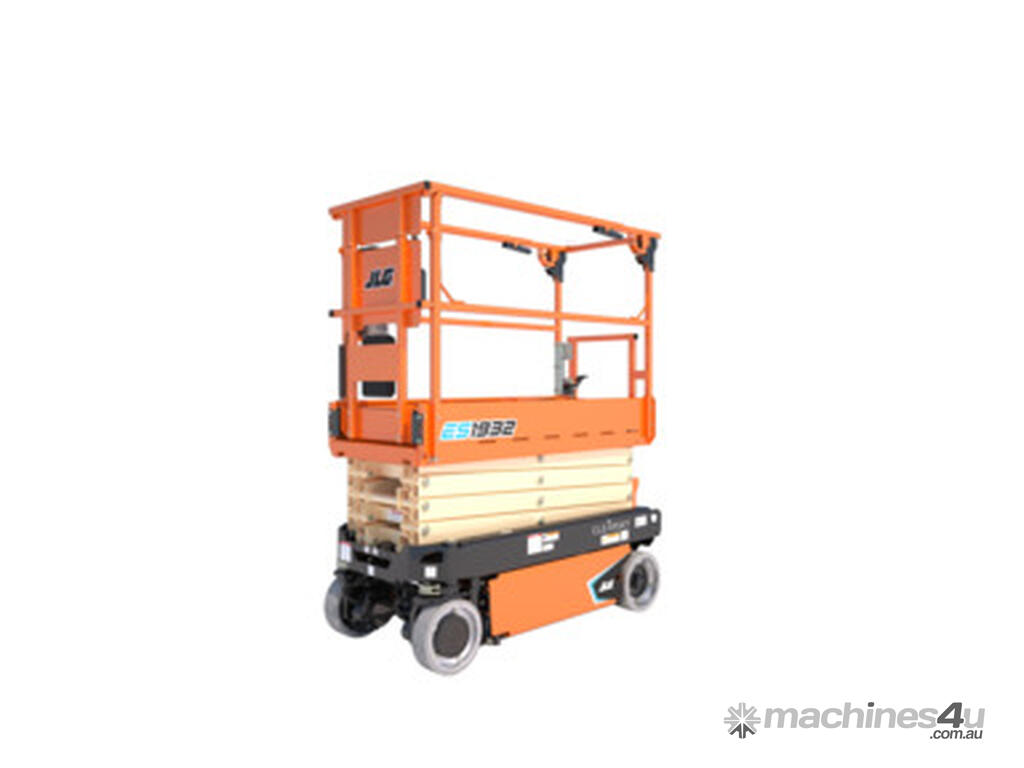

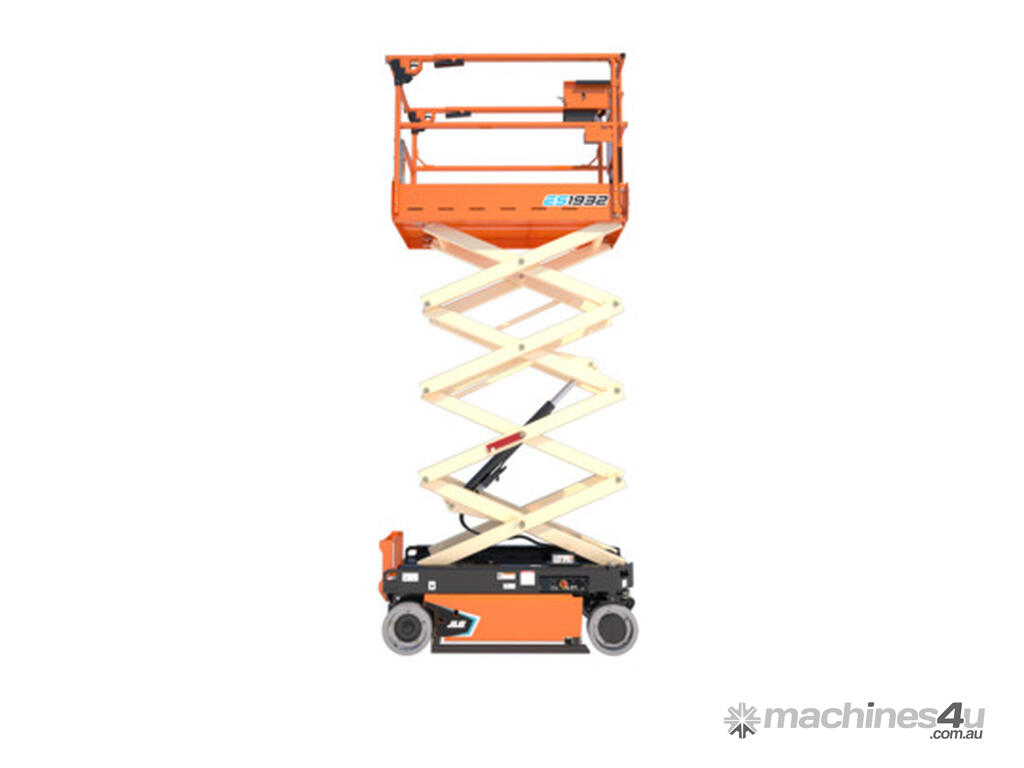

The JLG ES Series electric scissor lift is a rental-ready solution built for all job sites. Designed for affordability, reliability, and serviceability, it features fewer parts and all-steel swing-out component trays for easy maintenance. Its compact dimensions make it perfect for confined spaces. The improved battery charger provides real-time performance updates.

The TSL 2000G scissor trailer is designed and built in Australia by JLG Industries. Engineered for productivity, quality, and value, it ensures safe and efficient transportation of your scissor lift.
(Registration & galvanized options available at additional cost.)

Key Specifications
Platform Height: 5.80 m
Platform Capacity: 230 kg
Capacity on Platform Extension: 120 kg
Occupants (Indoor/Outdoor): 2 / 1
Lift/Lower Time: 22 / 24 seconds
Maximum Drive Height: Full height
Weight: 1550 kg (Certain options or country standards may increase weight)
Ground Bearing Pressure: 8.0 kg/cm²
Drive Speed (Elevated): 0.8 km/h
Drive Speed (Lowered): 4.8 km/h
Gradeability: 25%
Turning Radius (Inside): Zero
Turning Radius (Outside): 1.7 m

Key Features
Electric Drive
Proportional Controls
Battery Condition Indicator
All Motion Alarm
20 Amp Automatic SCR Charger
Horn & Hourmeter
Tilt Alarm & Light
Lanyard Attach Points
Movable & Removable Platform Control
Nickel-Plated Pins & Lubrication-Free Scissor Arm Bushings
Scissor Maintenance Prop & Active Pothole Protection System
Lifting & Tie-Down Points
Forklift Pockets
86 cm Foot-Actuated Deck Extension
Steel Swing-Out Doors
Variable Tilt Window
Manual Descent Cable
Diamond Tread Steel Deck
Greaseless Kingpin Joints
Analyzer Port for Diagnostics
Dynamic Braking & Flashing Amber Beacon
Self-Closing, Self-Latching Gate

JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
