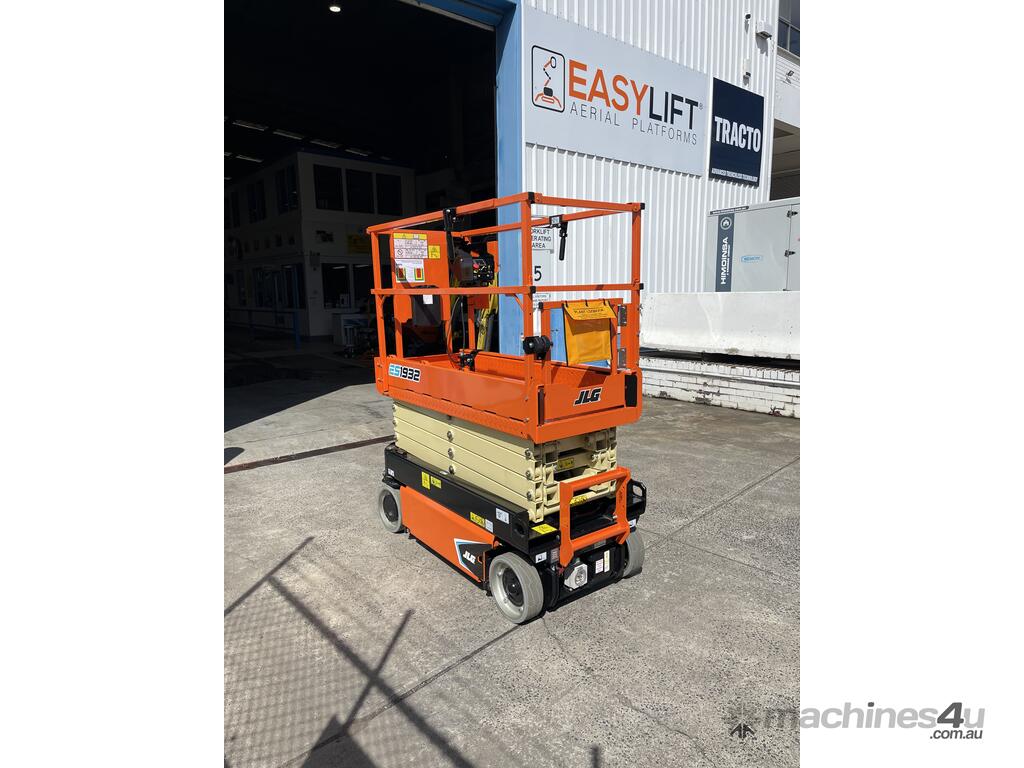

JLG ES1932 SCISSOR LIFT

Power Source

General Specifications
Brakes Multi-Disc Friction
Capacity - Hydraulic Reservoir 7 L / 1.8 gal.
Hydraulic Pump Fixed Displacement Gear
Machine Weight 1565 kg / 3450.2 lb
Maximum Ground Bearing Pressure 8.01 Kg/cm2

Performance Data
Drive Speed - Platform Elevated 0.80 km/h / 0.5 mph
Drive Speed - Platform Lowered 4.80 km/h / 3 mph
Drive System 24V DC
Gradeability 25 %
Lift Time 22 sec.
Lower Time 27 sec.
Maximum Drive Height 5.80 m / 19 ft
Platform Capacity 230 kg / 507.1 lb
Platform Capacity - Extension 120 kg / 264.6 lb
Platform Capacity - Indoor 230 kg / 507.1 lb
Platform Capacity - Outdoor 230 kg / 507.1 lb
Platform Capacity 0.64 m x 1.59 m
Turning Radius - Inside 0 m / 0 ft
Turning Radius - Outside 1.69 m / 5.5 ft

Dimensional Data
Ground Clearance 0.07 m / 0.2 ft
Machine Height 2.10 m / 6.9 ft
Machine Height - Rails Folded 1.63 m / 5.3 ft
Machine Length 1.74 m / 5.7 ft
Machine Width 0.81 m / 2.7 ft
Platform Dimension A 0.64 m / 2.1 ft
Platform Dimension B 1.59 m / 5.2 ft
Platform Extension Length 0.86 m / 2.8 ft
Platform Height - Lowered 0.98 m / 3.2 ft
Platform Railing Height 1.11 m / 3.6 ft
Tire Size 323 x 100
Wheelbase 1.35 m / 4.4 ft

Reach Specifications
Platform Height 5.80 m / 19 ft
Working Height 7.80 m / 25.6 ft
