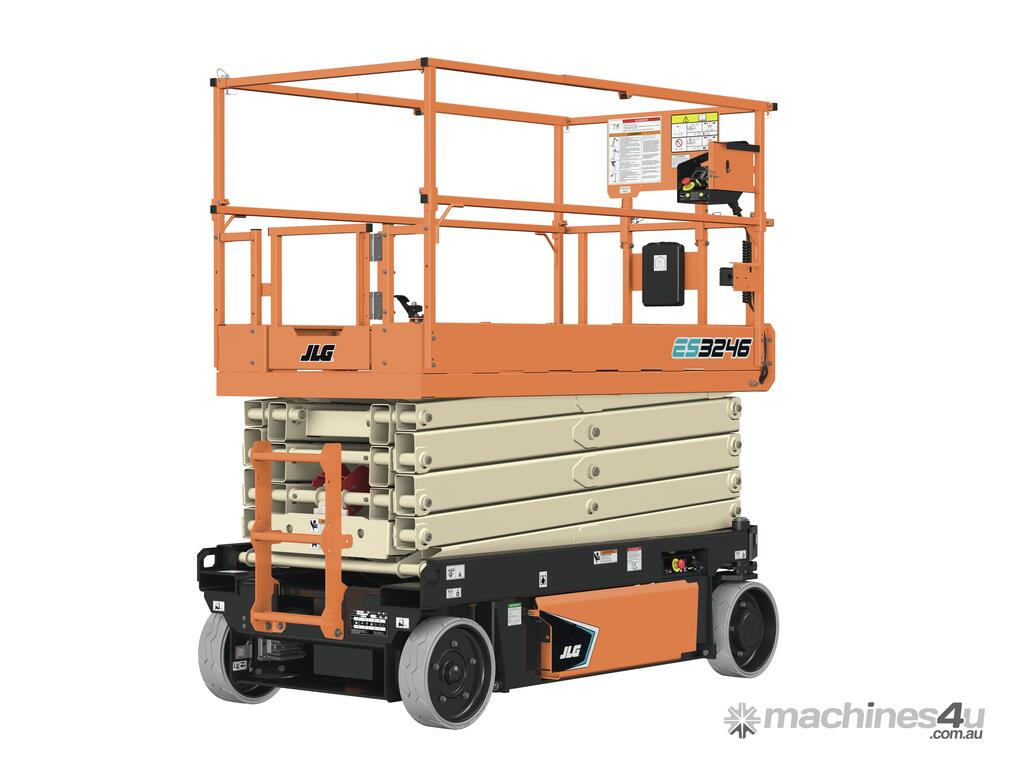

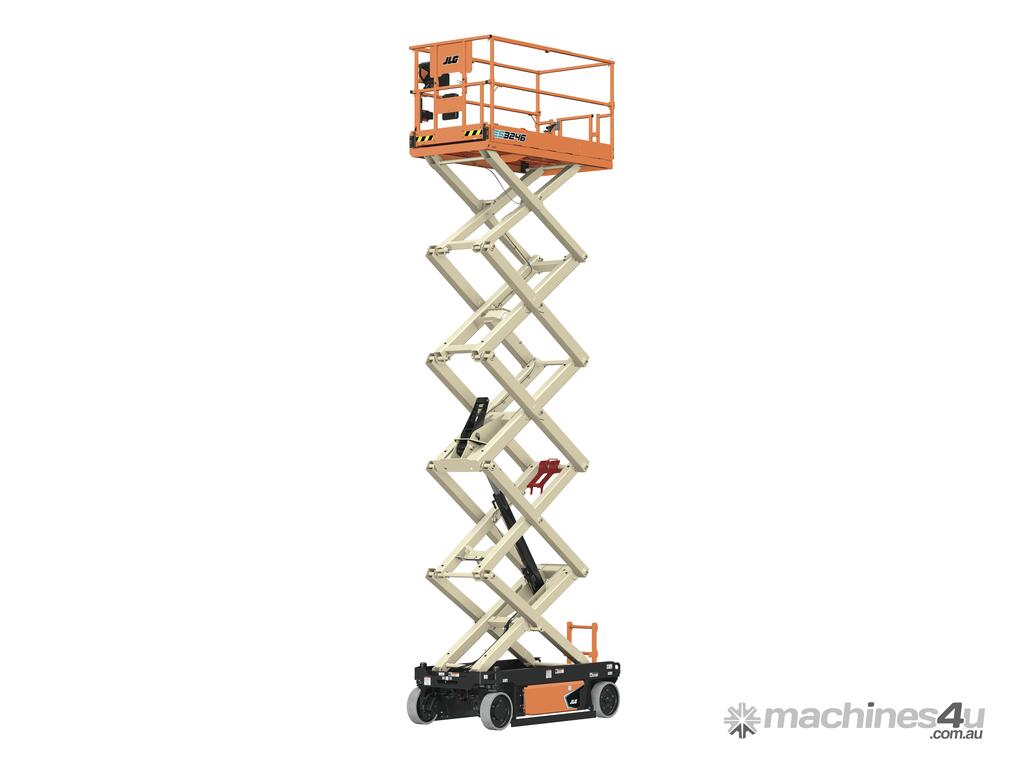

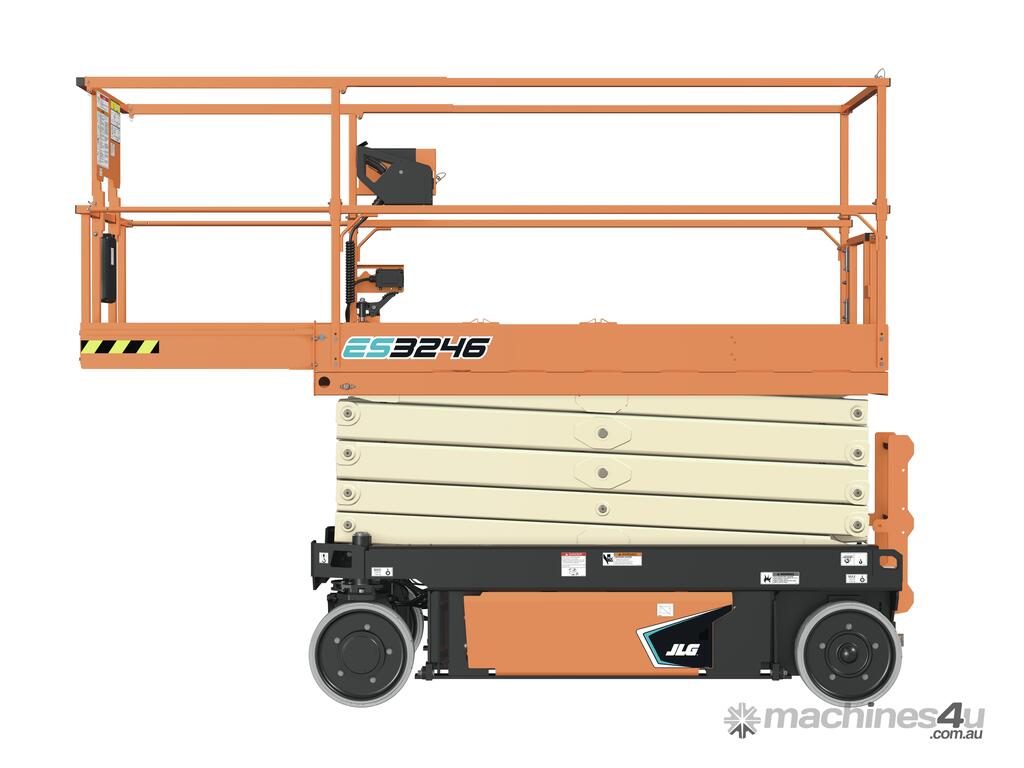

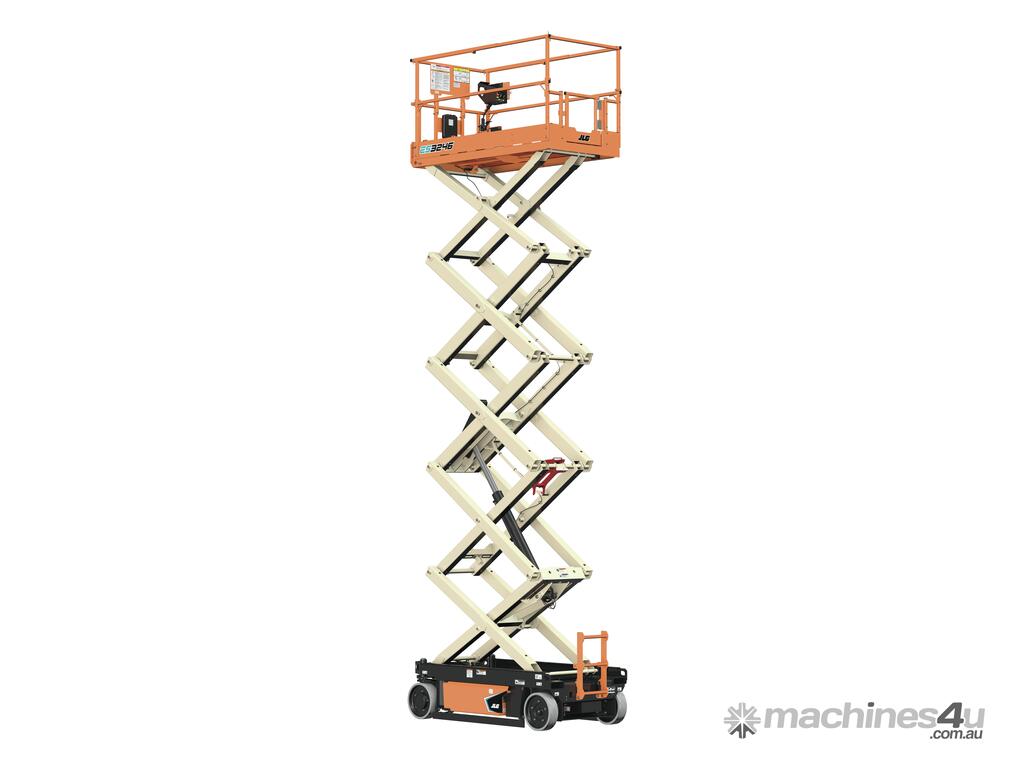

JLG ES3246 Electric Scissor Lifts Scissor Lift- 32 foot platform height

JLG - ES3246 Electric Scissor Lifts
ES Series Scissor Lift

Features:
-Quieter, cleaner operation for a variety of environments, both indoors and outdoors
-Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
-Tight turning radius for great maneuverability

Quick Specs:
Platform Height Elevated – 31 ft 9 in
Overall Width – 46 in
Platform Capacity – 700 lb / 1,000 lb

Power System/Chassis:
Batteries 4 x6V, 220 amp-hr
Charger 20 Amp Automatic / 120V/240V - 50/60 Hz
Drive 24V Electric / 8 hp
Pump Fixed Displacement Gear
Hydraulic Reservoir 1.7 gal. / 6.4 L

Performance Data:
Drive Speed, Lowered 2.5 mph / 4.00 kmph
Drive Speed, Elevated 0.5 mph / 0.8 kmph
Gradeability 25%
Turning Radius - Inside Zero
Turning Radius - Outside 95.1" / 2.41 m
Tire Size 16 x 5" / 406 x 125 mm
Tyre Type Non-Marking Solid
Brakes (on drive wheels) Electric, Friction

Dimensions:
Platform Height - Elevated 31' 9" / 9.68 m
Platform Height - Lowered 49.5" / 1.26 m
Platform Railing Height 43.3" / 1.10 m
Overall Height 7' 8.8" / 2.36 m
Overall Height - With Rails Folded 6' 5.5" / 1.97 m
Platform Dimensions 44 x 98.5" / 1.12 x 2.5 m
Platform Dimensions - Platform Extension 50" / 1.27 m
Overall Length 8' 2.5" / 2.5 m
Overall Width 46" / 1.17 m
Wheelbase 6' 10" / 2.09 m
Ground Clearance 5" / 127 mm
Platform Capacity 700/1,000 lb / 318/454 kg
Platform Capacity - Capacity on Extension 250 lb / 113 kg
Rail Type Fold Down
Lift/Lower Time 50/50 seconds
Maximum Drive Height 31' 9" / 9.68 m
Weight* (ANSI/CSA) 4,780 lb / 2,168 kg
Ground Bearing Pressure 87 psi / 6.11 kg/cm²

Available Options:
-1000 Watt - AC Inverter/Charger
-Flashing Amber Beacon
-Spring-Loaded Gate
-245 Amp-Hour Batteries
-AGM Batteries
-Lifting Lugs
-UL® EE Rating
-Platform Padding
-Platform Padding with Proximity Switches
-1/2" Air Line to Platform
-Nite Bright
