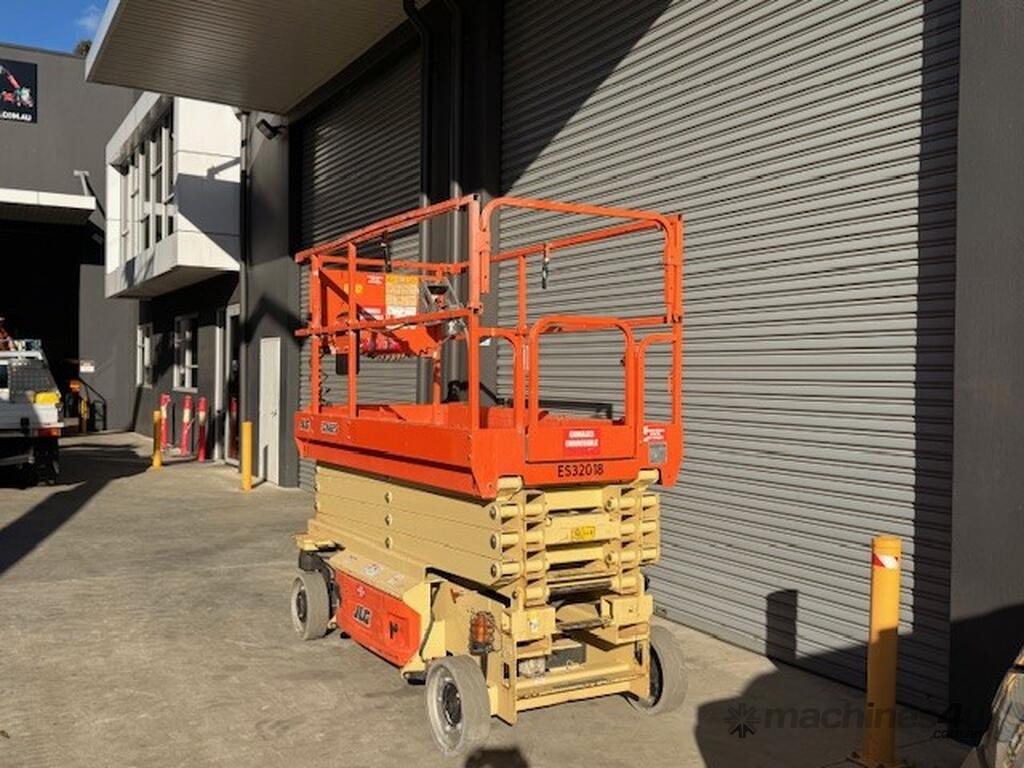

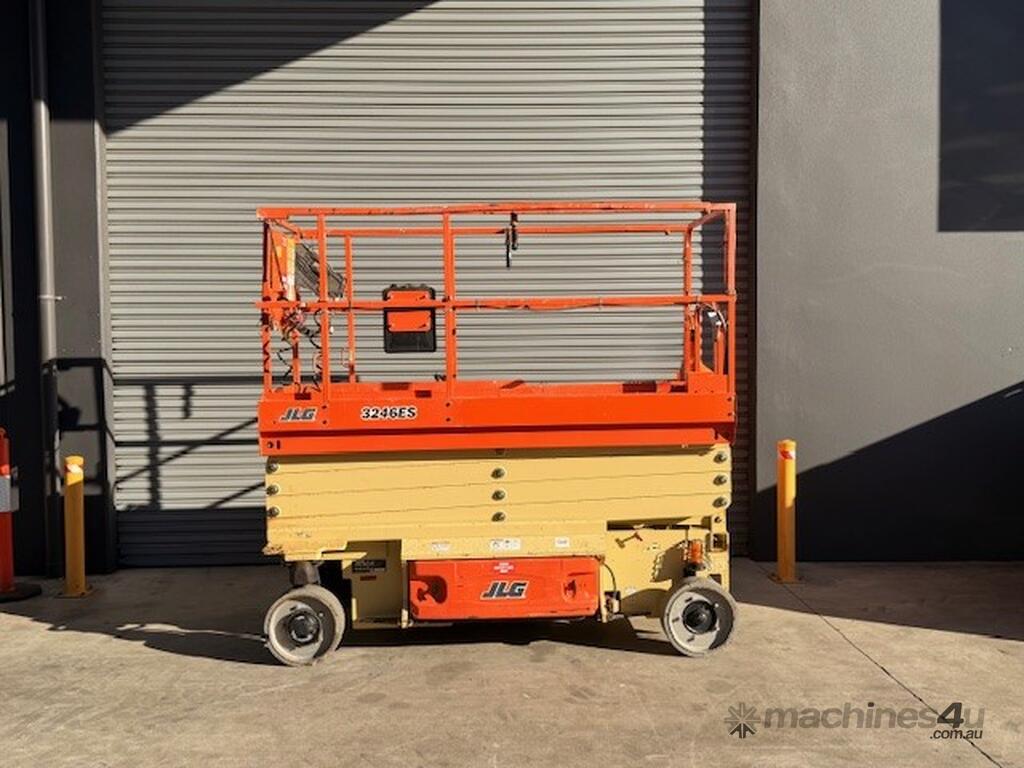

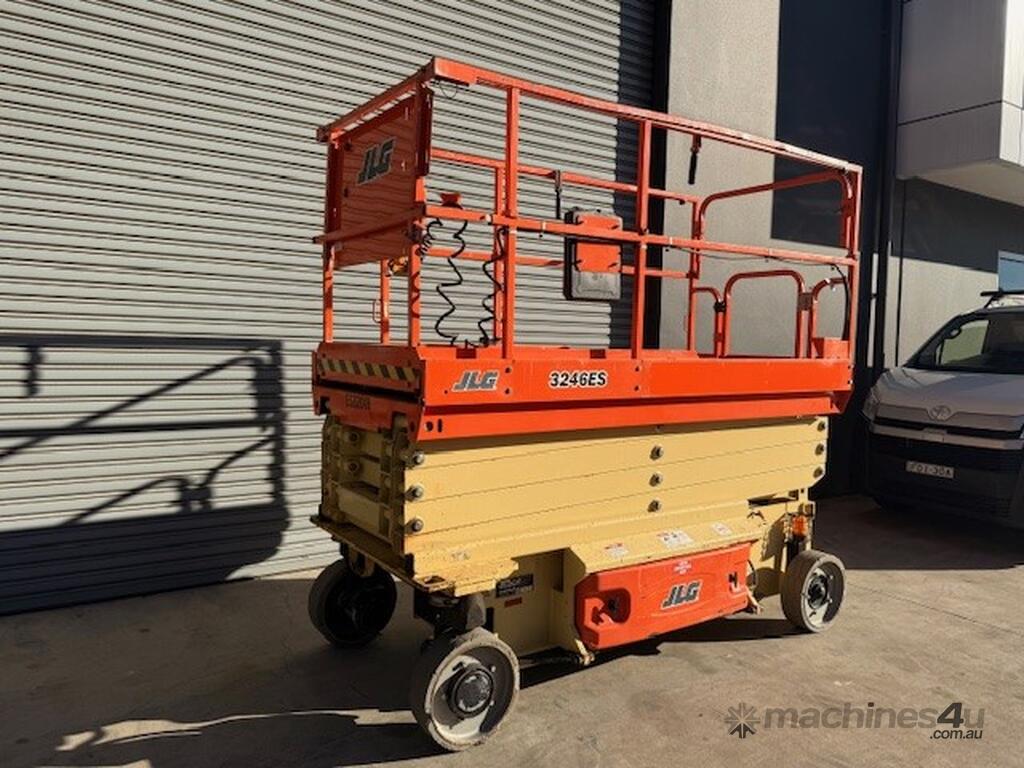

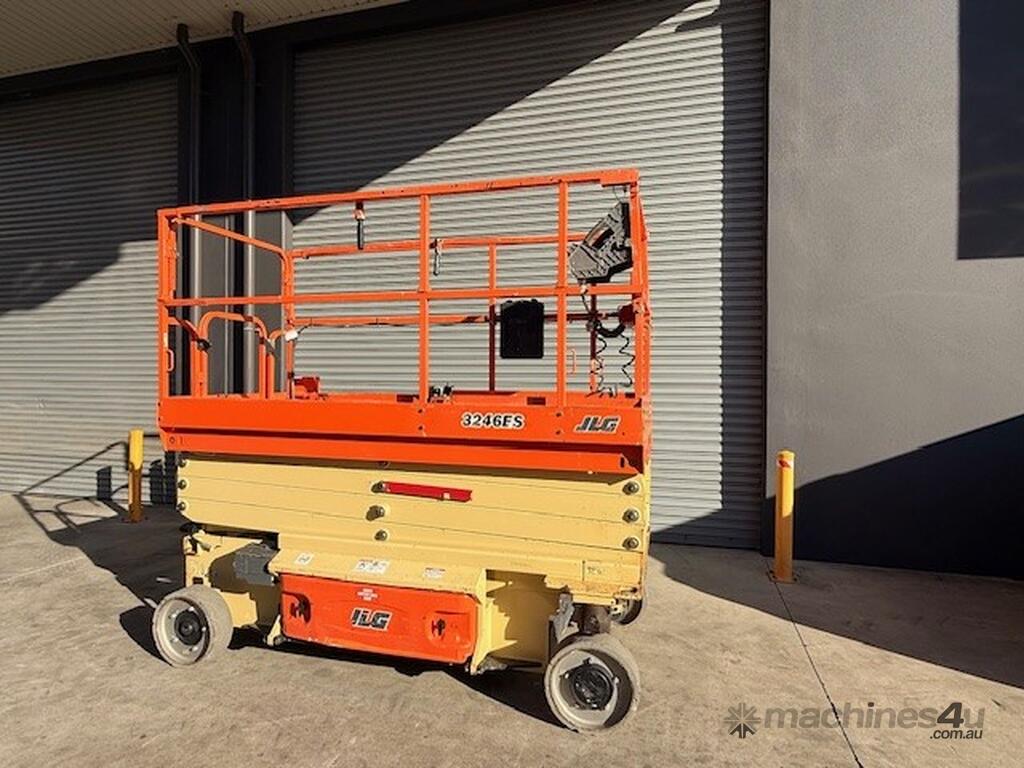

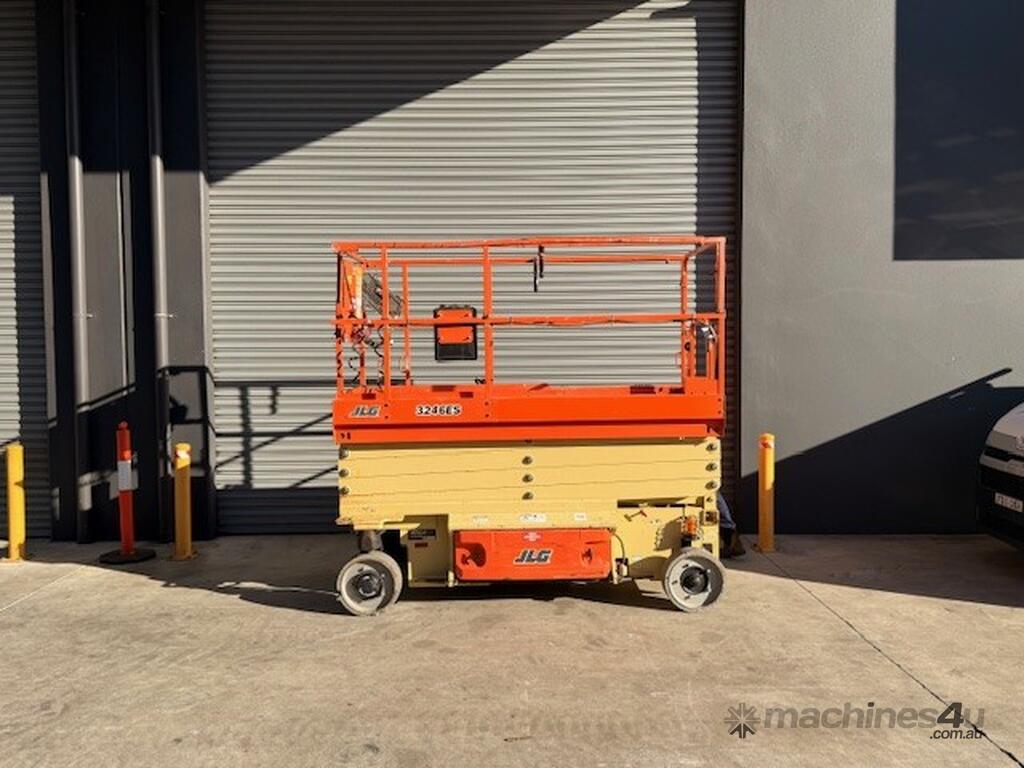

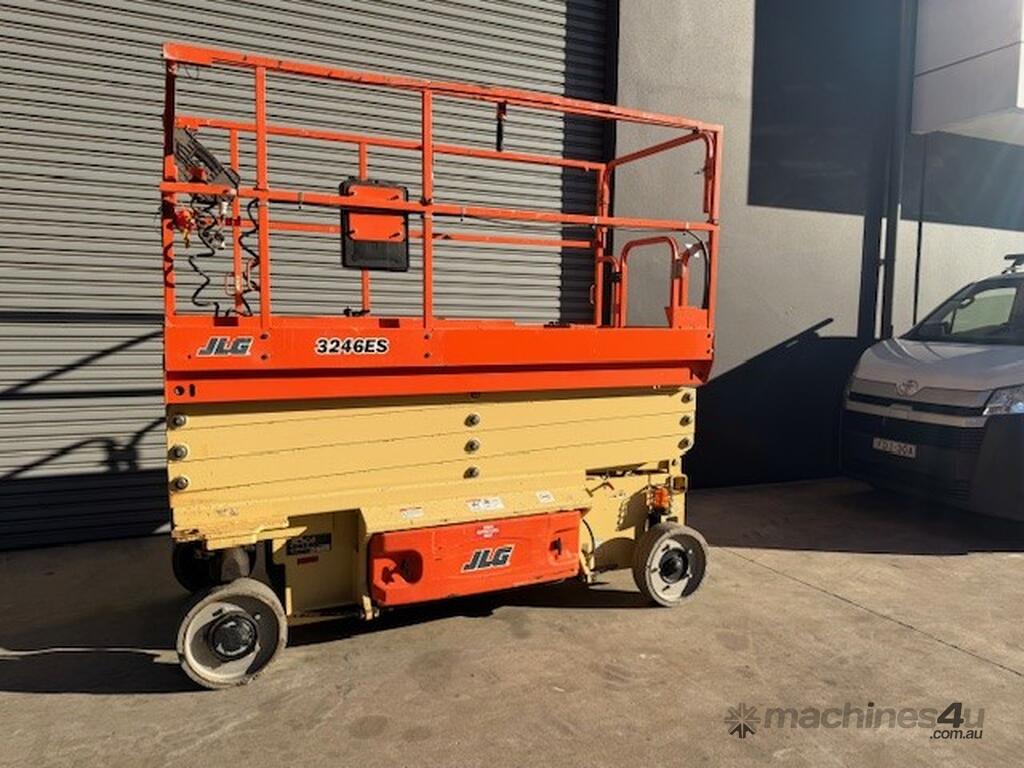

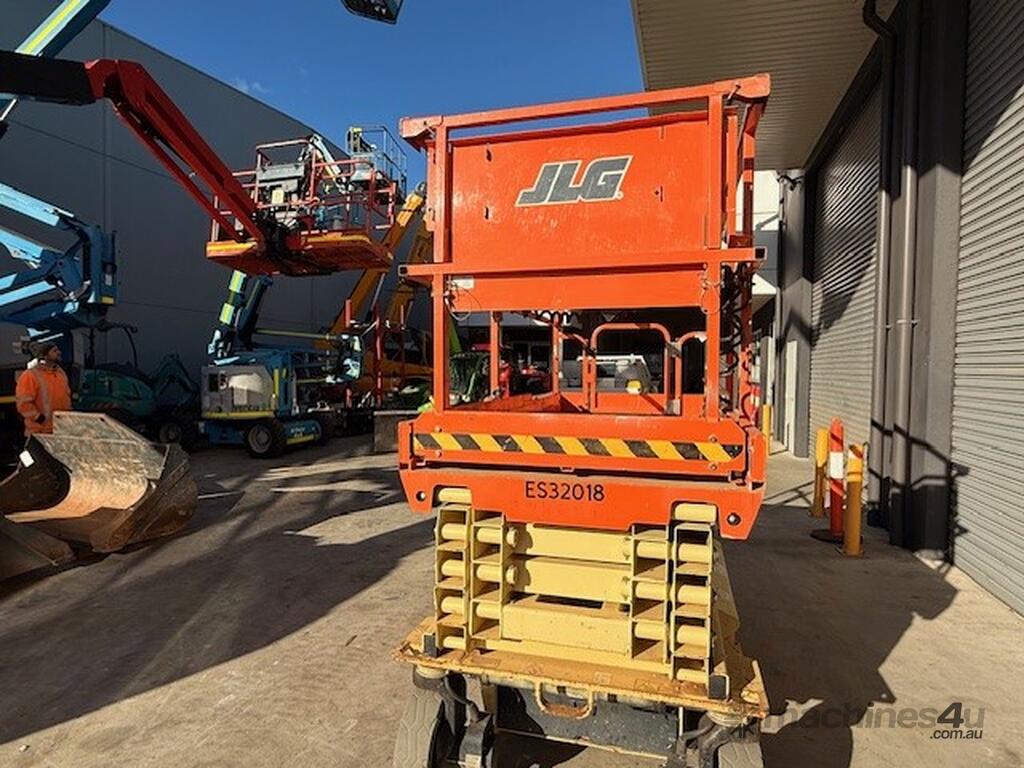

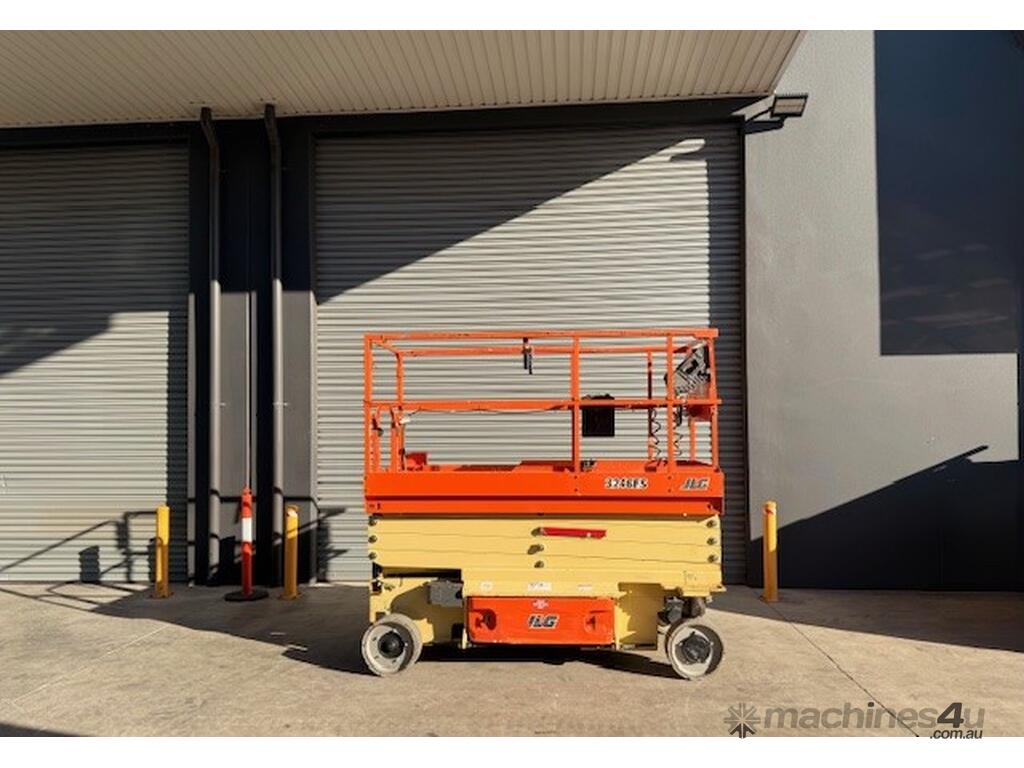

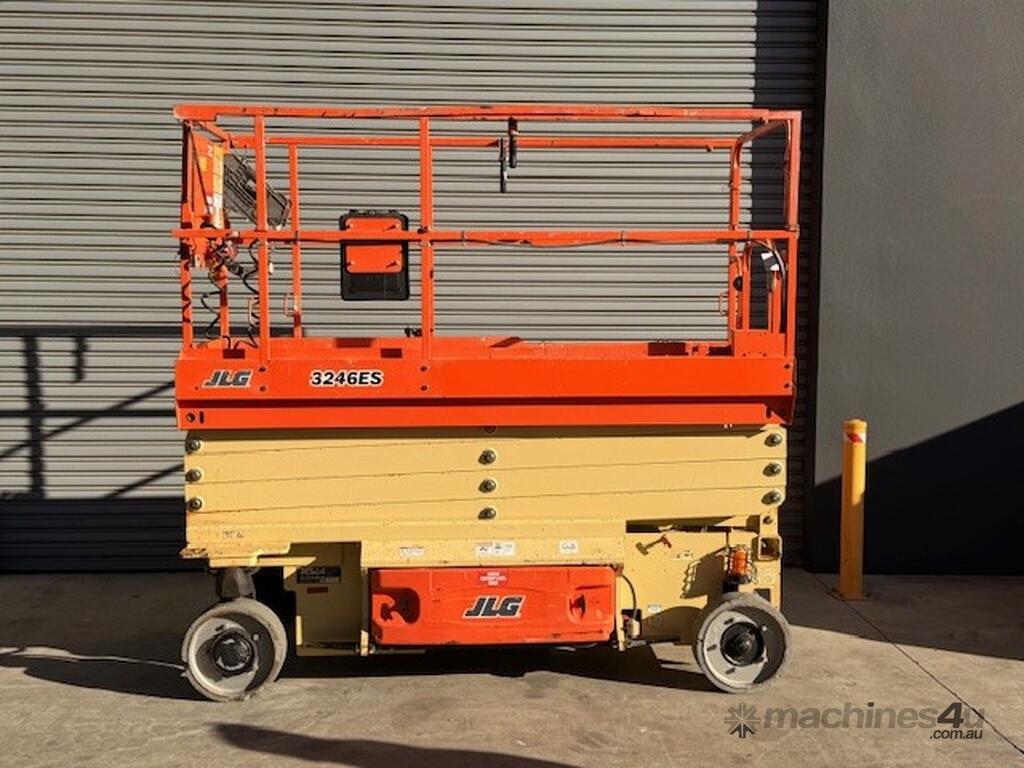

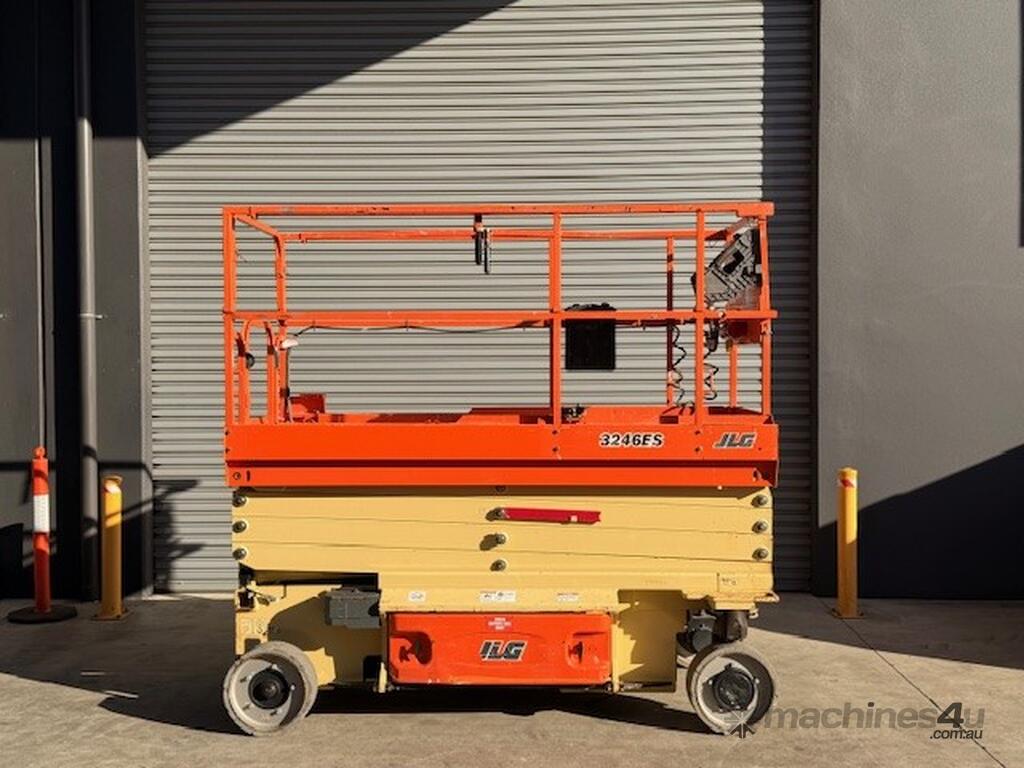

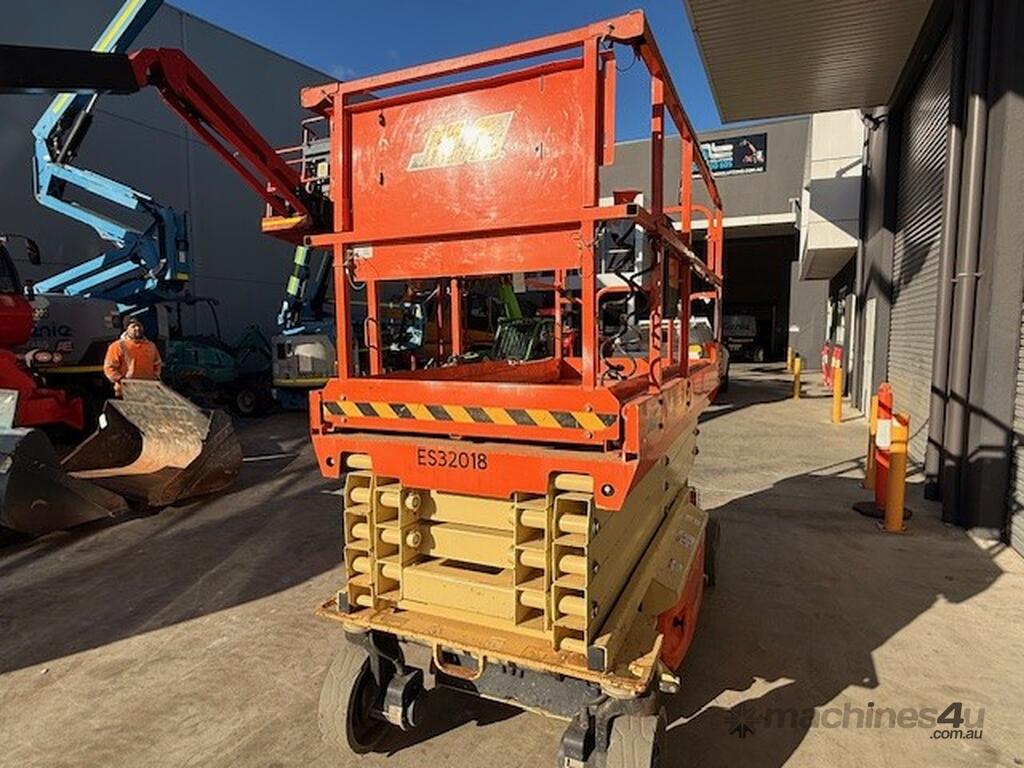

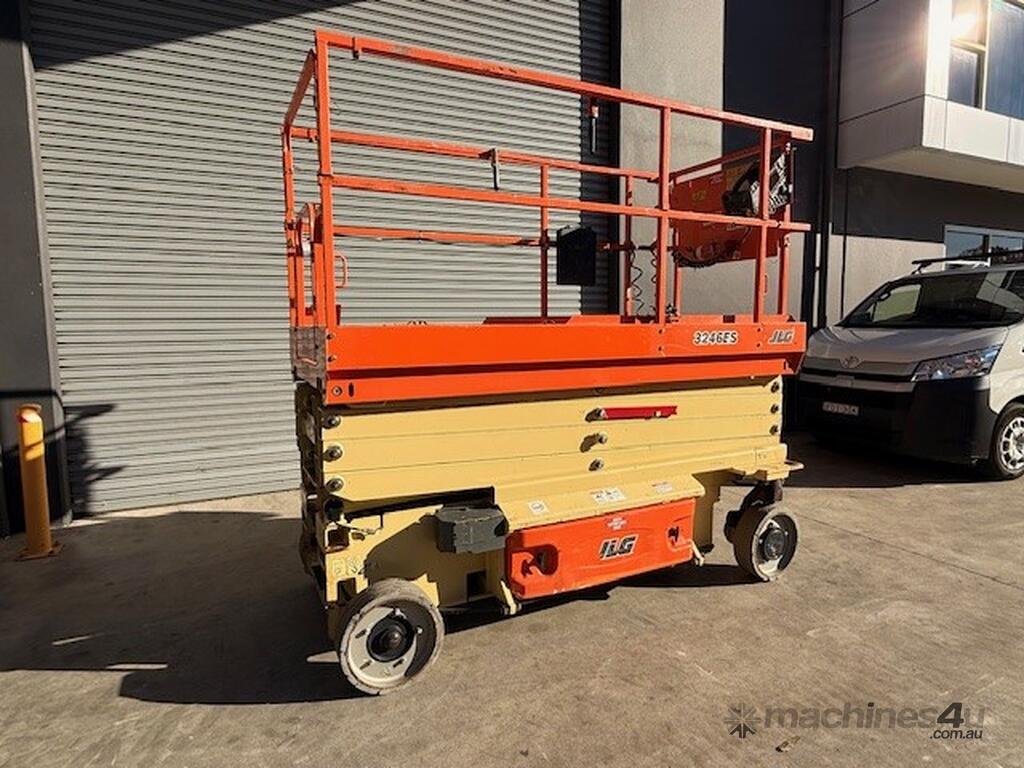

JLG3246ES Electric Scissor Lift, with Full 10 Year Certification, 594hrs

Used JLG Electric Scissor Lift with Full 10 Year Major Inspection

Model: JLG 3246ES
32FT
Electric - built in charger
2015 model
594 hours
Solid Tyres
Max. Platform weight 320KG
Reach Specifications
Platform Height 9.68 m / 31 ft 9 in.
Working Height 11.51 m / 37 ft 9 in.

General Specifications
Brakes Electric, Friction
Capacity - Hydraulic Reservoir 6.44 L / 1.7 gal.
Ground Bearing Pressure 6.09 Kg/cm2 / 87 psi
Hydraulic Pump Fixed Displacement Gear
Machine Weight 2256.62 kg / 4975 lb

Dimensional Data
Ground Clearance 0.13 m / 5 in.
Machine Height 2.36 m / 7 ft 9 in.
Machine Height - Rails Folded 1.97 m / 6 ft 6 in.
Machine Length 2.5 m / 8 ft 3 in.
Machine Width 1.17 m / 3 ft 10 in.
Platform Dimension A 2.5 m / 8 ft 3 in.
Platform Dimension B 1.12 m / 3 ft 8 in.
Platform Extension Length 1.27 m / 4 ft 2 in.
Platform Height 9.68 m / 31 ft 9 in.
Platform Height - Lowered 1.26 m / 4 ft 2 in.
Platform Railing Height 1.1 m / 3 ft 7 in.
Tyre Size 16 x 5 in
Wheelbase 2.08 m / 6 ft 10 in.

Unit is in great mechanical and cosmetic order.

YG Lifting Solutions Process:

- Full Pressure Wash
- Mechanical Check/Report
- Full 10 Year Inspection with new plate
- NDT Crack and corrosion Test carried out and supplied with certificates
- Full Signed off Documentation provided
- Air Conditioning checked by our independent Air con supplier
- Machine Re Spray with New Decals

$13,900 plus GST

Yellow Card (EWP) Training & Licensing Available
