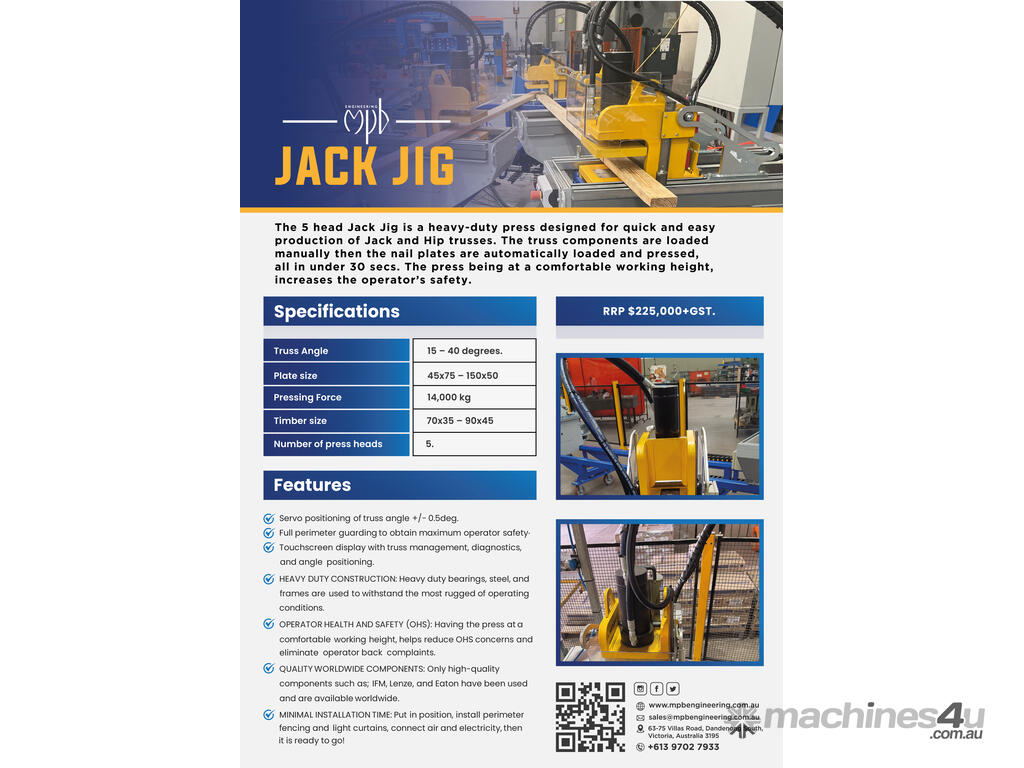

Jack Jig (The 5 head heavy-duty press designed for quick & easy production of Jack and Hip Trusses)

**SPECIAL PRICE WHILE STOCKS LAST** Normally $225,000+gst.

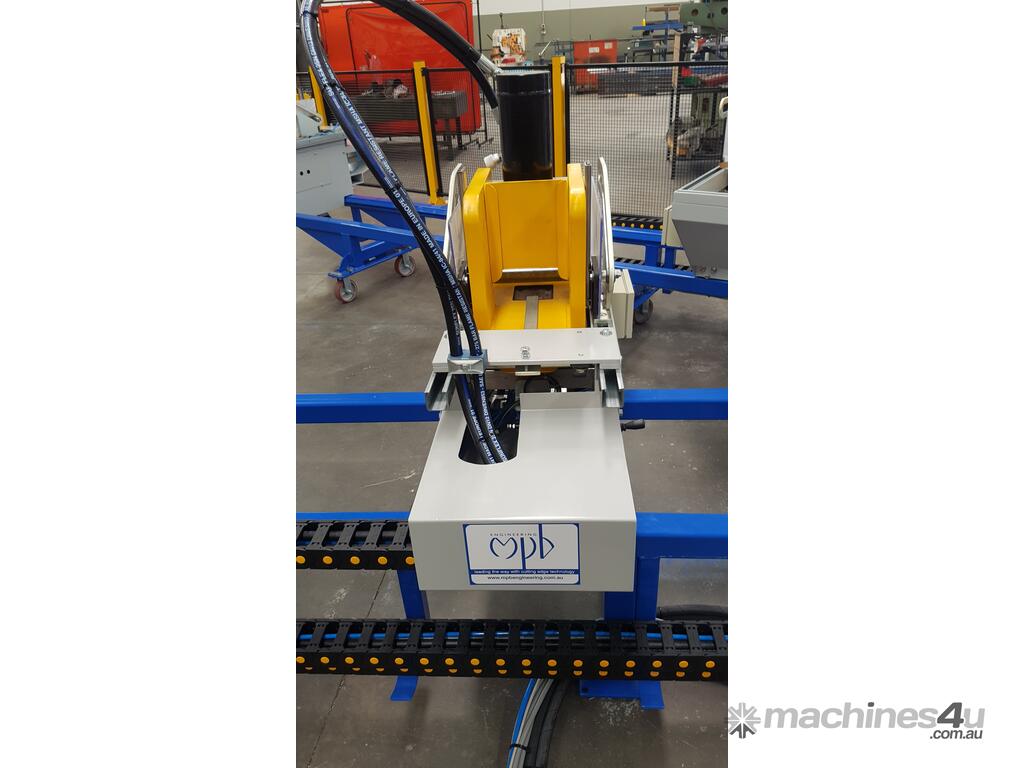

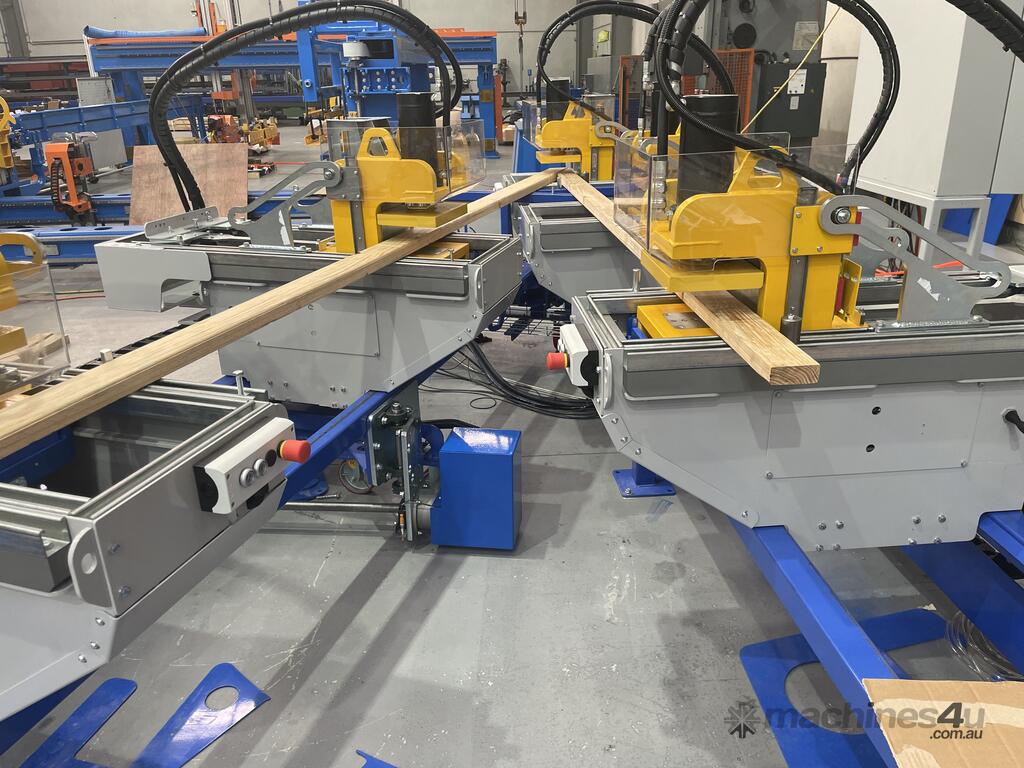

The 5 head Jack Jig is a heavy-duty press designed for quick and easy production of Jack and Hip trusses. The truss components are loaded manually then the nail plates are automatically loaded and pressed, all in under 30 secs. The press being at a comfortable working height, increases the operator’s safety.

Specifications:
Truss Angle: 15 – 40 degrees.
Plate size: 45x75 – 150x50
Pressing Force: 14,000 kg
Timber size: 70x35 – 90x45
Number of press heads: 5.

Features:
* Servo positioning of truss angle +/- 0.5deg.
* Full perimeter guarding to obtain maximum operator safety.
* Touchscreen display with truss management, diagnostics, and angle positioning.
* HEAVY DUTY CONSTRUCTION: Heavy duty bearings, steel, and frames are used to withstand the most rugged of operating
conditions.
* OPERATOR HEALTH AND SAFETY (OHS): Having the press at a comfortable working height, helps reduce OHS concerns and eliminate operator back complaints.
* QUALITY WORLDWIDE COMPONENTS: Only high-quality components such as; IFM, Lenze, and Eaton have been used and are available worldwide.
* MINIMAL INSTALLATION TIME: Put in position, install perimeter fencing and light curtains, connect air and electricity, then it is ready to go!
