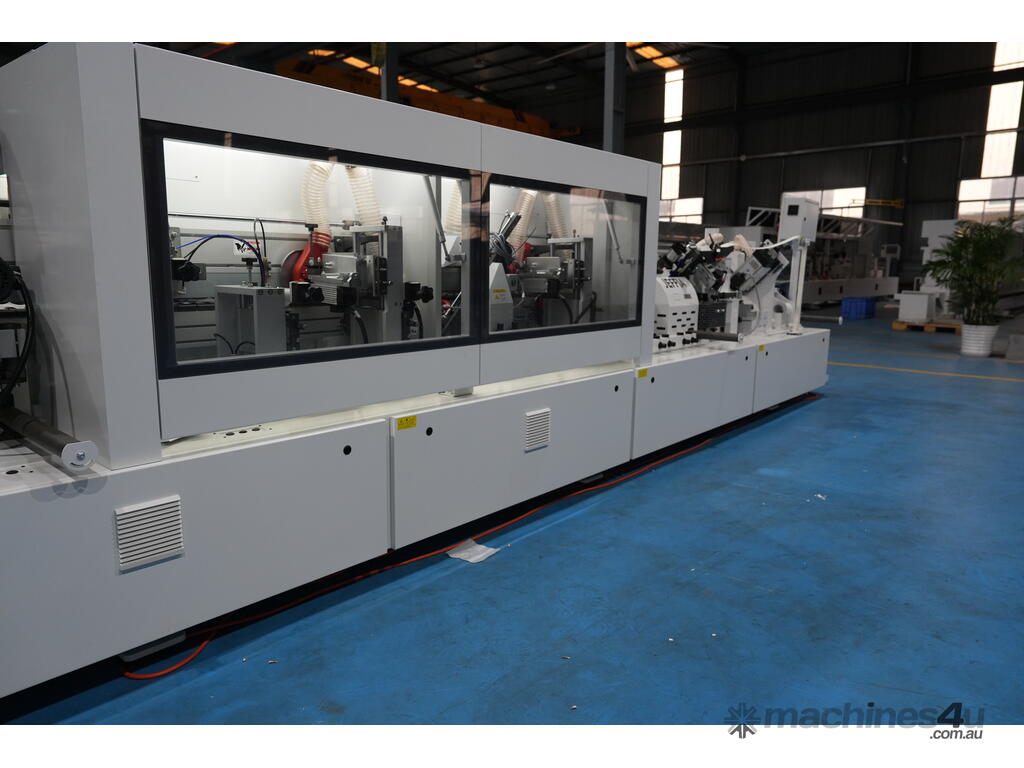

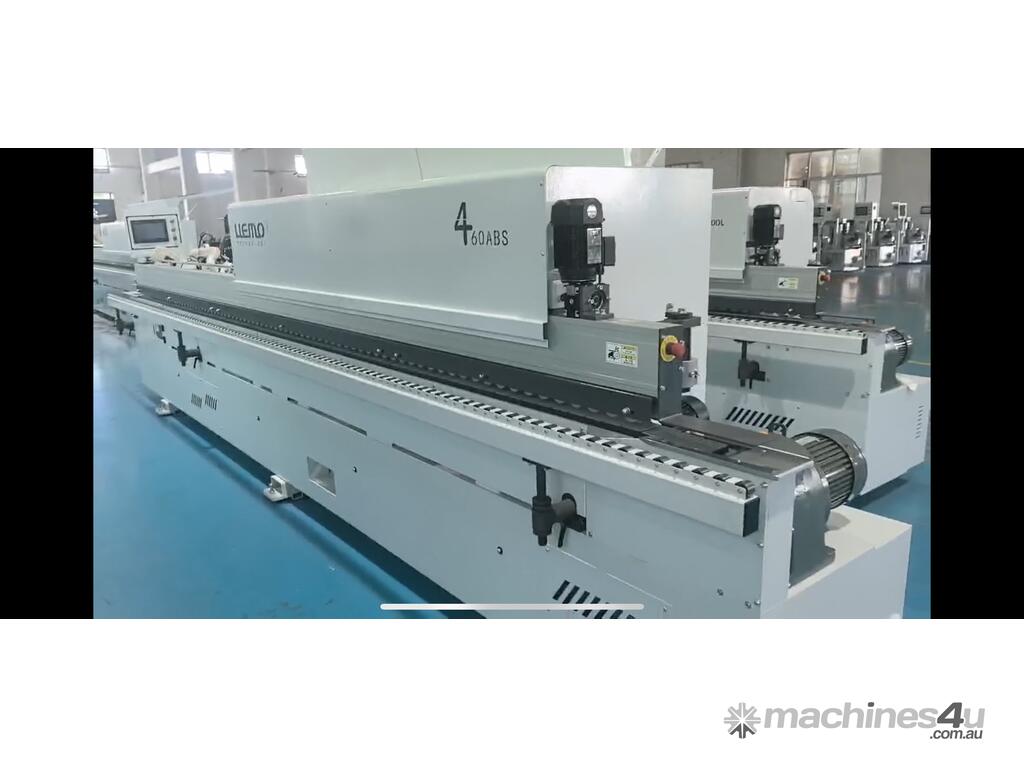

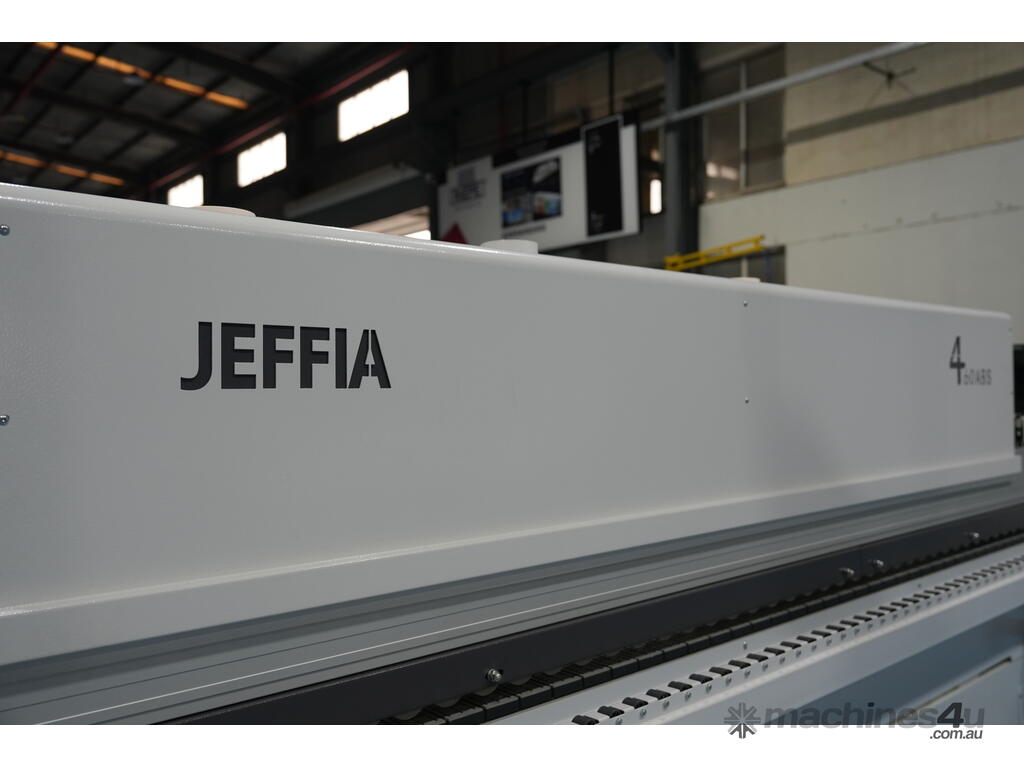

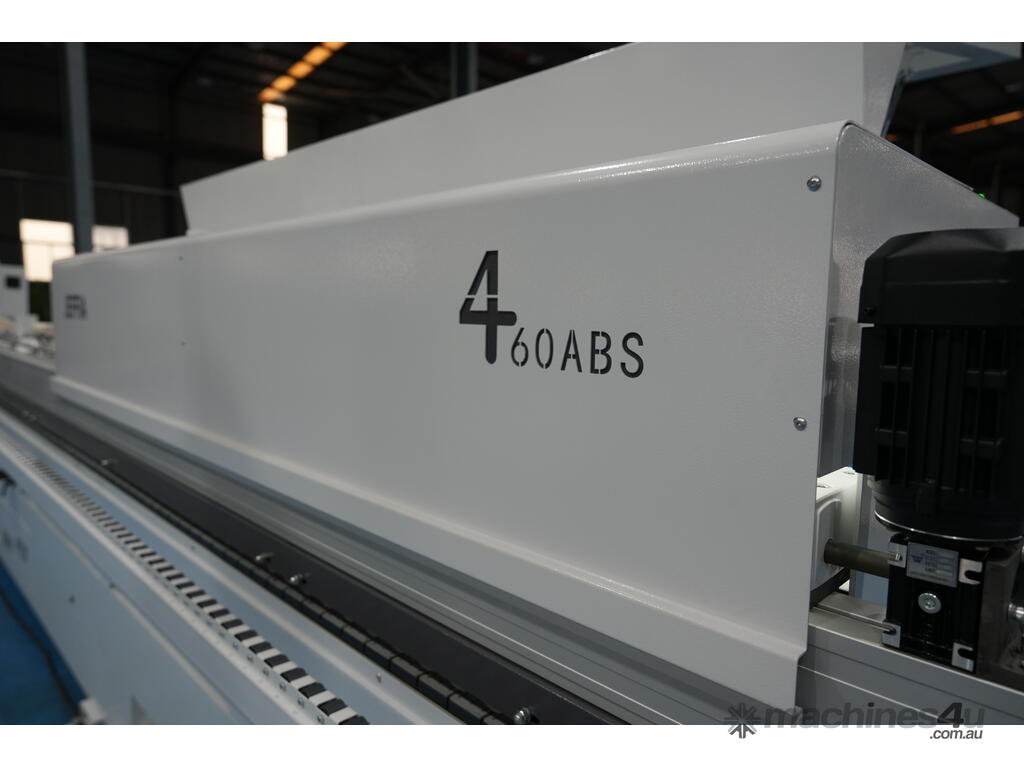

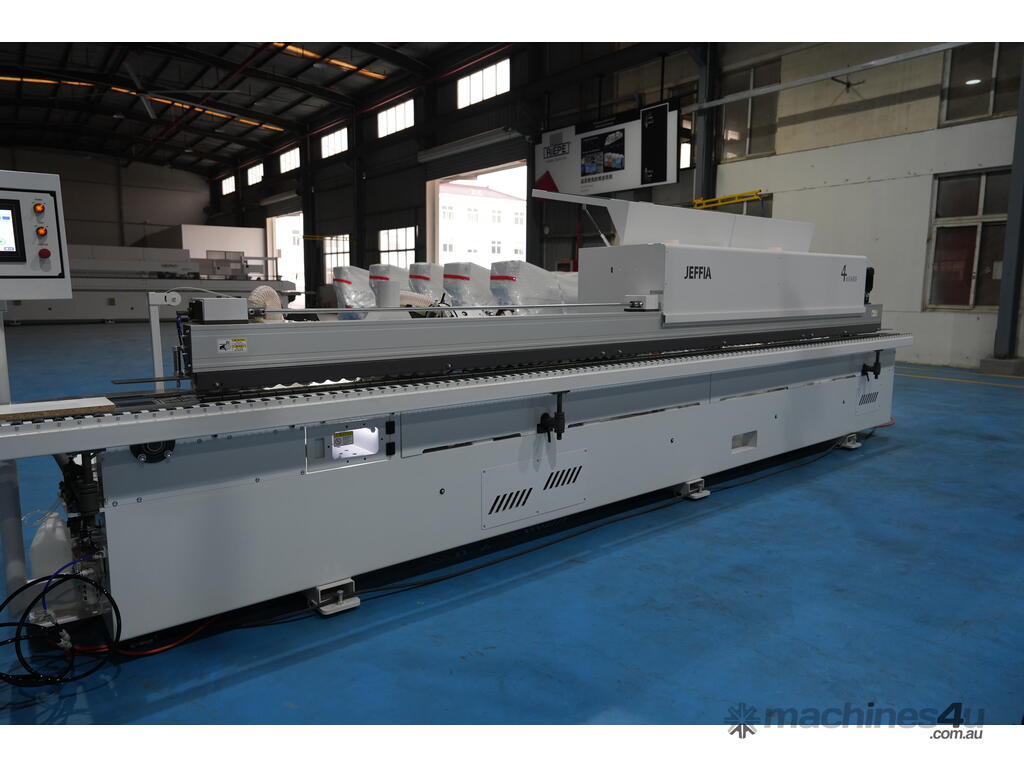

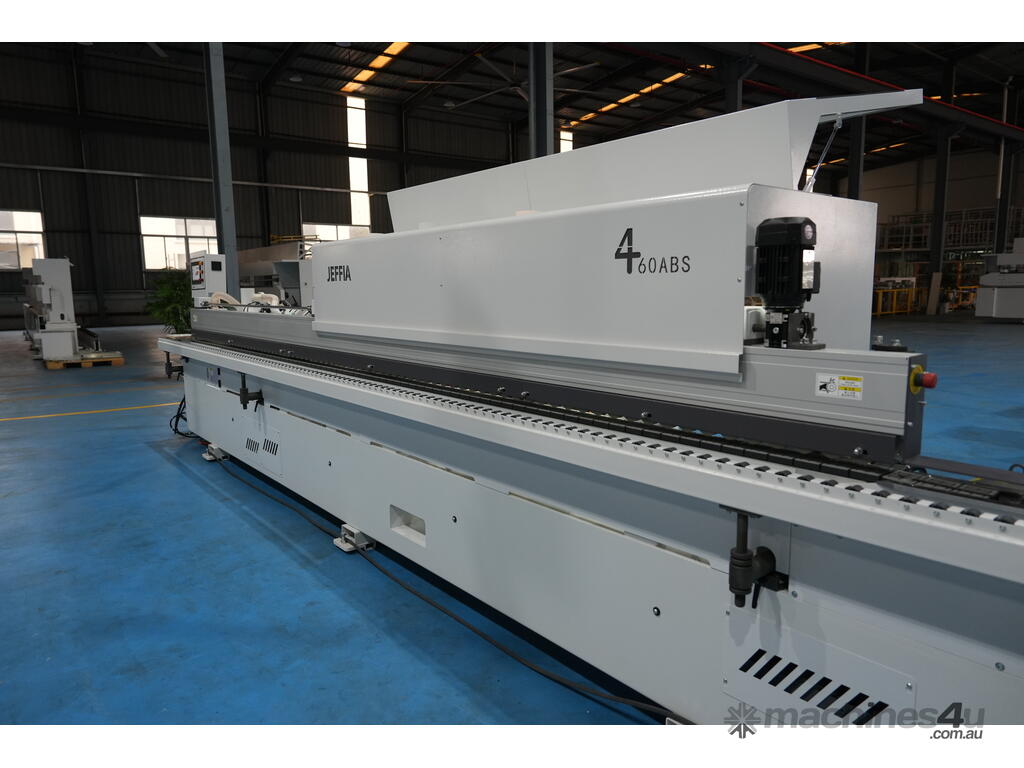

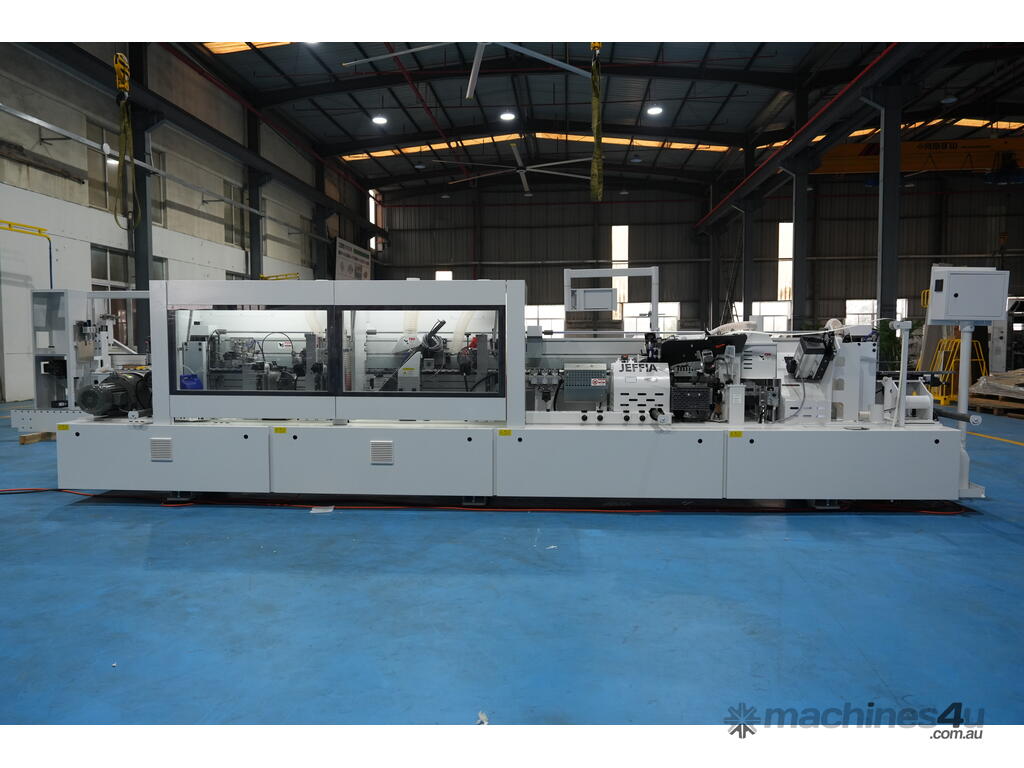

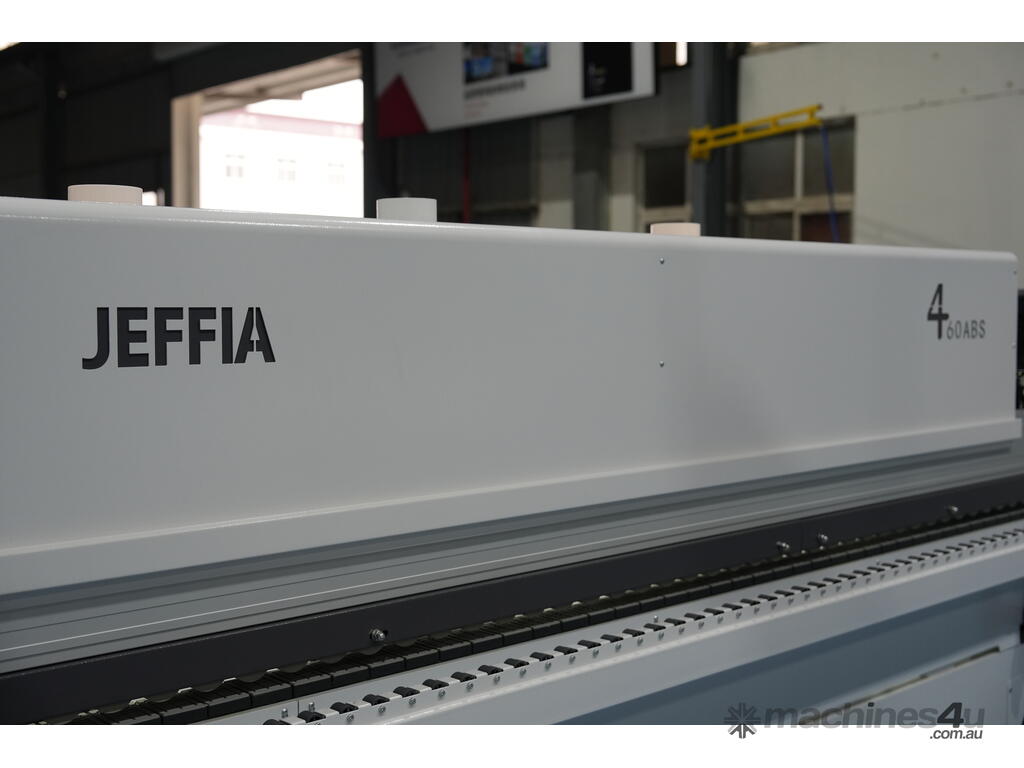

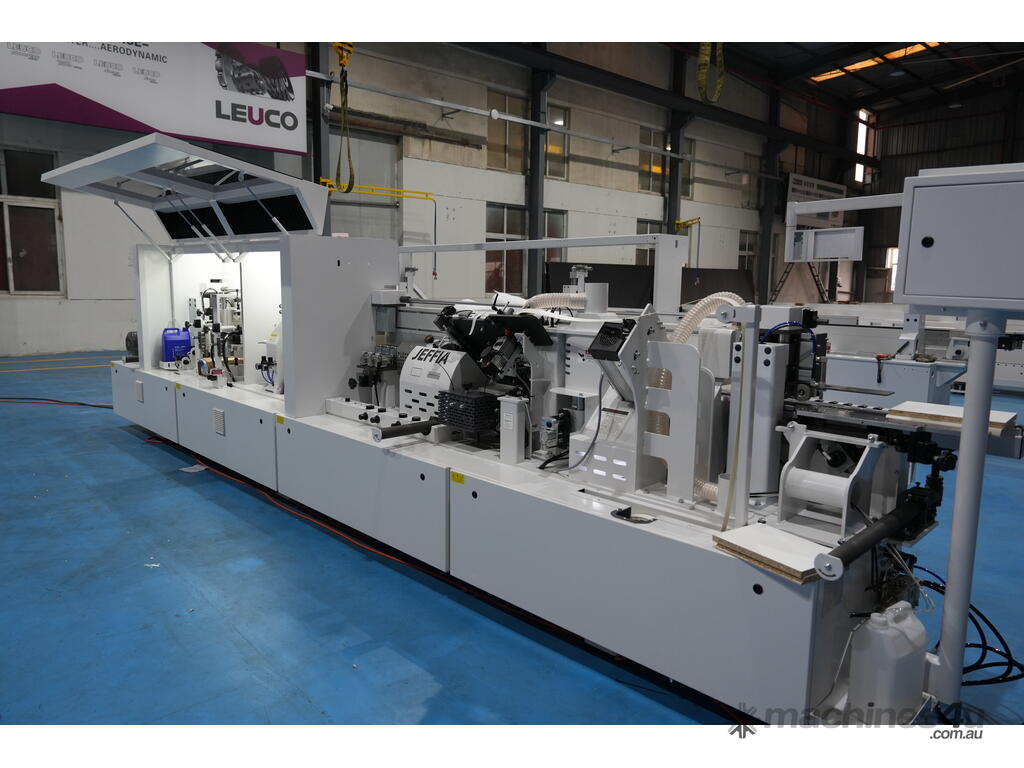

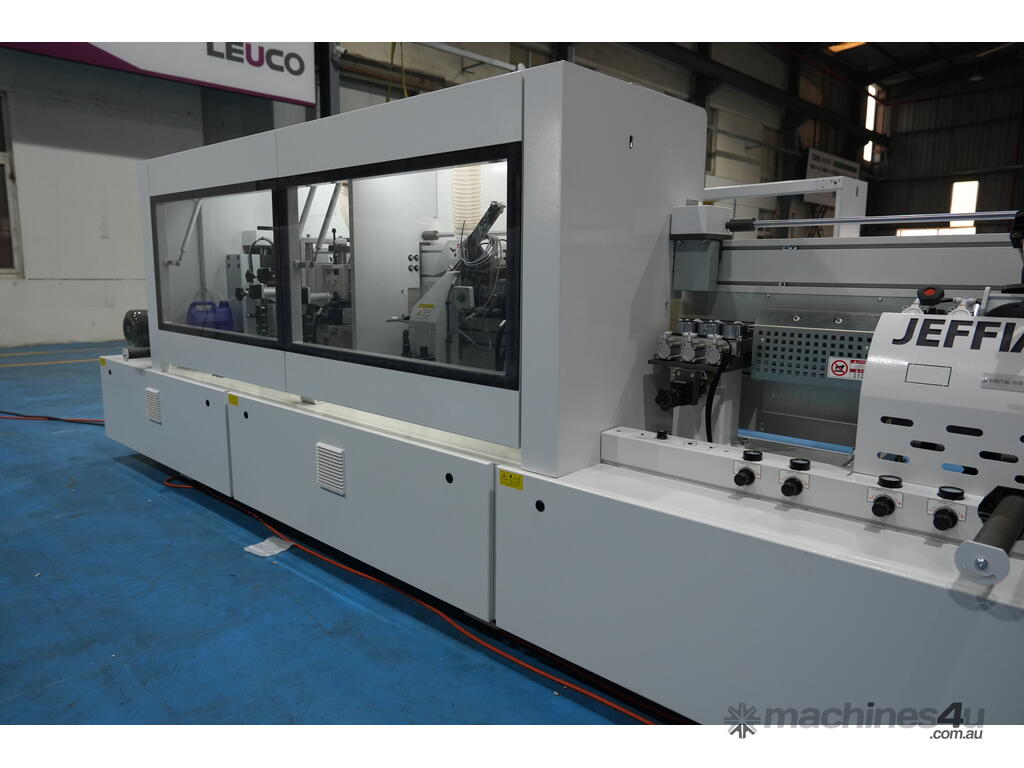

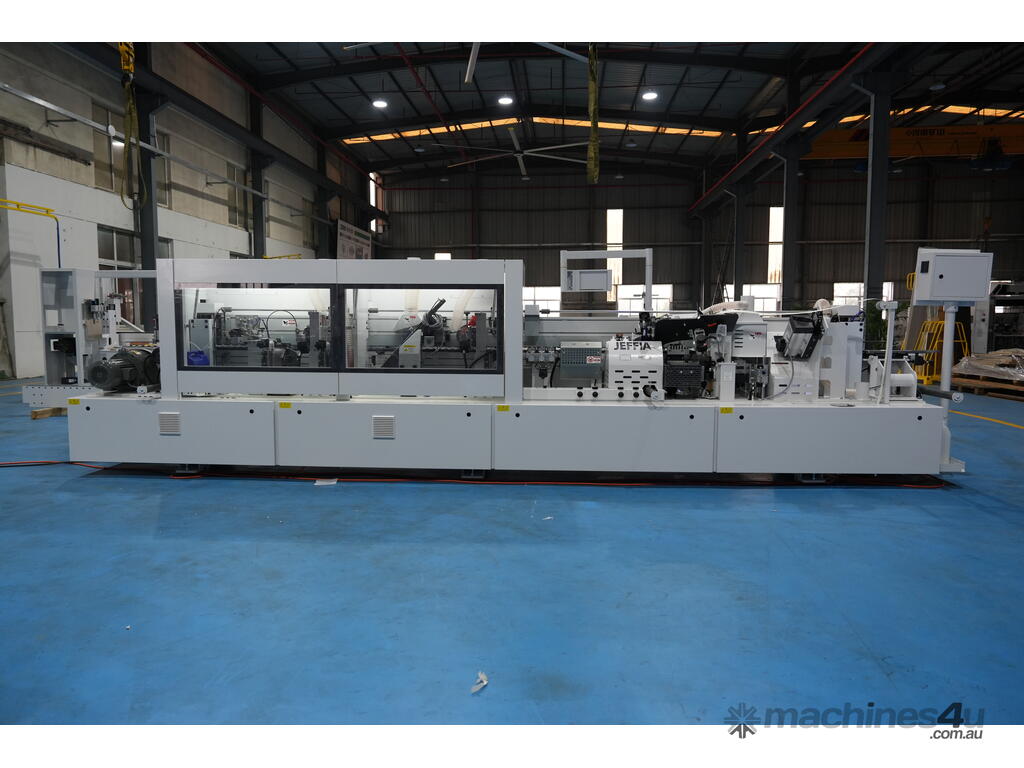

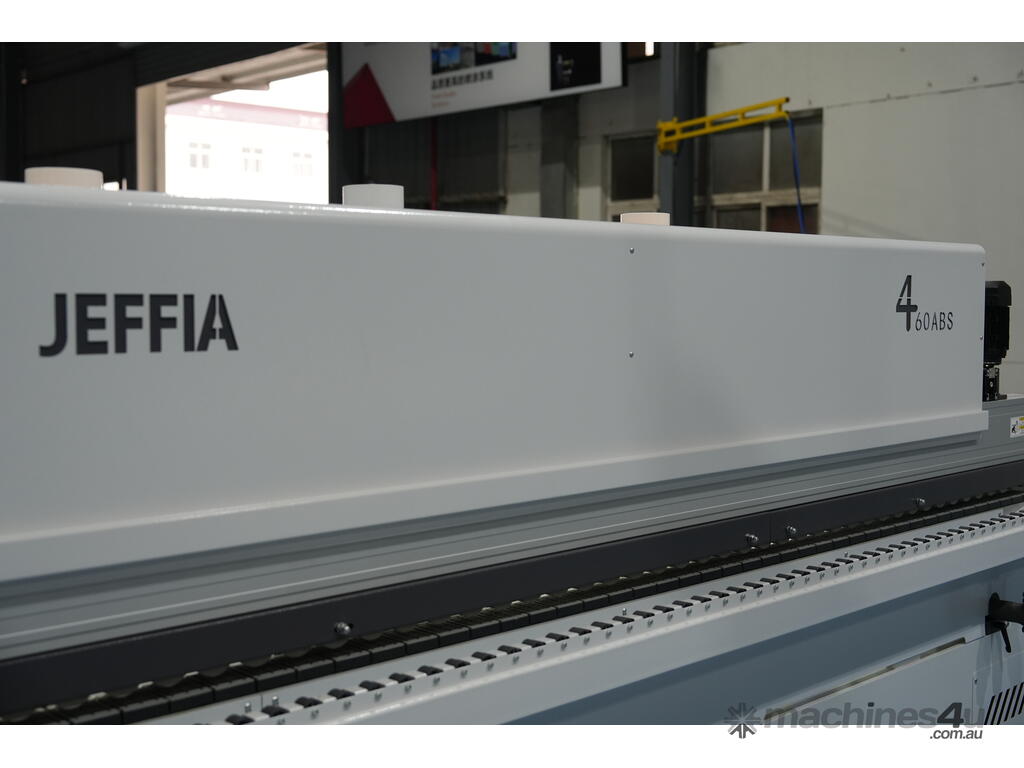

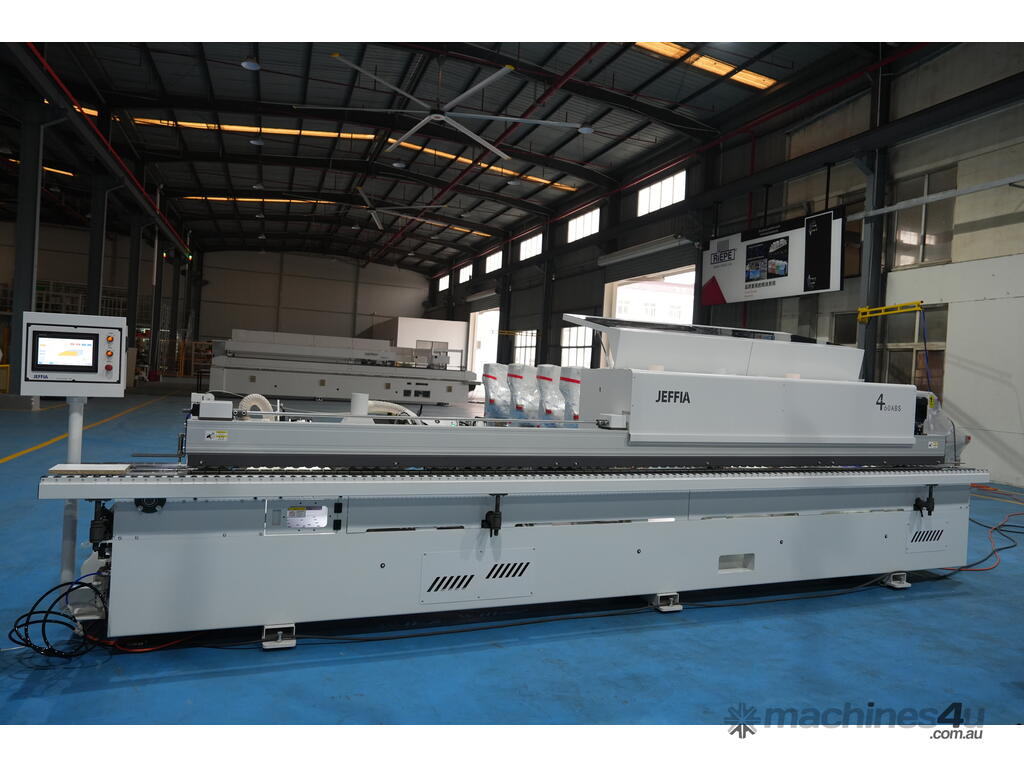

Jeffia 460ABS – 45° Edge Banding Machine (Upgraded Version)
The Jeffia 460ABS is an upgraded industrial edge banding machine designed for high-quality 45° bevel edge and 90° straight edge processing. It is suitable for professional cabinet makers and furniture manufacturers who require superior finish quality and stable performance.

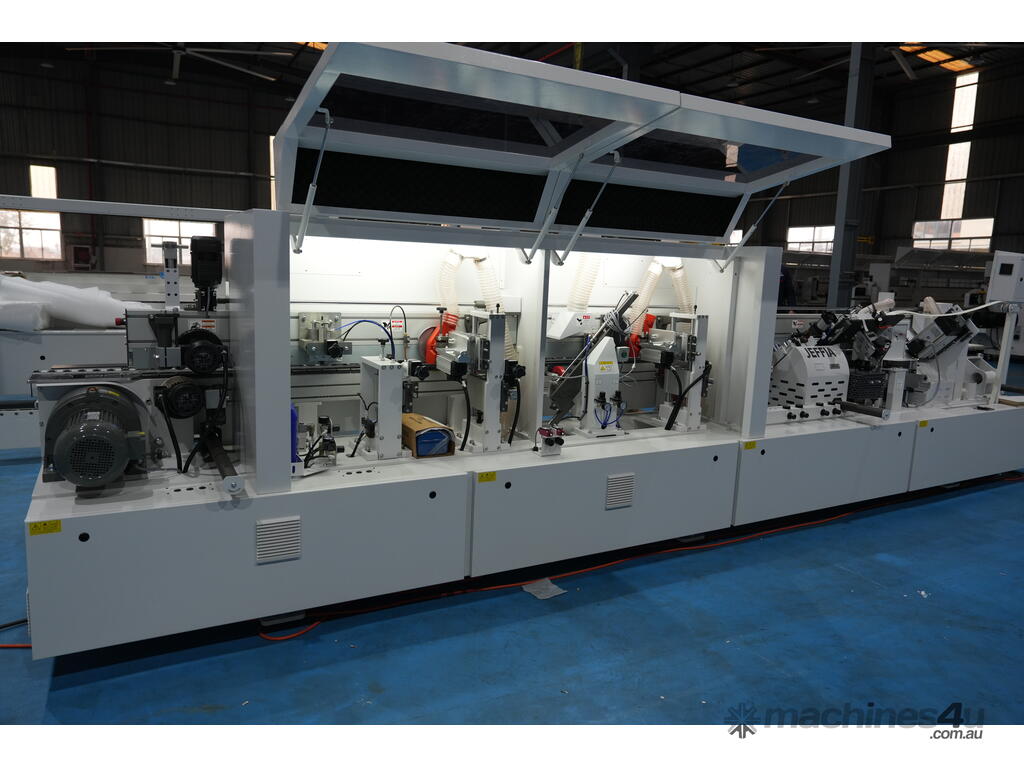

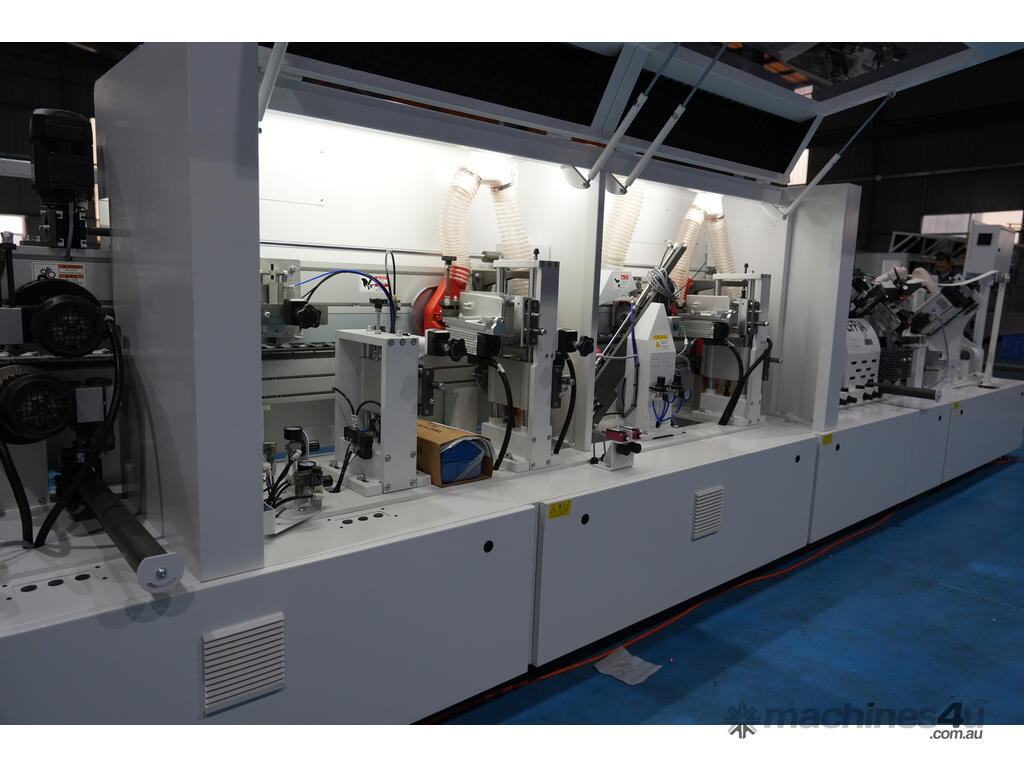

This model features a pre-milling unit, improved glue application system and advanced trimming and polishing functions, delivering clean joints and strong bonding for ABS and PVC edge bands.
Key Features:

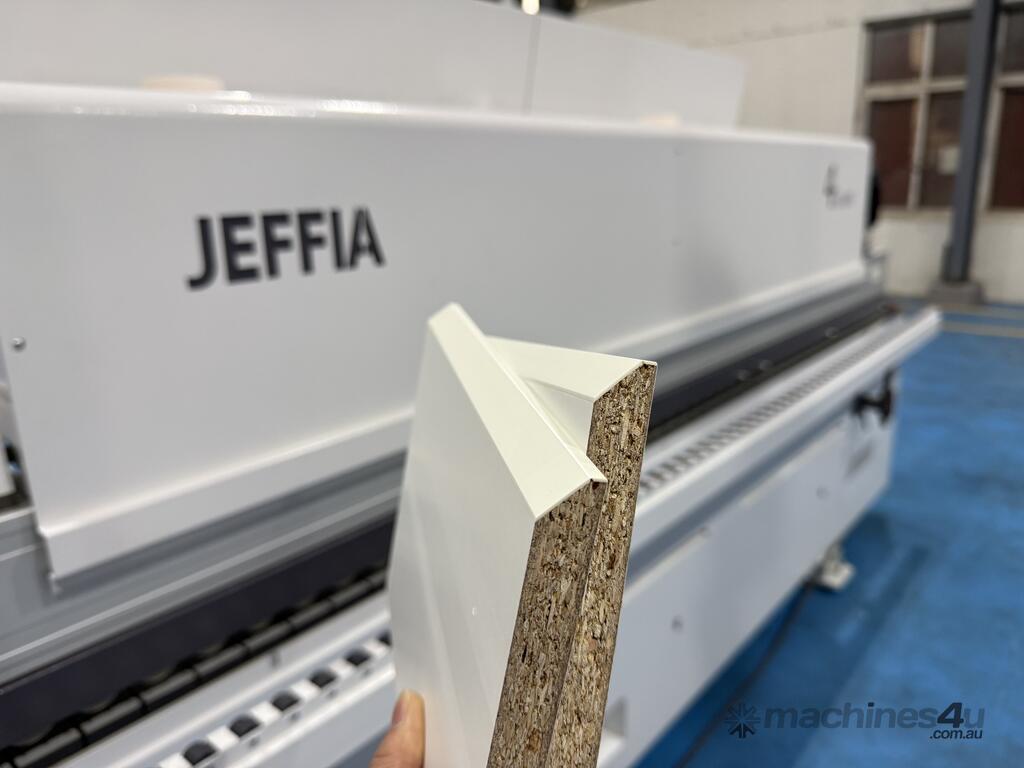

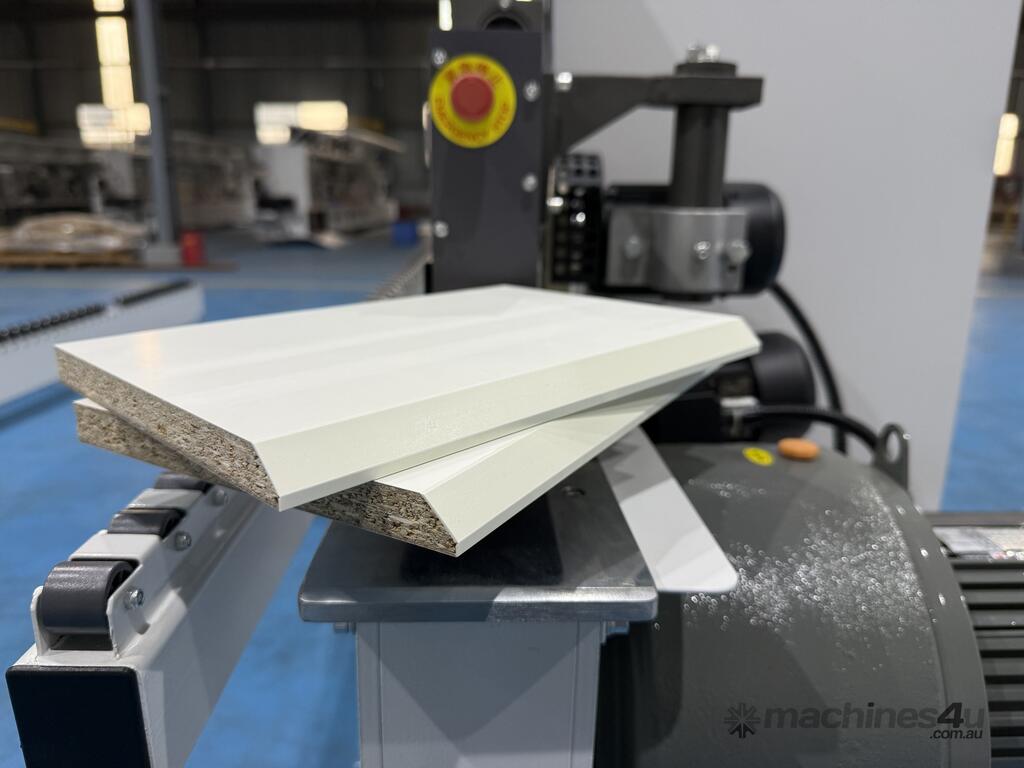

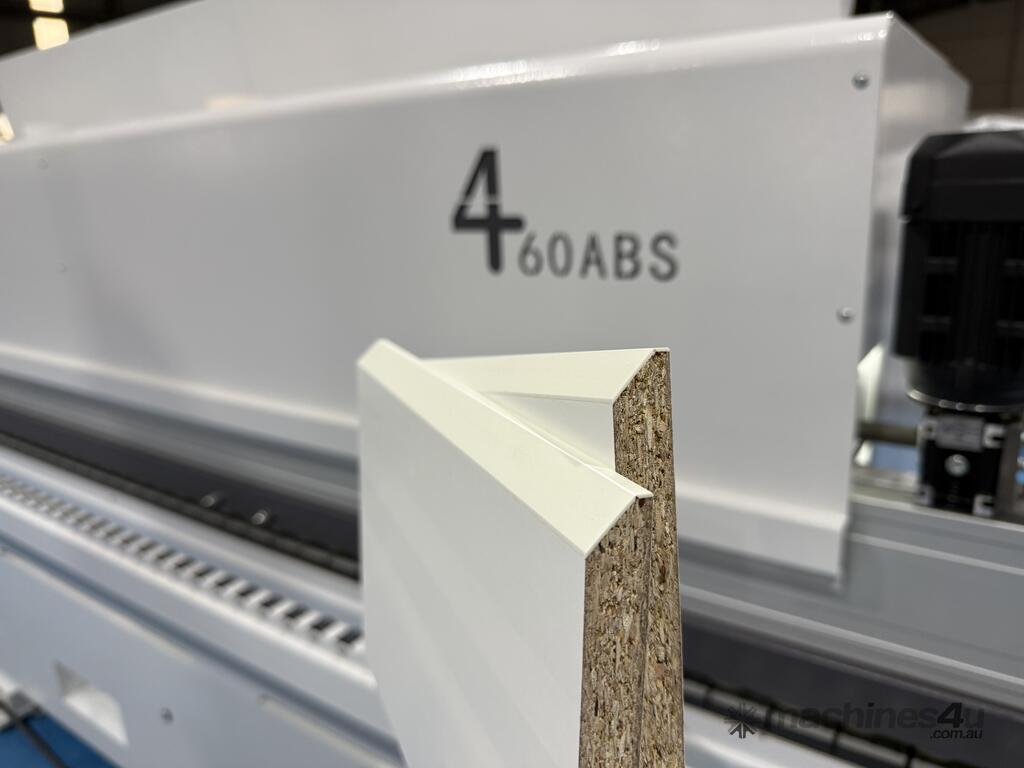

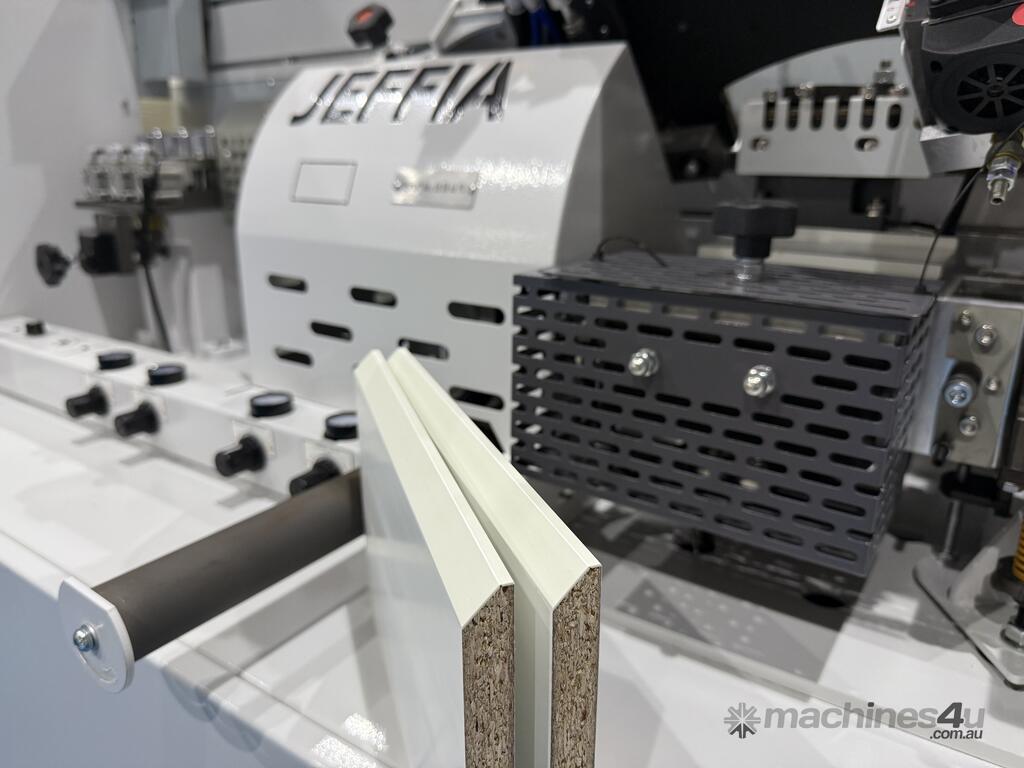

45° bevel and 90° straight edge banding in one machine

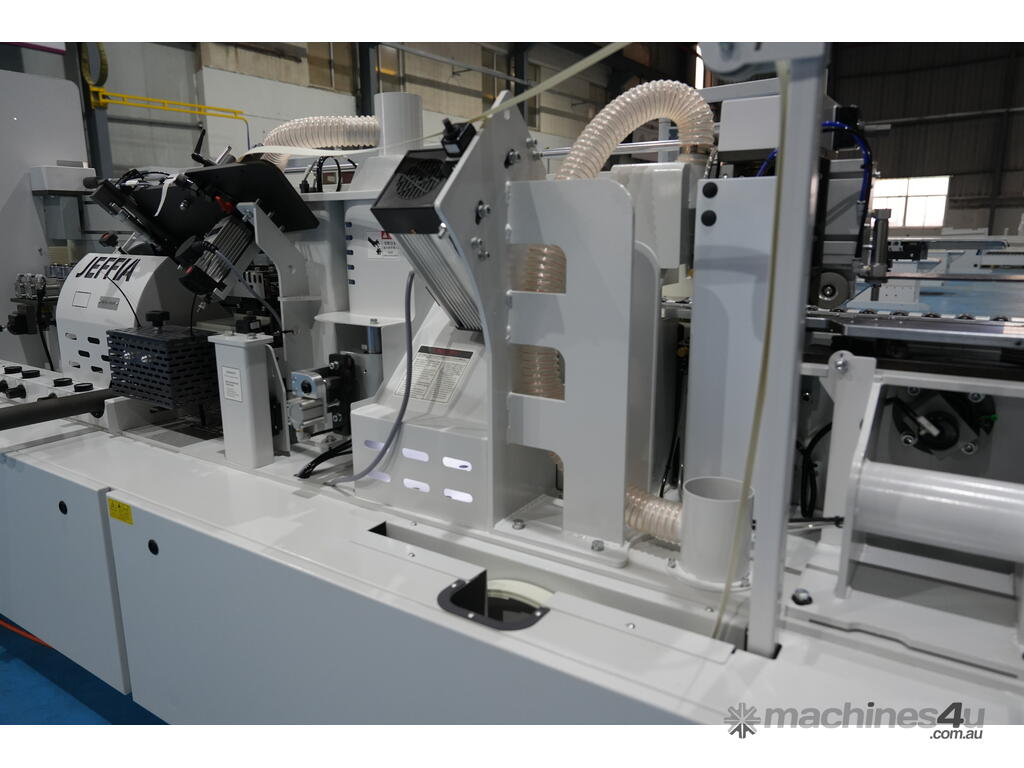

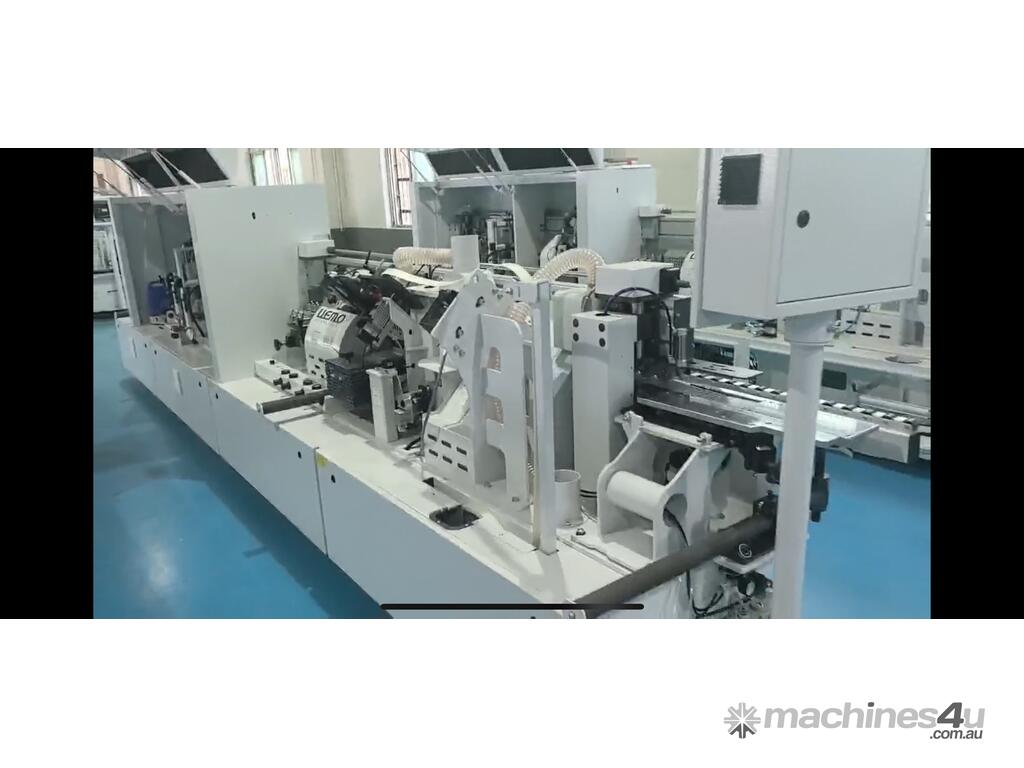

Pre-milling unit for perfect edge preparation
45° sawing unit with independent dust extraction

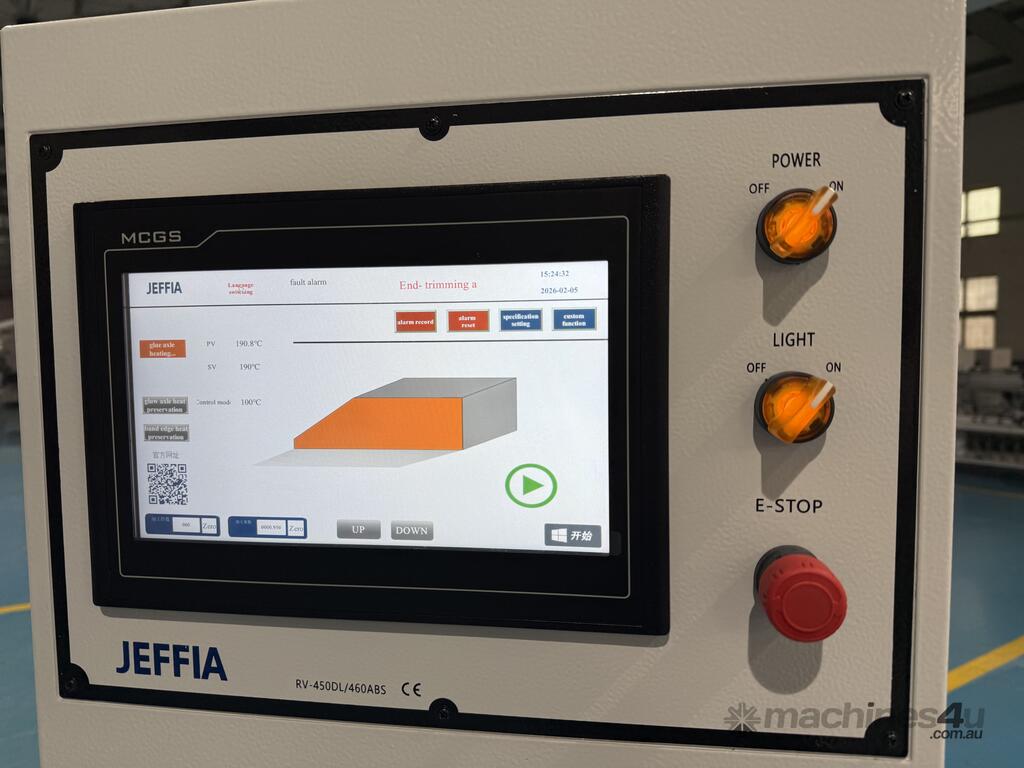

Touch screen control panel, easy operation
Slot cutting unit for accurate folding and connection

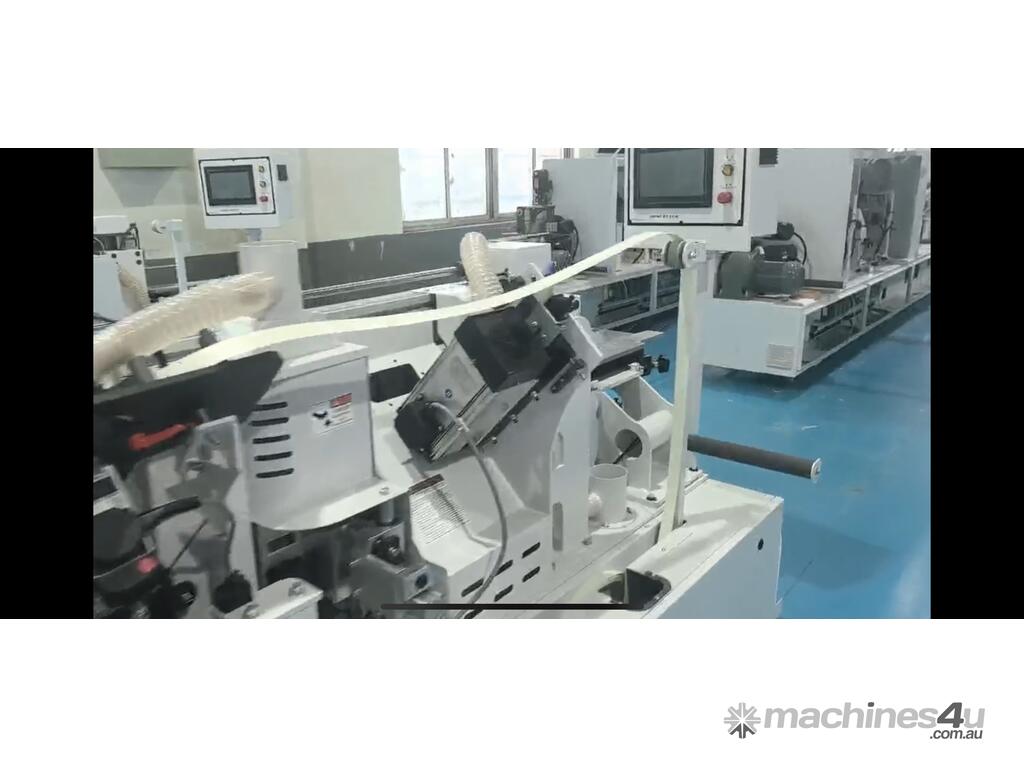

Warm-keeping device for edge band heating
Band thermal reduction system for improved surface finish
45° bevel gluing unit with pressure rollers
Flat scraping unit for smooth surface

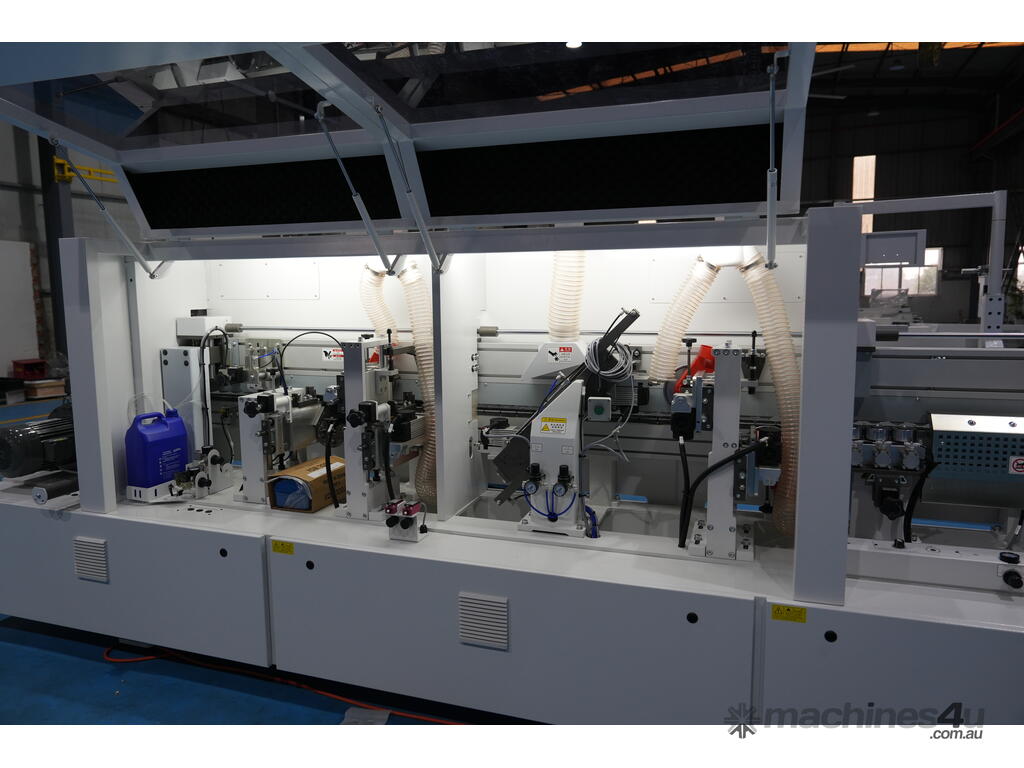

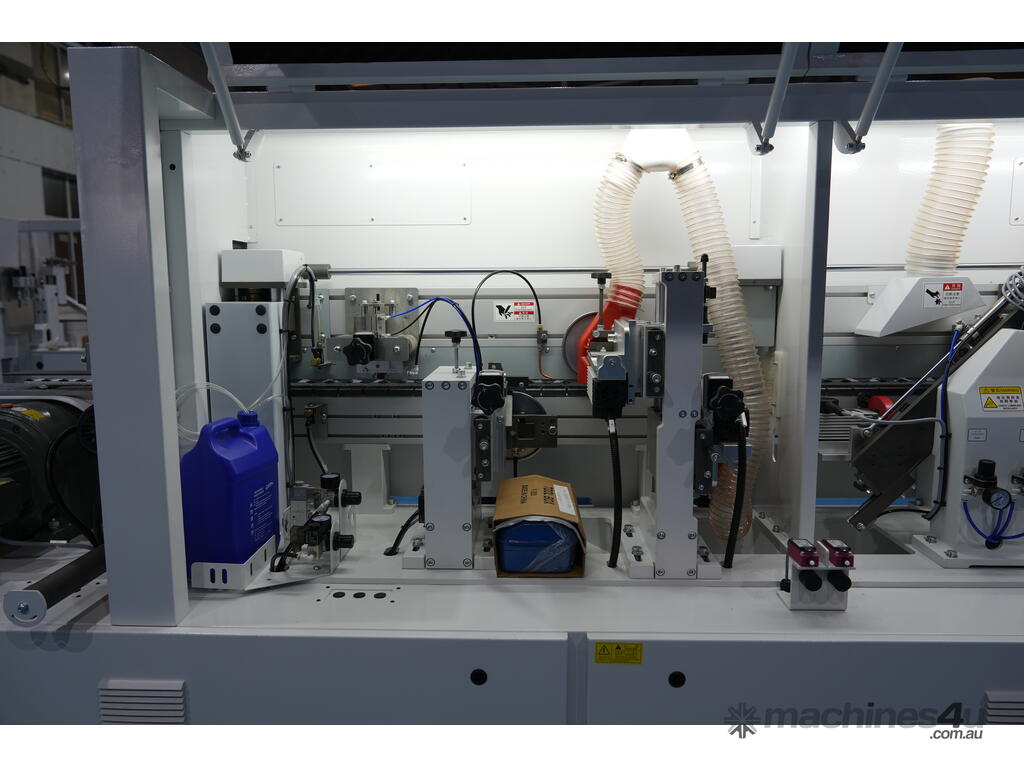

End trimming, double trimming, cleaning and polishing
Suitable for ABS and PVC edge band materials

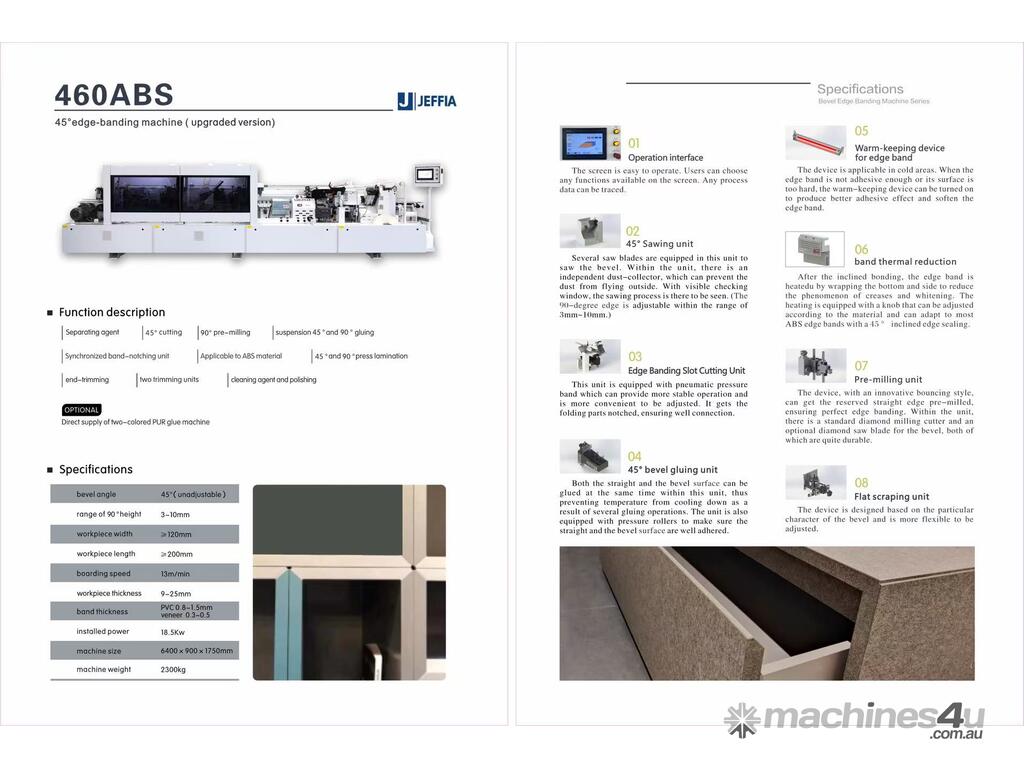

Technical Specifications:
Bevel angle: 45° (fixed)
Workpiece thickness: 9 – 25 mm
Edge band thickness:
PVC: 0.8 – 1.5 mm
Veneer: 0.3 – 0.5 mm
Minimum workpiece width: ?120 mm
Minimum workpiece length: ?200 mm
Feeding speed: 13 m/min
Installed power: 18.5 kW
Machine size: 6400 × 900 × 1750 mm
Machine weight: approx. 2300 kg
Applications:
Ideal for:
Kitchen cabinet manufacturing
Wardrobe and joinery production
Furniture panels
Custom shopfitting and interior fit-out
This upgraded model provides higher efficiency, cleaner edges and stronger adhesion, making it an excellent solution for workshops requiring premium bevel edge banding.
???? Optional short version (if you want)
Jeffia 460ABS 45° Edge Bander – Upgraded model with pre-milling, suitable for ABS and PVC edge banding. Supports 45° bevel and straight edges with trimming, scraping and polishing. Ideal for cabinet and furniture manufacturers.
